Cheap Mod: DIY AUX Input in a 2005-2008 Factory Head Unit

Discussion in 'Audio & Video' started by fbconvert, Jun 9, 2011.

  1. Jul 24, 2011 at 7:23 PM
    #101
    yamabiker

    yamabiker Well-Known Member

    Joined:
    Apr 5, 2009
    Member:
    #15616
    Messages:
    46
    Gender:
    Male
    Utah
    Vehicle:
    2006 Double Cab SR5 TRD
    OK, a little slow I am. I went back through all of the pictures and my non JBL 6-disc CD is the same as the JBL 6-disc CD. I focused on the non JBL single disc and had the blinders on to the 6-disc. So FB, you did solder to the smaller points on the CD board. :cool: There is more separation between these two then those on the stereo circuit board. I am going to practice soldering a bit before I make the attempt.

    Yamabiker

  2. Jul 24, 2011 at 7:26 PM
    #102
    fbconvert

    fbconvert [OP] It works if you work it.

    Joined:
    Apr 25, 2011
    Member:
    #55535
    Messages:
    359
    Gender:
    Male
    First Name:
    Brian
    Portland, OR
    Vehicle:
    2005 Tacoma Double Cab TRD Sport
    Bought as a wrecked vehicle almost done repairing it. It is my daily driver
    personally I wouldn't make that bet. It looks like on sandman's points the first wire in the ribbon cable is the RCH and the 3rd is the LCH. Double check that with yours. It makes sense that they are the same but I wouldn't just assume.

  3. Jul 25, 2011 at 10:00 PM
    #103
    yamabiker

    yamabiker Well-Known Member

    Joined:
    Apr 5, 2009
    Member:
    #15616
    Messages:
    46
    Gender:
    Male
    Utah
    Vehicle:
    2006 Double Cab SR5 TRD
    It worked! I was a bit unsure until I plugged it in. Hope my solder joints with stand the test of time. Thanks for all the help FB.

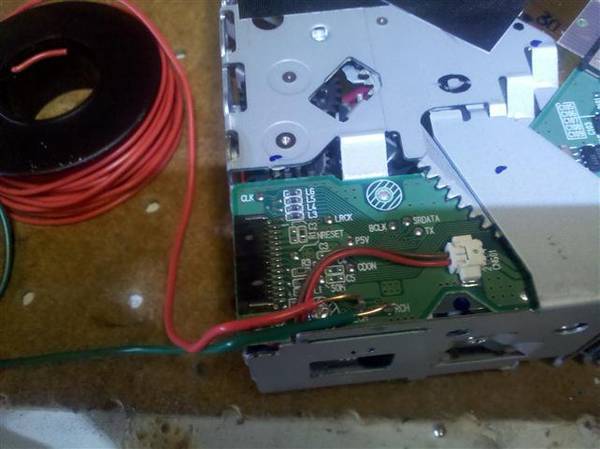

    First image, wires soldered onto board.
    [​IMG]

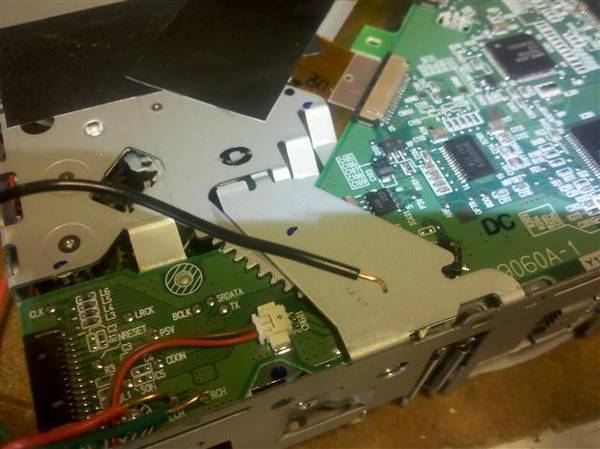

    Showing with the black wire how I bent the solid wire end to solder it onto the circuit board. I used 22 gauge wire.
    [​IMG]

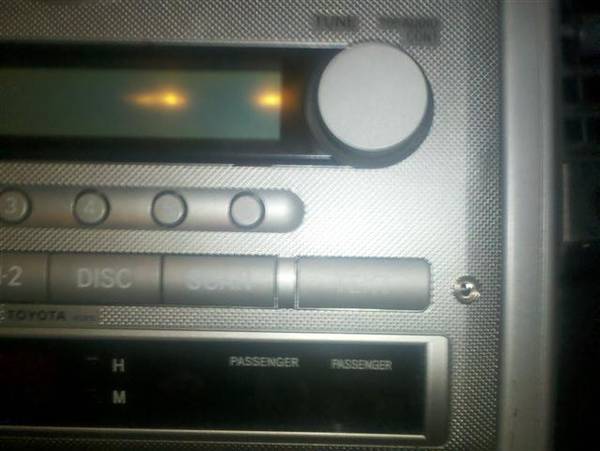

    The finished aux input.




    [​IMG]


    Yamabiker

  4. Jul 27, 2011 at 11:56 AM
    #104
    fbconvert

    fbconvert [OP] It works if you work it.

    Joined:
    Apr 25, 2011
    Member:
    #55535
    Messages:
    359
    Gender:
    Male
    First Name:
    Brian
    Portland, OR
    Vehicle:
    2005 Tacoma Double Cab TRD Sport
    Bought as a wrecked vehicle almost done repairing it. It is my daily driver
    I like the aux jack location. It is very similar to this one on ebay. Only the guy is selling it for $385...? I would be shocked if he ever sells one for that price... I know he offers the service for $50 bucks if you want to send him your head unit.

    Anyways, I read his description on the one for sale on ebay it sounds like he modified his aux jack to play from the radio input and not the CD. This would eliminate the need for a CD to be in the head unit.

    As soon as I get my new 2009+ head unit I will experiment with my old one to see if I can't find out how to tap into the radio channels.

  5. Jul 27, 2011 at 3:49 PM
    #105
    dan0

    dan0 Well-Known Member

    Joined:
    Mar 7, 2011
    Member:
    #52533
    Messages:
    1,364
    Gender:
    Male
    swamplands of sc
    Vehicle:
    Sold 2011 Prerunner Doublecab 4cyl auto
    thats an awful lot of exposed bare wire
    might want to cover it with something or redo them

  6. Jul 27, 2011 at 4:01 PM
    #106
    Joben7726

    Joben7726 wes mantooth ™

    Joined:
    Oct 26, 2010
    Member:
    #45285
    Messages:
    6,383
    Gender:
    Male
    First Name:
    Joben
    Western PA/Va Beach
    Vehicle:
    Trail limo
    more than list-able
    Great write up!

  7. Jul 29, 2011 at 7:43 AM
    #107
    poynter

    poynter Well-Known Member

    Joined:
    Jan 18, 2011
    Member:
    #49454
    Messages:
    205
    Gender:
    Male
    First Name:
    Tony
    Somerset, KY
    Vehicle:
    05 Taco 4x4 SR5 TRD AC
    Finished this last night. This isnt hard at all and its only the 3rd or 4th time soldering something like this for me.
    My volume goes down a bit when I switch to the aux from the CD that was playing. Not a big deal till you forget that its cranked up and switch back.
    I may burn a blank CD just to keep that from happening.
    thanks again!

  8. Jul 29, 2011 at 11:42 AM
    #108
    gottahot1

    gottahot1 Well-Known Member

    Joined:
    Dec 13, 2010
    Member:
    #47629
    Messages:
    162
    Gender:
    Male
    First Name:
    T.D.
    Arizona
    Vehicle:
    08 BLUE double cab 4x4 short bed Sport TRD
    'Caribe' fog light mod - Power port always on mod - Defrost A/C override mod - Illuminated 4x4 switch - Read diff breather relocation

    I bought the input jack (be careful, the Redio Shack guy tried to give me a mono input jack. Turd.) and some solder and can't wait to do this mod, but I'm waiting for updates regarding tapping into a source other than the CD.

  9. Jul 30, 2011 at 3:32 PM
    #109
    possom

    possom Member

    Joined:
    Jul 28, 2011
    Member:
    #60717
    Messages:
    22
    Gender:
    Male
    Houston, TX
    Vehicle:
    Tacoma 4x4
    Did the mod, it "Works" but i can still hear scratchy CD music in the background. Not really enjoyable.

    Any suggestions? I had a hell of a time soldering to the board, maybe my connections aren't great there. Also used pretty thin solid wire.

    I may try a blank CD.

    Update: Burned a silent CD and all is good. This will do!

  10. Jul 30, 2011 at 5:49 PM
    #110
    Sandman614

    Sandman614 LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    9,320
    Gender:
    Male
    Boone, NC\Cary, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    It's eating at me, that little bit of static between songs.. I might pull mine out tomorrow and see what I can do about changing the ground...

    I'm thinking I'll move it off the cd player.


    Please pardon any spelling mistakes or non-sensical BS. This message is sponsored by my iPod touch.

  11. Jul 31, 2011 at 12:00 AM
    #111
    possom

    possom Member

    Joined:
    Jul 28, 2011
    Member:
    #60717
    Messages:
    22
    Gender:
    Male
    Houston, TX
    Vehicle:
    Tacoma 4x4
    You can download various lengths of silent tracks at the URL below. Use the longer tracks and you can minimize the time between songs(if i understand your comment). I'm very pleased now using a silent CD.

    http://duramecho.com/Misc/SilentCd/index.html

  12. Aug 1, 2011 at 3:58 PM
    #112
    fbconvert

    fbconvert [OP] It works if you work it.

    Joined:
    Apr 25, 2011
    Member:
    #55535
    Messages:
    359
    Gender:
    Male
    First Name:
    Brian
    Portland, OR
    Vehicle:
    2005 Tacoma Double Cab TRD Sport
    Bought as a wrecked vehicle almost done repairing it. It is my daily driver
    I just got my new 2009 JBL Head Unit in so I will gladly sacrifice my old one to find out how to tap into the radio input. I might need some time though, I am still trying to get the bluetooth components, i.e steering wheel controls and microphone, hooked into my new head unit. Once I figure that out I will get to work on probing around for a solution.

  13. Aug 2, 2011 at 11:33 PM
    #113
    maui_con3

    maui_con3 Member

    Joined:
    Dec 23, 2008
    Member:
    #11826
    Messages:
    10
    Gender:
    Male
    Was it hard to get access and remove the aux input blank. I wanted to add a switch to the blank in the middle.

  14. Aug 3, 2011 at 8:07 PM
    #114
    gottahot1

    gottahot1 Well-Known Member

    Joined:
    Dec 13, 2010
    Member:
    #47629
    Messages:
    162
    Gender:
    Male
    First Name:
    T.D.
    Arizona
    Vehicle:
    08 BLUE double cab 4x4 short bed Sport TRD
    'Caribe' fog light mod - Power port always on mod - Defrost A/C override mod - Illuminated 4x4 switch - Read diff breather relocation
    I don't know what you had in mind, but tacotunes.com has a module that takes your stock steering wheel controls and makes them useful in an aftermarket head unit. I wouldn't think you'd need anything like that if you're using another stock unit. Are the 09+ that different?

  15. Aug 3, 2011 at 9:26 PM
    #115
    fbconvert

    fbconvert [OP] It works if you work it.

    Joined:
    Apr 25, 2011
    Member:
    #55535
    Messages:
    359
    Gender:
    Male
    First Name:
    Brian
    Portland, OR
    Vehicle:
    2005 Tacoma Double Cab TRD Sport
    Bought as a wrecked vehicle almost done repairing it. It is my daily driver
    The 09+ JBL units have Bluetooth in them. It is a totally separate project that I am working on. My truck only has the left hand side steering wheel controls and not the right hand side which controls the bluetooth. I thought if I made my own switches for the right hand side and wired in the mic it would be no problem but it is not turning out that way. I put up a few post on my build page if you are interested. It is not really going as planned though, so I think I am going to give it a rest and see if I can't find a way to tap into the radio input on my old stereo. Hopefully I can make that a quick win to motivate me into getting this bluetooth thing to work.

    Melinda likes this.
  16. Aug 4, 2011 at 9:21 PM
    #116
    fbconvert

    fbconvert [OP] It works if you work it.

    Joined:
    Apr 25, 2011
    Member:
    #55535
    Messages:
    359
    Gender:
    Male
    First Name:
    Brian
    Portland, OR
    Vehicle:
    2005 Tacoma Double Cab TRD Sport
    Bought as a wrecked vehicle almost done repairing it. It is my daily driver
    Well I didn't figure it out but I got close. Check out this Link. I followed this guys direction but I could not find the audio processing chip in my JBL HU. I checked what I thought was every chip on the board with no luck. Seriously check out the link, it makes perfect sense I just need to find the audio processing chip.

  17. Aug 5, 2011 at 9:45 AM
    #117
    gottahot1

    gottahot1 Well-Known Member

    Joined:
    Dec 13, 2010
    Member:
    #47629
    Messages:
    162
    Gender:
    Male
    First Name:
    T.D.
    Arizona
    Vehicle:
    08 BLUE double cab 4x4 short bed Sport TRD
    'Caribe' fog light mod - Power port always on mod - Defrost A/C override mod - Illuminated 4x4 switch - Read diff breather relocation
    I read the article and it sounds like the same possible issues we're facing with the hijack of the CD input; static or bleedthrough from the hijacked audio source. To me, it doesn't sound any better than the method you originally proposed. The only difference is that no CD is required with the stereo hijack.

    I'm torn, I might just burn a silent CD and go with the original mod you posted. It seems that it's the method with the least likelihood for sound interference. One of my main concerns is that I'll get good clean sound from my mp3 player. Otherwise, it's not worth it to me - I'd rather get the GromAudio unit.

  18. Aug 5, 2011 at 10:17 AM
    #118
    fbconvert

    fbconvert [OP] It works if you work it.

    Joined:
    Apr 25, 2011
    Member:
    #55535
    Messages:
    359
    Gender:
    Male
    First Name:
    Brian
    Portland, OR
    Vehicle:
    2005 Tacoma Double Cab TRD Sport
    Bought as a wrecked vehicle almost done repairing it. It is my daily driver
    I guess I am little more optimistic. I have never heard any sound bleed through from the CD. I have my iPhone's volume almost maxed out and my HU volume usually around the 35 or 45. Each chip is different though so I am hoping to have the same/similar outcome when I find the chip on the radio.

    But just having a blank cd sounds like the best option for anyone that is concerned. Especially if you have the 6 disc. I just want to figure this one out since I am not using the head unit anyways and if it does work with out over lapping the two sound sources then I think it would be a better option.

  19. Aug 5, 2011 at 12:44 PM
    #119
    gottahot1

    gottahot1 Well-Known Member

    Joined:
    Dec 13, 2010
    Member:
    #47629
    Messages:
    162
    Gender:
    Male
    First Name:
    T.D.
    Arizona
    Vehicle:
    08 BLUE double cab 4x4 short bed Sport TRD
    'Caribe' fog light mod - Power port always on mod - Defrost A/C override mod - Illuminated 4x4 switch - Read diff breather relocation
    HOLY CRAP! If mine gets up to 30 I think it's getting loud. I usually try to keep it around 20-25.


    Totally agreed.

  20. Aug 5, 2011 at 12:57 PM
    #120
    possom

    possom Member

    Joined:
    Jul 28, 2011
    Member:
    #60717
    Messages:
    22
    Gender:
    Male
    Houston, TX
    Vehicle:
    Tacoma 4x4
    Today i noticed (not sure if new or just noticing) that with my ipod plugged into my usb charger in the car, there is some static. If I unplug it from the power it goes away. Anyone else have this issue and a fix? I assume bad ground maybe? Silent CD still working like a boss.
