Cheap mod, rear diff "snorkle"

Discussion in '2nd Gen. Tacomas' started by SLOTaco, Dec 19, 2008.

  1. Dec 19, 2008 at 2:29 PM
    #1
    SLOTaco

    SLOTaco [OP] Ultimate Member

    Joined:
    Jun 28, 2007
    Member:
    #1950
    Messages:
    270
    Gender:
    Male
    Central Coast, California
    Vehicle:
    06 TRD Sport
    '06 TRD Sport 4x4 AC, K&N drop in air filter, Magnaflow cat back, Bilstein 5100's with Toytec adjustable front coil over 3" lift, rear TSB, AllPro UCA's.
    So, while driving your truck your rear differential warms up, and thus the gasses inside expand and push out though the breather, If your out wheeling and you splash through a creek it can quickly cool the casing causing it to suck in air through the breather. If the breather works correctly it wont allow the inflow of air or water, however to avoid even worrying about getting water in your rear diff while offroading you can install a breather tube.

    Total cost $8

    First here is what you need:

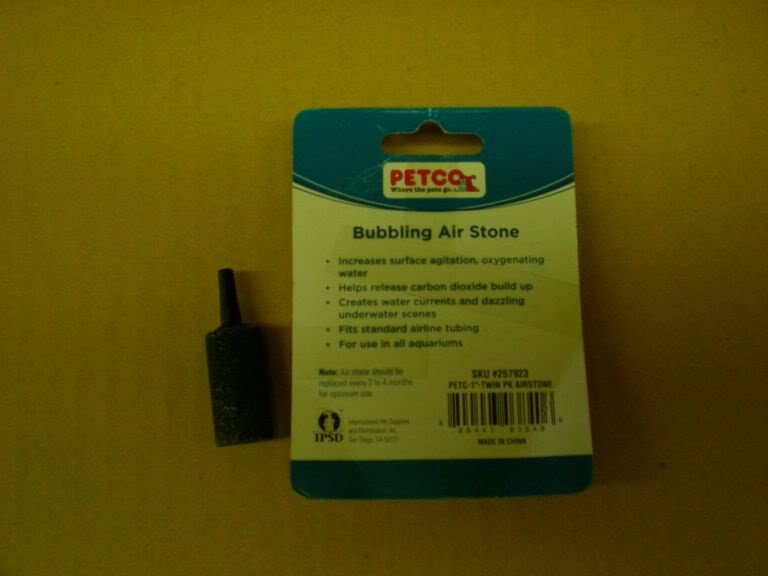

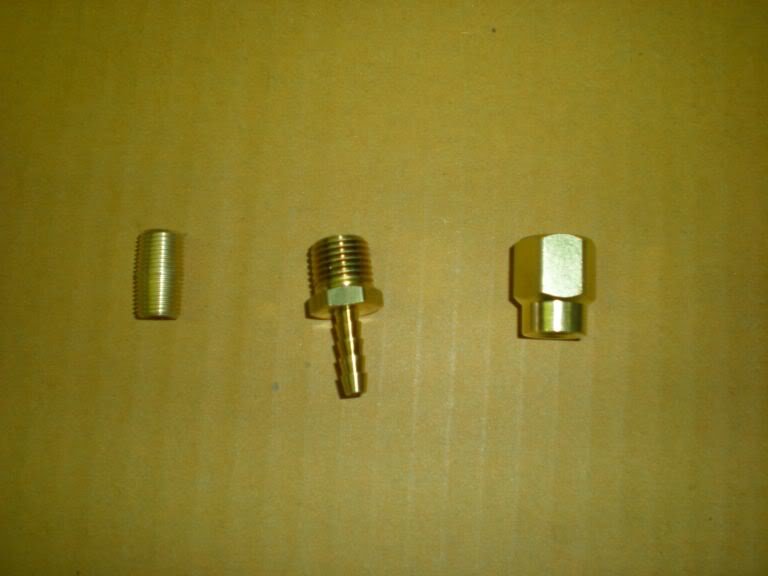

    The stock breather takes 14mm, depending on the fittings you buy, my brass fittings took 5/8" wrench, some zip ties, and a fish tank air stone, at least about 8ft of tubing preferably something oil/fuel resistant.

    [​IMG]
    [​IMG]

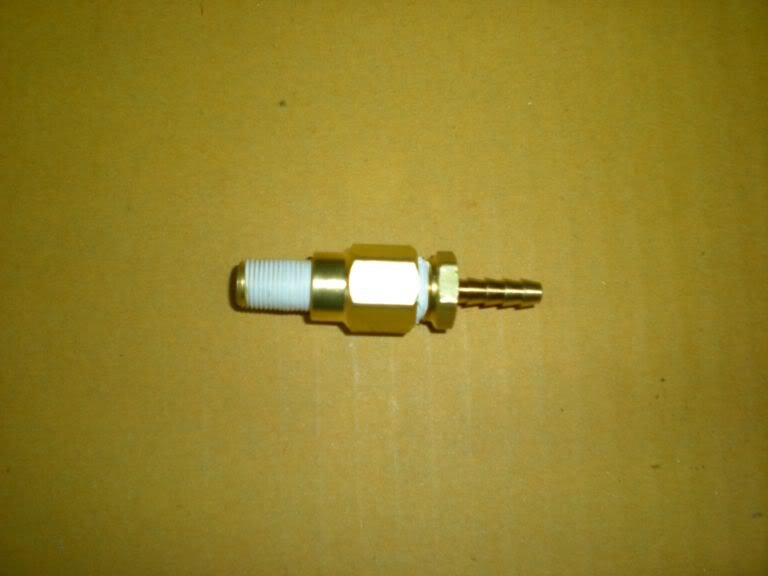

    Assemble the brass fittings:

    [​IMG]

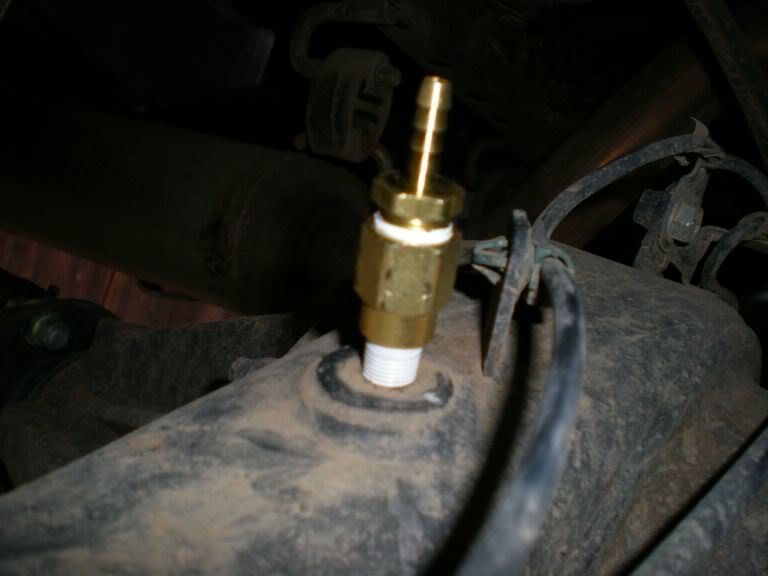

    Now locate and remove the oem breather and screw on your newly assembled brass fittings:

    [​IMG]

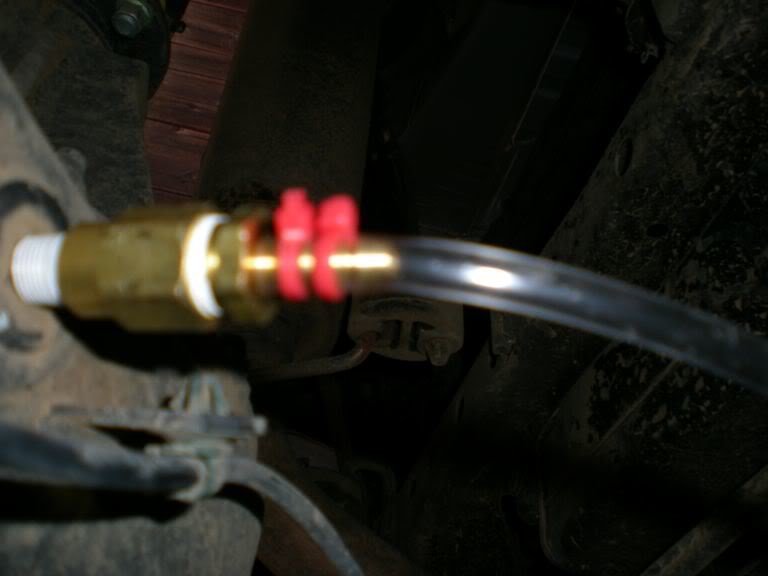

    Attach tubing, if you have bought the right diameter it will fit tight, I did not need to use the zip ties but better safe then sorry.

    [​IMG]

    Run hose up over spare tire securing it with zip ties, make sure to leave enough slack to allow the axle to move up and down, use the break lines as a guage for how much slack you need

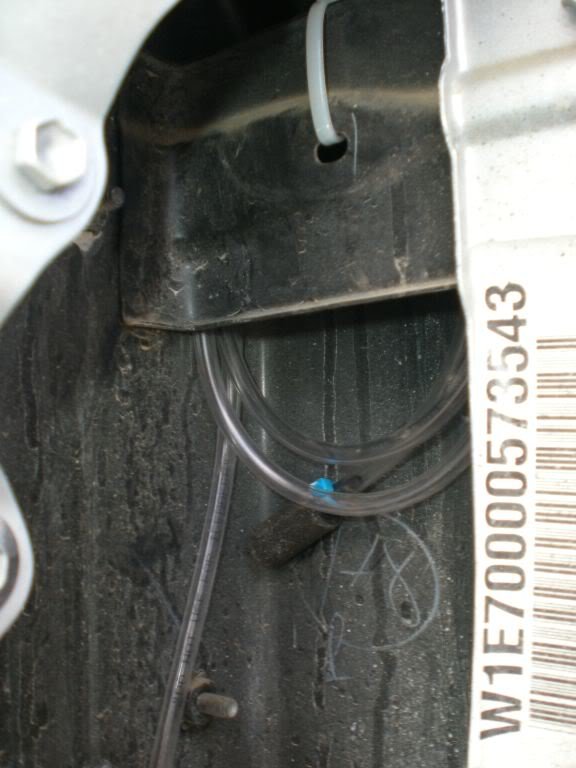

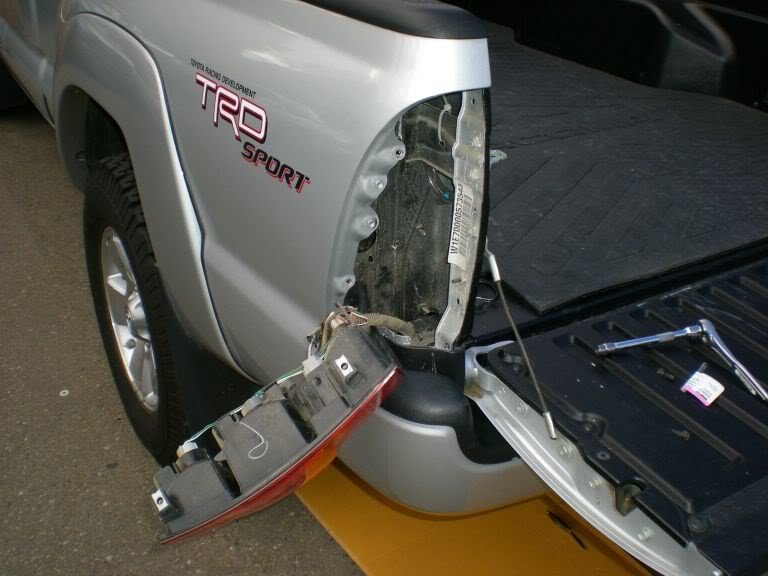

    Run the other end of the tube up behind your tail light, mount the air stone on this end of the hose, this keeps dust and moisture out of this side, then secure in that cavity with zip ties, I had a few feet extra of hose I just coiled into the cavity incase I need the length later:

    [​IMG]
    [​IMG]

    Put your taillight back on, presto Rear Diff Snorkle

    Took me about 15 minutes total including stopping to take pictures.

  2. Dec 19, 2008 at 2:33 PM
    #2
    Toy4Life

    Toy4Life 668: The Neighbor of the Beast

    Joined:
    Aug 29, 2007
    Member:
    #2566
    Messages:
    4,974
    Gender:
    Male
    First Name:
    Chad
    Slippery Rock, PA
    Vehicle:
    96 Subaru Outback 2.2 5mt
    92 4Runner SR5 3.0v6 4x4(sold) 02 Tacoma SR5 TRD Offroad 4x4 (sold)
    Interesting choice of materials, I like.

  3. Dec 19, 2008 at 4:21 PM
    #3
    Johnson8537

    Johnson8537 Well-Known Member

    Joined:
    Oct 27, 2007
    Member:
    #3258
    Messages:
    518
    Oregon
    Vehicle:
    06 TRD SPORT 4x4 Double Cab Long bed
    Revtek Leveling Kit with 1 1/2 block spacer in rear. 17" MotoMetal blacks on 32" tires. Access Lorado Tonneau - Bed mat Billet Grill Tinted Windows Pioneer 700BT with PAC steering wheel inerface. Wet Okole Seat Covers Front and back.
    Sweet... Nice idea!

  4. Dec 19, 2008 at 4:58 PM
    #4
    humanoid

    humanoid bite me

    Joined:
    Jun 27, 2007
    Member:
    #1932
    Messages:
    2,747
    Gender:
    Male
    Sunny SoCal
    Vehicle:
    I had a '99 Xtra Cab PreRunner SR5 V6
    AKA diff. breather mod too.
