Check Your U-Bolts

Discussion in '3rd Gen. Tacomas (2016-2023)' started by splitbolt, Oct 26, 2015.

Page 5 of 21
  1. Oct 28, 2015 at 9:39 AM
    #81
    Rattletrap66

    #81
    Rattletrap66 (ノಠ益ಠ)ノ彡┻━┻

    Joined:
    Aug 25, 2014
    Member:
    #136901
    Messages:
    23,784
    Gender:
    Male
    First Name:
    Frank
    Tampa, FL ☜(ﾟヮﾟ☜)
    Vehicle:
    2014 TRD Off Road DCSB
    ╭∩╮(ಠ۝ಠ)╭∩╮
    I do

    Rattletrap66, Oct 28, 2015
    #81
    tonered likes this.
  2. Oct 28, 2015 at 9:44 AM
    #82
    Large

    #82
    Large Red

    Joined:
    Sep 10, 2011
    Member:
    #63268
    Messages:
    22,457
    Gender:
    Male
    I do as well but I also calibrate mine periodically.

    Large, Oct 28, 2015
    #82
    tonered likes this.
  3. Oct 28, 2015 at 10:06 AM
    #83
    splitbolt

    #83
    splitbolt [OP] Voodoo Witch Doctor

    Joined:
    Mar 7, 2010
    Member:
    #32761
    Messages:
    7,858
    Gender:
    Male
    NW Arkansas
    Vehicle:
    2016 TRD OFFROAD DCSB MGM
    My reckoning says it either 4T or 6T...

    splitbolt, Oct 28, 2015
    #83
  4. Oct 28, 2015 at 10:39 AM
    #84
    Jeff Lange

    #84
    Jeff Lange Well-Known Member

    Joined:
    May 19, 2015
    Member:
    #155616
    Messages:
    2,269
    Calgary, Canada
    Vehicle:
    '86 AE86, '05 NCP13, '11 GSE21

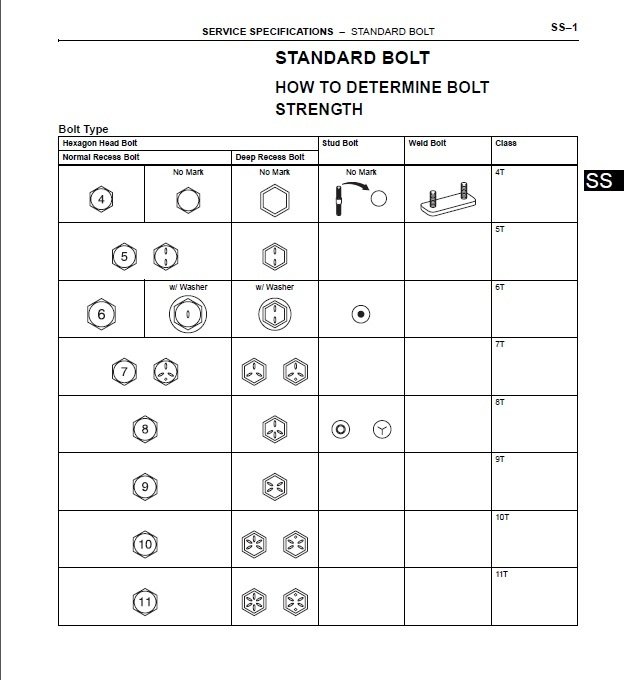

    As the U-Bolts do not have a bolt head, there are no markings for bolt strength to check.

    The nuts are 12N, but that doesn't actually tell you much about the bolts.

    The lowest class of M14 bolt Toyota lists is 4T which would be 61 ft-lbs. I doubt they're lower than 5T though (76 ft-lbs).

    Jeff

    Jeff Lange, Oct 28, 2015
    #84
    DoorDing likes this.
  5. Oct 28, 2015 at 10:52 AM
    #85
    splitbolt

    #85
    splitbolt [OP] Voodoo Witch Doctor

    Joined:
    Mar 7, 2010
    Member:
    #32761
    Messages:
    7,858
    Gender:
    Male
    NW Arkansas
    Vehicle:
    2016 TRD OFFROAD DCSB MGM
    Sure it's not a 6T?
    Where have we seen that spec before?
    Point is, Toyota's all over the place...

    splitbolt, Oct 28, 2015
    #85
  6. Oct 28, 2015 at 10:56 AM
    #86
    Jeff Lange

    #86
    Jeff Lange Well-Known Member

    Joined:
    May 19, 2015
    Member:
    #155616
    Messages:
    2,269
    Calgary, Canada
    Vehicle:
    '86 AE86, '05 NCP13, '11 GSE21
    It could of course be a 4T, 5T, 6T, or even a 7T.

    There are no markings on the bolts, so there's no way to tell just by looking at them. The nuts have markings (12N), the bolts do not have any markings as they are threaded on both ends with no head.

    Jeff

    Jeff Lange, Oct 28, 2015
    #86
  7. Oct 28, 2015 at 11:34 AM
    #87
    splitbolt

    #87
    splitbolt [OP] Voodoo Witch Doctor

    Joined:
    Mar 7, 2010
    Member:
    #32761
    Messages:
    7,858
    Gender:
    Male
    NW Arkansas
    Vehicle:
    2016 TRD OFFROAD DCSB MGM
    There are only two categories for a 14mm stud/nut; 4T and 6T.
    Where does 52ft/lbs come from?

    splitbolt, Oct 28, 2015
    #87
  8. Oct 28, 2015 at 11:47 AM
    #88
    Jeff Lange

    #88
    Jeff Lange Well-Known Member

    Joined:
    May 19, 2015
    Member:
    #155616
    Messages:
    2,269
    Calgary, Canada
    Vehicle:
    '86 AE86, '05 NCP13, '11 GSE21

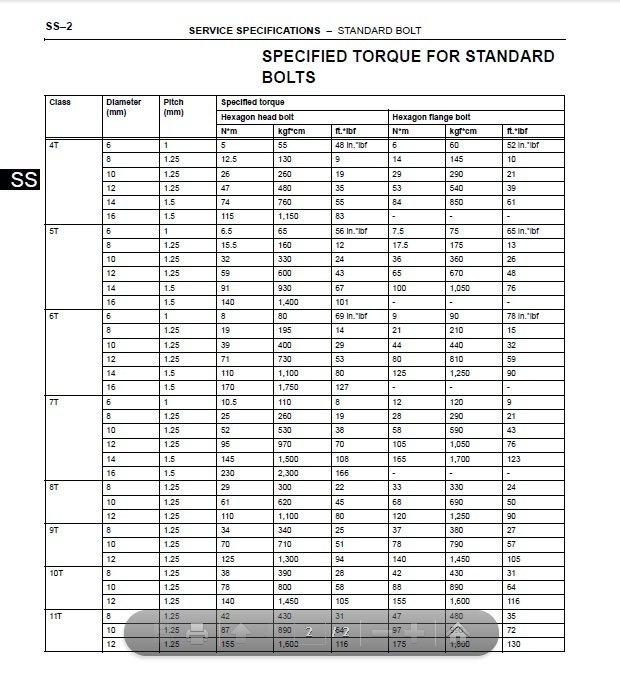

    The chart you just posted lists 14mm for 4T, 5T, 6T and 7T, though it is an old chart and they have a newer one for the updated marking including H ratings for nuts (T ratings are for bolts only).

    That said, these charts are standard torque values of the hardware and are to be used when there is no specific torque value listed for the application. It does not mean that every 6T M14 bolt gets torqued to 90 ft-lbs.

    The 52 ft-lbs comes from the rear suspension torque chart, rear suspension component diagram and repair instructions for the rear suspension leaf springs.

    In conclusion:

    - The chart posted is old and doesn't really apply to new Toyotas any more.
    - There are 2 torque specifications: the hardware and the application. The maximum torque spec for the hardware does not mean that's what every application that uses that hardware will be torqued to that value.
    - The nuts are rated as "12H" using the newer Toyota grade rating system.
    - The u-bolts have no markings on them and we can't know what grade bolt they are just by looking at them.
    - The 14mm torque rating for 4T is 61 ft-lbs, for 5T is 76 ft-lbs, for 6T is 90 ft-lbs, for 7T is 123 ft-lbs.
    - Toyota's torque spec for the u-bolts on the 2015 is 37 ft-lbs and on the 2016 is 52 ft-lbs.

    Jeff

    Jeff Lange, Oct 28, 2015
    #88
    Tharris242, HalfWayThere and DoorDing like this.
  9. Oct 28, 2015 at 12:25 PM
    #89
    splitbolt

    #89
    splitbolt [OP] Voodoo Witch Doctor

    Joined:
    Mar 7, 2010
    Member:
    #32761
    Messages:
    7,858
    Gender:
    Male
    NW Arkansas
    Vehicle:
    2016 TRD OFFROAD DCSB MGM
    The U-bolt part number changes from '04 into '05; does the part number change from '15 into '16?

    Is there a way of finding out T-rating for each gen?
    1st gen would have required at least 6T; 2nd/3rd gen, 4T...

    Or, where does grade 5 fall in the T-scale?

    splitbolt, Oct 28, 2015
    #89
  10. Oct 28, 2015 at 12:32 PM
    #90
    Jeff Lange

    #90
    Jeff Lange Well-Known Member

    Joined:
    May 19, 2015
    Member:
    #155616
    Messages:
    2,269
    Calgary, Canada
    Vehicle:
    '86 AE86, '05 NCP13, '11 GSE21
    Yeah, the 1st gen would have had to at least been 6T.

    The only way to find out the T-rating for the 2005+ u-bolts would be to ask someone at Toyota, it's not listed anywhere and there are no markings on the bolts either.

    Jeff

    Jeff Lange, Oct 28, 2015
    #90
  11. Oct 28, 2015 at 9:30 PM
    #91
    LuvTacos

    #91
    LuvTacos Well-Known Member

    Joined:
    Aug 10, 2015
    Member:
    #161446
    Messages:
    212
    Not good, this is safety issue. Mexican build?

    LuvTacos, Oct 28, 2015
    #91
  12. Oct 28, 2015 at 9:47 PM
    #92
    splitbolt

    #92
    splitbolt [OP] Voodoo Witch Doctor

    Joined:
    Mar 7, 2010
    Member:
    #32761
    Messages:
    7,858
    Gender:
    Male
    NW Arkansas
    Vehicle:
    2016 TRD OFFROAD DCSB MGM
    Si.
    Doesn't matter; apparently, it's by design.
    Toyota has a solid reputation with leaf springs.
    What's the worst that could happen?

    splitbolt, Oct 28, 2015
    #92
  13. Oct 28, 2015 at 9:49 PM
    #93
    LuvTacos

    #93
    LuvTacos Well-Known Member

    Joined:
    Aug 10, 2015
    Member:
    #161446
    Messages:
    212
    The bolts come off, you veer to the left and crash into a fuel tanker!

    LuvTacos, Oct 28, 2015
    #93
    FirstTimeTaco2020 likes this.
  14. Oct 28, 2015 at 10:01 PM
    #94
    splitbolt

    #94
    splitbolt [OP] Voodoo Witch Doctor

    Joined:
    Mar 7, 2010
    Member:
    #32761
    Messages:
    7,858
    Gender:
    Male
    NW Arkansas
    Vehicle:
    2016 TRD OFFROAD DCSB MGM
    Nah...maybe just year after year of fatigued and broken springs.
    Don't worry though, Toyota wouldn't never let that happen.

    splitbolt, Oct 28, 2015
    #94
  15. Oct 29, 2015 at 6:52 PM
    #95
    UberDingu

    #95
    UberDingu Well-Known Member

    Joined:
    Oct 9, 2015
    Member:
    #166264
    Messages:
    273
    Gender:
    Male
    CT
    Vehicle:
    21 Off-Road AC 4x4 V6
    I checked mine today while fluid filming, 6 if the 8 were at least 52 ft lbs, 1 was just shy and 1 was much lower. Thanks for the heads up. On a side note... I fucking love this truck

    UberDingu, Oct 29, 2015
    #95
    0uTkAsT likes this.
  16. Nov 5, 2015 at 4:04 PM
    #96
    Frank_Zuccarini

    #96
    Frank_Zuccarini Obscure Member

    Joined:
    Apr 27, 2015
    Member:
    #154073
    Messages:
    435
    Gender:
    Male
    First Name:
    Frank
    Chicagoland
    Vehicle:
    AC-TRD-OR-4x4-Barcelona Red
    Checked my truck, with only 17 miles on the odometer.

    7 of 8 bolts were 52 ft-lbs or higher. One bolt was something less than 52 ft-lbs.

    I have a TRD OR AC built in Texas.

    Frank

    Frank_Zuccarini, Nov 5, 2015
    #96
  17. Nov 5, 2015 at 4:09 PM
    #97
    Benson X

    #97
    Benson X My build thread sucks...

    Joined:
    Nov 13, 2010
    Member:
    #46123
    Messages:
    5,680
    Gender:
    Male
    First Name:
    Ben
    Olympia, WA
    Vehicle:
    '11 MGM DC/LB
    If you don't draw blood, you're doing it wrong!
    Also, this is from OME:


    OMEU53A Specifications (all dimensions in mm)

    A: 185 B: 75 C: 14 D: 65 Thread: 1.5 E: SQUARE Recommended Torque: 93 lb. ft or 126 Nm



    [​IMG]

    Benson X, Nov 5, 2015
    #97
    0uTkAsT likes this.
  18. Nov 5, 2015 at 4:35 PM
    #98
    CusterFan

    #98
    CusterFan Well-Known Member

    Joined:
    Sep 18, 2015
    Member:
    #164581
    Messages:
    8,936
    Gender:
    Male
    Southeastern Illinois
    Vehicle:
    Silver Sky 2019 Tacoma SR, AC, 4X2, 2.7
    Not to change the subject but I looked under the the black SR5 I'm buying at the dealership today and there is about 3 to 4 inches of black chain hanging down through the hole of the spare tire. Is this normal? I think when I pick it up Monday I am going to put a plastic wire tire on it to keep it from hanging down. (Tie it to the spare)

    CusterFan, Nov 5, 2015
    #98
  19. Nov 5, 2015 at 4:49 PM
    #99
    Markc1024

    #99
    Markc1024 Well-Known Member

    Joined:
    Sep 17, 2015
    Member:
    #164491
    Messages:
    545
    It's the chain used to lower/raise the tire. The slack just hangs loose while the tire is up, but then is taken up as the tire is lowered. Being my first Tacoma, I made sure I dropped the tire once before needing to.

    Markc1024, Nov 5, 2015
    #99
    tonered likes this.
  20. Nov 5, 2015 at 4:51 PM
    #100
    Markc1024

    #100
    Markc1024 Well-Known Member

    Joined:
    Sep 17, 2015
    Member:
    #164491
    Messages:
    545
    I measured my u-bolts - came right in at 13mm or .51" depending upon how the micrometer is set.

    Markc1024, Nov 5, 2015
    #100
