ckrockets build thread (daily driver/overlander rig) - Jack's 2010 4X4 DCSB Silver Streak Mica

Discussion in '2nd Gen. Tacomas (2005-2015)' started by ckrockets, Feb 12, 2019.

  1. Mar 3, 2019 at 6:22 PM
    #121
    Casper66

    Casper66 grumpy ass

    Joined:
    Apr 3, 2016
    Member:
    #183160
    Messages:
    21,329
    Gender:
    Male
    First Name:
    Chris
    Culpeper, Va.
    Vehicle:
    '15 DCSB TRD Sport 4wd super white (sold) '13 access cab SR5 4wd
    piddly stuff
    Yep, we are getting the same weather. I can do most of my fab work in the garage as I did last year with all that was done on the camper. However, I work at a major airport and everytime they even think snow I get called in. I was there all day today I'm suprised they didn't keep us overnight. I haven't reached the planning for long trips phase of our adventures yet so at least I have that in my favor.

    ckrockets [OP] likes this.
  2. Mar 6, 2019 at 5:45 PM
    #122
    ckrockets

    ckrockets [OP] i don't own a couch

    Joined:
    Feb 16, 2008
    Member:
    #4757
    Messages:
    94
    Gender:
    Male
    Barnardsville, NC
    Vehicle:
    2010 Tacoma 4X4 TRD sport DCB short bed
    This latest use of Duratex on steel and some email conversations with the manufacturer has convinced me to give black Duratex on my roof rack a try, versus powder coat.

    1 gallon will be under $100 delivered and there should be plenty left over for other projects.

    I was estimating over $150 to have the roof rack powder coated.


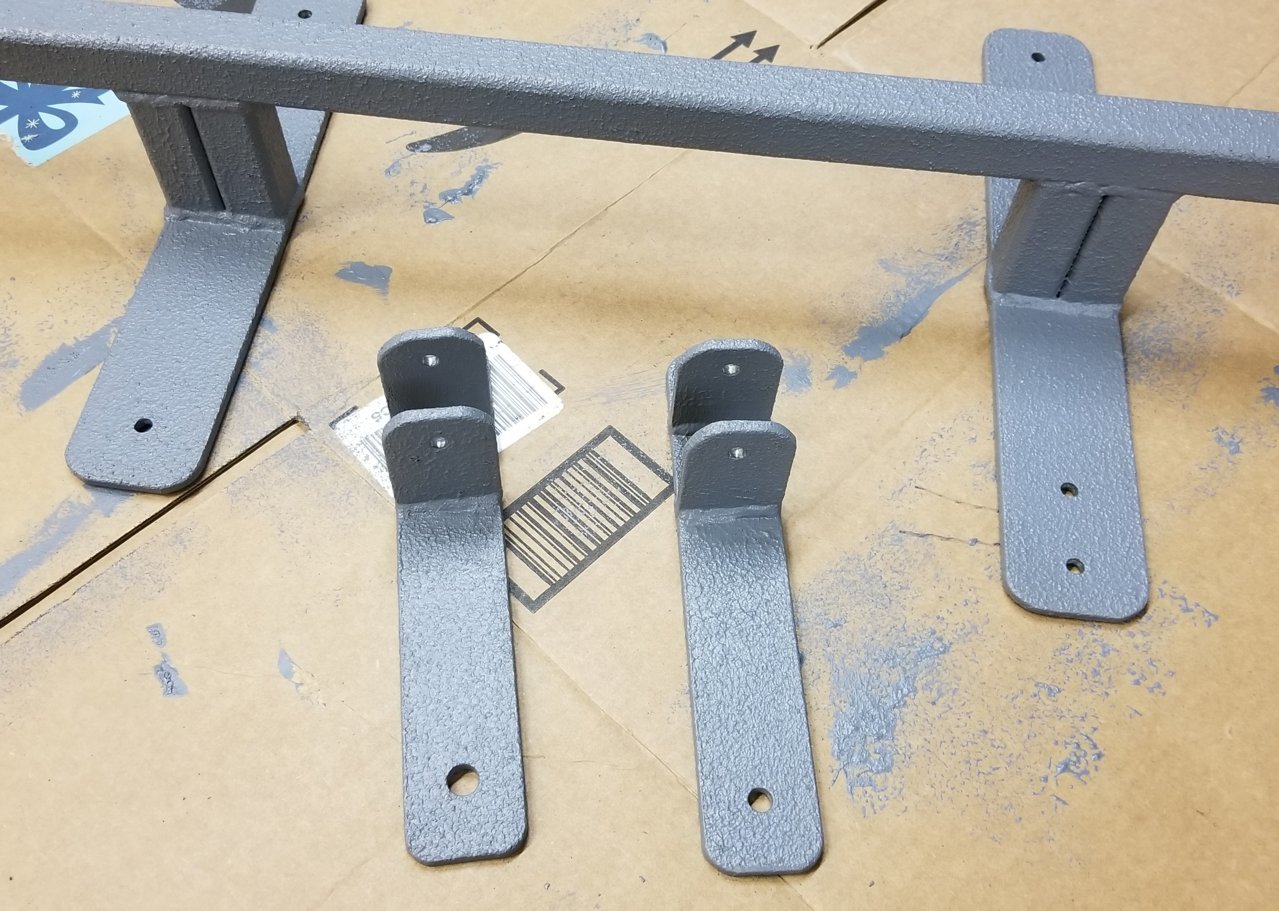

    ***final product, few more days for maximum cure hardness

    Last edited: Mar 6, 2019
    steveo27 likes this.
  3. Mar 7, 2019 at 9:54 AM
    #123
    RedBeard1

    RedBeard1 Hangry Fat Kid

    Joined:
    Nov 9, 2015
    Member:
    #169163
    Messages:
    2,428
    Gender:
    Male
    First Name:
    Red
    The Republic of Texas
    Vehicle:
    1985 Hilux Crawler(Pete), 2016 Quicksand TRD OR 6MT (Wombat), 2016 TRD Pro T4R
    Mostly stuff I built.

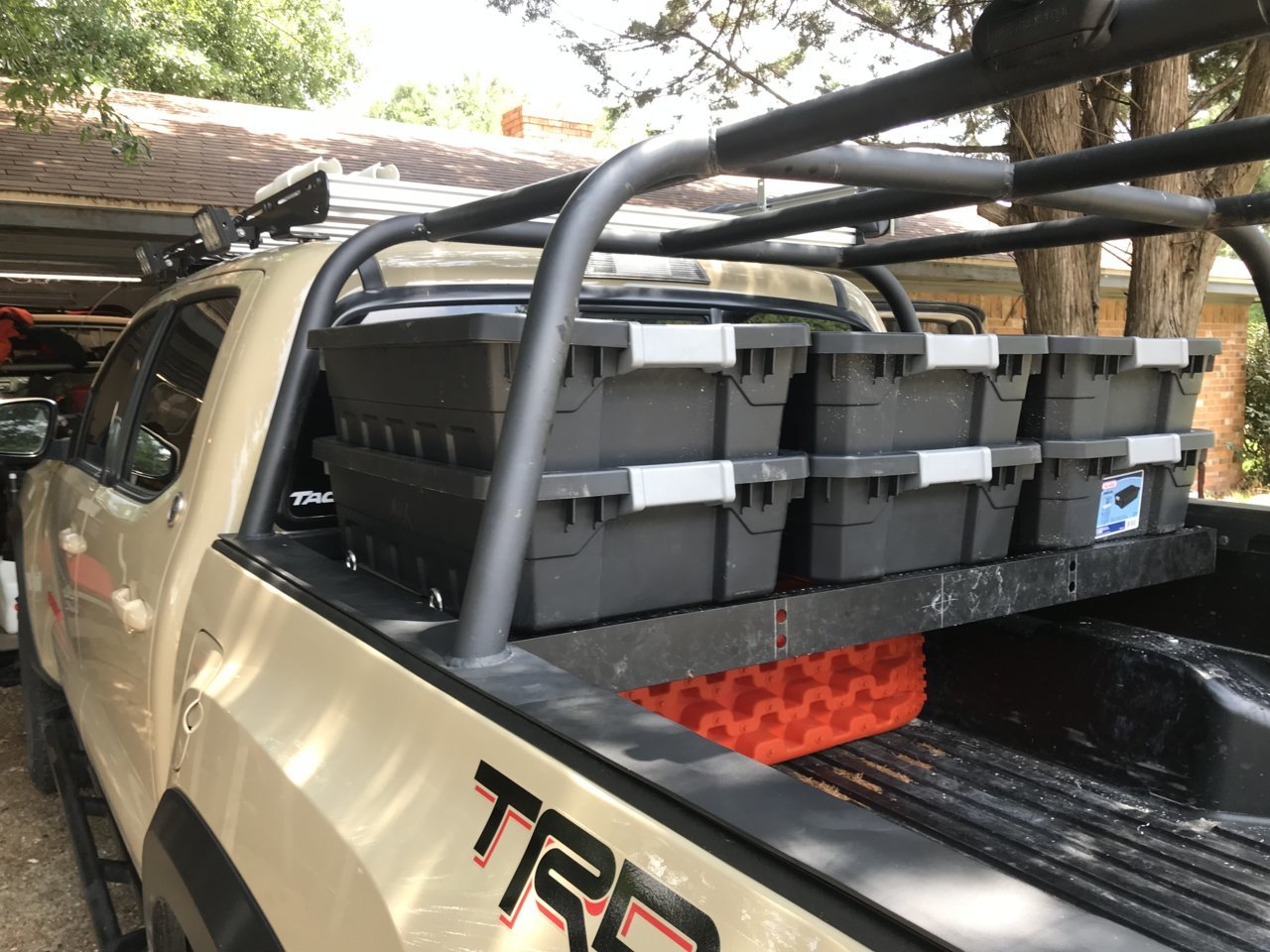

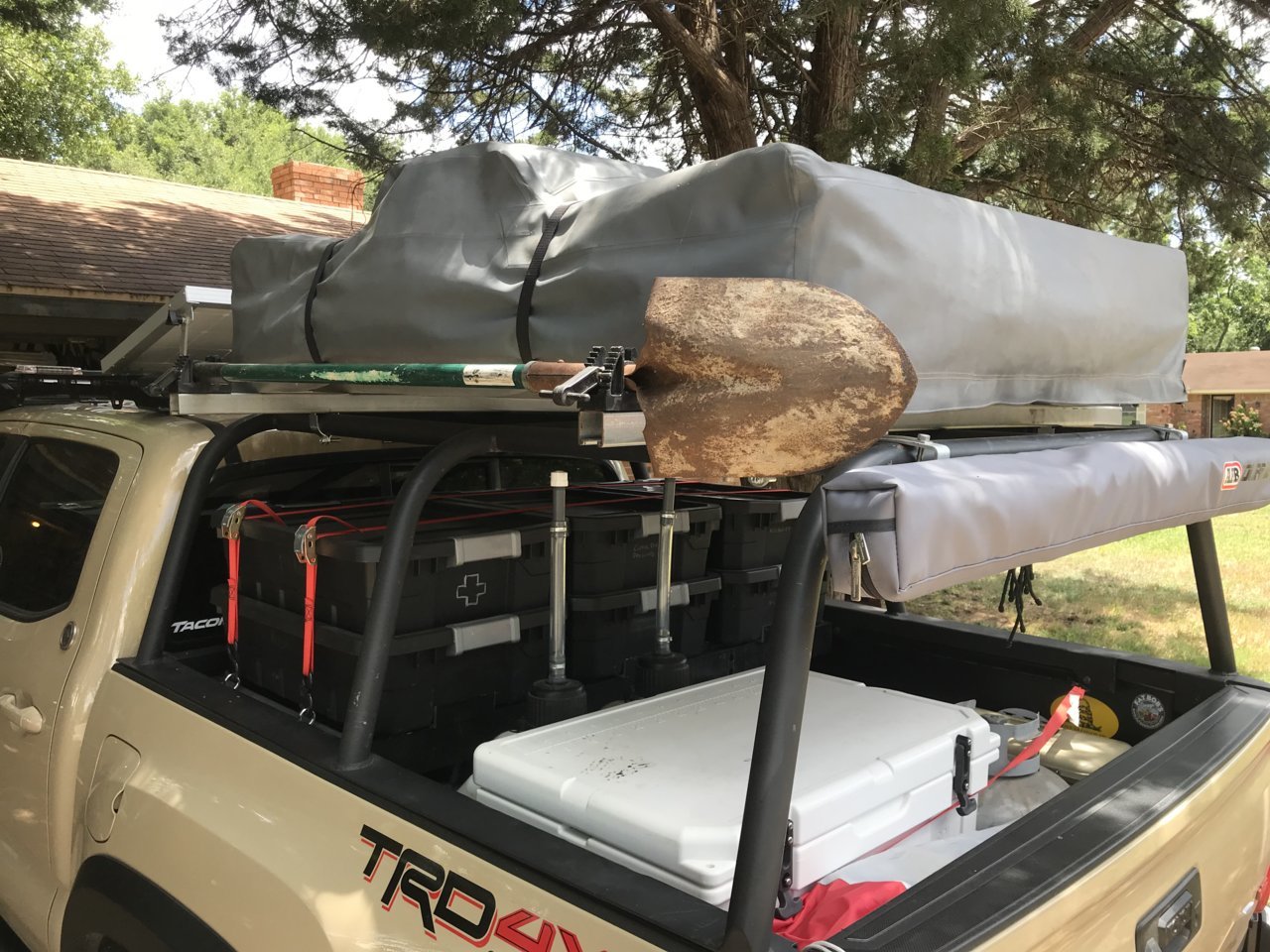

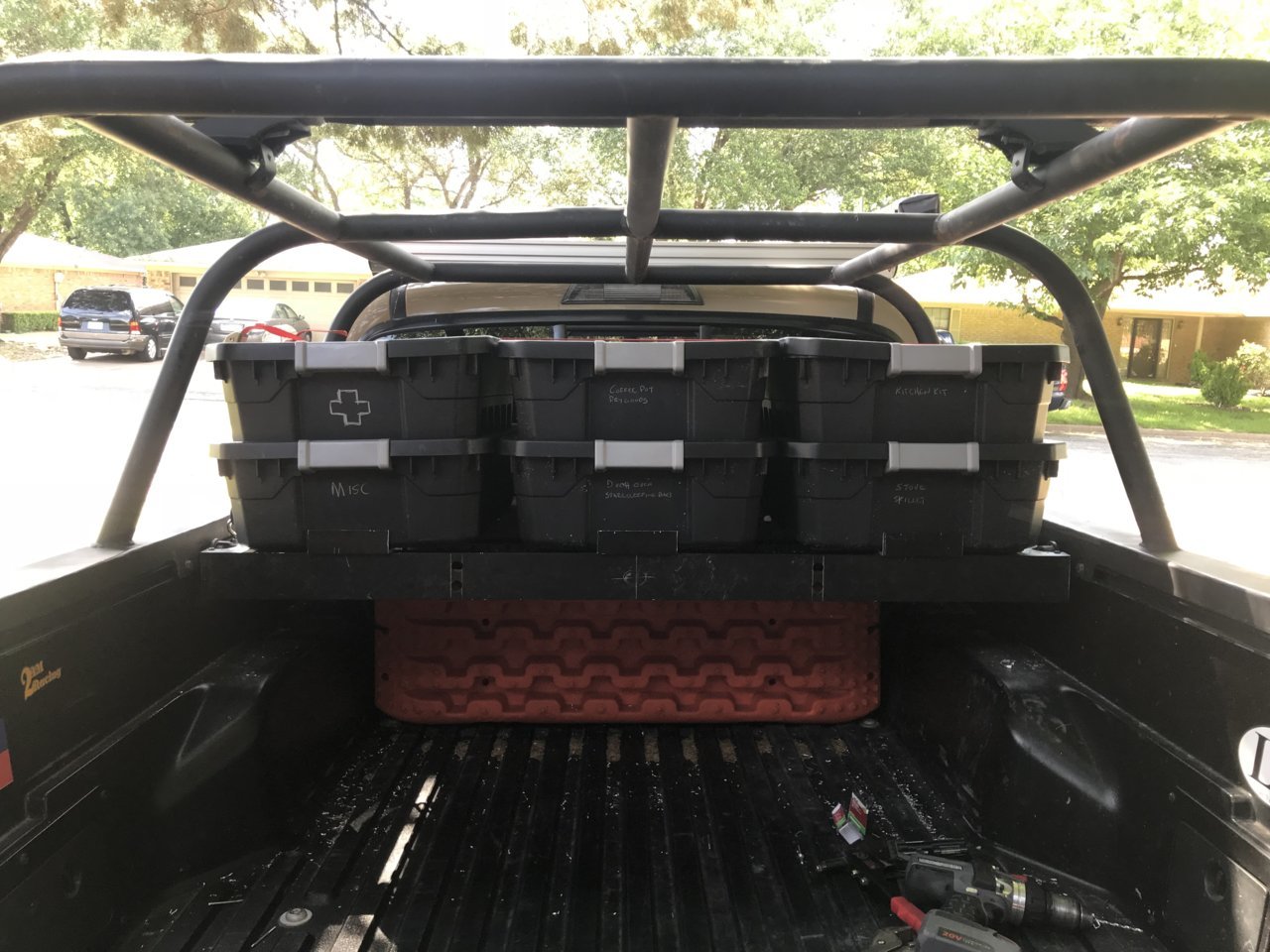

    I used 3” aluminum channel for my half platform in the bed of mine. Attaches to the rail system via 4 of the factory bed cleats. I have had 300lbs on it with no issues. Might be a long term solution for you to look at. I plan on making a second section for mine with aluminum sheeting on it for the rear. Mostly I just want it for a bit if Securty for some of my gear.1A58A4C5-EF7C-4CC4-B756-996D7615511D.jpg76DDF9C6-91BB-46DF-ACB5-BEA7B319637E.jpg72462DB8-40C8-4857-B632-B5E75EB01194.jpg

    ckrockets [OP] likes this.
  4. Mar 7, 2019 at 12:34 PM
    #124
    ckrockets

    ckrockets [OP] i don't own a couch

    Joined:
    Feb 16, 2008
    Member:
    #4757
    Messages:
    94
    Gender:
    Male
    Barnardsville, NC
    Vehicle:
    2010 Tacoma 4X4 TRD sport DCB short bed
    Got a close up of how the aluminum channel is sitting on the oem bed cleats?

  5. Mar 7, 2019 at 12:54 PM
    #125
    RedBeard1

    RedBeard1 Hangry Fat Kid

    Joined:
    Nov 9, 2015
    Member:
    #169163
    Messages:
    2,428
    Gender:
    Male
    First Name:
    Red
    The Republic of Texas
    Vehicle:
    1985 Hilux Crawler(Pete), 2016 Quicksand TRD OR 6MT (Wombat), 2016 TRD Pro T4R
    Mostly stuff I built.
    I’ll get you some pics this evening.

    ckrockets [OP] likes this.
  6. Mar 8, 2019 at 8:22 AM
    #126
    RedBeard1

    RedBeard1 Hangry Fat Kid

    Joined:
    Nov 9, 2015
    Member:
    #169163
    Messages:
    2,428
    Gender:
    Male
    First Name:
    Red
    The Republic of Texas
    Vehicle:
    1985 Hilux Crawler(Pete), 2016 Quicksand TRD OR 6MT (Wombat), 2016 TRD Pro T4R
    Mostly stuff I built.

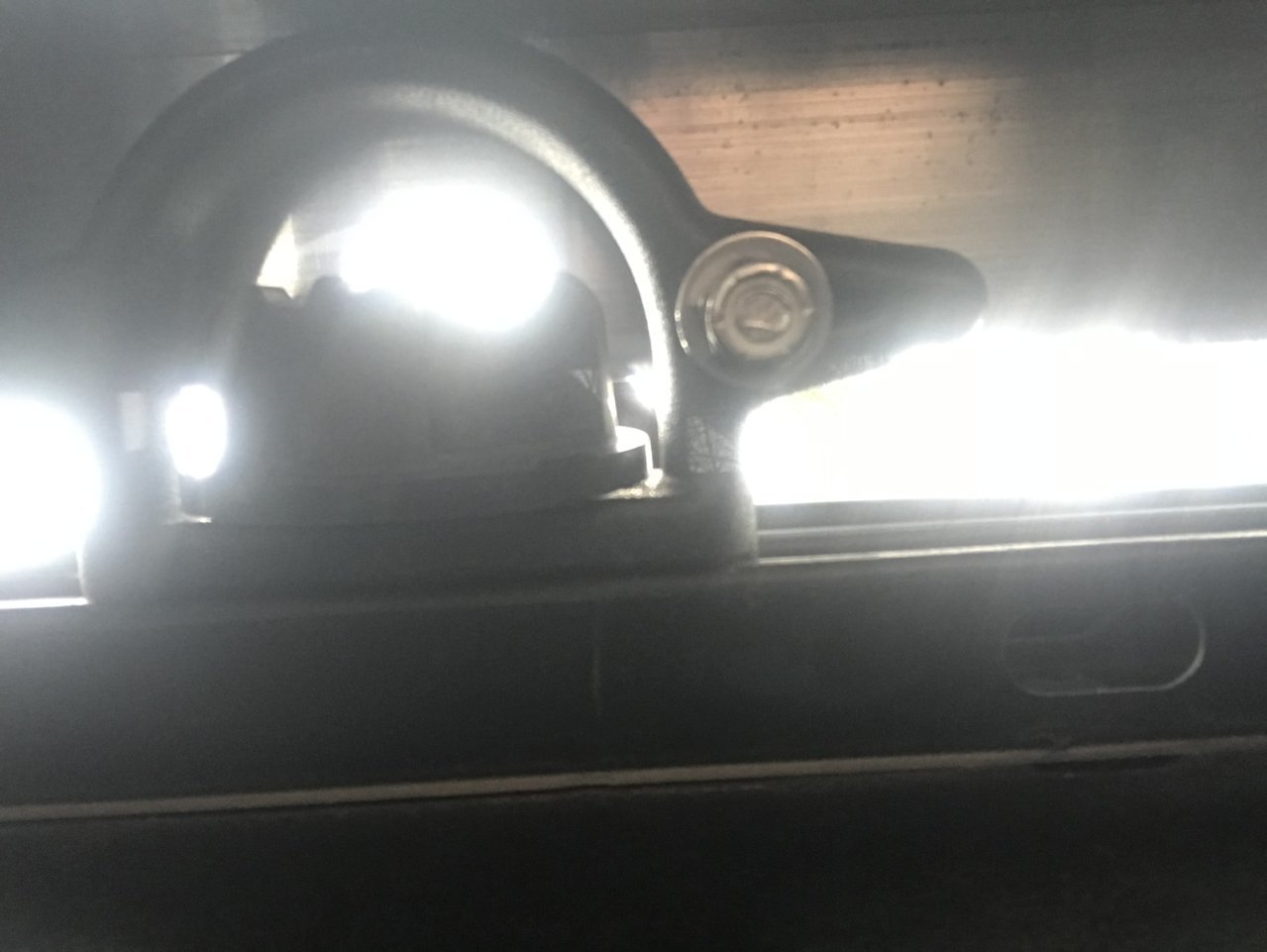

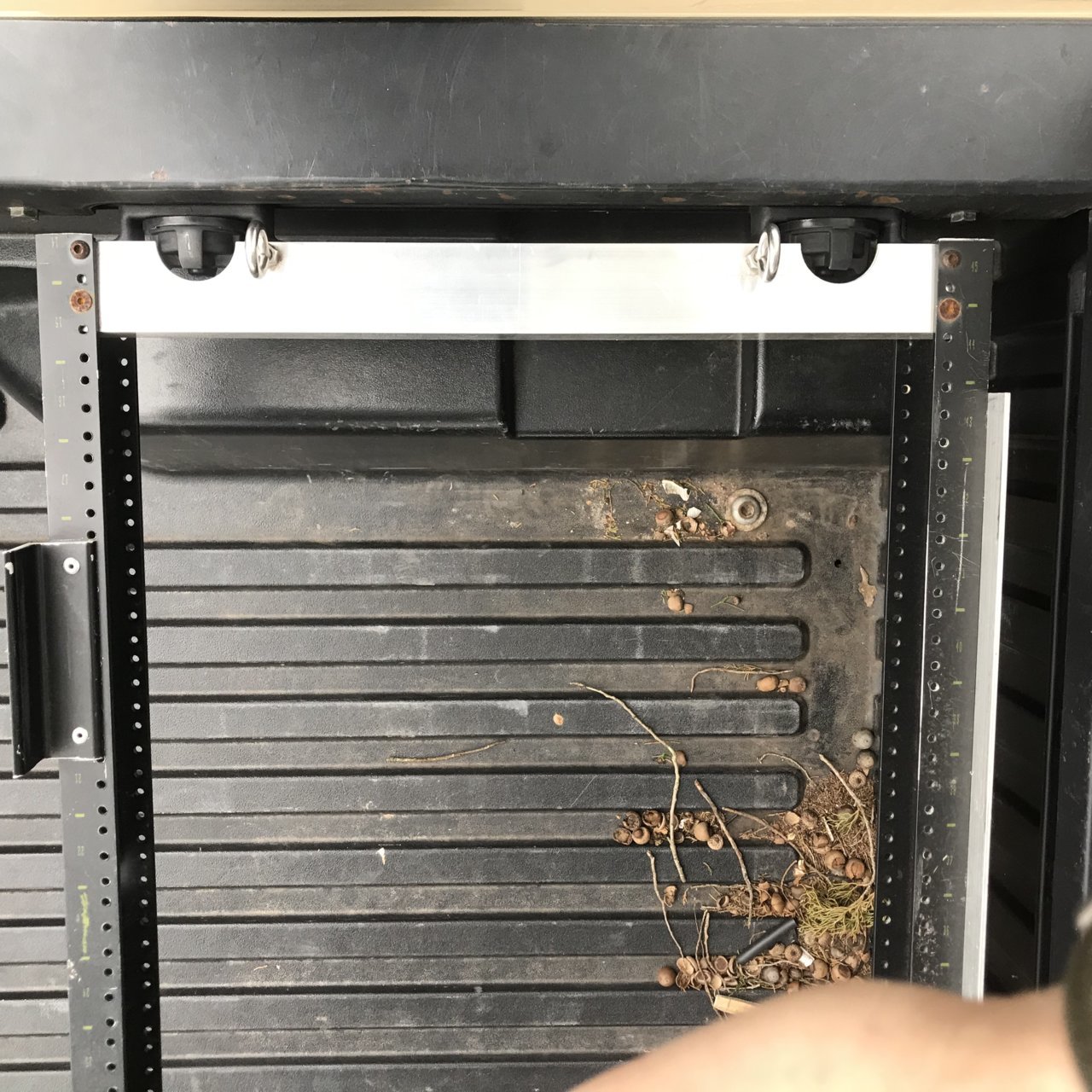

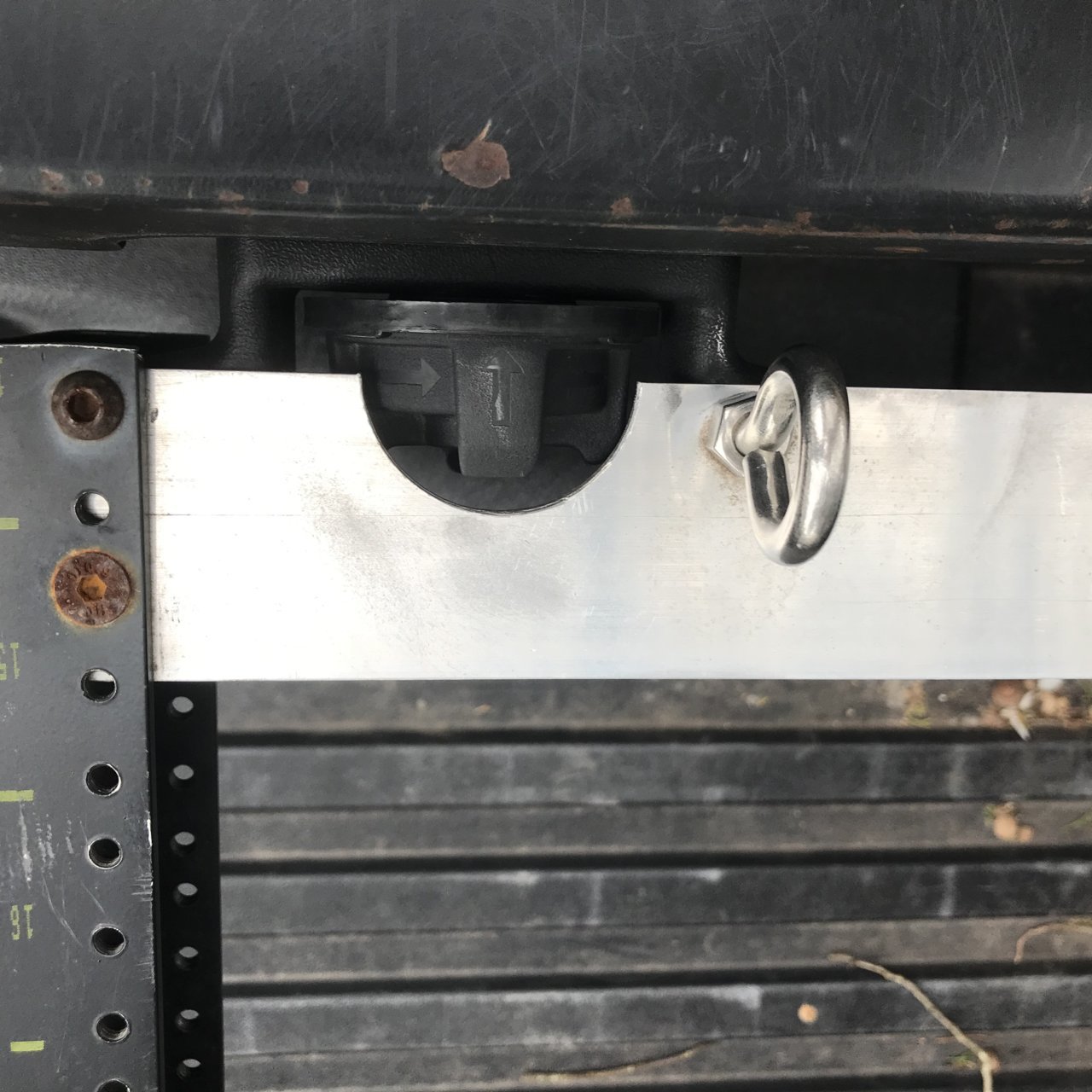

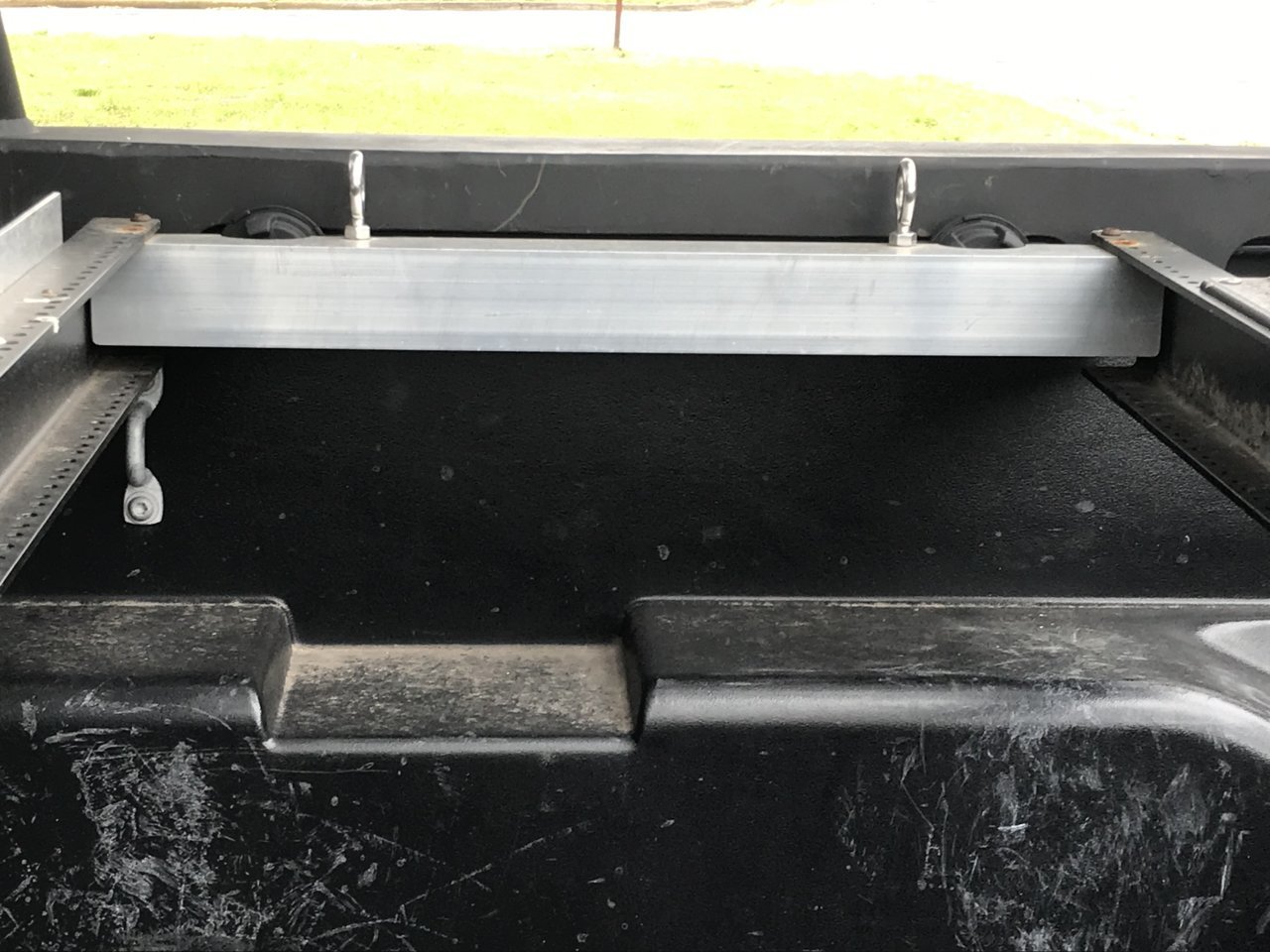

    Sorry had to work a 16 yesterday. Here are some pics. The channel runs across the bed and the ends are supported on 2”x2”x3/16” aluminum angle. The angle is attached to the cleats with the 5/16” stainless eye bolts. This was a quick project I literally cobbled together out of scrap I had in the garage just before I left out on a 3000 mile trip. It has held up great for several long trips loaded down over the last year and 15k + miles. I really never intended it as a permanent solution but it has become one it has held up so well.03AA0D05-2944-4FE0-A2F5-8700D8AE79CA.jpgDC7CE05C-9CC2-468D-B79B-9948C606A3A9.jpg451EDEF6-6C10-4F3F-ABDE-49BCD2A45FB0.jpg912406F4-767C-4A7D-AECF-871D2EBF7ADE.jpg

    ckrockets [OP] likes this.
  7. Mar 9, 2019 at 5:48 PM
    #127
    ckrockets

    ckrockets [OP] i don't own a couch

    Joined:
    Feb 16, 2008
    Member:
    #4757
    Messages:
    94
    Gender:
    Male
    Barnardsville, NC
    Vehicle:
    2010 Tacoma 4X4 TRD sport DCB short bed
  8. Mar 9, 2019 at 5:54 PM
    #128
    ckrockets

    ckrockets [OP] i don't own a couch

    Joined:
    Feb 16, 2008
    Member:
    #4757
    Messages:
    94
    Gender:
    Male
    Barnardsville, NC
    Vehicle:
    2010 Tacoma 4X4 TRD sport DCB short bed
    Uninstall day.

    3/9/19

    ***rack discounted ready to be removed


    ***modular design aided ease of removal

    fasteddieyj likes this.
  9. Mar 9, 2019 at 6:09 PM
    #129
    ckrockets

    ckrockets [OP] i don't own a couch

    Joined:
    Feb 16, 2008
    Member:
    #4757
    Messages:
    94
    Gender:
    Male
    Barnardsville, NC
    Vehicle:
    2010 Tacoma 4X4 TRD sport DCB short bed
    3/9/19

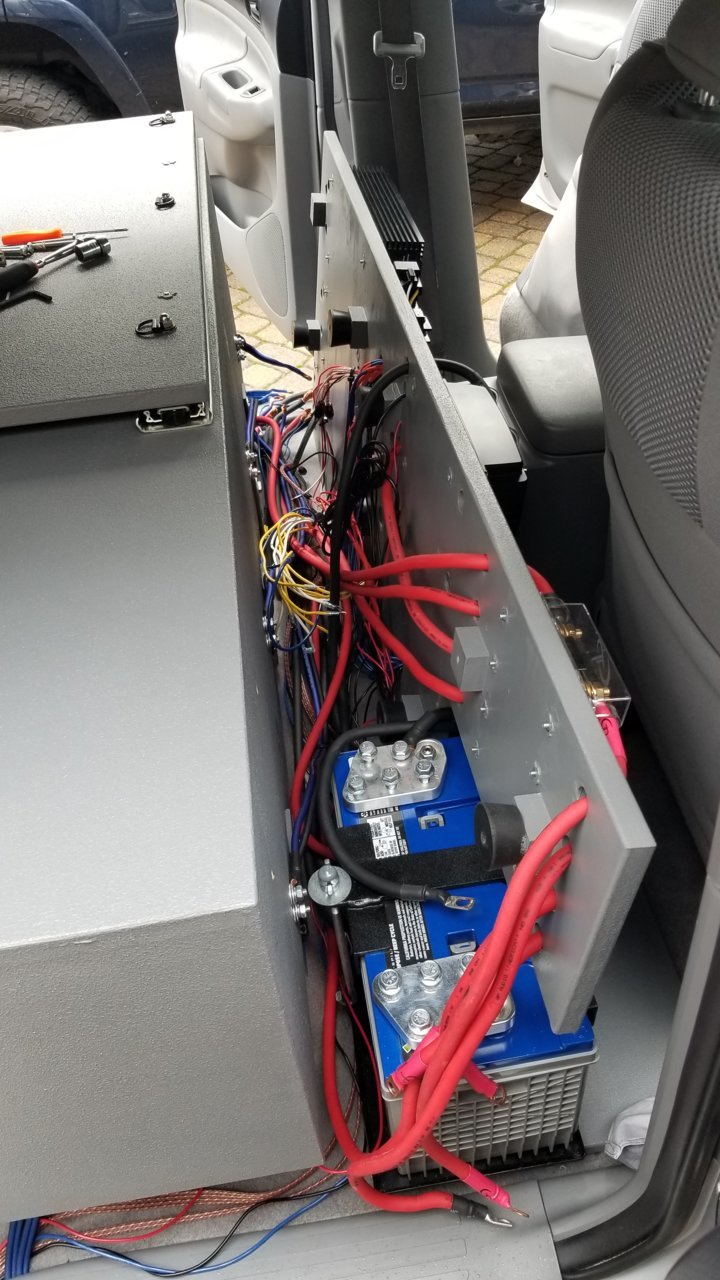

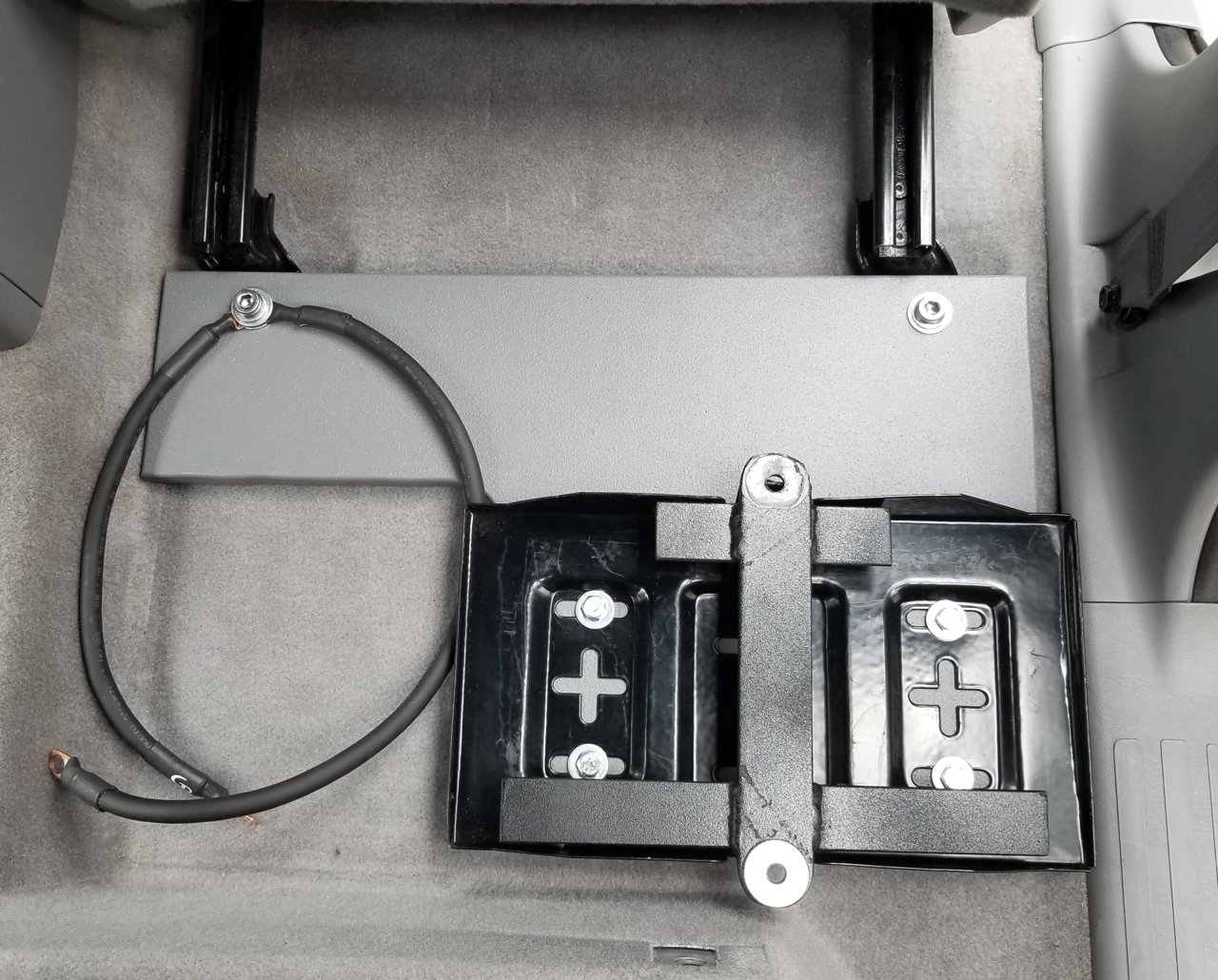

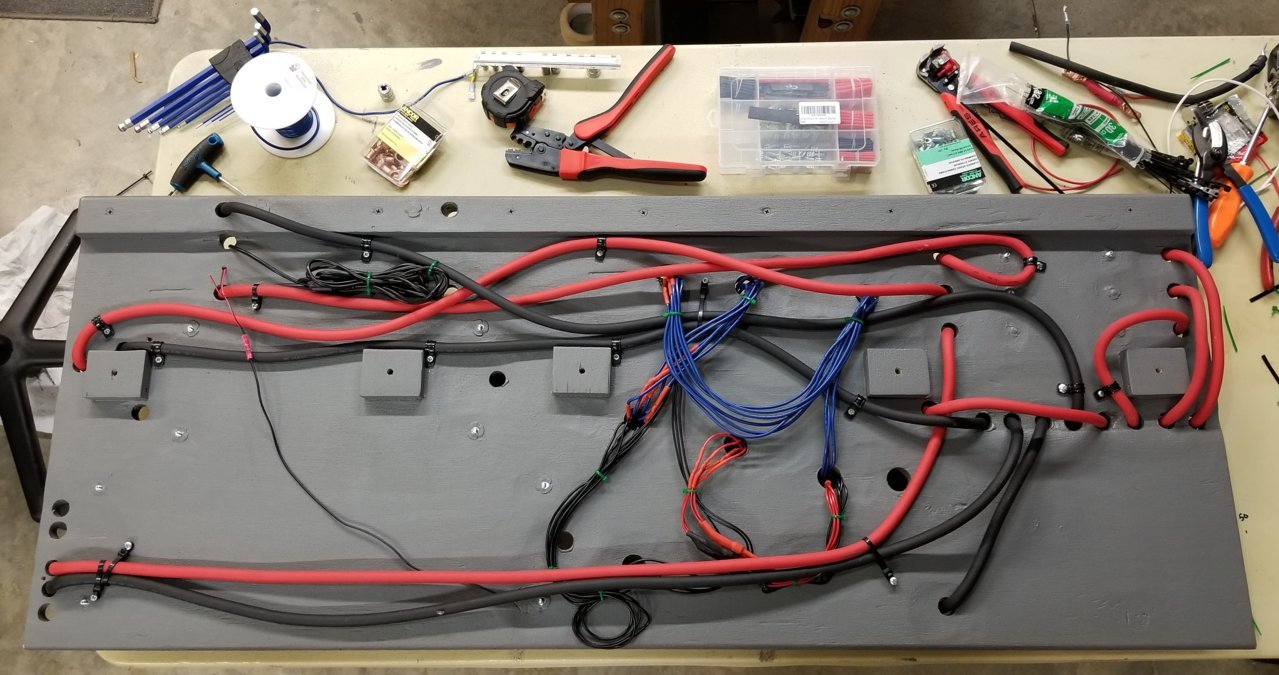

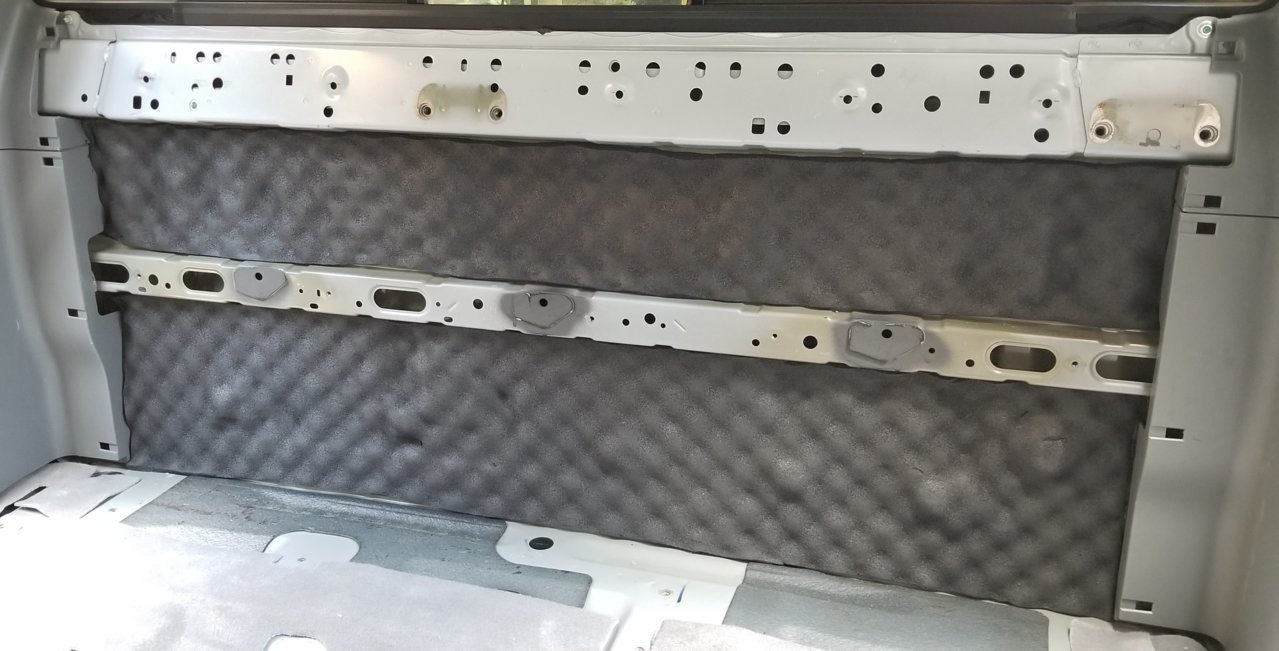

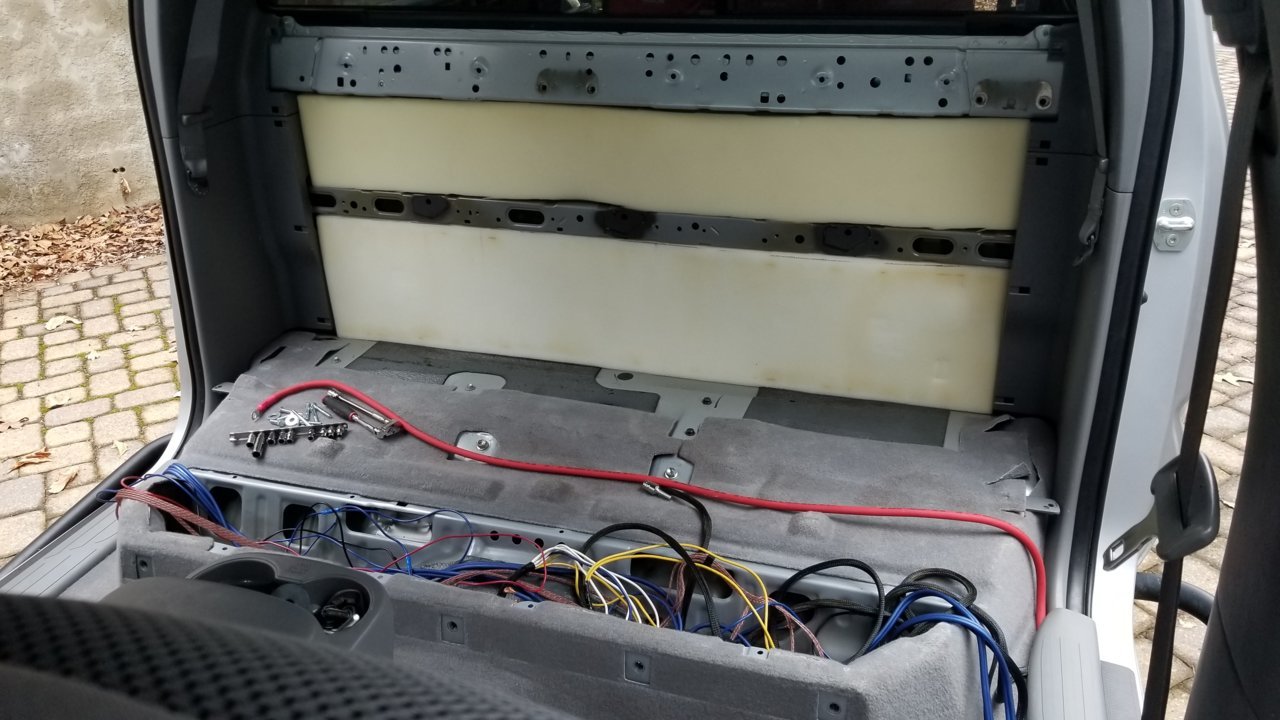

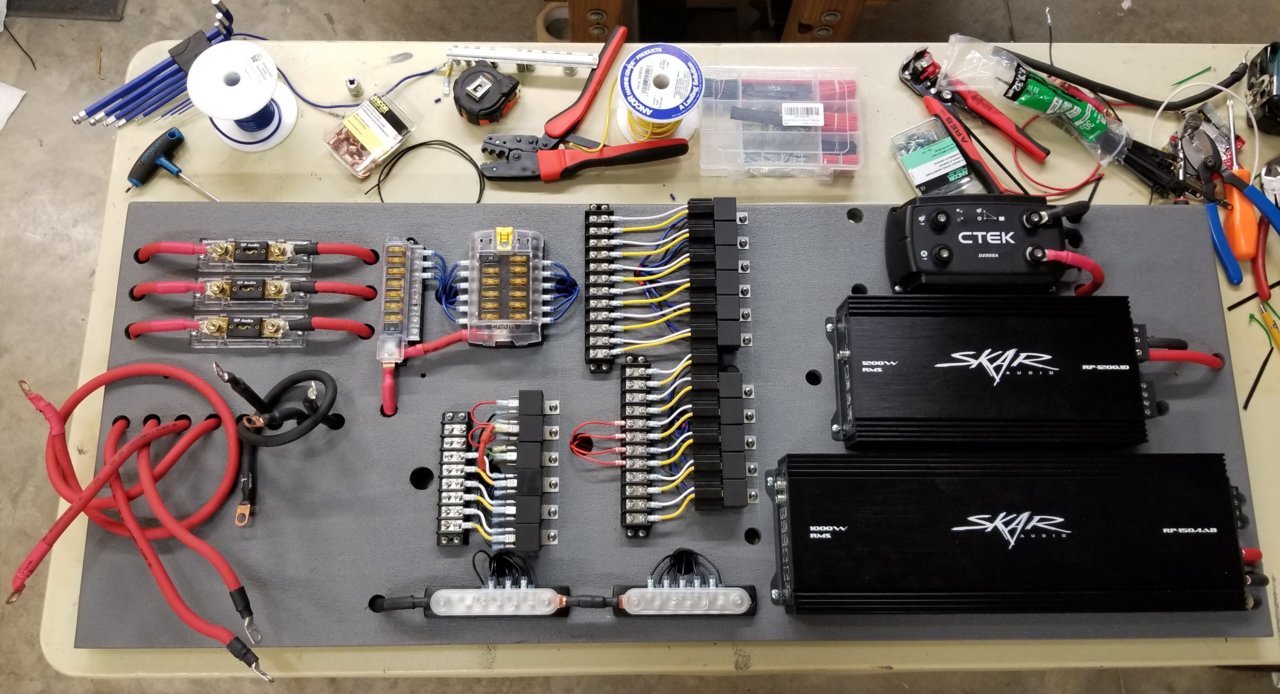

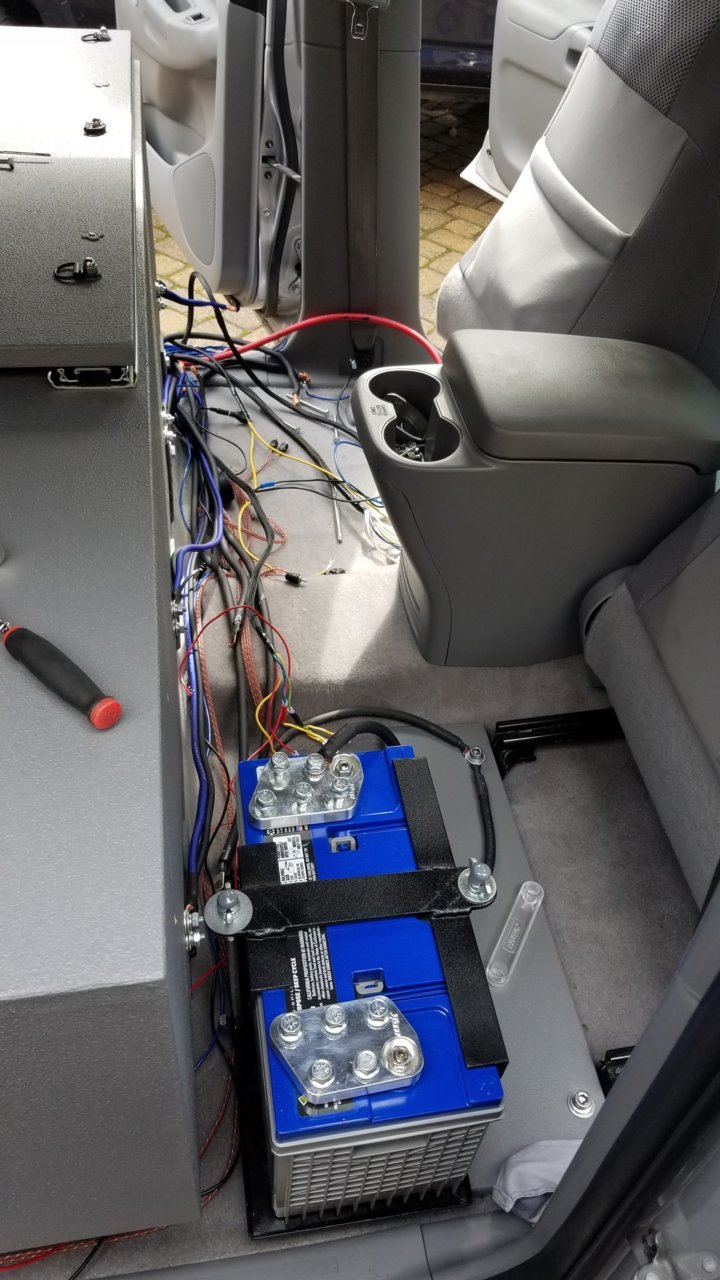

    ***main enclosure bracket

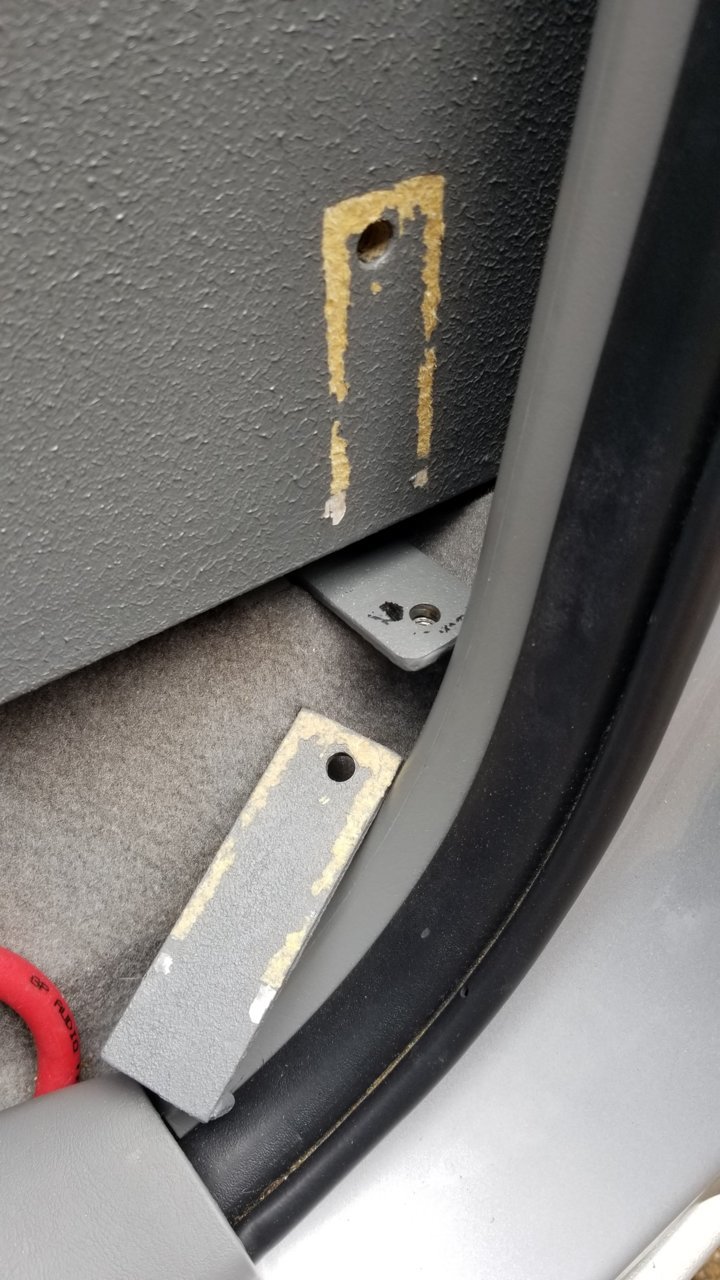

    ***experienced one shortcoming of the coating, Duratex sticks to Duratex (honestly I don't consider this an issue as I had a feeling this was going to happen), none of the zinc washers or rubber bushings stuck to the duratex, in the future when I have two Duratex coated items bolted together I'll run a rubber isolator or zinc washer between


    ***battery tray mounting platform

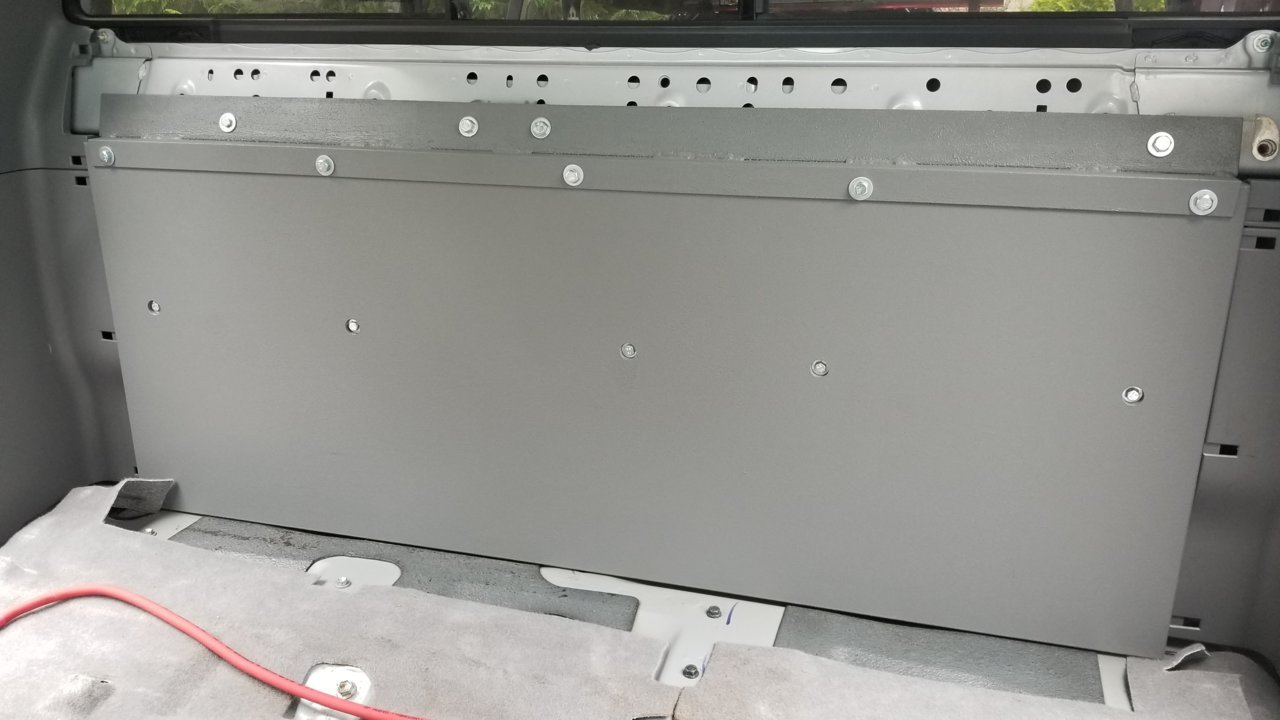

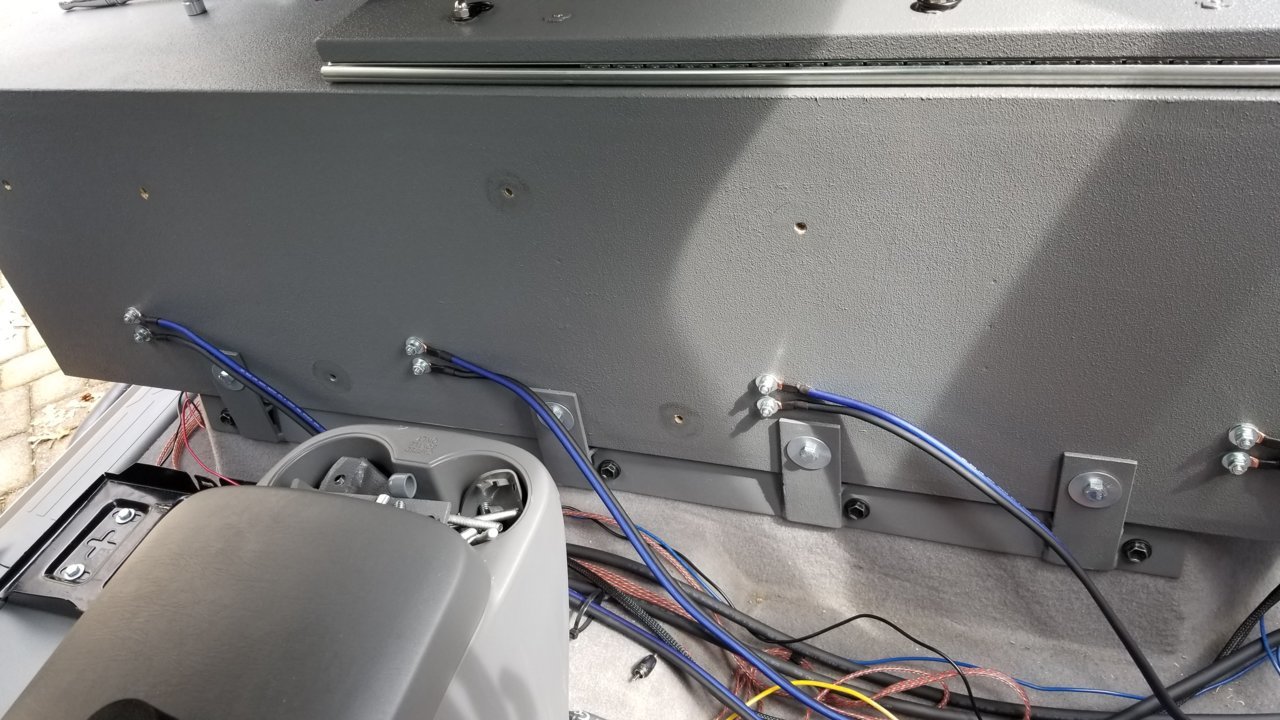

    ***back wall baffle board w/ steel top reinforcing bracket


    ***complete uninstall time 3 hours

    A short lived side project, it was more of a bucket list item. I was big into car stereo from the age of 17 to 23, always wanted to have another one day. It was a fun project and I enjoy it for this short time, the size and weight made it way way over the top. In all likelihood I probably won't be reinstalling it. :)

    Last edited: Mar 9, 2019
  10. Mar 11, 2019 at 2:45 PM
    #130
    ckrockets

    ckrockets [OP] i don't own a couch

    Joined:
    Feb 16, 2008
    Member:
    #4757
    Messages:
    94
    Gender:
    Male
    Barnardsville, NC
    Vehicle:
    2010 Tacoma 4X4 TRD sport DCB short bed

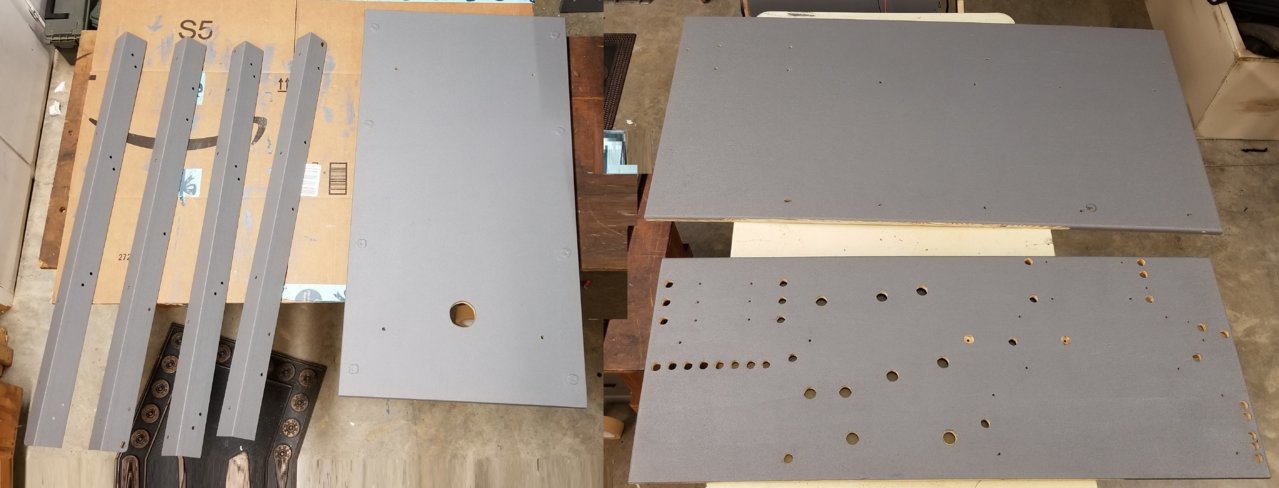

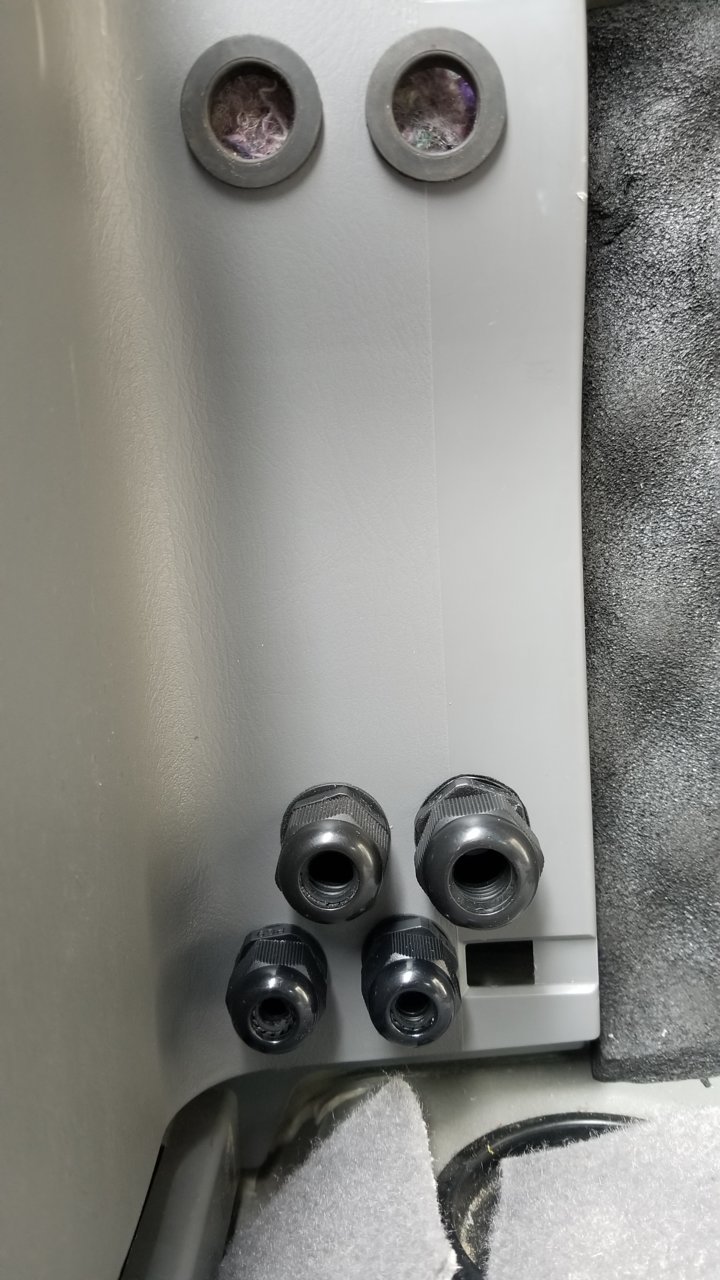

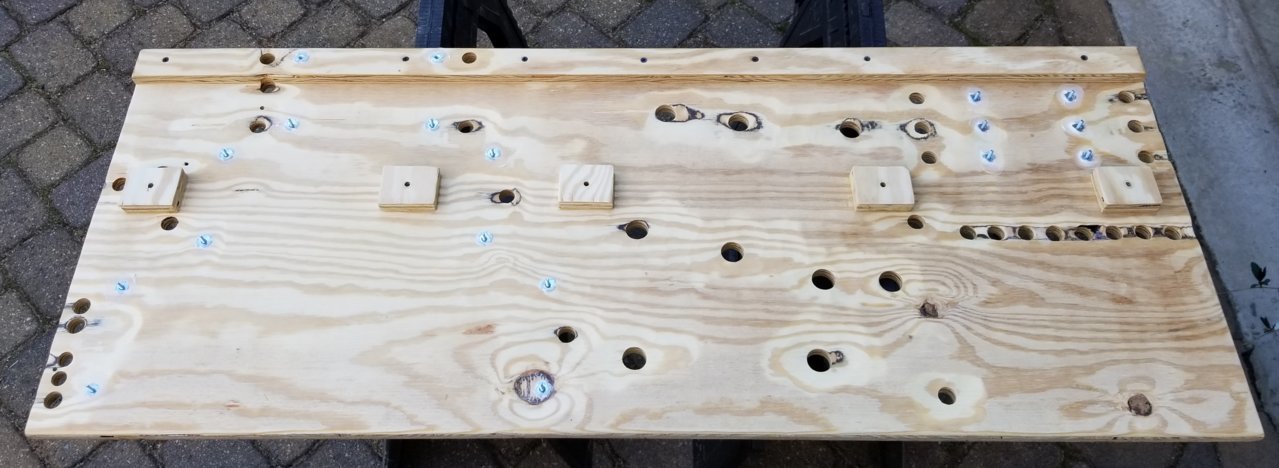

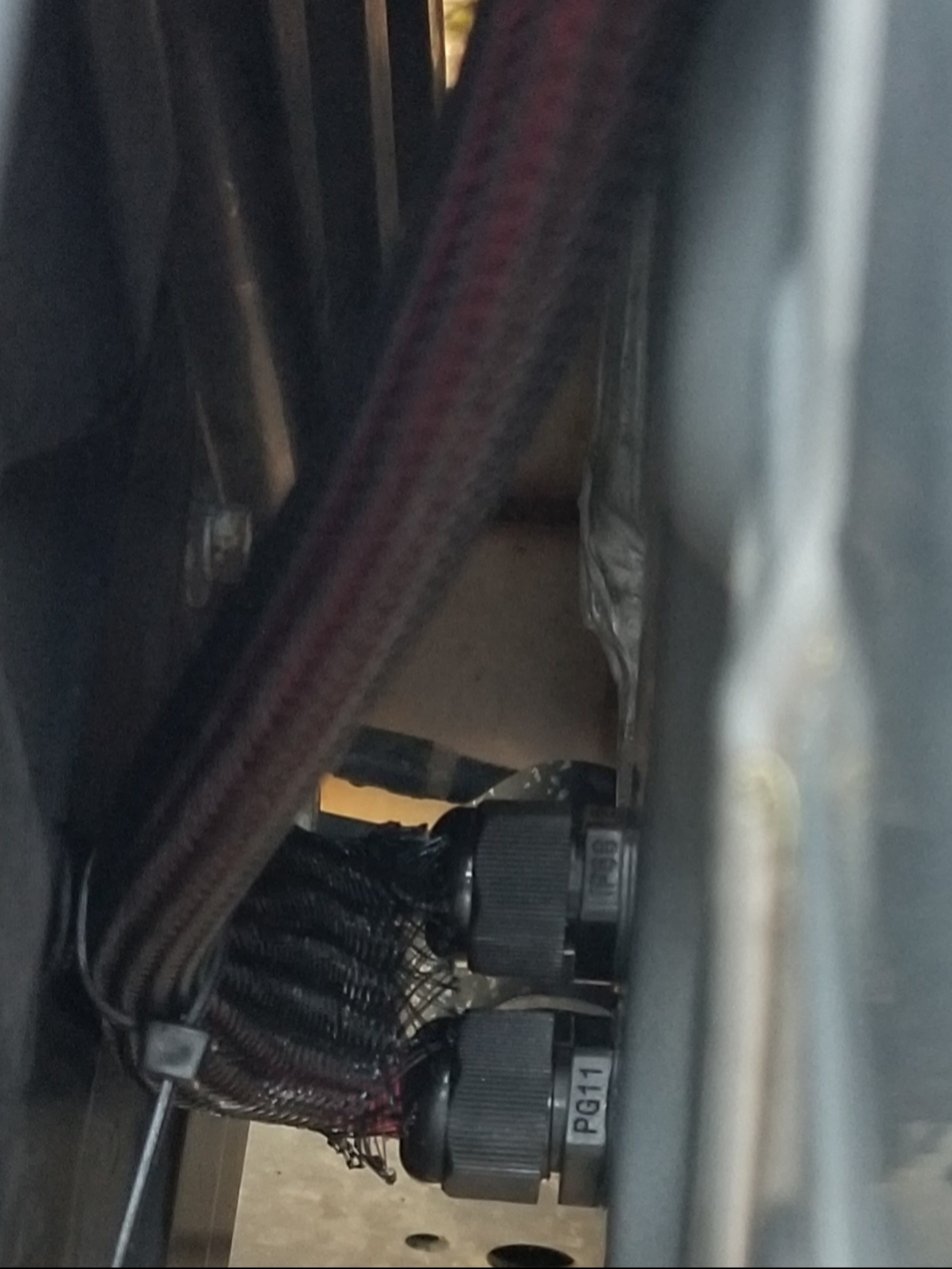

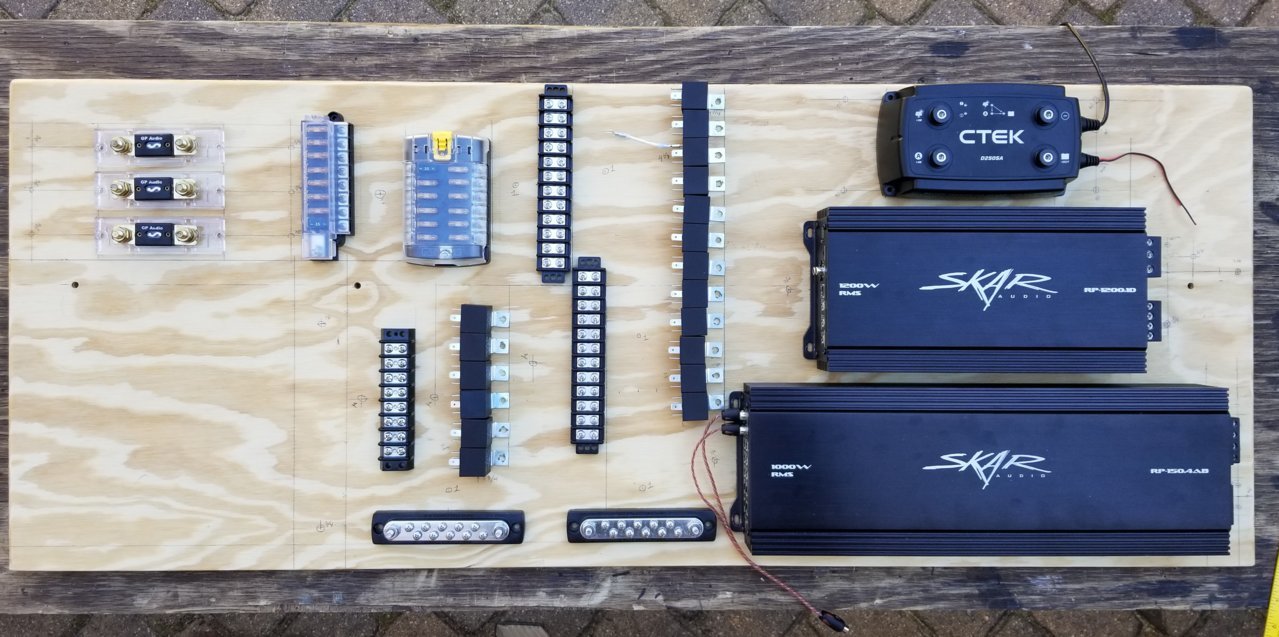

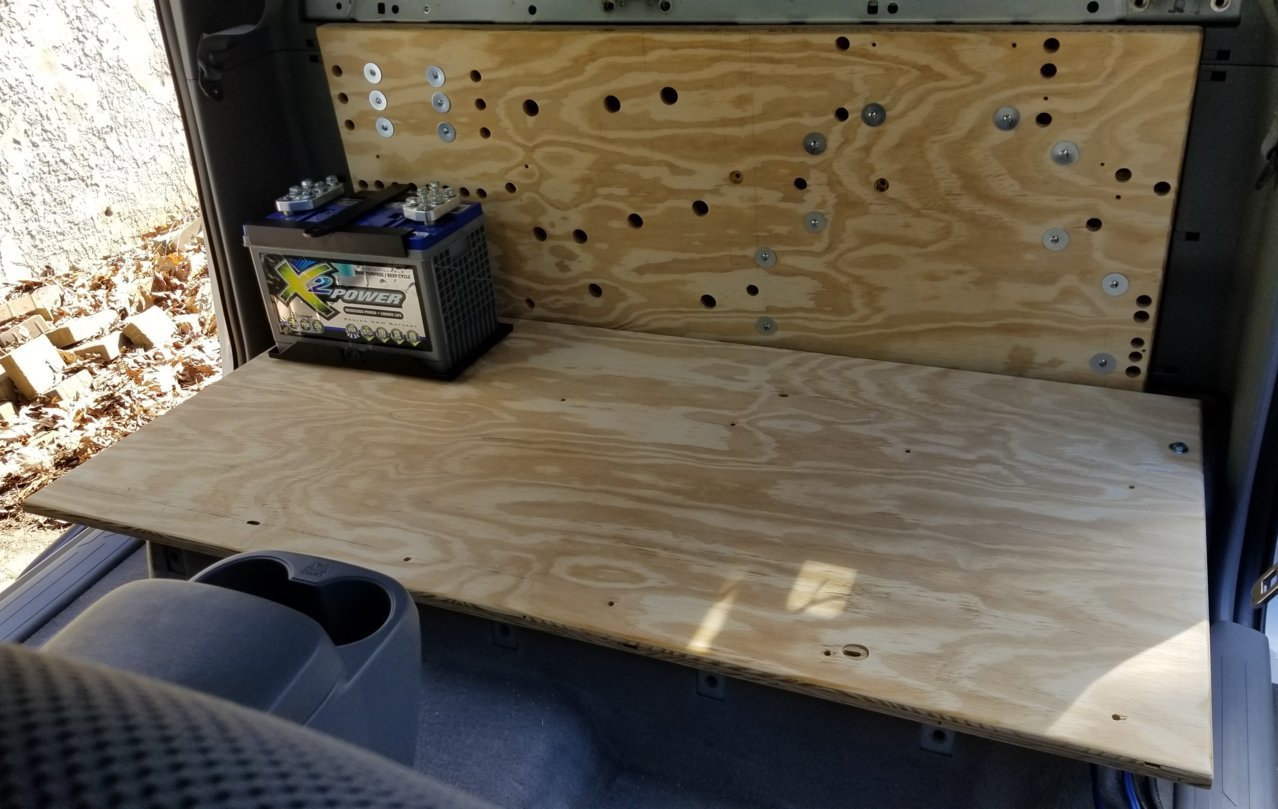

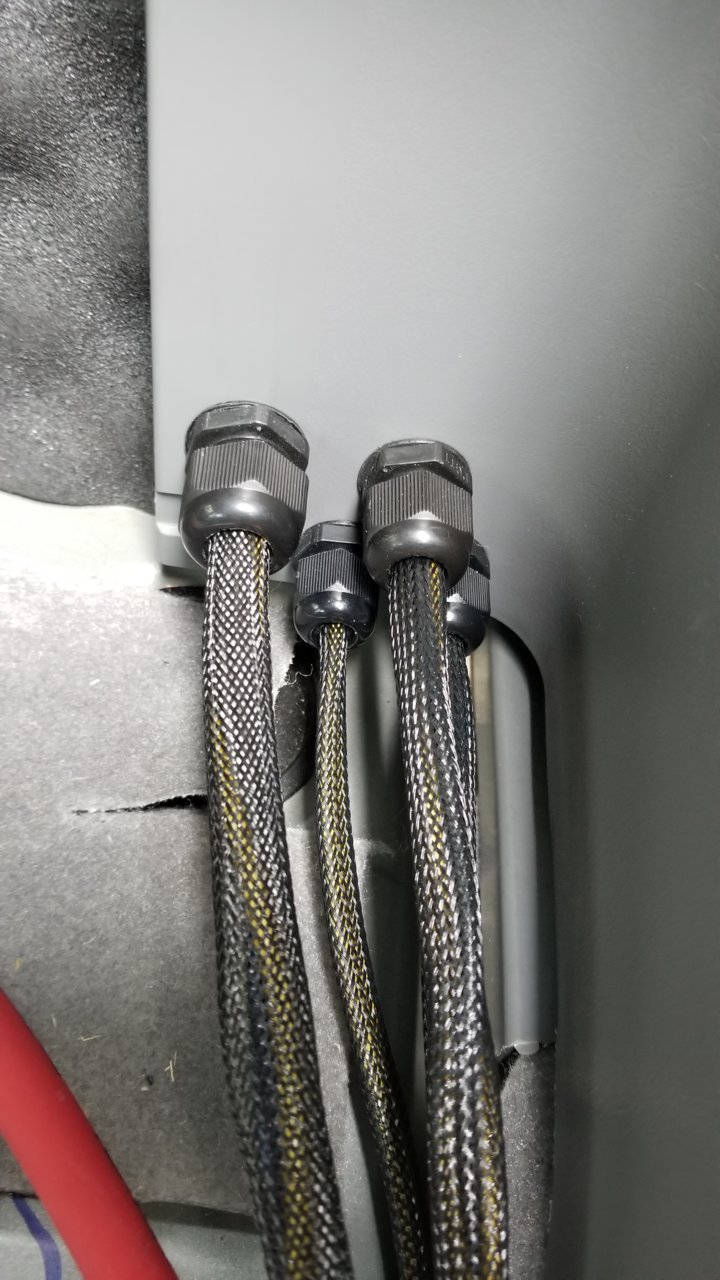

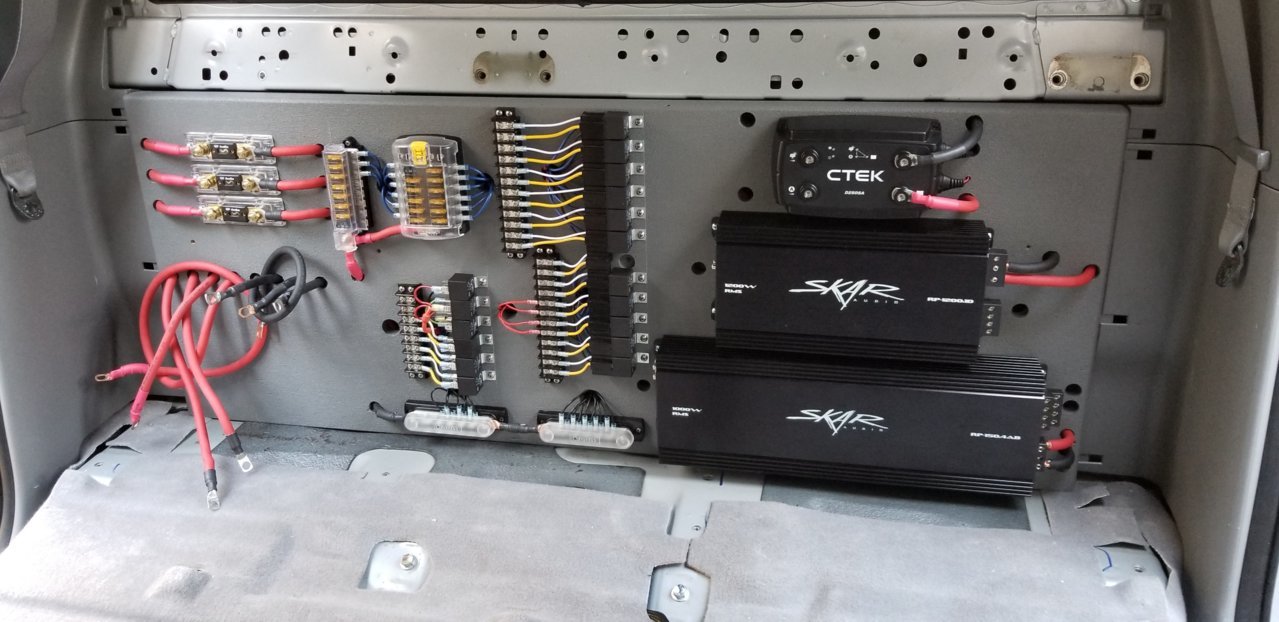

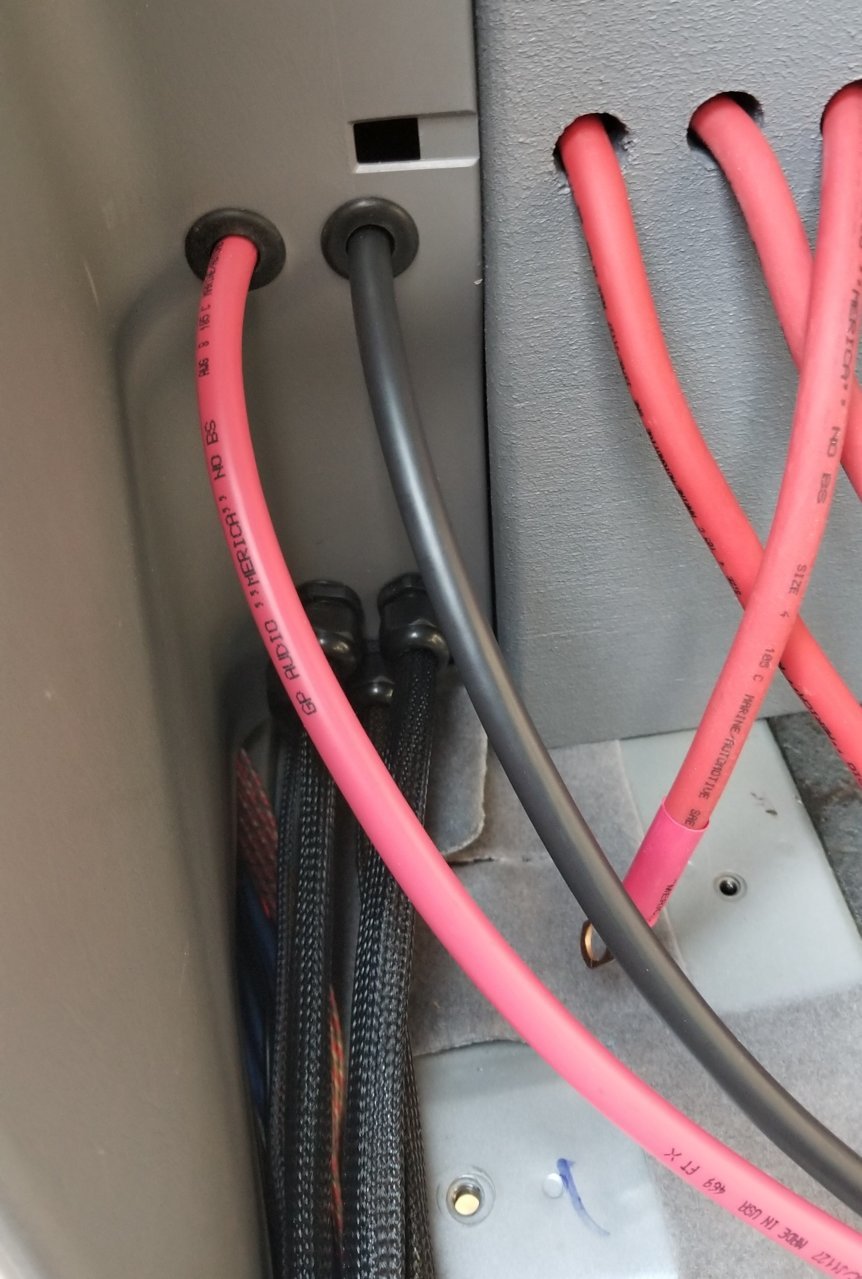

    Wasn't expecting to accomplish anything this weekend because of the forecasted rain. Weather changed last minute so I was able to do the above uninstall, then scramble around to pick up lumber & steel. Was able to make all the lumber cuts and get the rack platform built before the rain started again. Need the next dry weekend to finish up the refrigerator platform & slide (steel) and back wall electrical rack.

    3/10/19

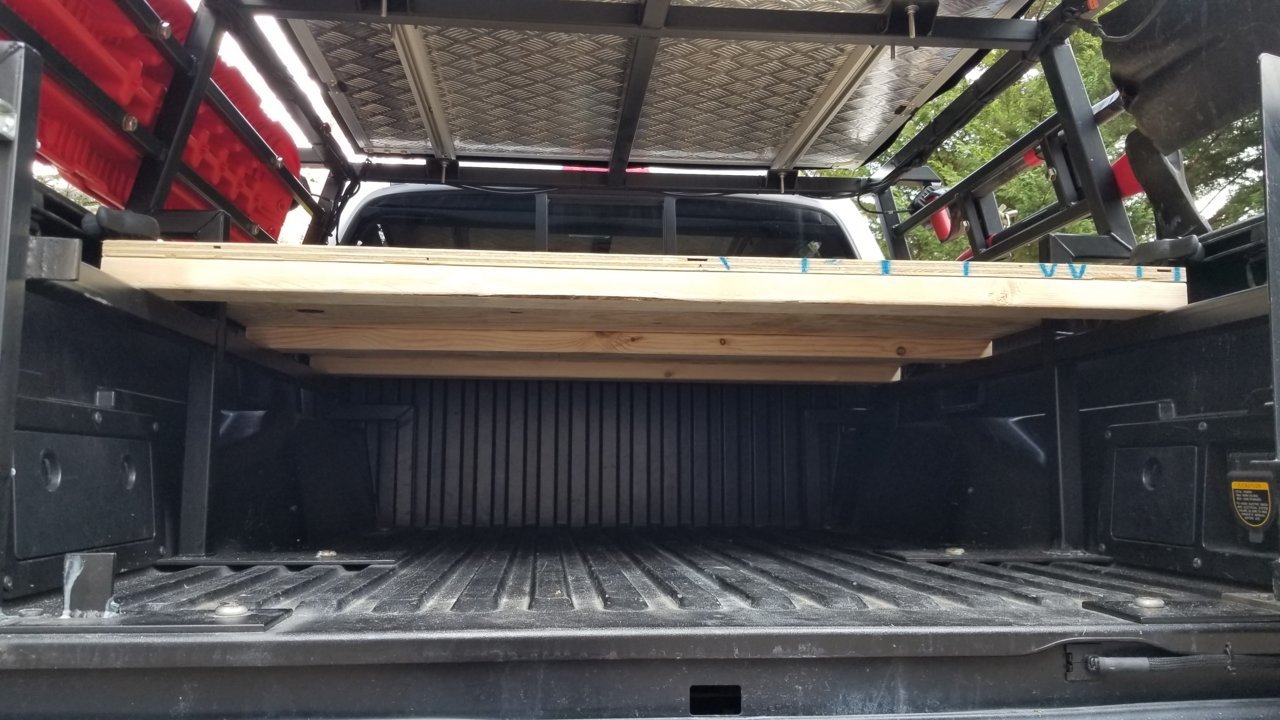

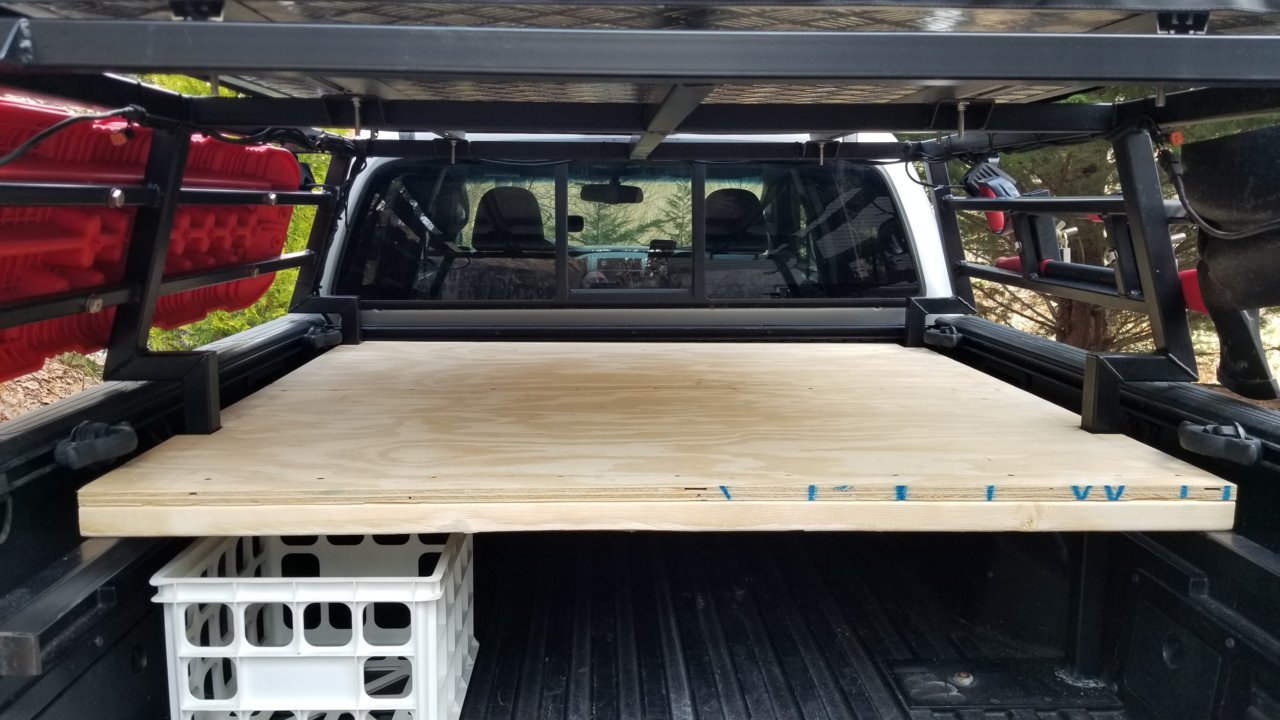

    ***platform slides and snaps into place with very little movement, notice platform just below rails


    ***opted for plywood verus the mdf for these builds

    Passed 240 lb static load test, plenty strong for my needs.

    Last edited: Mar 11, 2019
  11. Mar 15, 2019 at 10:31 AM
    #131
    ckrockets

    ckrockets [OP] i don't own a couch

    Joined:
    Feb 16, 2008
    Member:
    #4757
    Messages:
    94
    Gender:
    Male
    Barnardsville, NC
    Vehicle:
    2010 Tacoma 4X4 TRD sport DCB short bed
    Preview of what I will be working on this weekend.

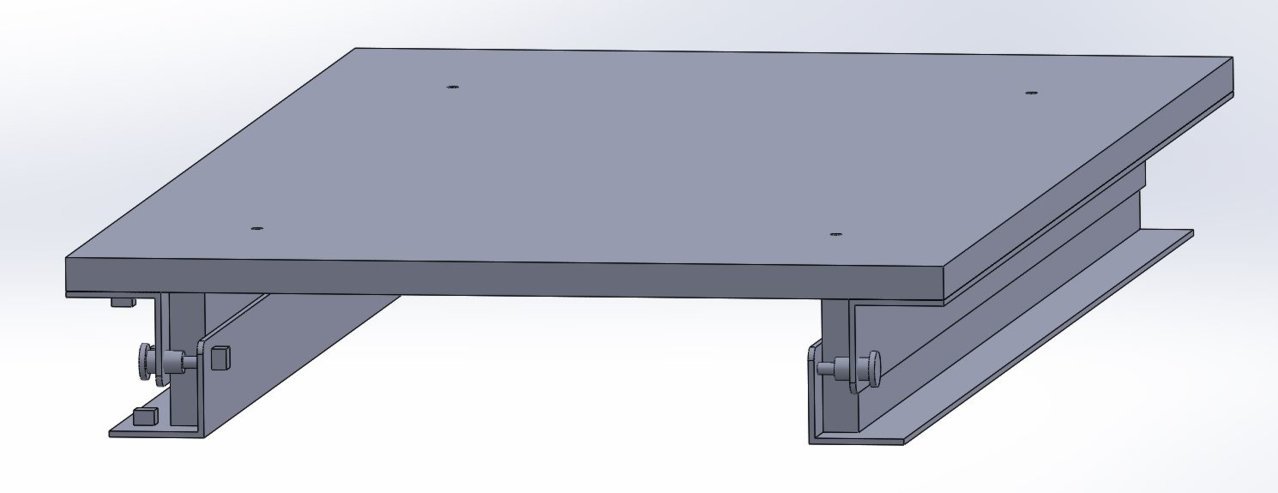

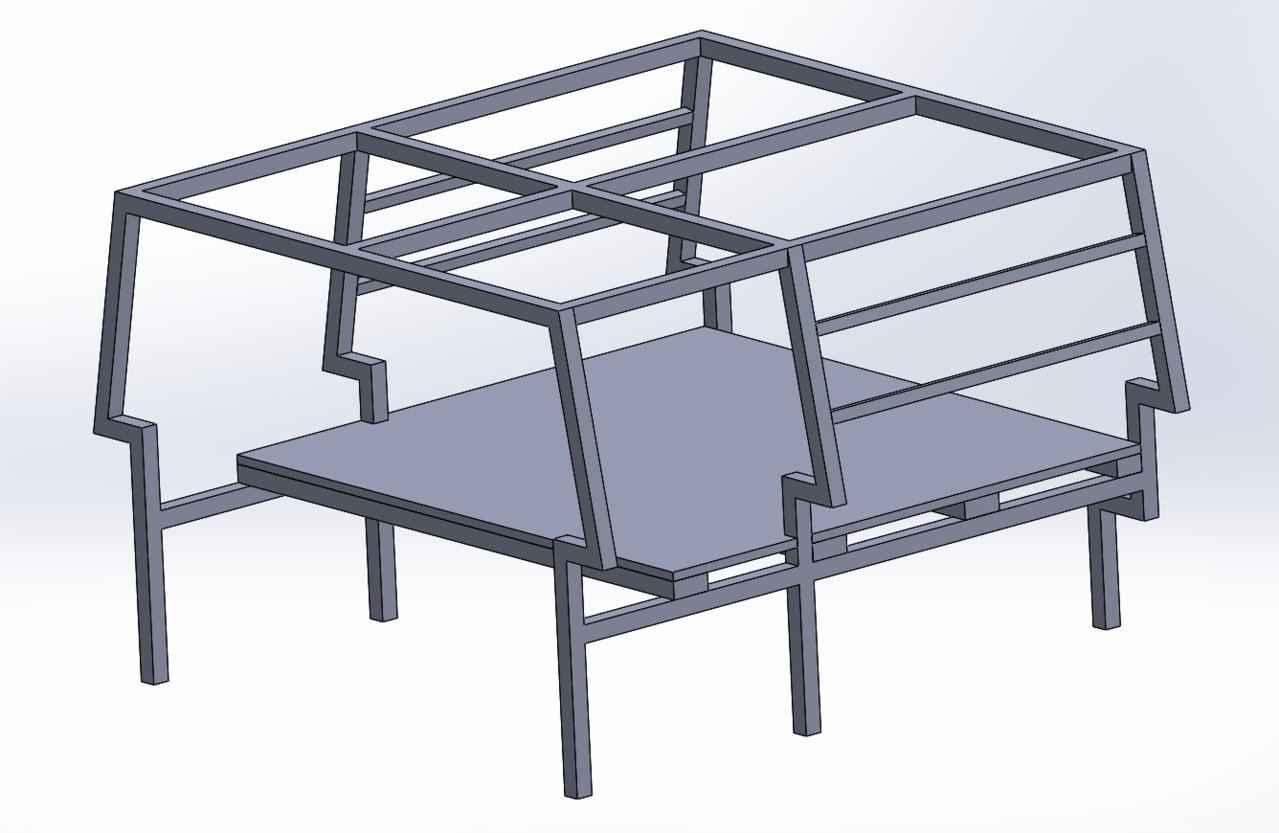

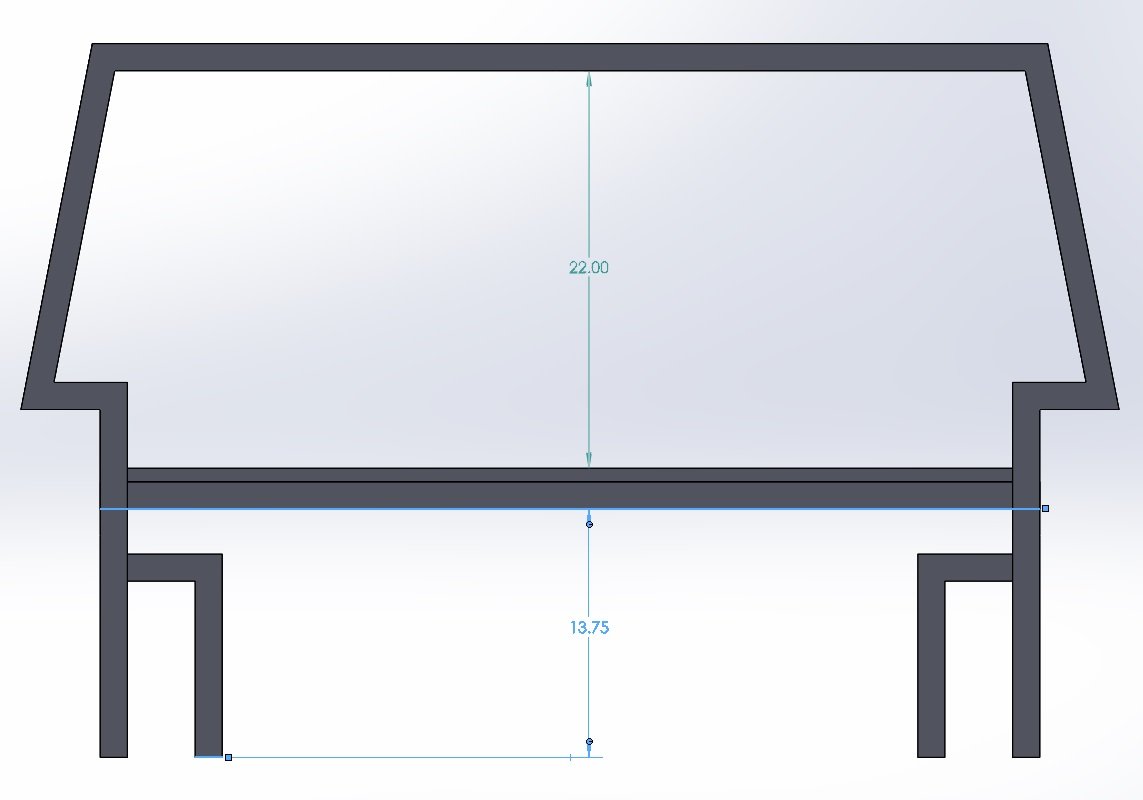

    *** Solidworks model (34" Accuride drawer slides, 2" angle iron, plywood platform, spring loaded indexing pins, t-nuts, locking nuts, 100deg flat head screws)

  12. Mar 17, 2019 at 7:52 PM
    #132
    ckrockets

    ckrockets [OP] i don't own a couch

    Joined:
    Feb 16, 2008
    Member:
    #4757
    Messages:
    94
    Gender:
    Male
    Barnardsville, NC
    Vehicle:
    2010 Tacoma 4X4 TRD sport DCB short bed
    3/16/17

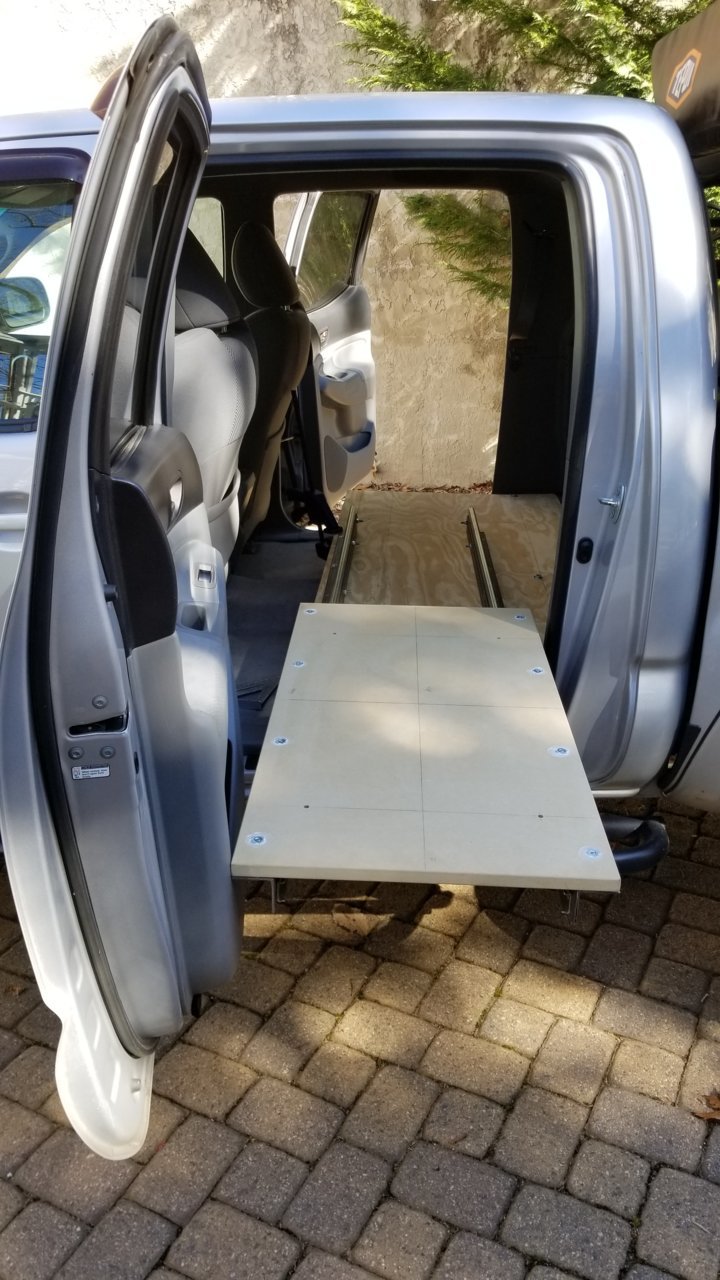

    *** 5 bolt points using existing locations



    *** front 2 points using clip nuts



    *** level and rock solid

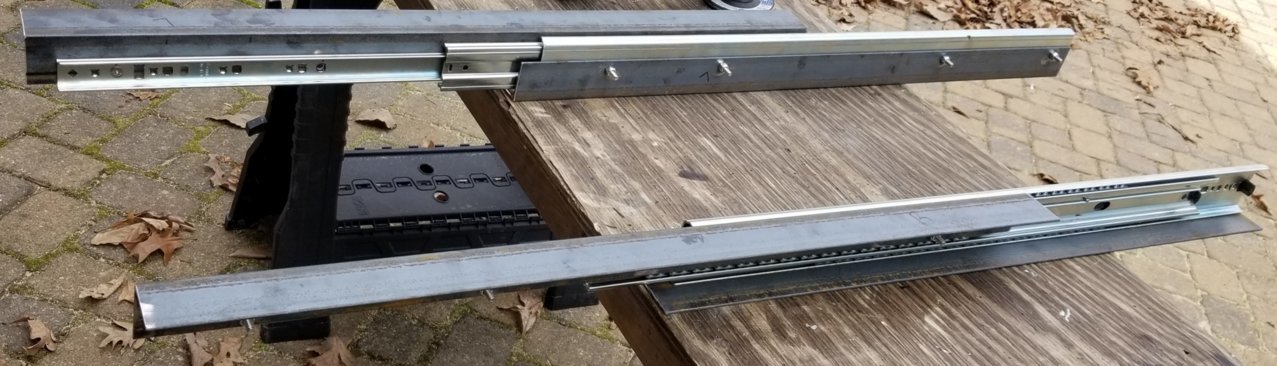

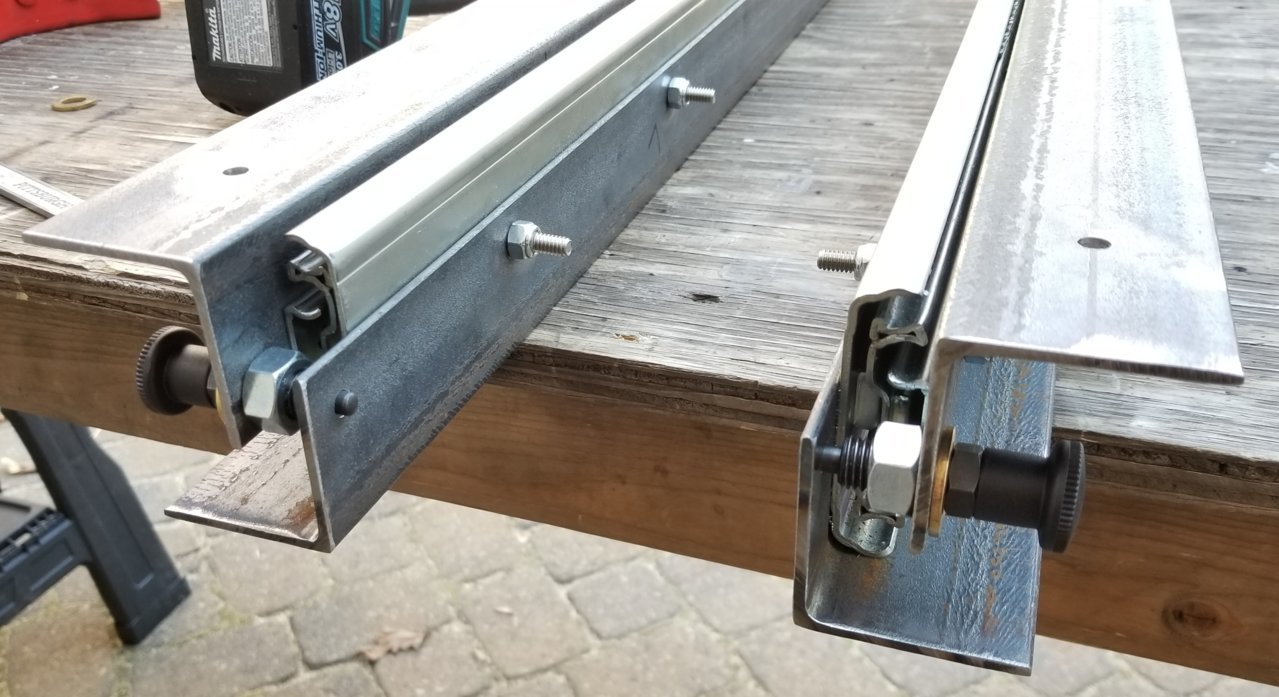

    ***angle iron cut to length, drilled, and bolted to slides

    3/17/19

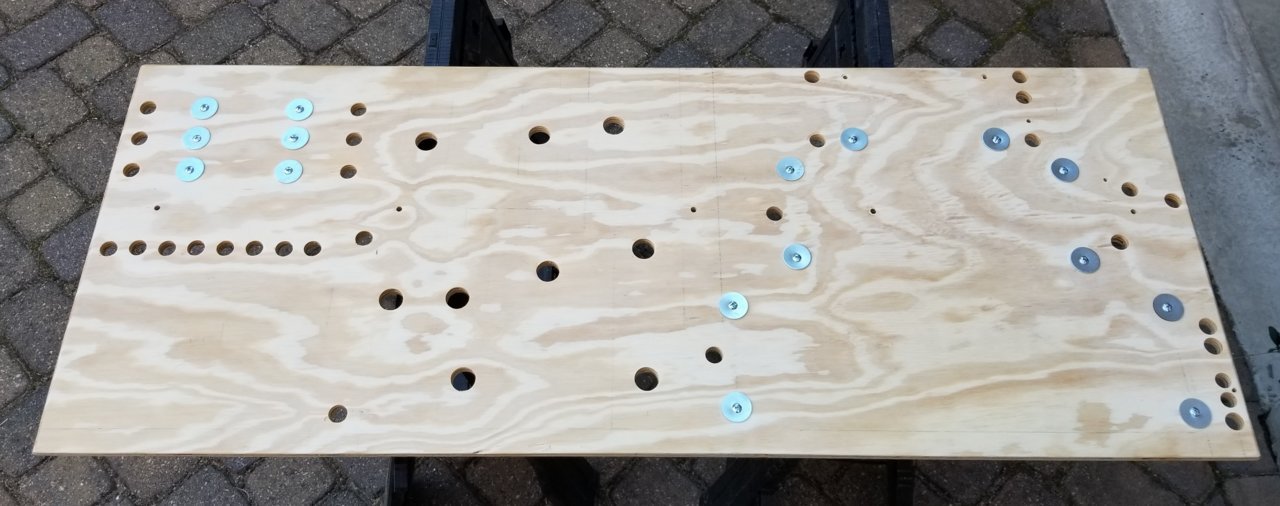

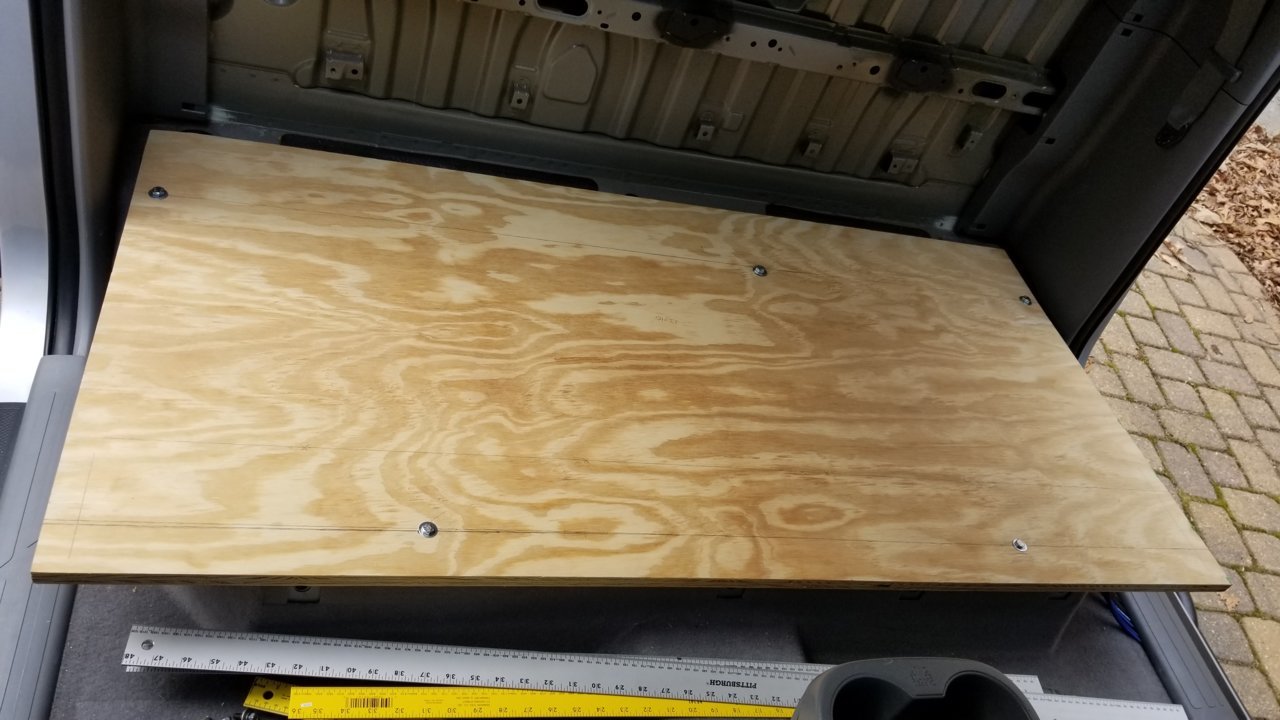

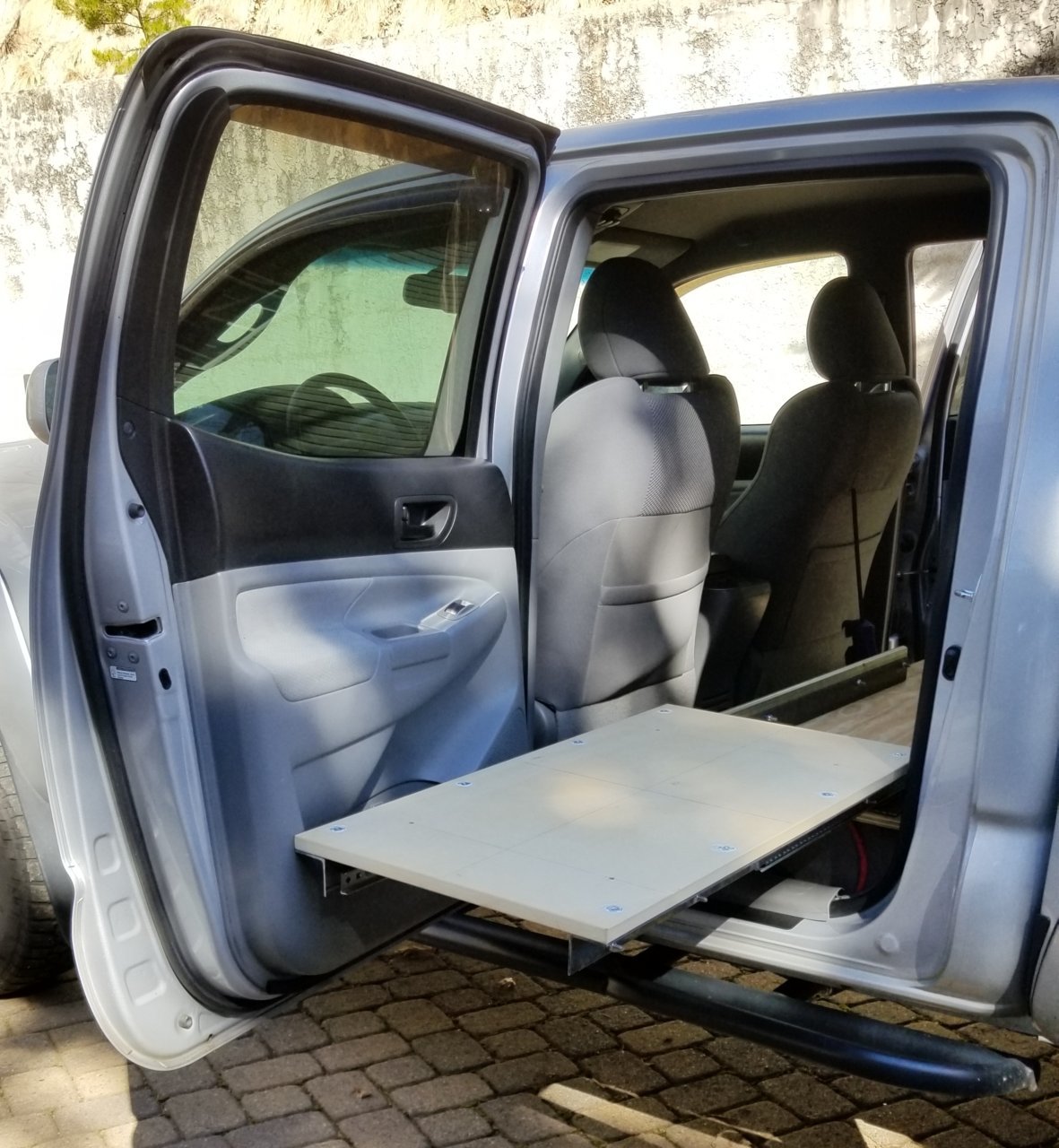

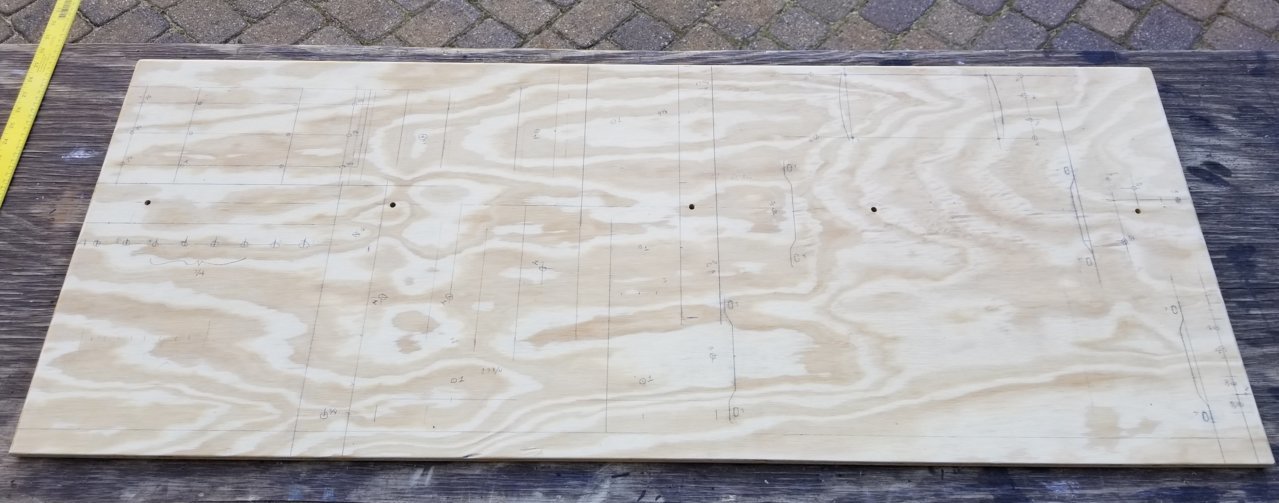

    *** first refrigerator board made out of plywood got wrecked by the router, rebuilt using mdf ended up turning out better, ARB 82qt fridge/freezer will be hard mounted to board



    *** just enough clearance at full extension


    *** spring loaded locking pins, could of added ramps for auto locking when closing but opted not to complicate height adjustments of the pins, more concerned about a solid locking function

    This slide setup can be put together for around $150. The slides being the bulk of that ($100). There are cheaper ways (maybe just under $100 total) using U channel, angle iron, and roller bearings but I didn't have time to experiment with designs. I was confident I could put this one together using drawer slides without any issues the first time around.

    Last edited: Mar 18, 2019 at 5:47 AM
    Discount Tire Direct likes this.
  13. Mar 17, 2019 at 8:49 PM
    #133
    RedBeard1

    RedBeard1 Hangry Fat Kid

    Joined:
    Nov 9, 2015
    Member:
    #169163
    Messages:
    2,428
    Gender:
    Male
    First Name:
    Red
    The Republic of Texas
    Vehicle:
    1985 Hilux Crawler(Pete), 2016 Quicksand TRD OR 6MT (Wombat), 2016 TRD Pro T4R
    Mostly stuff I built.
    If the locking pins are facing each other tie them together loosely with a length of 550 cord. One cord pull releases both pins. Releasing the slide is a one hand operation.

    ckrockets [OP] likes this.
  14. Mar 18, 2019 at 4:17 AM
    #134
    ckrockets

    ckrockets [OP] i don't own a couch

    Joined:
    Feb 16, 2008
    Member:
    #4757
    Messages:
    94
    Gender:
    Male
    Barnardsville, NC
    Vehicle:
    2010 Tacoma 4X4 TRD sport DCB short bed
    Kind of like the Alu-Cab slide ;) , mine are facing out by design :) . Their design actually inspired me to overlap the angle iron to mount the pins.

    I considered a pulling lanyard. Didn't like the idea of the potential problems the tangential forces could have on the chinese made indexing pins.

    Alu-Cab uses a large solid pin with exterior spring on their design.


    Last edited: Mar 18, 2019 at 5:38 AM
    RedBeard1 likes this.
