Clean VHF/CB radio installs

Discussion in '3rd Gen. Tacomas (2016+)' started by FoleySwampPlotts, Feb 10, 2016.

  1. Jul 4, 2021 at 9:15 AM
    #2001
    Go Fish

    Go Fish Well-Known Member

    Joined:
    Jun 27, 2016
    Member:
    #190700
    Messages:
    132
    Gender:
    Male
    Vehicle:
    2016 AC SR 4x4
    It's only inductive to common mode currents on the outside of the shield. Ideally there would not be any current there. Any significant current there means the coax shield has become part of the antenna. In many antenna systems common mode chokes are intentionally inserted in the feedline.

  2. Jul 4, 2021 at 2:20 PM
    #2002
    Doc62

    Doc62 Well-Known Member

    Joined:
    Nov 7, 2020
    Member:
    #346138
    Messages:
    309
    Gender:
    Male
    First Name:
    Dave
    SE Pennsylvania
    Vehicle:
    2021 Tacoma TRD Off Road, 2019 Sahara
    Ideally is the key phrase. It’s still good practice not to coil like that.

    golfindia likes this.
  3. Jul 18, 2021 at 2:46 PM
    #2003
    MeefZah

    MeefZah Curmudgeonly

    Joined:
    Jul 11, 2014
    Member:
    #133704
    Messages:
    3,594
    Gender:
    Male
    Lexington, Ohio
    Vehicle:
    '21 SR 4WD AC
    Assholes call travel "overlanding"
    Here's today's install of an Icom IC2730A in my 2021 SR AC.

    I use this radio in my 4Runner also, so I can swap it out for long trips in either vehicle. Both trucks are set up the same with all the accessories / antenna / wiring in place and I can just pull the brain from under the passenger seat, unplug everything, loosen the RAM mount for the head unit / mic, and move the radio between the trucks. Antenna, wiring, data cable, mic clip, speaker in each truck - all in for $100.

    Radio is under passenger seat, held to carpet with velcro. Wiring is routed inside the console and out under the passenger seat. Power is to battery and is routed through the firewall at the main harness grommet (behind the fusebox).

    Antenna is a Tram 5/8 wave VHF on a TRAM trunk lip NMO mount. Annoyingly they shipped me a stainless whip and black base; I wanted a black whip to match the base but oh well... Cable is routed through the firewall at the main harness grommet (behind the fusebox).

    Mic clip is a Motorola one from my old job. I cannot recall the name of the maker of the mic button I bolted on in place of the Icom's cheesy hang up hook.

    Speaker is a Midland clone of the Motorola public safety extension speakers, bolted to the transmission hump. Good sound in that location and out of the way.

    Head unit is mounted to the back of the storage cubby under the HVAC controls with a homemade RAM mount. By adjusting it up to the top of the cubby as shown I can still drop my phone and wallet in there (which is all I ever put there). You can mount the RAM ball and drill out the data cable hole without removing the lower console but be super careful because the airbag brain is just underneath... don't drill too far, and use short screws for the RAM ball.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]


    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

  4. Jul 18, 2021 at 6:00 PM
    #2004
    HisDad

    HisDad Well-Known Member

    Joined:
    Mar 30, 2015
    Member:
    #152127
    Messages:
    782
    Gender:
    Male
    Massachusetts
    Vehicle:
    2019 Cement Tacoma SR5 Double Cab
    I see you have the requisite cuts on your hand. ;) Proof that you are a qualified radio installer! :)

    My only suggestion would be to move the radio as far forward under the seat as possible. If you ever have a rear seat passenger, you don't want them kicking the radio. I put mine under the front edge turned sideways so that I can get to the connector for the programming cable.

    soundman98 likes this.
  5. Jul 18, 2021 at 8:53 PM
    #2005
    MeefZah

    MeefZah Curmudgeonly

    Joined:
    Jul 11, 2014
    Member:
    #133704
    Messages:
    3,594
    Gender:
    Male
    Lexington, Ohio
    Vehicle:
    '21 SR 4WD AC
    Assholes call travel "overlanding"
    It's about in the middle of the seat. I moved the seat forward for the pic. I also have a utility cab so no danger of a backseat passenger!

    HisDad likes this.
  6. Jul 19, 2021 at 6:57 AM
    #2006
    HisDad

    HisDad Well-Known Member

    Joined:
    Mar 30, 2015
    Member:
    #152127
    Messages:
    782
    Gender:
    Male
    Massachusetts
    Vehicle:
    2019 Cement Tacoma SR5 Double Cab
    I got a DC just because I can fit passengers in the back. Which is unlike my '06 Tundra AC, which had a lot of virtues, but rear seat passenger space was not one.

    Even at that, I put the speaker for the 2730A under the front passenger seat. My posts on my install are several pages back in this thread.


  7. Jul 19, 2021 at 7:31 PM
    #2007
    Cudgel

    Cudgel “Tonka”

    Joined:
    Mar 28, 2017
    Member:
    #214640
    Messages:
    3,506
    Gender:
    Male
    Live in: An Ocean of Plastic Trash
    Vehicle:
    2017 OR DCLB
    ICON8 Lift -285s. upTOPoverland rack.

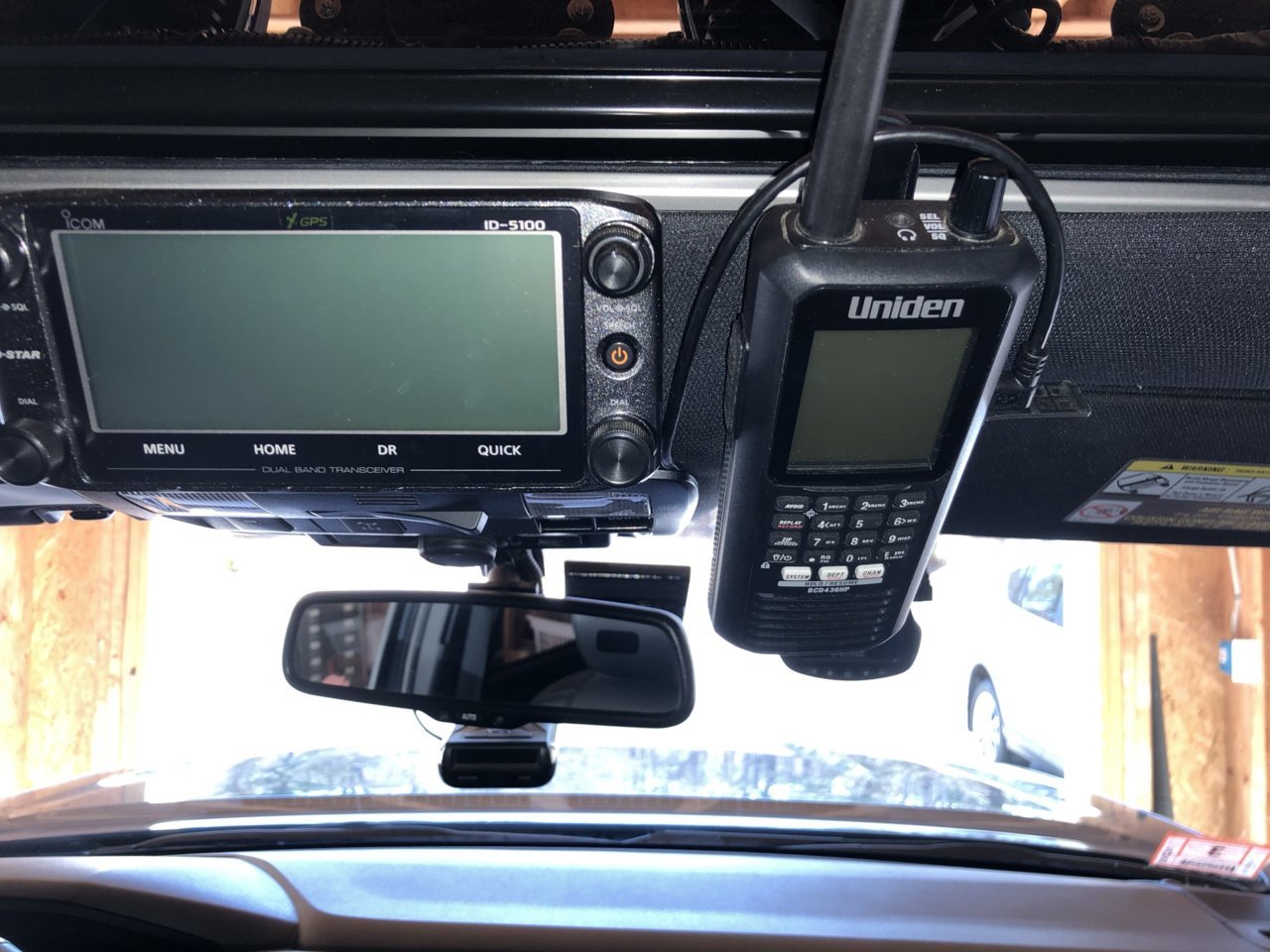

    Neither clean, nor installed but it works as my scanner:

    Gamester and SJBrown like this.
  8. Jul 19, 2021 at 7:34 PM
    #2008
    HisDad

    HisDad Well-Known Member

    Joined:
    Mar 30, 2015
    Member:
    #152127
    Messages:
    782
    Gender:
    Male
    Massachusetts
    Vehicle:
    2019 Cement Tacoma SR5 Double Cab
    If you're interested and have money you want to spend, there is an aftermarket control head that will work with the SDS100.

    The thread is here. It's a bit long since there are a lot of posts about the development of the head.

    https://forums.radioreference.com/threads/uniden-remote-head-project.396539/


    k8md, GarlicFarts and Cudgel like this.
  9. Jul 22, 2021 at 6:14 AM
    #2009
    Gamester

    Gamester Active Member

    Joined:
    Oct 23, 2015
    Member:
    #167508
    Messages:
    44
    Gender:
    Male
    British Columbia
    Vehicle:
    2021 Offroad Access Cab mt
    I recently put a Kenwood D710g mobile in my truck.
    I wired the positive lead directly to the battery, and the negative terminal is attached to the grounding bolt next to the OEM battery. The radio body is located under the drivers seat and uses the supplied power wiring that came with the unit.
    When I start the truck with the radio already on, the radio briefly dims and does a quick reset. I’m concerned if this happens frequently it may do damage.
    Any suggestions? Upgrade my trucks battery? Wire the negative lead directly to the battery too?

    k8md likes this.
  10. Jul 22, 2021 at 6:40 AM
    #2010
    stu8319

    stu8319 Well-Known Member

    Joined:
    Sep 18, 2018
    Member:
    #266652
    Messages:
    259
    Gender:
    Male
    First Name:
    Stuart
    Oklahoma City
    Vehicle:
    2018 Tacoma TRD Off-Road in Quicksand
    I could be wrong here, but it sounds like a voltage drop, maybe your battery is getting old? My TM-V71A does NOT do this when I leave it on during truck startup.

    Gamester likes this.
  11. Jul 22, 2021 at 6:46 AM
    #2011
    Gamester

    Gamester Active Member

    Joined:
    Oct 23, 2015
    Member:
    #167508
    Messages:
    44
    Gender:
    Male
    British Columbia
    Vehicle:
    2021 Offroad Access Cab mt
    My truck is only a couple months old, but it only does short trips - so maybe the battery is not getting a full charge? When the key is in the aux position I get the “check charging system” warning on my console display - I figured it was just because the engine wasn’t running, but perhaps my battery is low…
    I’ll try throwing it on a battery charger. Also, I might swap the negative lead to go straight to the battery like the positive one does already.

  12. Jul 22, 2021 at 6:48 AM
    #2012
    BEAR_KNIFE_FIGHT

    BEAR_KNIFE_FIGHT bearly famous

    Joined:
    May 21, 2016
    Member:
    #187524
    Messages:
    1,948
    Gender:
    Male
    First Name:
    Alex
    Minnesota
    Vehicle:
    2016 TRD OR 4X4 DCSB Quicksand
    What battery are you running? Stock or AGM? The ECU/alternator do not fully charge AGMs unless you trick it with a tune or something.

    I agree that it sounds like the battery voltage is dropping slightly during cranking and the radio is experiencing some amount of power drop. I'm not sure if it's detrimental to the radio, but I can't assume it's good for it.

    Gamester likes this.
  13. Jul 22, 2021 at 6:48 AM
    #2013
    stu8319

    stu8319 Well-Known Member

    Joined:
    Sep 18, 2018
    Member:
    #266652
    Messages:
    259
    Gender:
    Male
    First Name:
    Stuart
    Oklahoma City
    Vehicle:
    2018 Tacoma TRD Off-Road in Quicksand
    My ground is straight to the battery, so maybe that would help, but I think as long as you have a solid paint-free connection at the body it should be fine.

    Gamester likes this.
  14. Jul 22, 2021 at 7:10 AM
    #2014
    GarlicFarts

    GarlicFarts Bang Ding Ow

    Joined:
    Dec 12, 2019
    Member:
    #313138
    Messages:
    6,328
    Gender:
    Male
    Lil Rhody
    Vehicle:
    2020 White DCSB TRD OR
    SOS bolt-on sliders In-cab sleeping platform Soft Topper
    Try a shorter ground - there's a few grounds in the cab with a much shorter ground cable to get there.

    Gamester likes this.
  15. Jul 22, 2021 at 7:55 AM
    #2015
    fredgoodsell

    fredgoodsell Well-Known Member

    Joined:
    Jan 14, 2015
    Member:
    #146389
    Messages:
    1,921
    Gender:
    Male
    First Name:
    Matt
    Salt Lake, UT
    Vehicle:
    2017 DC TRD OR
    You're right about the engine not running, battery not charging. This is perfectly normal. Everyone's truck does this, it's just more noticeable because it's a message on the console screen instead of small dummy light.

    Gamester likes this.
  16. Jul 22, 2021 at 9:48 AM
    #2016
    HisDad

    HisDad Well-Known Member

    Joined:
    Mar 30, 2015
    Member:
    #152127
    Messages:
    782
    Gender:
    Male
    Massachusetts
    Vehicle:
    2019 Cement Tacoma SR5 Double Cab
    You should be okay using that grounding lug next to the battery. That's what I did with my Icom2730A and have no problems. Are you using the original wire all the way to the battery? Also, make sure that the positive connection to the battery is tight.


    Gamester likes this.
  17. Jul 22, 2021 at 5:23 PM
    #2017
    foy1der

    foy1der Well-Known Member

    Joined:
    Sep 18, 2016
    Member:
    #197597
    Messages:
    558
    Gender:
    Male
    First Name:
    W1FOY
    Vehicle:
    2017 OR DCLB
    My v71a does this when I leave it on during startup. The quick solution is not to do that, if you think it's bad. My commute is about 40 minutes each way, no issues with the battery.

    Gamester likes this.
  18. Jul 24, 2021 at 3:48 AM
    #2018
    k8md

    k8md Well-Known Member

    Joined:
    Feb 11, 2018
    Member:
    #244081
    Messages:
    417
    Gender:
    Male
    First Name:
    Bob
    Vehicle:
    2015 Silver TRD Sport
    Most vehicles are going to drop voltage enough for the radio to shut down during engine crank. It's not a sign of a problem. Some radios have enough capacitance to carry them through the loss of voltage.

    It's better to ground the radio as close as possible to the radio chassis. Running ground back to the battery is generally a bad idea.

    Gamester likes this.
  19. Jul 24, 2021 at 6:56 AM
    #2019
    Doc62

    Doc62 Well-Known Member

    Joined:
    Nov 7, 2020
    Member:
    #346138
    Messages:
    309
    Gender:
    Male
    First Name:
    Dave
    SE Pennsylvania
    Vehicle:
    2021 Tacoma TRD Off Road, 2019 Sahara
    My Elmer taught me to do that years ago and I haven’t had any issues in over 30 years with multiple vehicles and radios. Just remember to fuse both lines. With modern cars though some have Electrical Load Detectors (ELD). For cars with those you should connect to where the ELD grounds the battery to the vehicle.

    Last edited: Jul 24, 2021
    Gamester likes this.
  20. Jul 24, 2021 at 9:03 AM
    #2020
    HisDad

    HisDad Well-Known Member

    Joined:
    Mar 30, 2015
    Member:
    #152127
    Messages:
    782
    Gender:
    Male
    Massachusetts
    Vehicle:
    2019 Cement Tacoma SR5 Double Cab
