Clean VHF/CB radio installs

Discussion in '3rd Gen. Tacomas (2016-2023)' started by FoleySwampPlotts, Feb 10, 2016.

  1. Oct 9, 2017 at 5:33 PM
    #561
    Dgibson529

    Dgibson529 Well-Known Member

    Joined:
    Dec 21, 2015
    Member:
    #172795
    Messages:
    1,580
    Gender:
    Male
    First Name:
    Derek
    Westfield, MA
    Vehicle:
    NE F150s of TW FTW

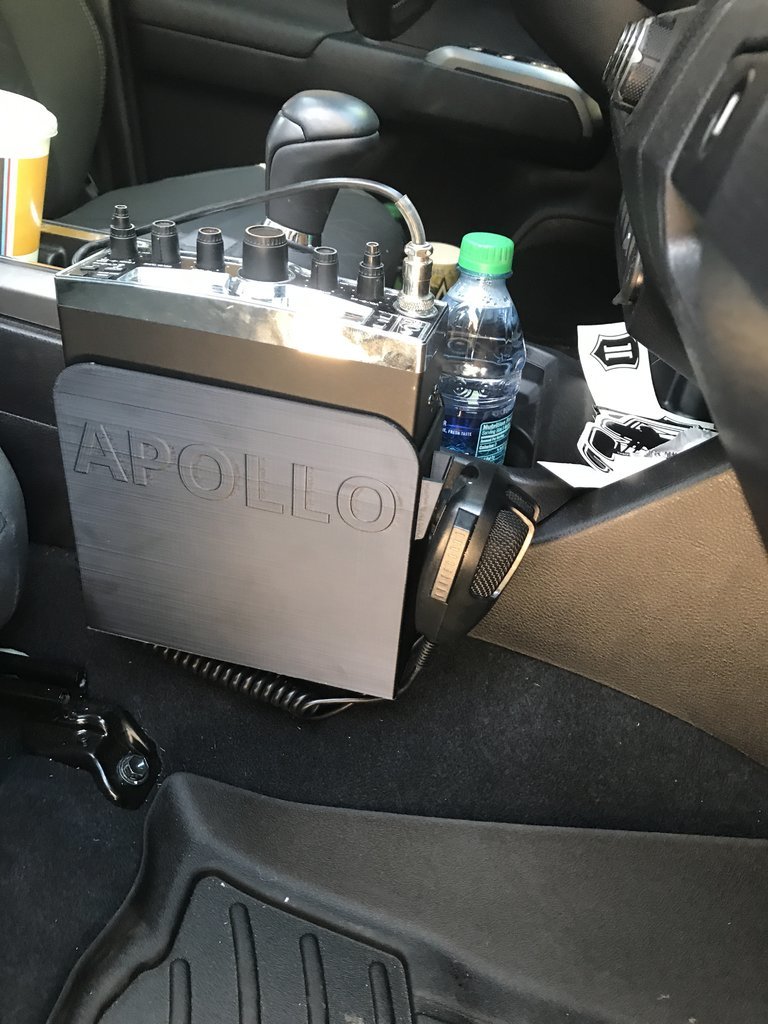

    Only hard part is finding a decent spot to mount it because of the size

  2. Oct 9, 2017 at 5:37 PM
    #562
    chrisrocks300

    chrisrocks300 War Eagle

    Joined:
    Mar 11, 2017
    Member:
    #212994
    Messages:
    7,419
    Gender:
    Male
    First Name:
    Chris
    Brandon, MS
    Vehicle:
    2016 4x4 Tacoma DCSB Trd Off-road Superwhite
    Total Chaos UCA's, Raceline Raptor wheels (16x8) 4.5 BS, 285/75/16 Cooper S/T Maxx tires, Icon Stage 2 Lift Kit, Sos sliders w/ fill plates, exhaust reroute, mobtown offroad skid plates (ifs, transmission, transfer case), and diff breather mod

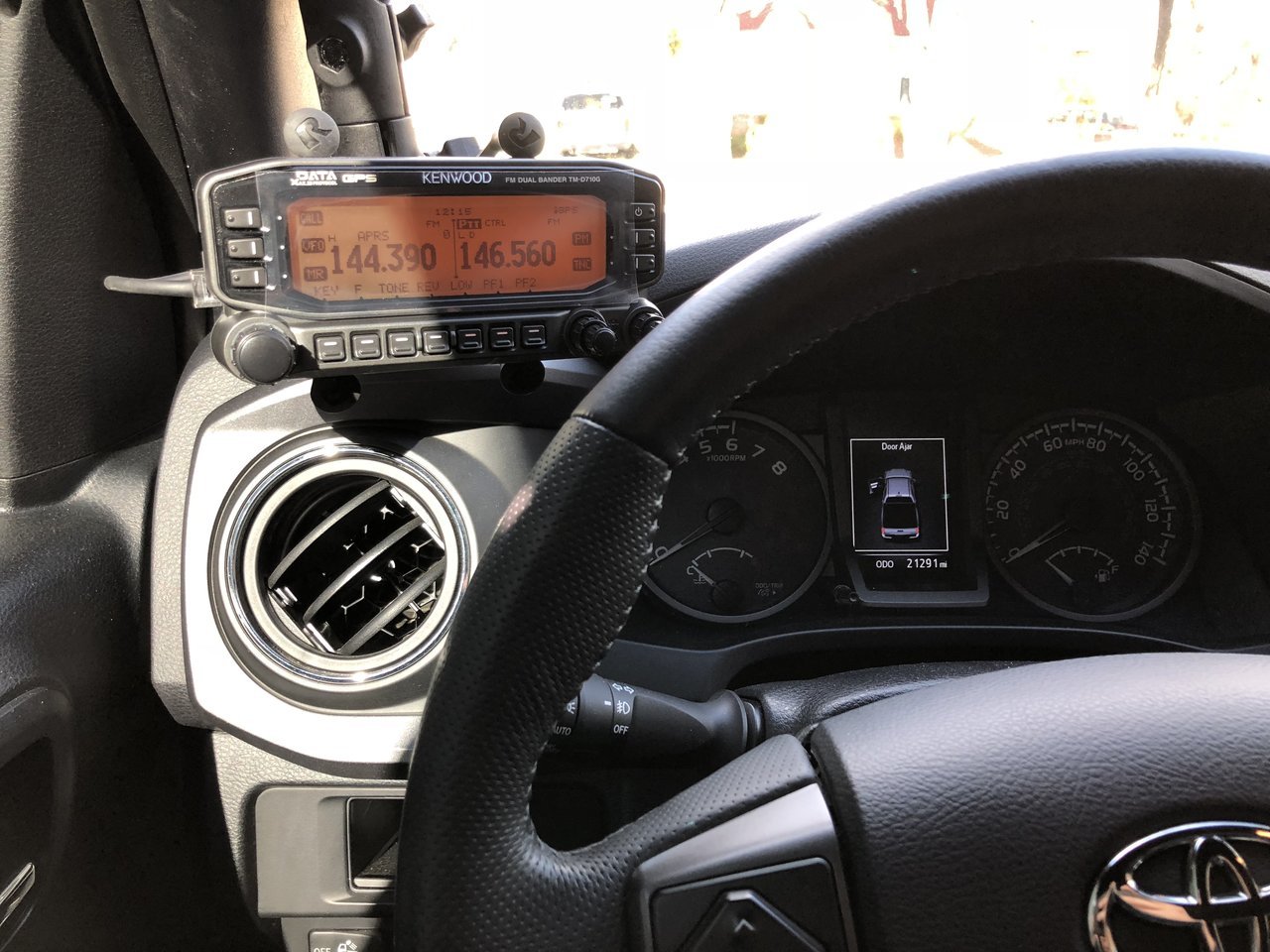

    I have a pretty big one too, I 3d printed a mount and didn’t even drill it. It has a lip on the back that slides under the trim. Holds in place great


  3. Oct 9, 2017 at 5:41 PM
    #563
    andlours

    andlours Well-Known Member

    Joined:
    Jan 13, 2014
    Member:
    #120523
    Messages:
    556
    Gender:
    Male
    First Name:
    Andy
    Denver, CO
    Vehicle:
    09 TRD Offroad
    How did you convert the cobra female plug to a male plug?

  4. Oct 9, 2017 at 5:46 PM
    #564
    MikeyMcFly

    MikeyMcFly This is heavy, Doc.

    Joined:
    Aug 11, 2012
    Member:
    #84551
    Messages:
    5,959
    Gender:
    Male
    I'm a Masshole
    Vehicle:
    2016 TRD Off-Road 6MT / 1999 Corvette 6MT
    Building a Broja
    I opened up the connector and swapped them. I had the panel mount and then an extender, so I just unsoldered the wires on the Cobra piece and swapped them with the right end on the extender and redid the connections. Everything seems to work fine. I asked for a radio check and got almost 8 miles line of sight per my reply.

    The only downfall is technically of something metal were to go across the pins you could short and have a fire risk. I've been looking for a 8-pin DIN cover to be safe.

  5. Oct 9, 2017 at 5:54 PM
    #565
    Dgibson529

    Dgibson529 Well-Known Member

    Joined:
    Dec 21, 2015
    Member:
    #172795
    Messages:
    1,580
    Gender:
    Male
    First Name:
    Derek
    Westfield, MA
    Vehicle:
    NE F150s of TW FTW
    That came out great

    chrisrocks300[QUOTED] likes this.
  6. Oct 9, 2017 at 5:55 PM
    #566
    chrisrocks300

    chrisrocks300 War Eagle

    Joined:
    Mar 11, 2017
    Member:
    #212994
    Messages:
    7,419
    Gender:
    Male
    First Name:
    Chris
    Brandon, MS
    Vehicle:
    2016 4x4 Tacoma DCSB Trd Off-road Superwhite
    Total Chaos UCA's, Raceline Raptor wheels (16x8) 4.5 BS, 285/75/16 Cooper S/T Maxx tires, Icon Stage 2 Lift Kit, Sos sliders w/ fill plates, exhaust reroute, mobtown offroad skid plates (ifs, transmission, transfer case), and diff breather mod
    Yeah I’m proud of it :D

  7. Oct 9, 2017 at 7:58 PM
    #567
    MeefZah

    MeefZah Curmudgeonly

    Joined:
    Jul 11, 2014
    Member:
    #133704
    Messages:
    3,812
    Gender:
    Male
    Lexington, Ohio
    Vehicle:
    '19 4R ORP
    Fuck yo' overlanding

    On my current setup in the 4Runner, I placed the extension speaker on top of the all weather floor mat for the backseat, and put a piece of metal underneath it. Basically making a sandwich with the metal on the bottom, the rubber floor mat in the middle, and the speaker on the top. On the very bottom of the metal I ran some velcro, to keep the whole thing from shifting. That velcro latches onto the carpet that is underneath the rubber mat. This way the speaker is pointing straight up from the floor, shooting right into your ear, and there's no holes that need to be drilled except a couple holes poked through the rubber floor mat.

    [​IMG]

    Last edited: Oct 10, 2017
  8. Oct 10, 2017 at 4:42 PM
    #568
    MeefZah

    MeefZah Curmudgeonly

    Joined:
    Jul 11, 2014
    Member:
    #133704
    Messages:
    3,812
    Gender:
    Male
    Lexington, Ohio
    Vehicle:
    '19 4R ORP
    Fuck yo' overlanding
    Since I sold my Taco I kind of forgot about this thread until someone mentioned me in a post earlier.

    Not sure how applicable this is to the Taco ( I kind of forget the interior setup), but this is my current 4R install: Icom dual band Ham and President CB. Icom is on a RAM mount on top of the console with the radio guts under the pass seat. CB is in the console pocket, but that took some chopping of ductwork behind there. Antennas are NMO mounts on the edges of the hood, one on each side. Pretty tidy setup.

    Not sure what happened to the pics I posted in this thread from my Taco install. Some appear to have vanished.

    [​IMG]

    [​IMG]

    BEAR_KNIFE_FIGHT likes this.
  9. Oct 11, 2017 at 2:24 PM
    #569
    Merk206

    Merk206 Member

    Joined:
    Nov 15, 2015
    Member:
    #169676
    Messages:
    18
    Gender:
    Male
    Renton, WA
    Vehicle:
    2014 DCLB TRD SPORT
    Question for guys running antenna mounts that are powder coated (ex. Relentless Fab Hood bracket)

    It looks like no one is running any kind of ground to the chassis. Are you just grinding down to expose metal at the antennas contact point? or what?

  10. Oct 11, 2017 at 3:04 PM
    #570
    Rujack

    Rujack Stop Global Whining

    Joined:
    Aug 16, 2016
    Member:
    #194732
    Messages:
    2,447
    Gender:
    Male
    Vehicle:
    2016 Tacoma TRD Off Road 6 speed manual
    I'm using that bracket and didn't grind anything. I have ground strap I intend to implement but as is, I can hit repeaters 50 + miles away and am told signal is clear. Haven't actually checked swr yet though...

    Merk206 likes this.
  11. Oct 12, 2017 at 9:49 AM
    #571
    NotRed

    NotRed Well-Known Member

    Joined:
    Sep 30, 2014
    Member:
    #139429
    Messages:
    2,344
    Gender:
    Male
    First Name:
    Jimbow
    Tennessee
    The sunglass holder is where I keep my garage door opener ☺

  12. Oct 17, 2017 at 6:37 PM
    #572
    MDLIVINTACO

    MDLIVINTACO Trixie2.0

    Joined:
    Mar 4, 2014
    Member:
    #124536
    Messages:
    369
    Gender:
    Male
    First Name:
    C. Rob
    Maryland
    Vehicle:
    2017 TRD OF DCSB
    -Prinsu Design CabRac with Wind Deflector LED Cutout -Prinsu Noise Cancelling Strip -ARB Awning (2000) -ARB Awning Room -Tint -Lower Bumper Mounted LED LIght Bar Coming SOON..... -LED's -Lift -Roof Rack Light Bar -CB Radio -Narrow Mount Wind Deflectors -Snorkel
    How do you like the 520XL? I was given one but have yet to set it up and I plan on it very soon. How did you run the antenna cable from the bed to radio and which coax did you go with (length, brand, etc)?

    Last edited: Oct 17, 2017
  13. Oct 25, 2017 at 2:57 PM
    #573
    92PathSE

    92PathSE Well Known "member"

    Joined:
    Feb 18, 2017
    Member:
    #210882
    Messages:
    133
    GA
    [​IMG]

    Prototype 2.0. I'll let you guys be the judge on clean-ness here.

    It sucks losing the storage, but let's face it, it's just a hole where stuff goes to die. Mine was full of old mail and pens with no ink.

    The head is mounted to the left to allow me to see past the shifter and provide some space for a couple small toggles in the future. In true ham form, all materials were sourced from the junk bin. The plate is some 3mm(?) Plastruct I had from an old RC project. I used some vacuum hose around the edges to keep it from rattling. The standoffs are made out of some rusty 3mm rod. Gravity holds everything in place. The paint is by Krylon.

  14. Oct 25, 2017 at 8:59 PM
    #574
    Rujack

    Rujack Stop Global Whining

    Joined:
    Aug 16, 2016
    Member:
    #194732
    Messages:
    2,447
    Gender:
    Male
    Vehicle:
    2016 Tacoma TRD Off Road 6 speed manual
    Just an update FWIW. Tuned my antenna and got SWR to 1:1 on 145.000 mhz.

  15. Nov 25, 2017 at 1:15 PM
    #575
    nvnv

    nvnv Well-Known Member

    Joined:
    Jun 5, 2016
    Member:
    #188803
    Messages:
    1,223
    Gender:
    Male
    First Name:
    Connor
    Vehicle:
    2016 Tacoma TRD OFF ROAD
  16. Nov 25, 2017 at 1:17 PM
    #576
    JdevTac

    JdevTac Bawnjourno

    Joined:
    Jan 8, 2012
    Member:
    #70234
    Messages:
    6,027
    Gender:
    Male
    First Name:
    Josh
    GA/WA
    Vehicle:
    2nd gen
    Is that a Relentless NMO mount?

    I want to get one but I don’t even see them on their site.

  17. Nov 25, 2017 at 1:26 PM
    #577
    nvnv

    nvnv Well-Known Member

    Joined:
    Jun 5, 2016
    Member:
    #188803
    Messages:
    1,223
    Gender:
    Male
    First Name:
    Connor
    Vehicle:
    2016 Tacoma TRD OFF ROAD

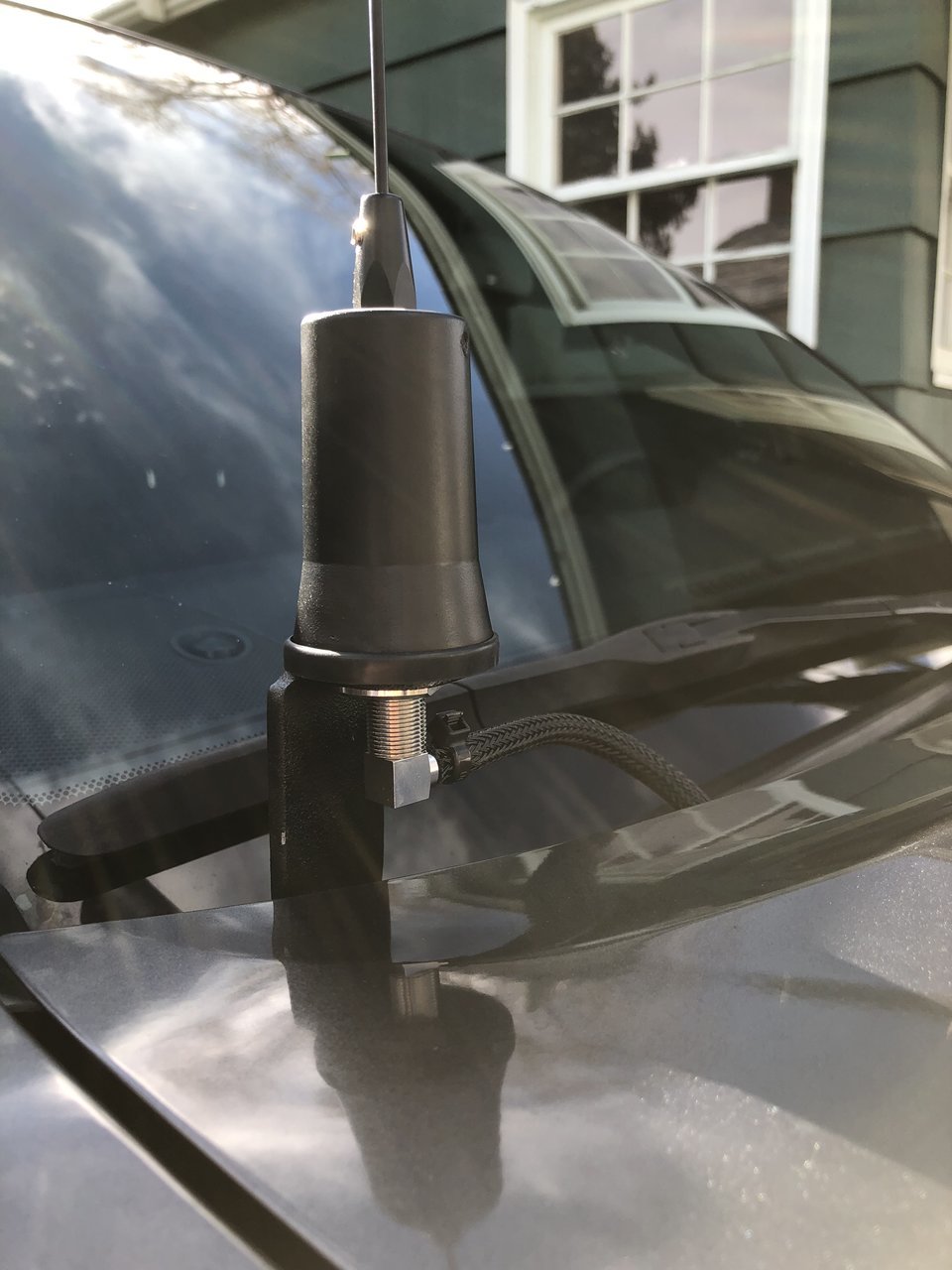

    It’s their ditch light mount that I drilled out to 3/4” for the NMO. I don’t think they make the antenna mount for 3rd gens.

  18. Nov 25, 2017 at 3:05 PM
    #578
    JdevTac

    JdevTac Bawnjourno

    Joined:
    Jan 8, 2012
    Member:
    #70234
    Messages:
    6,027
    Gender:
    Male
    First Name:
    Josh
    GA/WA
    Vehicle:
    2nd gen
    Is it pretty stable? Not wobbly?

    I might do something similar. I saw in another thread what someone was calling a Relentless NMO. Looked just like the hood mount but had a larger welded piece to it fit for an NMO. Maybe a custom item.

  19. Nov 25, 2017 at 3:33 PM
    #579
    nvnv

    nvnv Well-Known Member

    Joined:
    Jun 5, 2016
    Member:
    #188803
    Messages:
    1,223
    Gender:
    Male
    First Name:
    Connor
    Vehicle:
    2016 Tacoma TRD OFF ROAD
    It’s rock solid. One other thing to note is the bracket doesn’t sit completely level so I had to put it in a vice and bend it out so the antenna didn’t tilt forward. That seems to be true with every brand ditch light bracket though.

  20. Nov 25, 2017 at 4:09 PM
    #580
    Technique

    Technique Well-Known Member

    Joined:
    Nov 4, 2017
    Member:
    #235046
    Messages:
    2,686
    Gender:
    Male
    First Name:
    Alex
    Utah
    Vehicle:
    2017 Silver Offroad DCSB
    -285/70/17 Toyo AT3 -Tuned

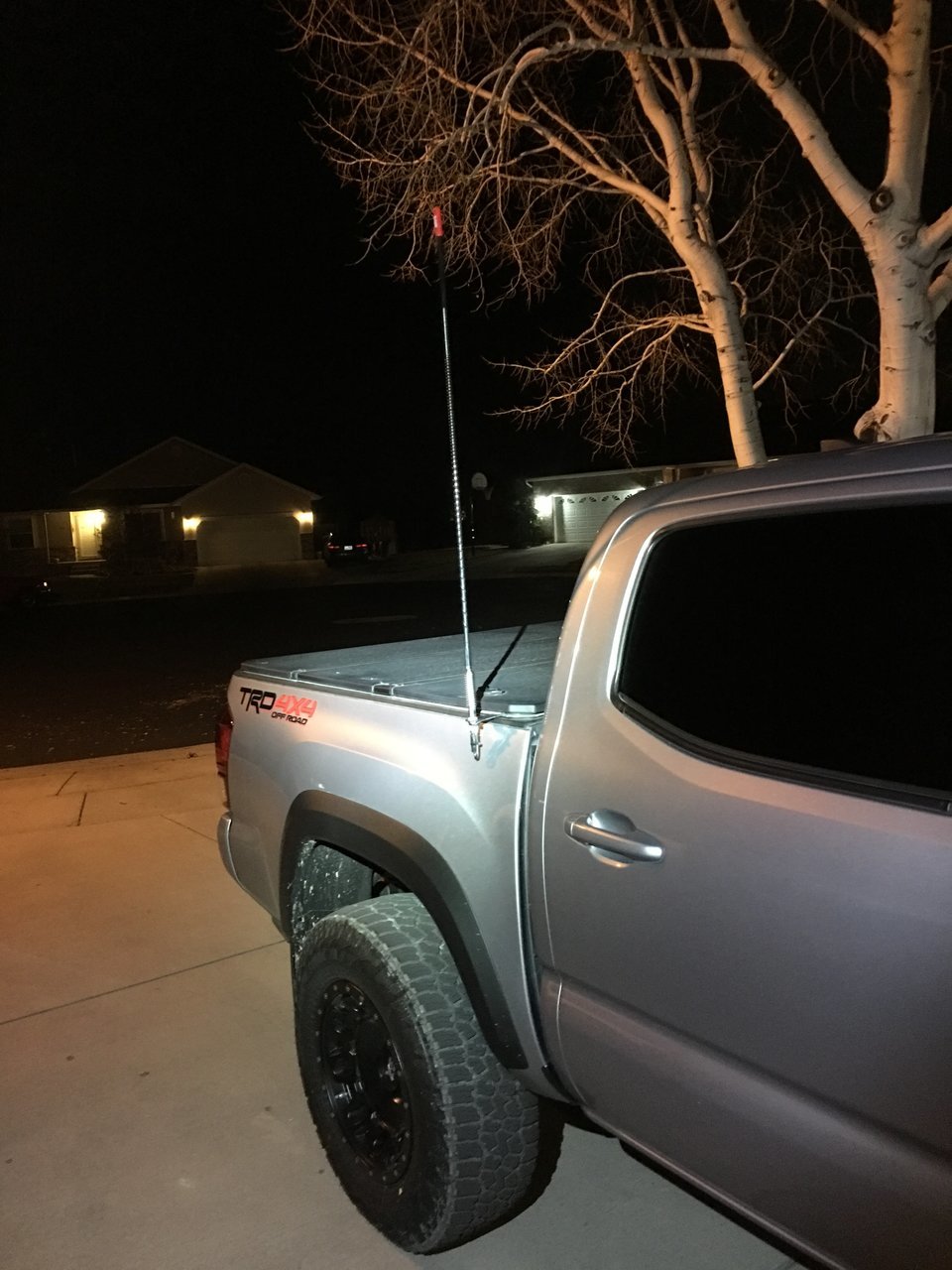

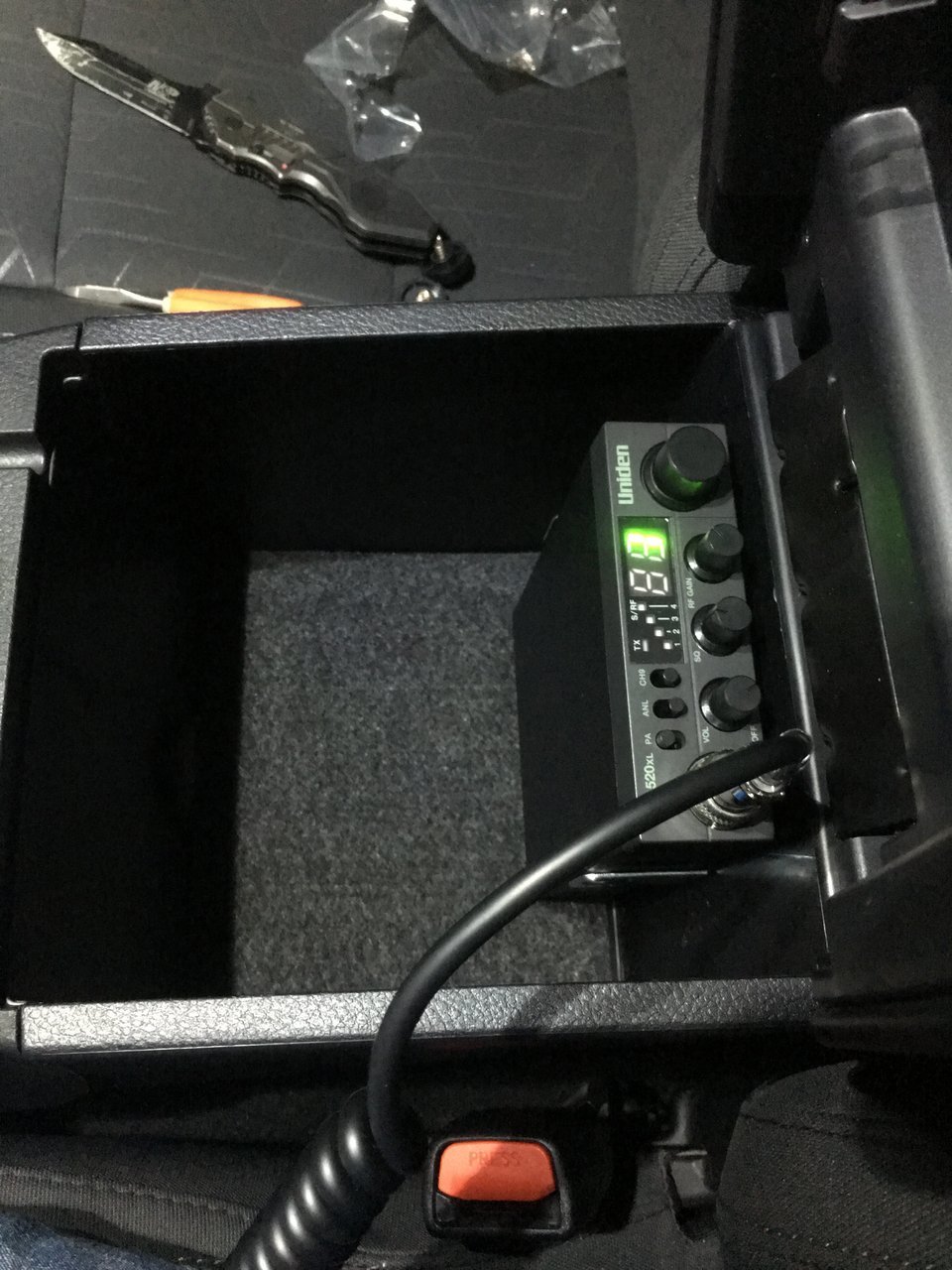

    Installed mine a few days ago, came out pretty good! This seems to be the way to go for a stealth install in the 3rd gens. I made my own bracket so I could mount the antenna in the bed with my bed cover on still.

    I'm running with the Uniden 520XL, 3' Firestik and a Pyle PA speaker under the hood.
