Clean VHF/CB radio installs

Discussion in '3rd Gen. Tacomas (2016+)' started by FoleySwampPlotts, Feb 10, 2016.

  1. Apr 11, 2018 at 2:46 PM
    #681
    AndreasMaximus

    AndreasMaximus Active Member

    Joined:
    May 7, 2017
    Member:
    #218480
    Messages:
    31
    Gender:
    Male
    BC, Canada
    Vehicle:
    2017 DCLB TRD Sport
    You won't want to cover the entire part with paint. Tape off the parts where the spring attaches to the stud and antenna so you'll keep continuity. Same for the part of the mount/bracket where the stud will go. Because you'll be attaching it on a mount, on a mount, on a hood, you'll most likely want to run a ground from the mount with the stud to a grounded part of the vehicle. Braided grounds in short distances work best but sometimes that's not practical.

    CaliRaised makes ditch/A-pillar light bracket extensions if you wish to go that route. I have just their pod bracket and they are great. If you have a drill, saw, and file and some scrap metal you could make one fairly easily.

    https://caliraisedled.com/collections/2016-toyota-tacoma/products/ditch-light-bracket-extensions

  2. Apr 14, 2018 at 3:18 PM
    #682
    Lost In The Woods

    Lost In The Woods Well-Known Member

    Joined:
    Jul 11, 2016
    Member:
    #191800
    Messages:
    1,119
    Gender:
    Male
    First Name:
    Eric
    Buckley, WA
    Vehicle:
    16 DCSB TRD Off Road
    An unusually high amount of pinstriping.

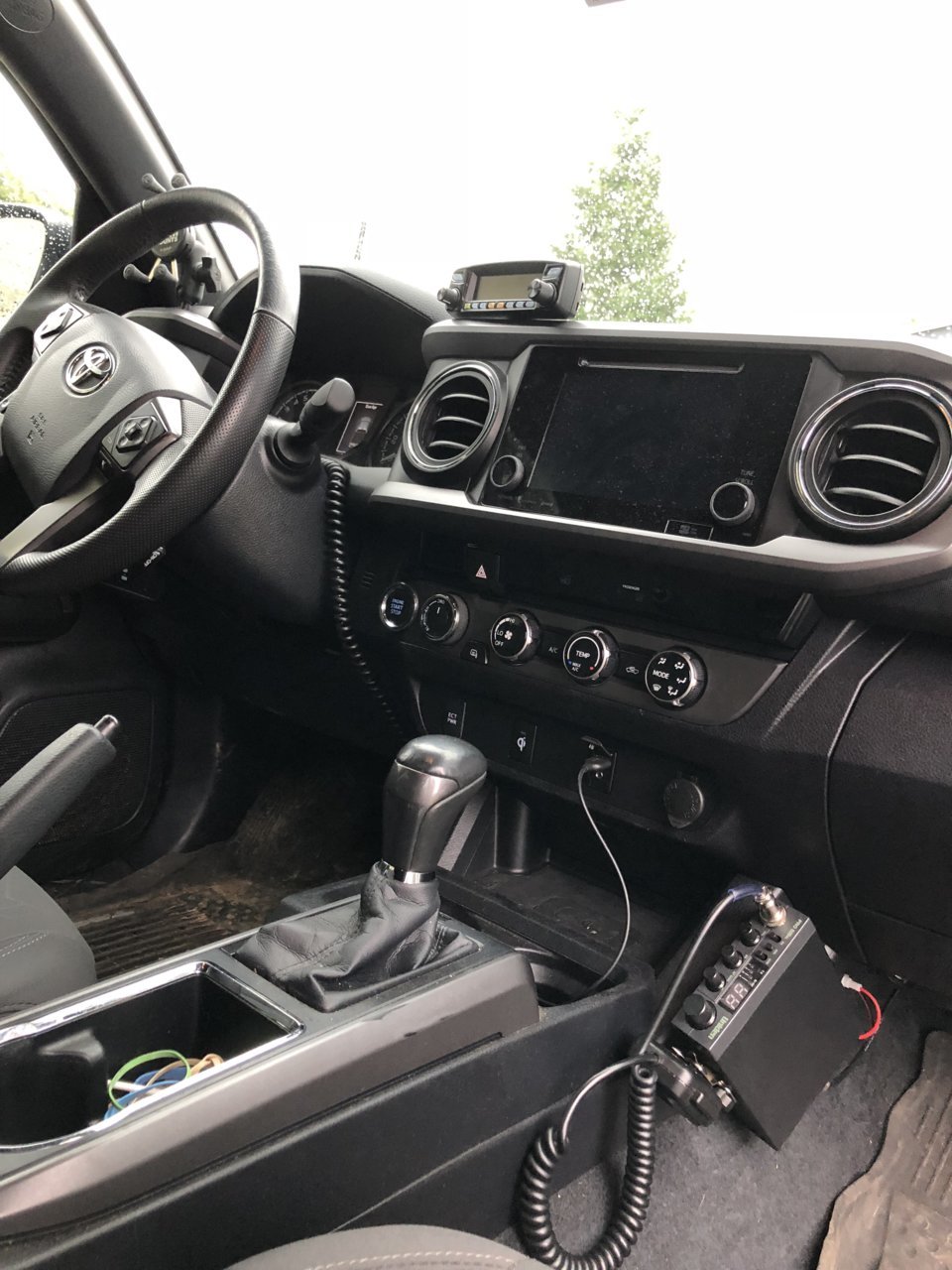

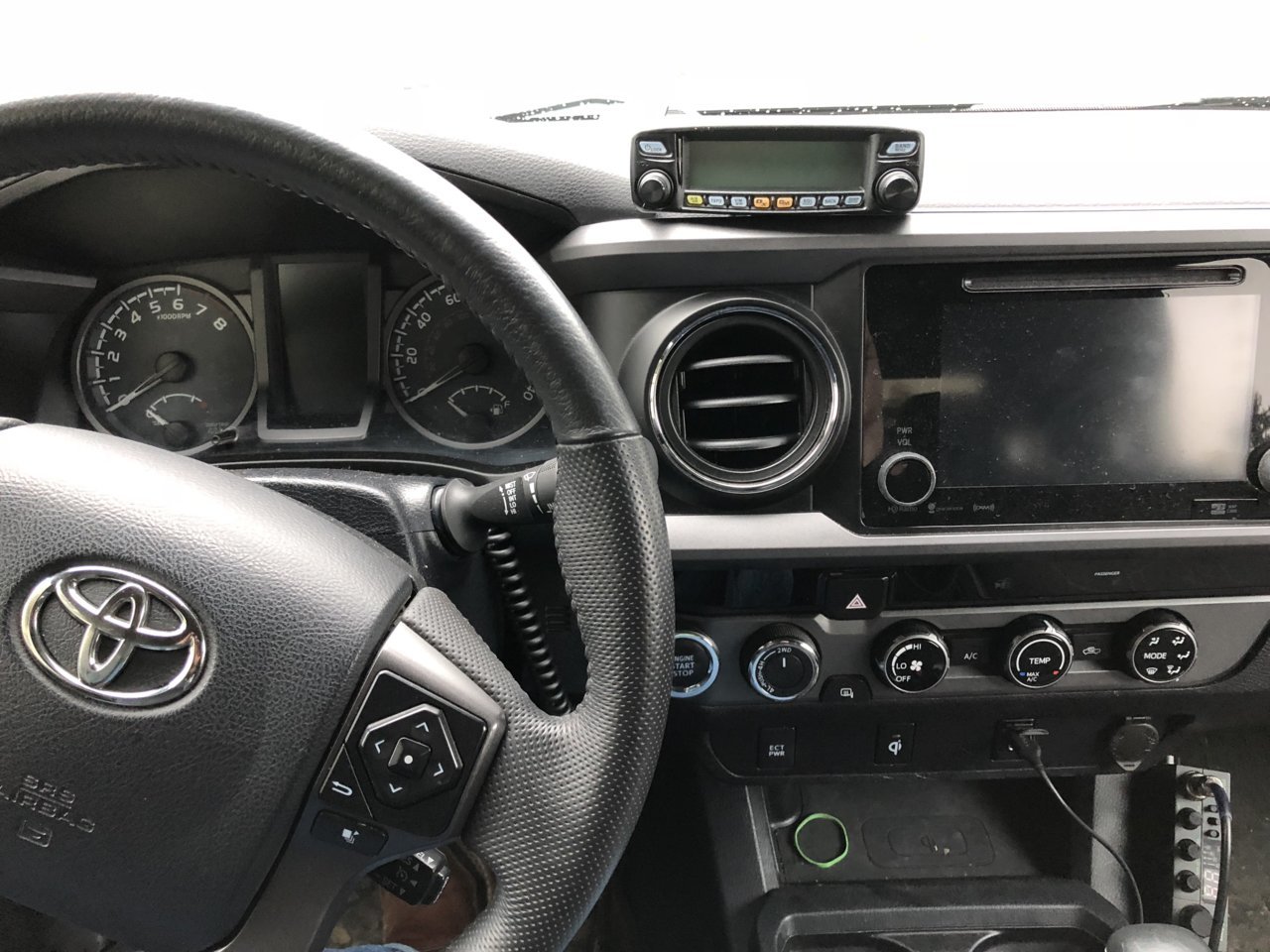

    Finally got a picture of both radios in the truck. The CB is a Uniden 520 and the Ham radio is a Yaesu FTM-100DR. The body of the Yaesu is under the drivers seat with access to the Micro SD slot and the USB cable. I'm using a Rigrunner up under the dash to distribute power to both radio's along with the go-pro that's hard wired in. This keeps only one power cable coming through the firewall and nothing tied into the fuse block under the dash. The Rigrunner has a 40 amp beaker close to the battery. Both antennas are on ditch light brackets from Rago Fabrication. The hole needed to be drilled out some for the CB antenna, but the NMO for the ham needed an larger mounting area. My fabrication skills are mediocre at best, but I proceeded to make a bracket for the antenna anyways with OK results.


    JusCampin and m603holden like this.
  3. Apr 14, 2018 at 5:43 PM
    #683
    MikeyMcFly

    MikeyMcFly This is heavy, Doc.

    Joined:
    Aug 11, 2012
    Member:
    #84551
    Messages:
    3,959
    Gender:
    Male
    I'm a Masshole
    Vehicle:
    2016 TRD Off-Road 6MT / 1999 Corvette 6MT
    Building a Broja
    Oh man, I just realized I never replied.

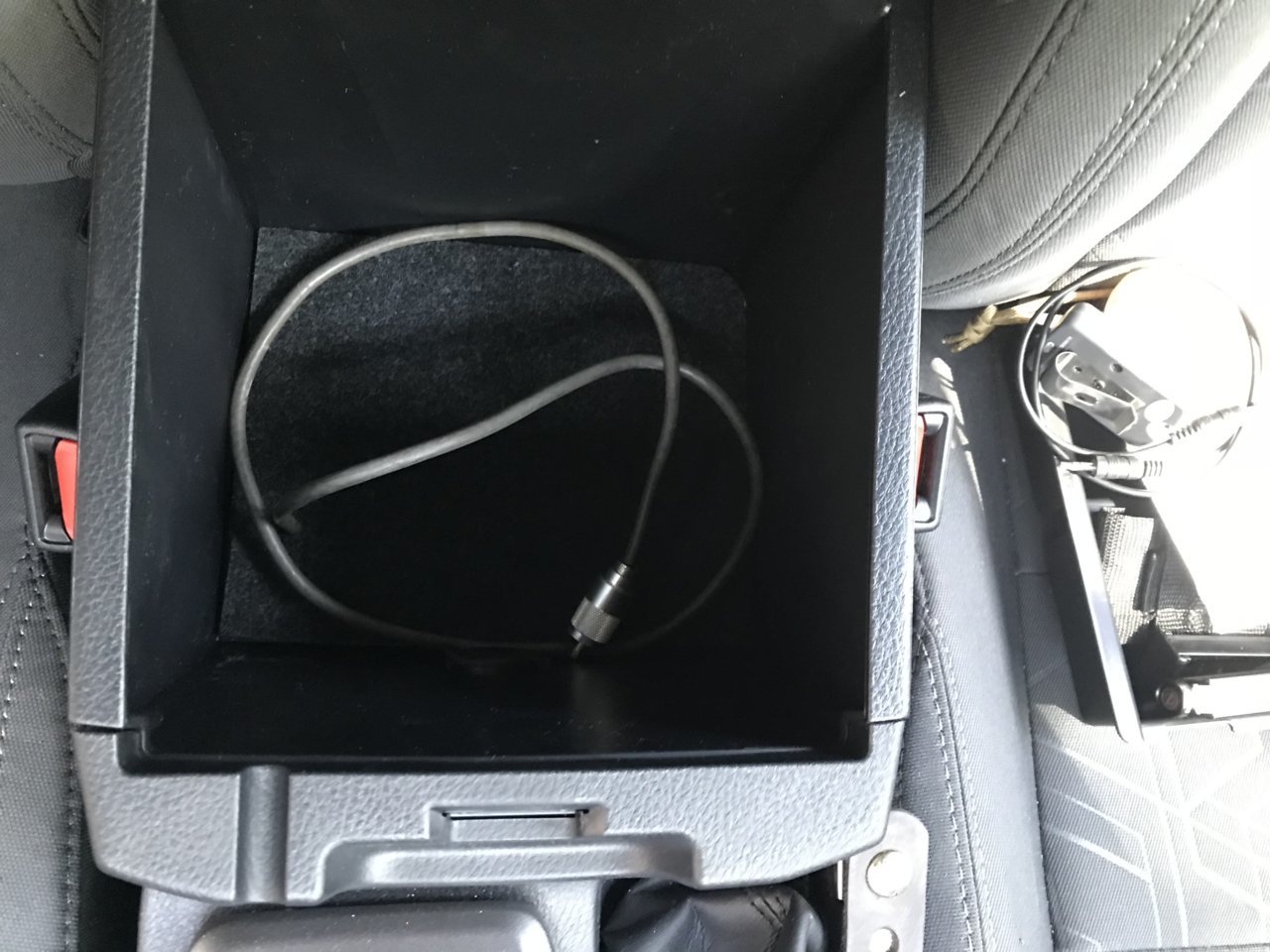

    Box for the CB is under the console. I was able to use a plastic trim removal tool to get the blank out and with the center console removed I was able to snake the wire.

  4. Apr 16, 2018 at 9:27 PM
    #684
    Stew22

    Stew22 Well-Known Member

    Joined:
    Apr 3, 2018
    Member:
    #249278
    Messages:
    160
    Gender:
    Male
    Texas
    Vehicle:
    2017 TRDOR DCSB

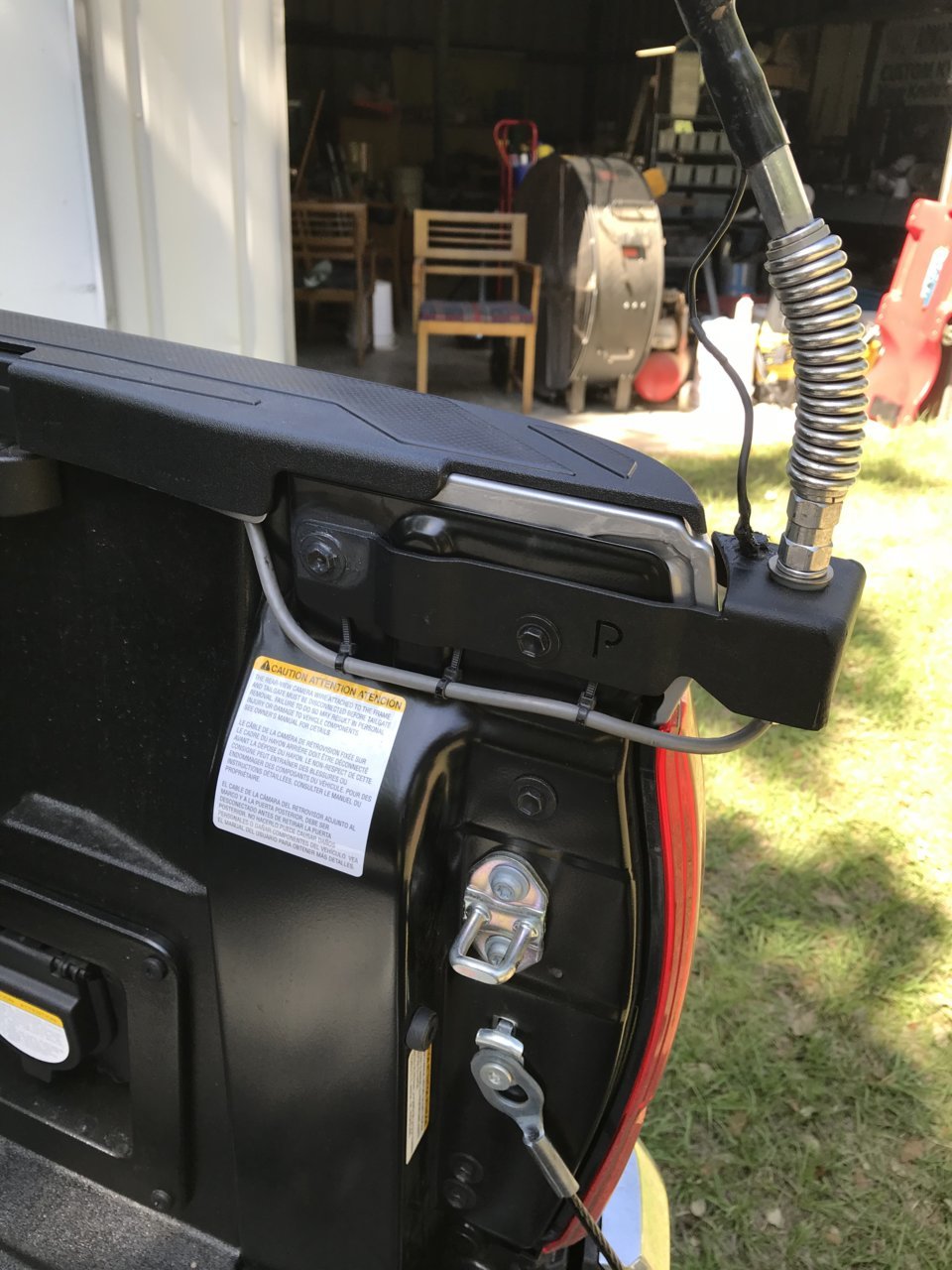

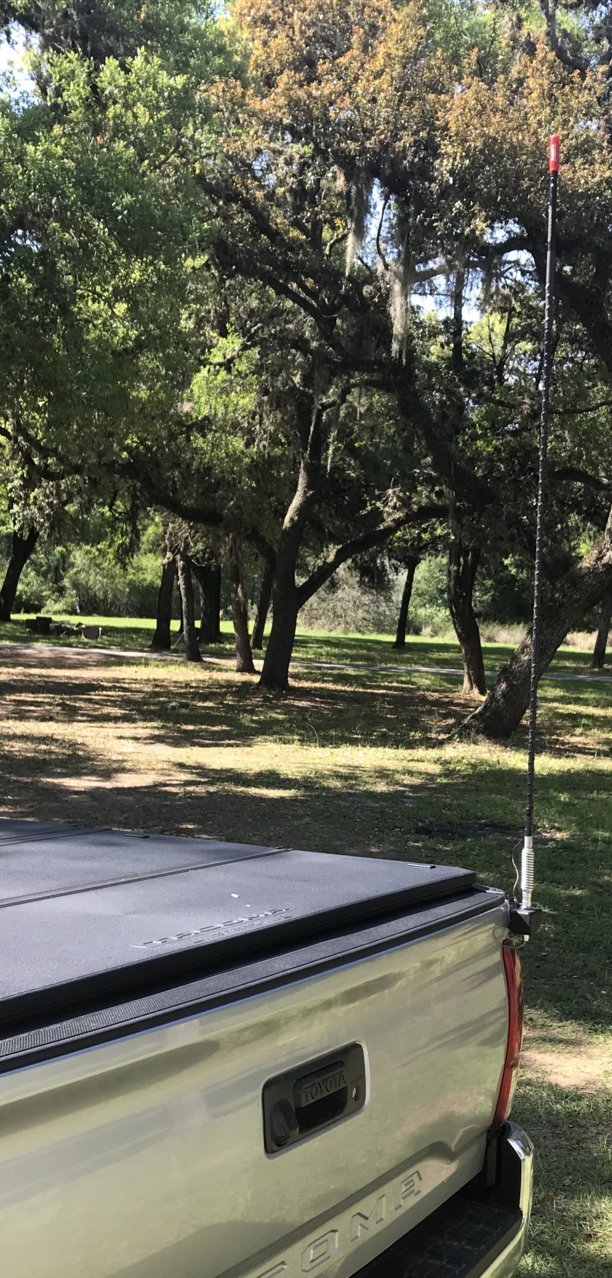

    This is as clean as I can get for now. Cali raised bracket with antenna cable run along frame into cab and center console. I am going to use a midland 75-823 hand held to save space.

  5. Apr 16, 2018 at 9:35 PM
    #685
    e6400ultra

    e6400ultra Trigger Warning

    Joined:
    Feb 4, 2018
    Member:
    #243450
    Messages:
    1,042
    Gender:
    Male
    NorCommifornia
    Vehicle:
    2017 SR AC 4x4 MT 2.7L
    Sure would be nice if there was a DIN mount for the useless cubby where the optional cordless charger goes.

  6. Apr 16, 2018 at 9:37 PM
    #686
    brentw59

    brentw59 Well-Known Member

    Joined:
    Aug 11, 2009
    Member:
    #20999
    Messages:
    233
    Gender:
    Male
    First Name:
    Brent
    Clovis CA
    Vehicle:
    2017 Tacoma 4x4 DCSB Manual Inferno
    Basic Shit. Floor Mats, Seat Covers
    Yeah I would love to see a write up before I tear mine up I'm curious how much room we have to fit in there back behind the plastic.

    e6400ultra likes this.
  7. Apr 17, 2018 at 1:22 PM
    #687
    CaliRaisedLed

    CaliRaisedLed Well-Known Member

    Joined:
    Apr 23, 2015
    Member:
    #153803
    Messages:
    6,745
    Gender:
    Male
    First Name:
    Jake
    Texas (DFW)
    Looks great! Thanks for choosing us.

    Stew22 likes this.
  8. Apr 18, 2018 at 2:13 PM
    #688
    wink4x4

    wink4x4 Well-Known Member

    Joined:
    Dec 11, 2016
    Member:
    #204638
    Messages:
    84
    Gender:
    Male
    Kentucky
    Vehicle:
    2017 DCSB TRD Offroad
    Do you have pics of your antenna setup?

  9. Apr 21, 2018 at 8:19 AM
    #689
    Lost In The Woods

    Lost In The Woods Well-Known Member

    Joined:
    Jul 11, 2016
    Member:
    #191800
    Messages:
    1,119
    Gender:
    Male
    First Name:
    Eric
    Buckley, WA
    Vehicle:
    16 DCSB TRD Off Road
    An unusually high amount of pinstriping.

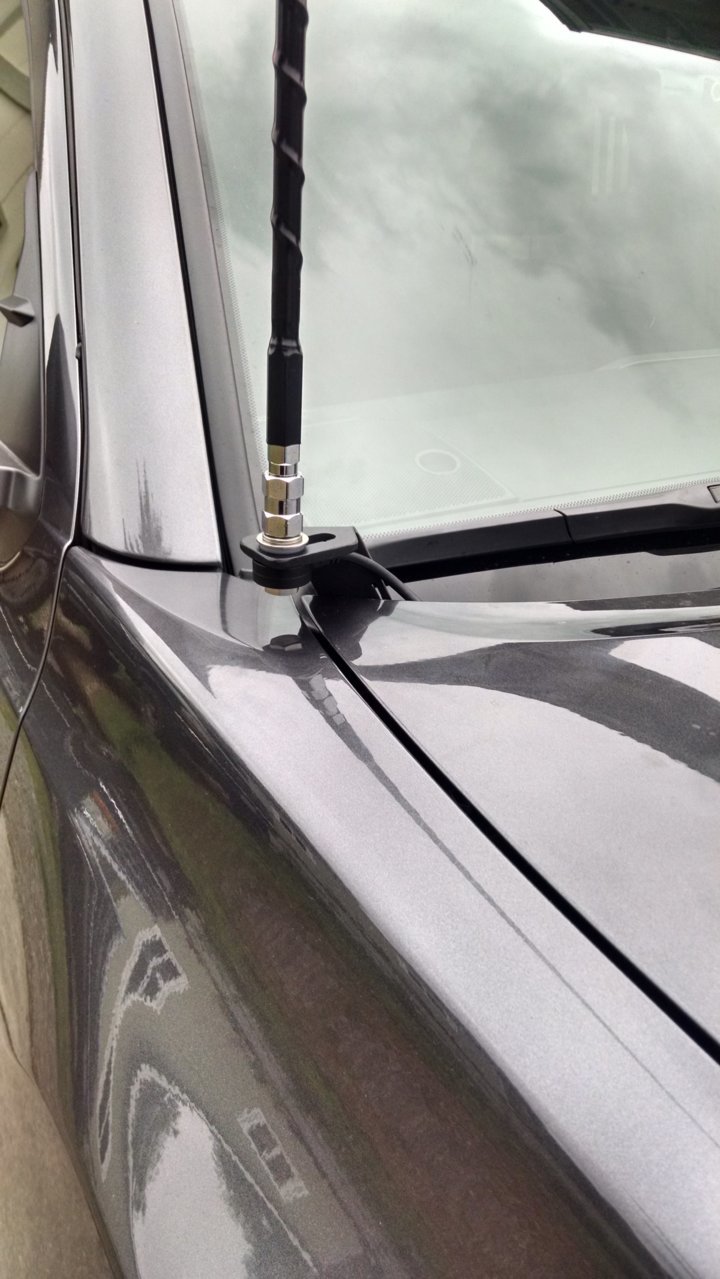

    Here is a picture of the CB antenna. I don't have a picture of the NMO antenna, but it's basically the same except with a mettle bracket extended out due to the size of the NMO fitting. I'll see if I can get a picture of the NMO today.


    wink4x4 likes this.
  10. Apr 21, 2018 at 8:33 AM
    #690
    vicali

    vicali tirekicker

    Joined:
    May 20, 2010
    Member:
    #37503
    Messages:
    752
    Gender:
    Male
    First Name:
    mike
    Kam,BC
    Vehicle:
    2017 TRD Sport 1D6
    On the 2nd gens the airbag controller was behind that cubby. No good for drilling and fitting..

    I’ve seen diy brackets made to hold a radio up at the front, or even stuck on the back of that cubby.

    I find we use both cup holders too much for that to be a good spot.

  11. Apr 21, 2018 at 12:07 PM
    #691
    brentw59

    brentw59 Well-Known Member

    Joined:
    Aug 11, 2009
    Member:
    #20999
    Messages:
    233
    Gender:
    Male
    First Name:
    Brent
    Clovis CA
    Vehicle:
    2017 Tacoma 4x4 DCSB Manual Inferno
    Basic Shit. Floor Mats, Seat Covers
    Ive the the MT so the cup holders are set behind the shifter toward the center console but i would hate to knuckle the CB everytime I shift into 3rd or 5th.

  12. Apr 22, 2018 at 6:48 AM
    #692
    raccoonrough

    raccoonrough Well-Known Member

    Joined:
    Sep 4, 2017
    Member:
    #229066
    Messages:
    242
    Gender:
    Male
    Eastern Panhandle of WV
    Vehicle:
    2017 Tacoma TRD -OR-DCLB Quicksand
  13. Apr 22, 2018 at 11:22 PM
    #693
    us3rnam3

    us3rnam3 Well-Known Member

    Joined:
    Jun 30, 2015
    Member:
    #158456
    Messages:
    93
    AZ
    Vehicle:
    '17 TRD-OR DCLB
    Still a work in progress but thought that i'd give a little back since so many others have posted helpful things in the past.

    Over the weekend I installed a Cobra 75 CB radio (for FJ summit this summer) and a Kenwood D710G ham radio.

    For the CB I used:
    4' firestick No Ground Plane kit from rightchannelradios. Came with a NGP coax, a 3 way mount, and a 4' antenna.

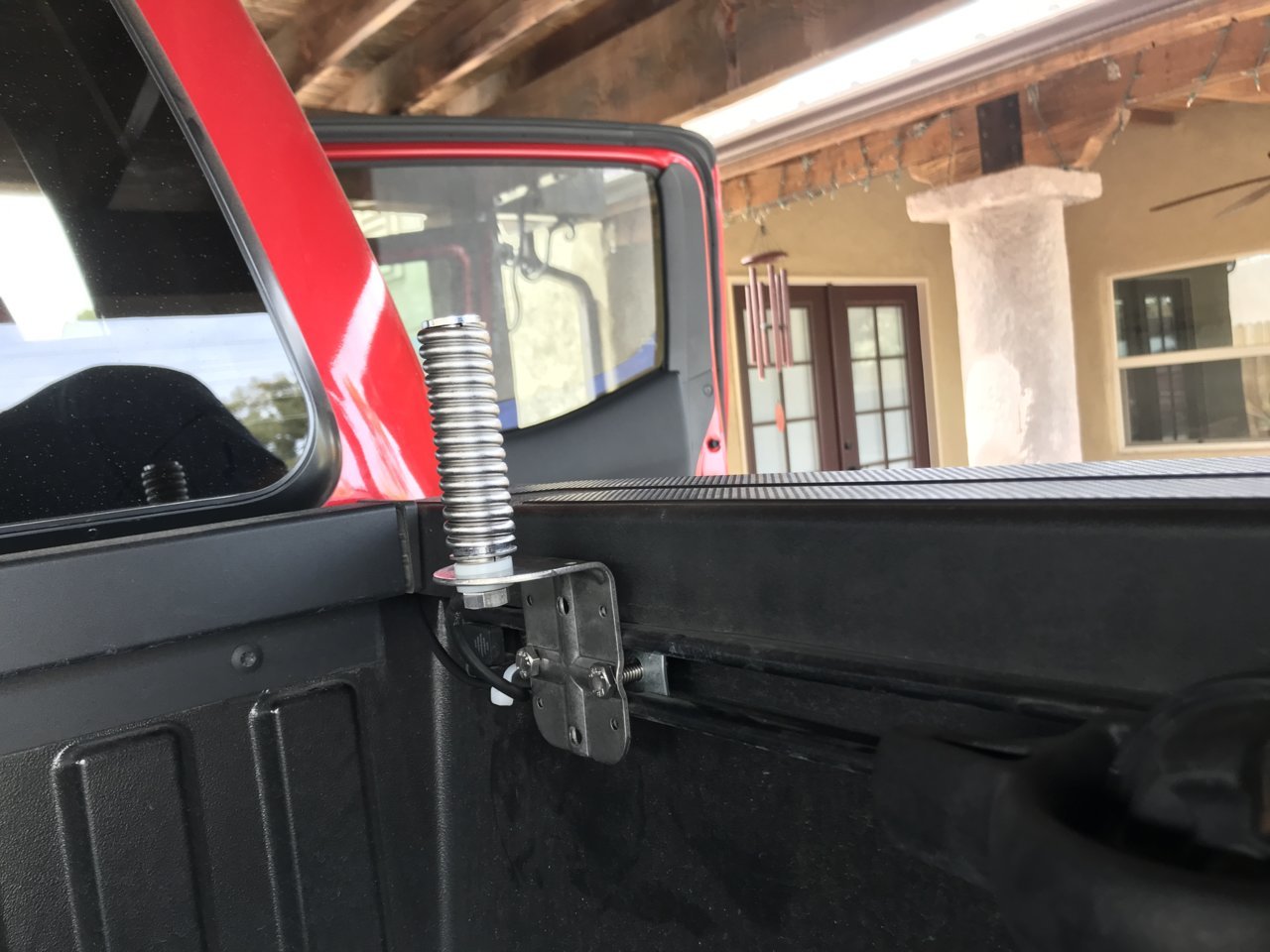

    I made a little backing plate to slide into the bed rails to mount the antenna bracket to and then ran the coax from under the driver's seat, to the back seat, through the grommet that's in the middle under the carpet, and then into the bed. The ring terminal is then soldered on and connected to the spring thing.


    For the ham radio:
    I got a diamond SG7500NMO antenna, Larsen NMOKHFUD coax (no connector on the end), and a mount for the chevy trucks that someone else mentioned here. Part number for the mount is CVANTPF.

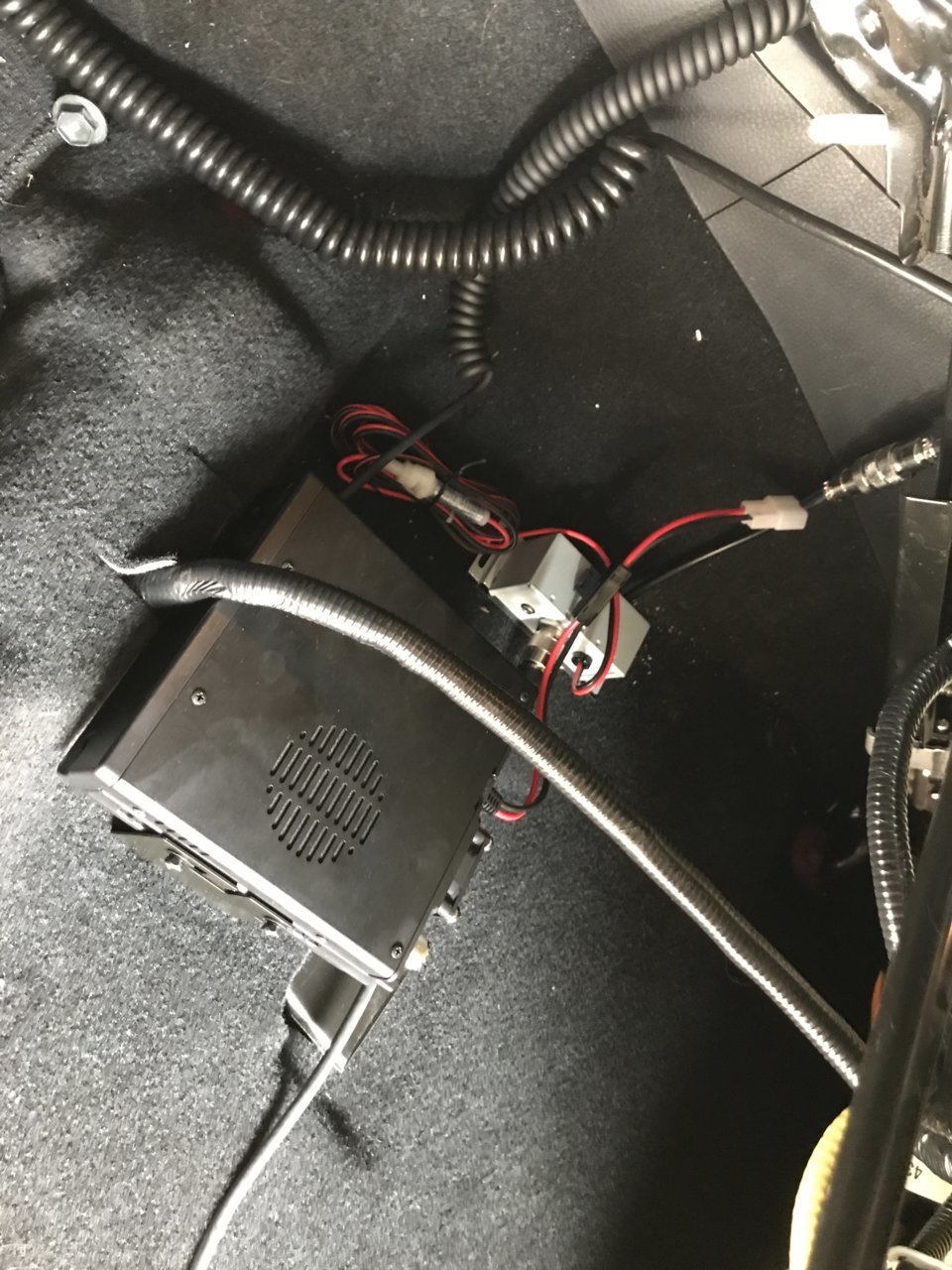

    The radio itself is velcroed to the carpet under the driver's seat (like the cobra box thing). Surprisingly this was more solid than I was expecting. The antenna mount had to be modified slightly by drilling a new hole for the mounting bolt, and had to be shimmed slightly to get the slope right but otherwise fit okay. There's just barely enough space for it to clear the hood as it opens and closes.
    The faceplate or whatever it's called that controls the radio is on a 3D printed ram mount adapter that I made. The ram mounts are mounted to the dash using that aluminum plate from this thread: https://www.tacomaworld.com/threads...t-ram-compatible.507347/page-25#post-17672385

    I installed the NMO mount and ran the coax through the firewall to under the driver's seat. Next weekend I will try to solder on the PL259 connector and run power for the 2 radios from my aux fuse box.

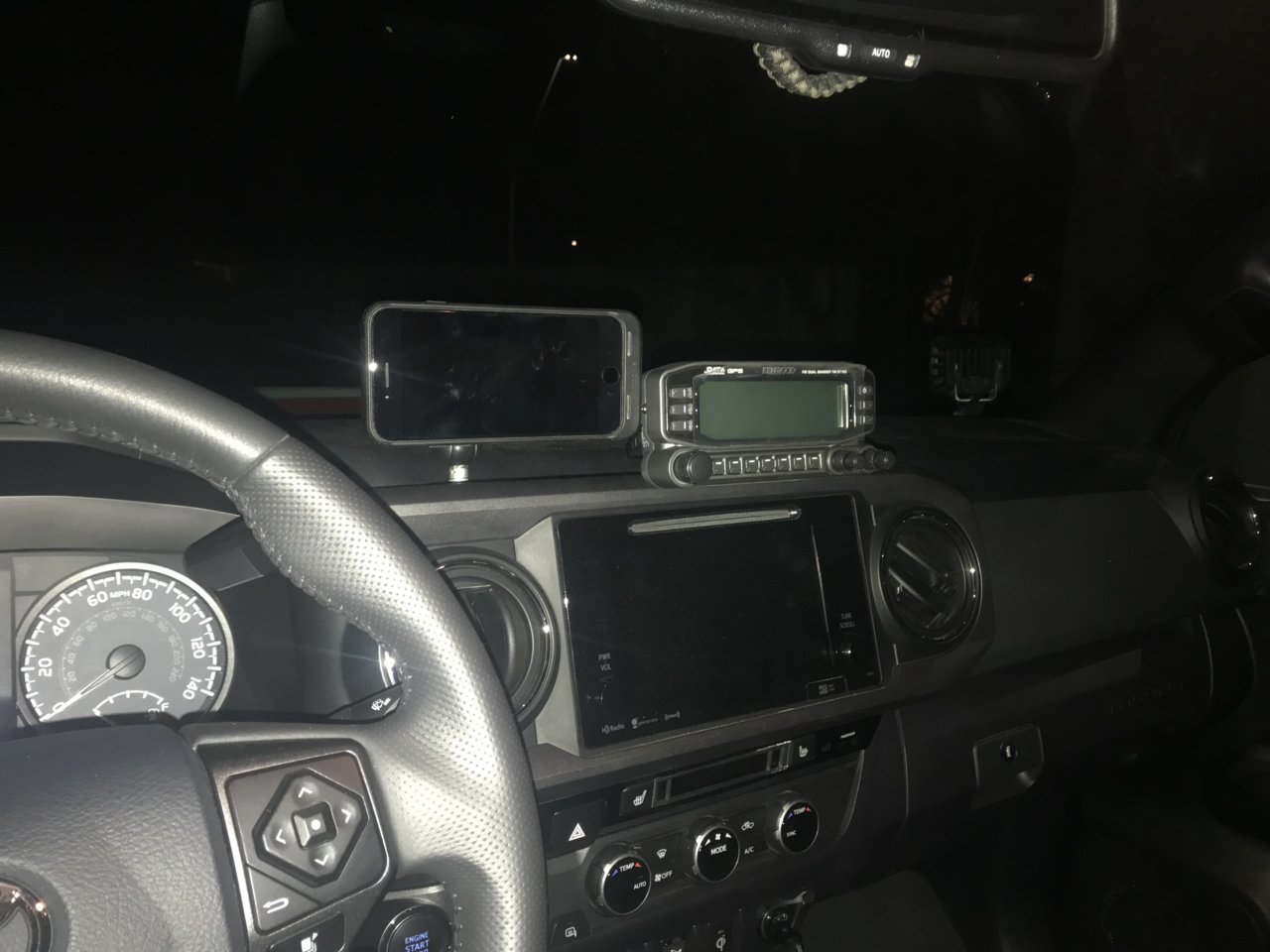

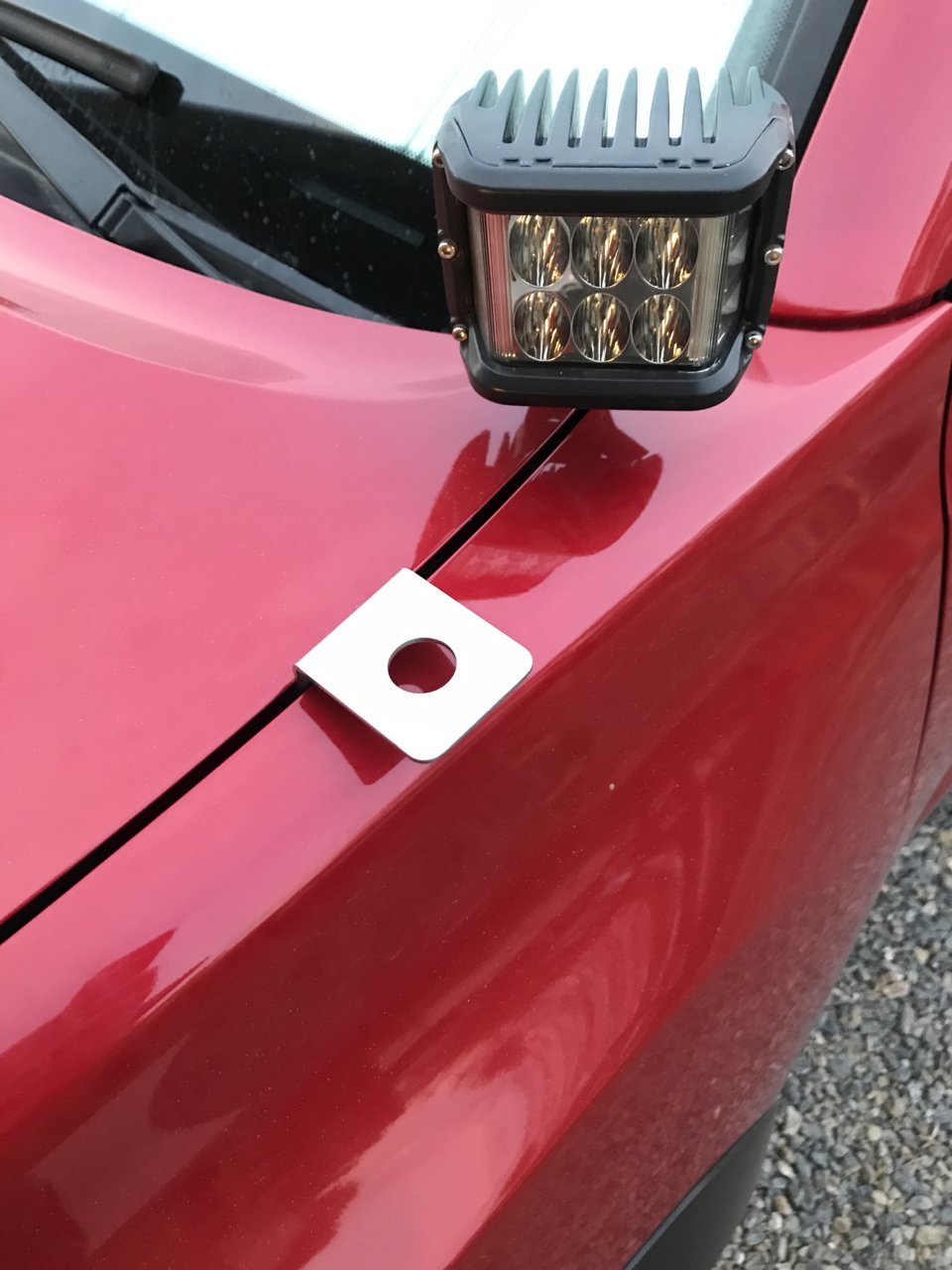

    Here are a few pics that I took once everything was installed.
    IMG_2769.jpg IMG_2771.jpg s20qeHjESXiWrgOGXMNi4g.jpg IMG_2770.jpg

    BEAR_KNIFE_FIGHT and Jorgy1 like this.
  14. Apr 23, 2018 at 6:30 AM
    #694
    raccoonrough

    raccoonrough Well-Known Member

    Joined:
    Sep 4, 2017
    Member:
    #229066
    Messages:
    242
    Gender:
    Male
    Eastern Panhandle of WV
    Vehicle:
    2017 Tacoma TRD -OR-DCLB Quicksand


    Okay,

    Well, just to keep up-to-date on my build, so as to ask further advice. I have the following parts on order.

    - President "Andy" CB
    - Firestik FS4-B 4' antenna (black)
    - Firestik K-4 Lug style stud mount
    - Firestik FSTB replacement tip in black (trying to keep everything blacked out)
    - Caliraised LED ditch light bracket extensions

    I am hoping to use the Caliraised LED ditch light bracket extensions by attaching one of them to my driver side SDHQ ditch light bracket.

    I took the advice and got the Firestik K-4 lug style stud to mount the antenna too.

    I am not sure I completely understand what you are saying about the type of cable I should get. I looked up the firestik fire ring, but everything looks like the so called PL-259 connection is already attached to the cable. I do see how it would be much easier to run through the firewall and such without this connection attached, but how do I find one without this attached?

    I suppose I could always cut it off and then take it to a radio shop later and have them reconnect it? Unless there is a better alternative to this idea?

    So, I need to decide on a cable (suppose I should stick with Firestik?) to connect my antenna to my CB.

    Can anyone think of anything else I will need to get this started? I will have to research how to attached the antenna to the bracket and stud once I get the parts in hand. Not sure about grounding out and stuff like that, as this is totally new to me.

    Thanks for any further advice!

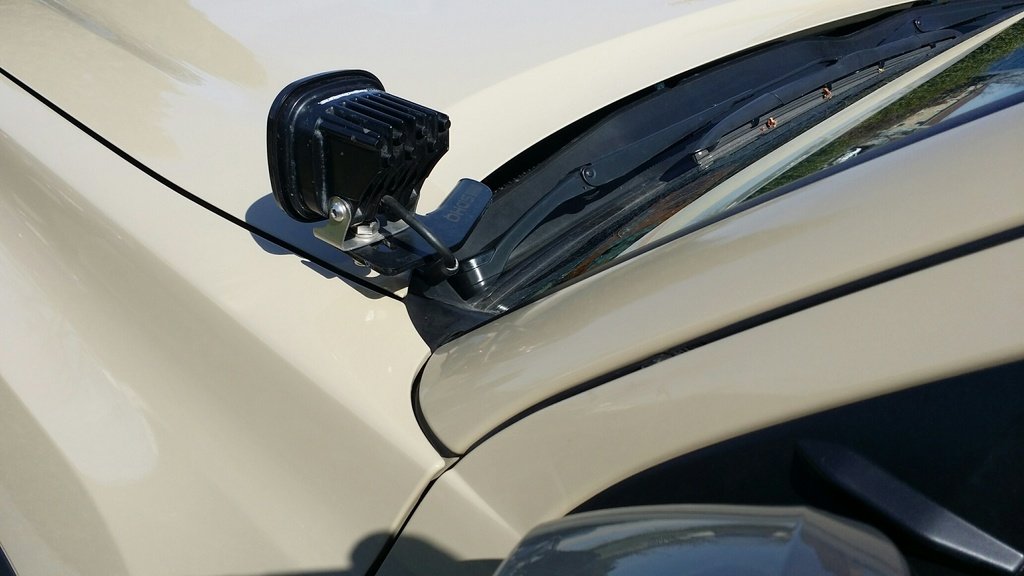

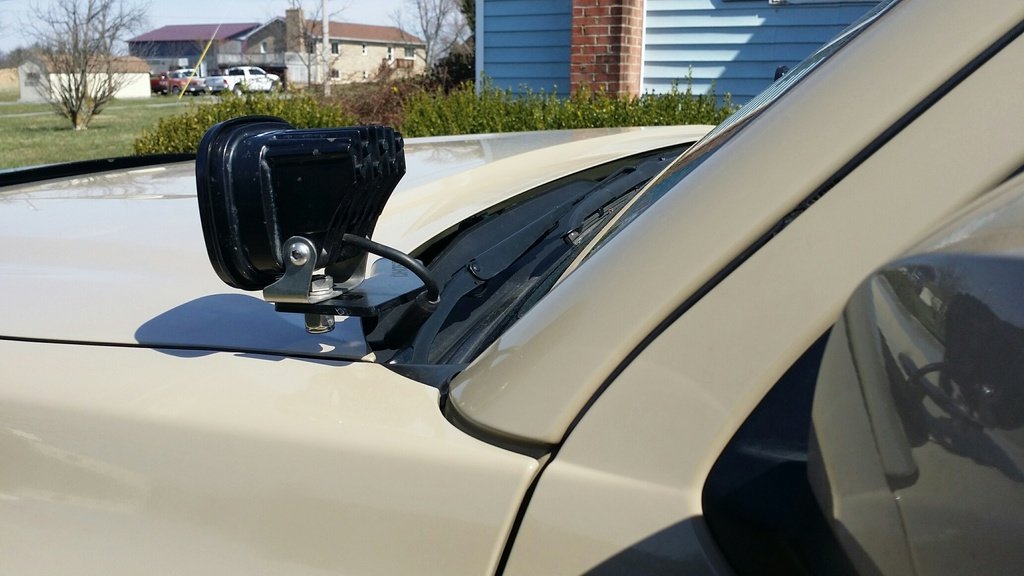

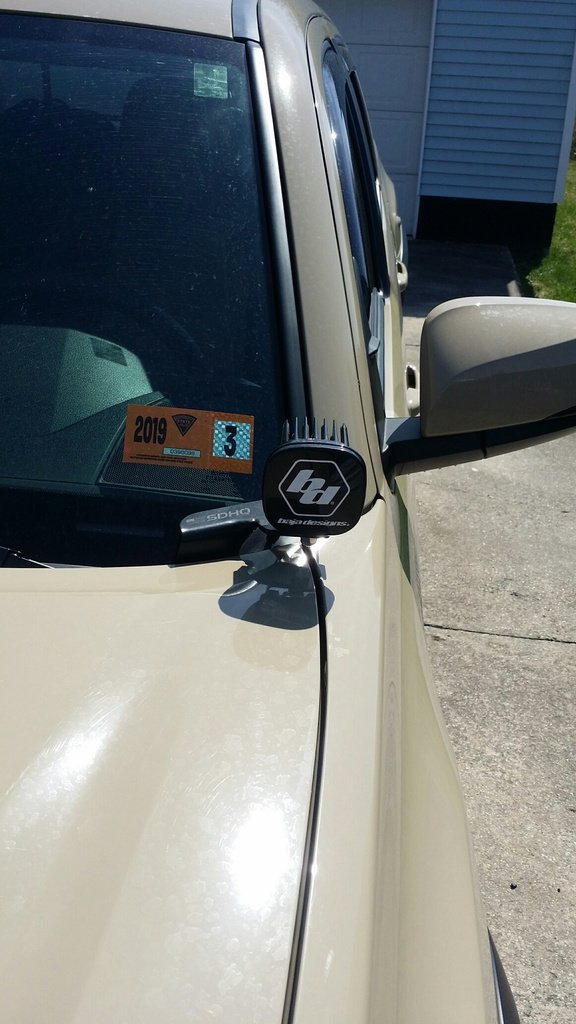

    Here are some pictures of my current ditch light mounts.




    Last edited: Apr 23, 2018
  15. Apr 23, 2018 at 7:48 AM
    #695
    foy1der

    foy1der Well-Known Member

    Joined:
    Sep 18, 2016
    Member:
    #197597
    Messages:
    401
    Gender:
    Male
    First Name:
    W1FOY
    Vehicle:
    2017 OR DCLB
    I can help you with the type of coax. Just cut the end off and put a new one on. Pretty simple process.
    https://www.youtube.com/watch?v=InBNyWI1-Ys

    Bastek likes this.
  16. Apr 23, 2018 at 10:54 AM
    #696
    BrotherBudro

    BrotherBudro Well-Known Member

    Joined:
    May 12, 2012
    Member:
    #78690
    Messages:
    448
    Gender:
    Male
    First Name:
    David
    Nashville
    Vehicle:
    2017 SR5 Access Cab, V6 4X4
    Leer 100XR, Dual Battery, Dog Platform, Sleeping Platform, Ham, CB, Light Bar, Rear Lights,
    The k4 lug won't play nice with the FireRing. You'll need to get a cable with lugs on it, or if you are good at soldering you could get most any cable, cut off whatever connector is on it and add your own lugs. Looking at the links below, this cable with lugs has also been discussed here.

    The lugs go on the antenna side, the PL-259 is on the radio side. If you don't want to cut/solder your brand new cable it would be easier to get the lugs through the firewall (or however you plan on doing it) by starting inside the cab, that way you don't have to squeeze the huge pl-259 through a tight spot.

    Let me know if you have any other questions or this wasn't super clear, I did a similar install using Lug connectors a few months ago. It's in this thread.

    raccoonrough likes this.
  17. Apr 23, 2018 at 12:29 PM
    #697
    raccoonrough

    raccoonrough Well-Known Member

    Joined:
    Sep 4, 2017
    Member:
    #229066
    Messages:
    242
    Gender:
    Male
    Eastern Panhandle of WV
    Vehicle:
    2017 Tacoma TRD -OR-DCLB Quicksand
    Okay, I understand. Thanks for responding. I do have a question. One the cable that you posted above that would work for me and the K4 lug. There is two connections on the antenna end. Do both of those attach to the stud? I have looked for an install video or something about the K4 stud, but have not found one yet. I will look back through this thread as well as you suggested. Thanks.

  18. Apr 23, 2018 at 1:09 PM
    #698
    BrotherBudro

    BrotherBudro Well-Known Member

    Joined:
    May 12, 2012
    Member:
    #78690
    Messages:
    448
    Gender:
    Male
    First Name:
    David
    Nashville
    Vehicle:
    2017 SR5 Access Cab, V6 4X4
    Leer 100XR, Dual Battery, Dog Platform, Sleeping Platform, Ham, CB, Light Bar, Rear Lights,
    The pictures here should help outline how that all works. I found it somewhere in this thread (or the other CB thread)

  19. Apr 23, 2018 at 10:01 PM
    #699
    Lost In The Woods

    Lost In The Woods Well-Known Member

    Joined:
    Jul 11, 2016
    Member:
    #191800
    Messages:
    1,119
    Gender:
    Male
    First Name:
    Eric
    Buckley, WA
    Vehicle:
    16 DCSB TRD Off Road
    An unusually high amount of pinstriping.
    I went back through my order history and this is the cable I bought. The PL-259 connector was not attached, but looking at the picture it is so I'm not sure if they went with just having it attached or if the picture is wrong.
    https://www.amazon.com/gp/product/B00EARXF06/ref=oh_aui_detailpage_o09_s00?ie=UTF8&psc=1


    If it is attached your going to need a big hole to get it through the fire wall. I saw somewhere on TW, possibly this thread where someone pulled the AC drain out to run their cables and then put it back. That might give you a big enough hole if it's attached. Or you could with foy1der and cut it off, run the coax where you want it and then install another PL-259. To be honest that's probably what I would do.

    raccoonrough likes this.
  20. Apr 24, 2018 at 6:57 AM
    #700
    MeefZah

    MeefZah Curmudgeonly

    Joined:
    Jul 11, 2014
    Member:
    #133704
    Messages:
    3,149
    Gender:
    Male
    First Name:
    Mark
    Eureka, Calif
    Vehicle:
    '14 TX Baja DC
    Assholes call travel "overlanding"
