Clean VHF/CB radio installs

Discussion in '3rd Gen. Tacomas (2016+)' started by FoleySwampPlotts, Feb 10, 2016.

  1. Apr 24, 2018 at 7:45 AM
    #701
    raccoonrough

    raccoonrough Well-Known Member

    Joined:
    Sep 4, 2017
    Member:
    #229066
    Messages:
    242
    Gender:
    Male
    Eastern Panhandle of WV
    Vehicle:
    2017 Tacoma TRD -OR-DCLB Quicksand
    Okay, I see that this cable is made by Firestik and comes with its own stud...........so eventhough I have already purchased the Firestik K-4 stud I could use the one that comes with this cable?

    EDIT: Actually, looks like if I purchase the 9 foot cable, it comes with the PL-259 connector installed. My antenna will be mounted on my driver side ditch light bracket and the CB will be located on the passenger side center console. I am sure 9 foot of cable will be enough for me. So, I suppose this cable will work fine with my 4' firestik 2 antenna. ??

    https://www.ebay.com/itm/FIRESTIK-K...552692?hash=item1c63544a34:g:QvwAAOSwXaRaDGJS

    Last edited: Apr 24, 2018
  2. Apr 27, 2018 at 5:08 AM
    #702
    raccoonrough

    raccoonrough Well-Known Member

    Joined:
    Sep 4, 2017
    Member:
    #229066
    Messages:
    242
    Gender:
    Male
    Eastern Panhandle of WV
    Vehicle:
    2017 Tacoma TRD -OR-DCLB Quicksand
    Scratch this idea........I found and ordered another cable made by Firestik that I believe will work for me.

  3. Apr 27, 2018 at 5:29 AM
    #703
    raccoonrough

    raccoonrough Well-Known Member

    Joined:
    Sep 4, 2017
    Member:
    #229066
    Messages:
    242
    Gender:
    Male
    Eastern Panhandle of WV
    Vehicle:
    2017 Tacoma TRD -OR-DCLB Quicksand
    I found and ordered a 9 foot cable made by Firestik for my install.
    I ordered the Firestik MU-8R9.

    http://www.firestik.com/Catalog/MU-8R18.htm

    I got my Firestik FS4-B 4' antenna, Firestik K-4 stud, and Calirasied LED bracket extension in the mail yesterday. I test fitted everything and it seems to work.

    I realize that I will need to replace the bolt on the K-4 stud in order to make it work with the Fire Ring. But I think the cable comes with the correct replacement bolt. So, I am hoping all these parts will work together in order to give me a clean CB install.

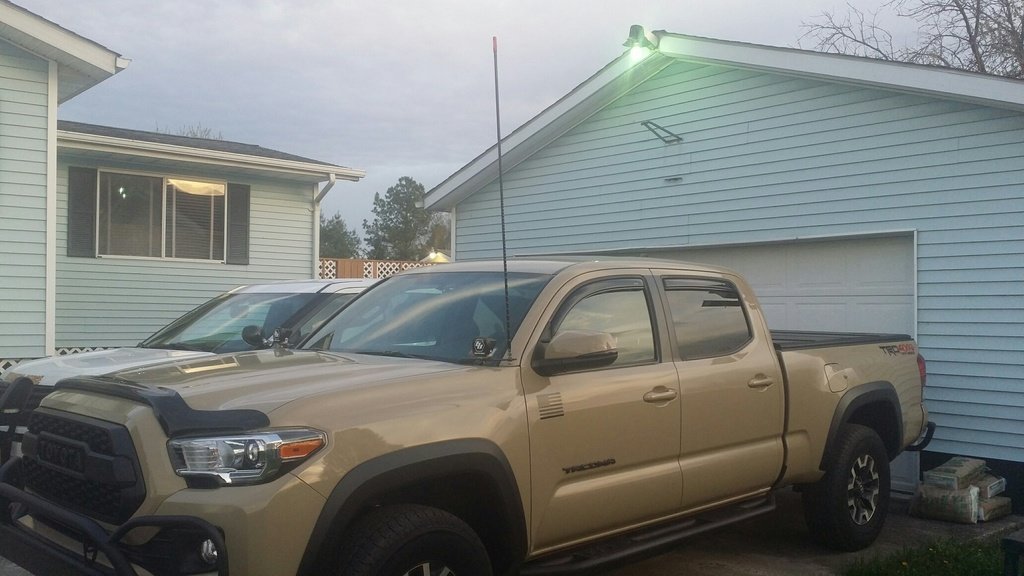

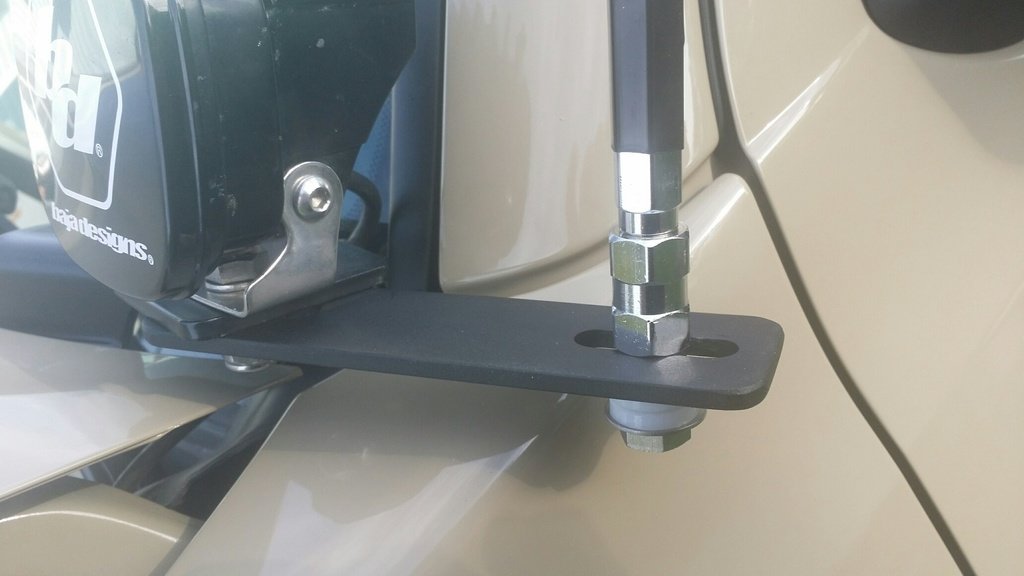

    Here are some pictures of the antenna mounting parts all together. I do plan on adjusting the bracket a bit better and replacing the bolt with a bit longer, perhaps?

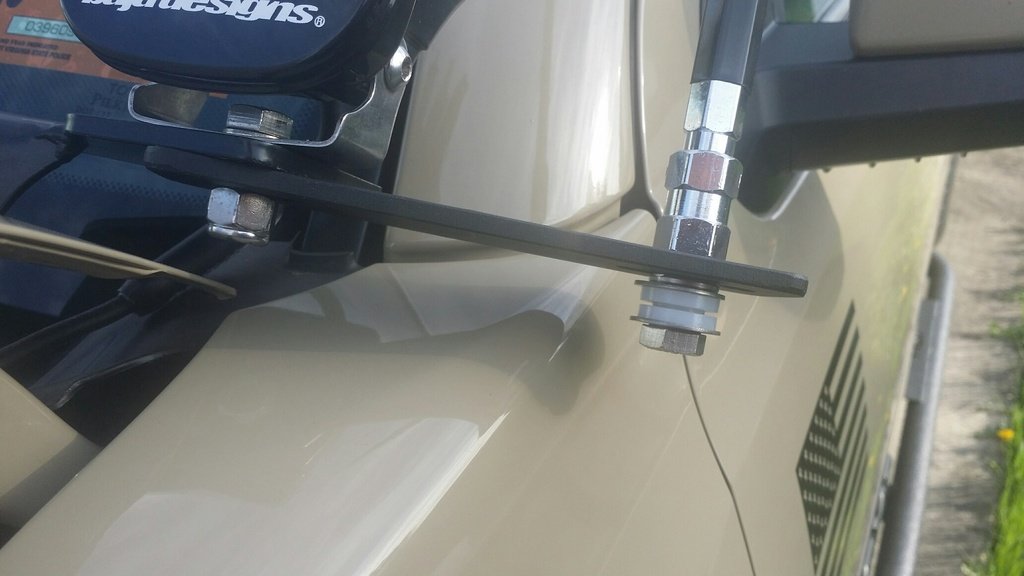

    This is the CaliraisedLED bracket extension mounted onto my ditch light bracket with the hood up.


    VA SOFTACO and Lost In The Woods like this.
  4. Apr 30, 2018 at 7:38 PM
    #704
    brentw59

    brentw59 Well-Known Member

    Joined:
    Aug 11, 2009
    Member:
    #20999
    Messages:
    233
    Gender:
    Male
    First Name:
    Brent
    Clovis CA
    Vehicle:
    2017 Tacoma 4x4 DCSB Manual Inferno
    Basic Shit. Floor Mats, Seat Covers
    Why the ground up to the antenna past the spring? I was under the impression that you just needed to make sure the bracket had a good ground.

  5. May 1, 2018 at 3:06 AM
    #705
    Stew22

    Stew22 Well-Known Member

    Joined:
    Apr 3, 2018
    Member:
    #249278
    Messages:
    160
    Gender:
    Male
    Texas
    Vehicle:
    2017 TRDOR DCSB
    The antenna came from the manufacturer like that. I had it on another truck and it has worked fine on both.

  6. May 1, 2018 at 4:39 PM
    #706
    brentw59

    brentw59 Well-Known Member

    Joined:
    Aug 11, 2009
    Member:
    #20999
    Messages:
    233
    Gender:
    Male
    First Name:
    Brent
    Clovis CA
    Vehicle:
    2017 Tacoma 4x4 DCSB Manual Inferno
    Basic Shit. Floor Mats, Seat Covers
    So I had an idea for that crappy little QI charger area. I know that some people have problems with external speakers and install places in the 3rd gen. So what if we used the QI charger area for and external speaker. I know some have done this already but a few have reported the speakers still aren't loud enough or are of poor quality. Here are the items.

    https://www.amazon.com/OontZ-Angle-...pID=41A3RzNOqgL&preST=_SY300_QL70_&dpSrc=srch


    along with something like this.


    https://www.amazon.com/Wireless-Cha...eywords=qi+charging+receiver+film+for+speaker


    It would be a powered external speaker and take into count I didn't look at the dimensions of the speaker or weather it will fit but I know that they make some that will. I also realize that you can plug into your trucks aux input and go that route but I honestly don't want to do that and would rather have an external speaker that I could use with my phone while camping or fishing. I don't know how well the speaker will charge on the Qi spot with one of those mats but my google nexus 6p worked very well with one.

    I would appreciate any thoughts anyone has on this idea.

  7. May 2, 2018 at 4:42 AM
    #707
    foy1der

    foy1der Well-Known Member

    Joined:
    Sep 18, 2016
    Member:
    #197597
    Messages:
    401
    Gender:
    Male
    First Name:
    W1FOY
    Vehicle:
    2017 OR DCLB
    My wife has one of these speakers. I just got to work, but I'll throw it in the cubbie area when I get home and report back with my findings.

  8. May 2, 2018 at 5:11 PM
    #708
    foy1der

    foy1der Well-Known Member

    Joined:
    Sep 18, 2016
    Member:
    #197597
    Messages:
    401
    Gender:
    Male
    First Name:
    W1FOY
    Vehicle:
    2017 OR DCLB
    Yep, she fits plenty of room to fit that qi charger thing too. Maybe 3/4" both sides and it can get shoved pretty far back as well. You wouldn't be giving up the whole cubbie. If only I remembered my phone to take a photo

  9. May 2, 2018 at 9:39 PM
    #709
    brentw59

    brentw59 Well-Known Member

    Joined:
    Aug 11, 2009
    Member:
    #20999
    Messages:
    233
    Gender:
    Male
    First Name:
    Brent
    Clovis CA
    Vehicle:
    2017 Tacoma 4x4 DCSB Manual Inferno
    Basic Shit. Floor Mats, Seat Covers
    Cool Deal. I ordered the speaker I linked and I'll take pics as soon as it shows up.

  10. May 3, 2018 at 6:35 AM
    #710
    16TacoJeff

    16TacoJeff Member

    Joined:
    May 2, 2018
    Member:
    #252361
    Messages:
    7
    Gender:
    Male
    First Name:
    Jeff
    Vehicle:
    2016 Silver TRD Offroad
    That's it... I gotta get a 3d printer.

  11. May 19, 2018 at 5:32 PM
    #711
    brentw59

    brentw59 Well-Known Member

    Joined:
    Aug 11, 2009
    Member:
    #20999
    Messages:
    233
    Gender:
    Male
    First Name:
    Brent
    Clovis CA
    Vehicle:
    2017 Tacoma 4x4 DCSB Manual Inferno
    Basic Shit. Floor Mats, Seat Covers
    For the guys that ran a cable from the tailgate area of the truck up to the CB where did you route the cable into the cab at?

  12. May 21, 2018 at 10:09 AM
    #712
    nwAdamR

    nwAdamR Well-Known Member

    Joined:
    Aug 8, 2014
    Member:
    #135675
    Messages:
    907
    Gender:
    Male
    First Name:
    Adam
    SW PDX
    Vehicle:
    2016 Tacoma TRD OR LB AT MGM
    Along the passenger-side frame and up through a hole under the front passenger's seat. Then into the center console from under the carpet.

  13. May 21, 2018 at 10:22 AM
    #713
    Gunshot-6A

    Gunshot-6A In God We Trust; All Others We Monitor

    Joined:
    Dec 29, 2009
    Member:
    #28389
    Messages:
    10,060
    Gender:
    Male
    First Name:
    Conner
    Salt Lake City
    Vehicle:
    2015 TRD Offroad
    A short length of PVC pipe does well in a pinch for braching guns, halligan tools, etc. See back of this guys vest:
    [​IMG]

  14. Jun 10, 2018 at 1:11 PM
    #714
    m603holden

    m603holden @Koditten Pirate Radio member #063

    Joined:
    Oct 18, 2014
    Member:
    #140581
    Messages:
    8,727
    Gender:
    Male
    First Name:
    Marteeen
    New England
    Vehicle:
    2017 Tacoma DCSB OR MT
    Lots of sail boat fuel

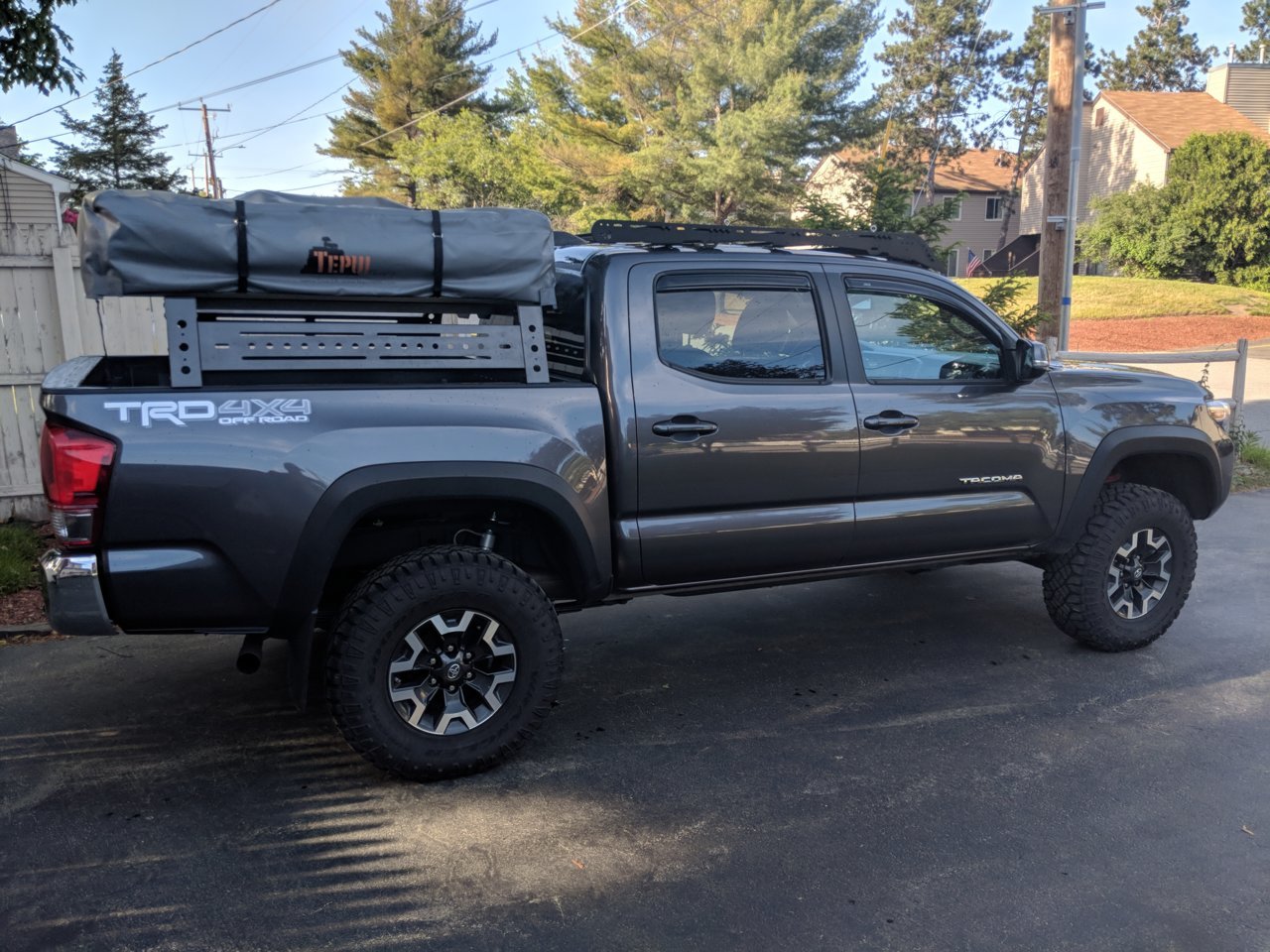

    In terms of ground plane, if I can make a bracket for the rack to fit an antenna, where would be the best place for it? The center isn't and option due to the canoe. Should I pick a corner or try to center it on one of the side rails? I was thinking the back left corner just to keep the cable as straight as possible.


  15. Jun 11, 2018 at 3:03 AM
    #715
    k8md

    k8md Well-Known Member

    Joined:
    Feb 11, 2018
    Member:
    #244081
    Messages:
    232
    Gender:
    Male
    First Name:
    Bob
    Vehicle:
    2015 Silver TRD Sport
    If you're in the center of side rail, is there ~19" of rack in both directions? You need >19" of rack in at least one direction. If the rack is bonded to the truck well, then it's less important.

    What antenna? Instead of a 1/4 wave, you could try a 1/2 wave which doesn't require a ground plane.

  16. Jun 11, 2018 at 4:03 AM
    #716
    m603holden

    m603holden @Koditten Pirate Radio member #063

    Joined:
    Oct 18, 2014
    Member:
    #140581
    Messages:
    8,727
    Gender:
    Male
    First Name:
    Marteeen
    New England
    Vehicle:
    2017 Tacoma DCSB OR MT
    Lots of sail boat fuel
    The rack uses factory roof rack bolts. 2-1-2 on each side. 10 total. I could always expose the metal and repaint it after reassembling for better contact.

    The cross mounts are the width of the truck. I can either tap holes the side of the rack, or use 1/4" bolts to fasten it directly to the cross mount.

  17. Jun 17, 2018 at 6:11 PM
    #717
    Cudgel

    Cudgel “Tonka”

    Joined:
    Mar 28, 2017
    Member:
    #214640
    Messages:
    1,877
    Gender:
    Male
    Live in: A Plastic Trash Floating Ocean Continent
    Vehicle:
    2017 OR DCLB
    ICON8 Lift -285s on FUEL Recoils -KCs on bars (+).
    I had one of these in my last truck with a well tuned firestik, worked great and stowed on the glovebox.

  18. Jun 19, 2018 at 1:58 PM
    #718
    bmgreene

    bmgreene Well-Known Member

    Joined:
    Nov 18, 2009
    Member:
    #26145
    Messages:
    743
    Gender:
    Male
    First Name:
    Brian
    L.A. Westside
    Vehicle:
    2010 PreRunner V6 SR5/OR
    Alcan Leaf Packs, OME884 Coils, 5100 shocks, U.S. Offroad Winch Mount w/Winch, Trail Gear Rear H/C Bumper, Prinsu Cabrack, DIY custom in-bed storage/sleeping deck, Sway bar delete, hidden "snorkel" intake mod, In-dash CB, Bestop Supertop, Undercover Swingbox, hood lifters, assorted lights and front spotting camera
    I haven't been able to find this on a search, so I'm going to risk repeating a question here...

    I'm adding a UHF/VHF antenna (smallish pigtail) on a NMO "bumper bracket" which is just a stainless "L" bracket. I put the bracket on my prinsu rack (Access Cab) on the pass side but don't figure the rack is at all well grounded to the body since all the riv-nuts are wet-installed with RTV sealant and I fully painted the rack before installing it. Currently just using an adapter cable to hook the antenna on a baofeng hand-held to the inside end of the coax but might upgrade to a fixed-install radio at some point in the future.

    My question is, do I need to ground the NMO bracket to the body like I did with my CB antenna? and if so, does anyone know of a factory ground point outside the cab near the front of the bed on the RHS? I'm hesitant to just stick a sheet metal screw into the body somewhere to avoid rust, but would be OK if that's the only way that wouldn't require 12+ ft of wire.

  19. Jun 19, 2018 at 4:30 PM
    #719
    k8md

    k8md Well-Known Member

    Joined:
    Feb 11, 2018
    Member:
    #244081
    Messages:
    232
    Gender:
    Male
    First Name:
    Bob
    Vehicle:
    2015 Silver TRD Sport
    You can use a half wave antenna, which does not require a ground plane. If you have > 19" of rack running in a few directions from the antenna, then the rack alone is sufficient ground plane. 1/4 wave at CB freqs is ~ 2.75m, so the ground is more difficult.

  20. Jun 19, 2018 at 6:09 PM
    #720
    bmgreene

    bmgreene Well-Known Member

    Joined:
    Nov 18, 2009
    Member:
    #26145
    Messages:
    743
    Gender:
    Male
    First Name:
    Brian
    L.A. Westside
    Vehicle:
    2010 PreRunner V6 SR5/OR
    Alcan Leaf Packs, OME884 Coils, 5100 shocks, U.S. Offroad Winch Mount w/Winch, Trail Gear Rear H/C Bumper, Prinsu Cabrack, DIY custom in-bed storage/sleeping deck, Sway bar delete, hidden "snorkel" intake mod, In-dash CB, Bestop Supertop, Undercover Swingbox, hood lifters, assorted lights and front spotting camera
    Thanks. I did get some reception without a ground wire, but I don't have a SWA meter and don't want to risk damaging the system on TX. Since I'm not really sure if my antenna is really tuned, would there be any benefit (or downside) to grounding to the body anyway?
