Clean VHF/CB radio installs

Discussion in '3rd Gen. Tacomas (2016+)' started by FoleySwampPlotts, Feb 10, 2016.

  1. Jan 21, 2019 at 9:29 PM
    #1001
    El Latigo

    El Latigo Well-Known Member

    Joined:
    Jan 4, 2018
    Member:
    #240278
    Messages:
    298
    Gender:
    Male
    Anaheim CA
    Vehicle:
    2017 MGM TRD OR Double Cab Short Bed
    If you already tested the coax cable, and tested good.. tried a different antenna, and got the same results (high SWR) i would suggest to try a different SWR meter... but try to use a good quality one... I use this one
    https://www.amazon.com/Bundle-Anten...ocphy=9031581&hvtargid=pla-605723506228&psc=1
    is expensive and very accurate
    good luck..

    AuburnAlum likes this.
  2. Jan 21, 2019 at 9:44 PM
    #1002
    5nahalf

    5nahalf Well-Known Member

    Joined:
    Sep 22, 2018
    Member:
    #267058
    Messages:
    1,156
    Gender:
    Male
    First Name:
    Erik
    Vehicle:
    2018 inferno orange trd off-road
    Wow, yeah that's expensive. Im using this cheap workman meter https://www.amazon.com/SWR-METER-CB...ctronics&sprefix=swr+m,electronics,162&sr=1-4

    In my search I found someone on this forum, same antenna, same location, same problem.

    While they had some washers in the wrong places that grounded out their antenna, they also had a 2 foot ground cable like me. When they moved it all and got a 8 inch ground it got better than the long ground.

    So I'm going to try to run 3 more ground cables in the morning. I think my 14 gauge is just too thin and long. If my readings are better then I will cut off some of my 8 gauge amp wire and make another strap.

    If it's still pegging in the red, there is a company down the road that does police radios and the such... Might bribe one of the old guys with a 6 pack to fix it.

    Last edited: Jan 21, 2019
  3. Jan 22, 2019 at 3:11 AM
    #1003
    Bastek

    Bastek Member

    Joined:
    Jun 6, 2017
    Member:
    #220876
    Messages:
    3,355
    Gender:
    Male
    First Name:
    Seb
    SI NY
    Vehicle:
    '17 OR MGM
    Some stickers, plastidip and radio knobs
    Could you post some photos of your set up. Mounting location, bracket, connections, etc.

    From what I understand, when your antenna cable is unplugged from the radio and antenna removed (but cable still plugged into the mount) , the cable isn't shorted out, right?

  4. Jan 22, 2019 at 3:14 AM
    #1004
    Bastek

    Bastek Member

    Joined:
    Jun 6, 2017
    Member:
    #220876
    Messages:
    3,355
    Gender:
    Male
    First Name:
    Seb
    SI NY
    Vehicle:
    '17 OR MGM
    Some stickers, plastidip and radio knobs

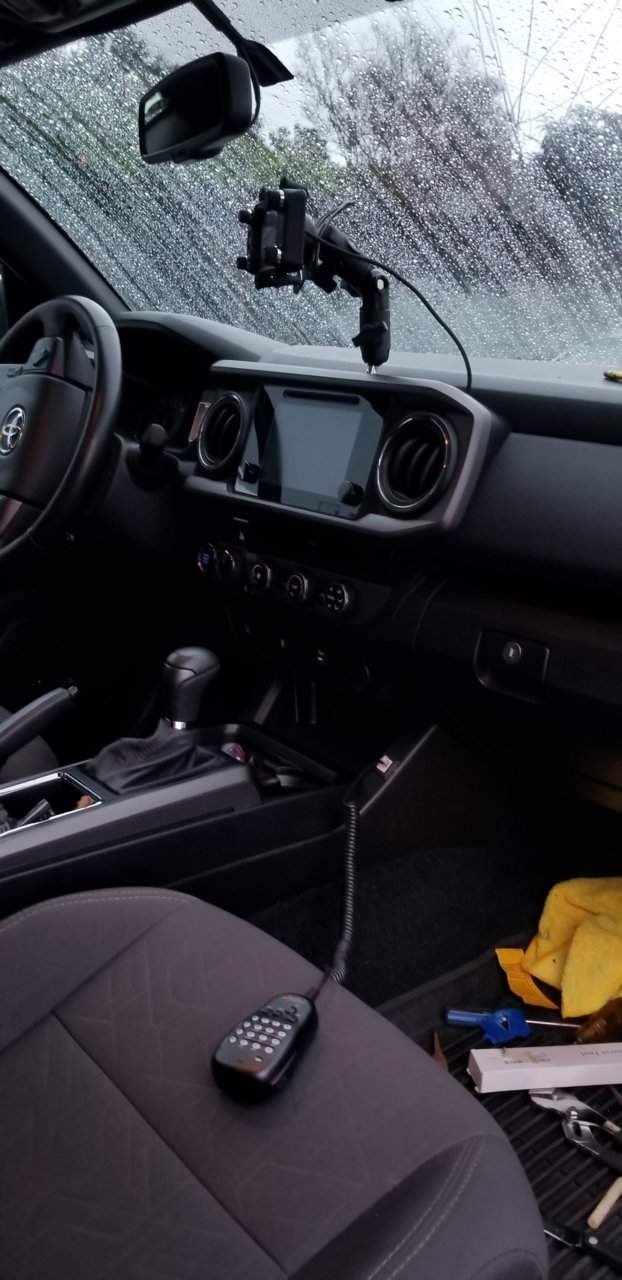

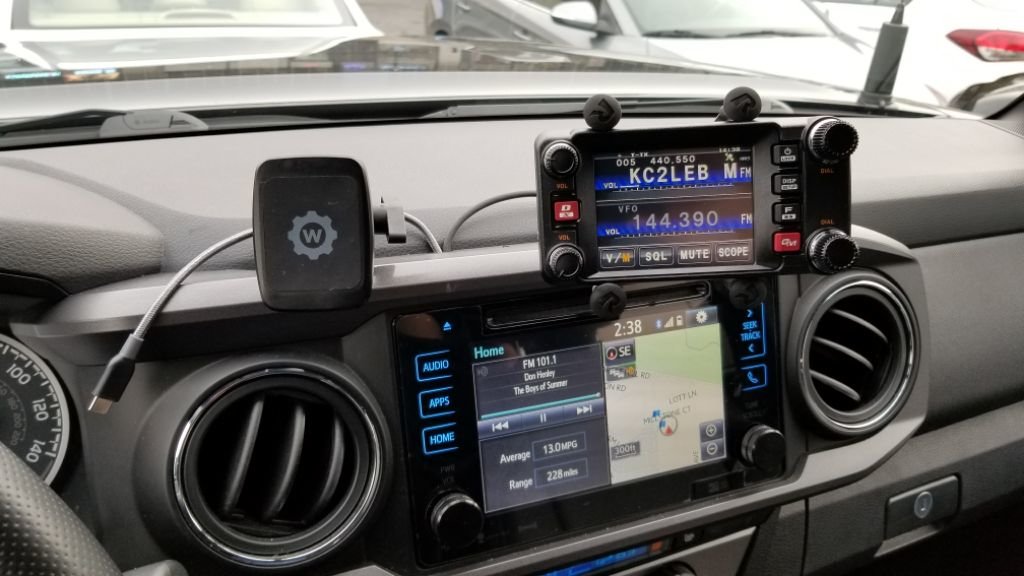

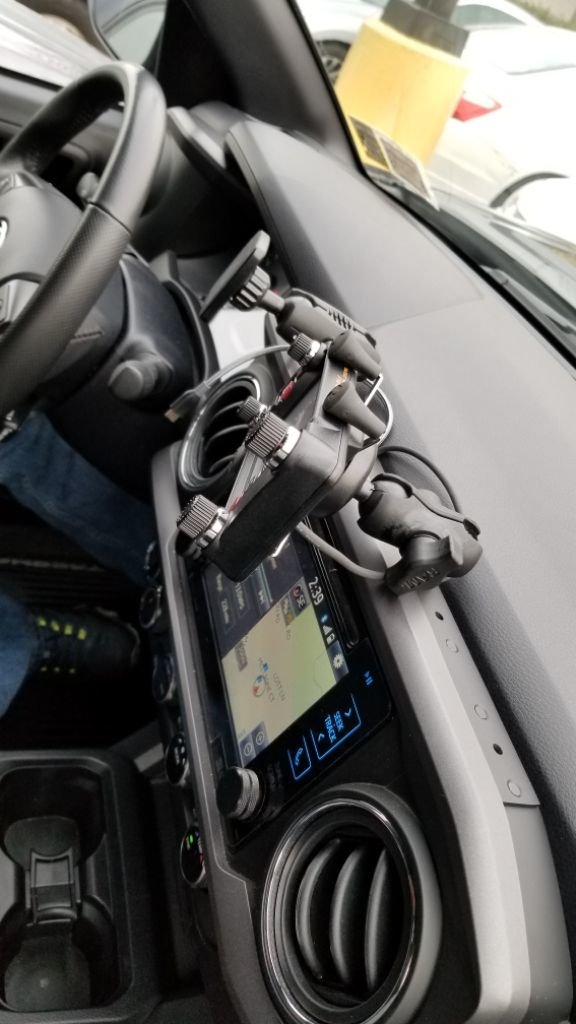

    That's cool. I have a similar set up as well! IMG_20190102_53333.jpg

  5. Jan 22, 2019 at 6:39 AM
    #1005
    5nahalf

    5nahalf Well-Known Member

    Joined:
    Sep 22, 2018
    Member:
    #267058
    Messages:
    1,156
    Gender:
    Male
    First Name:
    Erik
    Vehicle:
    2018 inferno orange trd off-road
    It's never shorted anytime. Let me find pictures

    https://i.imgur.com/9Xj9F04.mp4

    Last edited: Jan 22, 2019
    Bastek likes this.
  6. Jan 22, 2019 at 6:46 AM
    #1006
    m603holden

    m603holden @Koditten Pirate Radio member #063

    Joined:
    Oct 18, 2014
    Member:
    #140581
    Messages:
    8,727
    Gender:
    Male
    First Name:
    Marteeen
    New England
    Vehicle:
    2017 Tacoma DCSB OR MT
    Lots of sail boat fuel

    Heyyy me too.

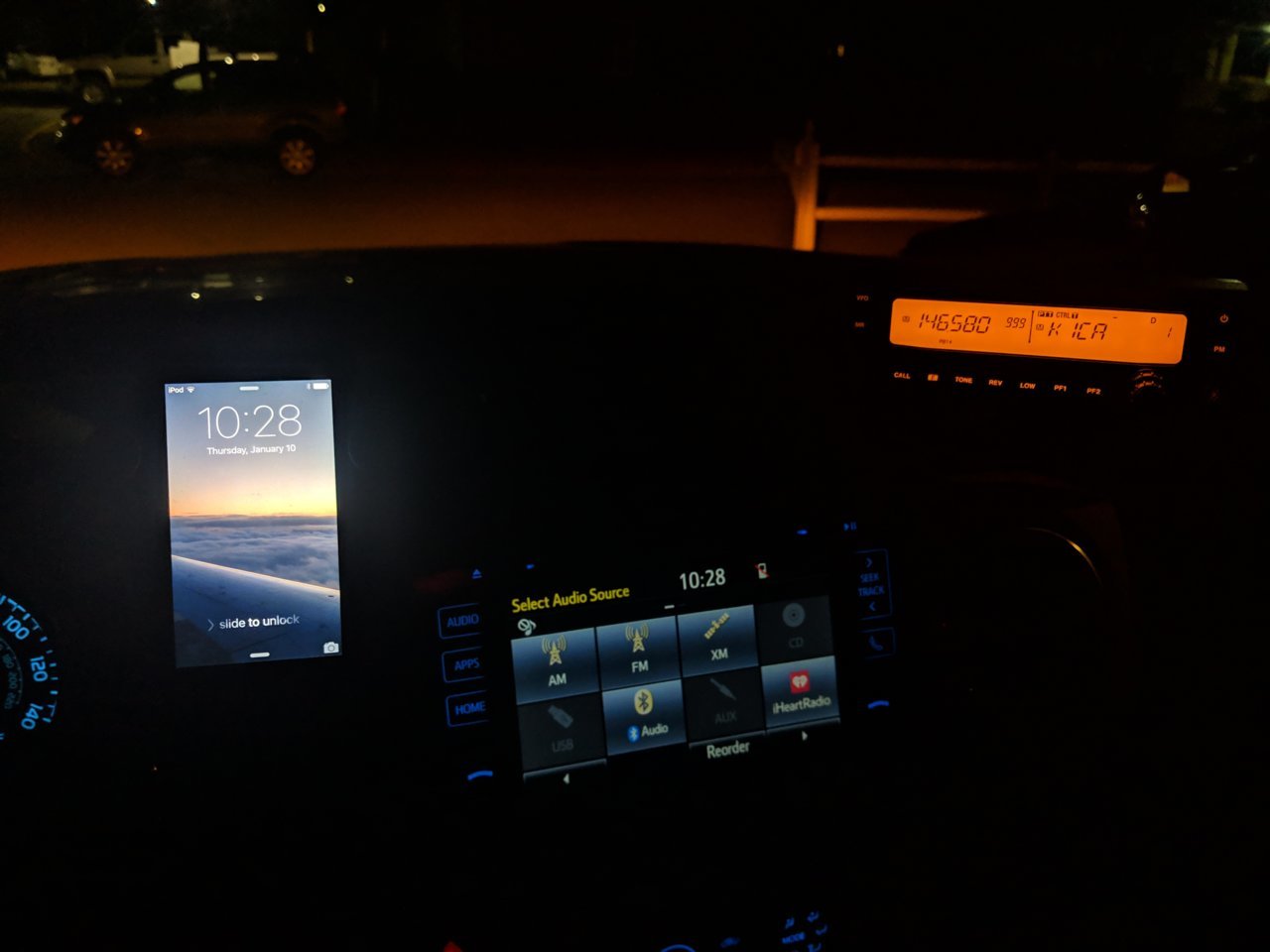

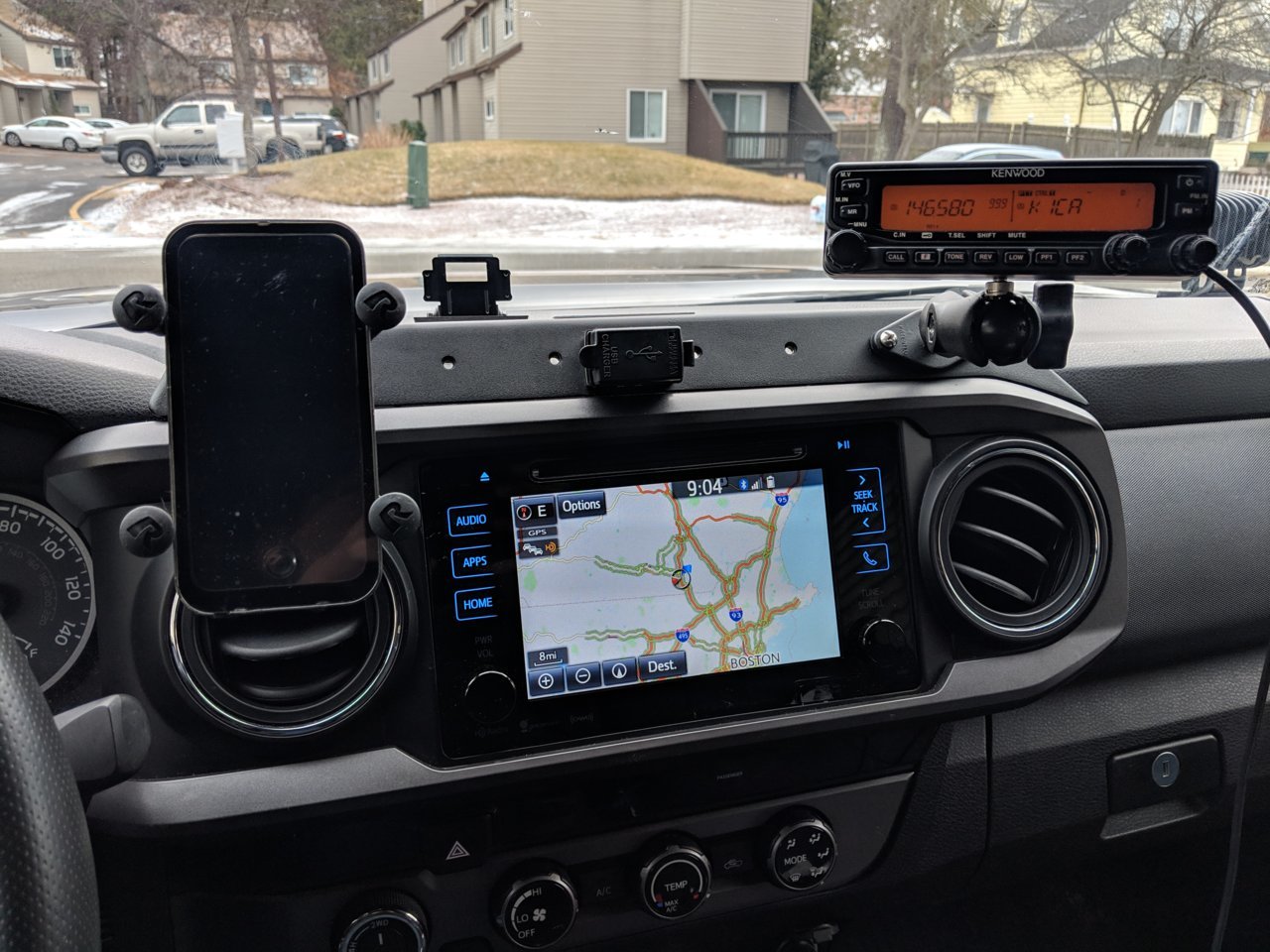

    IMG_20190110_222836.jpg IMG_20190110_090423.jpg

  7. Jan 22, 2019 at 7:47 AM
    #1007
    5nahalf

    5nahalf Well-Known Member

    Joined:
    Sep 22, 2018
    Member:
    #267058
    Messages:
    1,156
    Gender:
    Male
    First Name:
    Erik
    Vehicle:
    2018 inferno orange trd off-road
    Got my SWR solved this morning. Yeah, it was the thin ground strap. I ran 2 more cables for the ground (3 14 gauge wires total) and now my swr is at 2. So its better, but I think it can be improved more. Going to swing by northern tool and get some 6 or 8 gauge welding wire and eyelets to make a nice ground strap. I do wish there was a better way to ground that rail though, maybe this summer I will figure something out.... right now its too cold and snowy

    Bastek and FastEddy59 like this.
  8. Jan 22, 2019 at 3:54 PM
    #1008
    k8md

    k8md Well-Known Member

    Joined:
    Feb 11, 2018
    Member:
    #244081
    Messages:
    232
    Gender:
    Male
    First Name:
    Bob
    Vehicle:
    2015 Silver TRD Sport
    Grounding is exactly like: good looking women, beer, and a quality single malt scotch...

    More = better

    FastEddy59 and 5nahalf like this.
  9. Jan 22, 2019 at 4:19 PM
    #1009
    Bastek

    Bastek Member

    Joined:
    Jun 6, 2017
    Member:
    #220876
    Messages:
    3,355
    Gender:
    Male
    First Name:
    Seb
    SI NY
    Vehicle:
    '17 OR MGM
    Some stickers, plastidip and radio knobs
    This is a very cool mount, but seems that it was designed for ham antennas not requiring grounding and for that matter a ground plain. So no wonder you have issues with it (at least from what I could gather from that clip).
    Out of curiosity, does the mount manufacturer recommend any specific antennas?

    I'm glad you were able to bring your swr down more :thumbsup: . You could also look into flat braided ground strap. From what I understand they are preffered in ham radio applications, so maybe that would help you as well. BTW, where do you connect your ground? I can't make it out from video.




    :thumbsup:

  10. Jan 22, 2019 at 5:03 PM
    #1010
    5nahalf

    5nahalf Well-Known Member

    Joined:
    Sep 22, 2018
    Member:
    #267058
    Messages:
    1,156
    Gender:
    Male
    First Name:
    Erik
    Vehicle:
    2018 inferno orange trd off-road
    they do sell a antenna wire for it that grounds at the base of the ring just like the firering does. Their version though is a little thinner and fits better into the mount. The mount is for anything really, CB, ham, they even say you can use it for sand dune flags....

    It does have a ground, I had to figure it out my self though. There are 4 small screws on the bottom of it, they hold the mount to the motor assembly. These screws go into a metal casing that holds the rotating bolt. So by grounding those screws it grounds the antenna. They are small screws, so I have now used 4 ground wires, one for each screw, to go to the frame.

    When I make my new ground, Im going to try to use those 4 screws again, but make all 4 wires terminate into the single 8 gauge wire, then I wont have 4 wires, plus power/ground for the antenna (power/ground switches polarity to raise and lower the antenna) and the coax. Right now it looks weird with 6 wires running from it.

    Bastek likes this.
  11. Jan 26, 2019 at 6:19 AM
    #1011
    GoCougs1996

    GoCougs1996 2019 SR5 Magnetic Gray 4x4 DC SB

    Joined:
    Jan 15, 2019
    Member:
    #279363
    Messages:
    38
    Gender:
    Male
    State of Washington
    Vehicle:
    2019 SR5
  12. Jan 27, 2019 at 11:50 AM
    #1012
    GoCougs1996

    GoCougs1996 2019 SR5 Magnetic Gray 4x4 DC SB

    Joined:
    Jan 15, 2019
    Member:
    #279363
    Messages:
    38
    Gender:
    Male
    State of Washington
    Vehicle:
    2019 SR5
    In my old 2000 Tacoma I used a Pro 510
    https://www.amazon.com/Uniden-PRO51...618125&sr=1-5-spons&keywords=520+uniden&psc=1

    Now that I have the new SR5- went a different direction. Got the Midland 75-822 and will be connecting to the midland glass mount 18-258. Dont require miles of range, a good mile or mile and half will work for me. Both are low impact, no drilling. Seems that 3rd gen is tough to find 'easy' locations for mounting inside and outside vehicle.

    Midland Hanheld
    https://www.amazon.com/d/Cb-Citizen...e=UTF8&qid=1548617741&sr=1-6&keywords=midland

    Midland Antenna
    https://www.amazon.com/gp/product/B00000K2YV/ref=ppx_yo_dt_b_asin_title_o02__o00_s00?ie=UTF8&psc=1

    Lido

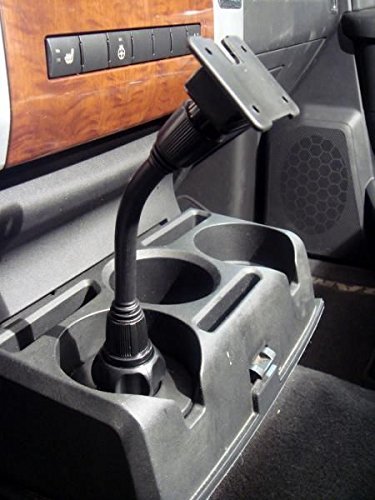

    Considering a Lido cup holder mount for the 75-822 for an option when traveling.
    https://www.amazon.com/gp/product/B00THH1P2Y/ref=ppx_yo_dt_b_asin_title_o00__o00_s00?ie=UTF8&psc=1

    Couldnt find my old SWR, ordered an inexpensive unit-
    https://www.amazon.com/gp/product/B07DBTFKD9/ref=ppx_yo_dt_b_asin_title_o03__o00_s00?ie=UTF8&psc=1

    will post pics when it all comes together next weekend.

  13. Jan 29, 2019 at 6:02 AM
    #1013
    BrotherBudro

    BrotherBudro Well-Known Member

    Joined:
    May 12, 2012
    Member:
    #78690
    Messages:
    448
    Gender:
    Male
    First Name:
    David
    Nashville
    Vehicle:
    2017 SR5 Access Cab, V6 4X4
    Leer 100XR, Dual Battery, Dog Platform, Sleeping Platform, Ham, CB, Light Bar, Rear Lights,
    For some reason this thread fell off my "Watched" list and I kinda forgot about it, been mostly paying attention to the Ham BS thread. Anyway, finally got my Kenwood TM-V71a installed this weekend. Radio body went under the driver's seat, faceplate went on a cup holder cell phone mag mount, external speaker mounted near my right leg, and the antenna on my SOS ditch light bracket. Really happy with how it all turned out.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

  14. Jan 29, 2019 at 6:03 AM
    #1014
    BrotherBudro

    BrotherBudro Well-Known Member

    Joined:
    May 12, 2012
    Member:
    #78690
    Messages:
    448
    Gender:
    Male
    First Name:
    David
    Nashville
    Vehicle:
    2017 SR5 Access Cab, V6 4X4
    Leer 100XR, Dual Battery, Dog Platform, Sleeping Platform, Ham, CB, Light Bar, Rear Lights,
    Forgot one pic and the editing is weird

    [​IMG]

    GoCougs1996 likes this.
  15. Jan 29, 2019 at 9:32 AM
    #1015
    Mtn Mike

    Mtn Mike Well-Known Member

    Joined:
    Oct 29, 2017
    Member:
    #234494
    Messages:
    566
    Gender:
    Male
    First Name:
    Mike
    Spokane, WA
    Vehicle:
    2017 TRD OR AC
    Good looking install! Did you physically attach the radio body to the underside of the seat or is it just resting on the floor? Also, is your mic attached or just resting there?

  16. Jan 29, 2019 at 10:30 AM
    #1016
    BrotherBudro

    BrotherBudro Well-Known Member

    Joined:
    May 12, 2012
    Member:
    #78690
    Messages:
    448
    Gender:
    Male
    First Name:
    David
    Nashville
    Vehicle:
    2017 SR5 Access Cab, V6 4X4
    Leer 100XR, Dual Battery, Dog Platform, Sleeping Platform, Ham, CB, Light Bar, Rear Lights,
    Radio body is mounted in the mounting bracket and zip tied to the metal supports (if that's what you call them) that run under the padding of the seat. I thought about just letting it sit in there, but figured if I'm going through all this other trouble (and spend all the money) I might as well zip tie it.

    Mic is just resting near the E-brake. It it plugged directly into the radio body, no separation cable.

    Mtn Mike likes this.
  17. Feb 5, 2019 at 1:36 PM
    #1017
    EightGodzillas

    EightGodzillas Scales of Justice

    Joined:
    May 19, 2018
    Member:
    #253945
    Messages:
    50
    Gender:
    Male
    Lake Norman
    Vehicle:
    2018 Tacoma TRD OffRoad
    So I installed this from the Hondo Garage: http://www.hondogarage.com/index.php/product/landing/cb-mic-hanger

    Don't waste your money; it's a bad design. The screw is just long enough that you can't make the piece tight. It feels like it seats properly but one bump and it's all over the place. I could grind off the back of the piece at the end so the screw would go all the way through and tighten it up, but it would just loosen over time. It was a neat idea but their execution was bad.

    BTW, I tried to call them and at 4:25 EST no one is answering the phone and the answering service is so quiet you can barely hear the announcement and it's covered in static. I don't get the feeling they really want to be contacted. I'll try an email.

  18. Feb 5, 2019 at 3:30 PM
    #1018
    5nahalf

    5nahalf Well-Known Member

    Joined:
    Sep 22, 2018
    Member:
    #267058
    Messages:
    1,156
    Gender:
    Male
    First Name:
    Erik
    Vehicle:
    2018 inferno orange trd off-road


    Mine was the same way, seems they didn't machine the threads all the way. Just hold the cam and tighten the screw till it goes all the way. I had to do it to all my screw holes. It's only a tiny amount that you have to force through, like 1-2 threads.


    Edit: remove the whole thing first, then force it when it's not installed. Then reinstall it.

  19. Feb 5, 2019 at 6:18 PM
    #1019
    EightGodzillas

    EightGodzillas Scales of Justice

    Joined:
    May 19, 2018
    Member:
    #253945
    Messages:
    50
    Gender:
    Male
    Lake Norman
    Vehicle:
    2018 Tacoma TRD OffRoad
    I'll try that. Thanks!

  20. Feb 5, 2019 at 7:09 PM
    #1020
    cubfan74

    cubfan74 Well-Known Member

    Joined:
    Feb 10, 2018
    Member:
    #243992
    Messages:
    128
    Gender:
    Male
    First Name:
    Jason
    landmass between Louisiana and Alabama
    Vehicle:
    2017 MGM TRD Sport 4X2 DCSB
    17" TRD wheels and 265/70/17 KO2's

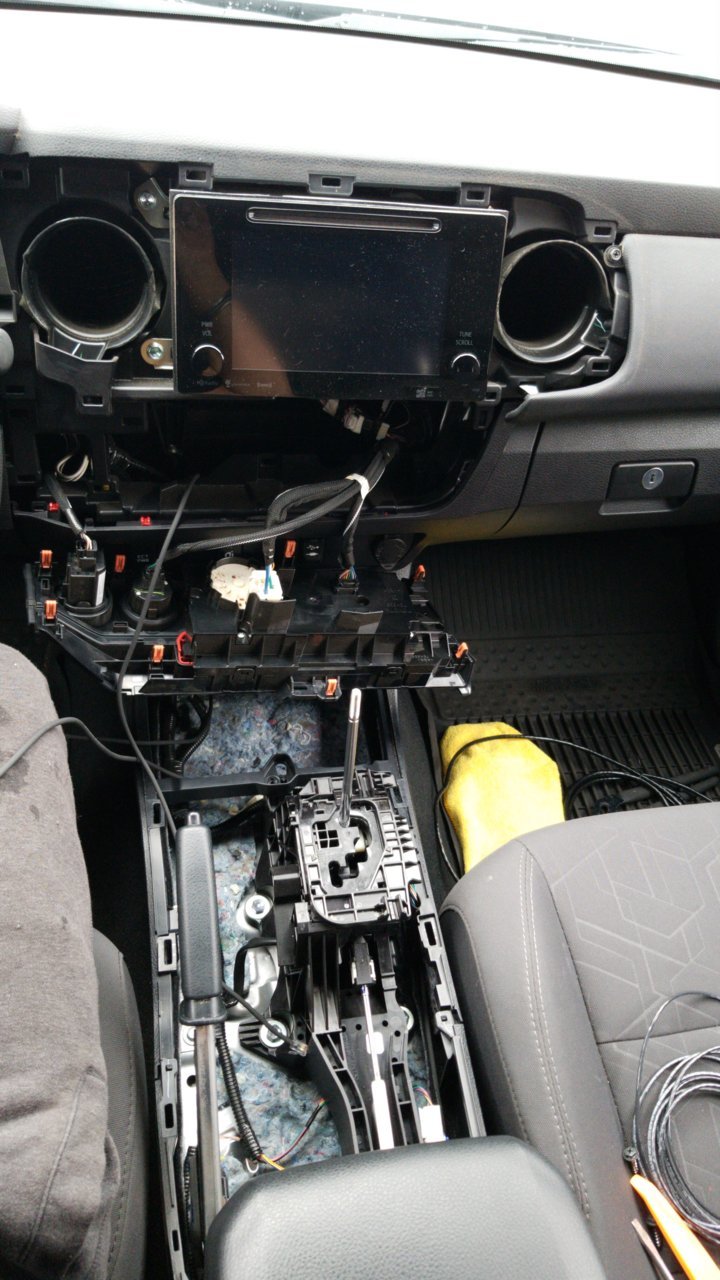

    Do you have a better picture of how your ran your power wires?
