Clean VHF/CB radio installs

Discussion in '3rd Gen. Tacomas (2016+)' started by FoleySwampPlotts, Feb 10, 2016.

  1. Mar 7, 2019 at 10:54 AM
    #1101
    The Saint

    The Saint Well-Known Member

    Joined:
    Jan 11, 2018
    Member:
    #240971
    Messages:
    81
    Gender:
    Male
    First Name:
    Mark
    Corona De Tucson, AZ
    Vehicle:
    2017 TRD Sport 4X4

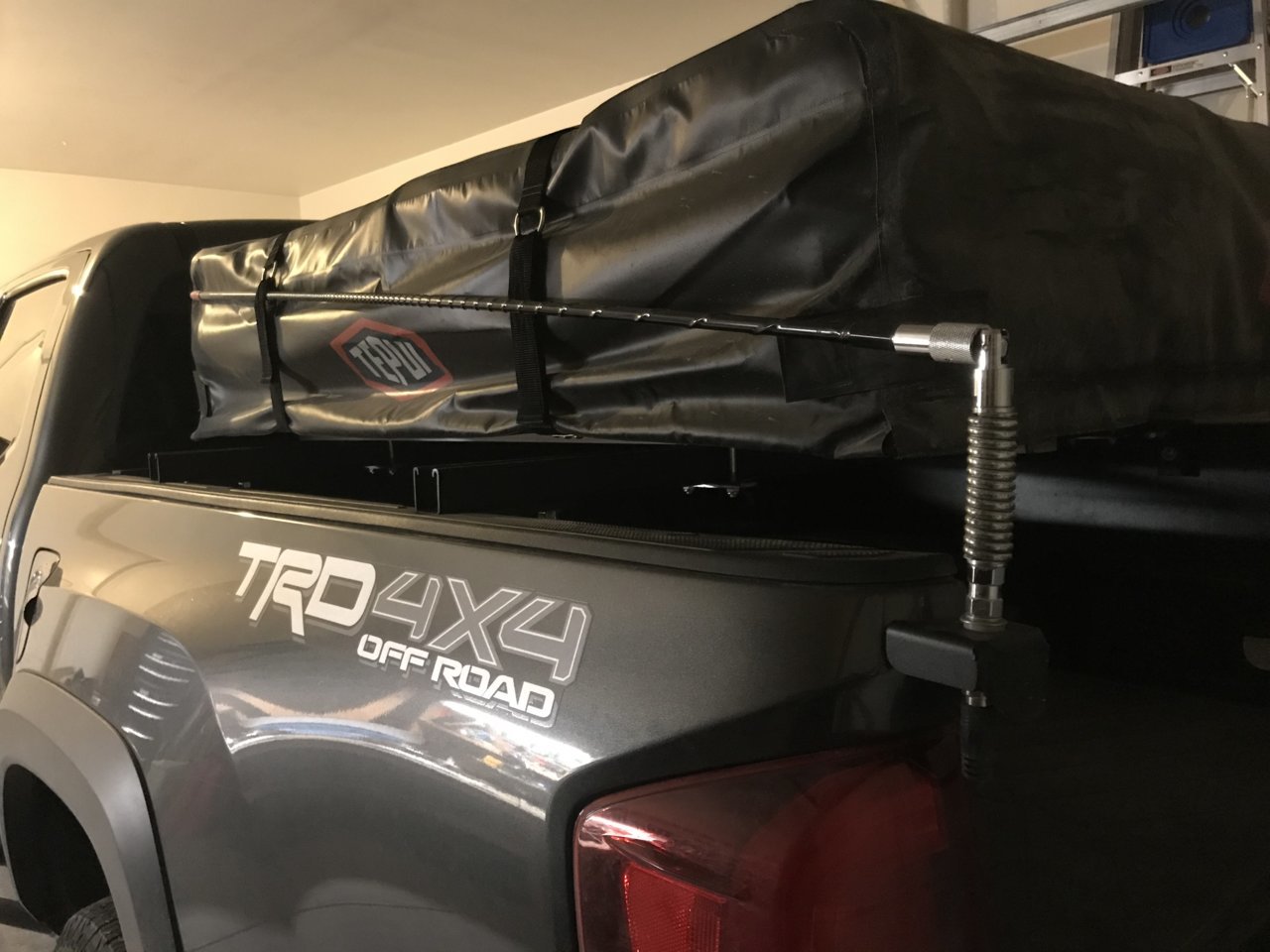

    Does your folder screw down. I like that set up

  2. Mar 7, 2019 at 11:30 AM
    #1102
    PcBuilder14

    PcBuilder14 Well-Known Member

    Joined:
    Jun 19, 2011
    Member:
    #58522
    Messages:
    22,620
    Gender:
    Male
    First Name:
    Brent
    Las Vegas, Nevada
    Vehicle:
    2018 Tacoma TRD Off Road 4x4
  3. Mar 8, 2019 at 8:10 PM
    #1103
    '16goingon'17

    '16goingon'17 Well-Known Member

    Joined:
    May 26, 2016
    Member:
    #188003
    Messages:
    109
    Gender:
    Male
    First Name:
    Trailslayer
    Arizona
    Vehicle:
    2017 TRDOR 4x4 DCSB MT
    Tips I wish the real radio geeks would have told me when I first started:
    • Drill a hole through the dead center of the roof with this and run a real NMO mount from either Laird or Larsen to your unit. Take the plunge. Commit!
    • The mount should be factory-connected via a flexible RG58A/U (A/U type simply means a 20 AWG stranded tinned copper center conductor wire).
    • Mag, hood bracket, and bed mounts are good for temporary-ish comms, but can't even come close to comparing to the range and clarity of a proper roof install.
    • Keep a plastic NMO rain cap handy for when you need to quickly remove the antenna.
    • Use the best possible metal-shielded RJ45 female/female connector you can find. Anything less is subject to plenty of interference, which is so annoying after you buy all and install the supplies and then realize it's crap like I did. :facepalm:
    • Mount the shielded RJ45 connector into the Toyota switch blank of your choice.
      • Caveat Emptor: the Australian company GearElectric makes one of these for Toyota and it has terrible craftsmanship with loose-fitting tolerances, poor 3D printing, and outrageously expensive.
    • Lastly, DPD Productions has the ugliest website and if I had time I'd offer to rebuild it, but they really know their stuff as well as the expected radioreference.com and Antenna Farm.
    If anyone else has more tips, please add for the benefit of the Tacommunity...

    Last edited: Mar 12, 2019
    CO MTN Steve, KTM753, Boghog1 and 2 others like this.
  4. Mar 8, 2019 at 8:15 PM
    #1104
    BEAR_KNIFE_FIGHT

    BEAR_KNIFE_FIGHT bearly famous

    Joined:
    May 21, 2016
    Member:
    #187524
    Messages:
    1,314
    Gender:
    Male
    First Name:
    Alex
    Wisconsin
    Vehicle:
    2016 TRD OR 4X4 DCSB Quicksand
    Question for ya then: I have a prinsu rack with a solar panel/other shit bolted on to my roof. Do you think drilling a hole into my roof is still the best bet? I am not being difficult -- I figured the additional metal around the antenna would affect reception decently. Otherwise my plan was to mount my antenna to my roof rack.

  5. Mar 9, 2019 at 5:35 AM
    #1105
    The Saint

    The Saint Well-Known Member

    Joined:
    Jan 11, 2018
    Member:
    #240971
    Messages:
    81
    Gender:
    Male
    First Name:
    Mark
    Corona De Tucson, AZ
    Vehicle:
    2017 TRD Sport 4X4
    I just installed my cobra 75 wx st but when I turned on the unit the lights came on but nothing showed in the display window. anybody have any idea how I screwed this up? Would the antenna ground cause this?

  6. Mar 9, 2019 at 5:38 AM
    #1106
    m603holden

    m603holden @Koditten Pirate Radio member #063

    Joined:
    Oct 18, 2014
    Member:
    #140581
    Messages:
    8,728
    Gender:
    Male
    First Name:
    Marteeen
    New England
    Vehicle:
    2017 Tacoma DCSB OR MT
    Lots of sail boat fuel
    I've hit 39 miles simplex at s7 off my prinsu rack. You've got options

  7. Mar 9, 2019 at 6:36 AM
    #1107
    JdevTac

    JdevTac Bawnjourno

    Joined:
    Jan 8, 2012
    Member:
    #70234
    Messages:
    4,645
    Gender:
    Male
    First Name:
    Josh
    GA/MD
    Vehicle:
    2013 DC TRD-OR 4x4 Pyrite Mica
    Instead of those NMO hole saws use a 3/4 Greenlee “CHASSIS” punch. It makes an extremely clean hole like it was from factory.

    They are pricey brand new but can be found cheap on eBay.

    k8md likes this.
  8. Mar 9, 2019 at 8:33 AM
    #1108
    PcBuilder14

    PcBuilder14 Well-Known Member

    Joined:
    Jun 19, 2011
    Member:
    #58522
    Messages:
    22,620
    Gender:
    Male
    First Name:
    Brent
    Las Vegas, Nevada
    Vehicle:
    2018 Tacoma TRD Off Road 4x4
    If nothing is showing up on the display it sounds like something is wrong with the radio itself. Even if you don’t have an antenna hooked up to it, it should still display channels and stuff.

    Bastek likes this.
  9. Mar 9, 2019 at 4:37 PM
    #1109
    The Saint

    The Saint Well-Known Member

    Joined:
    Jan 11, 2018
    Member:
    #240971
    Messages:
    81
    Gender:
    Male
    First Name:
    Mark
    Corona De Tucson, AZ
    Vehicle:
    2017 TRD Sport 4X4
    Thanks that's what I was afraid of.

  10. Mar 9, 2019 at 4:43 PM
    #1110
    k8md

    k8md Well-Known Member

    Joined:
    Feb 11, 2018
    Member:
    #244081
    Messages:
    232
    Gender:
    Male
    First Name:
    Bob
    Vehicle:
    2015 Silver TRD Sport
    Be really careful using a punch. There is a punch out there labeled 3/4", but it's actually a bit larger then 3/4". It's designed for 3/4" conduit. So measure that punch before you make that hole!!

    KTM753 and Bastek like this.
  11. Mar 9, 2019 at 4:50 PM
    #1111
    JdevTac

    JdevTac Bawnjourno

    Joined:
    Jan 8, 2012
    Member:
    #70234
    Messages:
    4,645
    Gender:
    Male
    First Name:
    Josh
    GA/MD
    Vehicle:
    2013 DC TRD-OR 4x4 Pyrite Mica
    That’s why I capitalized “Chassis”. Conduit punches will put a larger hole than intended.

    k8md likes this.
  12. Mar 11, 2019 at 9:13 PM
    #1112
    '16goingon'17

    '16goingon'17 Well-Known Member

    Joined:
    May 26, 2016
    Member:
    #188003
    Messages:
    109
    Gender:
    Male
    First Name:
    Trailslayer
    Arizona
    Vehicle:
    2017 TRDOR 4x4 DCSB MT
    This one is over my head. I have no idea. I would ask smart HAM guys. There are so many ways to do things where it works well, but only one way it works best for each unique situation.

    BEAR_KNIFE_FIGHT likes this.
  13. Mar 12, 2019 at 1:47 AM
    #1113
    k8md

    k8md Well-Known Member

    Joined:
    Feb 11, 2018
    Member:
    #244081
    Messages:
    232
    Gender:
    Male
    First Name:
    Bob
    Vehicle:
    2015 Silver TRD Sport
    Probably not. Attach to the rack. Furnish a photo for us to be certain.

    BrotherBudro likes this.
  14. Mar 12, 2019 at 1:26 PM
    #1114
    BEAR_KNIFE_FIGHT

    BEAR_KNIFE_FIGHT bearly famous

    Joined:
    May 21, 2016
    Member:
    #187524
    Messages:
    1,314
    Gender:
    Male
    First Name:
    Alex
    Wisconsin
    Vehicle:
    2016 TRD OR 4X4 DCSB Quicksand
    Of the finished install? I can do that. Just ordering a new antenna and I'll be all set.

    k8md likes this.
  15. Mar 15, 2019 at 5:03 PM
    #1115
    littlefish

    littlefish Buzz, your girlfriend...

    Joined:
    Sep 13, 2018
    Member:
    #266147
    Messages:
    364
    Gender:
    Male
    Hudson Valley NY
    Vehicle:
    2016 TRD Off-Road DCSB

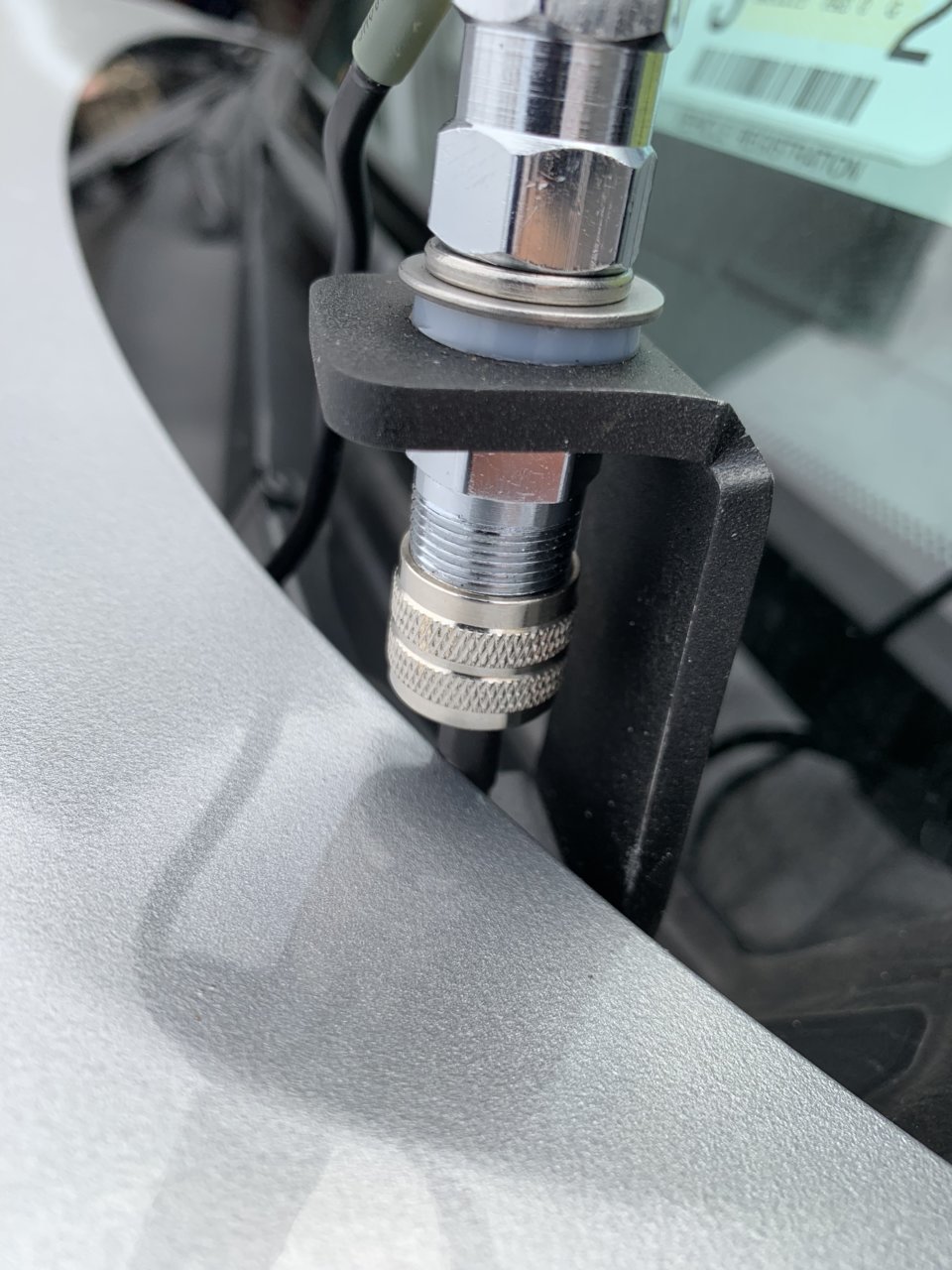

    Ok I could use some SWR help. Today I installed my Cobra C75WXST using this writeup as a guide. I've got a 4' Firestick mounted to a @RelentlessFabrication ditch light bracket. I spray painted it, and to ground it I used a 10 gauge wire and ran it to my negative terminal bus bar. I cannot shorten the adjustment enough and my SWR is always too high. On channel 1 its about 2.25 and on channel 40 its about 3.5. If I remove the spring and quick disconnect (making the whole antenna system shorter), the numbers do get slightly better but still aways above 3 on channel 40.

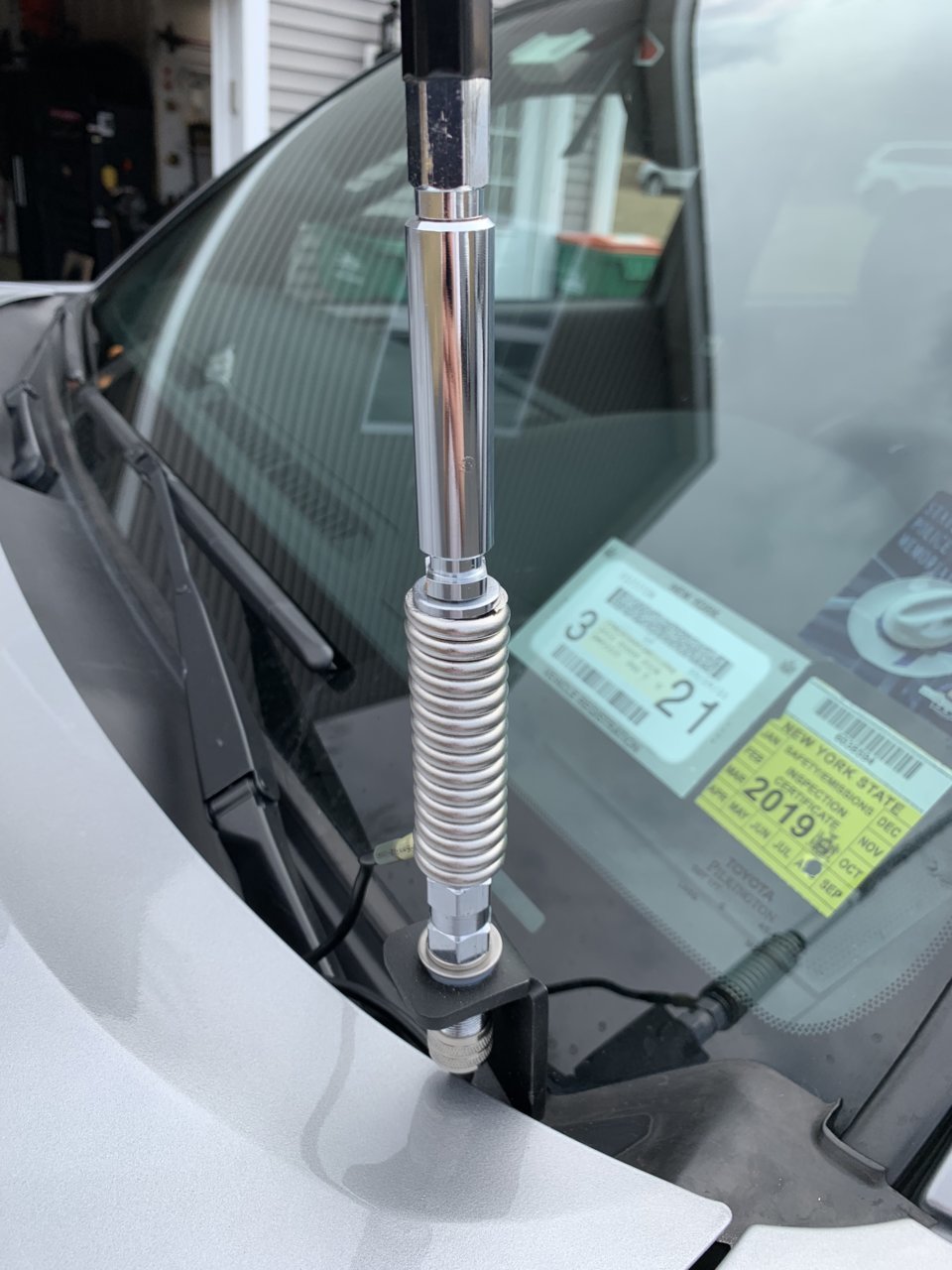

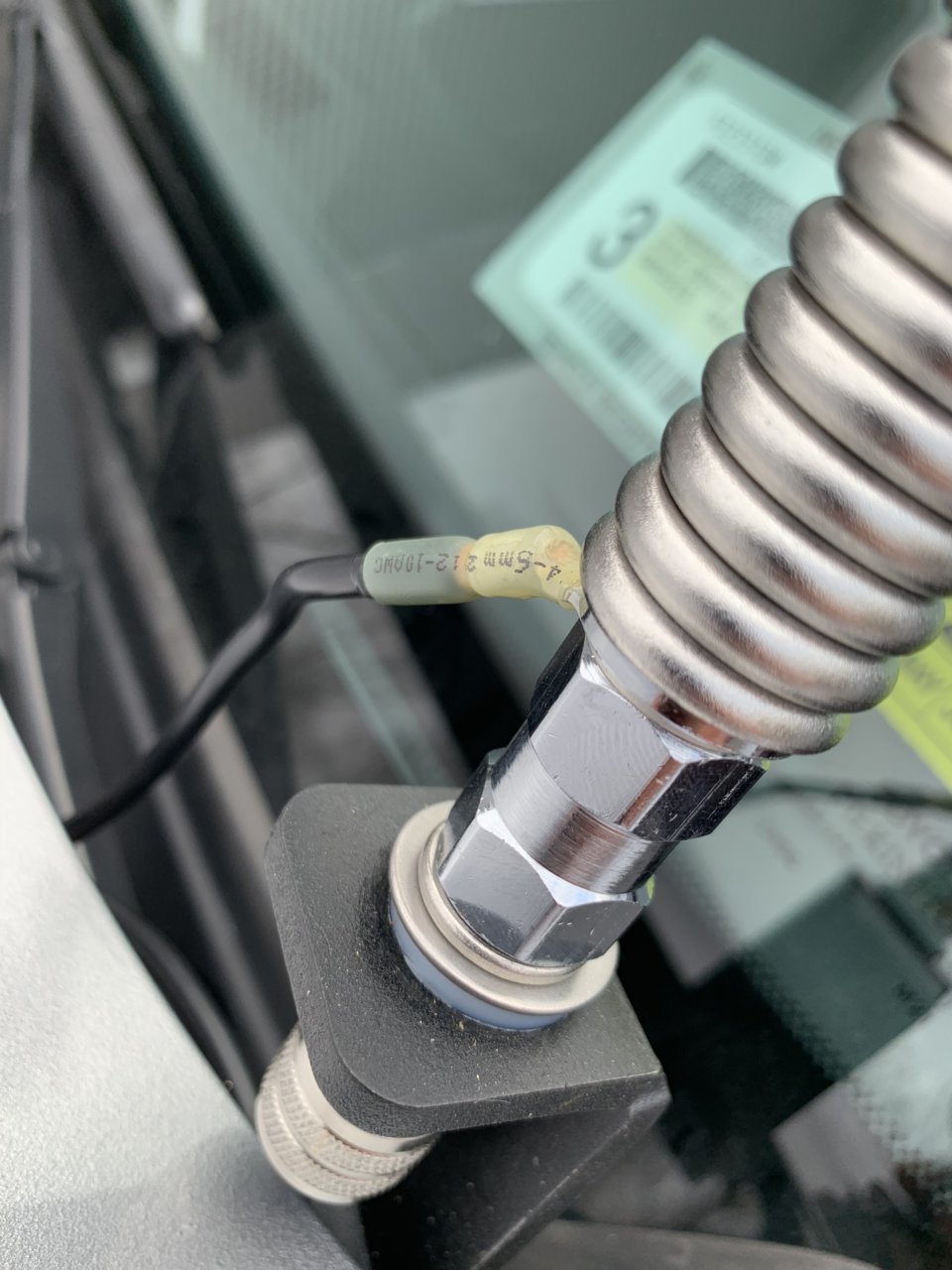

    Tonight I bought a ground strap that I will replace the wire with. Where exactly should it be sandwiched between the other components? Is there a better location to attach the other end to? I also realize now that I should have tested with the door closed. I did not. I will try that tomorrow. See my pictures for how I have it setup now.

    I was able to communicate clearly with someone about 15 miles away from atop a hill in my neighborhood that looks out for miles, which was a great confidence boost. But I know that I could damage components if I don't get my SWR in line.

    Would a 3' antenna work better since it is technically shorter?


    Bastek likes this.
  16. Mar 15, 2019 at 5:21 PM
    #1116
    ETsemaj

    ETsemaj @Koditten Pirate Radio member #001

    Joined:
    Aug 30, 2018
    Member:
    #264651
    Messages:
    402
    Gender:
    Male
    First Name:
    James
    Cape Canveral, FL
    Vehicle:
    2018 Cement Tacoma Off Road
    speaker and tweater upgrade DMM phone mount and a large wishlist
    So, just installed my Kenwood D710G in the truck today. Ill post some pictures when my phone charges. I installed the brick under the driver seat, speaker is just forward on the side near the hand brake. Im waiting on a blank switch for the mic to install that so my mic will plug into the lower switch section when in use. I also am running a 1/4 wave NMO antenna with the victory 4x4 hood mount. Now looking into ways to mount the head unit onto my DMM. i think i may just use another ram mount and small phone holder. and then run the RJ45 cable behind the my stereo display then ill knotch out a section of the trim on top and run it next to the head unit so that its mostly hidden and if i dont have the head unit installed i can shove the wire back down so only the connector is seen. But i have to figure out why i am getting such high reflected power. Im getting 20w forward and 10w reflected. No bueno...

  17. Mar 15, 2019 at 7:00 PM
    #1117
    5nahalf

    5nahalf Well-Known Member

    Joined:
    Sep 22, 2018
    Member:
    #267058
    Messages:
    1,159
    Gender:
    Male
    First Name:
    Erik
    Vehicle:
    2018 inferno orange trd off-road
    I think your ground is wrong, should be on the bottom between the bottom nut and the mount

    k8md and Bastek like this.
  18. Mar 15, 2019 at 7:06 PM
    #1118
    littlefish

    littlefish Buzz, your girlfriend...

    Joined:
    Sep 13, 2018
    Member:
    #266147
    Messages:
    364
    Gender:
    Male
    Hudson Valley NY
    Vehicle:
    2016 TRD Off-Road DCSB

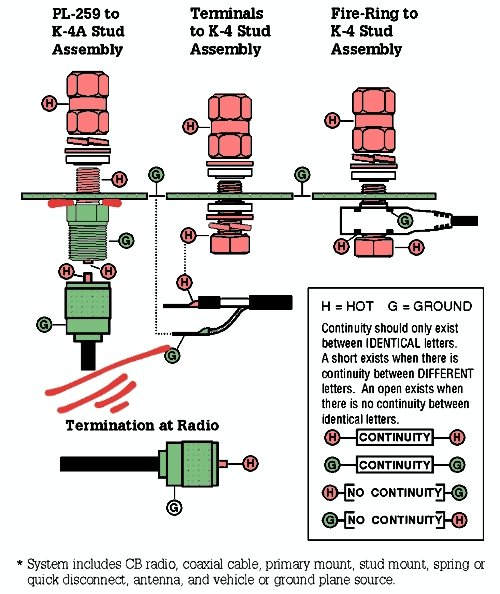

    I think you’re right. Found this picture while researching online shows the same thing you said. Will try tomorrow morning.

    Bastek likes this.
  19. Mar 15, 2019 at 7:31 PM
    #1119
    Bastek

    Bastek Member

    Joined:
    Jun 6, 2017
    Member:
    #220876
    Messages:
    3,355
    Gender:
    Male
    First Name:
    Seb
    SI NY
    Vehicle:
    '17 OR MGM
    Some stickers, plastidip and radio knobs
    I'm glad you found your issue:thumbsup:. Now the actual ground ground doesn't have to be connected right to the antenna. You could ground your bracket, and then just make sure there is proper contact bracket and the exterior part of the stud ("G" on that picture). If not, just make sure that ground ring doesn't touch the actual stud ("H"). Also, it would be better to keep your ground wire short, and ground it to the fender, instead of the battery.

    k8md likes this.
  20. Mar 15, 2019 at 7:46 PM
    #1120
    Bastek

    Bastek Member

    Joined:
    Jun 6, 2017
    Member:
    #220876
    Messages:
    3,355
    Gender:
    Male
    First Name:
    Seb
    SI NY
    Vehicle:
    '17 OR MGM
    Some stickers, plastidip and radio knobs
    I marked in red where you could attach that ground strap, just like mentioned before, make sure it doesn't touch the actual stud! And as mentioned above, shortter ground is better, find a spot on a fender.

    Also, I don't think there is a need for you to change the antenna.

    Good luck! And please report back after you correct it.

    k8md likes this.
