Discussion in '3rd Gen. Tacomas (2016+)' started by FoleySwampPlotts, Feb 10, 2016.

  1. Aug 3, 2019 at 10:19 AM
    #1321
    Mtn Mike

    Mtn Mike Well-Known Member

    Joined:
    Oct 29, 2017
    Member:
    #234494
    Messages:
    751
    Gender:
    Male
    First Name:
    Mike
    Spokane, WA
    Vehicle:
    2017 TRD OR AC
    Is the charger also the isolater or do you have a separate battery isolater somewhere else?

  2. Aug 3, 2019 at 11:37 AM
    #1322
    Cudgel

    Cudgel “Tonka”

    Joined:
    Mar 28, 2017
    Member:
    #214640
    Messages:
    3,506
    Gender:
    Male
    Live in: An Ocean of Plastic Trash
    Vehicle:
    2017 OR DCLB
    ICON8 Lift -285s. upTOPoverland rack.
    The charger is the isolator. In this configuration the auxiliary battery always powers the radio and power to the charger only occurs when the ignition is on.

    Mtn Mike likes this.
  3. Aug 3, 2019 at 2:02 PM
    #1323
    Btnewman

    Btnewman Benjamin Newman

    Joined:
    Apr 15, 2011
    Member:
    #54950
    Messages:
    2,484
    Gender:
    Male
    First Name:
    Benjamin
    Grand Junction co
    Vehicle:
    Uh. It's beat to he//. But it's only 1 owner.
    Custom body work/damage ARB rear locker Bumpers Shocks Other parts Tires and Rims Air tank fully plumbed into truck "Golf ball mod"
    Do you by chance have a link to the charger?

  4. Aug 3, 2019 at 3:12 PM
    #1324
    Cudgel

    Cudgel “Tonka”

    Joined:
    Mar 28, 2017
    Member:
    #214640
    Messages:
    3,506
    Gender:
    Male
    Live in: An Ocean of Plastic Trash
    Vehicle:
    2017 OR DCLB
    ICON8 Lift -285s. upTOPoverland rack.
    Btnewman and Mtn Mike like this.
  5. Aug 4, 2019 at 8:48 AM
    #1325
    SigBoy

    SigBoy Well-Known Member

    Joined:
    Aug 22, 2017
    Member:
    #227577
    Messages:
    80
    Gender:
    Male
    Vehicle:
    2020 TRD Off-Road, Access Cab
    The head unit is in the beverage "splash zone", but otherwise this looks great.

    BlueFourMike likes this.
  6. Aug 4, 2019 at 11:23 AM
    #1326
    '16goingon'17

    '16goingon'17 Well-Known Member

    Joined:
    May 26, 2016
    Member:
    #188003
    Messages:
    224
    Gender:
    Male
    First Name:
    Trailslayer
    NWA (Arkansas)
    Vehicle:
    2017 TRDOR 4x4 DCSB MT
    JBA STD UCAs. 6112/5160 @6/5. Wheelers 1.5" 3AAL with Superbumps. BROG molle headrest covers. GMRS & Ham radios with roof-mounted NMO Laird Phantom antenna. Thinkware front/rear dashcams, FreshMexicanTaco's DMM, Meso's dome/map LEDs & Flipfob, Swingcase on driver side. Accumulator Delete Mod (ADM).
    This is so awesome. I'm wondering if I need it or perhaps your Icom radio draws tons more power during scanning than my Maxon TM-8402? I run power directly from the battery and have accidentally left it on scan for 3-day weekends and many times overnight. The truck starts up just fine. What am I missing here?

  7. Aug 4, 2019 at 8:28 PM
    #1327
    Cudgel

    Cudgel “Tonka”

    Joined:
    Mar 28, 2017
    Member:
    #214640
    Messages:
    3,506
    Gender:
    Male
    Live in: An Ocean of Plastic Trash
    Vehicle:
    2017 OR DCLB
    ICON8 Lift -285s. upTOPoverland rack.
    I’m just a complete nutcase! If for example, your radio draws 2A (receiving) and you have a 500Am you get at least 50 hours on full battery before the voltage is 20% down.

    I plan to tap the auxiliary battery for other reasons including charging phones and etc. when the truck is off.

    Last edited: Aug 4, 2019
  8. Aug 4, 2019 at 8:41 PM
    #1328
    '16goingon'17

    '16goingon'17 Well-Known Member

    Joined:
    May 26, 2016
    Member:
    #188003
    Messages:
    224
    Gender:
    Male
    First Name:
    Trailslayer
    NWA (Arkansas)
    Vehicle:
    2017 TRDOR 4x4 DCSB MT
    JBA STD UCAs. 6112/5160 @6/5. Wheelers 1.5" 3AAL with Superbumps. BROG molle headrest covers. GMRS & Ham radios with roof-mounted NMO Laird Phantom antenna. Thinkware front/rear dashcams, FreshMexicanTaco's DMM, Meso's dome/map LEDs & Flipfob, Swingcase on driver side. Accumulator Delete Mod (ADM).
    Ok yeah that's nice to have; I'd go with your method rather than risking it!

    Cudgel likes this.
  9. Sep 23, 2019 at 12:34 PM
    #1329
    nortonian

    nortonian Well-Known Member

    Joined:
    Sep 30, 2015
    Member:
    #165514
    Messages:
    195
    Gender:
    Male
    First Name:
    Mike
    I know this is a really old thread but It's taken me this long to get my radio installed and I wanted to share it.

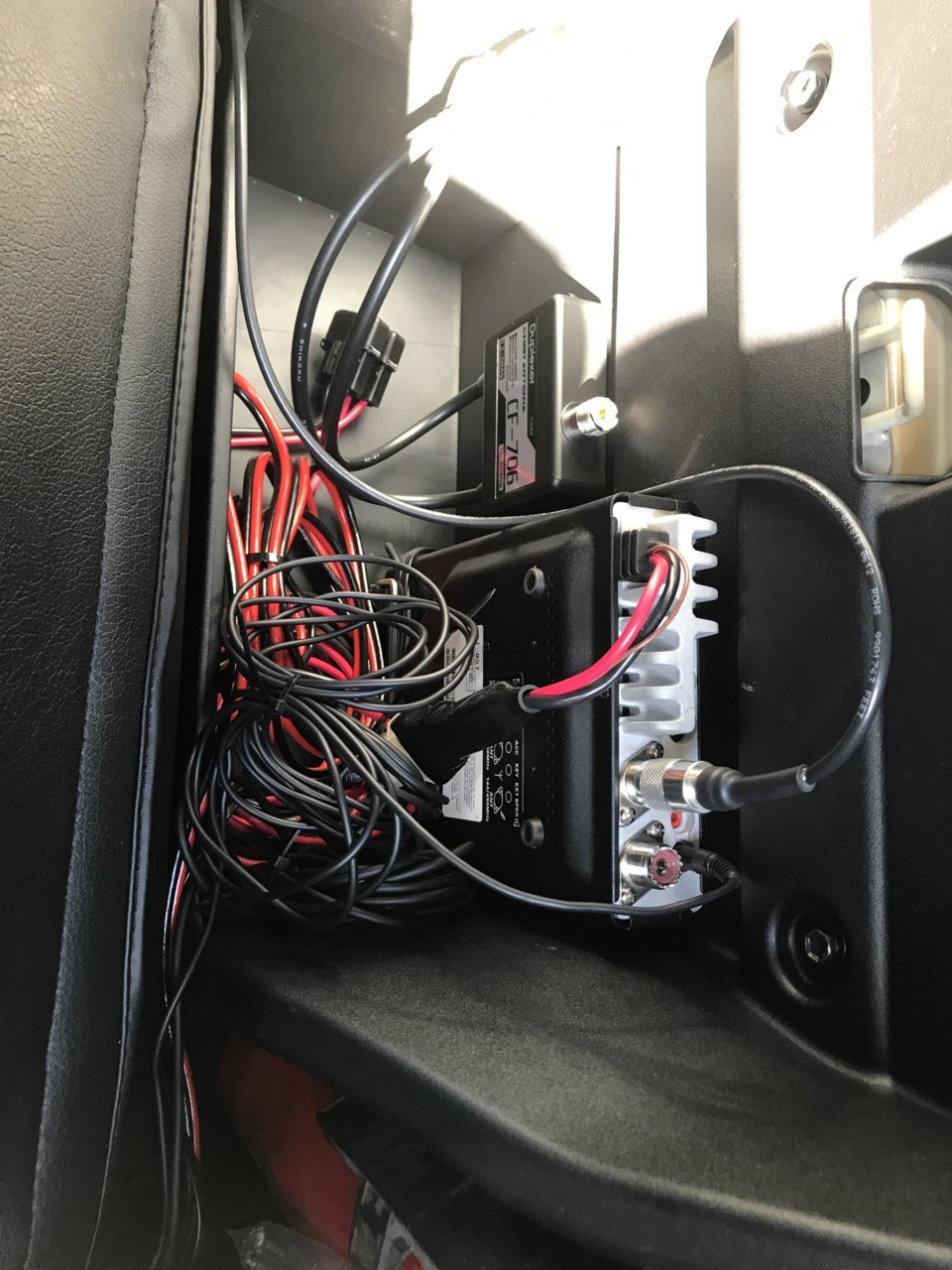

    This is a Yaesu 857D and antenna duplexer for the ATAS 120 antenna installed behind the rear seat.

    As you can see I still need to clean up some of the wires.

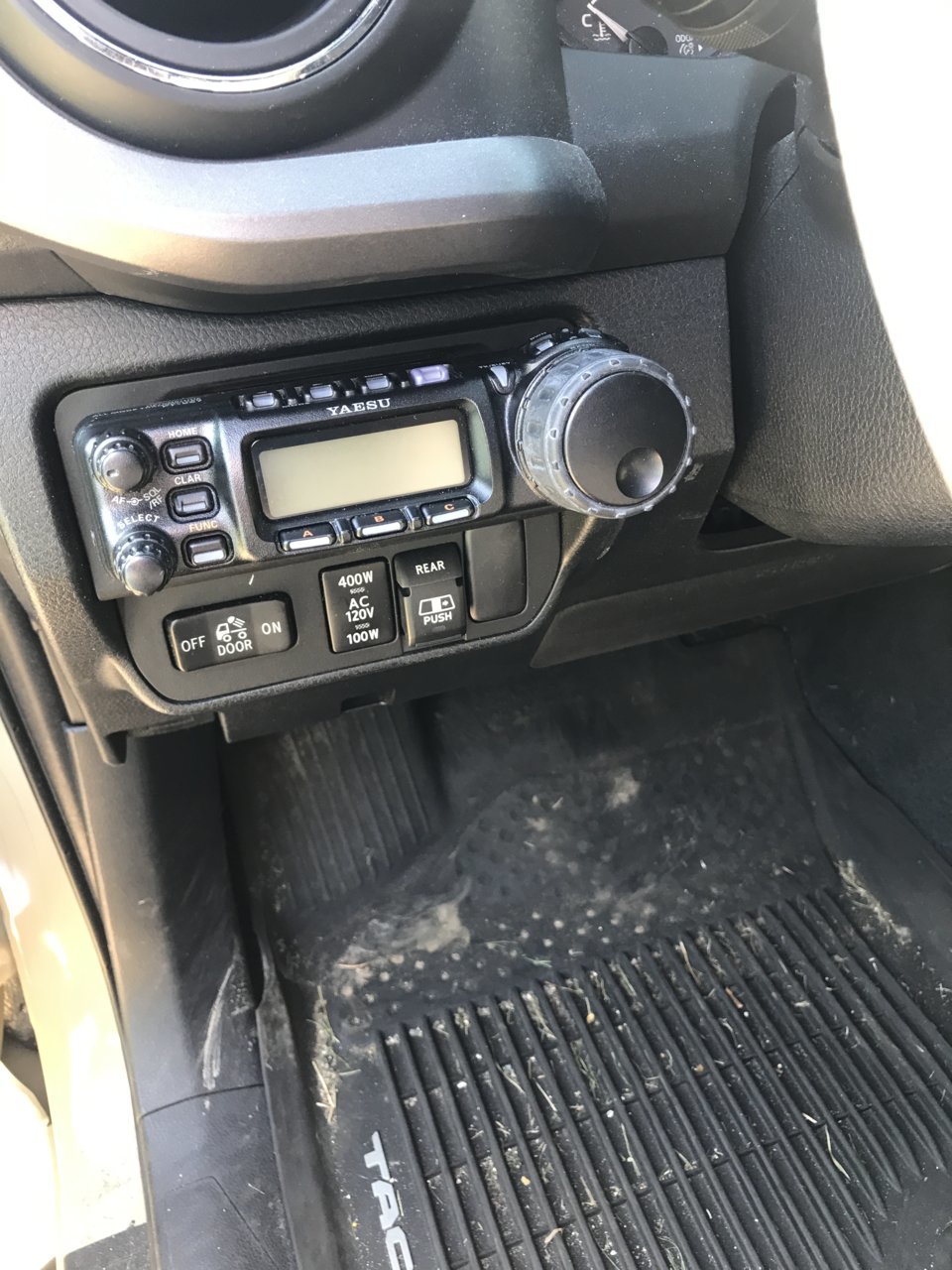

    The faceplate is in the little cubby on the left:

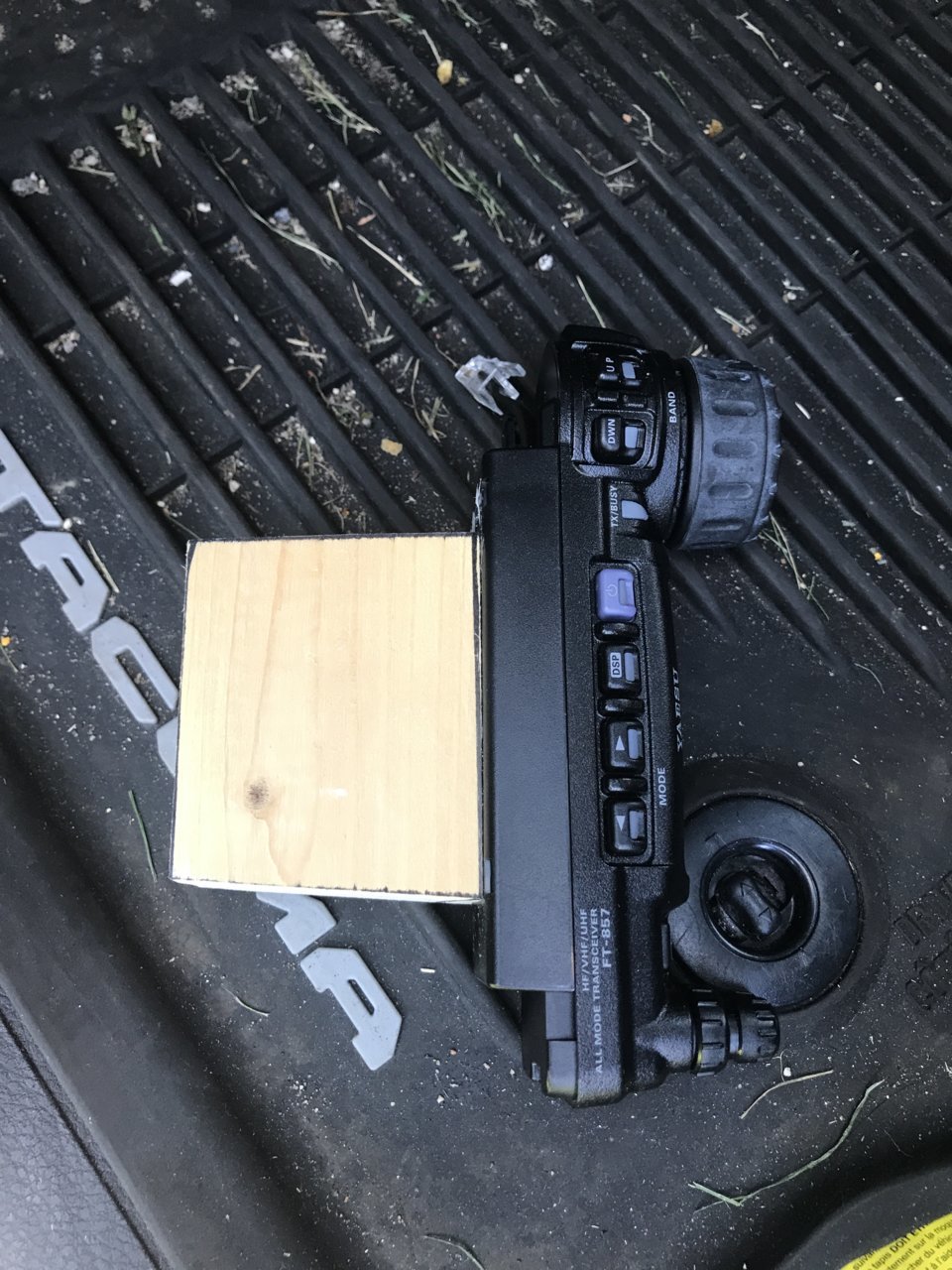

    If you're wondering how I mounted it, I used a 2X4. Sawn to size and painted black:

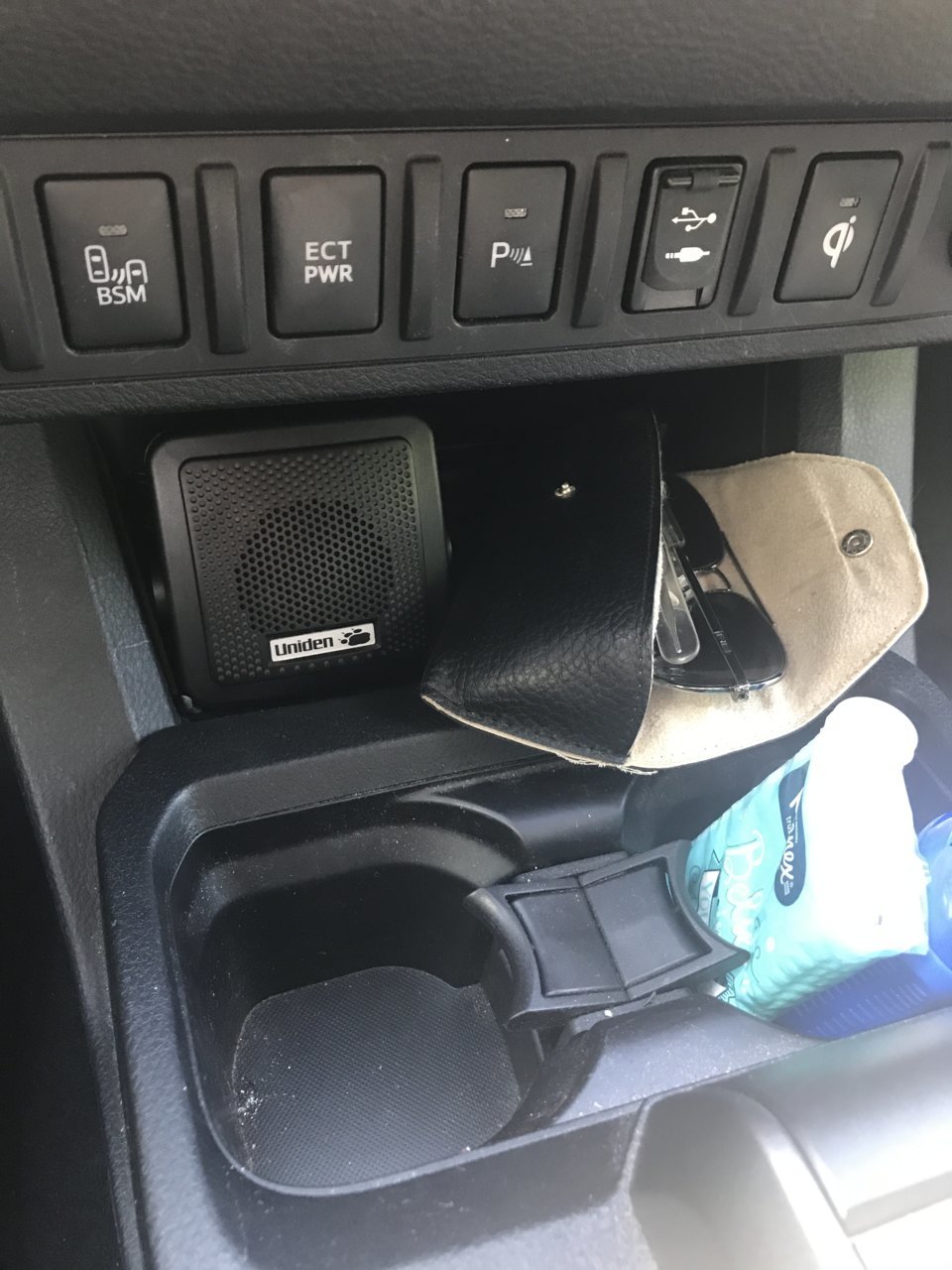

    The speaker is in the Qi charging area, held in with velcro:

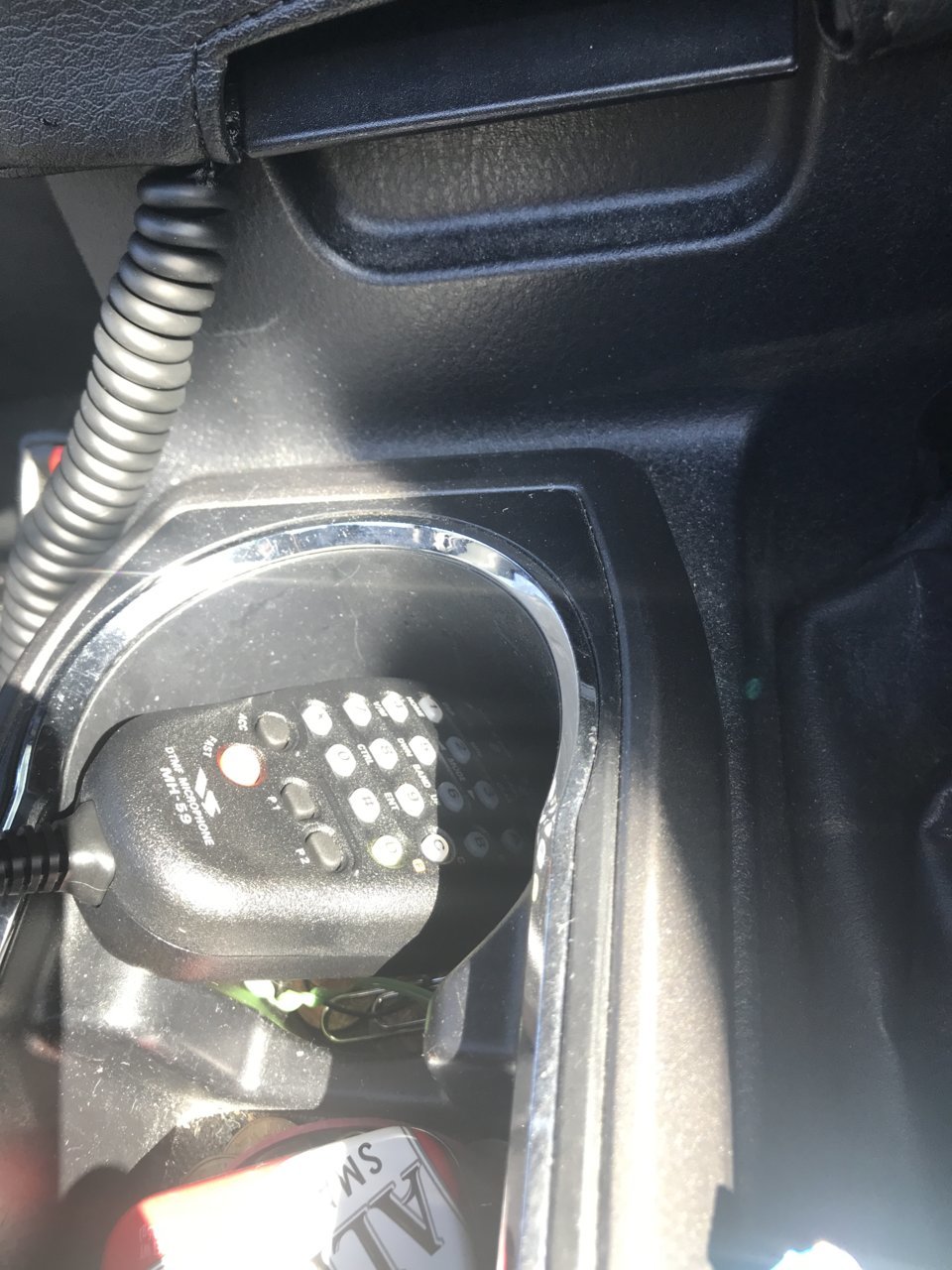

    And finally, I have the MH-59 controller mic coming out of the center console.
    I Keep it in the compartment when not in use and on my lap or the cupholder when in use. Its hard to see the faceplate partially hidden by the steering wheel but with the controller mic I only need to glance at the screen, everything else can be done from the mic.

    I still need to install the antennas, that's for next weekend. I'm putting a dual band UHF on a mount from victory 4X4 on the passenger side. I'll put a CB antenna on a victory 4X4 mount on the drivers side for a CB antenna. The CB antenna is too tall for my garage door so I'll probably only have it on when traveling. I have an NMO adapter for the ATAS 120 all band screwdriver antenna so that can fit on either mount. I don't expect to be driving around with it on though.

    The faceplate, mic and radio/duplexer are all easily unplugged and removed and the Victory 4X4 mount is pretty well hidden with the antenna removed.

    Gunshot-6A, BRFab, Durango95 and 4 others like this.
  10. Sep 23, 2019 at 1:56 PM
    #1330
    Mtn Mike

    Mtn Mike Well-Known Member

    Joined:
    Oct 29, 2017
    Member:
    #234494
    Messages:
    751
    Gender:
    Male
    First Name:
    Mike
    Spokane, WA
    Vehicle:
    2017 TRD OR AC
    Very nice install. Post some pictures of your HF antenna when you get it installed. I've got an Icom 706 I'm thinking about installing in my Taco but I can't come up with a good solution for the HF antenna. The Taco just doesn't have much real estate for HF antennas.

  11. Sep 23, 2019 at 2:08 PM
    #1331
    HolyReptar

    HolyReptar Well-Known Member

    Joined:
    Jan 23, 2012
    Member:
    #71259
    Messages:
    1,793
    Gender:
    Male
    First Name:
    Bry
    Ventura
    Vehicle:
    17 TRD Offroad 4x4
    Stock for now
    How is this being held in?

  12. Sep 23, 2019 at 2:23 PM
    #1332
    DannyBFresco

    DannyBFresco King Taco

    Joined:
    Jan 2, 2011
    Member:
    #48625
    Messages:
    7,116
    Gender:
    Male
    First Name:
    Danny
    NorCal (Martinez) & LA
    Vehicle:
    06 Tacoma 4x4 TRD Sport SWB
    Baja Kits +2 LT, Kings, 35" Falken AT3s, SUA
  13. Sep 23, 2019 at 2:54 PM
    #1333
    Rome604

    Rome604 I am the Captain now

    Joined:
    Feb 23, 2017
    Member:
    #211478
    Messages:
    4,556
    Gender:
    Male
    First Name:
    Dave
    Alexandria, VA
    Vehicle:
    2020 White Sienna AWD
    The headliner is metal right there. A bolt holds it.

    Cudgel likes this.
  14. Sep 23, 2019 at 6:11 PM
    #1334
    Cudgel

    Cudgel “Tonka”

    Joined:
    Mar 28, 2017
    Member:
    #214640
    Messages:
    3,506
    Gender:
    Male
    Live in: An Ocean of Plastic Trash
    Vehicle:
    2017 OR DCLB
    ICON8 Lift -285s. upTOPoverland rack.
    Control Head:

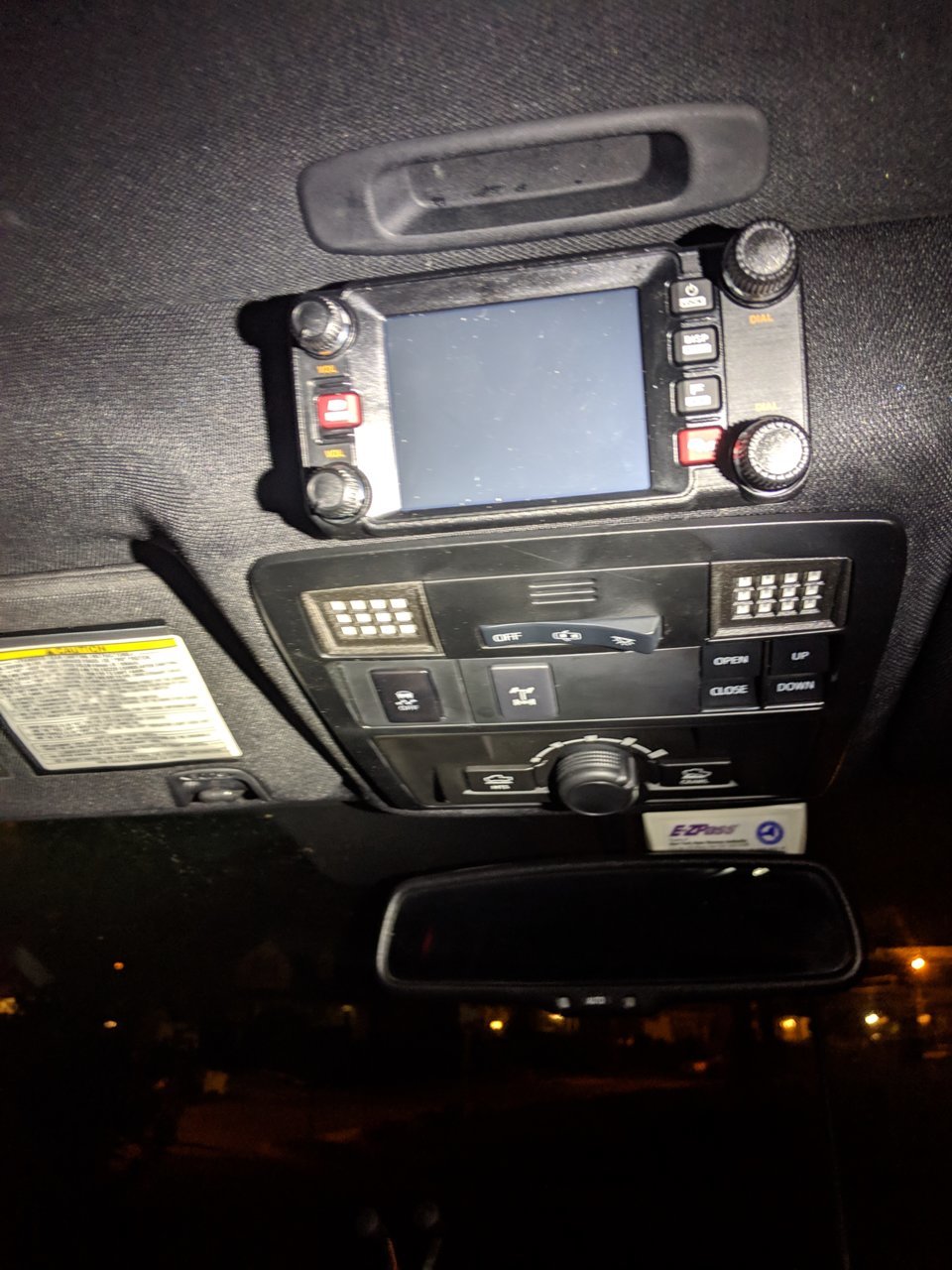

    The Control Head is installed in the headliner in front of the head console and all the control wire fishes nicely all the way back to the transceiver. I left a few stress release loops. The bottom half of the headliner has a sheet metal backer which I installed two black sheet metal screws into, the top half I used machine screws with large vender washers...these all hold on the mag-mount plate for the control head to quick disconnect from:

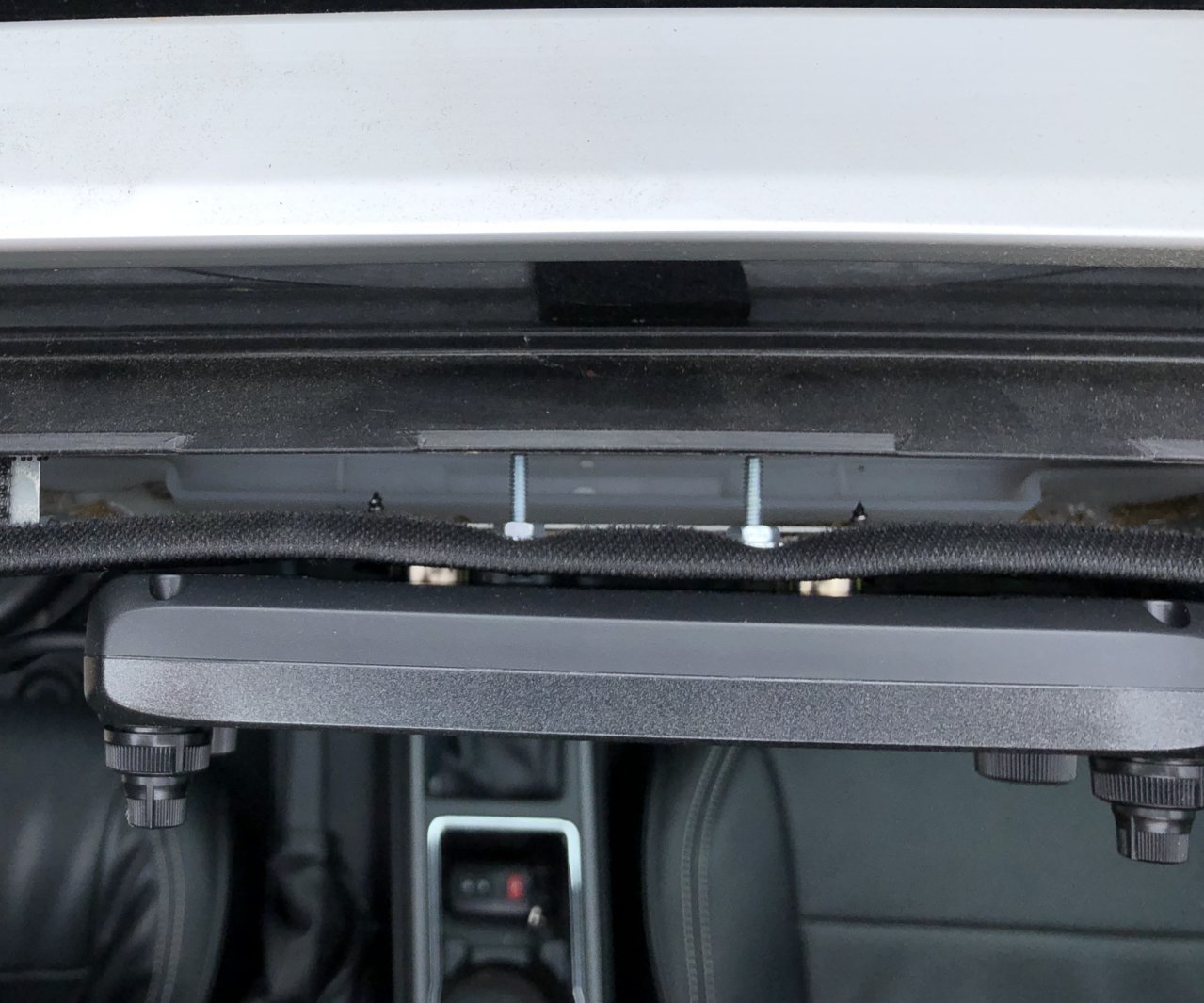

    Top View



    Turn phone sideways, click on my Electronics Link in my build thread for the rest of my install.

    Last edited: Sep 23, 2019
    rlj251 and Old Marine Cal like this.
  15. Sep 26, 2019 at 4:34 PM
    #1335
    Frito

    Frito Well-Known Member

    Joined:
    Dec 2, 2015
    Member:
    #171253
    Messages:
    1,493
    Nice work Mahn. That there is a thing of beauty right there Sir.... even if I wouldn't be able to see it ! :hattip:
    I'll have another look at this location, but I'm still thinking of somewhere above the center cubby.

  16. Sep 27, 2019 at 10:02 AM
    #1336
    k8md

    k8md Well-Known Member

    Joined:
    Feb 11, 2018
    Member:
    #244081
    Messages:
    417
    Gender:
    Male
    First Name:
    Bob
    Vehicle:
    2015 Silver TRD Sport
    This is very illegal sir. Please don't use this radio for transmit.

  17. Sep 27, 2019 at 10:18 AM
    #1337
    Old Marine Cal

    Old Marine Cal Well-Known Member

    Joined:
    Mar 21, 2017
    Member:
    #213937
    Messages:
    5,888
    Gender:
    Male
    Vehicle:
    2015 MGM DBLCAB
    Why?

  18. Sep 27, 2019 at 12:50 PM
    #1338
    k8md

    k8md Well-Known Member

    Joined:
    Feb 11, 2018
    Member:
    #244081
    Messages:
    417
    Gender:
    Male
    First Name:
    Bob
    Vehicle:
    2015 Silver TRD Sport
    It is illegal to use a marine band radio if you're not on the water. You can't even use it on the boat, when the boats on the trailer.

    Kheiron likes this.
  19. Sep 27, 2019 at 1:22 PM
    #1339
    NewWheeler

    NewWheeler Well-Known Member

    Joined:
    May 22, 2017
    Member:
    #219682
    Messages:
    85
    Gender:
    Male
    First Name:
    Gus
    Fort Worth, TX
    Vehicle:
    2017 Quicksand DCSB TRDOR 6MT
    How does that rule apply when you call a Marina, Harbormaster, Bridge, the Coastguard, etc? Do they have to go out in a boat to reply?

    Durango95 likes this.
  20. Sep 27, 2019 at 1:36 PM
    #1340
    5nahalf

    5nahalf I build dumb things

    Joined:
    Sep 22, 2018
    Member:
    #267058
    Messages:
    6,726
    Gender:
    Male
    First Name:
    Erik
    Minnesota
    Vehicle:
    2018 Inferno Longbed
    You can use one on land IF you have license for it, otherwise your not allowed to.
