Clean VHF/CB radio installs

Discussion in '3rd Gen. Tacomas (2016+)' started by FoleySwampPlotts, Feb 10, 2016.

  1. Jul 22, 2020 at 9:57 PM
    #1621
    Ihnaer

    Ihnaer Active Member

    Joined:
    Dec 10, 2010
    Member:
    #47455
    Messages:
    25
    Gender:
    Male
    Sacramento, Ca
    Vehicle:
    18 TRD Off-Road
    TRD pro grill TRD rhino liner’d skid plate

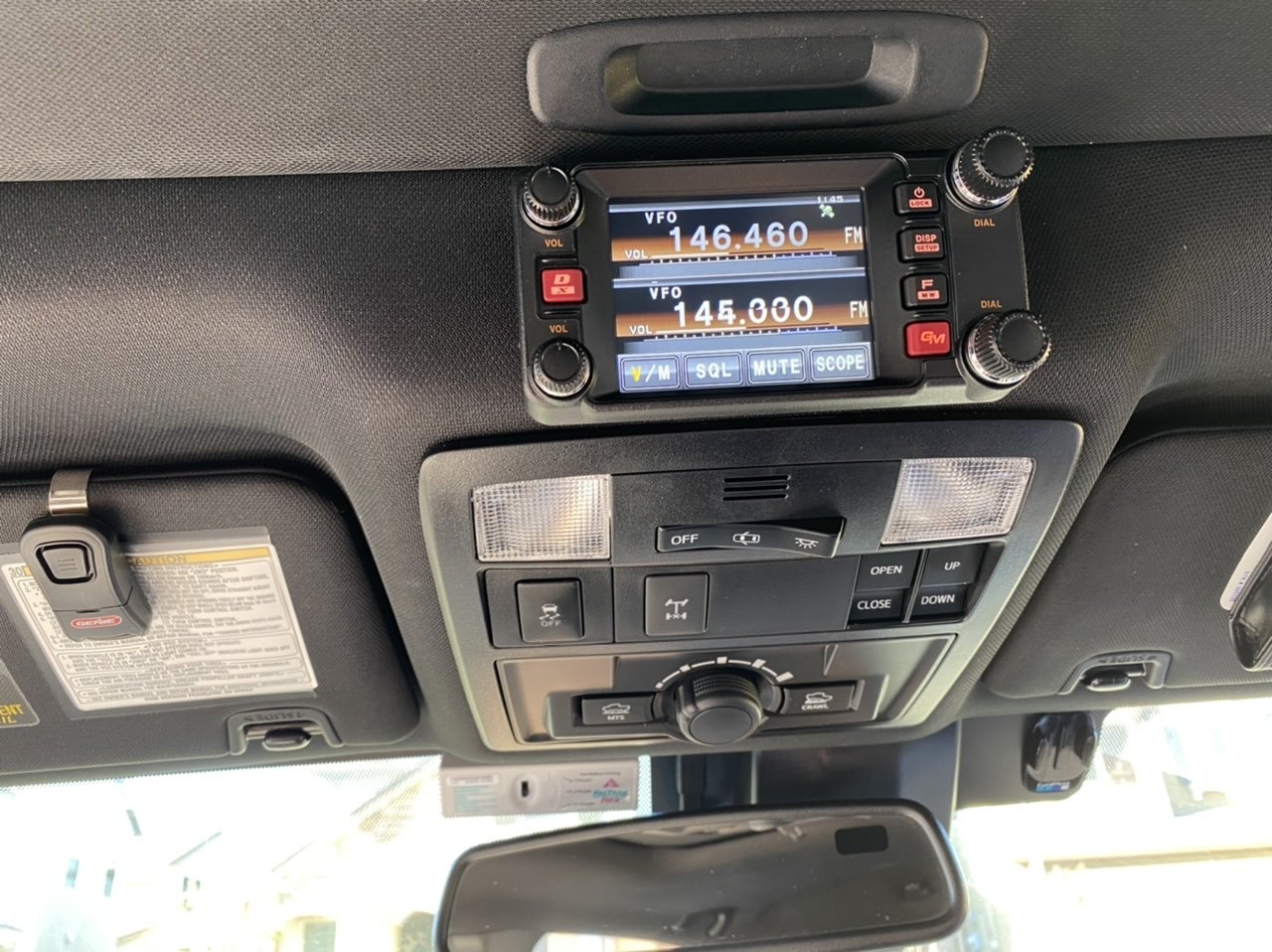

    Finished up my HAM and GMRS install today. More pics later on the antennas. The radios are mounted under the passenger seat. The GMRS antenna is in the roof and HAM is on a rago mount on the taillight.


  2. Jul 22, 2020 at 10:02 PM
    #1622
    medic2230

    medic2230 @Koditten Pirate Radio member #002

    Joined:
    Oct 13, 2008
    Member:
    #9942
    Messages:
    63,875
    Gender:
    Male
    First Name:
    Murph
    Bama! Roll Tide
    Vehicle:
    2011 Taco 4x4 DCLB 2019 TRD PRO 4runner
    20% Tint, OME 3"complete lift with Dakar's, Light Racing UCA's, 285/75/16 Nitto Terra Grapplers, 10 HP TW sticker, Ultraguage, B.A.M.F. Rock Sliders, MedicFab Bed Rack, Relentless front bumper, Air Flow Snorkel, Ham comms, Tech Deck

    Something wrong with your ftm-400 screen or just in the pic?

  3. Jul 26, 2020 at 8:52 PM
    #1623
    93yotasr5

    93yotasr5 Well-Known Member

    Joined:
    Jan 5, 2018
    Member:
    #240388
    Messages:
    489
    Gender:
    Male
    Sacramento
    Those of you who are routing the coax cable from the cab to the bed mount, where are you running the cable through? Is there already a hole or are you drilling a new one?

  4. Jul 26, 2020 at 9:03 PM
    #1624
    medic2230

    medic2230 @Koditten Pirate Radio member #002

    Joined:
    Oct 13, 2008
    Member:
    #9942
    Messages:
    63,875
    Gender:
    Male
    First Name:
    Murph
    Bama! Roll Tide
    Vehicle:
    2011 Taco 4x4 DCLB 2019 TRD PRO 4runner
    20% Tint, OME 3"complete lift with Dakar's, Light Racing UCA's, 285/75/16 Nitto Terra Grapplers, 10 HP TW sticker, Ultraguage, B.A.M.F. Rock Sliders, MedicFab Bed Rack, Relentless front bumper, Air Flow Snorkel, Ham comms, Tech Deck

    Believe most are going through the grommet in the floor.

  5. Jul 26, 2020 at 9:23 PM
    #1625
    toottootbeepbeep

    toottootbeepbeep Well-Known Member

    Joined:
    Nov 30, 2018
    Member:
    #274368
    Messages:
    57
    Vehicle:
    2019 MGM DCLB TRD SPORT~

    there's a grommet on each side, driver and passenger. i pull the rubber grommet, routed the coax through, and then cut a little slit into the grommet so i can still use it with the wire going through.

  6. Jul 27, 2020 at 7:29 AM
    #1626
    Ihnaer

    Ihnaer Active Member

    Joined:
    Dec 10, 2010
    Member:
    #47455
    Messages:
    25
    Gender:
    Male
    Sacramento, Ca
    Vehicle:
    18 TRD Off-Road
    TRD pro grill TRD rhino liner’d skid plate
    Just the pic. iPhone did a live image and somehow got a weird frame for the main photo

    medic2230 likes this.
  7. Jul 27, 2020 at 8:04 AM
    #1627
    Tacoman97

    Tacoman97 Well-Known Member

    Joined:
    Jun 13, 2014
    Member:
    #131880
    Messages:
    130
    Gender:
    Male
    First Name:
    andrew
    new york
    Vehicle:
    2018 Calvary blue TRD PRO
    What radio is that?

  8. Jul 27, 2020 at 9:24 AM
    #1628
    danwray

    danwray Traitor

    Joined:
    Aug 21, 2018
    Member:
    #263556
    Messages:
    286
    Gender:
    Male
    First Name:
    Dan
    Kentucky
    Vehicle:
    2021 Ford F150 XL 4x4 2.7 ecoboost
    Qyt 8900r

  9. Jul 27, 2020 at 11:04 AM
    #1629
    johnnyroid

    johnnyroid Well-Known Member

    Joined:
    Mar 26, 2017
    Member:
    #214424
    Messages:
    1,762
    Gender:
    Male
    First Name:
    John
    Vine Grove (Fort Knox) Kentucky
    Vehicle:
    2017 Black Tacoma Sport TRD
    I see some Meso map lights in your future.....

    Taco_Cabal likes this.
  10. Jul 27, 2020 at 3:46 PM
    #1630
    HisDad

    HisDad Well-Known Member

    Joined:
    Mar 30, 2015
    Member:
    #152127
    Messages:
    834
    Gender:
    Male
    Massachusetts
    Vehicle:
    2019 Cement Tacoma SR5 Double Cab
    I'm on vacation down south, and decided to put the GPS on my Uniden SDS 200. Thanks to the miracle of Amazon I was able to order that and have it shipped to my son's house so it was waiting for me when I got there. About a 5-minute quick and dirty install and setup and it's working great. When we get back home next week I'm going to install my new Icom 2730a and do a permanent install for the GPS. The goal will be to hide all wires.

    I have a DSM from Taco Garage waiting for me at home as well and a short stubby mount with a 17 mm ball. Again the goal will be to get everything mounted with the minimal number of wires showing.

    Obligatory photos of the finished product will be posted.

    Tullie D likes this.
  11. Jul 27, 2020 at 5:48 PM
    #1631
    NihongoTaco

    NihongoTaco Well-Known Member

    Joined:
    Jul 1, 2017
    Member:
    #222811
    Messages:
    56
    Gender:
    Male
    First Name:
    Cyrus
    Vehicle:
    Stock 2011 Toco
    wheel spacers
    Hello I’m very new to radios and just upgraded from an antenna on a magnet to a 4’ Firestik antenna I mounted on my hood using the Relentless Fab mount. I have a 3.5in spring on as well, but am getting very high SWR readings, any ideas as to what I’m messing up?

  12. Jul 27, 2020 at 6:54 PM
    #1632
    93yotasr5

    93yotasr5 Well-Known Member

    Joined:
    Jan 5, 2018
    Member:
    #240388
    Messages:
    489
    Gender:
    Male
    Sacramento

    What length coax cable did you go with?
    Does the antenna have a tunable tip?

  13. Jul 28, 2020 at 5:05 PM
    #1633
    NihongoTaco

    NihongoTaco Well-Known Member

    Joined:
    Jul 1, 2017
    Member:
    #222811
    Messages:
    56
    Gender:
    Male
    First Name:
    Cyrus
    Vehicle:
    Stock 2011 Toco
    wheel spacers
    My coax cable is 18’, and yes it does have a tunable tip which I’ve played with and still have gotten high SWR, in the 3s.

  14. Jul 28, 2020 at 7:12 PM
    #1634
    93yotasr5

    93yotasr5 Well-Known Member

    Joined:
    Jan 5, 2018
    Member:
    #240388
    Messages:
    489
    Gender:
    Male
    Sacramento
    Do you have any pics of the set up?
    Is the CB grounded properly? How about the antenna? For the excess coax cable, it should be in a figure eight configuration. (just reading a few things about your issue)

  15. Jul 28, 2020 at 7:16 PM
    #1635
    m603holden

    m603holden @Koditten Pirate Radio member #063

    Joined:
    Oct 18, 2014
    Member:
    #140581
    Messages:
    11,453
    Gender:
    Male
    First Name:
    Marteeen
    New England
    Vehicle:
    2017 Tacoma DCSB OR MT
    Lots of sail boat fuel

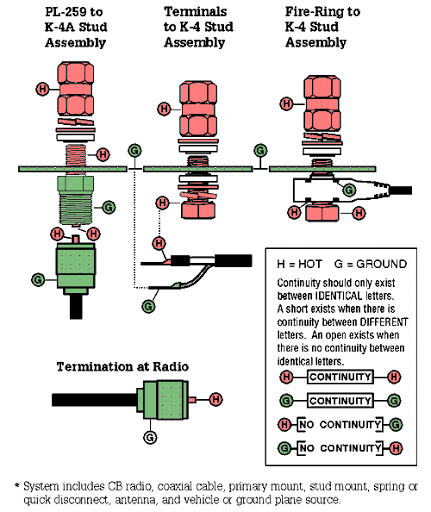

    Do you have bare metal from the bracket touching the body? And same for the antenna fitting to the bracket?

    unnamed (1).gif

    ancient11 and medic2230 like this.
  16. Jul 29, 2020 at 12:24 AM
    #1636
    NihongoTaco

    NihongoTaco Well-Known Member

    Joined:
    Jul 1, 2017
    Member:
    #222811
    Messages:
    56
    Gender:
    Male
    First Name:
    Cyrus
    Vehicle:
    Stock 2011 Toco
    wheel spacers
    My set up is the same as the third assembly in the figure above, so the one to the far left. My extra coax cable which is not much is not coiled I read that coiling may cause feedback but I could be wrong. As for my ground the bracket attaches to the bolts which attach the hood to the hood hinges. I read somewhere that if the paint is too think then this could cause a poor ground to the frame of the truck, anyone know if this is true?

  17. Jul 29, 2020 at 12:46 PM
    #1637
    MikeyD.25

    MikeyD.25 Well-Known Member

    Joined:
    Jun 16, 2016
    Member:
    #189776
    Messages:
    532
    Gender:
    Male
    You may have to remove some paint and get to bare metal for good ground continuity. Bad grounds/grounding is the major cause of high VSWR. :hattip:

  18. Jul 29, 2020 at 12:49 PM
    #1638
    Yettee

    Yettee Well-Known Member

    Joined:
    Aug 8, 2012
    Member:
    #84364
    Messages:
    218
    Gender:
    Male
    Long Beach, CA
    Vehicle:
    2019 White Tacoma TRD OR 4x4
    where did you get those rj45 sockets for the small push button? All the ones I keep finding are the wrong size for that socket

  19. Jul 29, 2020 at 1:25 PM
    #1639
    golfindia

    golfindia Well-Known Member

    Joined:
    Aug 25, 2017
    Member:
    #228000
    Messages:
    1,346
    Gender:
    Male
    Yes.
    Vehicle:
    2017 4x4 access cab AT
    Firestick also makes a 4 foot no ground plane antenna...... Before you start scraping paint off of everything.

  20. Jul 29, 2020 at 1:27 PM
    #1640
    golfindia

    golfindia Well-Known Member

    Joined:
    Aug 25, 2017
    Member:
    #228000
    Messages:
    1,346
    Gender:
    Male
    Yes.
    Vehicle:
    2017 4x4 access cab AT
    Bad grounds can also cause great SWR. A dummy load is perfect 1:1 match.

    m603holden likes this.
