Clean VHF/CB radio installs

Discussion in '3rd Gen. Tacomas (2016+)' started by FoleySwampPlotts, Feb 10, 2016.

  1. Aug 7, 2020 at 8:30 AM
    #1661
    Kirru

    Kirru Off-roading nEwB

    Joined:
    Jun 30, 2018
    Member:
    #257933
    Messages:
    217
    Gender:
    Male
    First Name:
    Cory
    Conyers, GA
    Vehicle:
    2020 AG TRD Pro
    See Build Thread ;)

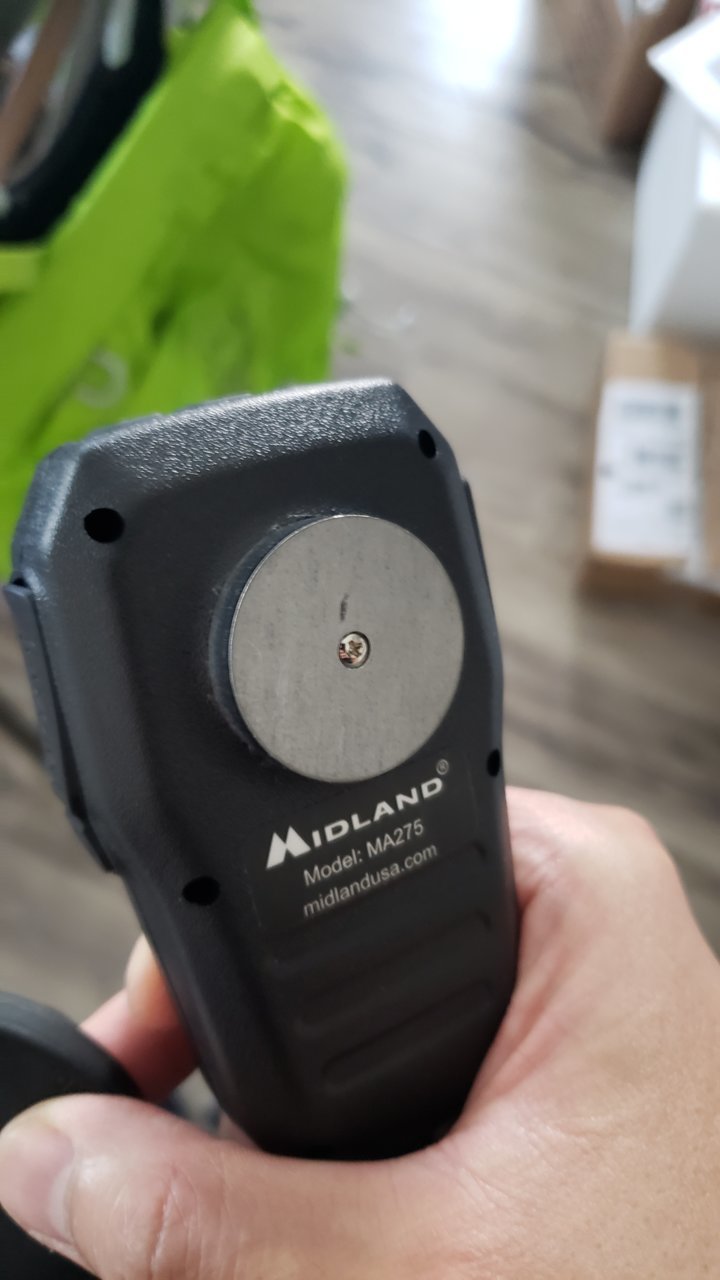

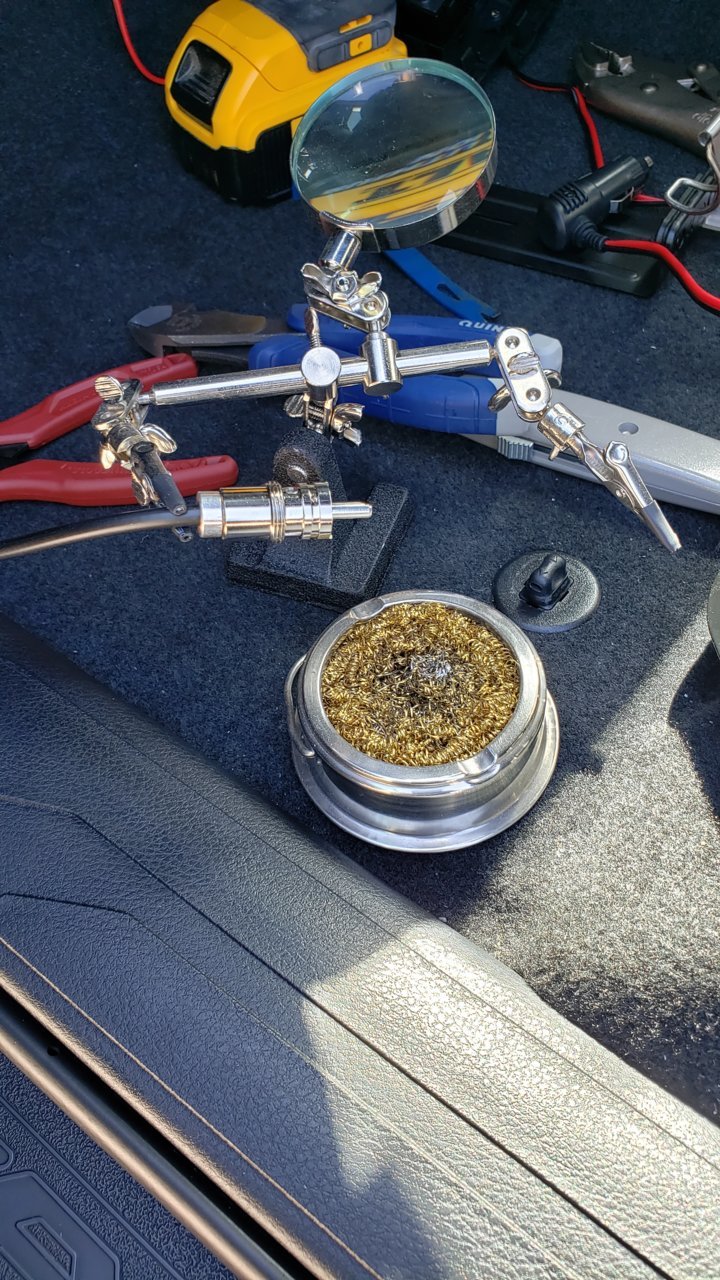

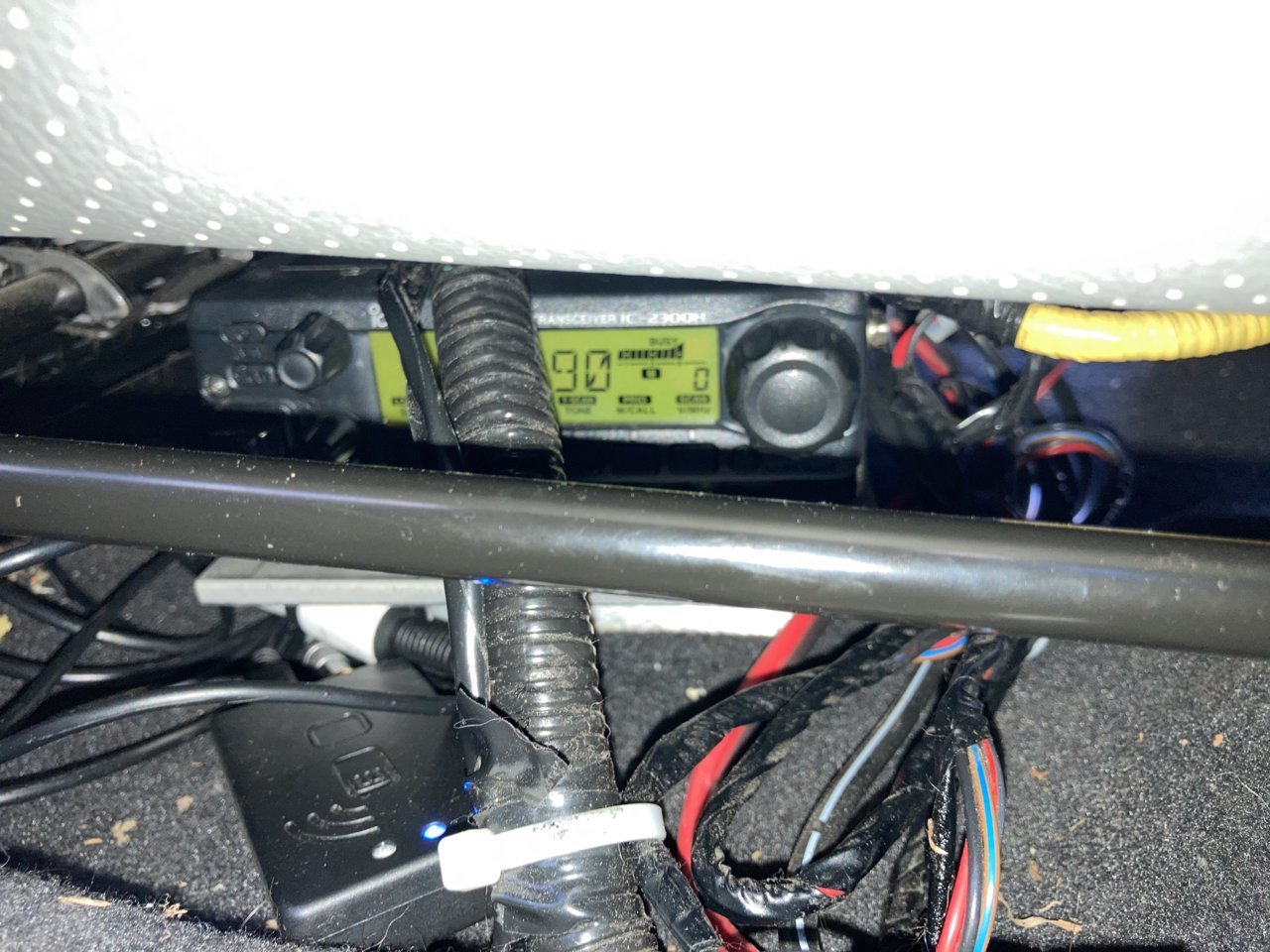

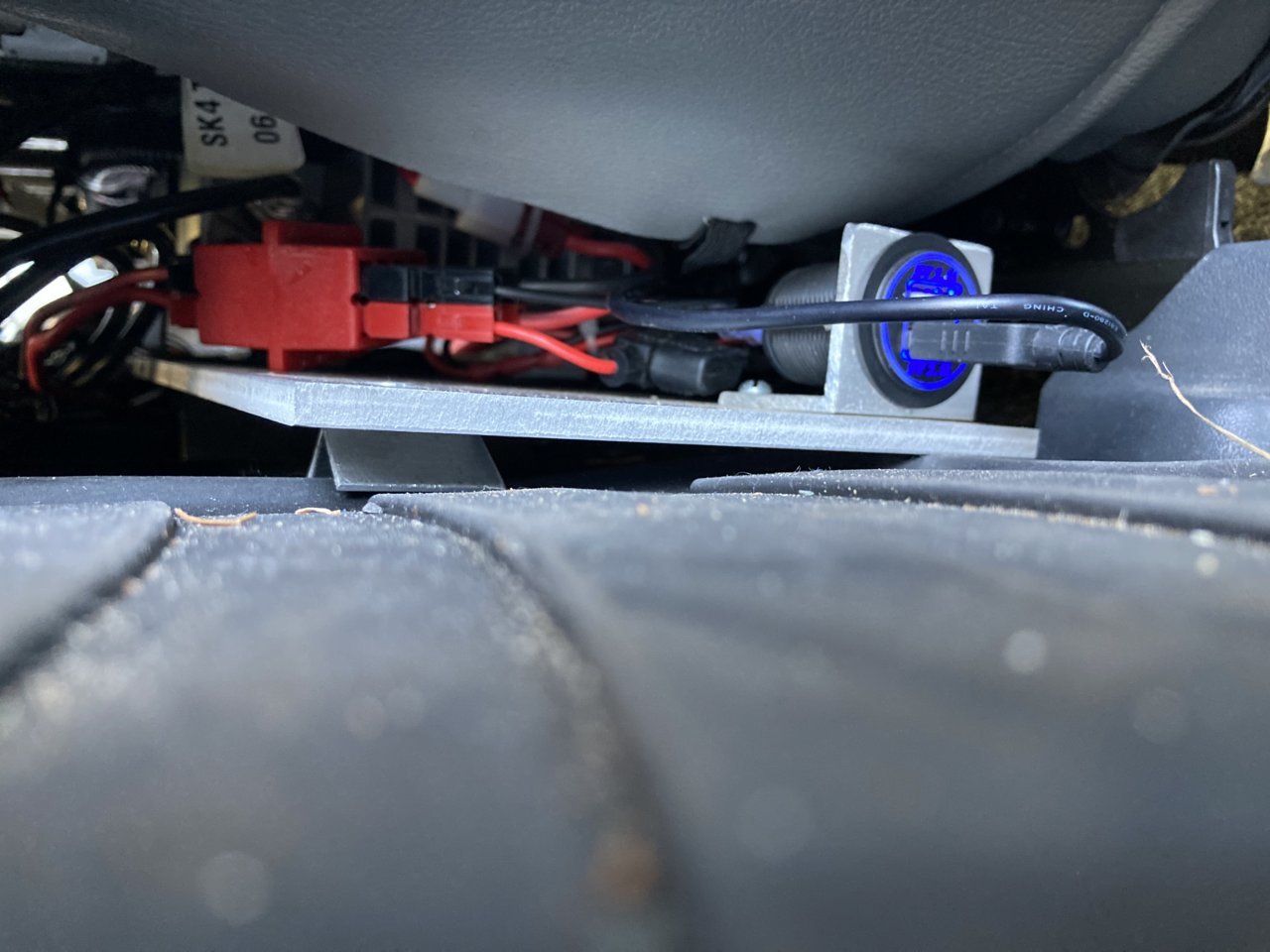

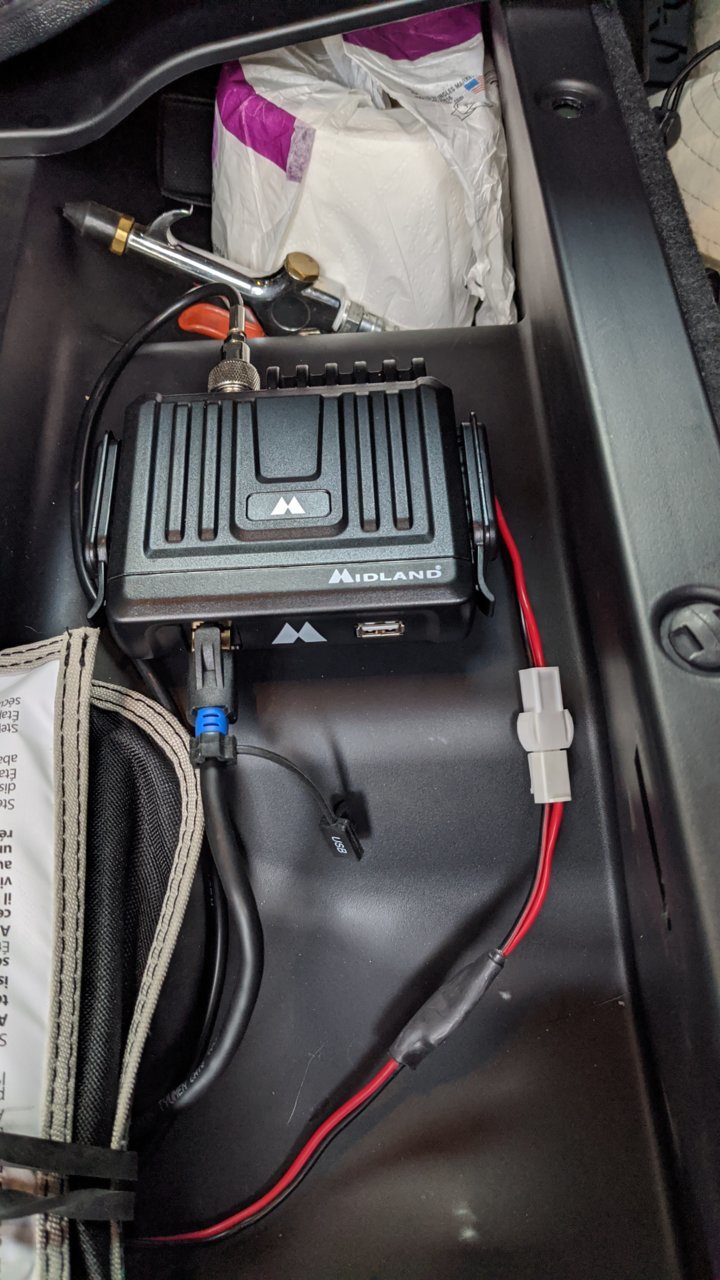

    Installed the radio under the rear seat. Ran cat6e to the front and the antenna out to the rear and using the bed stiffeners as a nmo mounting point. Gets good reception there. Of course it temporary but it'll do for the time being.


  2. Aug 8, 2020 at 1:10 PM
    #1662
    HisDad

    HisDad Well-Known Member

    Joined:
    Mar 30, 2015
    Member:
    #152127
    Messages:
    671
    Gender:
    Male
    Massachusetts
    Vehicle:
    2019 Cement Tacoma SR5 Double Cab
    Part 2 of the radio install.

    All of the parts are in, the weather is finally cooperating, and my friend who has worked in radio and electronics for over 50 years was available to help. He's good to bounce ideas off and hold things in place while I run wires.

    Here is my first post for reference purposes, https://www.tacomaworld.com/threads/clean-vhf-cb-radio-installs.415584/page-80#post-23619749

    First, per my first post, the negative battery terminal was disconnected. Airbags still scare me!

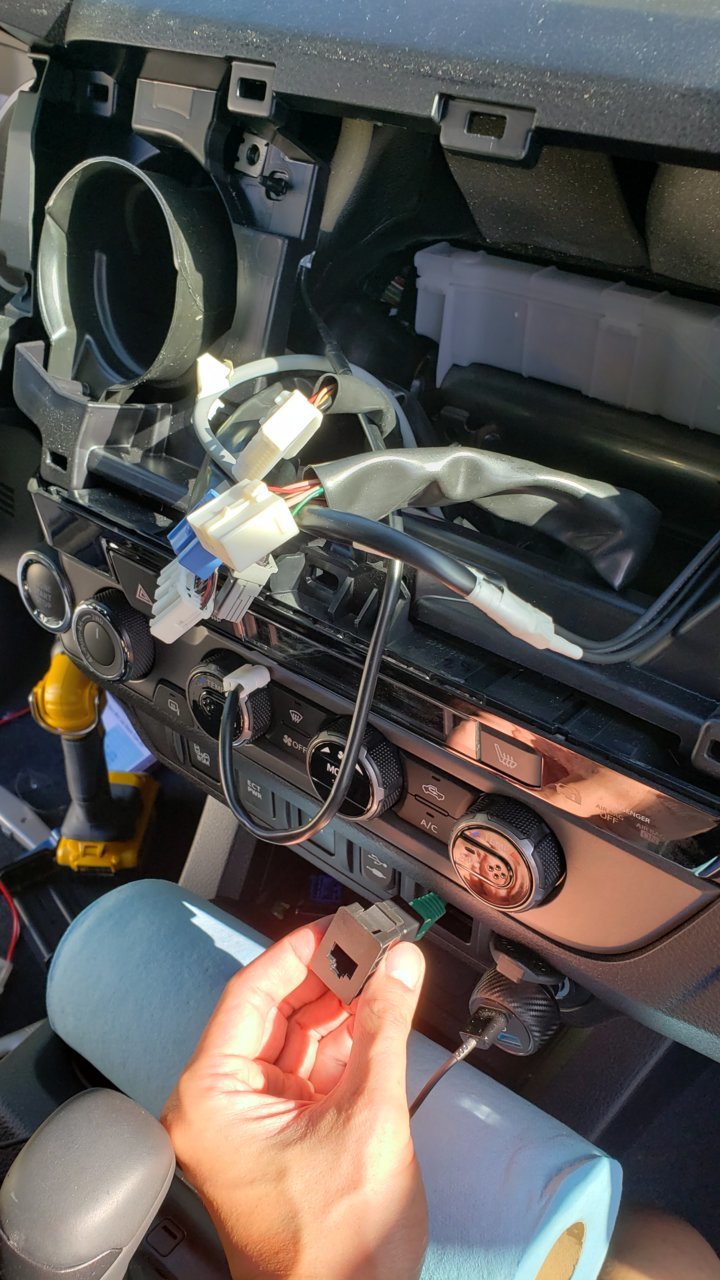

    Then I took the lower dash panel down to run the power wires for the Icom.

    [​IMG]

    See those wires plugged into the lower dash panel? Don't forget to plug them back in when you replace the panel or some things won't work. Ask me how I know. :smack:

    I took the same path for the wires that I used the first time. Ended up replacing the wiring loom because the 12 gauge power and ground wires took up a lot of room. Plus the flat telephone style cable for the Uniden GPS, and a 20 guage wire from the panel light circuit to control the display dimmer wire for the SDS display. Just a bigger version of the loom I used before. Should have thought that one through and I would have done that job the first time.

    Speaking of the 12 gauge power wires, here they are connected to the fuse and grounding block. Most ham radios come with fuses in both the positive and negative power wires. Since the manufacturers recommend connecting directly to the battery, the negative wire fuse is to protect the radio in case the negative battery wire loses it's connection and the whole truck tries to ground through the radio. That would be bad. As you can see, I used a blade fuse connector on the negative wire. The heat shrink tubing is to keep from confusing people into thinking I did some bad wiring. I'm guessing that most factory trained Toyota techs won't know that unless they already knew it. If that makes sense.

    [​IMG]

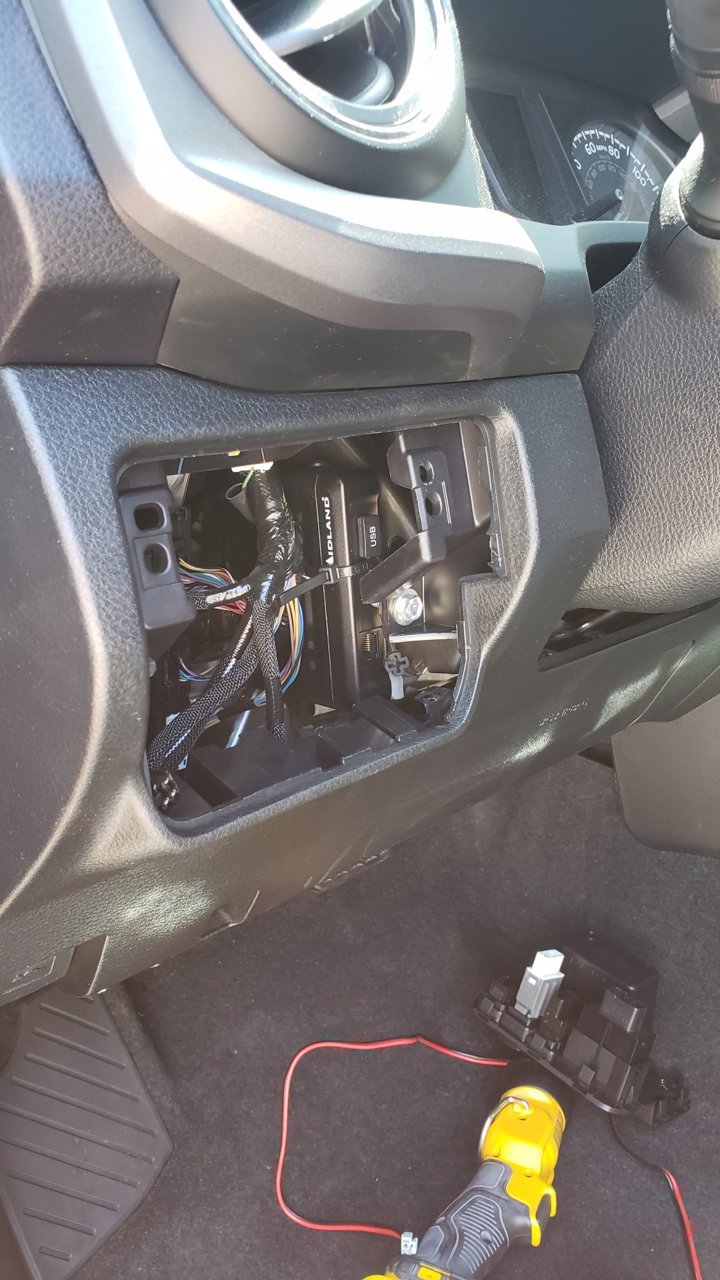

    After the center console was out, I looked to see if the main unit of the Icom would fit in the space where the auxiliary heater goes, but no dice. So, out came the passenger seat so that the main unit and a Motorola speaker could go there. I kept them both away from the heat ducts, so there should be no problem with that. The wire to the control head is also in there somewhere.

    [​IMG]

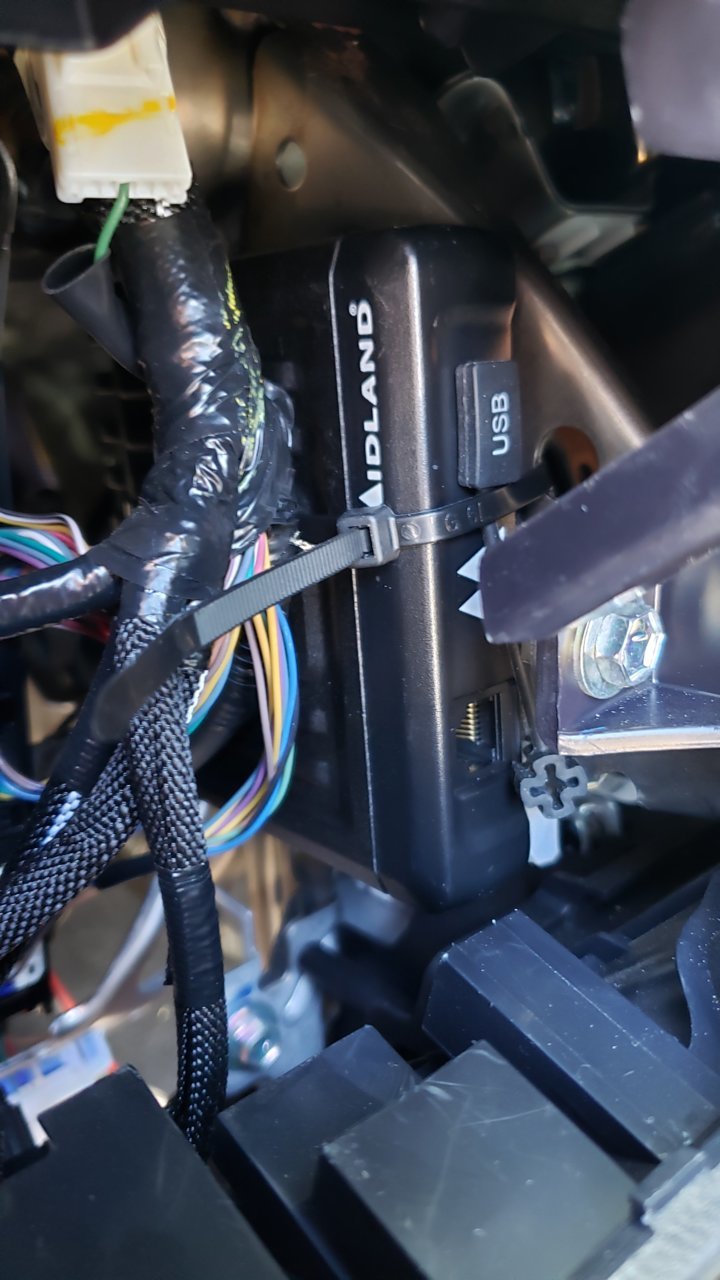

    Next up, the stereo came out to make running the control cable up to the dash a lot easier. By now, I'd already had my quota of small cuts on my hands from running wires around sharp brackets behind the dash. :rolleyes:

    Here is where my friend came in handy. He held the radio while I ran the wire for the control head, so I didn't have to unplug the radio. The black wire is for the control head. Of course I had to remove the Panavise phone bracket to take the radio trim off so I could run that cable. That all had to come off anyway so that the DSM could be installed.

    [​IMG]

    Before all of the dash and console pieces were put back, I powered up the truck and tested the radios. Here is where I discovered that the scanner antenna connector had popped off. Considering what a PITA that had been to get put together I was dreading having to do that again. :goingcrazy: Fortunately, the tip hadn't popped off the wire, so all I had to do was put everything back together and recrimp the collar. That worked. The ham radio worked, I could receive and transmit with no problem.

    Time to start re installing all of the dash and console trim. Oh, and bolt down the seat too, of course.

    Here's the DSM installed and the trim piece back in place I also drilled a hole for the control cable. That looks gray in this picture, but is that same black wire. efo

    [​IMG]

    Everything back together and working (finally). I'm still waiting for the RJ45 panel to come in from China. That should be here by the end of the week and then the microphone will plug into that instead of the female - female connector. Icom uses a goofy microphone hanger, so I have to figure that out too. There used to be an add on knob that allowed you to use the standard mic hanger, but I don't know if those are still around any longer. I'll have to do a search I guess.

    [​IMG]

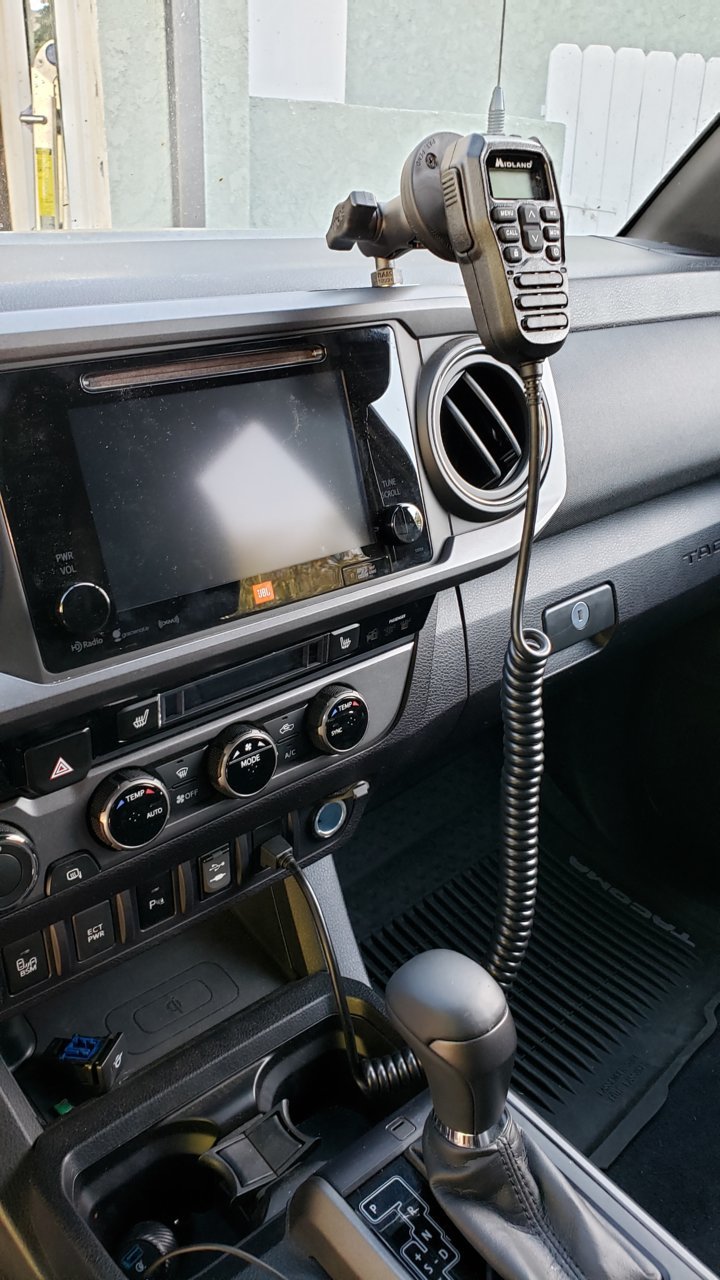

    I like how the DSM mounts the radio. Very neat looking and I can take the head off when I need to and hide it.

    The audio from the ham radio is loud through the Motorola speaker. I think it has louder audio output than the old Yaesu, but in any case it's a lot more clear. I just have to get used to the different controls on the Icom, especially the scan function. I use that radio as a second scanner for my local FD and PD. It's always nice to see what my tax dollars are up to. ;)

    A few things went wrong in addition to the afore mentioned scanner antenna connector.

    When putting the lower dash back, one of the clips snapped off. Doesn't seem to be any way to fix that, but it's the small piece between the ignition key and the radio bezel so it fit in anyway. Still, I hate when that trim stuff breaks like that.

    I did about three function tests on the radios and other electronics while putting things back together. Which meant disconnecting and reconnecting the negative terminal several times. You'd thing that with all of that testing, I wouldn't have missed anything. Yet, when I started the truck to take my friend back to his house, I noticed that the display dimmer wasn't working on the scanner. WTF? Then it struck me. Remember those three connectors I mentioned that you shouldn't forget to plug in? Yeah, I forgot to plug them in. My whiny excuse is that the hood release lever was a PITA to get back in place and it distracted me.

    So, off came the lower dash panel (again), plug in the wires, put the panel back on and test again. Everything worked fine. Why it worked the first time with the engine not running, but didn't work with the engine running, I don't know. My guess is that some part of the circuit runs through the cargo lamp switch, but only when the engine is running.

    Oh, my remote start worked too, so I didn't knock any of those connectors out either.

    Overall, I'm very happy with the way this came out. I still have to run the mag mount antenna cable, put that RJ45 panel in, figure out the microphone mount, and neaten up the wires for the main unit under the passenger seat. Also have to order a RJ12 six wire extension for the Uniden GPS. Since I ran the wire up the A pillar on the driver's side, that will be easy.

    Thanks to everyone in the thread for inspiring me to do a "clean" install with the bare minimum of exposed wires, holes drilled or cut, and overall neat install. I think it might be the best work I've ever done on a mobile install.

    Thanks also to Taco Garage for the making the DSM and short stubby ball mount. It's really the perfect solution and I should have ordered one from the start.

    Feel free to comment, make jokes, laugh at my workmanship, or ask questions.

  3. Aug 8, 2020 at 2:02 PM
    #1663
    MikeyD.25

    MikeyD.25 Well-Known Member

    Joined:
    Jun 16, 2016
    Member:
    #189776
    Messages:
    468
    Gender:
    Male
    Looks good!!!! One question, where'd you get the Motorola speaker from?

  4. Aug 8, 2020 at 2:25 PM
    #1664
    HisDad

    HisDad Well-Known Member

    Joined:
    Mar 30, 2015
    Member:
    #152127
    Messages:
    671
    Gender:
    Male
    Massachusetts
    Vehicle:
    2019 Cement Tacoma SR5 Double Cab
    Thanks.

    Probably a ham radio flea market. I used to have about 20 different ones, but sold most of them off. There are a lot on Ebay, but you have to make sure that they are 8 ohm impedance. Some Motorola radios used 3.2 ohm speakers for reasons I never understood.




    MikeyD.25 likes this.
  5. Aug 9, 2020 at 2:14 PM
    #1665
    HisDad

    HisDad Well-Known Member

    Joined:
    Mar 30, 2015
    Member:
    #152127
    Messages:
    671
    Gender:
    Male
    Massachusetts
    Vehicle:
    2019 Cement Tacoma SR5 Double Cab
    I want to get the mag mount antenna routed into the cab this week. I thought there were pictures of how people did that in this thread, but can't find it. What is the easiest way to get the cable into the back of the cab? I plan to cut the PL259 off and solder a new one on, so that's not an issue. I seem to remember that there are rubber grommets somewhere back there, but don't recall exactly where.

    Thanks.

  6. Aug 11, 2020 at 9:04 AM
    #1666
    EagleUSMCRet

    EagleUSMCRet Well-Known Member

    Joined:
    Dec 6, 2015
    Member:
    #171597
    Messages:
    476
    Gender:
    Male
    Alexandria, VA
    Vehicle:
    2017 MGM 4x4 Tacoma DC Limited
    Scosche Magnetic Mount Qi charger for iPhone; AVS Vent Visors; Replaced Entune system with AVIC 8400 NEX Head unit, The Taco Garage DMM for Qi charger; LED interior light upgrades,magnet secure thingy, ARE Z Cap w/ Yakima Rack, Front Bed Rail, Bed Rug, Tuffy Bed Lock Box, Add a leaf, Pop and Lock, Blendmount and mirror tap for radar detector, AVS Hoodflector, Redline Hood Gas Spring mod. A/C drain mod, Duracell 27M battery, Debadged the tailgate, Compustar remote start, USB charger for the rear seats, Husky Mats, Lexus Credit Card Transponder Fob, MAG Light mount, twin Hella Sharptone horns, Bedslide, Gasshole, Meso Fuze cover, TRD Gas cap cover, Passenger side locking door handle, Mr. Produxn license place mount....help me I can't stop!!!
    Link to the RJ45 pasthrough from Ebay? I’ve searched and can’t find it... thanks in advance.

  7. Aug 11, 2020 at 9:05 AM
    #1667
    Kirru

    Kirru Off-roading nEwB

    Joined:
    Jun 30, 2018
    Member:
    #257933
    Messages:
    217
    Gender:
    Male
    First Name:
    Cory
    Conyers, GA
    Vehicle:
    2020 AG TRD Pro
    See Build Thread ;)
    EagleUSMCRet likes this.
  8. Aug 11, 2020 at 9:56 AM
    #1668
    HisDad

    HisDad Well-Known Member

    Joined:
    Mar 30, 2015
    Member:
    #152127
    Messages:
    671
    Gender:
    Male
    Massachusetts
    Vehicle:
    2019 Cement Tacoma SR5 Double Cab
    EagleUSMCRet likes this.
  9. Aug 11, 2020 at 9:57 AM
    #1669
    Kirru

    Kirru Off-roading nEwB

    Joined:
    Jun 30, 2018
    Member:
    #257933
    Messages:
    217
    Gender:
    Male
    First Name:
    Cory
    Conyers, GA
    Vehicle:
    2020 AG TRD Pro
    See Build Thread ;)
    Good to know. I'm still waiting. It's been about a week. Hoping it comes soon. That way I can get finished with this haha

  10. Aug 11, 2020 at 10:09 AM
    #1670
    HisDad

    HisDad Well-Known Member

    Joined:
    Mar 30, 2015
    Member:
    #152127
    Messages:
    671
    Gender:
    Male
    Massachusetts
    Vehicle:
    2019 Cement Tacoma SR5 Double Cab
    Mine shipped August 3, was supposed to be here sometime after the 17th, but came today.

    I got it installed and was just starting on the mag mount antenna cable when the rain we weren't supposed to get started. :( Maybe it will stop and I can get that finished.

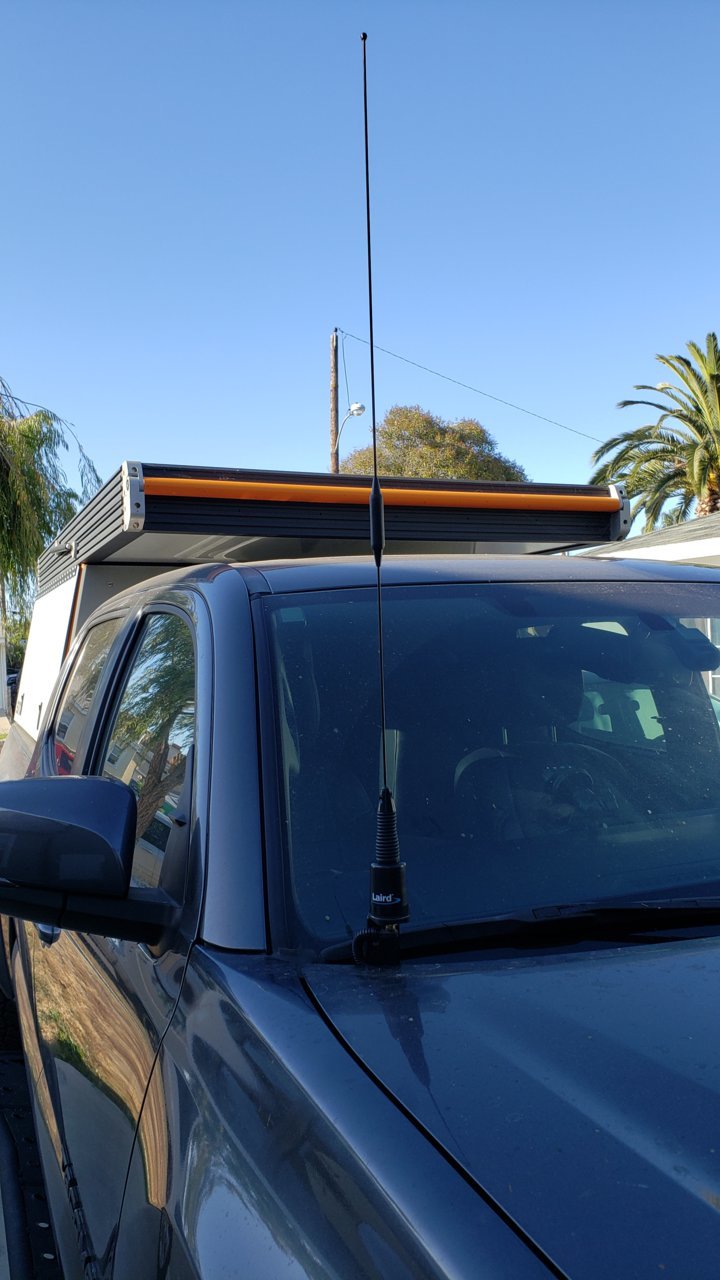

    Here it is installed. Very clean look, IMHO. I just have to figure out where to hang the mic.

    [​IMG]


  11. Aug 11, 2020 at 2:09 PM
    #1671
    HisDad

    HisDad Well-Known Member

    Joined:
    Mar 30, 2015
    Member:
    #152127
    Messages:
    671
    Gender:
    Male
    Massachusetts
    Vehicle:
    2019 Cement Tacoma SR5 Double Cab
    I'm finished. I think.

    I got the mag mount antenna cabled, but had to do it twice. First time I put the cable in the wrong hole. :eek: That is to say that I used the hole in the floor on the passenger side that is between the front and rear seats. When I got it all done, I rolled under the truck to see if the cable would drop onto anything bad if I took the antenna off the roof for clearance. Oh boy. It would potentially hit the exhaust (bad), or the drive shaft (potentially worse).

    Fortunately, while underneath I found the right hole. It's the one almost at the back of the cab, more or less centerline.

    I undid the original installation, in the 95 degree heat no less, and started again. Overall pretty easy once I loosened the rear mounting bolts for the front passenger seat. That gave just enough room under the carpet for the cable with the connector still attached to slide through.

    Connected everything up, transmitted on a couple of VHF ham repeaters to make sure the cable was still intact, put all of the trim pieces back, and then torqued the seat bolts down.

    As I said, I think I'm done. You never know with this Tacoma thing, though.

  12. Aug 13, 2020 at 9:15 PM
    #1672
    HisDad

    HisDad Well-Known Member

    Joined:
    Mar 30, 2015
    Member:
    #152127
    Messages:
    671
    Gender:
    Male
    Massachusetts
    Vehicle:
    2019 Cement Tacoma SR5 Double Cab
    For those interested, DonGar has the SimpleUSB power adapters for the Tacoma available. Orders will be shipped on the 18th. Next, I just have to find a dash cam.

  13. Aug 18, 2020 at 8:26 AM
    #1673
    Gus87

    Gus87 Well-Known Member

    Joined:
    Jun 10, 2018
    Member:
    #255991
    Messages:
    447
    Gender:
    Male
    Chicagoland
    Vehicle:
    16 trd sport
    For guys using this with the uniden do it use just a basic Ethernet cable?


  14. Aug 18, 2020 at 8:34 AM
    #1674
    Kirru

    Kirru Off-roading nEwB

    Joined:
    Jun 30, 2018
    Member:
    #257933
    Messages:
    217
    Gender:
    Male
    First Name:
    Cory
    Conyers, GA
    Vehicle:
    2020 AG TRD Pro
    See Build Thread ;)
    I bought a shielded cat6e cable. I think the shielding is important with the way new vehicles are but maybe I am just over thinking things.

    Either way, it is just an Ethernet cable that is needed.

    Gus87 likes this.
  15. Aug 18, 2020 at 8:42 AM
    #1675
    Gus87

    Gus87 Well-Known Member

    Joined:
    Jun 10, 2018
    Member:
    #255991
    Messages:
    447
    Gender:
    Male
    Chicagoland
    Vehicle:
    16 trd sport
    Cool, thank you very much

  16. Aug 18, 2020 at 9:09 AM
    #1676
    SearArtist

    SearArtist Player Hater #001

    Joined:
    Jan 5, 2016
    Member:
    #174151
    Messages:
    16,465
    Gender:
    Male
    First Name:
    Matt
    NC
    Vehicle:
    2016 TRD OR, 2006 GX 470 Unicorn
    Yes.
    Clean install, I just got the same Midland setup and I think I'm going to copy how you mounted it in the dash and the pass through. What type of CAT cable did you use behind the dash? Can I use regular CAT5e cable?

    Sorry for the n00b question, I'm just starting to get into GMRS stuff...

  17. Aug 18, 2020 at 6:16 PM
    #1677
    seafur

    seafur Well-Known Member

    Joined:
    Jul 11, 2014
    Member:
    #133755
    Messages:
    115
    Gender:
    Male
    Pacific Northwest
    Vehicle:
    2014 DCSB MT TRD OR
    Sprinter bed tiedowns, Aux fuse box, AIO key, 3-way canopy light switch, 12V bed outlet, Dual Battery AGM G35, Viair OBA, Uni-filter mod

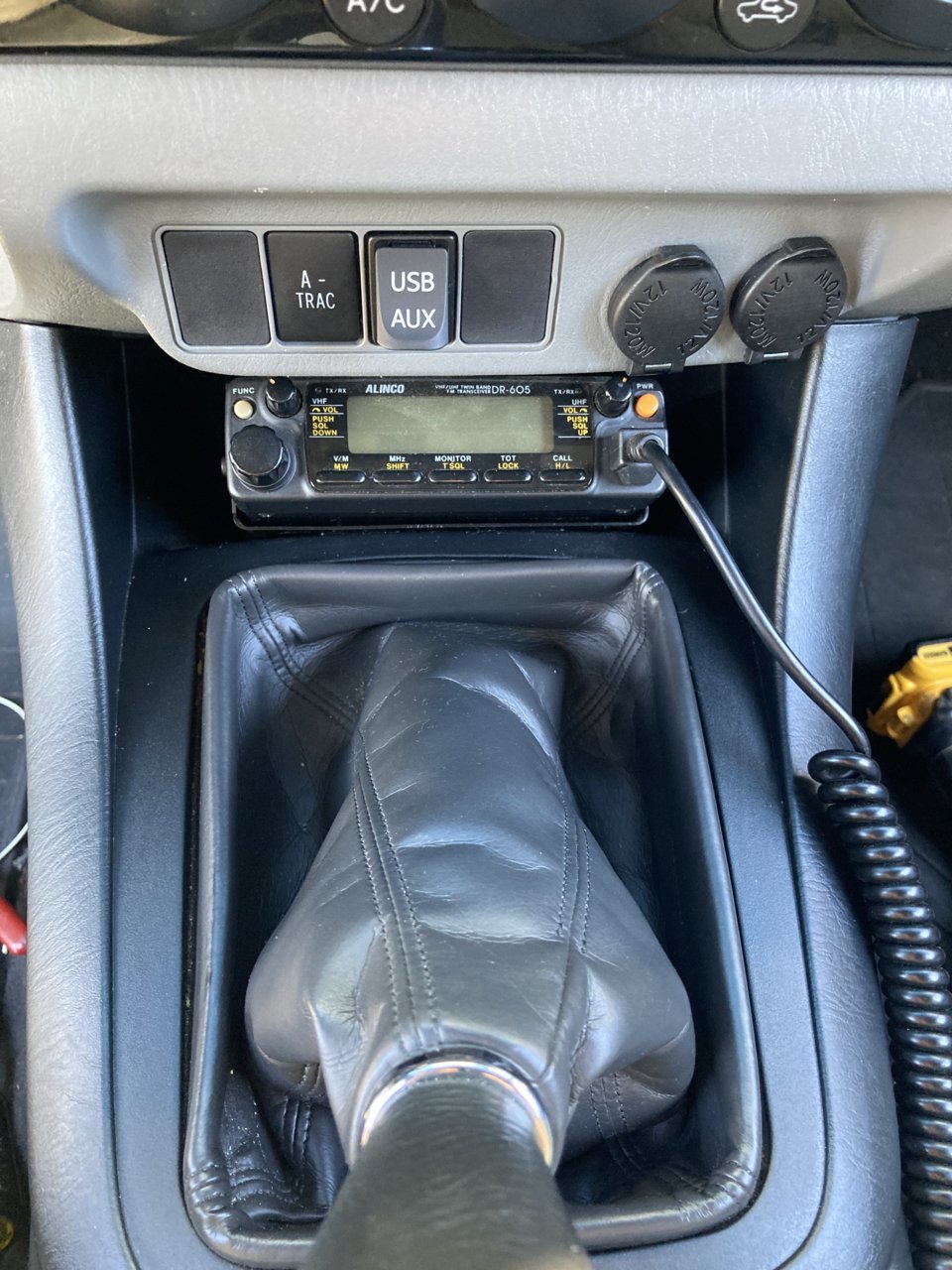

    I have the Alinco dual bander installed in the little cubby and the Icom for APRS with a MobilLink TNC under the driver’s seat. I use APRSDroid on a Motorola phone for APRS. Just installed the USB power in the center console connected to my Aux fuse box from my Aux battery to keep the phone charged.






  18. Aug 19, 2020 at 5:01 AM
    #1678
    Gus87

    Gus87 Well-Known Member

    Joined:
    Jun 10, 2018
    Member:
    #255991
    Messages:
    447
    Gender:
    Male
    Chicagoland
    Vehicle:
    16 trd sport

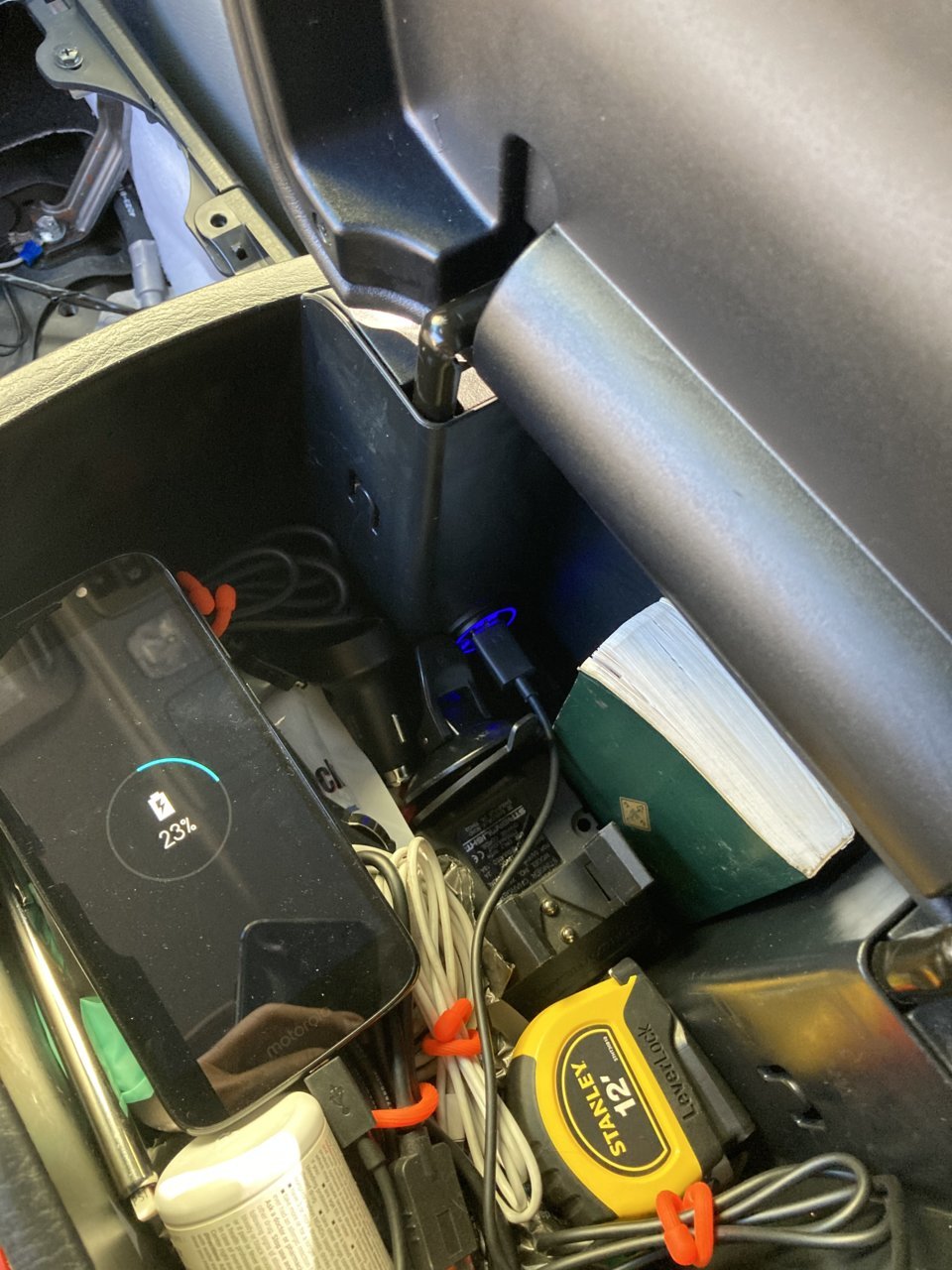

    I finally got around to putting in my cb all super hidden like I do. It’s a small Uniden CMX760. I double sided taped it under the charging pad. I mounted it to Totalchaos stiffeners. I originally got the Cali raised rear light mount but changed my mind after everyone said there cables rubbed bare. I’m just waiting on the plug to mount the mic in the meso spot.


    Last edited: Aug 19, 2020
    Durango95 and medic2230 like this.
  19. Aug 19, 2020 at 6:46 PM
    #1679
    nartmot

    nartmot Well-Known Member

    Joined:
    Sep 6, 2016
    Member:
    #196612
    Messages:
    342
    Gender:
    Male
    Sorry haven't been on this site for a week or two. I got this cable because it was one of the cheapest. Works great. https://www.amazon.com/dp/B00KXDGBLQ/ref=cm_sw_r_cp_apa_i_mxDpFbJ5NW445

  20. Aug 20, 2020 at 12:29 PM
    #1680
    helix66

    helix66 Well-Known Member

    Joined:
    Nov 10, 2017
    Member:
    #235675
    Messages:
    1,106
    Gender:
    Male
    DPRC
    Vehicle:
    2017 DclB TRDor MgM
    ProGrille, Tinted windows, AllPro sliders

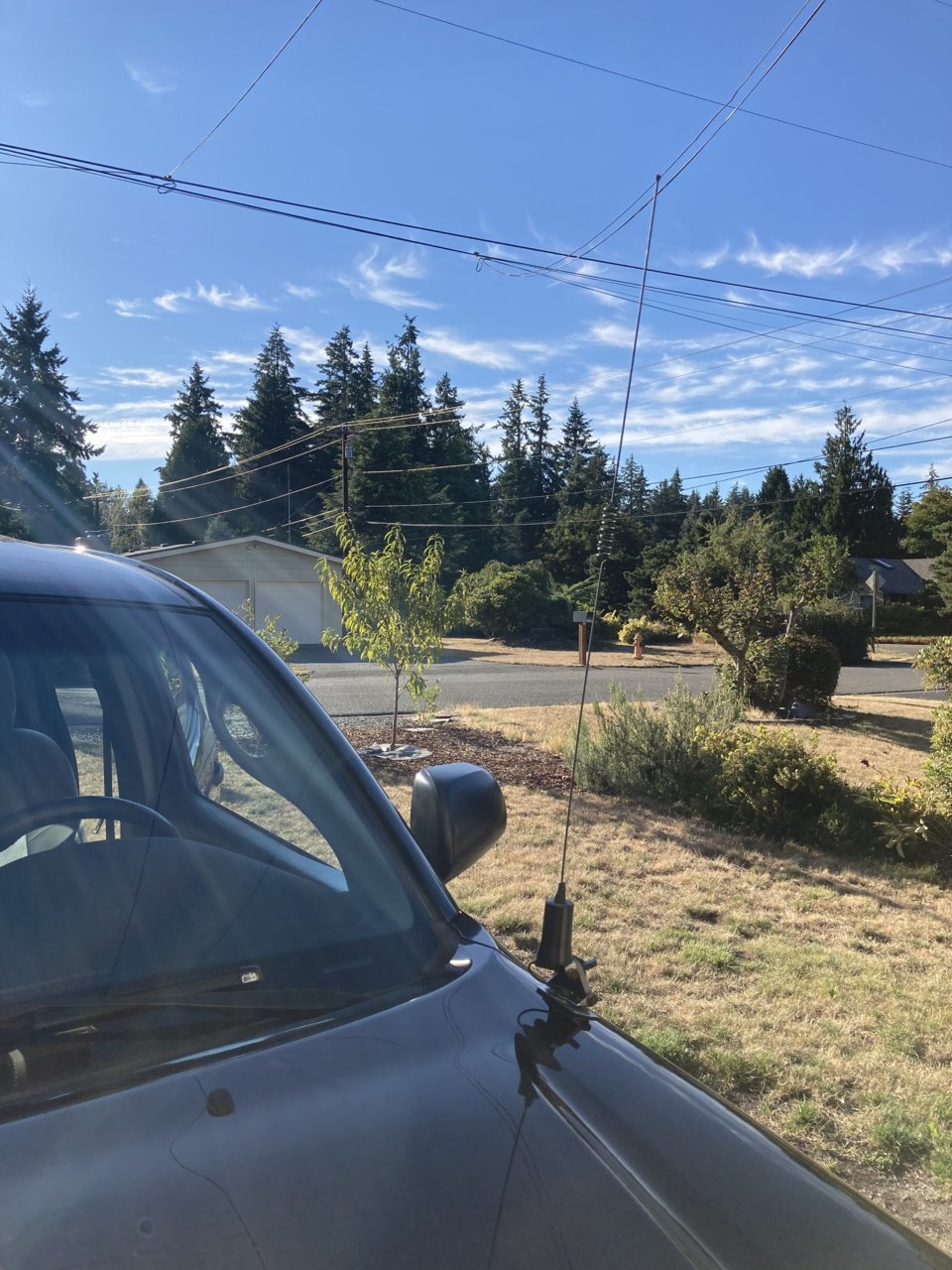

    I’ve been dragging my feet about installing my cobra 75w st and firestik.

    Quick question, I think the antenna has an 18’ coax to the fire ring connector.
    Can I trim the cable down as needed or does it have to stay that length?

    .....if it stays that long iirc that coiling it is bad, do you just weave it around under the carpet?
