Clean VHF/CB radio installs

Discussion in '3rd Gen. Tacomas (2016+)' started by FoleySwampPlotts, Feb 10, 2016.

  1. Feb 8, 2021 at 3:23 PM
    #1821
    nats

    nats Well-Known Member

    Joined:
    Jan 2, 2019
    Member:
    #277793
    Messages:
    74
    Gender:
    Male
    Lakewood, CO USA
    Vehicle:
    '10 TRD Sport DCSB
    (this will change)
    Very parallel to my thoughts... Ground would be easy enough to accommodate, but the tree-whacking is a real concern, spring or not, there's always some force to be resolved by those tiny-ass screws...

  2. Feb 17, 2021 at 11:42 AM
    #1822
    GarlicFarts

    GarlicFarts Bang Ding Ow

    Joined:
    Dec 12, 2019
    Member:
    #313138
    Messages:
    6,004
    Gender:
    Male
    Lil Rhody
    Vehicle:
    2020 White DCSB TRD OR
    SOS bolt-on sliders In-cab sleeping platform Soft Topper
    This is...almost exactly what I'm looking for. I DO have the cali-raised mount, but already have a second cable planned for the summer once it warms up.....

    ANYWAY, I had a few questions:

    1. Where does the cable go up in the back? I am probably going to have to find a way to get mine in with the cali-raised one, but long term I'm not attached to it, I could be convinced to get it inside the bed like yours. Just curious. I have also seen the folding mounts, which would be pretty sweet, put it inside the bed and fold it down when I'm not using it.

    2. Where did you route it into the cab, did you come up under the center console with that grommet?

    3. How did you run power, direct to battery? That's my plan - right now I got a trailer brake connector and hacked it up and connected to + and GND off that. o_O but likely to move to direct to battery. Kind of jimmy rigging this now, as long as it works, it works, road trip end of March but after that once it warms up and I have more time not freezing my balls off I will do a better install.

    Thanks!

    PS - Same radio. I'm planning to put the cat connector in one of the center stack switch blanks and have that plug in there. Haven't decided where to mount the mic yet.

    Gus87 likes this.
  3. Feb 17, 2021 at 6:20 PM
    #1823
    Gus87

    Gus87 Well-Known Member

    Joined:
    Jun 10, 2018
    Member:
    #255991
    Messages:
    447
    Gender:
    Male
    Chicagoland
    Vehicle:
    16 trd sport
    Cool shit. Thanks for the questions.

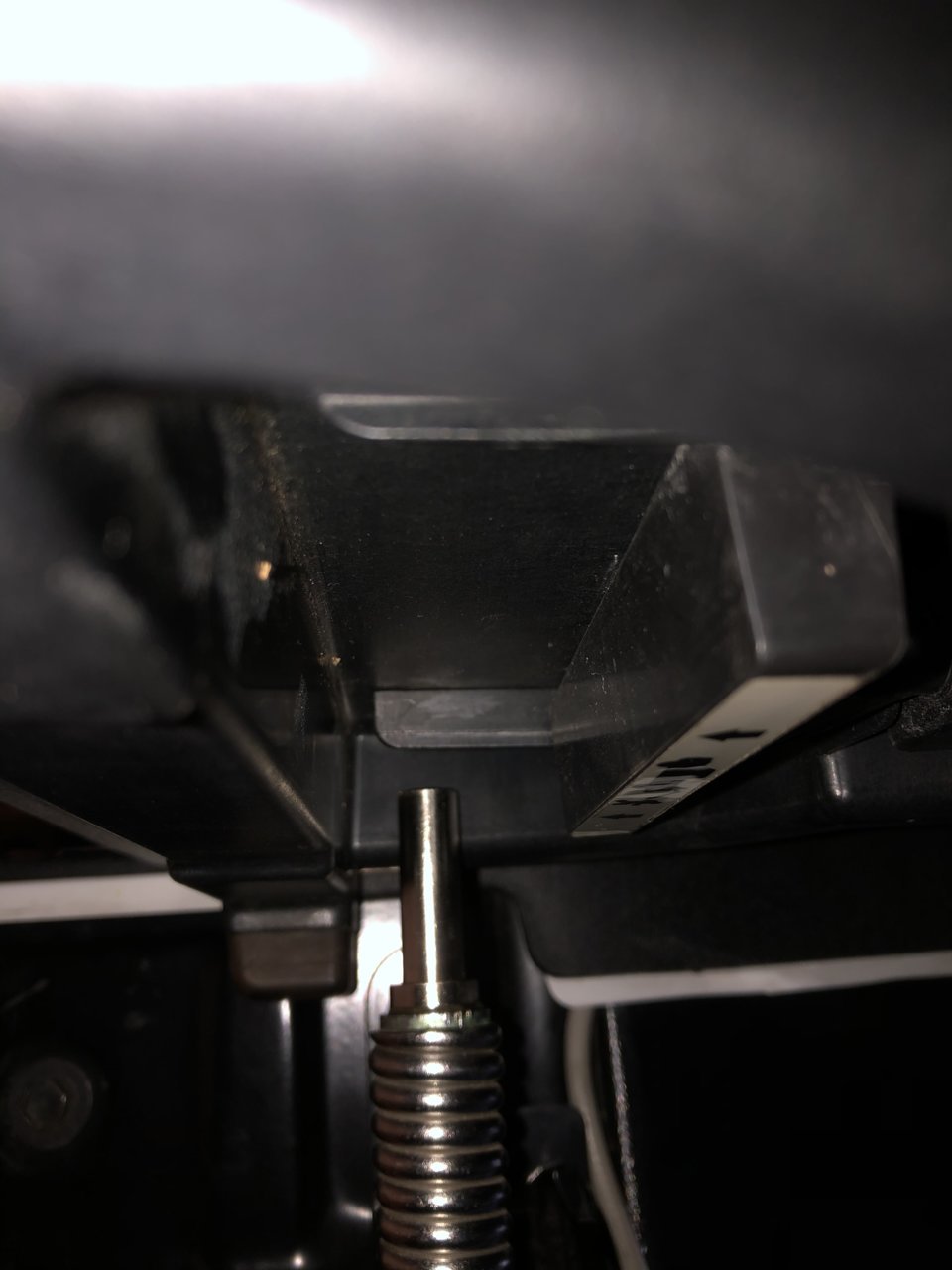

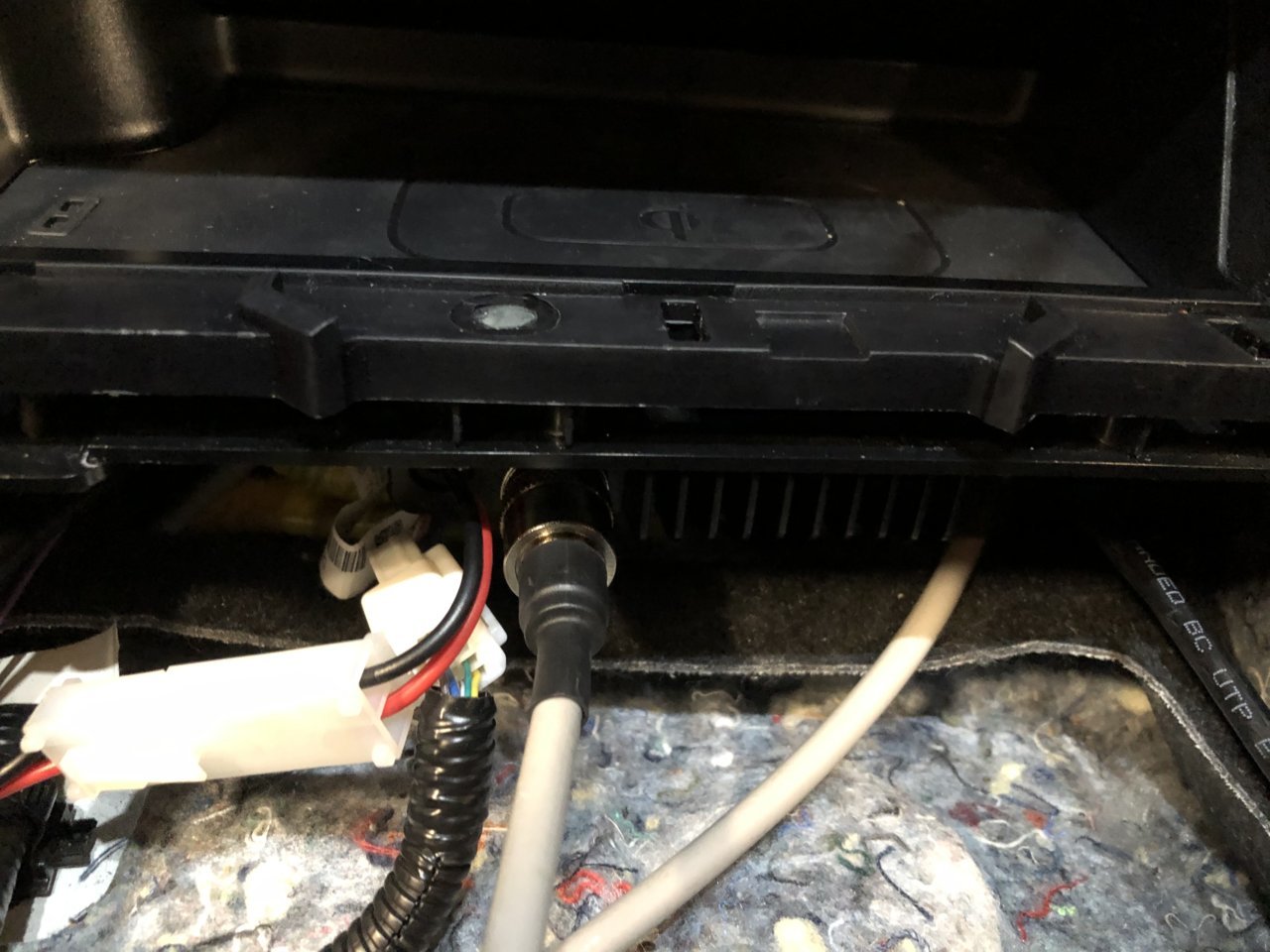

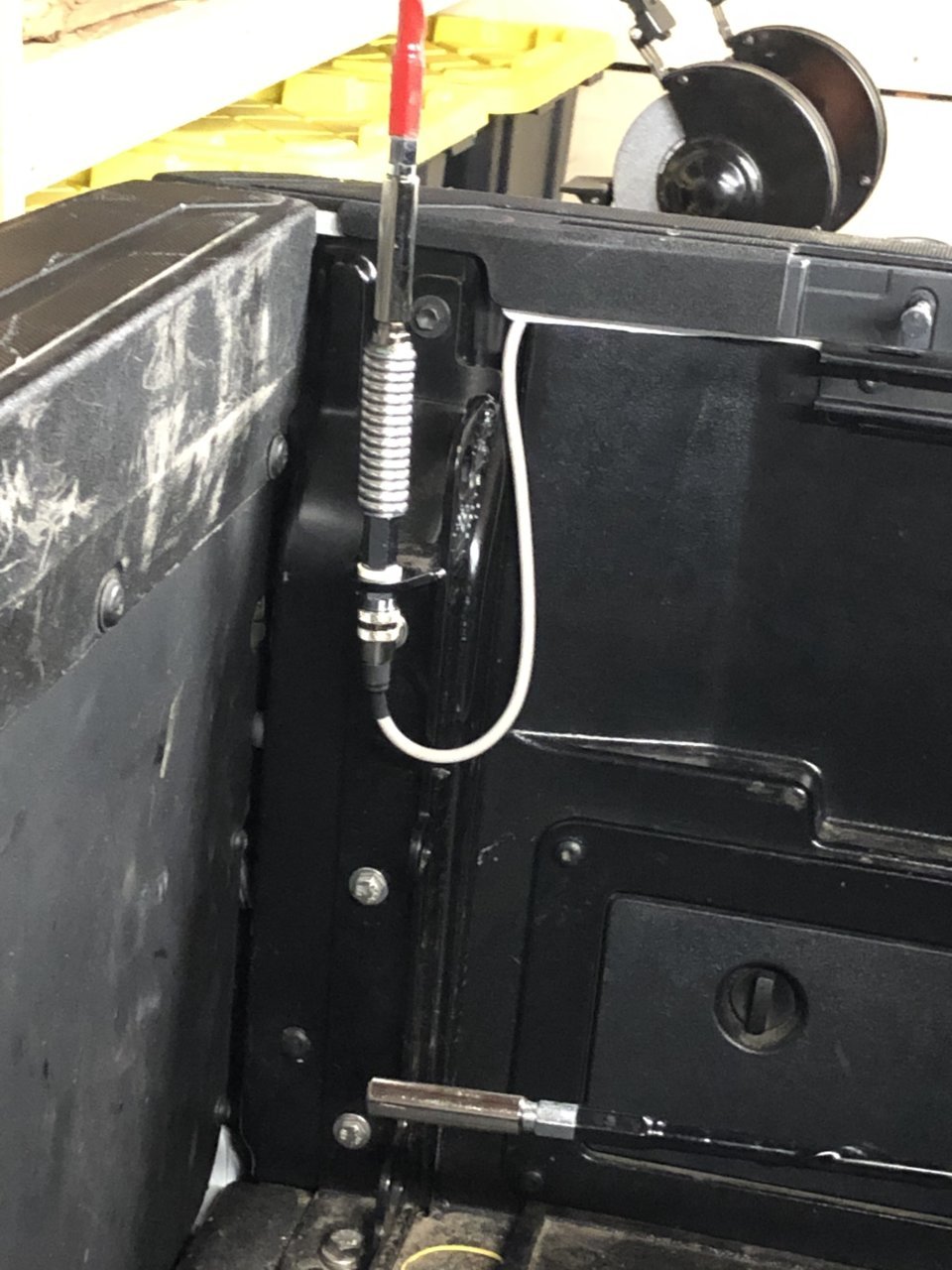

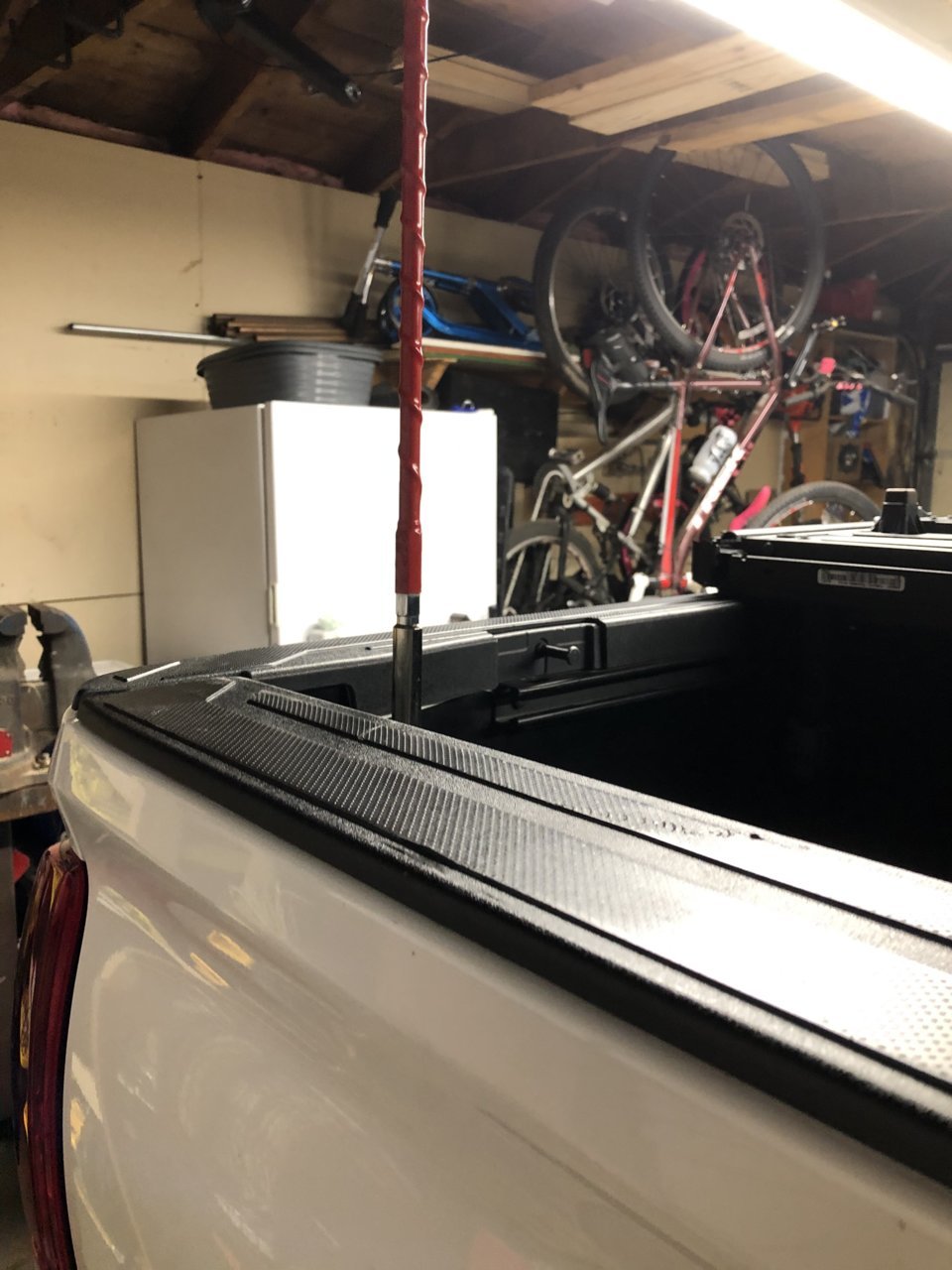

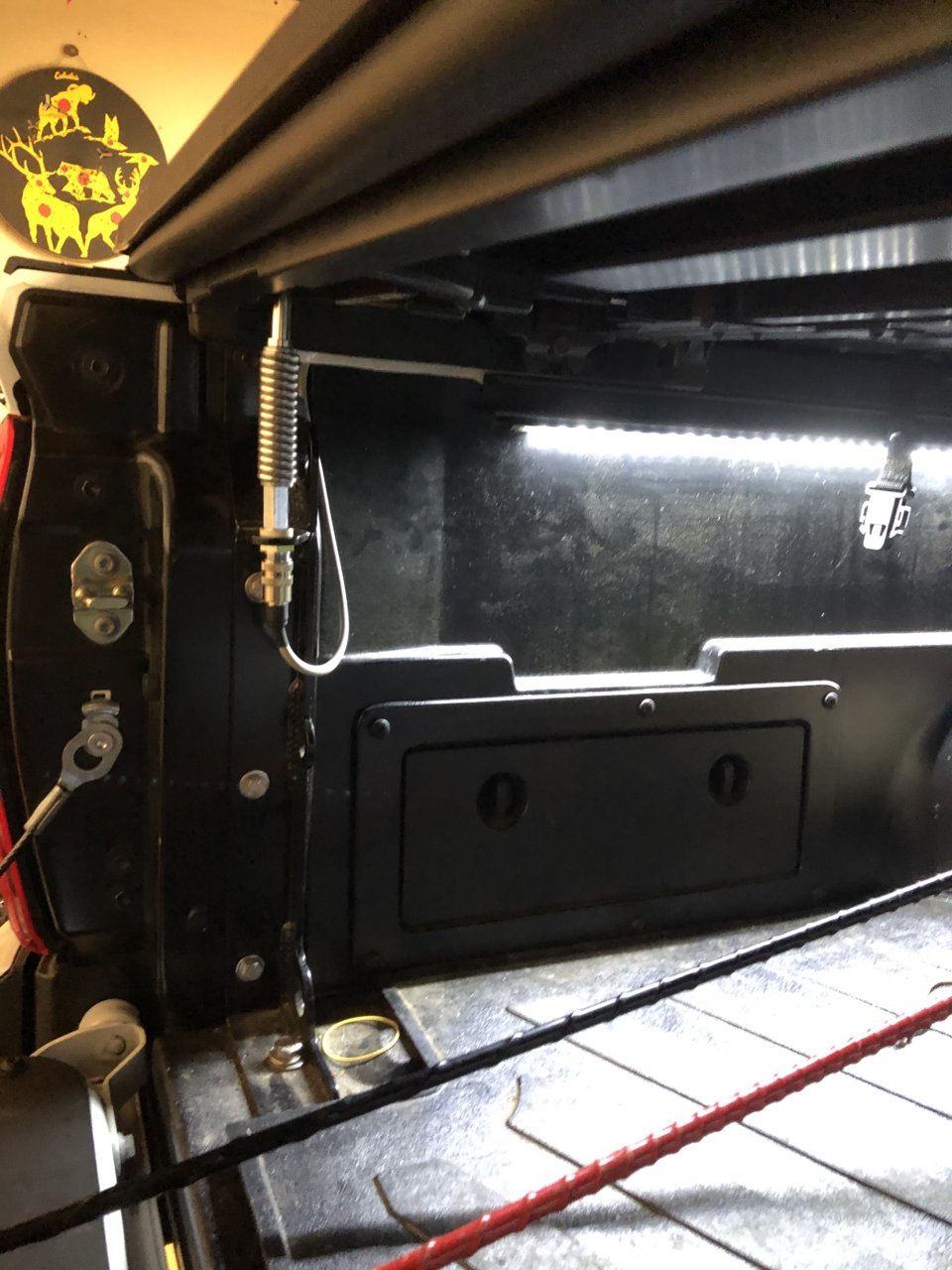

    To answer call your questions. I ran the cable between the body panels in a little gap. I had to loosen the bed rail tie down and separate it a little to get the coax nut through the panels. I ran the cable down the frame, obviously, then up through a factory grommet under the driver's seat.

    For the power i did my own Jerry rigging. I tapped into the cigarette outlet under the center console. I wanted it to power on with the truck. I'm gonna change that a little later be that's a whole new build.

    If there is anything I missed let me know. Good luck with your build.

  4. Feb 17, 2021 at 6:23 PM
    #1824
    GarlicFarts

    GarlicFarts Bang Ding Ow

    Joined:
    Dec 12, 2019
    Member:
    #313138
    Messages:
    6,004
    Gender:
    Male
    Lil Rhody
    Vehicle:
    2020 White DCSB TRD OR
    SOS bolt-on sliders In-cab sleeping platform Soft Topper
    you get any interference on that circuit? I’m using the trailer brake harness adapter, I just tuned it tonight. I was able to get a conversation on 21 but nothing elsewhere and SWR was about 2.5 on 19.

    cool beans - I have my wire running along the bed rail to the front and then through that gap. I will probably reroute it similar to yours though or through the brake light if I keep that location for my antenna.

    Thanks again! I’m getting there, just need some final tweaks.

  5. Feb 17, 2021 at 6:26 PM
    #1825
    GarlicFarts

    GarlicFarts Bang Ding Ow

    Joined:
    Dec 12, 2019
    Member:
    #313138
    Messages:
    6,004
    Gender:
    Male
    Lil Rhody
    Vehicle:
    2020 White DCSB TRD OR
    SOS bolt-on sliders In-cab sleeping platform Soft Topper
    Oh wait I forgot to ask how did you get the cup holder out? If I can do that easily then that removes about 95% of the disassembly I was planning on having to do. Im using that driver seat grommet right now but will probably run a new cable mine got nicked on install, not a huge deal just the outer I can patch that easily but it’s kind of a hack job right now anyway so I want to get it done goodly.

  6. Feb 17, 2021 at 8:16 PM
    #1826
    Gus87

    Gus87 Well-Known Member

    Joined:
    Jun 10, 2018
    Member:
    #255991
    Messages:
    447
    Gender:
    Male
    Chicagoland
    Vehicle:
    16 trd sport
    I honestly have no clue with the interference. I haven't even tuned mine yet, my dad was gonna help me. I have I have a 3 and 4 foot. He said "I have to tune the sticks"!? He may just be making up some b.s. to see me. I'm a nubie with radios. I haven't read too much into it. I got mine more for emergencies. I enjoy moding more than anything else. I'm pretty sure you just pull up on the cup holder to get it out.

    GarlicFarts likes this.
  7. Feb 27, 2021 at 7:57 PM
    #1827
    CmdrTrekk

    CmdrTrekk Dante & Me

    Joined:
    May 6, 2019
    Member:
    #292461
    Messages:
    66
    Gender:
    Male
    First Name:
    Mike
    Reno, NV
    Vehicle:
    2018 Inferno TRD OR
    Got a really good trash can for the back seat that I'm kind of excited about. ;) Tinted the front windows and windshield strip MESO Hi/Lo LED Dome and Sylvania map lights Upgraded halogen headlights Toyota Bed lights Tailgate Power Lock Nitto Ridge Grapplers (stock size) Anytime Backup Camera on front with switch MESO Customs Puddle Lights w/ switch OEM Roof Rack TRD Air Filter K&N Cabin Air filter MESO Customs Gasshole MESO Customs pocket switch plate ARB Awning w/ sides and back Taco Vinyl radio knob Mountain Hatch Tailgate Panel Midland MXT275 with clean set up Tonneau Cover Lower bumper light bar Baja Designs ditch lights On the list: MESO Customs Start switch TRD Pro Knob + MESO Customs stealth buttons Heated seats Add a leaf progressive kit Perhaps some fancy bumpers at some point Battery Upgrade Soundskins

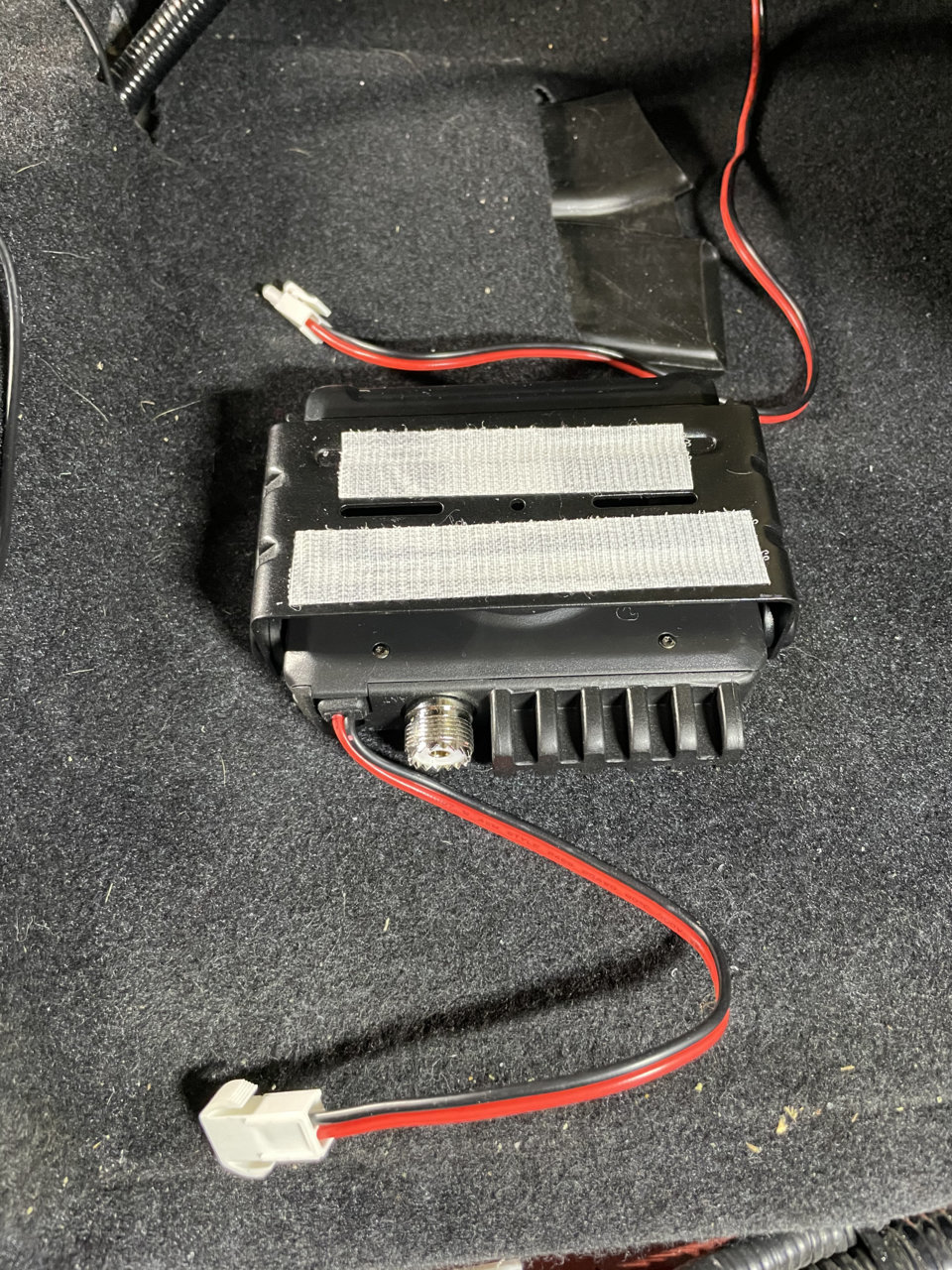

    I just finished installed the Midland MXT275 and am really happy with how sexy and clean this looks. Had a few ideas and was able to make it ultra clean. So Happy. Here's the pics.

    Had a giant strip of epic velcro and the carpet is sooo perfect for velcro it doesn't make sense to do it any other way.

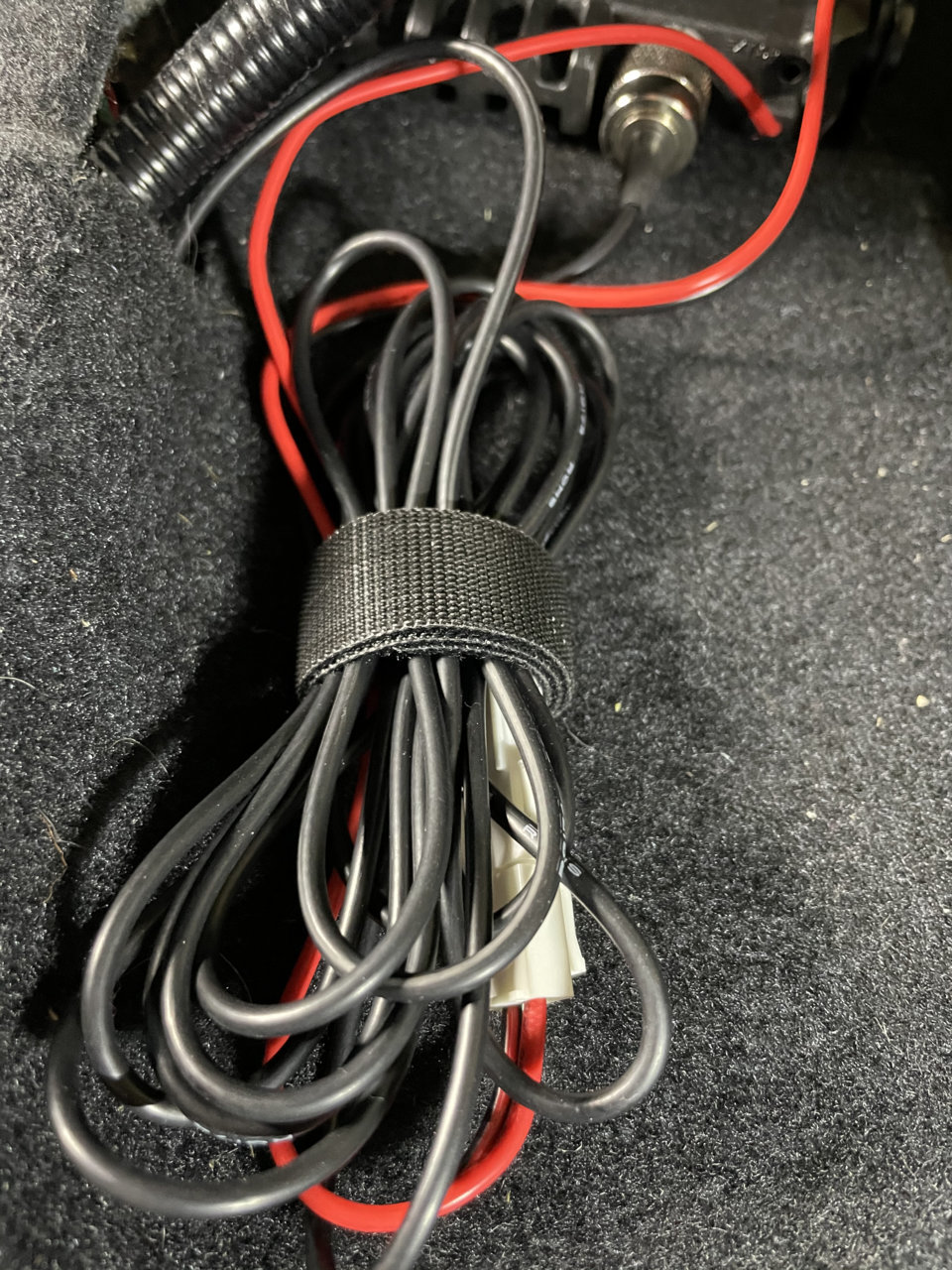

    Get those wires nice and clean!

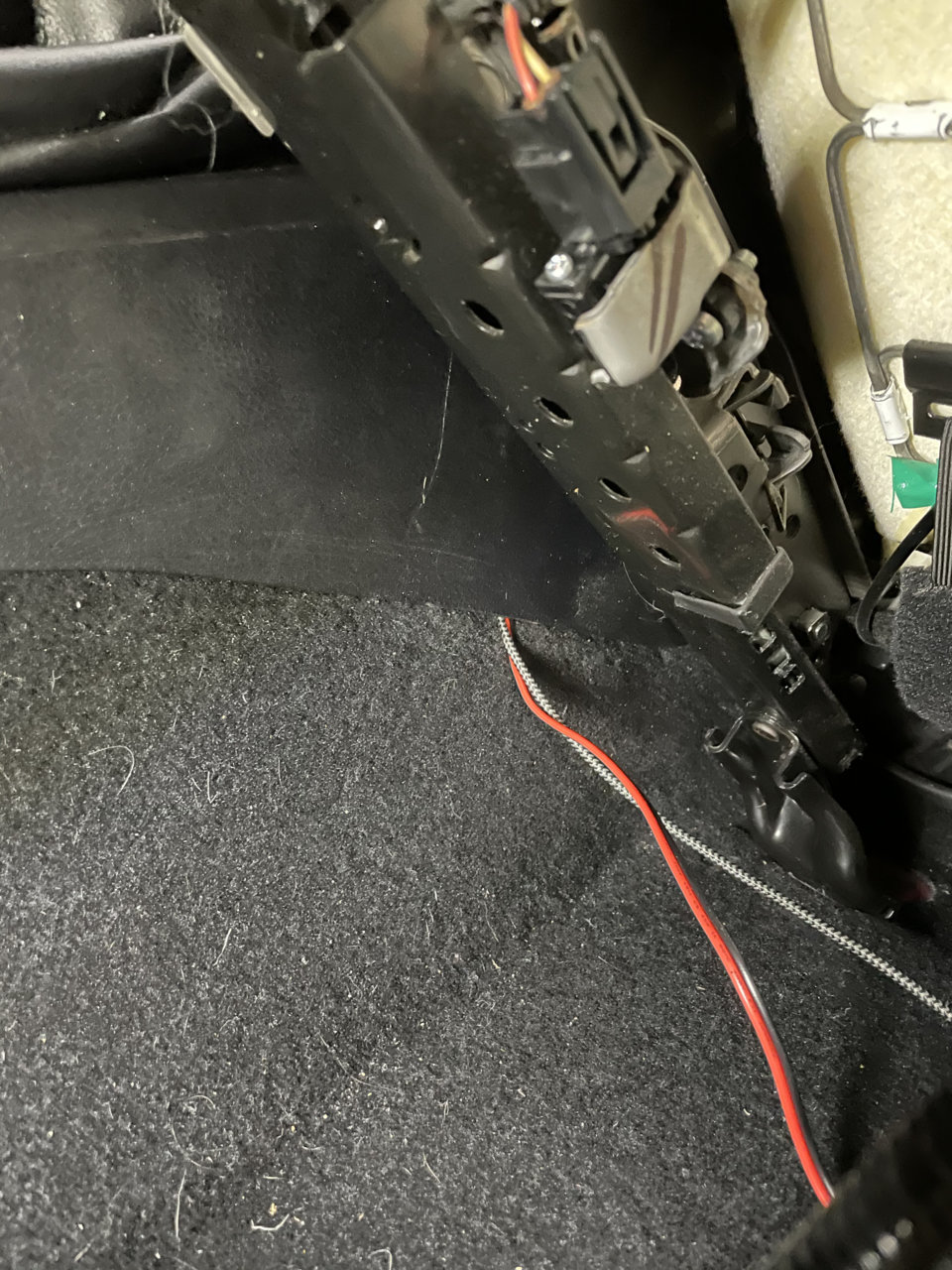

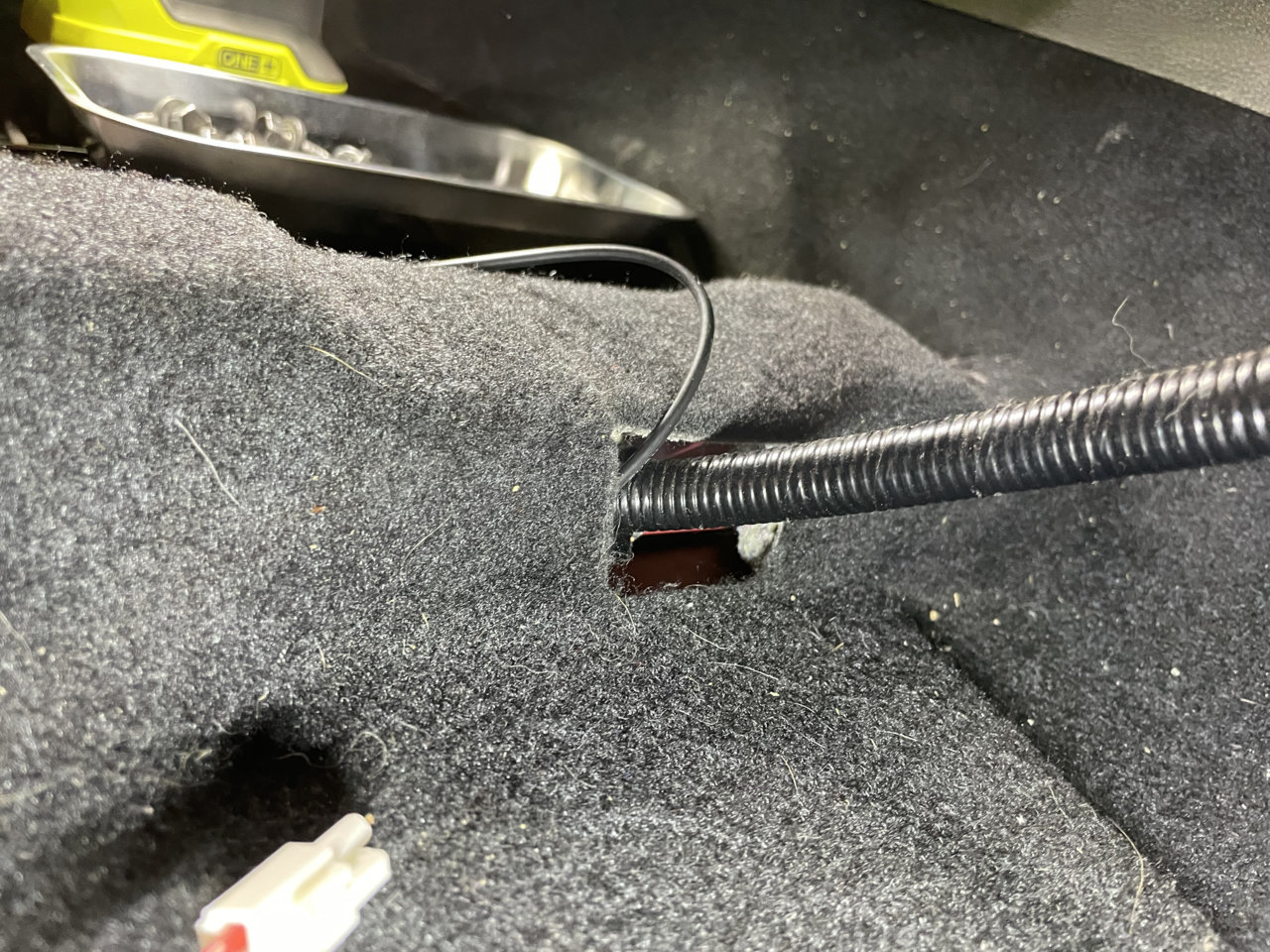

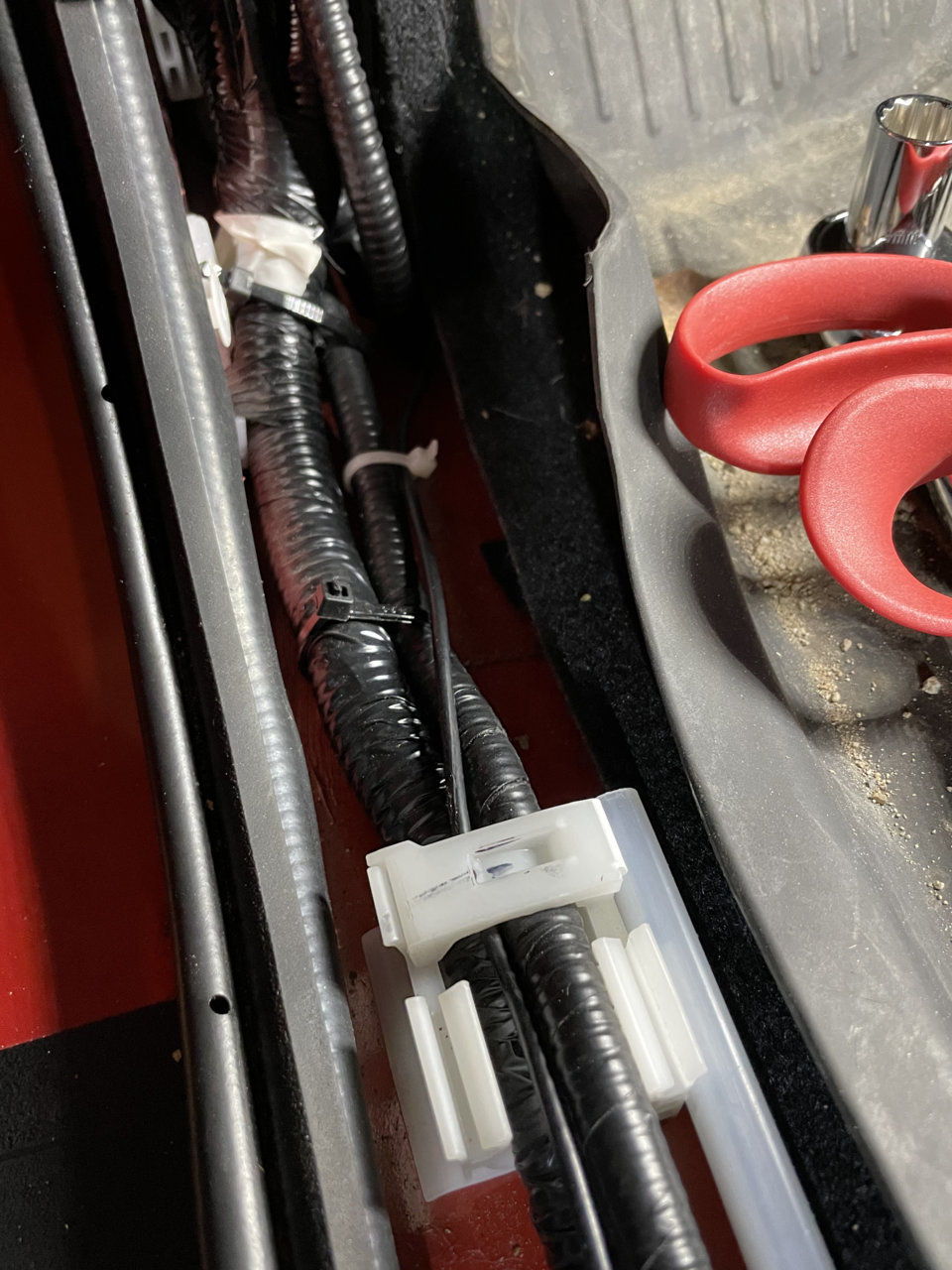

    Antenna wire comes out with the airbag harness conduit. And the excess wires are all wrapped up in a self-velcro strap that also sticks to the carpet. I put the radio unit in the indented front corner closest to the console to give me the most space for the microphone cord. The USB and RJ45 just about mash up against the carpet.

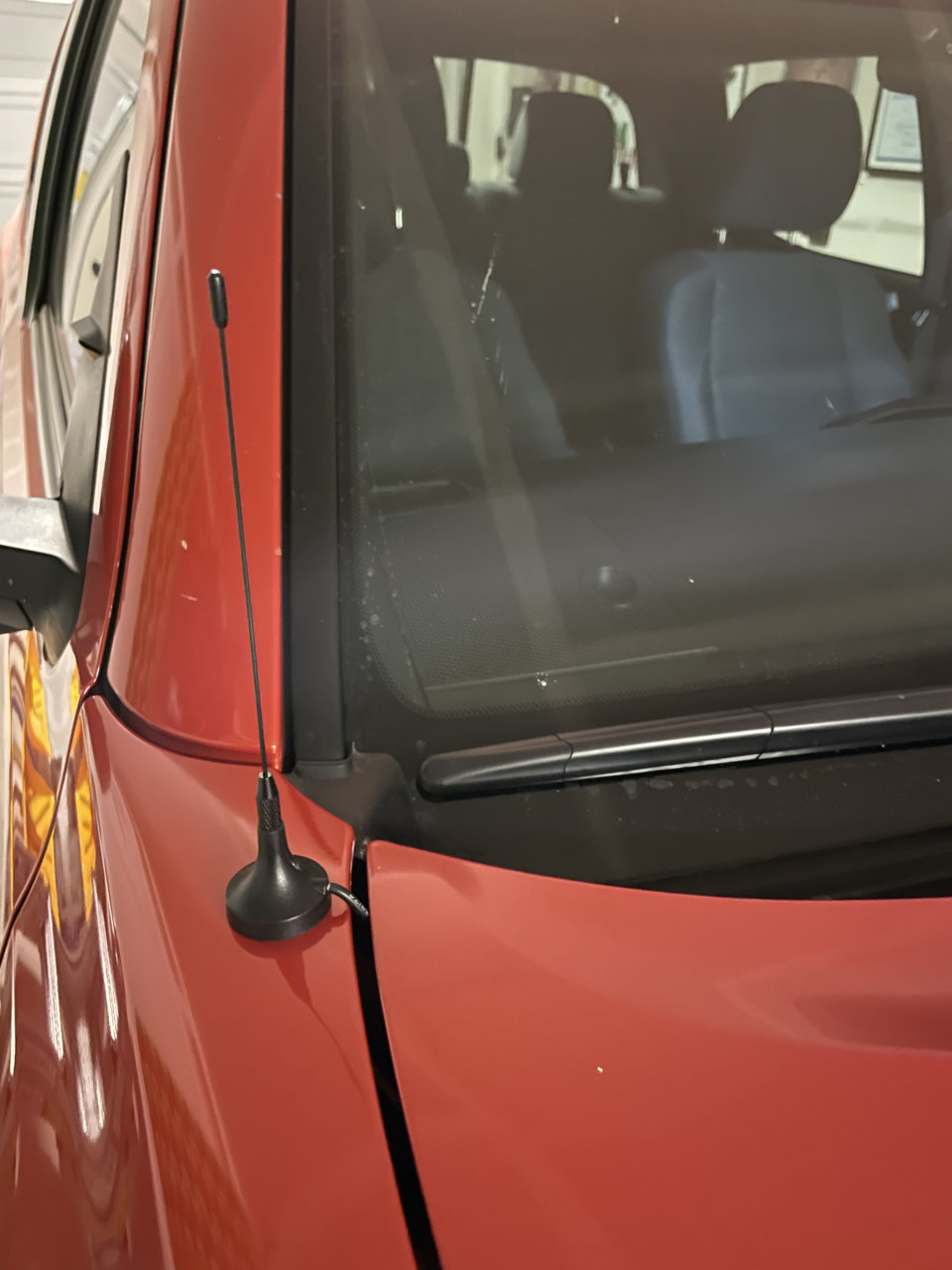

    I'm not sure I'm a fan of the magnetic antenna from the kit. 1. The coupler ring didn't come off like in other videos so it made a giant hole in the firewall (which I'll need for a few more things then I'll seal it up). 2. it's not flexible so I will probably have to unscrew it for car washes. 3. It's kinda ugly.

    Once my ditch lights come in I'll consider magnetizing it to an extension plate or getting the stealth antenna, plate and new cable from Midland (about $65), which means I'll have to redo the wiring.


    OK so to the really clean part.

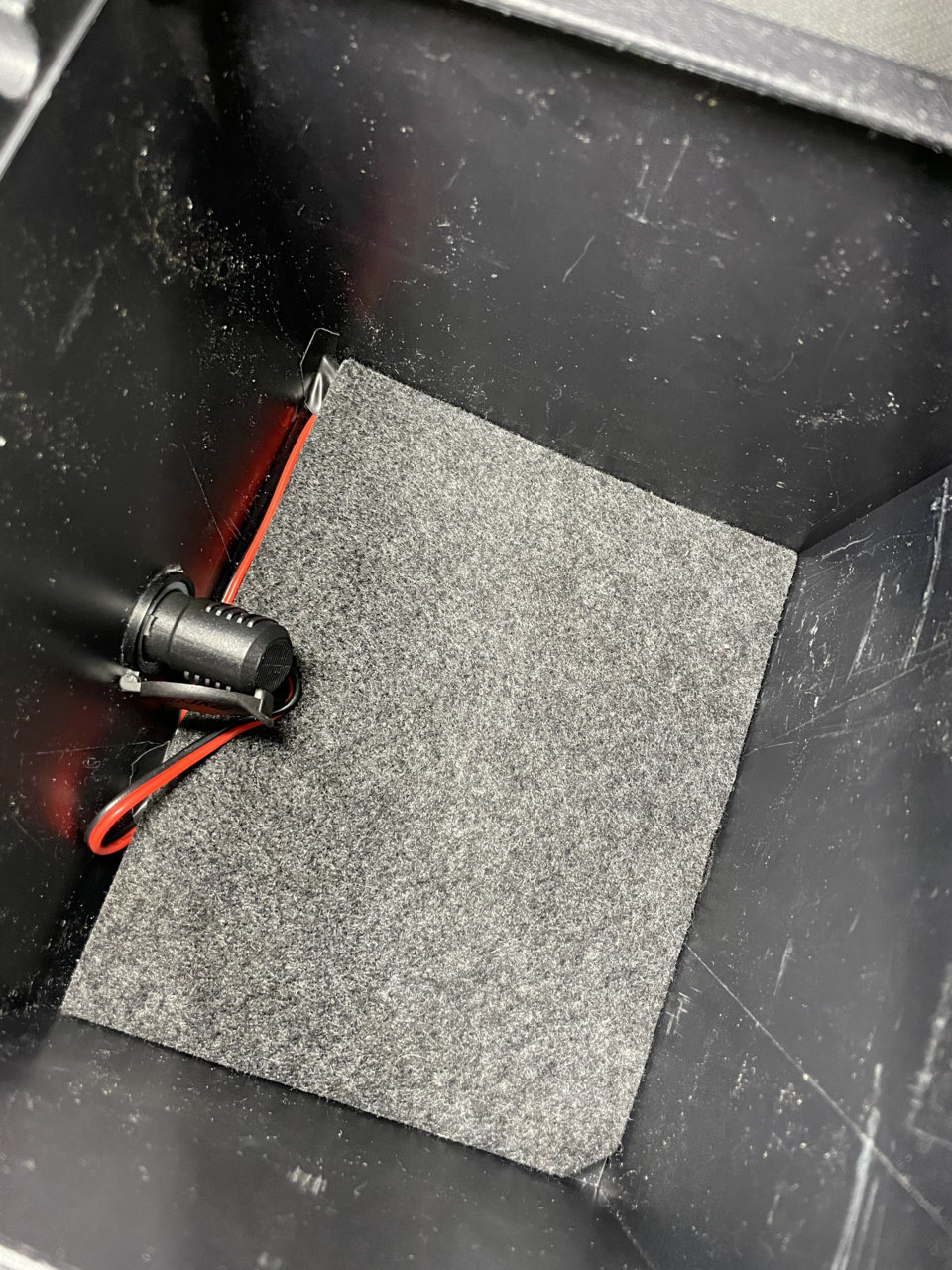

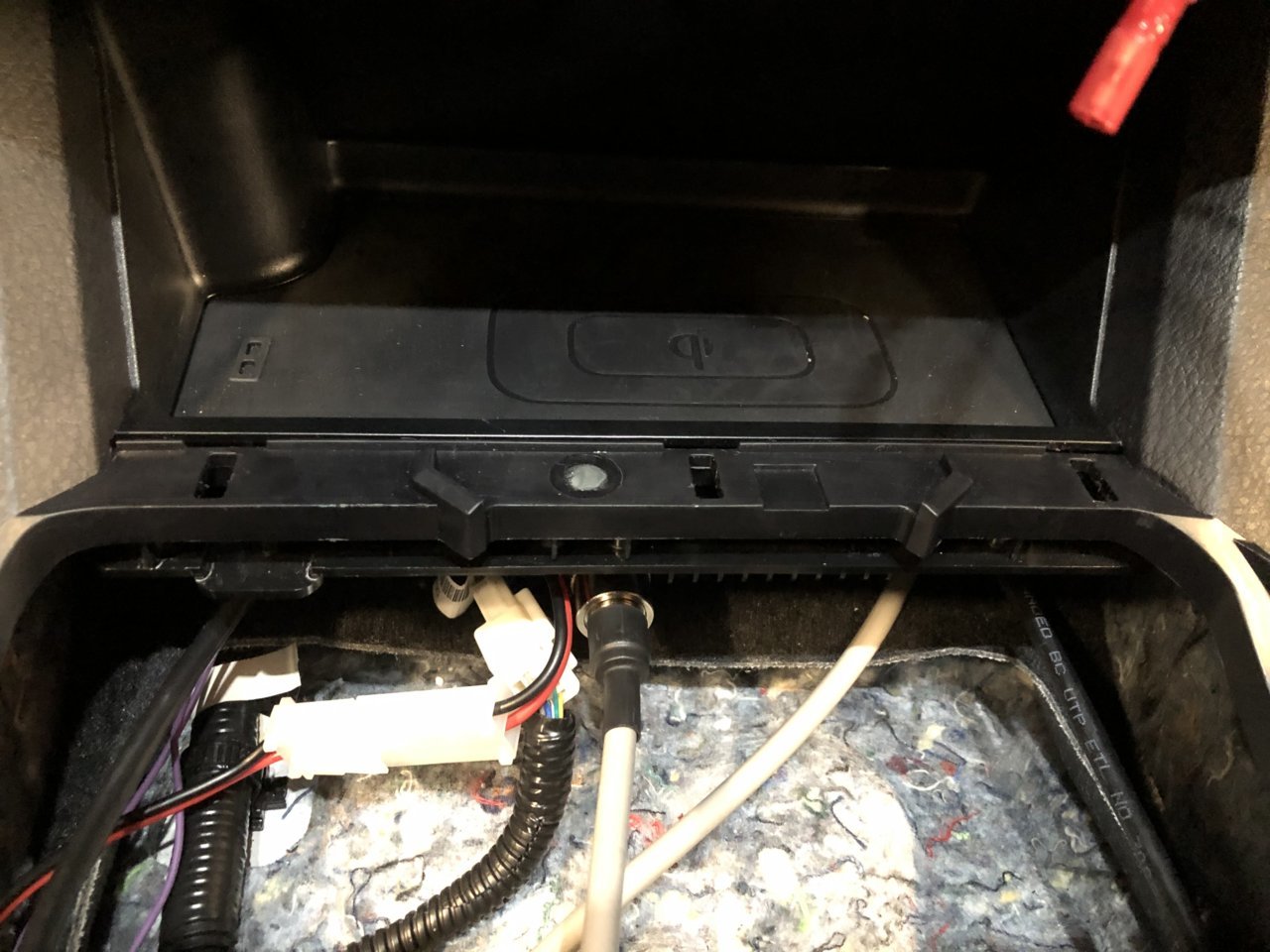

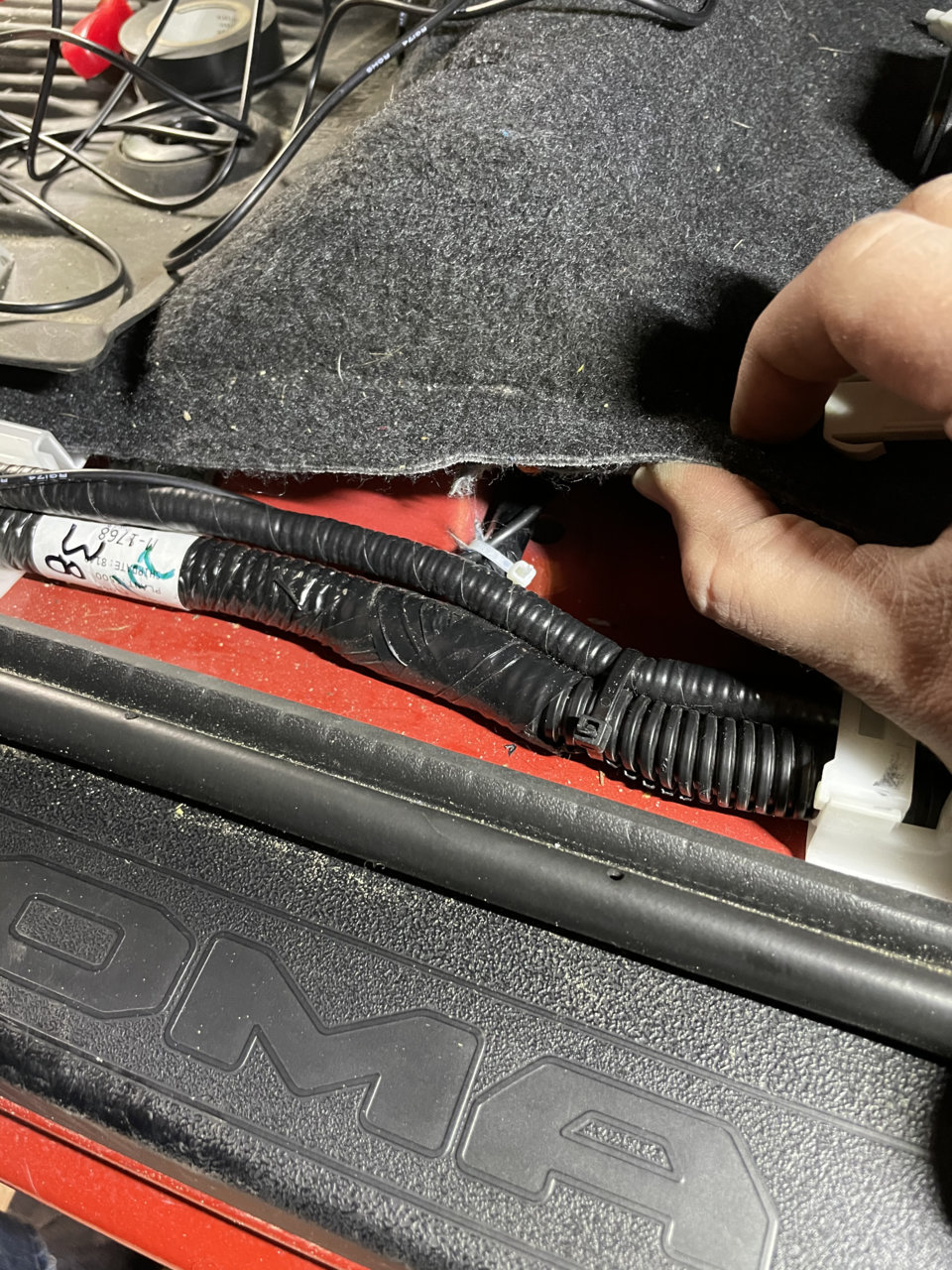

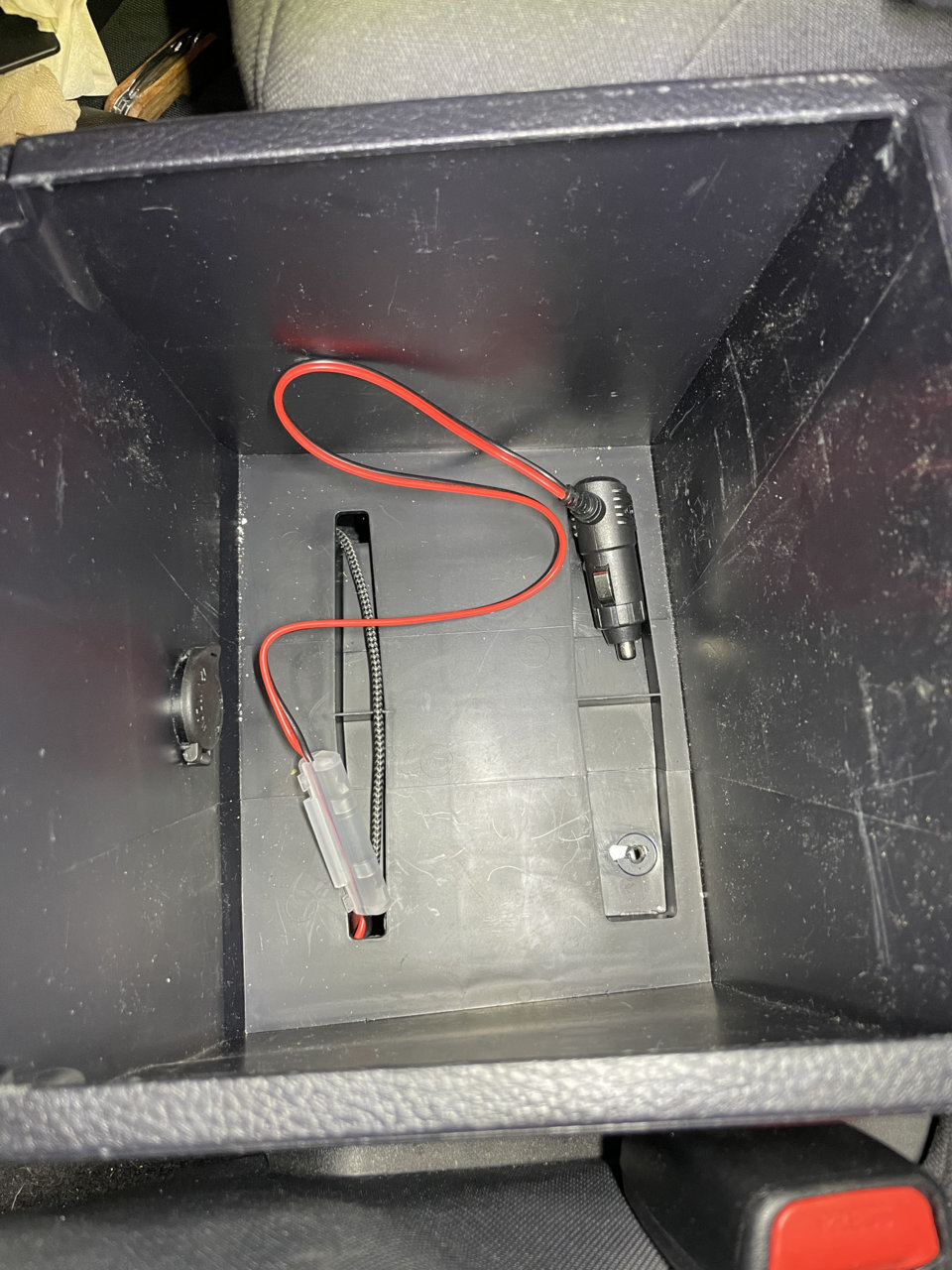

    The power cable AND a USB cable for phone charging go up into the console. The USB cord (kevlar sheath) goes back down and out the passenger side while the power is taped up and hidden nicely. Here's the progression:




    Now my wife/passenger can charger their phone in the little side cubby.

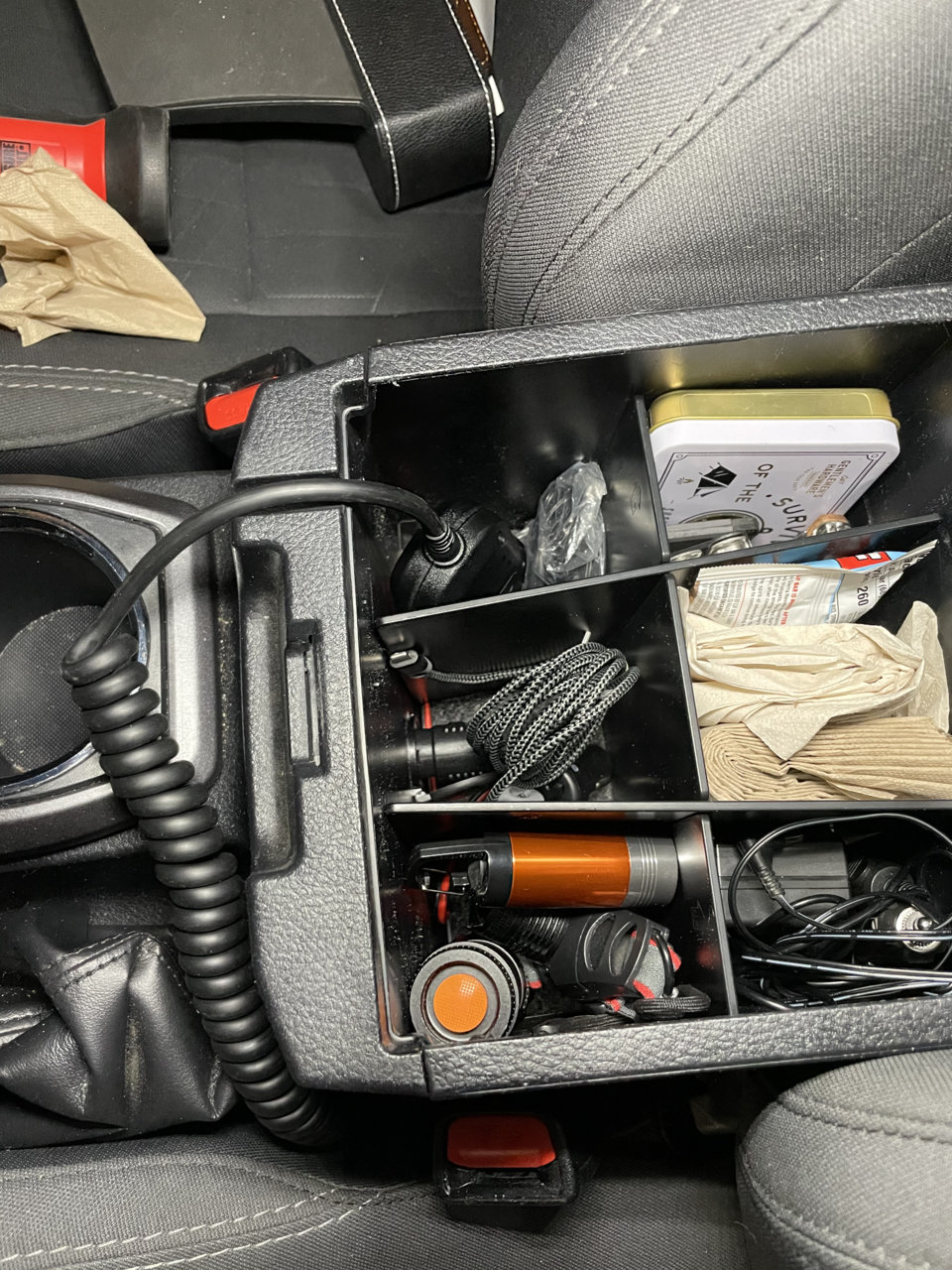

    So I like the idea of the handset being in the console like I saw on others but I actually will probably just leave it where I mounted it instead. Because It's even less messy. This means I'd have to fuss with it every time I want to close the lid.

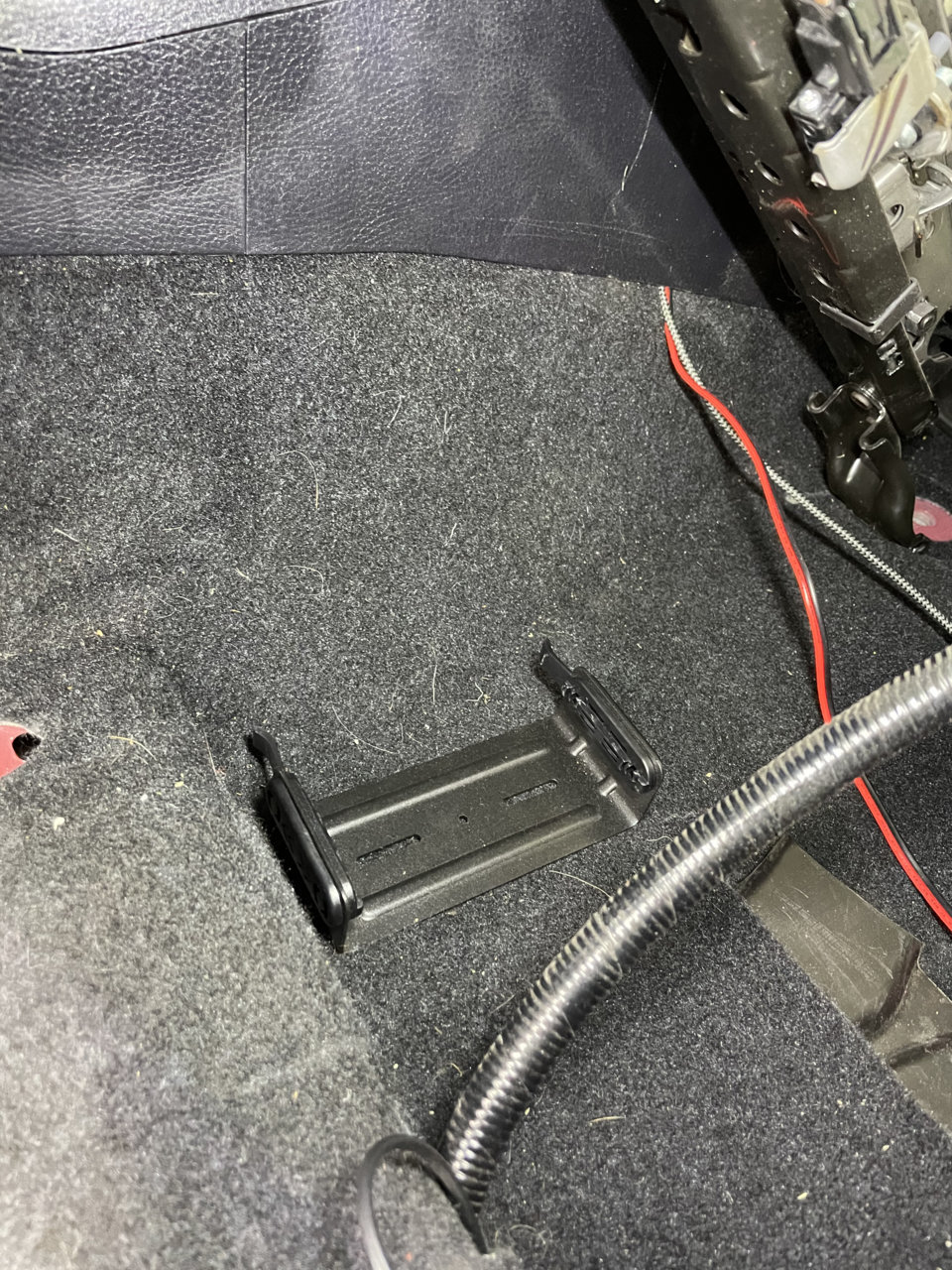

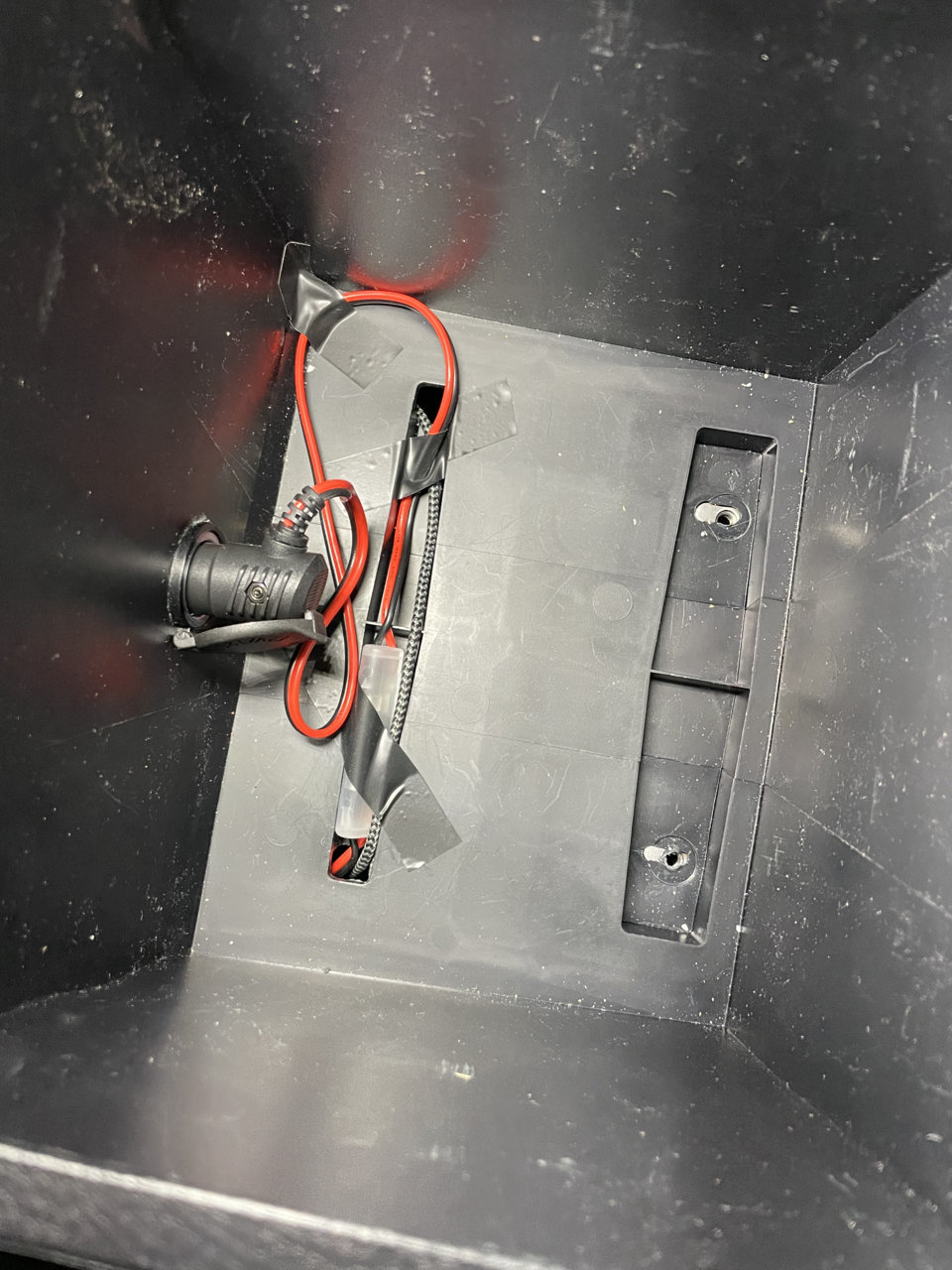

    IMG_4773.jpg IMG_4775.jpg

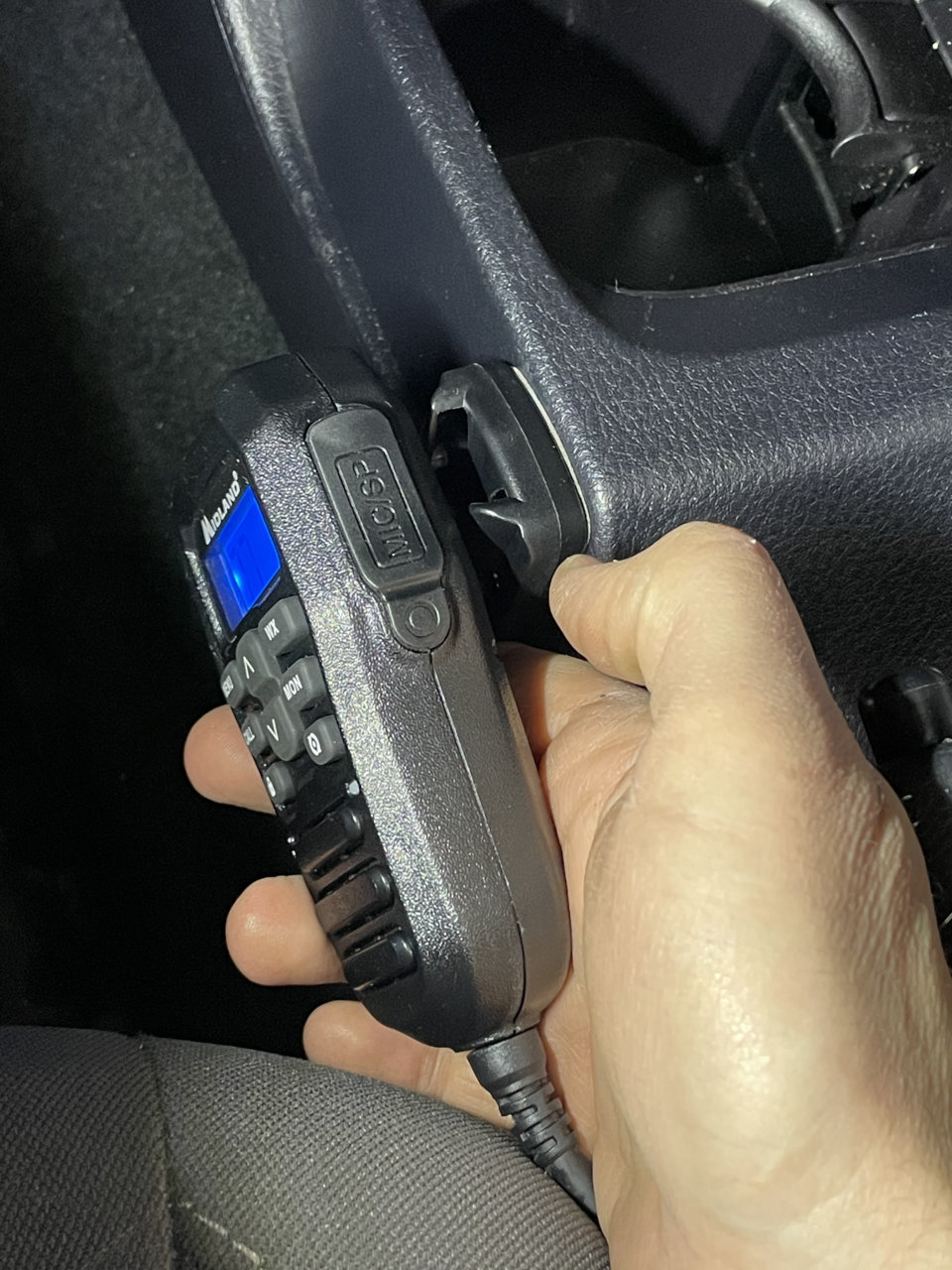

    I really enjoy that my hand fits here so I can pull it straight up and also change the volume and other buttons without looking. Might just keep it here since it blends in.


    Attached Files:

    C41n, RyanDCLB, SJBrown and 1 other person like this.
  8. Feb 27, 2021 at 8:02 PM
    #1828
    vorkuta775

    vorkuta775 Well-Known Member

    Joined:
    Apr 6, 2020
    Member:
    #323954
    Messages:
    1,925
    Gender:
    Male
    RENO,NV>TACOMA,WA
    Vehicle:
    tesla truck
    I would stick with a pl259 style IMO, NMO are good for roofs etc, but there can/may be a chance of bending some metal with the NMO mount depending on how still your antenna is, if it has a spring load in it, or can simple just bend over like most diamond and comets can. Especially on the trails not where where you are at but, trees, and high brush like manzanita , pinion can/may bend your antenna.

  9. Feb 28, 2021 at 4:10 AM
    #1829
    JEFFRPM

    JEFFRPM Well-Known Member

    Joined:
    Oct 27, 2020
    Member:
    #345011
    Messages:
    159
    Gender:
    Male
    First Name:
    Jeff
    Vehicle:
    2018 inferno Double cab long bed 4x4
    17 x 8.5 KMC wheels, yokohama 285-70-17 geolander, 3" lift, 800 watts of alpine, leer shell, front & rear cloud cameras,
    All are great ideas

    My issue is how the hell do I get coaxial cable routed from the interior to the future 3/4 hole I need to bore the center of my roof?

    It's a DCLB power sliding window & no sunroof

  10. Feb 28, 2021 at 5:01 AM
    #1830
    foy1der

    foy1der Well-Known Member

    Joined:
    Sep 18, 2016
    Member:
    #197597
    Messages:
    547
    Gender:
    Male
    First Name:
    W1FOY
    Vehicle:
    2017 OR DCLB
  11. Feb 28, 2021 at 5:06 AM
    #1831
    JEFFRPM

    JEFFRPM Well-Known Member

    Joined:
    Oct 27, 2020
    Member:
    #345011
    Messages:
    159
    Gender:
    Male
    First Name:
    Jeff
    Vehicle:
    2018 inferno Double cab long bed 4x4
    17 x 8.5 KMC wheels, yokohama 285-70-17 geolander, 3" lift, 800 watts of alpine, leer shell, front & rear cloud cameras,
    That's nice to know for whatever reason assumed these trucks had a double roof skin not just a single outer one.

  12. Feb 28, 2021 at 5:07 AM
    #1832
    foy1der

    foy1der Well-Known Member

    Joined:
    Sep 18, 2016
    Member:
    #197597
    Messages:
    547
    Gender:
    Male
    First Name:
    W1FOY
    Vehicle:
    2017 OR DCLB
    Nope. The hardest part is convincing yourself that it's just sheet metal and you've drilled that stuff often enough.

    C41n and k8md like this.
  13. Feb 28, 2021 at 5:13 AM
    #1833
    JEFFRPM

    JEFFRPM Well-Known Member

    Joined:
    Oct 27, 2020
    Member:
    #345011
    Messages:
    159
    Gender:
    Male
    First Name:
    Jeff
    Vehicle:
    2018 inferno Double cab long bed 4x4
    17 x 8.5 KMC wheels, yokohama 285-70-17 geolander, 3" lift, 800 watts of alpine, leer shell, front & rear cloud cameras,
    Yea & not only that NEVER use a hole saw those things make the hole to big, use a Rotobroach there a helova lot more accurate in sheet metal.

    C41n, Durango95 and k8md like this.
  14. Feb 28, 2021 at 5:25 AM
    #1834
    SJBrown

    SJBrown Well-Known Member

    Joined:
    Aug 23, 2020
    Member:
    #338549
    Messages:
    154
    Gender:
    Male
    Vehicle:
    2019 Bearded SR AC 4x4
    I saw a video that said wrapping up your cable that way could cause problems. I'm certainly no expert...

    CmdrTrekk, Doc62 and GarlicFarts like this.
  15. Feb 28, 2021 at 6:40 AM
    #1835
    '16goingon'17

    '16goingon'17 Well-Known Member

    Joined:
    May 26, 2016
    Member:
    #188003
    Messages:
    205
    Gender:
    Male
    First Name:
    Trailslayer
    NWA (Arkansas)
    Vehicle:
    2017 TRDOR 4x4 DCSB MT
    JBA STD UCAs. 6112/5160 @6/5. Wheelers 1.5" 3AAL with Superbumps. BROG molle headrest covers. GMRS & Ham radios with roof-mounted NMO Laird Phantom antenna. Thinkware front/rear dashcams, FreshMexicanTaco's DMM, Meso's dome/map LEDs & Flipfob, Swingcase on driver side.
    I was one of the first people to buy and install the 275 and it’s a great entry-level radio if you dont need to reach repeaters with different PL tones for TX/RX.

    Using what you got, you can make this get much better TX/RX by looping the antenna feedline right under the antenna like this.

    Next, cut off the DC adapter and run the red hot wire through the firewall all the way to the battery so the fuse is close to the battery. Cut the black negative as short as possible so it can reach the seat mounting bolt and install it on the post with a ring terminal.

    If you get more into radio, eventually you’ll realize that the only way to maximize effectiveness is to drill a hole w a proper NMO holesaw in dead center of roof for the antenna and install a proper NMO mount and antenna tuned to the GMRS center frequency of 464.6MHz (465 is great).

    RyanDCLB and SJBrown like this.
  16. Feb 28, 2021 at 7:37 AM
    #1836
    HisDad

    HisDad Well-Known Member

    Joined:
    Mar 30, 2015
    Member:
    #152127
    Messages:
    713
    Gender:
    Male
    Massachusetts
    Vehicle:
    2019 Cement Tacoma SR5 Double Cab
    An antenna hole saw is even better. It's built to limit how deep the hole is so you don't poke through the head liner. Also, it has a rim that strips the paint uniformly around the hole for proper grounding.


    k8md and SJBrown like this.
  17. Feb 28, 2021 at 8:21 AM
    #1837
    JLor83

    JLor83 Active Member

    Joined:
    Feb 6, 2021
    Member:
    #355216
    Messages:
    33
    Gender:
    Male
    First Name:
    Mike
    Vehicle:
    TRD offroad
    Correct. As much of a pain in the ass it is to not coil it up like that, your better off routing around the interior. Just lift up carpet and pop some trim panels up and you will get much better results.

    GarlicFarts likes this.
  18. Feb 28, 2021 at 10:23 AM
    #1838
    Doc62

    Doc62 Well-Known Member

    Joined:
    Nov 7, 2020
    Member:
    #346138
    Messages:
    268
    Gender:
    Male
    First Name:
    Dave
    SE Pennsylvania
    Vehicle:
    2021 Tacoma TRD Off Road, 2019 Sahara
    You are correct. The antenna line should either be cut or run around the cab. Coiling it up like that can cause it to act like an induction coil.

    CmdrTrekk likes this.
  19. Feb 28, 2021 at 10:49 AM
    #1839
    GarlicFarts

    GarlicFarts Bang Ding Ow

    Joined:
    Dec 12, 2019
    Member:
    #313138
    Messages:
    6,004
    Gender:
    Male
    Lil Rhody
    Vehicle:
    2020 White DCSB TRD OR
    SOS bolt-on sliders In-cab sleeping platform Soft Topper
    Hey @5nahalf dont try to remove that cat5 switch blank. That bitch does NOT want to come out. Broke mine getting it out. Back to the old setup of just having it come out the side near my foot. Once I use it for this road trip it’ll be the deciding factor of if I keep it or just ditch the thing.

    switch blank came out a okay. That Ethernet pass through for the cb did not.

  20. Feb 28, 2021 at 10:59 AM
    #1840
    5nahalf

    5nahalf I build dumb things

    Joined:
    Sep 22, 2018
    Member:
    #267058
    Messages:
    6,445
    Gender:
    Male
    First Name:
    Erik
    Minnesota
    Vehicle:
    2018 Inferno Longbed

    OH dang, I just left mine in all the time.
