Clean VHF/CB radio installs

Discussion in '3rd Gen. Tacomas (2016+)' started by FoleySwampPlotts, Feb 10, 2016.

  1. Apr 8, 2021 at 10:01 AM
    #1921
    5nahalf

    5nahalf I build dumb things

    Joined:
    Sep 22, 2018
    Member:
    #267058
    Messages:
    6,466
    Gender:
    Male
    First Name:
    Erik
    Minnesota
    Vehicle:
    2018 Inferno Longbed

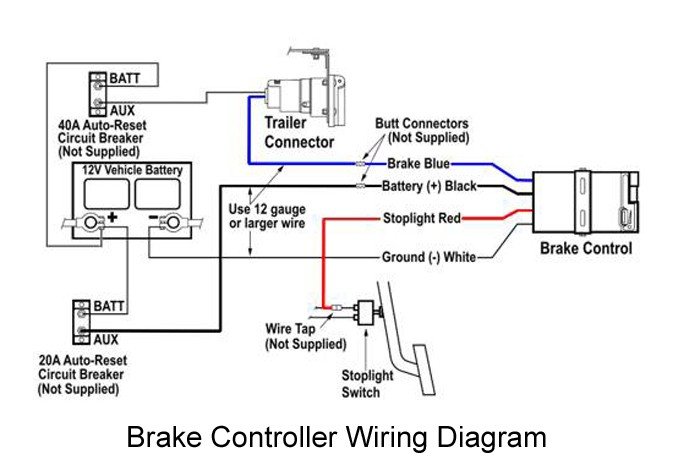

    So there are 2 ways you can do it. You can get a trailer brake controller harness. There is clean power for the built in trailer brake behind the kick panel or you can run wires through the firewall to the battery.

    I need to redo my wires, and I intend to use the trailer brake harness and a relay that turns it on and off with the key.

  2. Apr 8, 2021 at 10:34 AM
    #1922
    Doc62

    Doc62 Well-Known Member

    Joined:
    Nov 7, 2020
    Member:
    #346138
    Messages:
    271
    Gender:
    Male
    First Name:
    Dave
    SE Pennsylvania
    Vehicle:
    2021 Tacoma TRD Off Road, 2019 Sahara
    I would run power from the battery through the firewall to the radio. I’ve done that for all of my mobile radio installs whether it was 2m/440 or HF. Also fuse both the the ground and power wires.

    vicali likes this.
  3. Apr 8, 2021 at 11:00 AM
    #1923
    vicali

    vicali Chilling at YMH

    Joined:
    May 20, 2010
    Member:
    #37503
    Messages:
    1,947
    Gender:
    Male
    First Name:
    mike
    Kam,BC
    Vehicle:
    2017 TRD Sport 1D6
    Clean and simple, plus eliminates any potential of ground loops.
    Decent radios have auto shut-off, and can be run without the truck on..

  4. Apr 8, 2021 at 11:14 AM
    #1924
    GarlicFarts

    GarlicFarts Bang Ding Ow

    Joined:
    Dec 12, 2019
    Member:
    #313138
    Messages:
    6,037
    Gender:
    Male
    Lil Rhody
    Vehicle:
    2020 White DCSB TRD OR
    SOS bolt-on sliders In-cab sleeping platform Soft Topper
    @Naumoff42

    Couple notes

    The brake controller is always hot, so yeah you will want to have a relay with that. Secondly, it does also occupy the brake controller so if you decide you want to tow a trailer, you will need to redo it.


    It would seem the power is clean but I was getting a hell of a time trying this with a CMX760 a lot of static and a lot of feedback, not sure where it came from since I ripped the system out instead of trying to hunt it down - didn't have a big desire to keep CB after using it for a while.

  5. Apr 8, 2021 at 11:16 AM
    #1925
    5nahalf

    5nahalf I build dumb things

    Joined:
    Sep 22, 2018
    Member:
    #267058
    Messages:
    6,466
    Gender:
    Male
    First Name:
    Erik
    Minnesota
    Vehicle:
    2018 Inferno Longbed

    The CMX760 is very sensitive to antenna grounds. I spent weeks trying to get a good ground on mine so it worked right. Finally I just bolted the mount right to the metal body and it was good.

  6. Apr 8, 2021 at 11:31 AM
    #1926
    Naumoff42

    Naumoff42 Well-Known Member

    Joined:
    Jun 11, 2016
    Member:
    #189282
    Messages:
    674
    Gender:
    Male
    Ohio
    Vehicle:
    2015 TRD Offroad
    Thanks for all the info guys. All of this stuff is still very new to me. I'm probably going to just run it through to the battery since that seems to be the easiest source of clean power. I think I'll have to splice in some extra wire to get it there but that's okay.

  7. Apr 8, 2021 at 11:34 AM
    #1927
    GarlicFarts

    GarlicFarts Bang Ding Ow

    Joined:
    Dec 12, 2019
    Member:
    #313138
    Messages:
    6,037
    Gender:
    Male
    Lil Rhody
    Vehicle:
    2020 White DCSB TRD OR
    SOS bolt-on sliders In-cab sleeping platform Soft Topper
    https://www.amazon.com/MNJ-Motor-Ba...t=&hvlocphy=9002249&hvtargid=pla-681144456385

    CliffyDeuce likes this.
  8. Apr 9, 2021 at 7:32 AM
    #1928
    Naumoff42

    Naumoff42 Well-Known Member

    Joined:
    Jun 11, 2016
    Member:
    #189282
    Messages:
    674
    Gender:
    Male
    Ohio
    Vehicle:
    2015 TRD Offroad
    Punching through the firewall - I assume the best place is just to go through one of the little empty grommets just above the fuse box wiring on either side? I'm not really seeing much else

  9. Apr 9, 2021 at 7:50 AM
    #1929
    GarlicFarts

    GarlicFarts Bang Ding Ow

    Joined:
    Dec 12, 2019
    Member:
    #313138
    Messages:
    6,037
    Gender:
    Male
    Lil Rhody
    Vehicle:
    2020 White DCSB TRD OR
    SOS bolt-on sliders In-cab sleeping platform Soft Topper
    Just use the wire pack already going through near the drivers footwell.

    HisDad and k8md like this.
  10. Apr 9, 2021 at 3:22 PM
    #1930
    mrCanoehead

    mrCanoehead Well-Known Member

    Joined:
    Nov 9, 2017
    Member:
    #235493
    Messages:
    688
    Gender:
    Male
    Ottawa
    Vehicle:
    2018 DCSB Sport manual 3.5 l
    I'm not sure if the gen 2 has it, but there is a pretty big hole above the passenger footwell for an A/C drain on the gen 3. You can easily stuff a pretty thick coax cable through it without interfering with the drain function. I'm going to go out that hole with two coax cables, and up the passenger side A pillar on the outside to the roof.

    My brain box will be under the passenger seat so that hole works well in my case.

  11. Apr 9, 2021 at 3:37 PM
    #1931
    JdevTac

    JdevTac Bawnjourno

    Joined:
    Jan 8, 2012
    Member:
    #70234
    Messages:
    5,312
    Gender:
    Male
    First Name:
    Josh
    GA/MD
    Vehicle:
    2013 DC TRD-OR 4x4 Pyrite Mica (sold)
    Just use the 3/4” grommet by the booster. You can pop it out, punch a hole in the carpet and run your wire through.

    I’m not a fan of making a cut in the irreplaceable main firewall boot until I’ve used up all my other grommets. There is a nipple on the main boot you can snip off and run wire through but it’s still a pain in the ass. The times I’ve done it was with like 8awg and that needed some wire lube.

  12. Apr 9, 2021 at 8:58 PM
    #1932
    Naumoff42

    Naumoff42 Well-Known Member

    Joined:
    Jun 11, 2016
    Member:
    #189282
    Messages:
    674
    Gender:
    Male
    Ohio
    Vehicle:
    2015 TRD Offroad
    I ended up feeding it through with the rest of the wiring harness. Somehow when I was looking around under the dash I totally missed it when I first looked.

    Still need to tune the antenna but sent and received signal today out about 3 miles in semi residential areas. I do still need to change my wiring a little bit since I have it all connected straight to the battery and don't have a fuse on the negative wire yet.

  13. Apr 10, 2021 at 8:27 PM
    #1933
    Naumoff42

    Naumoff42 Well-Known Member

    Joined:
    Jun 11, 2016
    Member:
    #189282
    Messages:
    674
    Gender:
    Male
    Ohio
    Vehicle:
    2015 TRD Offroad
    I'm using a uniden 505xl wondering what a guy has to buy to get audio played through the handset speaker instead of the unit itself.

  14. Apr 18, 2021 at 8:58 PM
    #1934
    paranoiccritic

    paranoiccritic New Member

    Joined:
    Apr 18, 2021
    Member:
    #363136
    Messages:
    1
    HAM radio install!

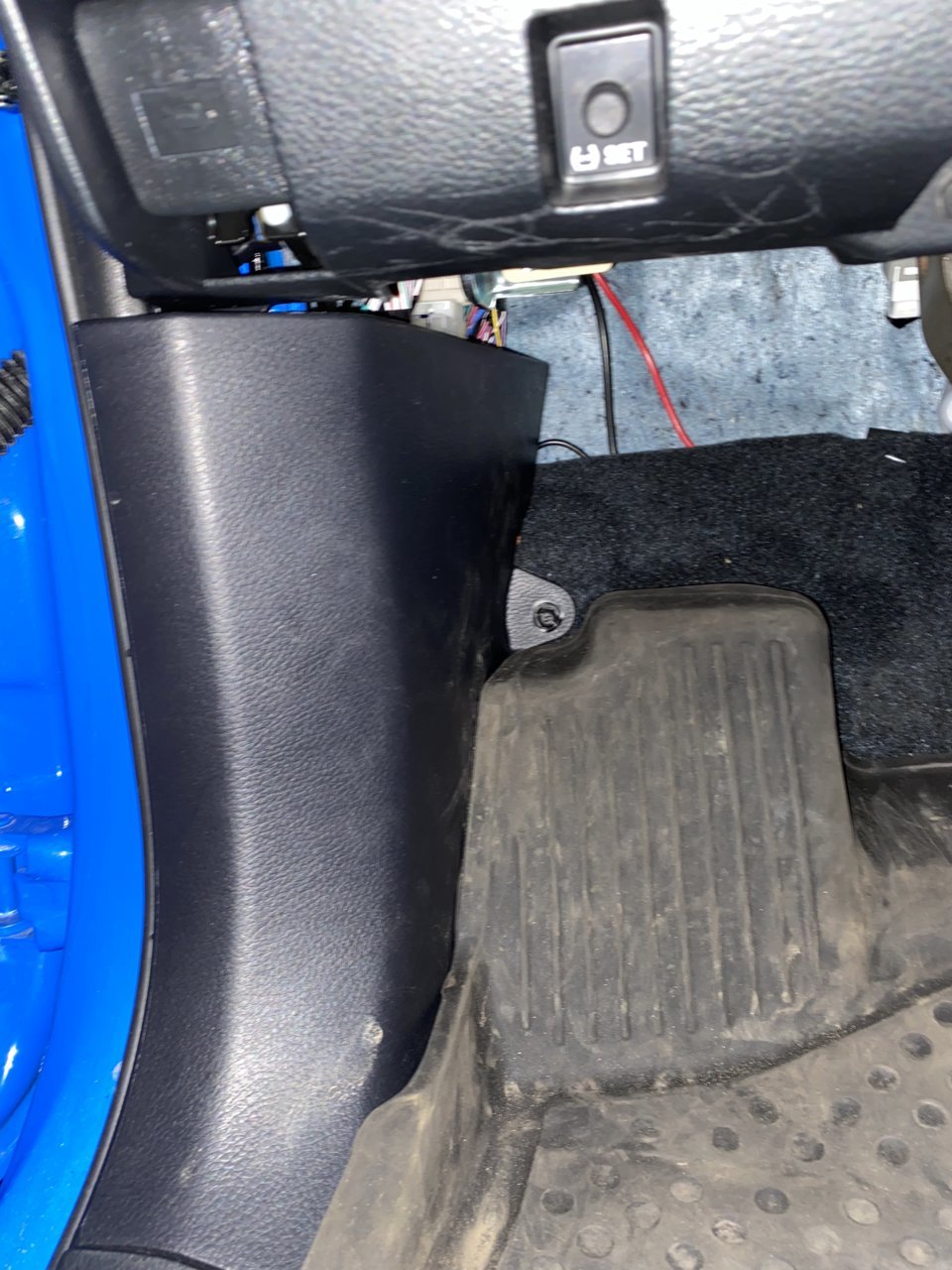

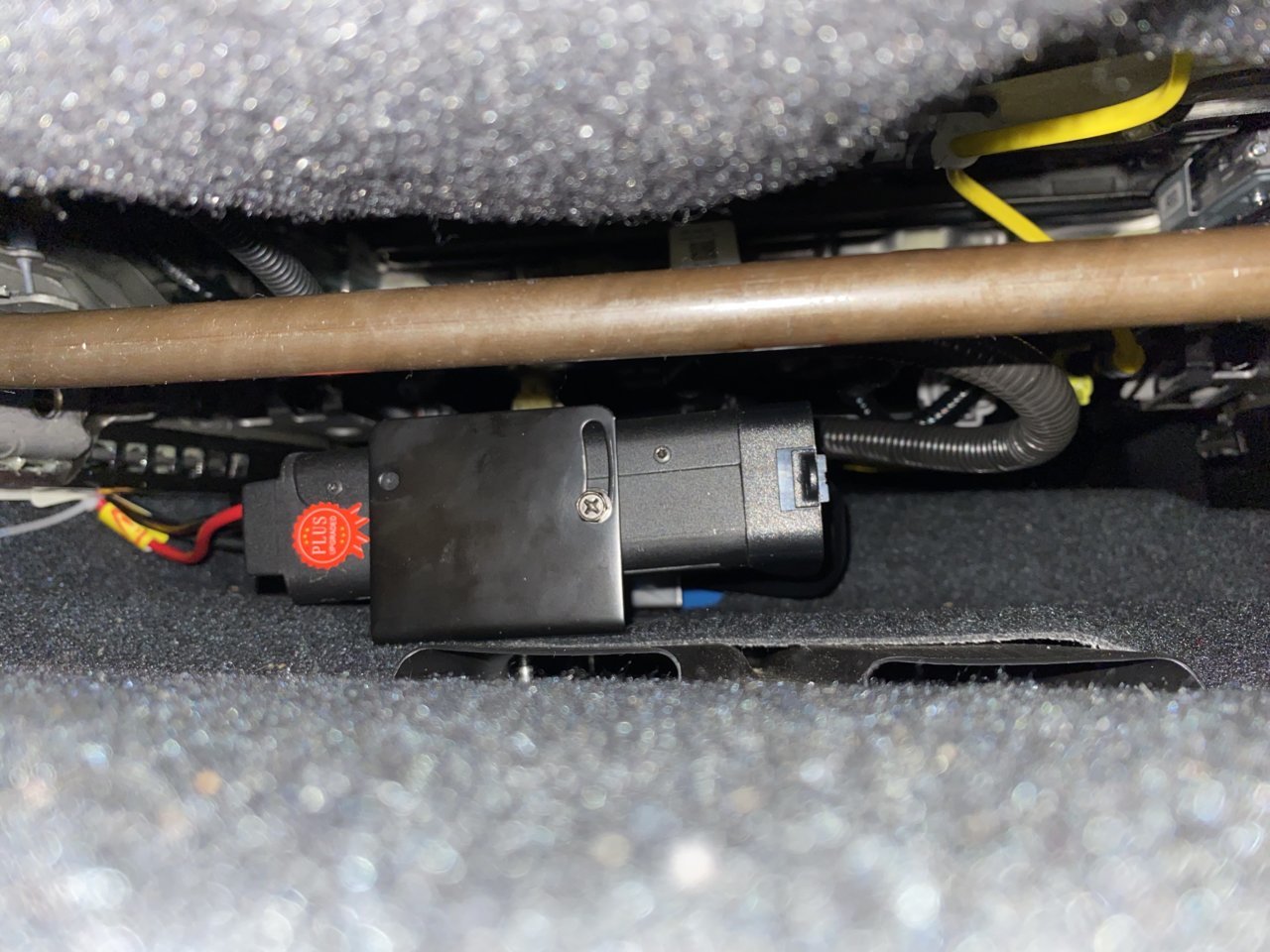

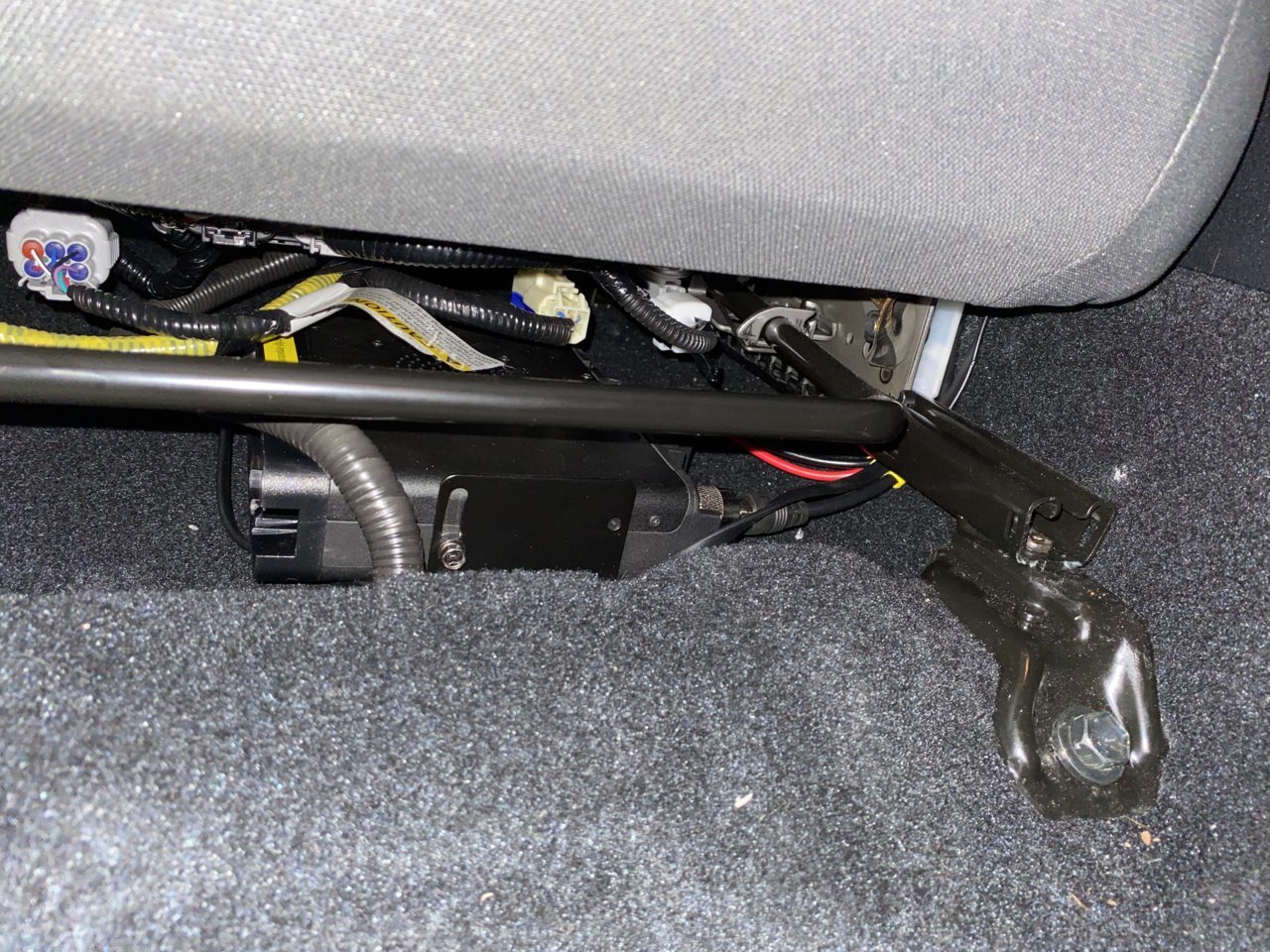

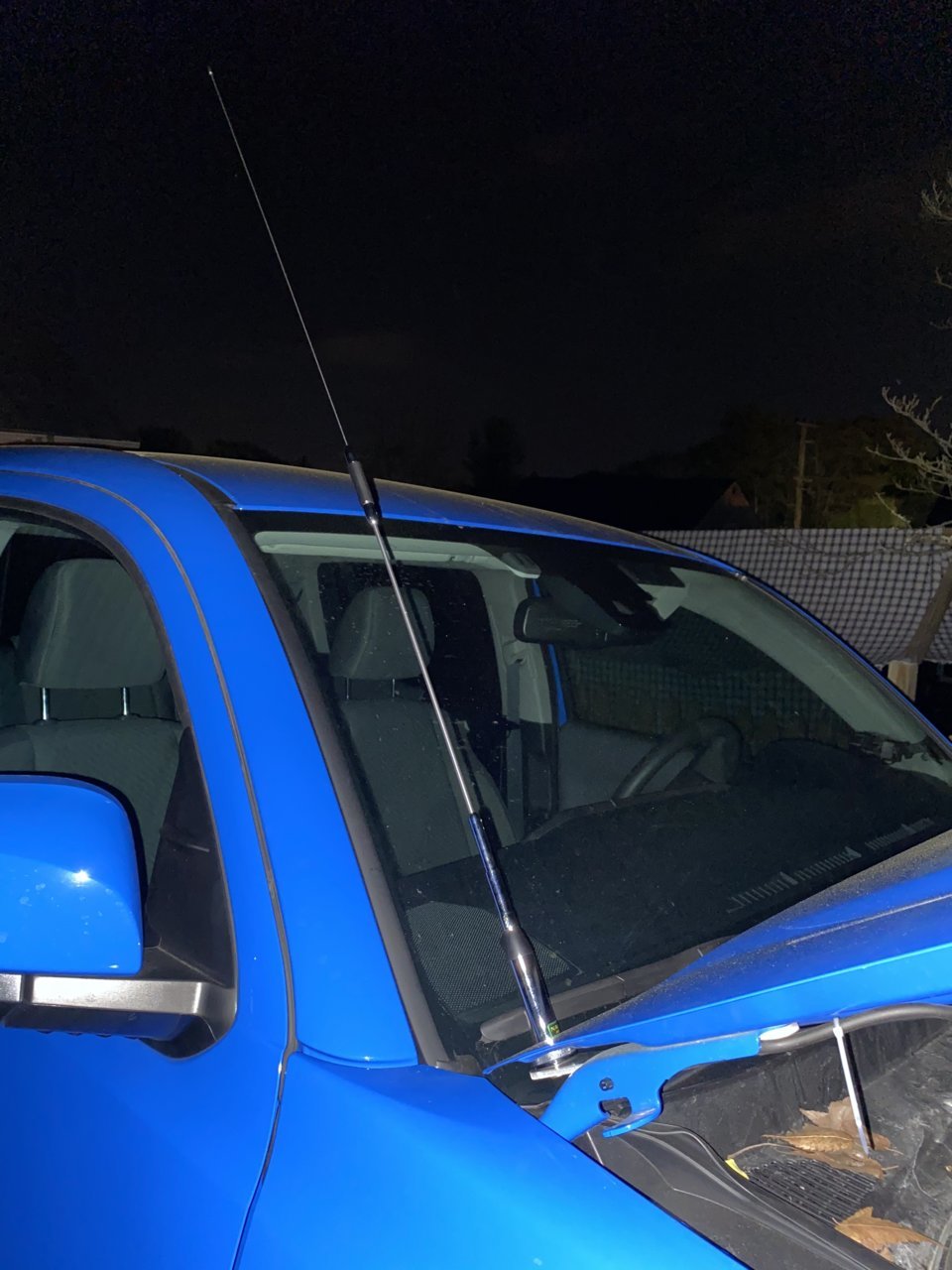

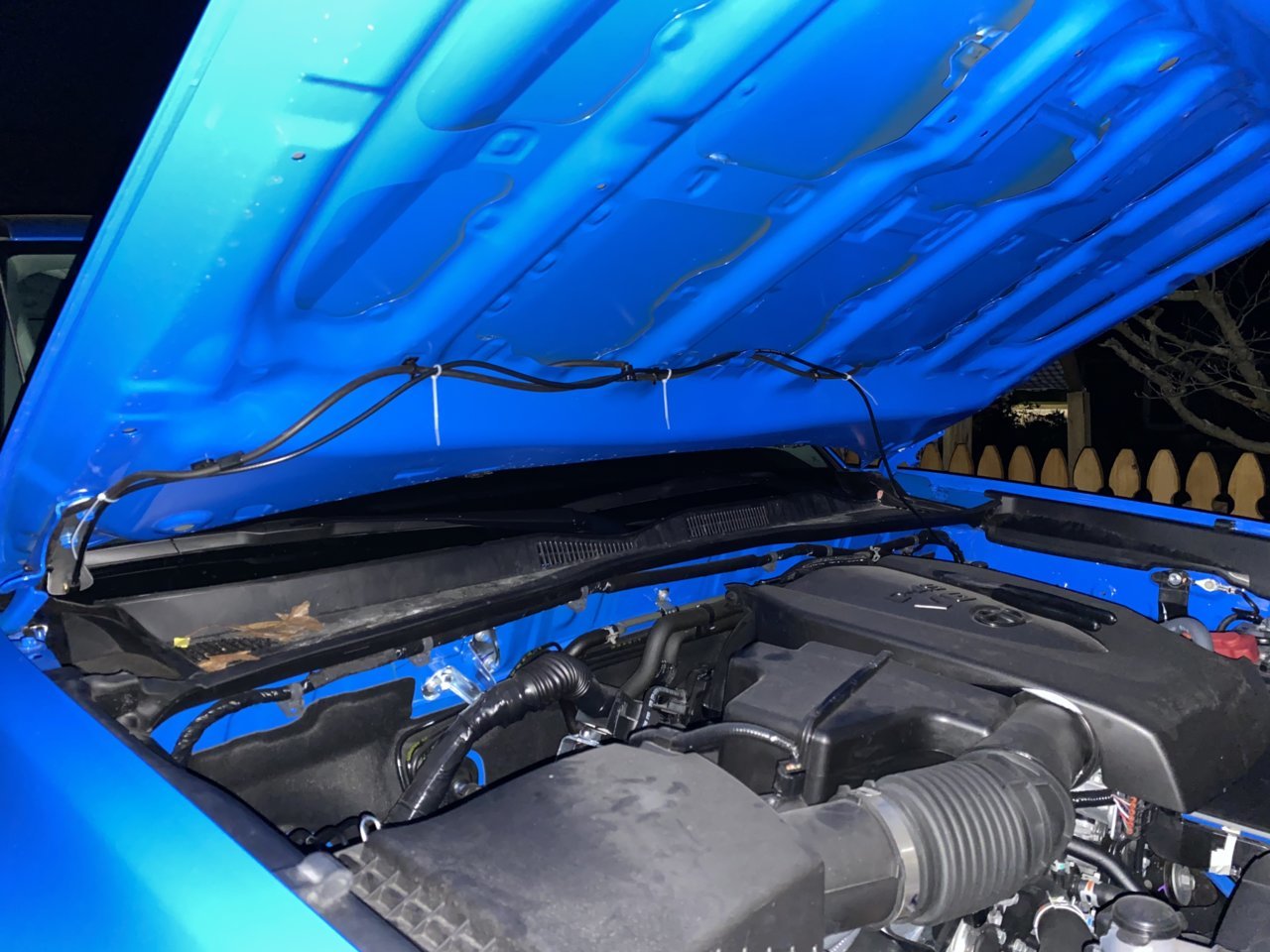

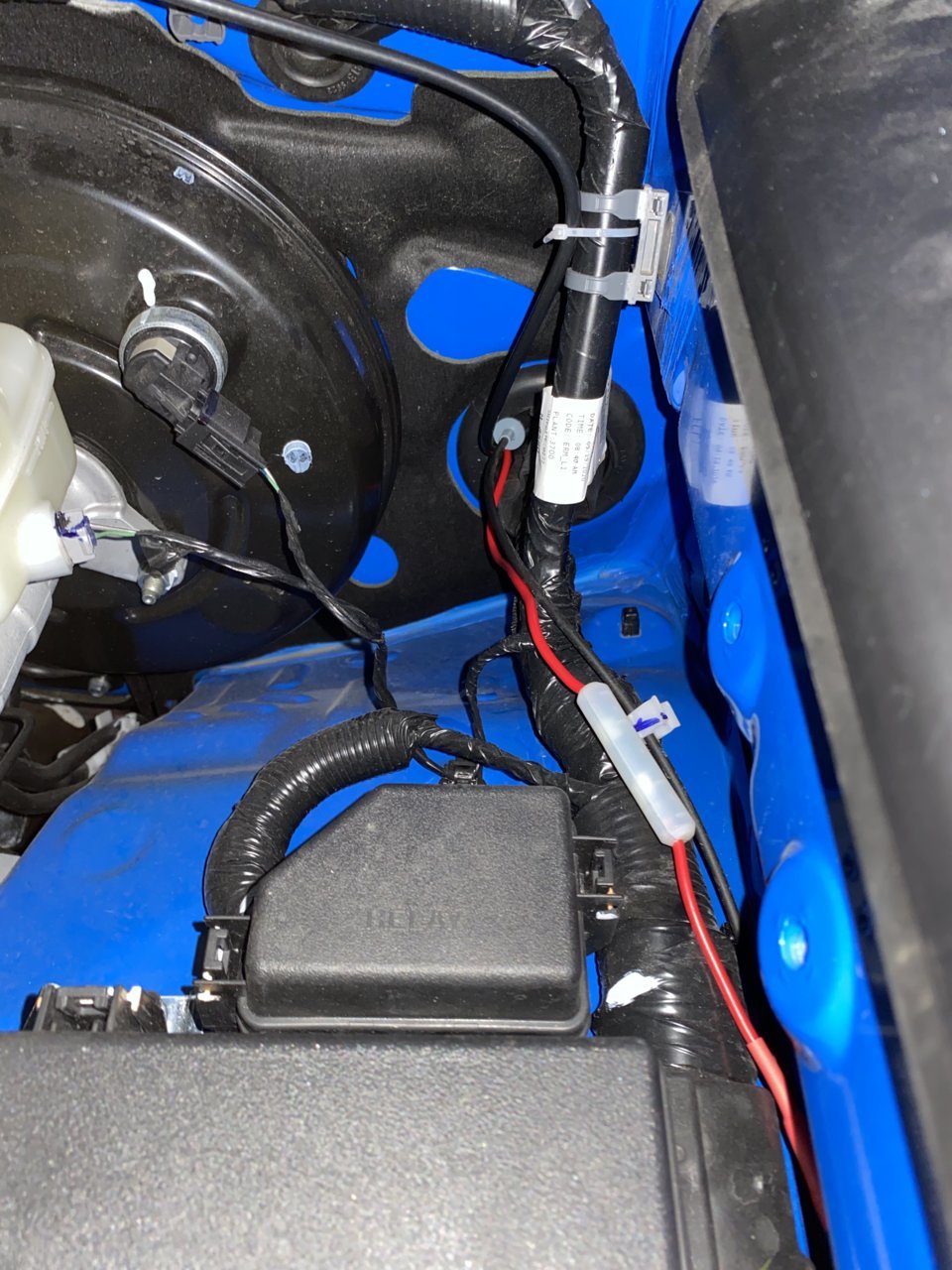

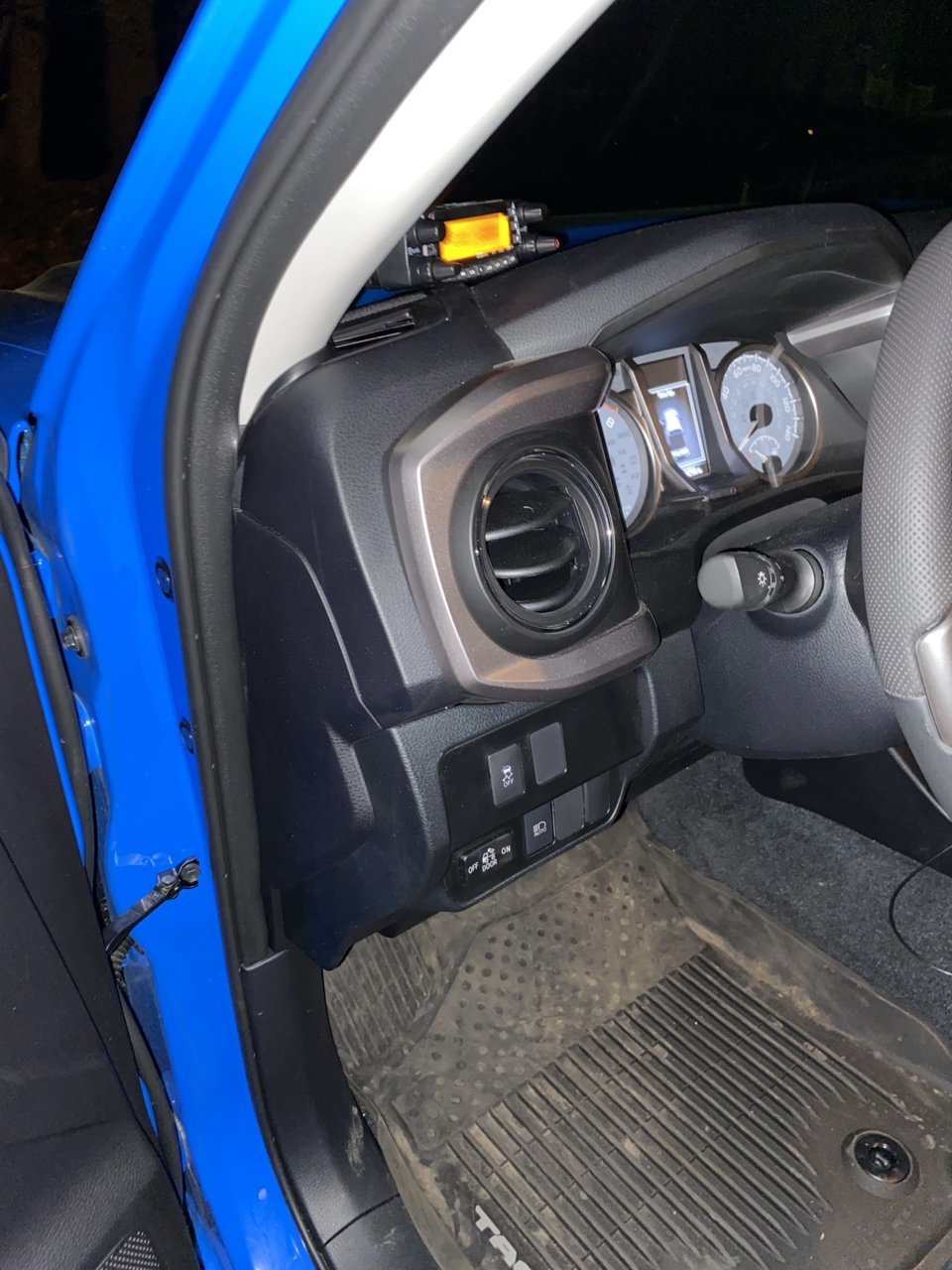

    With lots of googling, youtube surfing, and reading through this enormous thread, I put together a clean Ham radio install in a 2021 SR5 Tacoma :) Antenna hood mount from Victory 4x4, Nagoya NMO-200A 38.5" dual-band antenna, TYT TH-9800 quad-band radio. I punched through the large cable trunk grommet on the driver's side, tied the neutral into the neutral screw under the in-cab drivers-side fuse box, and tied the hot line directly into the positive pole of the battery. Control unit mounted to the windshield using a suction mount, and the radio unit mounted under the passenger's seat. After install, I tested the system and used a local FM simplex channel (2m) to make my second contact EVER - this rig is going to do good things :)


  15. May 8, 2021 at 7:08 PM
    #1935
    Scrill

    Scrill Member

    Joined:
    Dec 26, 2019
    Member:
    #314277
    Messages:
    7
    Vehicle:
    2019 TRDOR

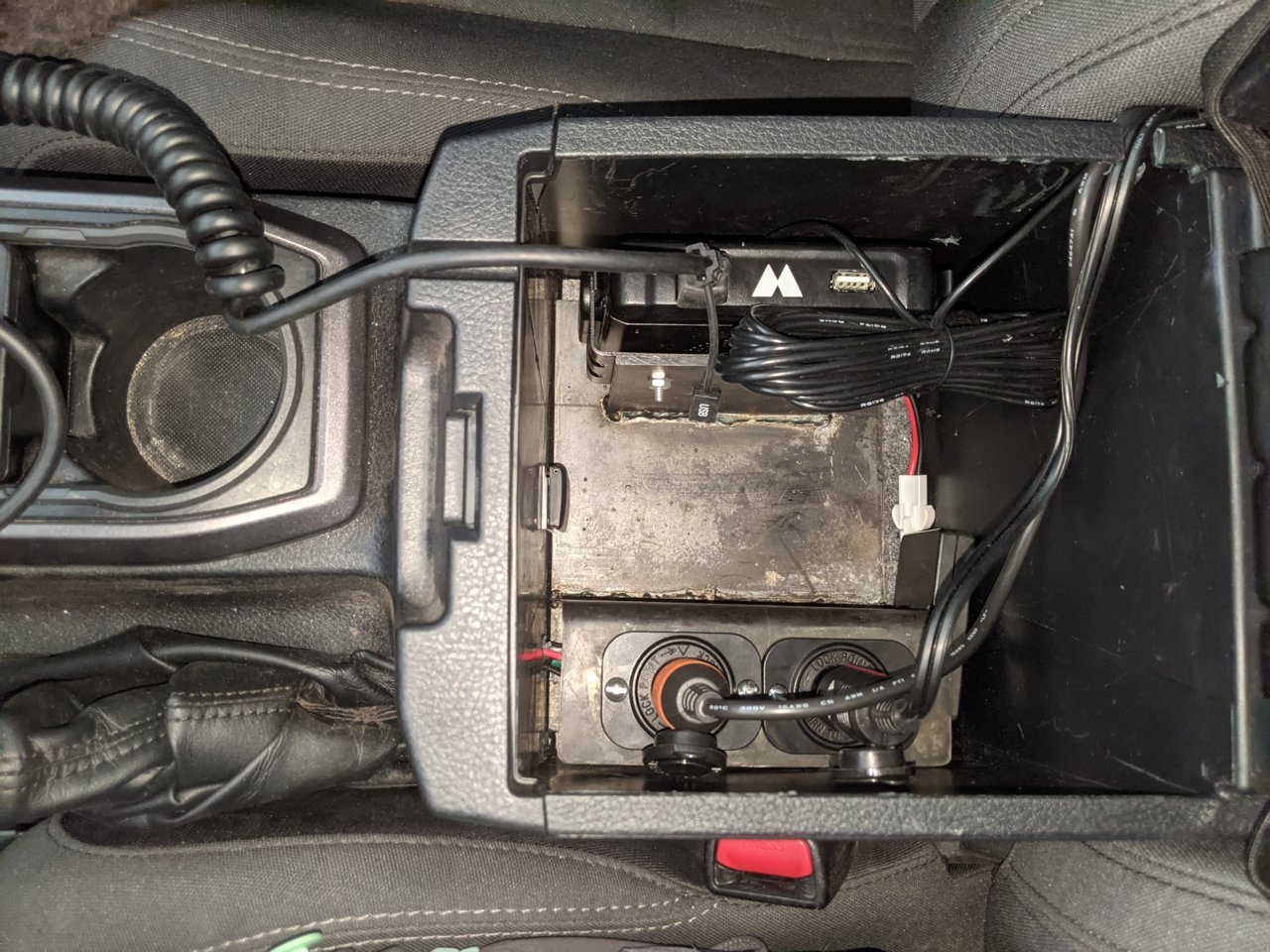

    foy1der likes this.
  16. May 9, 2021 at 5:37 AM
    #1936
    foy1der

    foy1der Well-Known Member

    Joined:
    Sep 18, 2016
    Member:
    #197597
    Messages:
    549
    Gender:
    Male
    First Name:
    W1FOY
    Vehicle:
    2017 OR DCLB
    Nice and clean, I like it. There's a chance that it might be overbuilt. :rofl:

    TacoManOne and Scrill like this.
  17. May 12, 2021 at 4:24 PM
    #1937
    AlHago

    AlHago Well-Known Member

    Joined:
    Jan 30, 2019
    Member:
    #281295
    Messages:
    129
    Gender:
    Male
    First Name:
    Alan
    Huntsville, AL
    Vehicle:
    12 DCLB MGM
    Stock as all get out.

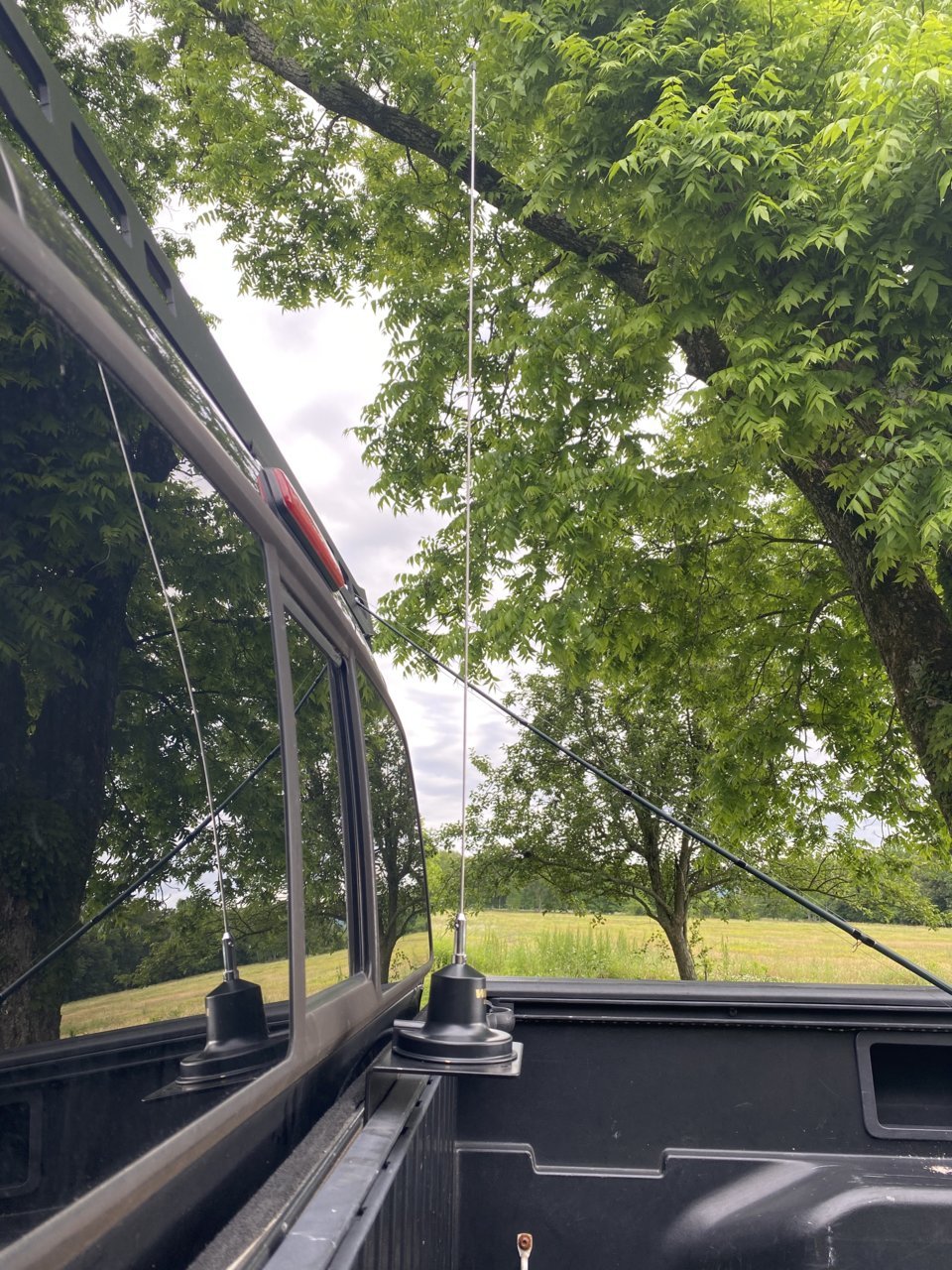

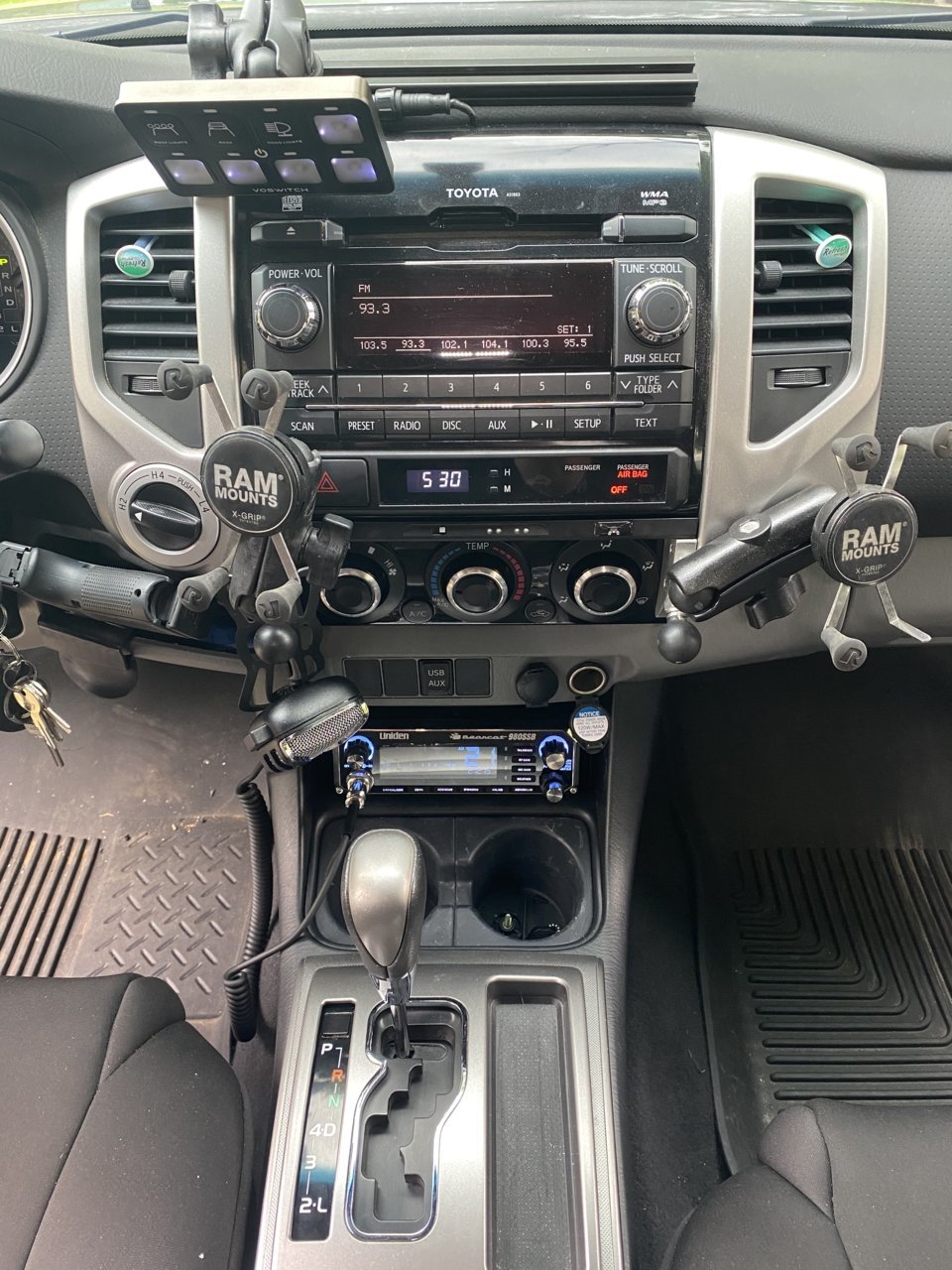

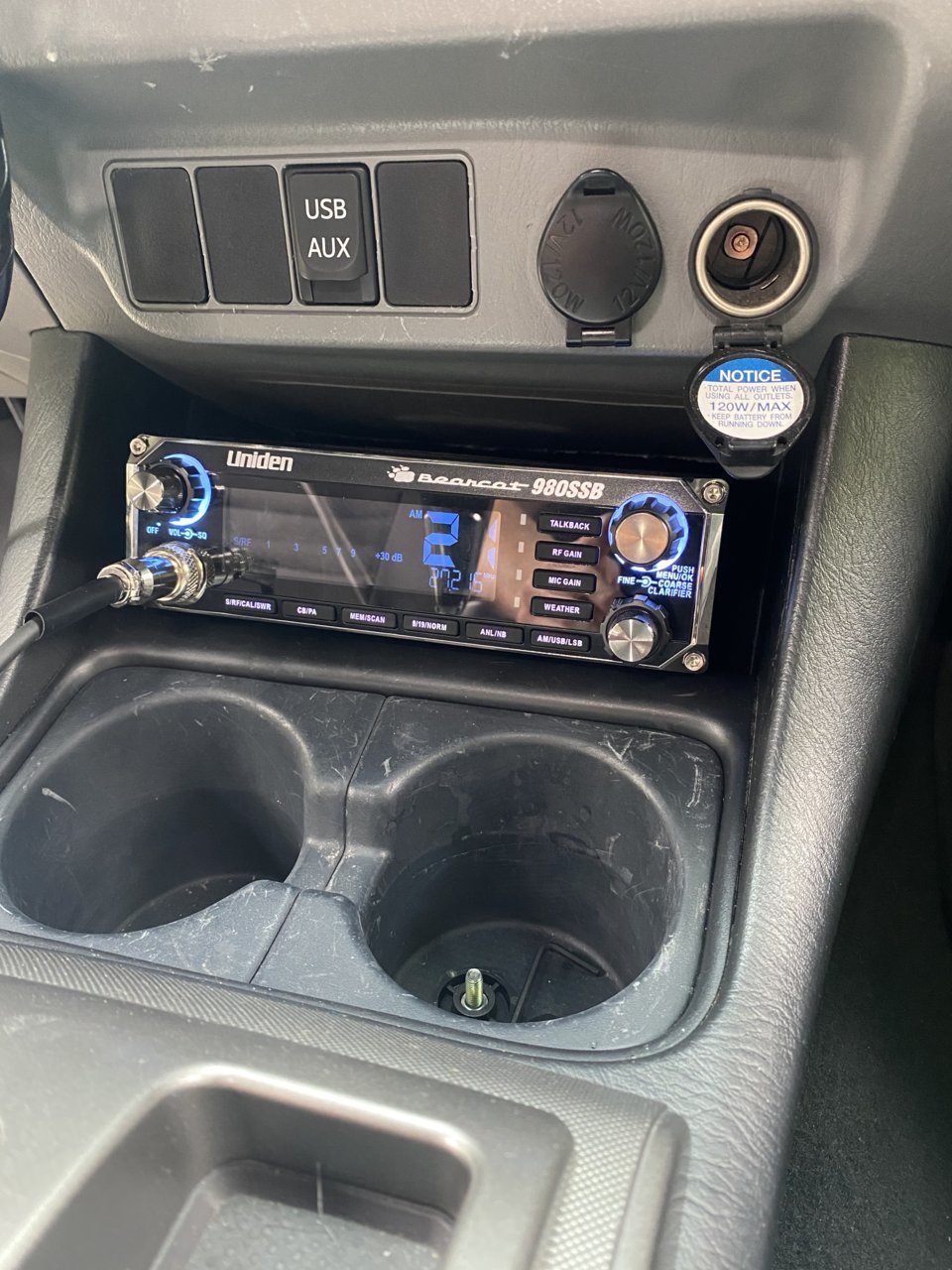

    Required some cutting to get the bearcat to sit as far back as it is but I wanted to be able to use the cup holders so well worth it.


    bandaidman and SJBrown like this.
  18. May 12, 2021 at 7:33 PM
    #1938
    DeanB519

    DeanB519 Member

    Joined:
    Apr 3, 2021
    Member:
    #361546
    Messages:
    16
    Gender:
    Male
    First Name:
    Dean
    Vehicle:
    2016 TRD Sport MGM
    Anyway to make this so the oem 3rd brake light can be mounted to it? Just move the oem out so there's room for an nmo antenna to mount behind it.
    Thanks,
    Dean

    cactuscorn likes this.
  19. May 15, 2021 at 8:25 PM
    #1939
    Landpirate

    Landpirate Strong like horse, smart like tractor

    Joined:
    Jul 17, 2018
    Member:
    #259719
    Messages:
    936
    Gender:
    Male
    North Texas
    Vehicle:
    2018 Tacoma BBP SR5 4x4 DCSB
    OME HD leafs, 5100s, CaliRaised skids, UpTop Overland Bravo, KB Voodoo rack, Overlander RTT/awning, DECKED
    Switched out my 7900 for a 400XDR.

  20. May 15, 2021 at 8:34 PM
    #1940
    FastEddy59

    FastEddy59 TTC #0061

    Joined:
    Jan 20, 2017
    Member:
    #208155
    Messages:
    21,872
    Gender:
    Male
    First Name:
    Eddie
    Smack, Dab in the middle of Winnipeg
    Vehicle:
    '13 Barc. Red Tacoma SR5 4X4
    Rigid 23004 Radiance light bar Cheap 3K 18W LED Fogs General AT-2's Pioneer AVH4200NEX w/ iDatalink JL XD5003V2 Focal 165KRX2's JL 10TW3 Arcticstart 803
    Looks really good :thumbsup: Nice secluded place too. :anonymous:Think I'll let you two be alone now.

    C41n and Landpirate like this.
