Clean VHF/CB radio installs

Discussion in '3rd Gen. Tacomas (2016+)' started by FoleySwampPlotts, Feb 10, 2016.

  1. May 16, 2021 at 8:00 PM
    #1941
    bandaidman

    bandaidman Member

    Joined:
    Apr 8, 2021
    Member:
    #362032
    Messages:
    6
    Gender:
    Male
    First Name:
    Terry
    Vehicle:
    2015 6 inch lifted Tacoma
    Came with 6 inch lift ( used car)
    You didn't say if you were using a Ham radio or a CB radio. Ham radio's don't often work with a spring as part of the antenna, that could be the cause of your High SWR.

    C41n likes this.
  2. May 16, 2021 at 8:03 PM
    #1942
    wiki_taco

    wiki_taco vF Addiction

    Joined:
    Sep 27, 2019
    Member:
    #306467
    Messages:
    50
    Gender:
    Male
    PA
    Vehicle:
    2020 TRD Off Road DCSB
    04B81 Valley Runner BETA Tester
    Suction cup mount..? Did that come with it..?

    Landpirate likes this.
  3. May 16, 2021 at 10:21 PM
    #1943
    bandaidman

    bandaidman Member

    Joined:
    Apr 8, 2021
    Member:
    #362032
    Messages:
    6
    Gender:
    Male
    First Name:
    Terry
    Vehicle:
    2015 6 inch lifted Tacoma
    Came with 6 inch lift ( used car)

  4. May 16, 2021 at 10:58 PM
    #1944
    bandaidman

    bandaidman Member

    Joined:
    Apr 8, 2021
    Member:
    #362032
    Messages:
    6
    Gender:
    Male
    First Name:
    Terry
    Vehicle:
    2015 6 inch lifted Tacoma
    Came with 6 inch lift ( used car)
    Hey His Dad, I want a 3730 how did you get one??? total jest. It looks just like my 2730 head however.

  5. May 17, 2021 at 8:05 PM
    #1945
    Landpirate

    Landpirate Strong like horse, smart like tractor

    Joined:
    Jul 17, 2018
    Member:
    #259719
    Messages:
    937
    Gender:
    Male
    North Texas
    Vehicle:
    2018 Tacoma BBP SR5 4x4 DCSB
    OME HD leafs, 5100s, CaliRaised skids, UpTop Overland Bravo, KB Voodoo rack, Overlander RTT/awning, DECKED

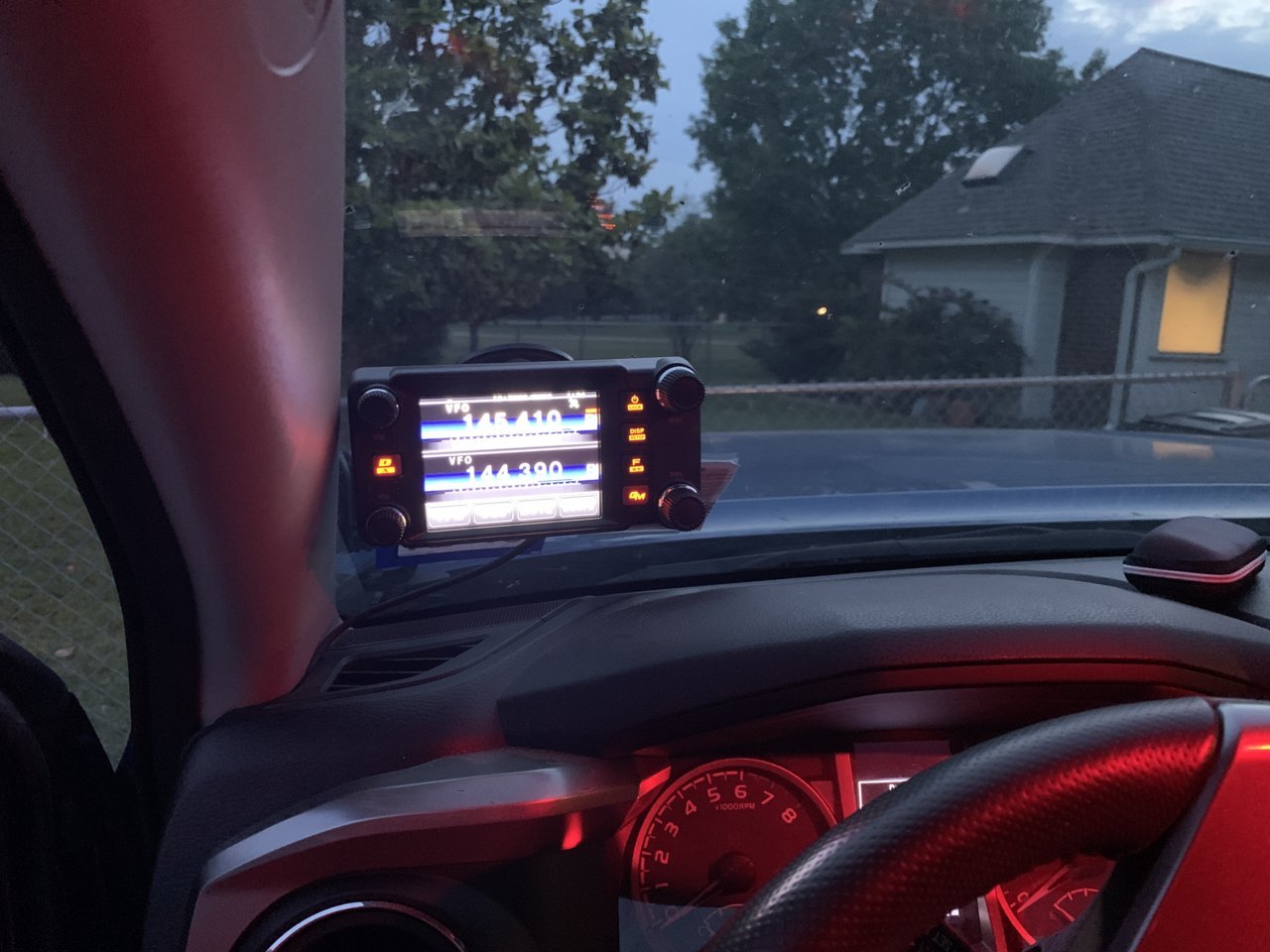

    It is, and no it did not. Have to buy it.
    So far, I am completely unimpressed with the suction cup mount on this. It is not very good. The radio itself is awesome but the mount I will probably figure out a way to replace.

  6. May 26, 2021 at 9:28 PM
    #1946
    stacksmasher

    stacksmasher Well-Known Member

    Joined:
    Mar 17, 2020
    Member:
    #322344
    Messages:
    101
    Gender:
    Male
    Where did you find the straps?

  7. May 27, 2021 at 1:45 PM
    #1947
    PaPaThor65

    PaPaThor65 New Member

    Joined:
    May 27, 2021
    Member:
    #366952
    Messages:
    1
    Gender:
    Male
    First Name:
    Bobby
    Vehicle:
    2015 Tacoma TDR Sport Prerunner
    None
    I am looking to roof mount a dual band antenna (VHF/UHF). There is already a satallite antenna there that I do not use. What I would really like to do is adapt the HAM antenna to the hole the satellite antenna is in. Why cut another hole when one is already there.

    I thought about just leaving the antenna housing and just drilling it out and modifying it for the new antenna and cable, but I think I would end up with a leak.

    Anyone done this or anyone have any ideas?

    It would even be great if there where just a plug for the whole it leave. I could probably modify that.

    Thanks

  8. May 29, 2021 at 8:19 PM
    #1948
    SlowArrowsKill

    SlowArrowsKill Member

    Joined:
    Dec 15, 2020
    Member:
    #349767
    Messages:
    10
    Gender:
    Male
    Kentucky
    Vehicle:
    2021 Concrete Tacoma TRD Off Road

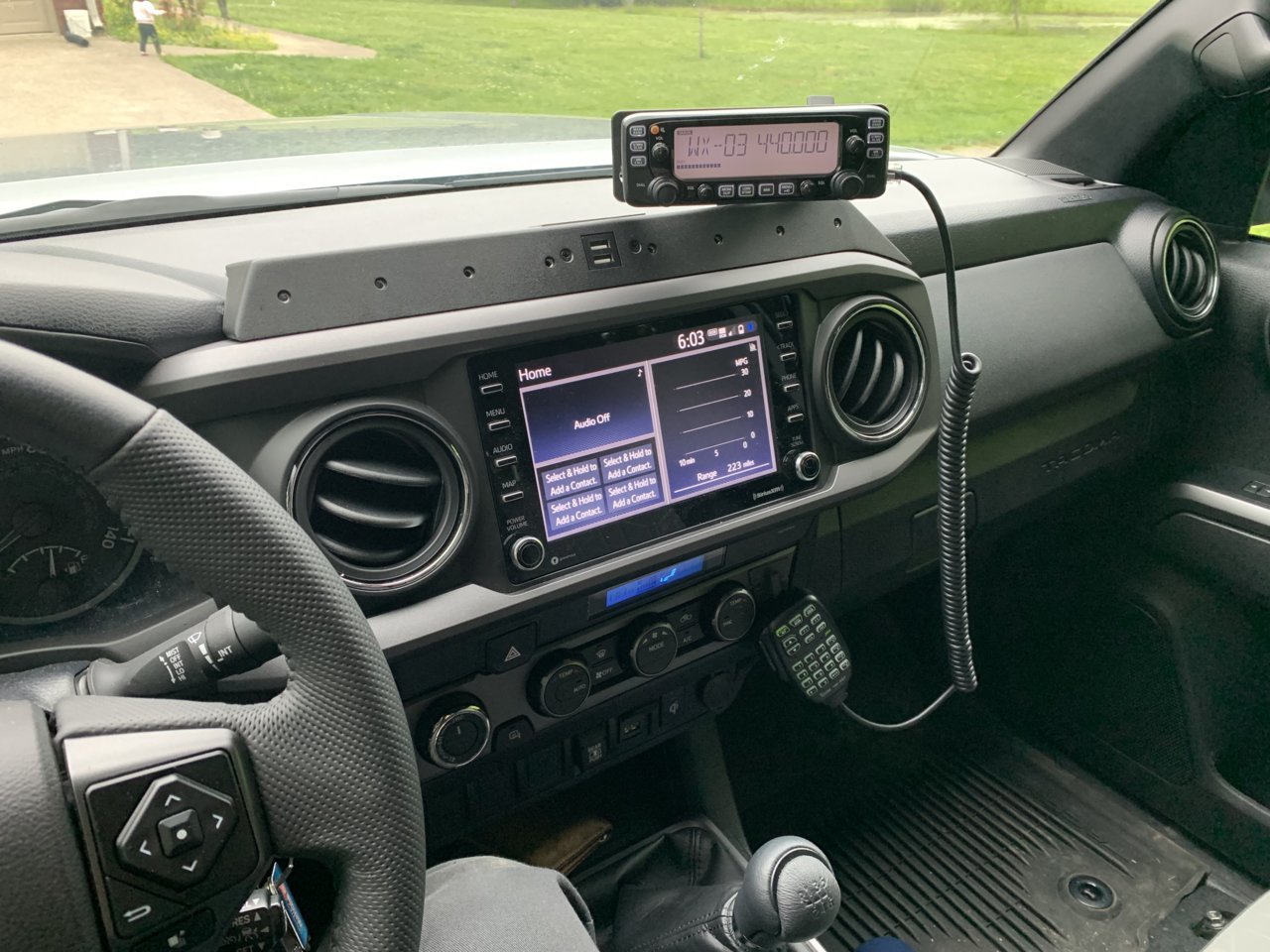

    Here's how I setup my ICOM IC-2730A head controller on my dash. I installed an Expedition Essentials 3TPAM dash mount and used RAM mount hardware with some minor modifying to hold everything in place.

    Mobile Dash 1.jpg

  9. Jun 10, 2021 at 11:08 AM
    #1949
    HisDad

    HisDad Well-Known Member

    Joined:
    Mar 30, 2015
    Member:
    #152127
    Messages:
    770
    Gender:
    Male
    Massachusetts
    Vehicle:
    2019 Cement Tacoma SR5 Double Cab
    It's been a year since I got my 2019 Tacoma and of course one of the first things I did was start to plan out installation of the radios and other electronics. I found this thread which has a great information. I posted my install pictures and notes in this thread URL="https://www.tacomaworld.com/threads/clean-vhf-cb-radio-installs.415584/page-80#post-23619749"]Clean VHF/CB radio installs[/URL] and a few others.

    One thing I wasn't happy with was the scanner install. It worked, but the rear of the radio was crammed up against the back of the little cubby. Which meant that wires were getting kinked and eventually could break down. The antenna cable was bent at an angle and put strain on the BNC cable. I had to redo that a couple of times in the past year.

    I didn't want to hack up the console in the case I decided to sell or trade it at some point.

    So, the search for a replacement 3rd Gen lower front console began. I kept looking on Ebay until back in March one popped up for sale for $30.00 shipped from the west coast. I wasted no time in hitting the "But It Now" button and in due course it arrived.

    [​IMG]

    So, the project began even though I knew it would be a while before I actually had time to do the install.

    First step was to measure the console and make a template. Here is the template as cut out.

    [​IMG]

    I used Kydex sheet for the actual face plate and then worked out how to attach it to the console. I did the cutting free hand, so it's not as straight as I wanted, but it was serviceable.

    [​IMG]

    Here's the first test fit before I put saw to Kydex. It looked reasonably good, but I knew that it would need more trimming and adjustment to get it right.

    [​IMG]

    The radio placed into the face plate so I could figure out how to set up the brackets. My plan is to remove the faceplate anytime I have to pull the radio. I abit of PITA, but I think it looks a bit cleaner than putting in a massive bracket and then still have to remove the faceplate to get at the screws.

    [​IMG]

    Of course I had to take it all apart to mount it in the truck. Actually, in the end I had to remove the faceplate and radio a bunch of times to get the fit right.

    [​IMG]

    I removed the scanner, pushed the wires out of the way, and took out the front console. At this point I figured it wouldn't be too long until I was done. As usual, I was wrong. There's not as much space I thought even with the cubby removed. Of course the air bag computer lives back there and the lower dash extends down.

    [​IMG]

    I had to remove the faceplate and radio to re drill the side brackets three times before I got the depth right. The radio sits a bit more forward that I like, but unless I want to hack chunks out of the lower dash (I don't) that's about as far back as it will go.

    Here everything is sitting flush, but when I went to put the upper front console back in, I discovered that it wouldn't clear the faceplate. I trimmed the faceplate a bit more and installed the upper front console before putting the faceplate back in. I also had to remove the lower section of the face plate to get the scanner to tilt enough for the antenna connector to clear the edge of the lower dash. It finally all fit together.

    [​IMG]

    The final (for now) product. When time and ambition permit, I'll pull the faceplate and use it as a template for a new improved faceplate. For now though, I accomplished 90% of what I set out to do. More secure mount, relieved the stress on the connectors, cleaned up the look a bit, and most importantly it all went back correctly.

    For those who might have a SDS200 scanner, those knobs are aftermarket and available on Ebay. I also bought a set for my 536HP, so they fit those as well.

    Cudgel, TacoManOne, MeefZah and 3 others like this.
  10. Jun 10, 2021 at 12:14 PM
    #1950
    GarlicFarts

    GarlicFarts Bang Ding Ow

    Joined:
    Dec 12, 2019
    Member:
    #313138
    Messages:
    6,251
    Gender:
    Male
    Lil Rhody
    Vehicle:
    2020 White DCSB TRD OR
    SOS bolt-on sliders In-cab sleeping platform Soft Topper
    DAMN that looks good - I like it. Been thinking about dropping in something recently again.

    PS - don't ever try to get that CAT5/6 passthrough on the left out of your panel. I tried to take mine out and there was zero chance of it coming out intact.

    HisDad likes this.
  11. Jun 10, 2021 at 12:48 PM
    #1951
    HisDad

    HisDad Well-Known Member

    Joined:
    Mar 30, 2015
    Member:
    #152127
    Messages:
    770
    Gender:
    Male
    Massachusetts
    Vehicle:
    2019 Cement Tacoma SR5 Double Cab
    Thanks for the tip! ;) I don't think I'll have to take that out In fact, I'm pretty sure that will stay there forever. That's actually a remote microphone jack for the ham radio. Its' the same one as in the post above mine, but I used the option to plug the microphone right into the body of the radio and then used an extension routed to the dash. The RJ45 panel came from Ebay.


  12. Jun 10, 2021 at 2:43 PM
    #1952
    GarlicFarts

    GarlicFarts Bang Ding Ow

    Joined:
    Dec 12, 2019
    Member:
    #313138
    Messages:
    6,251
    Gender:
    Male
    Lil Rhody
    Vehicle:
    2020 White DCSB TRD OR
    SOS bolt-on sliders In-cab sleeping platform Soft Topper
    i was planning to ise one for a cb. Cmx760? Can’t remember the number. Anyway - not a fan of the radio so I am probably going to get another (CB) and put it in same spot as you. I pulled it out and it didn’t work so I screwed the mic mount in there and that looks good.

  13. Jun 12, 2021 at 3:09 PM
    #1953
    Landpirate

    Landpirate Strong like horse, smart like tractor

    Joined:
    Jul 17, 2018
    Member:
    #259719
    Messages:
    937
    Gender:
    Male
    North Texas
    Vehicle:
    2018 Tacoma BBP SR5 4x4 DCSB
    OME HD leafs, 5100s, CaliRaised skids, UpTop Overland Bravo, KB Voodoo rack, Overlander RTT/awning, DECKED

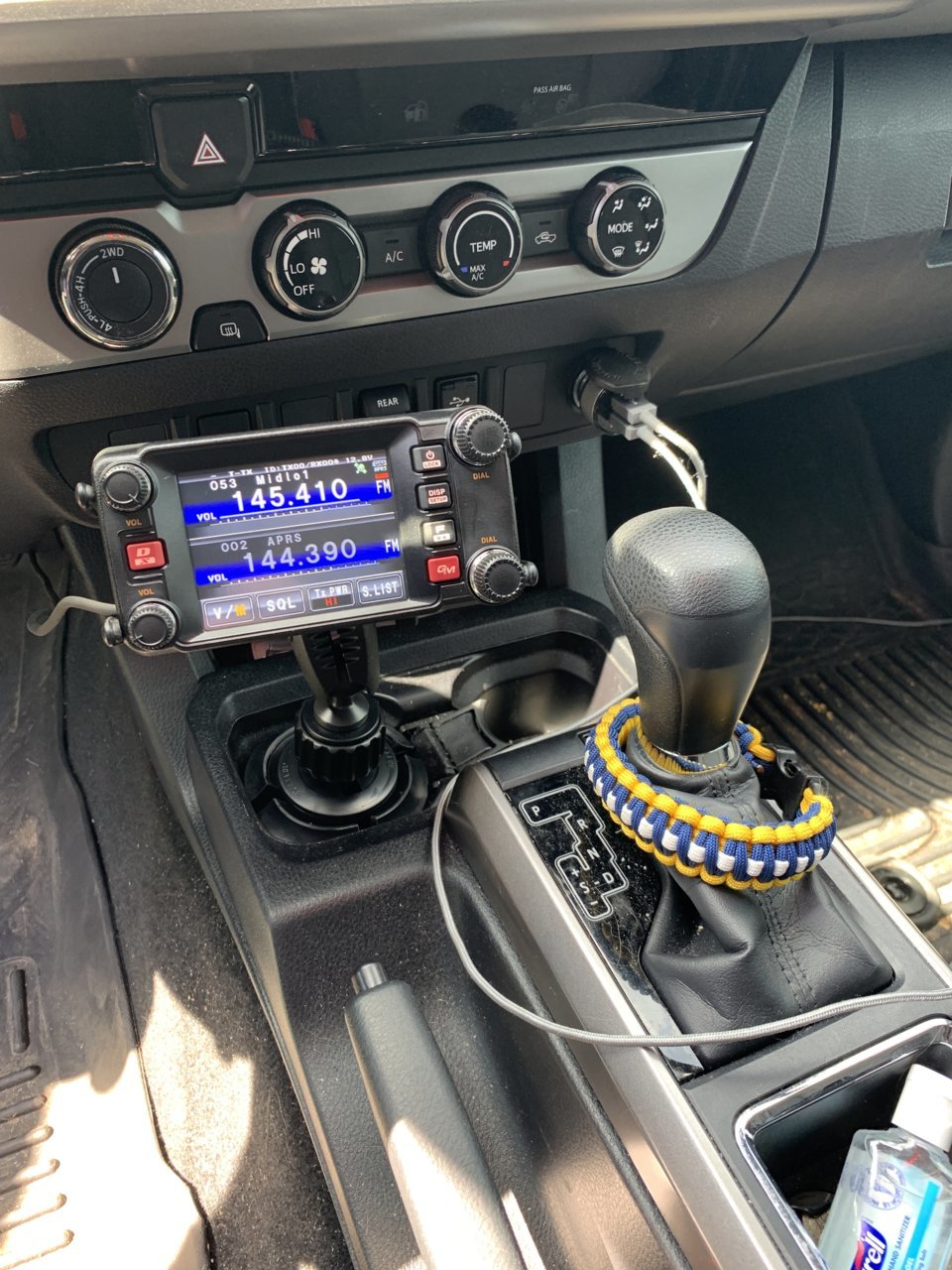

    Got one of the Arkon cup holder mounts. The suction cup mount is unimpressive, and the heat is concerning. So with this in there it looks like I can still get a decent sat signal. Hopefully this keeps the heat down. I intend to run some cord sleeve up under the dash to help control the cable a little more and keep it secure. This also appears to be a little easier to remove/hide the head unit than the suction cup.

    Last edited: Jun 13, 2021
    sbl23 and HisDad like this.
  14. Jun 12, 2021 at 3:28 PM
    #1954
    texbaz

    texbaz Well-Known Member

    Joined:
    Dec 1, 2018
    Member:
    #274460
    Messages:
    259
    Gender:
    Male
    "Buffalo Creek" TX
    Vehicle:
    2018 Tacoma Silver Sky Metalic 4WD DCSB TRD OR
    Looks good. Sure do like those color displays, What I can't believe is that Yaesu couldn't build that radio so the mic could control simple freq,channel,squelch and volume . looks great

    Last edited: Jun 20, 2021
    Landpirate likes this.
  15. Jun 12, 2021 at 4:34 PM
    #1955
    Landpirate

    Landpirate Strong like horse, smart like tractor

    Joined:
    Jul 17, 2018
    Member:
    #259719
    Messages:
    937
    Gender:
    Male
    North Texas
    Vehicle:
    2018 Tacoma BBP SR5 4x4 DCSB
    OME HD leafs, 5100s, CaliRaised skids, UpTop Overland Bravo, KB Voodoo rack, Overlander RTT/awning, DECKED
    The display was a main feature that got me onto this set.
    As far as I know the mic does have the ability to change freq, channel, and squelch or are you looking at something different than what I am thinking?

  16. Jun 12, 2021 at 5:13 PM
    #1956
    texbaz

    texbaz Well-Known Member

    Joined:
    Dec 1, 2018
    Member:
    #274460
    Messages:
    259
    Gender:
    Male
    "Buffalo Creek" TX
    Vehicle:
    2018 Tacoma Silver Sky Metalic 4WD DCSB TRD OR
    I was all ready to purchase a new modern VHF/UHF radio last year. Instead I decided to dig my old 25+ year old radio Yaesu 8500 that had been sitting in my attic, for 20 years and install it in the Tacoma. Figured I had nothing to loose, once the 8500 lit up no smoke I finished the install all was good, actually great considering the age of the electronics. What makes the Yaesu 8500 so nice is the mic controls everything, everything. It wasn't well liked because of the unconventional size and shape. It got the nick name of "Mr Potato Head".
    Since the rigg is so old obviously no digital receive or access, no aprs, no Dstar, C4fm But it is a joy to operate it sits on a pedestal I fabricated in the cup holder in front of the center console, so I just lay my hand on it as Im driving, zero effort to change channels,banks,freq,squelch,bands,vol. can access all menu's
    So, when I started looking at the newest,latest greatest none offer the mobile ease of operation like the old 8500's do. The FTM-400DR wont control volume or squelch via mic from what I read.

    Landpirate likes this.
  17. Jun 12, 2021 at 5:54 PM
    #1957
    Landpirate

    Landpirate Strong like horse, smart like tractor

    Joined:
    Jul 17, 2018
    Member:
    #259719
    Messages:
    937
    Gender:
    Male
    North Texas
    Vehicle:
    2018 Tacoma BBP SR5 4x4 DCSB
    OME HD leafs, 5100s, CaliRaised skids, UpTop Overland Bravo, KB Voodoo rack, Overlander RTT/awning, DECKED
    The mic won't do volume, and I think the squelch is on/off from the mic. I think.

  18. Jun 19, 2021 at 2:57 PM
    #1958
    C41n

    C41n Gandalf Da Grey

    Joined:
    Jul 24, 2019
    Member:
    #300113
    Messages:
    1,074
    First Name:
    Anthony
    Portland, OR
    Vehicle:
    2020 DCSB OR MT
    Working on my cb install, having some issues with SWR. Can anyone tell me if I got the order of these nuts, washers, and ground strap correct?

    20210619_142243.jpg 20210619_142247.jpg 20210619_141959.jpg

    From top to bottom:

    Lock washer
    Washer
    Plastic washer
    Mount
    Fire ring, plastic sticking up
    Ground strap
    Bolt

    I ground down the area under the mount for the other end of the strap.

    My SWR meter is old and was cheap when it was new. When I set it to calibrate and key up it won't stay still near the set mark no matter what I set it to.

    https://youtu.be/KwwmMPjLjh4

    Kinda at a loss at what to do at this point.

  19. Jun 19, 2021 at 3:55 PM
    #1959
    C41n

    C41n Gandalf Da Grey

    Joined:
    Jul 24, 2019
    Member:
    #300113
    Messages:
    1,074
    First Name:
    Anthony
    Portland, OR
    Vehicle:
    2020 DCSB OR MT
    Think I got the SWR meter figured out. Problem is likely my ground. Has anyone ride used this style antenna mount and grounded to the metal where it bolts in? Not sure if this ground is sufficient. Ground strap doesn't reach much further.

  20. Jun 19, 2021 at 4:10 PM
    #1960
    pmoore4321

    pmoore4321 Member

    Joined:
    Jan 29, 2021
    Member:
    #354414
    Messages:
    10
    Gender:
    Male
    San Juan, Puerto Rico
    Vehicle:
    2021 Tacoma OR
    It appears your ground strap is connected to the driven radial. A direct short. Remove the braided strap entirely and then check it.

    HisDad likes this.
