Climate control fuse keeps blowing

I've got a 2016 Tacoma TRD sport 5spd manual. They 10amp fuse under the dash would blow every now and then recently but now it blows instantly everytime.
If I unplug the blower motor and swap the fuse it doesn't blow

I've seems posts where it's related to heated seats or the BSM sensors in the bumper

Any help would be appreciated

Also my climate control has the auto function in case that matters.



Seems to be something like a short happening somewhere. Have you traced the wires from the blower to the fuse at all and checked for damage? The blower motor itself could have a short internally causing "infinite" amp draw upon starting. Any odd noises from the blower motor? If you can pull it out and hook it up to an independent power source and test the blower, that would be optimal.

Side note, do you mean 6sp manual or did the 16's really come with a 5sp for a minute??



Sounds like a bad blower motor



Does the truck have any electrical mods?



To be honest I don't know how to do any of that lol. And no noises at all.
I've seen/heard the noises the '17s get

Sorry I meant 6spd manual



Some fog lights that are plugged into OEM and never use



Also to note my driver's side heated seats haven't been working for a few months prior to this
As well my BSM hasn't worked in years lol



If you disconnect a component from the system and the fuse stops blowing you pretty much just diagnosed the problem

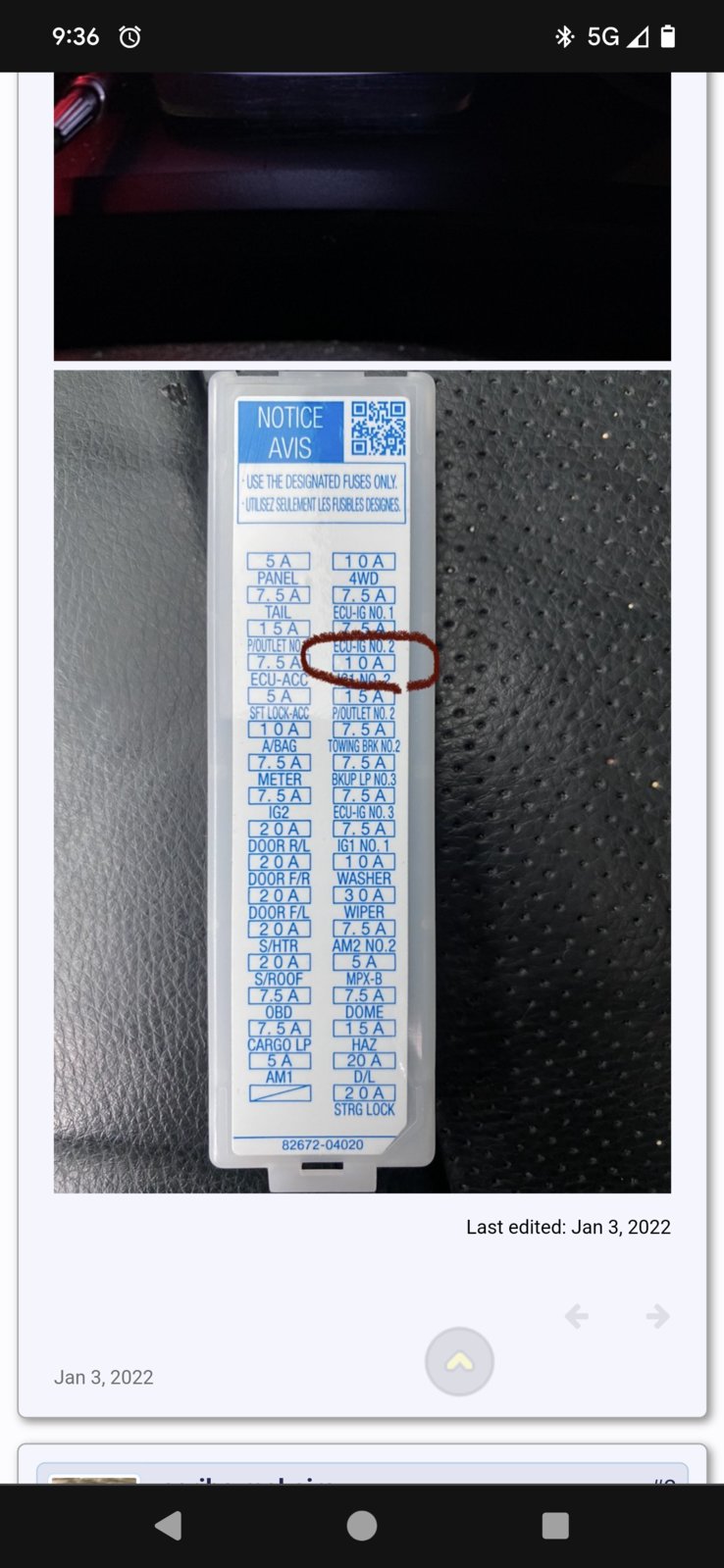

what fuse is it?



Yeah. Typically, But a 10A fuse for a blower motor? Seems you'd need one larger than 10A?
I'd still like to know what fuse it is.

Wrong fuse size in the blower motor fuse location?



Controls the heated seats, heated mirrors, climate control the LCD display and the temperature display on the dash.



This was going to be my next suggestion as well op



'16 & '17 4cyl had an optional 5spd trans... it was dropped in '18



If you unplug the fan and then control anything else on the circuit, does the fuse blow again. If not then replace the fan. If it still blows then start tracing whatever caused the fuse to blow.

There has been issues with the power supply to the heated seats from some people. The wiring burns up at the connector. This could cause a dead short.



That fuse goes to a bunch of things.
It doesn’t go directly to the blower motor that I can see.
But it goes to things associated with the blower motor.

And depending on whether is and Auto or Manual it goes to different place.

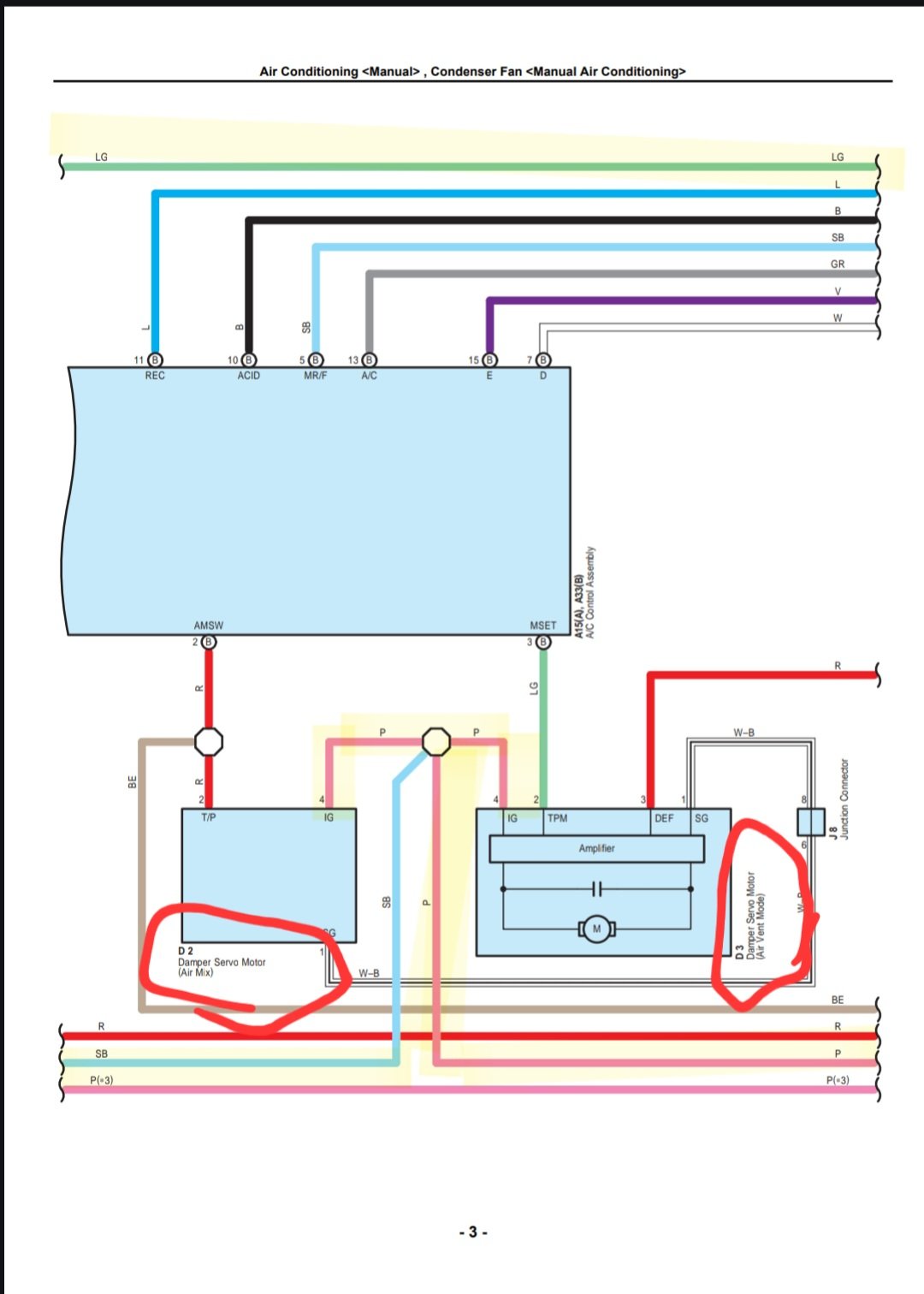

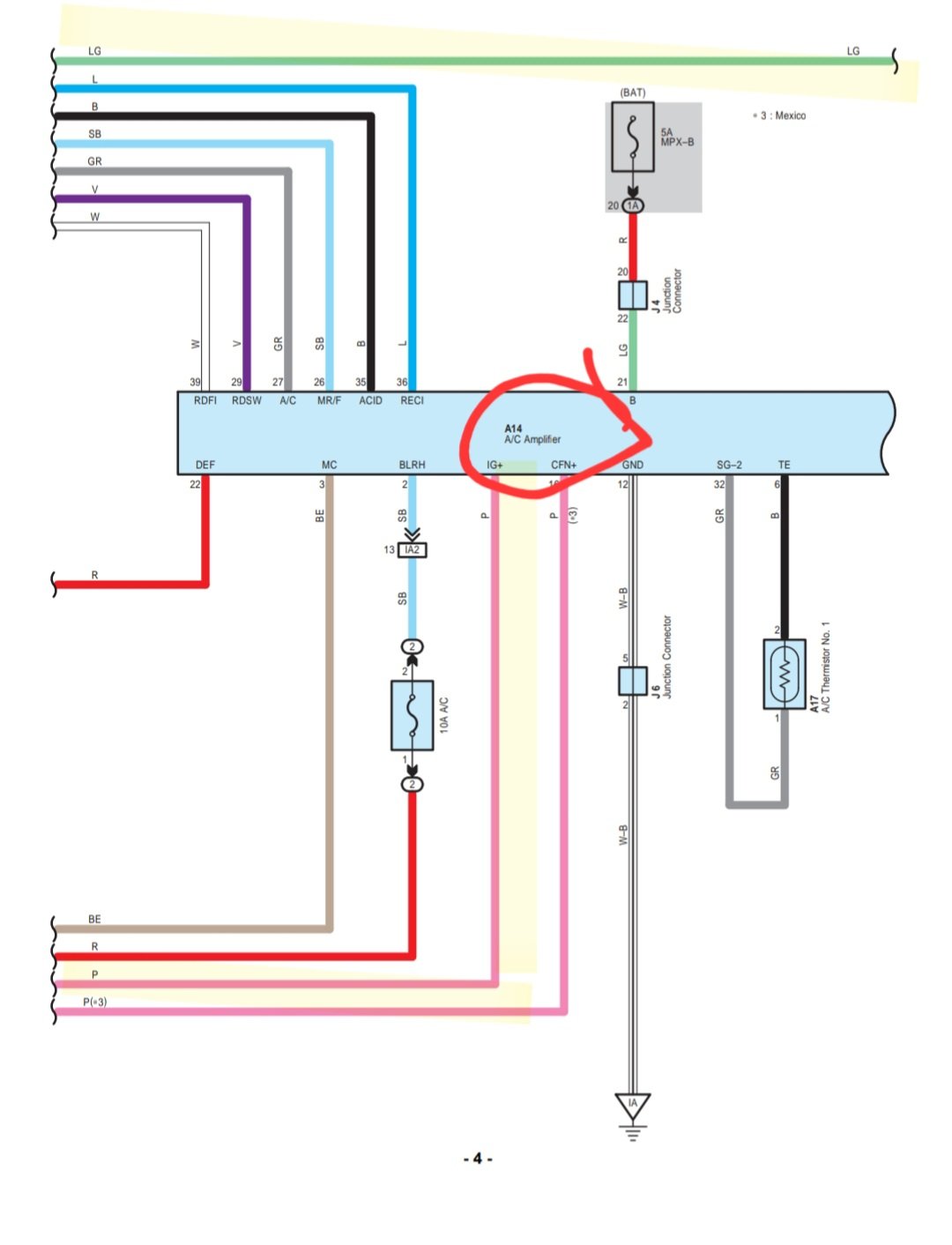

You are right... it goes to a some relays, servos and the A/C amplifier.



^ this right here is what makes this community the greatest.



A/C magnetic clutch is suspect for a short



Update: I replaced the blower motor and everything worked great for about 2 weeks.
And now the fuse as blown again this morning...



Have you read the above post?
I was kind of expecting this, as the blower motor doesn't run off that fuse.

Again, see above post to start diaging,

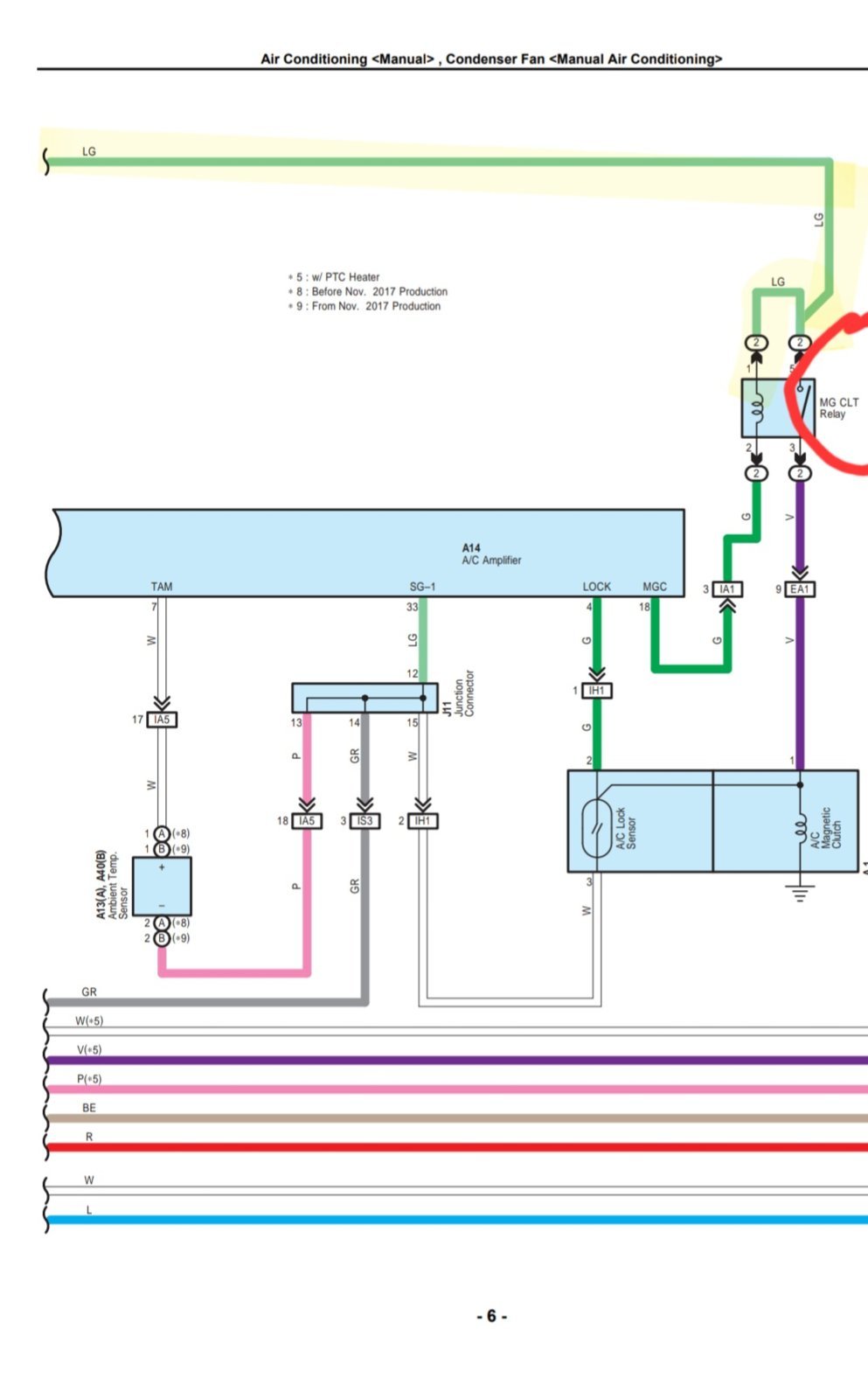

I'd start with pulling the Magnetic Clutch Relay.
(FWIW, I am NOT saying it's the relay) I'm suspecting the clutch.
The relay will kill the power to the clutch.

BTW, you wont have A/C when you pull the relay.
If the fuse doesn't blow. Clutch time.

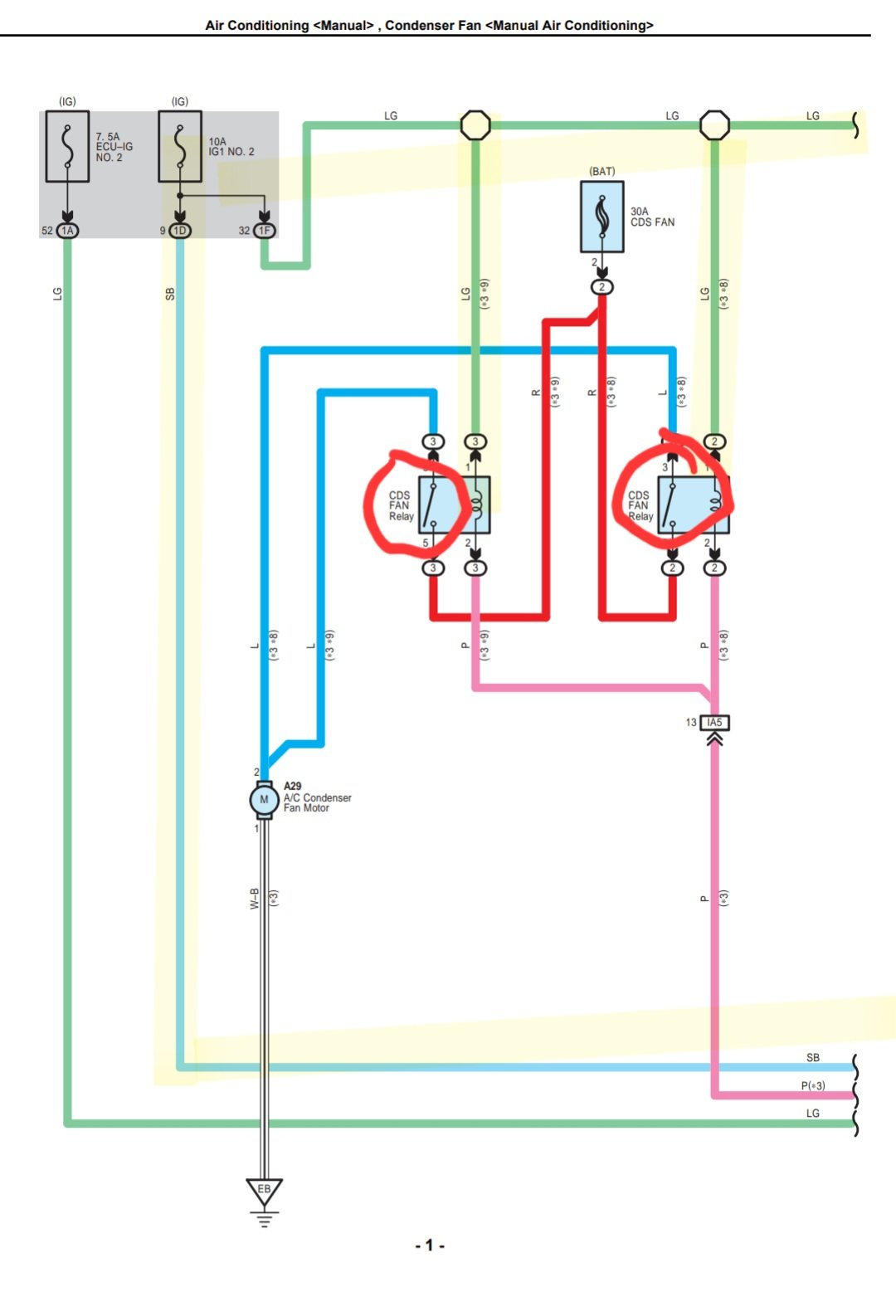

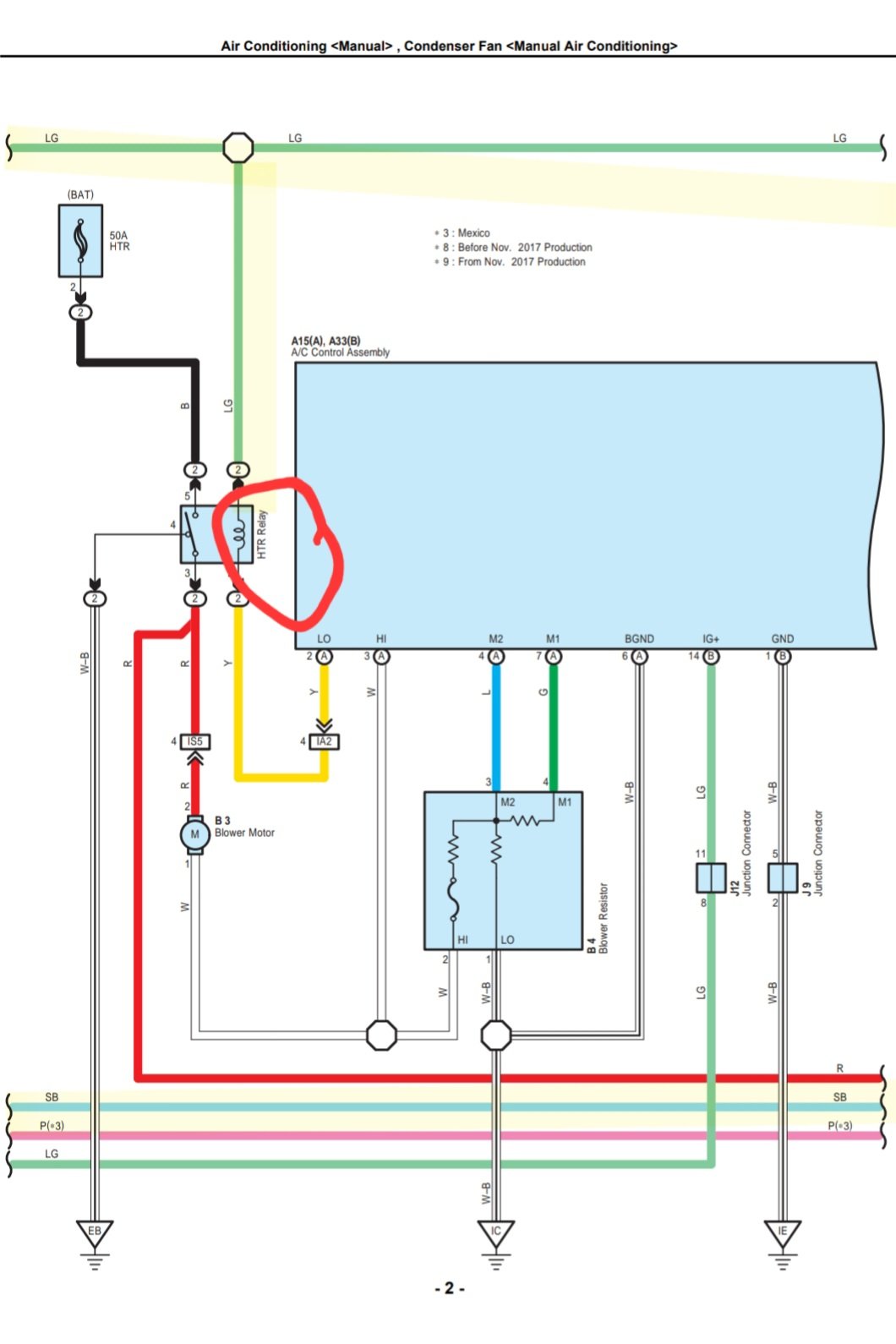

If it still blows, resort to stuff tied to that fuse in the diagram above.
