May have figured it out, or gotten a little closer. Time for another diagram!

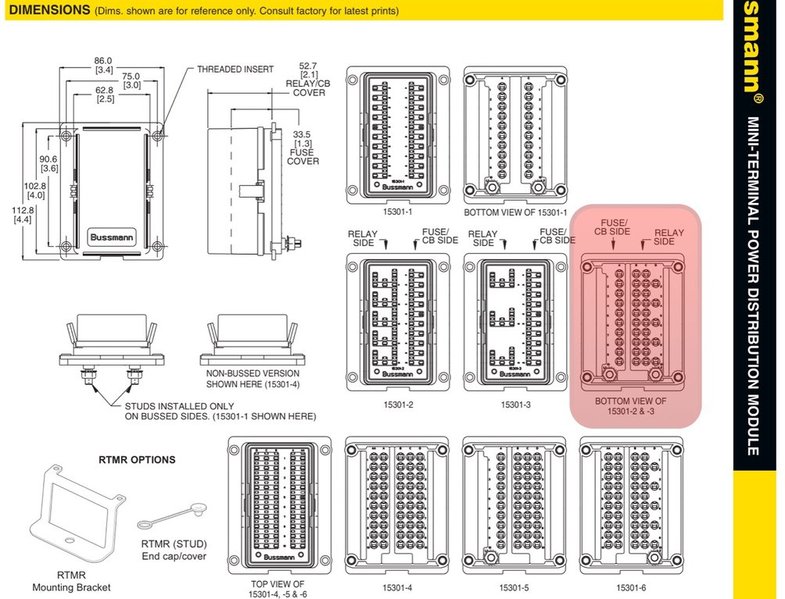

I did find the fuse/relay box with both circuits bussed:



Can I get on the list for a box and some switchbacks? I already have Iggys switch plate, switches and a mounting bracket for the box lol



Can I get on the list for a box and some switchbacks? I already have Iggys switch plate, switches and a mounting bracket for the box lol
4x4Taco09, 6 minutes agoReport
#133LikeMulti-Quote +Quote
Didn't you sell your truck?
NVM that's 094x4taco from Louisiana lol!



I've been meaning to do a write up for my dual battery setup, but here is the gist of the switch backs.

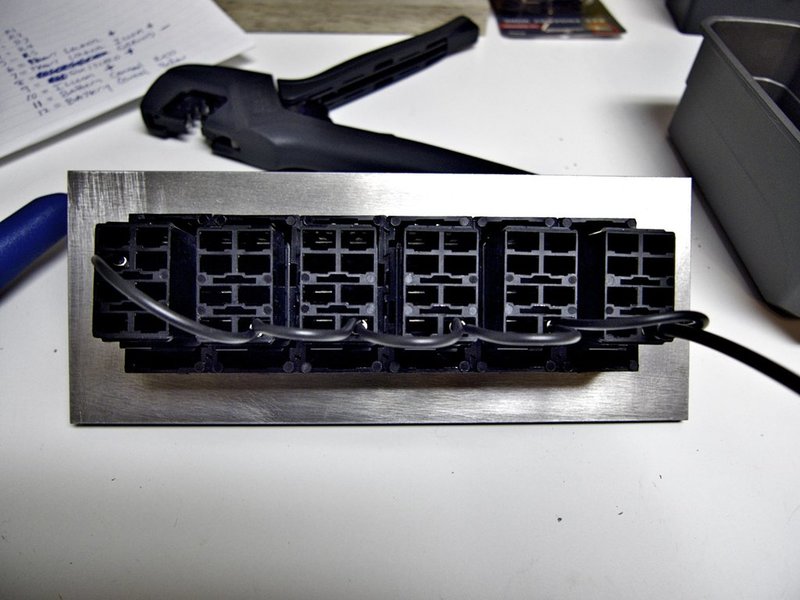

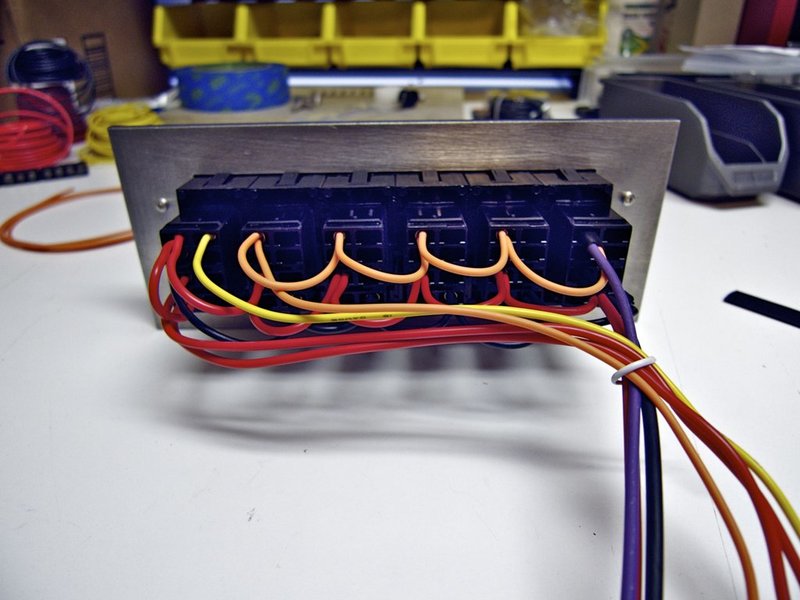

1. You daisy chain each of the common sections of each switch (ground, power to trigger relays, power for illumination LED).


2. Work at it until you have all the circuits wired up.

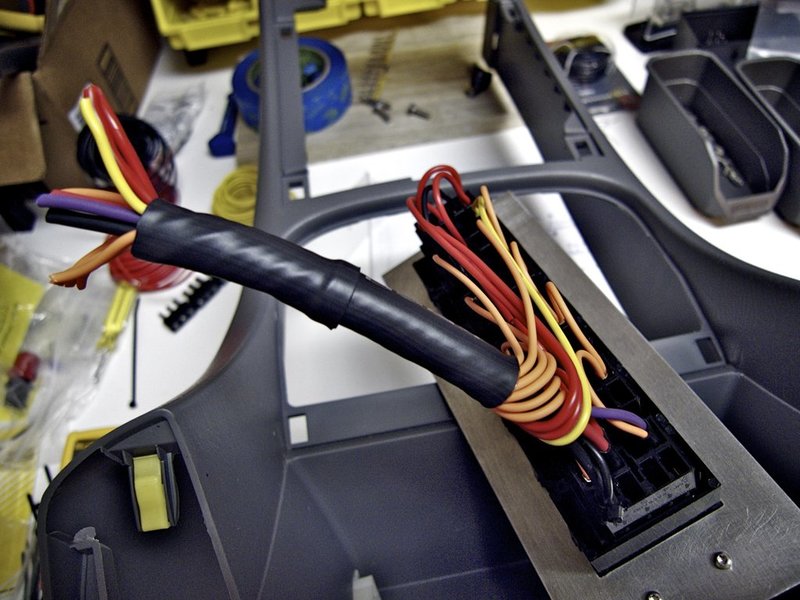

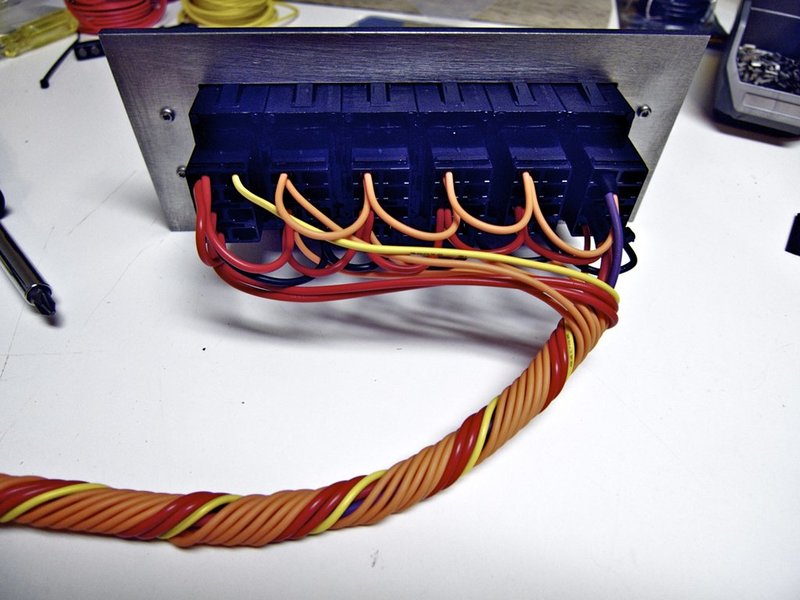

3. I then bundled everything up and shrink wrapped it.




My wires are short, because I added a terminal so I can quickly disconnect the entire panel.

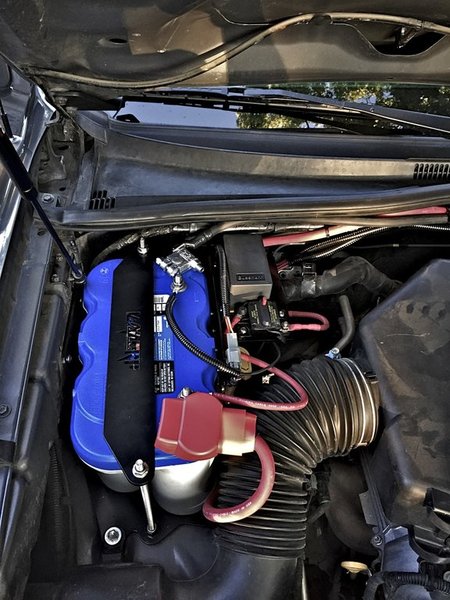

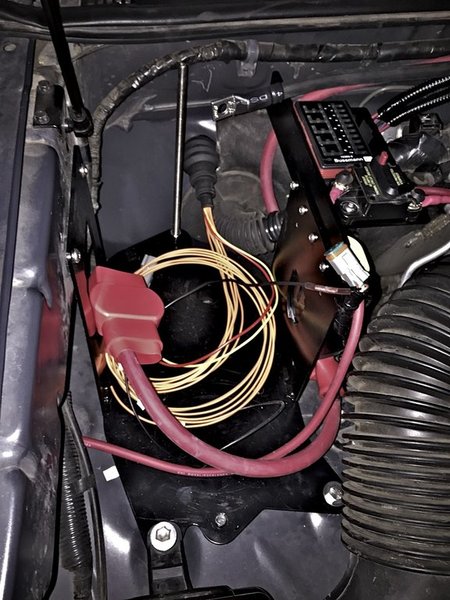

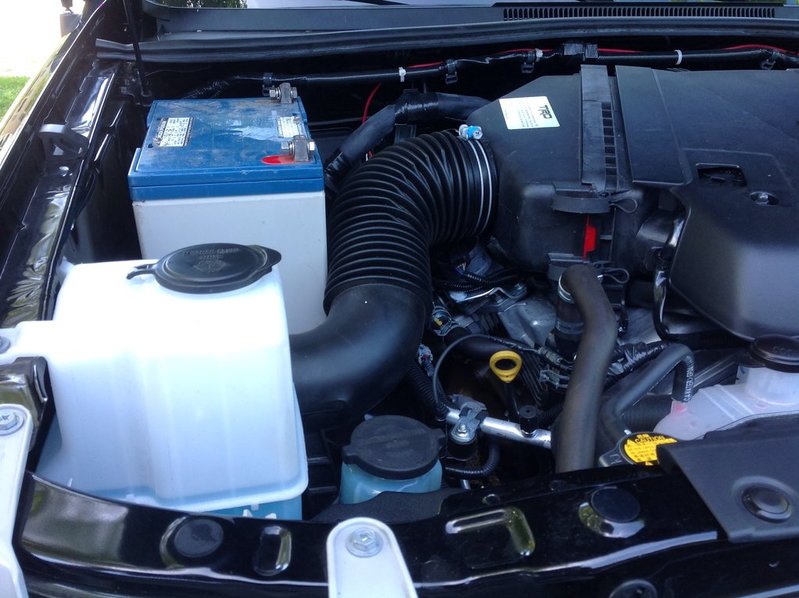

Here's my RTMR that I setup myself. First with all the wiring coming into the engine bay and second all setup.



Will that battery mount work in a 2015?
Do you make that ?



@LiveFreeOrDie2015

I made that box from scratch, you can see "Iggycorp" on the top plate. I don't think it will fit a 2015 since there is an emissions pump there.

I was going to make a run of these for members but I quickly found out not all Tacomas have that space there, but I do make them to order.

It holds the second battery, Blue Sea ML-ACR, and has holes to mount one of @Yotamac's panels.



@Iggy. i love that battery setup.

i might have to see about whats up with that emissions pump on my 2015.

For the rest of you guys, ill update the thread late this weekend, for sure monday.

I have a lot going on this weekend, tomorrow ill be on the road most of the day.

Ill be signed on my phone and commenting just a little bit here and there.

Just letting you know.



Yes 2015s have emissions pumps but it's located in the middle. I'll take some measurements and pics to see if it will fit



Atleast give @skygear credit when you use his pictures



it was never my intention to not give him credit.

all credit was shown in my writeup.



man if a secondary battery can fit there looks like i may be shopping with @Iggy. here soon.

@LiveFreeOrDie2015

please report with your findings, ill do what i can when i get home.



thats not a discount price, so im sure you can get the switchbacks by themselves. ill remove you from the list

ill have to ask tacomapros on this and @Yotamac

will do



I'll check it out tonight after work.........bump!



Okay, I'd like to get 1 fuse panel, 1 mounting bracket, 1 set of switchbacks and 1 switch plate. I think that comes to $221. I have 2 questions:

1. I don't understand the battery lead addon. Are you saying the fuse panel has no way to actually connect it to the battery/provide power without an additional piece?
2. What switches do we need to plug into the switchbacks, and are there any other accessories/parts needed beside the switch and the accessory actually being wired to the fuse box?

I am so not looking forward to all the wiring for lights, heated mirrors, etc. :/



I think what you want is plug and play -the switches..... But I would at least add a line fuse to the feed line of fuse box.........but I may be wrong on this
Bump.bump



Question about the switchbacks. In the first post it says $30 each. This is for 6 switchbacks and not wired? Single switchback only? 6 switchbacks with a few feet of wire and wired?

I need the box and 6switchbacks wired up lol. I'll pay someone to pre make my "switchback harness" lol

I was going to get it all from skygear, but I know he is super swamped and behind



Perfect. That's what I am talking about!

1 box, switchback harness and if anyone has a bracket for the box with a kick out for a circuit breaker I'd take one of those also.



Still need to extend wire for pump
