CLOSED. Kelford Cams for 1GR GB.

Discussion in 'Performance and Tuning' started by BillDaCat8, Jun 27, 2019.

  1. Jun 27, 2019 at 6:36 AM
    #1
    BillDaCat8

    BillDaCat8 [OP] Well-Known Member

    Joined:
    Jun 25, 2017
    Member:
    #222348
    Messages:
    783
    Gender:
    Male
    First Name:
    Jake
    PHX
    Vehicle:
    07 4x4 Access Cab M/T
    I got a Mickey Mouse antenna ball. Does that count?

    Attached Files:

    Last edited: Oct 23, 2019
    Hawk373, Athlaos, shr133 and 5 others like this.
  2. Jun 27, 2019 at 6:36 AM
    #2
    BillDaCat8

    BillDaCat8 [OP] Well-Known Member

    Joined:
    Jun 25, 2017
    Member:
    #222348
    Messages:
    783
    Gender:
    Male
    First Name:
    Jake
    PHX
    Vehicle:
    07 4x4 Access Cab M/T
    I got a Mickey Mouse antenna ball. Does that count?
    Update: This group buy is closed...

    Cams will be machined and will ship the first week of August. I will relay additional info as I receive it.


    Hello Everyone,

    Over the past few days I've been trading Emails with Kiel at Kelford cams. Kiel (pronounced "Kyle") has provided me with a spec card for their supercharged 1GR specific grind as well as answered a few questions.

    YES. These cams ARE for our non-roller rocker “early” 1GRFE. They’ll fit:
    2005-2015 Tacoma.
    2007-2009 FJ Cruiser
    2003-2009 4Runner V6
    2005-2010 Tundra V6

    This is a set of four cams. Intakes and Exhaust.

    The intake cams DO still utilize the VVT.

    These cams are made from NEW castings. They are not re-grinds. This will make setting the clearances a piece of cake.

    These cams DO require upgraded valve springs (which Kelford also sells)

    You are NOT locked in to this specific grind. Each set of cams will have it's own spec card. So, Whatever grind you want can be ordered.

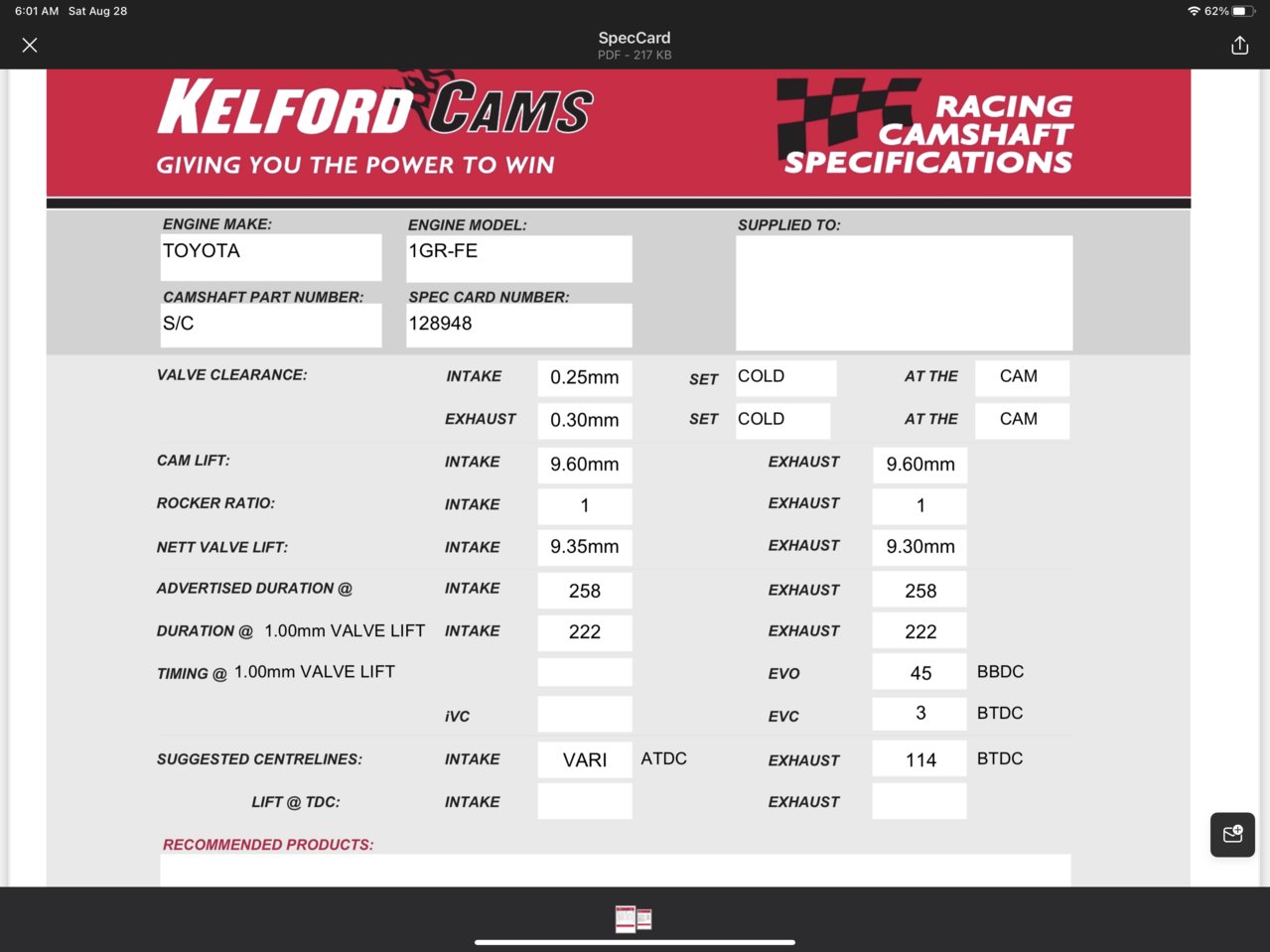

    Here's the card for the SC grind:



    So, the nitty gritty:

    Here's what I was originally quoted for a single setup.

    $1200 USD for the cams
    $500 for the springs
    $110 for shipping

    ———————————————————————
    Group buy prices \/ \/ \/


    Cams $960
    Springs $400
    Shipping is still $110 per set. (Other countries may be different for shipping costs.)

    So, $1470 for cams and springs shipped.


    Ordering instructions:


    Email to: Kiel@kelfordcams.com


    Subject line: “Tacomaworld Kelford Cams 110234 GB (your user name)”


    The subject line is important. Please enter your user name between the parentheses obviously. This will help Kiel keep track of everything on his end.

    Say Hi and let him know you're wanting to buy cams.

    Give him a brief rundown of the relevant mods to your engine (supercharged/turbo/N/A, etc...)

    I also elaborated with mentioning headers with free flowing exhaust and intake. He confirmed that their SC grind is what I want. If you need something different, He'll make a suggestion.

    Say thanks.

    Remember that he's in New Zealand. So, you likely will not hear back from him on the same day.


    Confirmed buys: (Don’t race these guys)

    @BillDaCat8

    @GT7

    @Wildheart18

    @White lightning boosted

    @ThomasMore66

    @Hawk373

    @Torspd

    @mightytacoman

    @Athlaos

    @Braunschwaga

    @sf.larry

    ______________________________________________________________

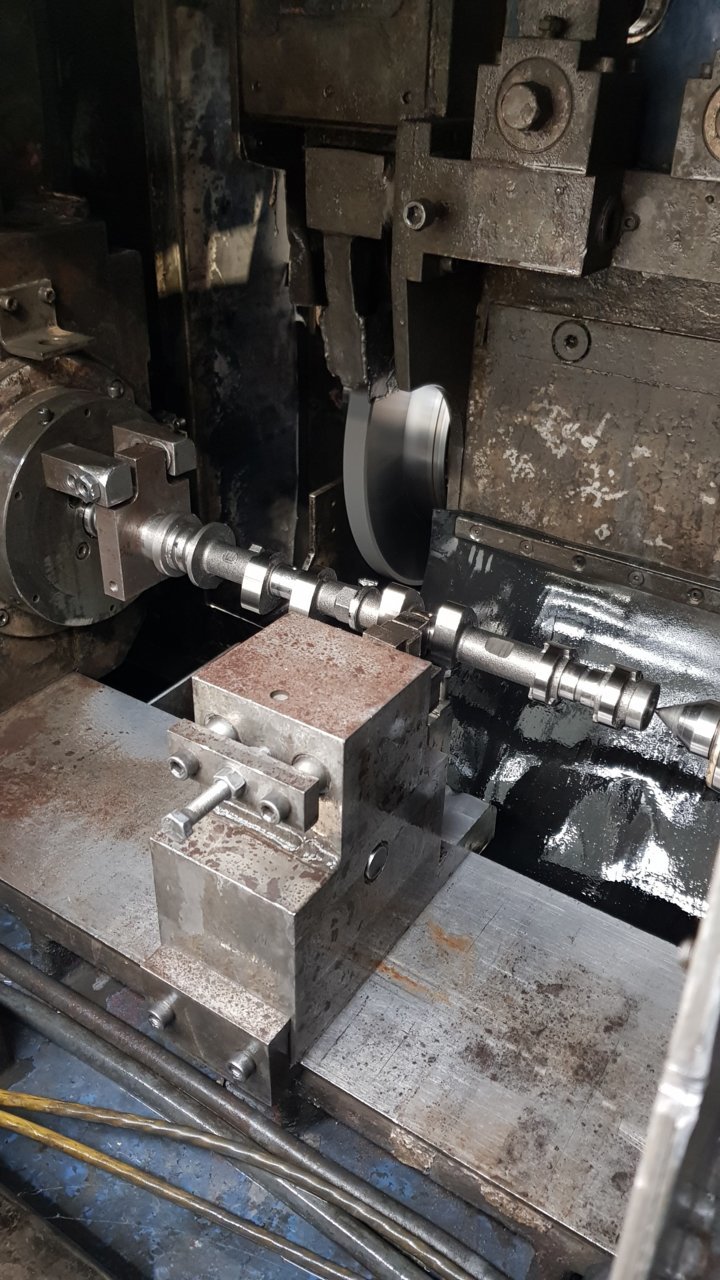

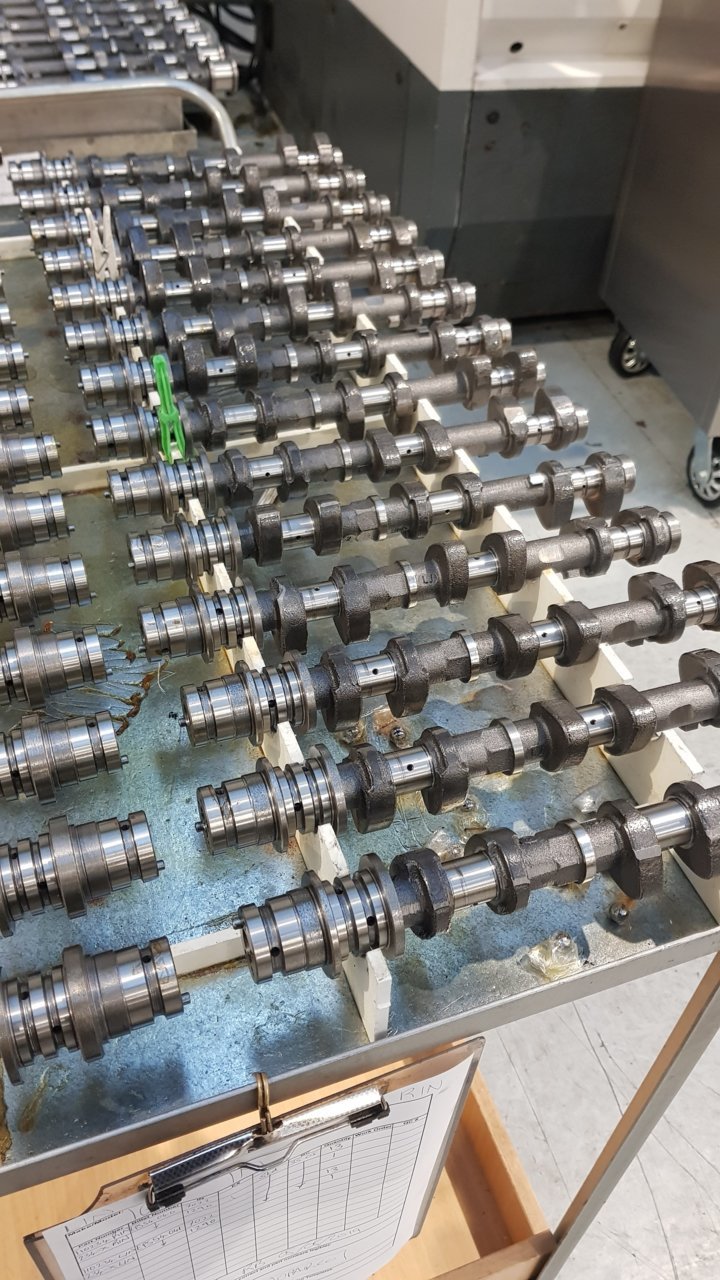

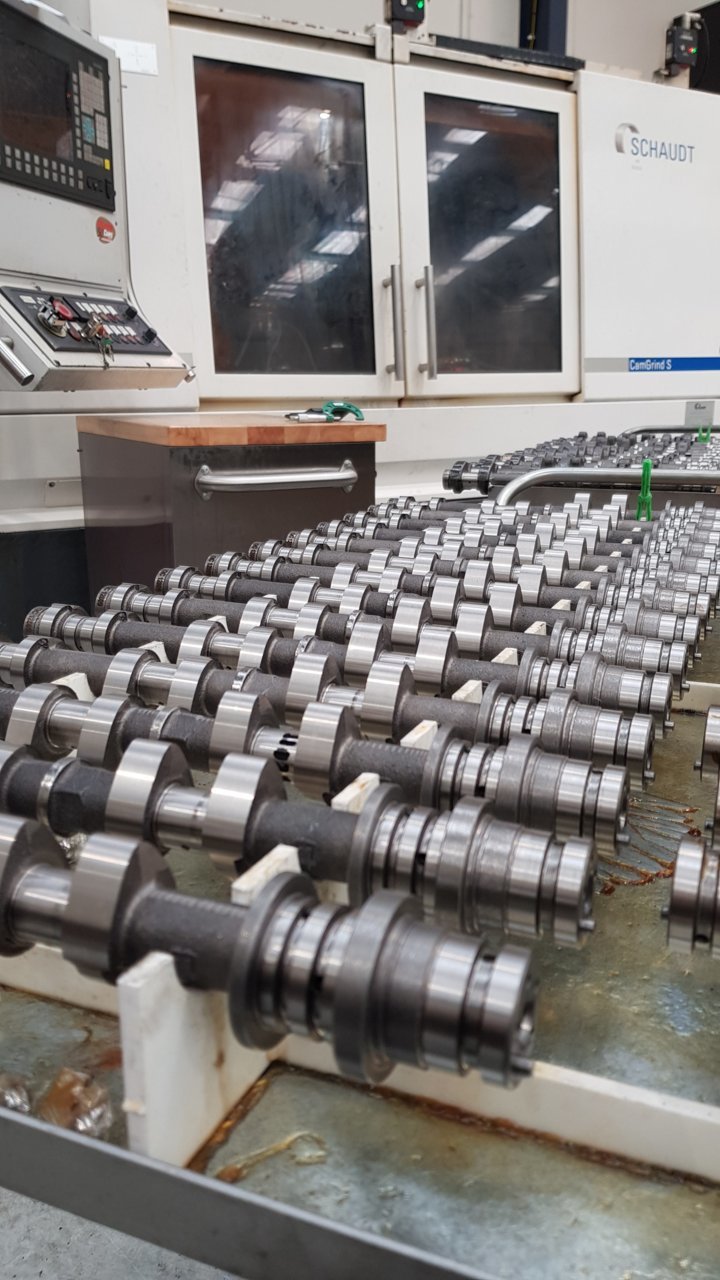

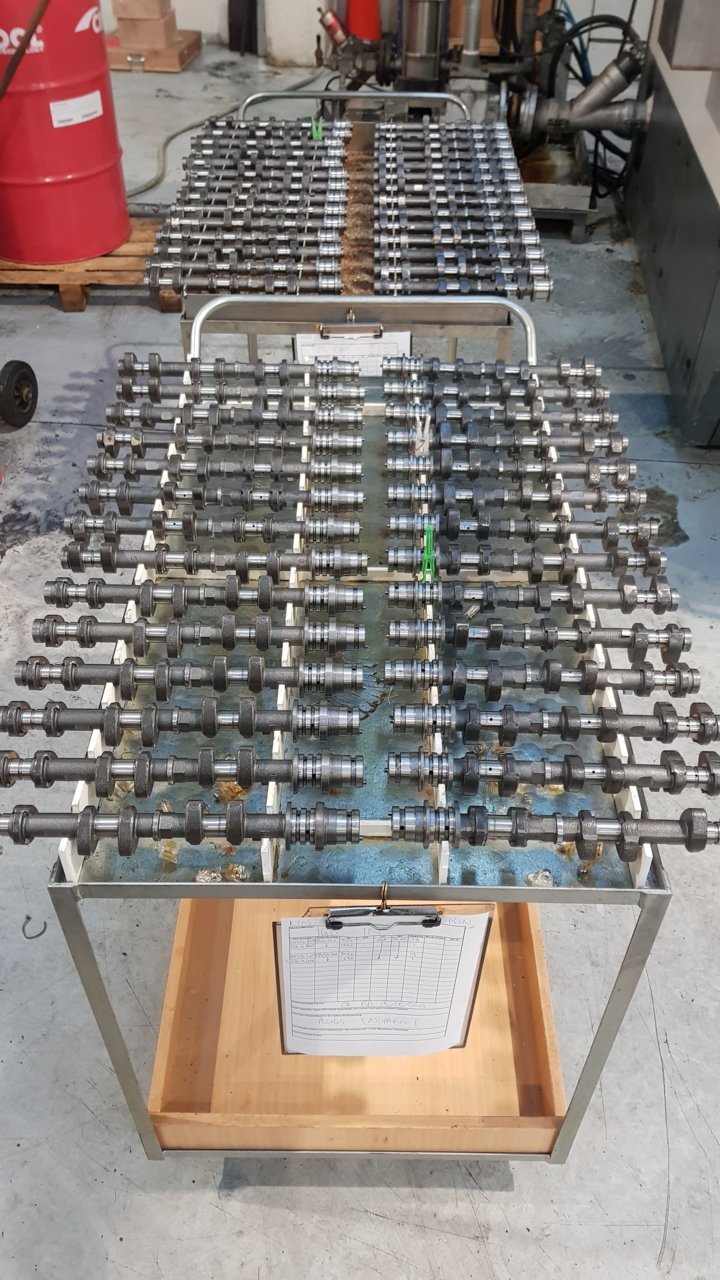

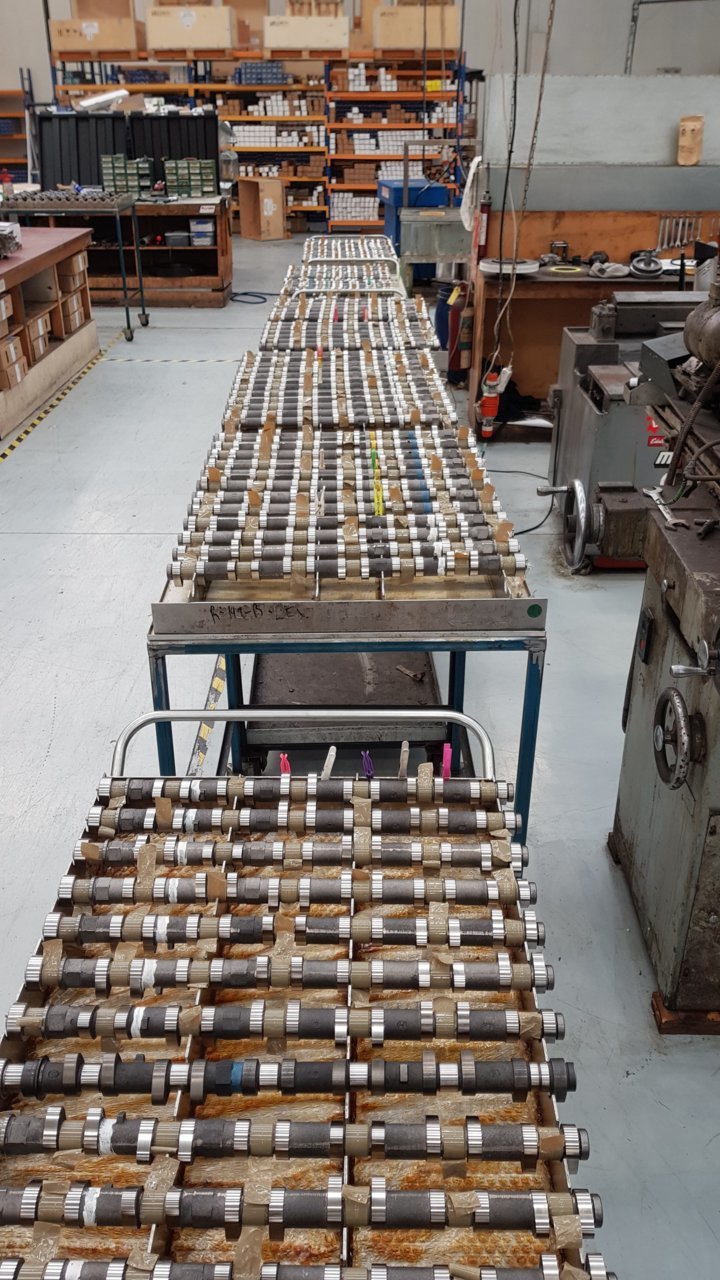

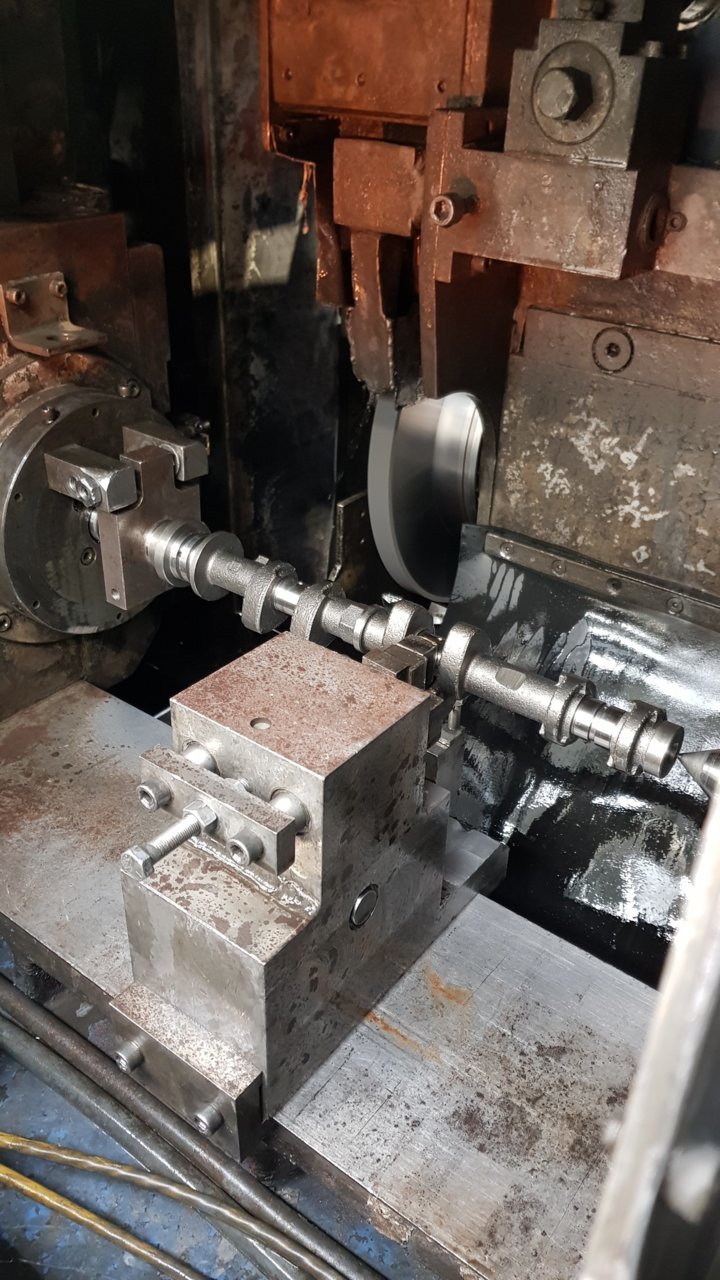

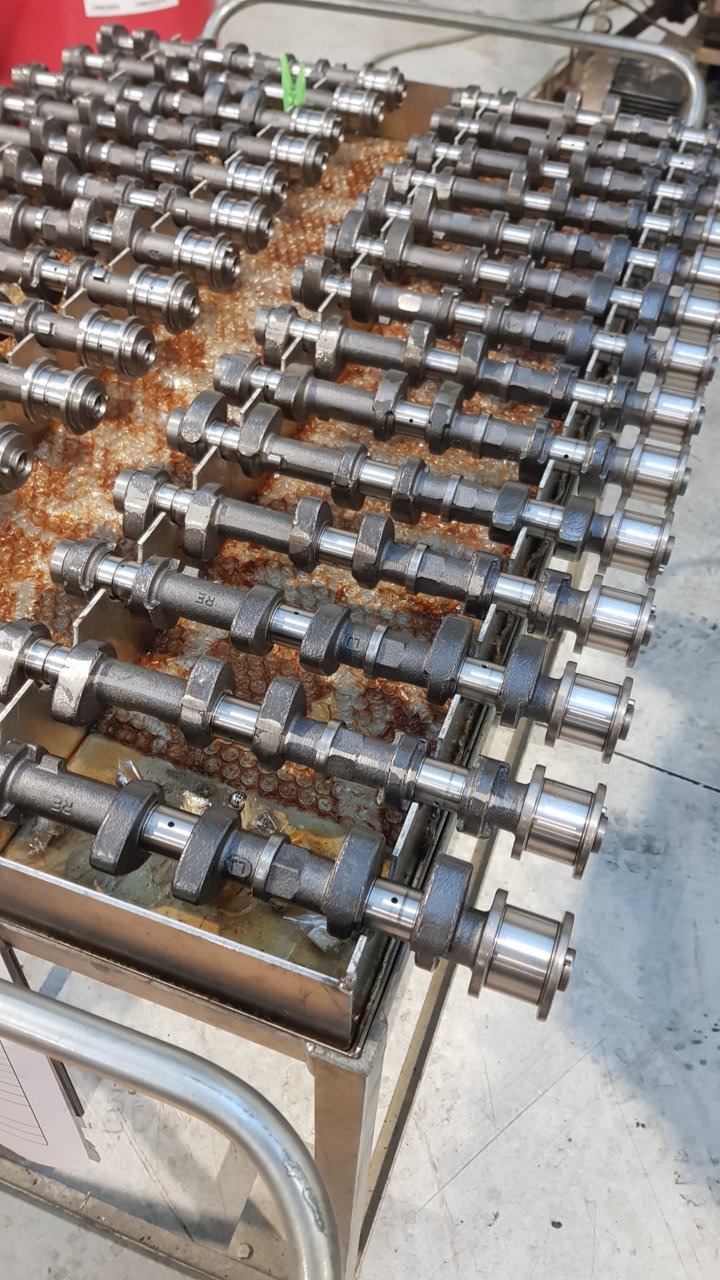

    More pics this morning.


    Last edited: Oct 11, 2019
  3. Jun 27, 2019 at 6:45 AM
    #3
    BillDaCat8

    BillDaCat8 [OP] Well-Known Member

    Joined:
    Jun 25, 2017
    Member:
    #222348
    Messages:
    783
    Gender:
    Male
    First Name:
    Jake
    PHX
    Vehicle:
    07 4x4 Access Cab M/T
    I got a Mickey Mouse antenna ball. Does that count?

    Attached Files:

    Last edited: Aug 13, 2019
  4. Jun 27, 2019 at 6:55 AM
    #4
    Torspd

    Torspd Tor-nication

    Joined:
    Sep 18, 2009
    Member:
    #22958
    Messages:
    18,483
    Gender:
    Male
    First Name:
    Tor
    The Great America!
    Vehicle:
    MMVI 4.4L 4x4 Access Cab
    Torspd Custom Turbo kit [] Borg Warner 9180EFR Turbo [] Haltech Elite 2500 [] TiAL Q BOV [] TiAL V44 Wastegate @ 15psi [] CP Pistons [] CP Carrillo Rods [] ARP Head studs [] ARP Main Studs [] ARP Header - Head Studs [] Ported Heads w/ 1mm oversized valves intake/exhaust [] Brian Crower Forged Stroker Crank [] Darton M.I.D. Sleeved Block [] Kelford Camshafts [] Torspd 160* T-stat mod [] APR Large Fuel Rail [] Walbro 460 LPH E85 Fuel Pump [] FueLab FPR [] APR T56 Conversion Kit [] KP RACING Built T56 [] McLeod Racing Custom Twin Disk Clutch [] One Piece Aluminum Driveshaft [] MGW Shifter [] Custom lowering kit [] Ohlins Front Coilovers [] QA1rear shocks [] Custom Ron Davis Radiator [] Dual SPAL Electric Fans []
    I like where this is going. They have 1GR's over there. In their Hilux model. They don't have the OEM specs on hand, or are they going the "custom route" from the first step only?

    I ordered my cams from them. I know they have the blank specs at least.

    TacoLeeSD and Roostfactor like this.
  5. Jun 27, 2019 at 6:57 AM
    #5
    BassAckwards

    BassAckwards formerly rjbiii

    Joined:
    May 3, 2016
    Member:
    #186002
    Messages:
    20,986
    Gender:
    Male
    First Name:
    Robert
    Vehicle:
    PreRunner 2.7L
    Will these be compatible with the 3* retard cam gears

  6. Jun 27, 2019 at 6:57 AM
    #6
    Torspd

    Torspd Tor-nication

    Joined:
    Sep 18, 2009
    Member:
    #22958
    Messages:
    18,483
    Gender:
    Male
    First Name:
    Tor
    The Great America!
    Vehicle:
    MMVI 4.4L 4x4 Access Cab
    Torspd Custom Turbo kit [] Borg Warner 9180EFR Turbo [] Haltech Elite 2500 [] TiAL Q BOV [] TiAL V44 Wastegate @ 15psi [] CP Pistons [] CP Carrillo Rods [] ARP Head studs [] ARP Main Studs [] ARP Header - Head Studs [] Ported Heads w/ 1mm oversized valves intake/exhaust [] Brian Crower Forged Stroker Crank [] Darton M.I.D. Sleeved Block [] Kelford Camshafts [] Torspd 160* T-stat mod [] APR Large Fuel Rail [] Walbro 460 LPH E85 Fuel Pump [] FueLab FPR [] APR T56 Conversion Kit [] KP RACING Built T56 [] McLeod Racing Custom Twin Disk Clutch [] One Piece Aluminum Driveshaft [] MGW Shifter [] Custom lowering kit [] Ohlins Front Coilovers [] QA1rear shocks [] Custom Ron Davis Radiator [] Dual SPAL Electric Fans []
    Make sure whatever the specs are on the intake, that they retain functionality with the variable cam gear.

    TacoLeeSD likes this.
  7. Jun 27, 2019 at 6:58 AM
    #7
    Torspd

    Torspd Tor-nication

    Joined:
    Sep 18, 2009
    Member:
    #22958
    Messages:
    18,483
    Gender:
    Male
    First Name:
    Tor
    The Great America!
    Vehicle:
    MMVI 4.4L 4x4 Access Cab
    Torspd Custom Turbo kit [] Borg Warner 9180EFR Turbo [] Haltech Elite 2500 [] TiAL Q BOV [] TiAL V44 Wastegate @ 15psi [] CP Pistons [] CP Carrillo Rods [] ARP Head studs [] ARP Main Studs [] ARP Header - Head Studs [] Ported Heads w/ 1mm oversized valves intake/exhaust [] Brian Crower Forged Stroker Crank [] Darton M.I.D. Sleeved Block [] Kelford Camshafts [] Torspd 160* T-stat mod [] APR Large Fuel Rail [] Walbro 460 LPH E85 Fuel Pump [] FueLab FPR [] APR T56 Conversion Kit [] KP RACING Built T56 [] McLeod Racing Custom Twin Disk Clutch [] One Piece Aluminum Driveshaft [] MGW Shifter [] Custom lowering kit [] Ohlins Front Coilovers [] QA1rear shocks [] Custom Ron Davis Radiator [] Dual SPAL Electric Fans []
    Those would be unnecessary with a set of cams.

    Roostfactor and BassAckwards like this.
  8. Jun 27, 2019 at 7:07 AM
    #8
    BassAckwards

    BassAckwards formerly rjbiii

    Joined:
    May 3, 2016
    Member:
    #186002
    Messages:
    20,986
    Gender:
    Male
    First Name:
    Robert
    Vehicle:
    PreRunner 2.7L
    Thanks for the clarification:thumbsup:

    Torspd likes this.
  9. Jun 27, 2019 at 7:08 AM
    #9
    GT7

    GT7 One piece at a time

    Joined:
    Aug 15, 2014
    Member:
    #136201
    Messages:
    2,374
    Gender:
    Male
    First Name:
    Grant
    Phoenix
    Vehicle:
    2013 DCLB
    IN.

  10. Jun 27, 2019 at 7:11 AM
    #10
    Murphinator

    Murphinator Well-Known Member

    Joined:
    Mar 1, 2015
    Member:
    #149903
    Messages:
    2,119
    Gender:
    Male
    First Name:
    Anthony
    SoCal
    Vehicle:
    14 DCSB 4x4
    Curious what kind of performance benefits we can expect from these cams, I am interested but don’t put me down just yet.

    Roostfactor, DocME and BassAckwards like this.
  11. Jun 27, 2019 at 7:51 AM
    #11
    garciav

    garciav Well-Known Member

    Joined:
    Apr 11, 2016
    Member:
    #184036
    Messages:
    238
    Gender:
    Male
    Houston, TX
    Vehicle:
    2013 Tacoma TRD Off-Road 6MT
    TRD Supercharged, King Suspension, URD Stg 3 clutch / Torque-U Flywheel /Fix-U Hydrobearing
    damn... at what point do I have to worry about blowing up the 1GR with all these bolt ons becoming available ??

  12. Jun 27, 2019 at 7:54 AM
    #12
    GT7

    GT7 One piece at a time

    Joined:
    Aug 15, 2014
    Member:
    #136201
    Messages:
    2,374
    Gender:
    Male
    First Name:
    Grant
    Phoenix
    Vehicle:
    2013 DCLB
    Just do it? Realistically somewhere just above 400 I believe. but @Athlaos is running a ton of boost. I wonder how much it makes

    Athlaos and BassAckwards like this.
  13. Jun 27, 2019 at 8:22 AM
    #13
    Torspd

    Torspd Tor-nication

    Joined:
    Sep 18, 2009
    Member:
    #22958
    Messages:
    18,483
    Gender:
    Male
    First Name:
    Tor
    The Great America!
    Vehicle:
    MMVI 4.4L 4x4 Access Cab
    Torspd Custom Turbo kit [] Borg Warner 9180EFR Turbo [] Haltech Elite 2500 [] TiAL Q BOV [] TiAL V44 Wastegate @ 15psi [] CP Pistons [] CP Carrillo Rods [] ARP Head studs [] ARP Main Studs [] ARP Header - Head Studs [] Ported Heads w/ 1mm oversized valves intake/exhaust [] Brian Crower Forged Stroker Crank [] Darton M.I.D. Sleeved Block [] Kelford Camshafts [] Torspd 160* T-stat mod [] APR Large Fuel Rail [] Walbro 460 LPH E85 Fuel Pump [] FueLab FPR [] APR T56 Conversion Kit [] KP RACING Built T56 [] McLeod Racing Custom Twin Disk Clutch [] One Piece Aluminum Driveshaft [] MGW Shifter [] Custom lowering kit [] Ohlins Front Coilovers [] QA1rear shocks [] Custom Ron Davis Radiator [] Dual SPAL Electric Fans []
    That is a boost related figure though. As the base engine's volumetric efficiency is increased, then it's base HP goes up. Which raises that figure above, some.

    Roostfactor likes this.
  14. Jun 27, 2019 at 8:23 AM
    #14
    BassAckwards

    BassAckwards formerly rjbiii

    Joined:
    May 3, 2016
    Member:
    #186002
    Messages:
    20,986
    Gender:
    Male
    First Name:
    Robert
    Vehicle:
    PreRunner 2.7L
  15. Jun 27, 2019 at 8:27 AM
    #15
    Torspd

    Torspd Tor-nication

    Joined:
    Sep 18, 2009
    Member:
    #22958
    Messages:
    18,483
    Gender:
    Male
    First Name:
    Tor
    The Great America!
    Vehicle:
    MMVI 4.4L 4x4 Access Cab
    Torspd Custom Turbo kit [] Borg Warner 9180EFR Turbo [] Haltech Elite 2500 [] TiAL Q BOV [] TiAL V44 Wastegate @ 15psi [] CP Pistons [] CP Carrillo Rods [] ARP Head studs [] ARP Main Studs [] ARP Header - Head Studs [] Ported Heads w/ 1mm oversized valves intake/exhaust [] Brian Crower Forged Stroker Crank [] Darton M.I.D. Sleeved Block [] Kelford Camshafts [] Torspd 160* T-stat mod [] APR Large Fuel Rail [] Walbro 460 LPH E85 Fuel Pump [] FueLab FPR [] APR T56 Conversion Kit [] KP RACING Built T56 [] McLeod Racing Custom Twin Disk Clutch [] One Piece Aluminum Driveshaft [] MGW Shifter [] Custom lowering kit [] Ohlins Front Coilovers [] QA1rear shocks [] Custom Ron Davis Radiator [] Dual SPAL Electric Fans []
    BassAckwards likes this.
  16. Jun 27, 2019 at 8:35 AM
    #16
    GT7

    GT7 One piece at a time

    Joined:
    Aug 15, 2014
    Member:
    #136201
    Messages:
    2,374
    Gender:
    Male
    First Name:
    Grant
    Phoenix
    Vehicle:
    2013 DCLB
    looks like the specs from this cam don't match any of the previously quoted cams from 3 years ago

  17. Jun 27, 2019 at 8:58 AM
    #17
    Murphinator

    Murphinator Well-Known Member

    Joined:
    Mar 1, 2015
    Member:
    #149903
    Messages:
    2,119
    Gender:
    Male
    First Name:
    Anthony
    SoCal
    Vehicle:
    14 DCSB 4x4
    I really want to do this, but I am curious what the modifications to the can will provide. Also how easy/difficult will it be to install these? I don’t have the fear of missing out on many mods, but this is one of them for sure.

  18. Jun 27, 2019 at 9:00 AM
    #18
    GT7

    GT7 One piece at a time

    Joined:
    Aug 15, 2014
    Member:
    #136201
    Messages:
    2,374
    Gender:
    Male
    First Name:
    Grant
    Phoenix
    Vehicle:
    2013 DCLB
    I think they will be awesome, but @Torspd is the only one with experience

    Murphinator likes this.
  19. Jun 27, 2019 at 9:05 AM
    #19
    BillDaCat8

    BillDaCat8 [OP] Well-Known Member

    Joined:
    Jun 25, 2017
    Member:
    #222348
    Messages:
    783
    Gender:
    Male
    First Name:
    Jake
    PHX
    Vehicle:
    07 4x4 Access Cab M/T
    I got a Mickey Mouse antenna ball. Does that count?
    Yes. These retain the VVT.

  20. Jun 27, 2019 at 9:07 AM
    #20
    Murphinator

    Murphinator Well-Known Member

    Joined:
    Mar 1, 2015
    Member:
    #149903
    Messages:
    2,119
    Gender:
    Male
    First Name:
    Anthony
    SoCal
    Vehicle:
    14 DCSB 4x4
    Also in the OP it says its forcthe early 1grfe, I am assuming that covers 05-15 tacoma 1GR’s or was there a change in 09+ or 12+? I know those years toyota made some changes to the trucks but I thought the motors are basically the same. Just want to be 100% sure
