CLOSED: NST TRD/ Magnuson 4.0 supercharger lightweight billet crank pulley | crank dampner

Discussion in '2nd Gen. Tacomas (2005-2015)' started by 12TRDTacoma, Jun 21, 2019.

  1. Sep 23, 2019 at 5:49 PM
    #621
    12TRDTacoma

    12TRDTacoma [OP] Powered by Ford, GM, VW, and Mercedes

    Joined:
    Aug 20, 2012
    Member:
    #85133
    Messages:
    16,671
    Gender:
    Male
    First Name:
    Rob
    Concordia
    Vehicle:
    12 TRD Sport DCLB 4x4 Supercharged
    Boosted
    Oh well EXCUSEEEEE MEEEE! :D ;)

    The majority of the members still invested in this thread are still in. Which is good because I just wanted to make sure myself and XPO were being as transparent as possible about everything from the getgo and there was a firm understanding of the function of this part.

    I think it is safe to say, let us proceed.

    XPOTRPR[QUOTED] likes this.
  2. Sep 24, 2019 at 12:26 AM
    #622
    TheFang

    TheFang No Big Deal

    Joined:
    Jul 15, 2014
    Member:
    #133985
    Messages:
    2,642
    Gender:
    Male
    SoCal
    Vehicle:
    Tacoma TRD Sport
    TRD Exhaust, URD Short Shift, TRD Supercharger, Hellwig rear sway bar, TWM shift knob, limo tint, URD Y-pipe, URD LT Headers, URD Rear O2 Sim, Custom tube front and rear bumpers, LED spot pods, K&N CAI
  3. Sep 24, 2019 at 6:05 AM
    #623
    Scott B.

    Scott B. Well-Known Member

    Joined:
    Nov 11, 2014
    Member:
    #142118
    Messages:
    4,478
    Gender:
    Male
    First Name:
    Scott
    Georgia
    Vehicle:
    2015 ACLB SR5 4x4 Expo
    Purdy!

    I'm still voting for RED, but I understand the color issue. ;)

    XPOTRPR[QUOTED] likes this.
  4. Sep 24, 2019 at 8:09 AM
    #624
    XPOTRPR

    XPOTRPR CNC Programmer/Machinist

    Joined:
    May 29, 2011
    Member:
    #57449
    Messages:
    31,171
    Gender:
    Male
    First Name:
    Josh
    Chandler, AZ
    Vehicle:
    [2009 Supercharged Adventuretruck] & [1986 22r Minitruck]
    > BUILD LINKS >
    I'd like red too tbh.. but also not that picky.

  5. Sep 24, 2019 at 9:08 AM
    #625
    Scott B.

    Scott B. Well-Known Member

    Joined:
    Nov 11, 2014
    Member:
    #142118
    Messages:
    4,478
    Gender:
    Male
    First Name:
    Scott
    Georgia
    Vehicle:
    2015 ACLB SR5 4x4 Expo
    In reality, the pulley won't be all that easy to see. At the bottom of the engine, under the fan, with a skid plate underneath.

  6. Sep 24, 2019 at 9:33 AM
    #626
    XPOTRPR

    XPOTRPR CNC Programmer/Machinist

    Joined:
    May 29, 2011
    Member:
    #57449
    Messages:
    31,171
    Gender:
    Male
    First Name:
    Josh
    Chandler, AZ
    Vehicle:
    [2009 Supercharged Adventuretruck] & [1986 22r Minitruck]
    > BUILD LINKS >
    definitely, which is why I'm not too picky. Red would just be for me knowing its in there and seeing it occasionally. lol

  7. Sep 24, 2019 at 3:03 PM
    #627
    Athlaos

    Athlaos Destruction Mode

    Joined:
    Nov 24, 2010
    Member:
    #46672
    Messages:
    2,652
    Gender:
    Male
    First Name:
    Leigh
    Edmonton
    Vehicle:
    2011 SR5 Manual TRD SC 1.87" pulley
    A flux retro-capacitance encabulator
    Apologies if I missed the post on this - I did do a quick search of the thread but didn't see anything... I saw the weight is 1.326lbs, but what is the stock pulley weight? And, is there a comparison of the moment of inertia of this new design to that of the original?

  8. Sep 24, 2019 at 3:04 PM
    #628
    XPOTRPR

    XPOTRPR CNC Programmer/Machinist

    Joined:
    May 29, 2011
    Member:
    #57449
    Messages:
    31,171
    Gender:
    Male
    First Name:
    Josh
    Chandler, AZ
    Vehicle:
    [2009 Supercharged Adventuretruck] & [1986 22r Minitruck]
    > BUILD LINKS >
    Just ordered the 5mm x 14mm dowel pins for the Keyway. 4,600lb Double Shear breaking strength. C52 Rockwell.

    going over the final outside diameter right now to make sure we dont run into clearance issues with the pulley's on the tensioner. right now, the model is at 6.54" (rib diameter). The OE is 6.5" (rib diameter). so... technically its .040" oversized. lol But, that means there is less outside wall to make sure the belt stays on the pulley. There's a wall currently, but I'd like to get as much as possible that I can get away with fitting in there. Adding to the height of the wall (overall outside diameter) will increase the pulley from the OE size of 6.68"... to 6.77". We're talking .090"... .045" each side.

    for reference, here is the clearance im talking about. between s/c crank pulley and tensioner pullies. I just want to make sure that adding that extra .045" wont make for issues. once I get that dialed in.. I think we're ready to roll. Been spending the last couple days going over it all with a fine tooth comb.

    [​IMG]

  9. Sep 24, 2019 at 3:25 PM
    #629
    Lucario Runner

    Lucario Runner Resident Truck/SUV racer

    Joined:
    Jun 29, 2011
    Member:
    #59067
    Messages:
    7,198
    Gender:
    Male
    First Name:
    Robert
    San Antonio, TX or nearest race track
    Vehicle:
    06 Toyota 4Runner
    AFE stage II intake, APR X1, URD 70mm Throttle Valve (ported and knife edged), NST intake manifold spacer, URD spec U headers, Denso IKH20, URD fuel pump, APR fuel rail, URD Y pipe, URD spec u catback, lightweight water pump pulley, Greddy sandwich cooler plate, Earls oil cooler, IPT valve body, FJ TRD shocks, Cusco front and rear sway bars, Energy Suspension rear track rod bushings and rear link bushings, Carbotech pads, Stoptech ss brake lines, Stoptech slotted rotors, Motul 600 rbf, Limited Grill, Painted hatch cover by me, Painted valve covers by me, Cobra CB, TRD rad and oil cap, Escort 8500, Autometer oil psi and temp gauges, AEM wideband afr gauge, Flexpod, Pioneer 400w speakers.
    I can live with grey. Red is meh it'll just turn pink.
    Basiclly 2 lbs

    Torspd and 12TRDTacoma[OP] like this.
  10. Sep 25, 2019 at 8:36 AM
    #630
    XPOTRPR

    XPOTRPR CNC Programmer/Machinist

    Joined:
    May 29, 2011
    Member:
    #57449
    Messages:
    31,171
    Gender:
    Male
    First Name:
    Josh
    Chandler, AZ
    Vehicle:
    [2009 Supercharged Adventuretruck] & [1986 22r Minitruck]
    > BUILD LINKS >
    Alright guys, here's the final results.

    OEM Pulley:
    Weight - 31.5 OZ
    Overall Diameter - 6.68"
    Rib Diameter - 6.50"

    BILLET Pulley:
    Weight - 21.5 OZ
    Overall Diameter - 6.76"
    Rib Diameter - 6.54"

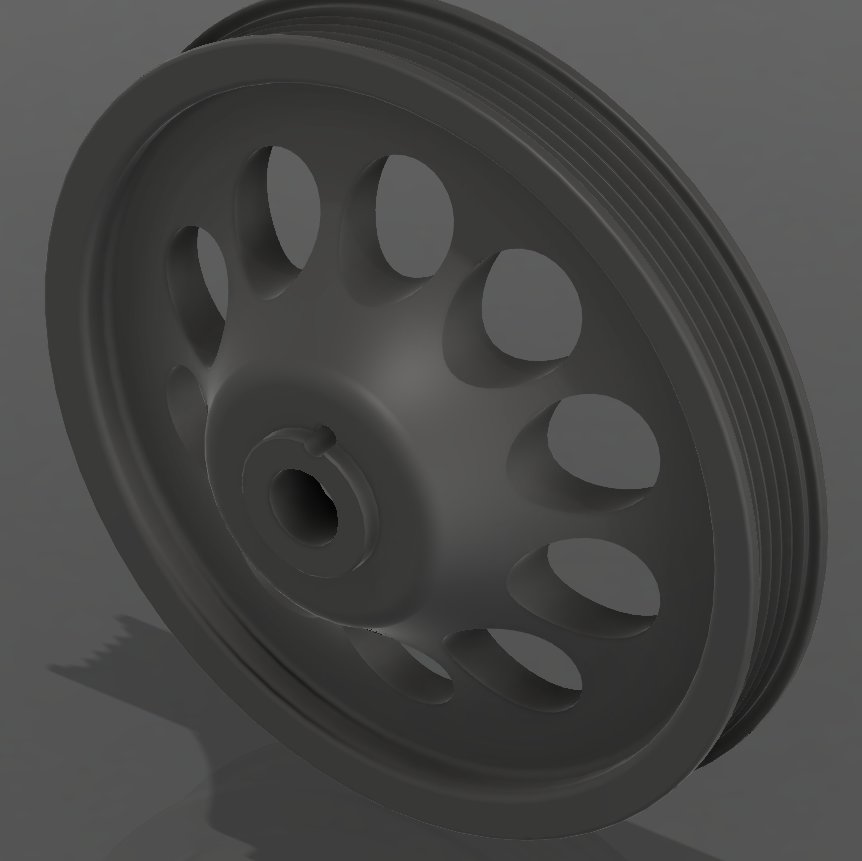

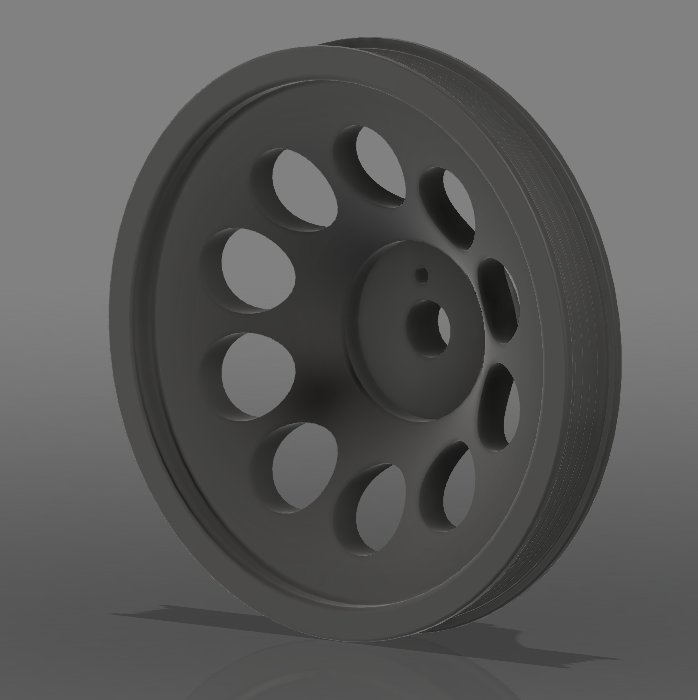

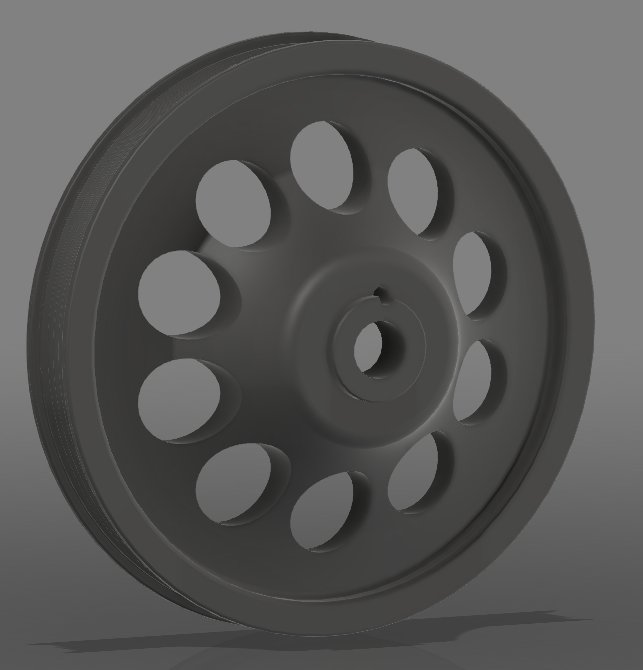

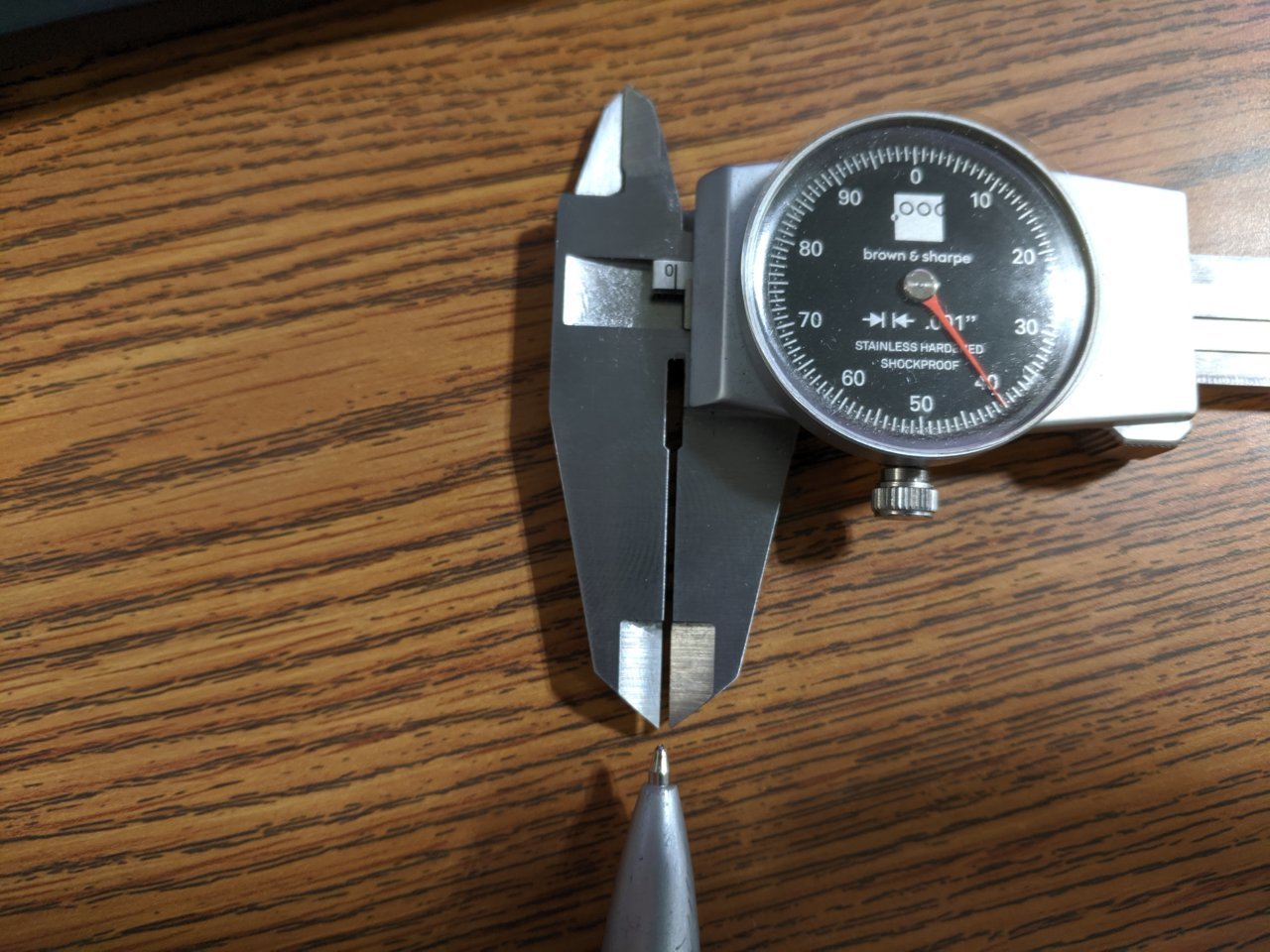

    New Pulley is 10oz lighter and .040" oversized.

    Pins arrive today, so hopefully we can start setting up and gathering tooling, etc. I will post up when they are in the books and scheduled. At that time, we can start collecting 50% Non-Refundable Payments while these are running. Turn around time is yet to be determined, I will get that once we start rolling.

  11. Sep 25, 2019 at 8:46 AM
    #631
    Murphinator

    Murphinator Well-Known Member

    Joined:
    Mar 1, 2015
    Member:
    #149903
    Messages:
    3,335
    Gender:
    Male
    First Name:
    Anthony
    SoCal
    Vehicle:
    14 DCSB 4x4
    Not sure how I feel about the pulley being oversized, what does everyone think? I am happy with it being lighter though!

  12. Sep 25, 2019 at 9:07 AM
    #632
    XPOTRPR

    XPOTRPR CNC Programmer/Machinist

    Joined:
    May 29, 2011
    Member:
    #57449
    Messages:
    31,171
    Gender:
    Male
    First Name:
    Josh
    Chandler, AZ
    Vehicle:
    [2009 Supercharged Adventuretruck] & [1986 22r Minitruck]
    > BUILD LINKS >
    It's .040" over...


  13. Sep 25, 2019 at 9:12 AM
    #633
    Scott B.

    Scott B. Well-Known Member

    Joined:
    Nov 11, 2014
    Member:
    #142118
    Messages:
    4,478
    Gender:
    Male
    First Name:
    Scott
    Georgia
    Vehicle:
    2015 ACLB SR5 4x4 Expo
    Doesn't an oversized crank pulley do the same thing (functionally) as a smaller s/c pulley?

  14. Sep 25, 2019 at 9:13 AM
    #634
    XPOTRPR

    XPOTRPR CNC Programmer/Machinist

    Joined:
    May 29, 2011
    Member:
    #57449
    Messages:
    31,171
    Gender:
    Male
    First Name:
    Josh
    Chandler, AZ
    Vehicle:
    [2009 Supercharged Adventuretruck] & [1986 22r Minitruck]
    > BUILD LINKS >
    correct

    12TRDTacoma[OP] likes this.
  15. Sep 25, 2019 at 9:33 AM
    #635
    henryp

    henryp Well-Known Member

    Joined:
    Jan 6, 2012
    Member:
    #70080
    Messages:
    2,443
    Gender:
    Male
    First Name:
    Henry
    Montana
    Vehicle:
    '17 GX 460 and '09 Boosted Taco
    Form follows function
    Massive...

  16. Sep 25, 2019 at 9:34 AM
    #636
    Murphinator

    Murphinator Well-Known Member

    Joined:
    Mar 1, 2015
    Member:
    #149903
    Messages:
    3,335
    Gender:
    Male
    First Name:
    Anthony
    SoCal
    Vehicle:
    14 DCSB 4x4
    my bad, I read it as like .4 over lol.
    And for some reason I read it as .4 undersized (less boost). Too much Ot lately taking a toll on my brain function.

  17. Sep 25, 2019 at 9:53 AM
    #637
    Lucario Runner

    Lucario Runner Resident Truck/SUV racer

    Joined:
    Jun 29, 2011
    Member:
    #59067
    Messages:
    7,198
    Gender:
    Male
    First Name:
    Robert
    San Antonio, TX or nearest race track
    Vehicle:
    06 Toyota 4Runner
    AFE stage II intake, APR X1, URD 70mm Throttle Valve (ported and knife edged), NST intake manifold spacer, URD spec U headers, Denso IKH20, URD fuel pump, APR fuel rail, URD Y pipe, URD spec u catback, lightweight water pump pulley, Greddy sandwich cooler plate, Earls oil cooler, IPT valve body, FJ TRD shocks, Cusco front and rear sway bars, Energy Suspension rear track rod bushings and rear link bushings, Carbotech pads, Stoptech ss brake lines, Stoptech slotted rotors, Motul 600 rbf, Limited Grill, Painted hatch cover by me, Painted valve covers by me, Cobra CB, TRD rad and oil cap, Escort 8500, Autometer oil psi and temp gauges, AEM wideband afr gauge, Flexpod, Pioneer 400w speakers.
    So $125 down. Looking forward to it.

  18. Sep 25, 2019 at 9:56 AM
    #638
    BassAckwards

    BassAckwards Well-Known Member

    Joined:
    May 3, 2016
    Member:
    #186002
    Messages:
    27,954
    Vehicle:
    2009 Tacoma AWD Turbo 2TR-FE
    Full-time AWD & BorgWarner EFR 6258
  19. Sep 25, 2019 at 10:52 AM
    #639
    zscott

    zscott Well-Known Member Vendor

    Joined:
    Jul 16, 2013
    Member:
    #108365
    Messages:
    3,742
    Gender:
    Male
    First Name:
    Zach
    Utah
    Vehicle:
    13 DCSB Off-Road 4x4
    Is there a reason we aren’t matching the OEM exactly? I mean I know .04 is minimal. Is it just the machining process that is causing the discrepancy?

    XPOTRPR[QUOTED] likes this.
  20. Sep 25, 2019 at 11:11 AM
    #640
    Torspd

    Torspd Tor-nication

    Joined:
    Sep 18, 2009
    Member:
    #22958
    Messages:
    26,452
    Gender:
    Male
    First Name:
    Tor
    The Great America!
    Vehicle:
    MMVI 4.4L 4x4 Access Cab
    Torspd Custom Turbo kit [] Borg Warner 9180EFR Turbo [] Haltech Elite 2500 [] TiAL Q BOV [] TiAL V44 Wastegate @ 15psi [] CP Pistons [] CP Carrillo Rods [] ARP Head studs [] ARP Main Studs [] ARP Header - Head Studs [] Ported Heads w/ 1mm oversized valves intake/exhaust [] Brian Crower Forged Stroker Crank [] Darton M.I.D. Sleeved Block [] Kelford Camshafts [] Torspd 160* T-stat mod [] APR Large Fuel Rail [] Walbro 460 LPH E85 Fuel Pump [] FueLab FPR [] APR T56 Conversion Kit [] KP RACING Built T56 [] McLeod Racing Custom Twin Disk Clutch [] One Piece Aluminum Driveshaft [] MGW Shifter [] Custom lowering kit [] Ohlins Front Coilovers [] QA1rear shocks [] Custom Ron Davis Radiator [] Dual SPAL Electric Fans []
    This is great news! I'll sit back and keep watching. The design is beautiful. Carry on. :cheers:
