Clutch to Brake Pedal Distance Measurement Help

Discussion in '2nd Gen. Tacomas (2005-2015)' started by DesertRatliff, Jun 9, 2023.

  1. Jun 9, 2023 at 7:32 PM
    #1
    DesertRatliff

    DesertRatliff [OP] Well-Known Member

    Joined:
    Jan 14, 2012
    Member:
    #70618
    Messages:
    2,493
    Gender:
    Male
    Mt. Hood, OR
    Vehicle:
    Mas Tacos Por Favor
    Going to finally mount my clutch pedal assembly in my DCLB manual tranny swap. I've got a ballpark but can someone with a manual tranny 2nd gen get a more exact measurement from the top of the clutch pedal to the top of the brake pedal for me? Thanks in advance!


  2. Jun 9, 2023 at 7:57 PM
    #2
    Dm93

    Dm93 Test Don't Guess

    Joined:
    Mar 3, 2015
    Member:
    #150066
    Messages:
    13,821
    Gender:
    Male
    Texas
    Vehicle:
    2014 DC OR 6spd 4x4
    Predator tube steps, Ranch Hand grill guard, Magnaflow CatBack exhaust, Toyota tool box & bed mat, 2LO Module by @Up2NoGood, Rearview Compass/Temp Mirror, Tune by @JustDSM.
    I can grab a measurement off mine tomorrow if you like.

    DesertRatliff[OP] likes this.
  3. Jun 9, 2023 at 8:01 PM
    #3
    jowybyo

    jowybyo Well-Known Member

    Joined:
    Nov 19, 2013
    Member:
    #116863
    Messages:
    6,092
    Gender:
    Male
    First Name:
    Joe
    Baltimore, MD
    Vehicle:
    '14 MGM DCSB Postrunner 4wd Conversion, Debadged
    I can’t remember how I figured this out. But I didn’t measure anything. There was something on the firewall that guided the placement.

  4. Jun 10, 2023 at 5:42 AM
    #4
    DesertRatliff

    DesertRatliff [OP] Well-Known Member

    Joined:
    Jan 14, 2012
    Member:
    #70618
    Messages:
    2,493
    Gender:
    Male
    Mt. Hood, OR
    Vehicle:
    Mas Tacos Por Favor
    There are indentations on the firewall that give a ballpark and the whole assembly bolts up to that upper bracket but the upper bracket isn't lining up well for me and I just want one more measurement (the all-important pedal spacing) to go off of before I starting shooting holes.

  5. Jun 10, 2023 at 7:46 AM
    #5
    winkel

    winkel Well-Known Member

    Joined:
    Dec 24, 2015
    Member:
    #173039
    Messages:
    2,688
    Gender:
    Male
    Corydon, IN
    Vehicle:
    2014 Spruce Mica, TRD Off-Road, 6 Spd Manual
    Sliders, Tailgate Liner

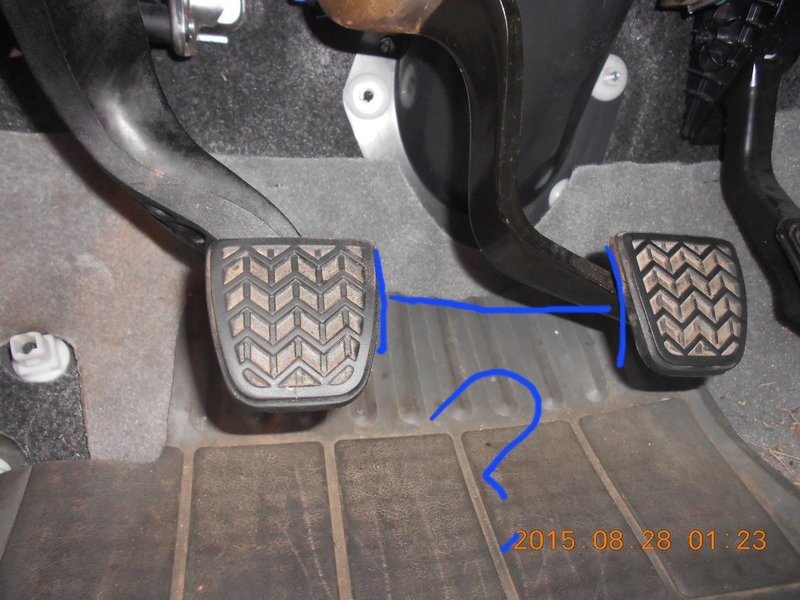

    4-3/8", edge of pedal to edge of pedal.
    Four and three eights of an inch.

    Dm93 and DesertRatliff[OP] like this.
  6. Jun 10, 2023 at 8:30 AM
    #6
    DesertRatliff

    DesertRatliff [OP] Well-Known Member

    Joined:
    Jan 14, 2012
    Member:
    #70618
    Messages:
    2,493
    Gender:
    Male
    Mt. Hood, OR
    Vehicle:
    Mas Tacos Por Favor
    You're awesome. Thanks so much.

    winkel[QUOTED] likes this.
