Color Code on Front Coil Springs

Discussion in '2nd Gen. Tacomas (2005-2015)' started by grivera, Dec 27, 2008.

  1. Dec 27, 2008 at 6:51 AM
    #1
    grivera

    grivera [OP] Well-Known Member

    Joined:
    Sep 25, 2008
    Member:
    #9474
    Messages:
    800
    Gender:
    Male
    Hanover, MD
    Vehicle:
    '08 DC SR5 4x4, Desert Sand Mica
    Rear Suspension TSB, Bilstein 5100 on all 4 corners-fronts set at 1.75". BFG A/T's @ 265/75/16; Access LE Roll-up cover; Iron Cross Tube SS Steps; Fumoto valve; WeatherTech Liners; AFE Pro-Dry; front side windows tinted 20%; TW Decal!
    I had the suspension TSB done on my Truck earlier this week. Instead of using the TSB Bilstein shocks, the dealer substituted my 5100s front and rear, set to 1.75. Yesterday, I measured front and rear height of the wheel wells. I measured from the ground centered with the wheel hub, up to the lip of the fender. The P-side (front and rear) is 1/2" higher than the D-side front and rear. I posted this on the suspension forum under an ongoing thread about a different topic and was advised that the dealer may have switched the L an R coil springs which have different load rates (that thread is apparantly dead). The springs are also color coded to indicate which goes where-however, I don't know which color goes where.

    Will someone with an '08 DC 4x4 (v-6) that still has the factory coil springs please look at their springs and tell me what color paint each side has? Thanks in advance!

  2. Dec 27, 2008 at 9:33 AM
    #2
    jeremy_283

    jeremy_283 Super Member

    Joined:
    Dec 14, 2008
    Member:
    #11569
    Messages:
    1,432
    Vehicle:
    08 TRD Offroad Access Cab 4x4 Auto 4.0L
    Hella Rallye 4000 Cornering Lights PIAA 510 Fog Lights All Pro Front Bumper All Pro Rear Bumper All Pro Transfer Case Skid All Pro IFS Skid All Pro Rock Sliders All Pro High Clearance Hitch OME Dakar Leaf Springs OME Rear Shocks OME Front Shocks OME 885 Front Coils Wet Okole Seat Covers WeatherTech Floor Liners Sony Head Unit JL XD600/1 Amp 2 JL Audio 10” Subwoofers Custom Subwoofer Enclosure Kenwood Front Speakers Sony Rear Speakers Sound Deadening Mats LED Interior Lighting Pop N’ Lock Tailgate Lock Viper Alarm System Extra D-Rings In Truck Bed Maglite Seat Mount Disable Seatbelt Chime Rear Differential Breather Relocation Hi-Lift Bed Mount Flexible Front Mud Flaps 110v Inverter Always At 400w ABS Kill Switch Locking Center Console Removed Sway Bar
    i thought i read somwhere on here that tacomas have an uneven passenger and dricer side... not sure tho

  3. Dec 27, 2008 at 10:13 AM
    #3
    paintdiddy

    paintdiddy Machine gun shits

    Joined:
    Oct 12, 2008
    Member:
    #9924
    Messages:
    10,281
    Gender:
    Male
    First Name:
    shithead
    nj and not from "the jersey shore"
    Vehicle:
    silver bullet
    i just went outside to look and didnt see any paint markings.wheels were straight and didnt have keys. where are they located?i'm going out soon and will look with the wheels turned to see if i can see better.

  4. Dec 27, 2008 at 10:20 AM
    #4
    grivera

    grivera [OP] Well-Known Member

    Joined:
    Sep 25, 2008
    Member:
    #9474
    Messages:
    800
    Gender:
    Male
    Hanover, MD
    Vehicle:
    '08 DC SR5 4x4, Desert Sand Mica
    Rear Suspension TSB, Bilstein 5100 on all 4 corners-fronts set at 1.75". BFG A/T's @ 265/75/16; Access LE Roll-up cover; Iron Cross Tube SS Steps; Fumoto valve; WeatherTech Liners; AFE Pro-Dry; front side windows tinted 20%; TW Decal!
    Do you mean uneven ride height from factory?

  5. Dec 27, 2008 at 10:23 AM
    #5
    grivera

    grivera [OP] Well-Known Member

    Joined:
    Sep 25, 2008
    Member:
    #9474
    Messages:
    800
    Gender:
    Male
    Hanover, MD
    Vehicle:
    '08 DC SR5 4x4, Desert Sand Mica
    Rear Suspension TSB, Bilstein 5100 on all 4 corners-fronts set at 1.75". BFG A/T's @ 265/75/16; Access LE Roll-up cover; Iron Cross Tube SS Steps; Fumoto valve; WeatherTech Liners; AFE Pro-Dry; front side windows tinted 20%; TW Decal!

    I found a marking on the P-side (which may be on the wrong side). It has blue and grey paint.

    Below are pics of the differnce in height for reference.

    D-Side Front2.jpg
    P-Side Front2.jpg
    P-Side Rear.jpg
    D-Side rear.jpg

  6. Dec 28, 2008 at 1:08 PM
    #6
    paintdiddy

    paintdiddy Machine gun shits

    Joined:
    Oct 12, 2008
    Member:
    #9924
    Messages:
    10,281
    Gender:
    Male
    First Name:
    shithead
    nj and not from "the jersey shore"
    Vehicle:
    silver bullet
    i have a washed out purple(i think its purple) on my drivers side coil.i cant see one on the passenger side,must be on the inside against the motor side.

  7. Dec 28, 2008 at 1:11 PM
    #7
    hoosiertaco

    hoosiertaco Well-Known Member

    Joined:
    Sep 8, 2008
    Member:
    #9084
    Messages:
    4,906
    I went out and looked, and see the same paint mark on both sides. (almost white in color)I would need a picture or better description to find the marks you talk of.

  8. Dec 28, 2008 at 1:16 PM
    #8
    DeeKay21

    DeeKay21 Lieutenant Dan.

    Joined:
    Nov 11, 2008
    Member:
    #10651
    Messages:
    14,152
    Gender:
    Male
    Nevada/Utah
    Vehicle:
    06' TRD Sport 4x4
    My Tacoma is that way also with the pass side being 1/2 inch higher then the driver side. I also have a 3 inch lift on mine with 5100's all around. Longhorn told me that 2nd gen Tacoma's are infamous for this so your not the only one. It kind of bugged me at first but you can't really tell.:rolleyes:
    Oh hey, so how much height did you gain in the back after the TSB was done?

  9. Dec 29, 2008 at 9:35 AM
    #9
    br217398

    br217398 Crazy Person.....

    Joined:
    Jul 13, 2008
    Member:
    #7920
    Messages:
    468
    Gender:
    Male
    Orlando Florida
    Vehicle:
    06 Tundra Crew Cab 4WD
    Hornblasters horns,Strobe lights,Police Undercover Vehicle, Volent Ram air system, pro comp POS AAL, biltein all around, step bars.

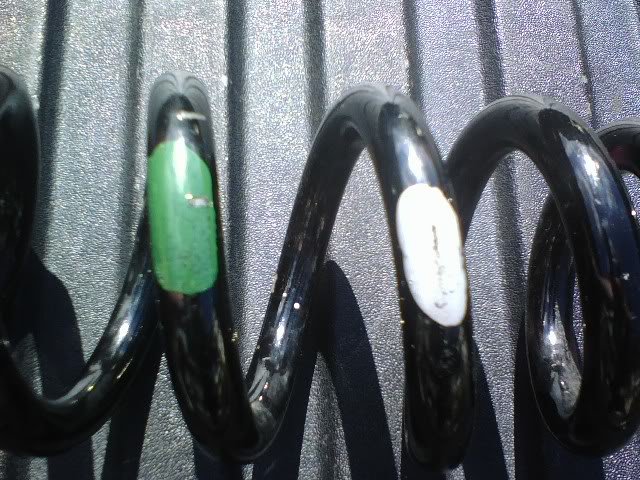

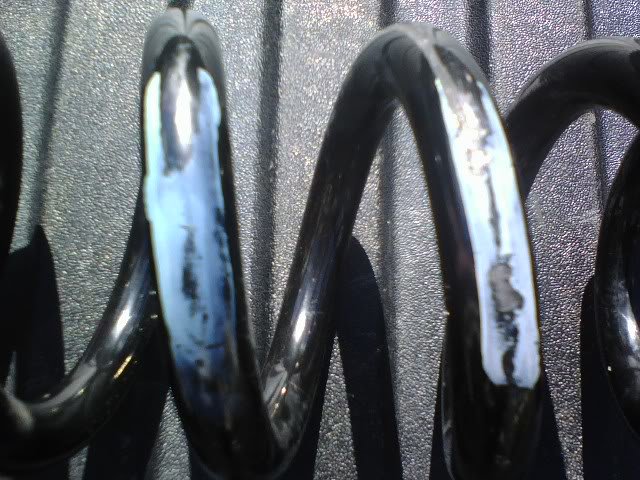

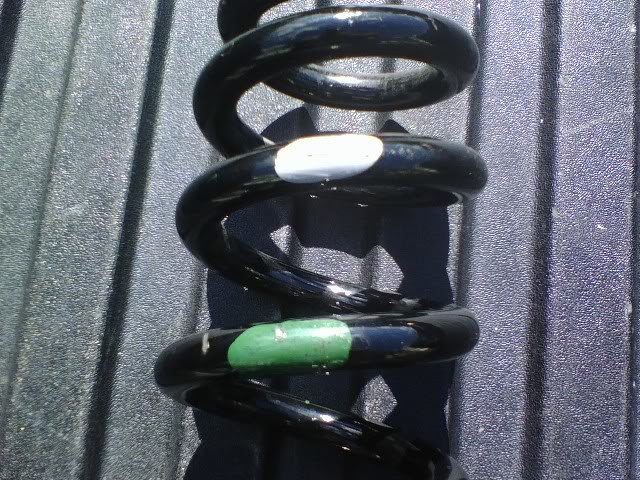

    Grivera, hope these are the colors....

    ok so those are the two sets of colors, just need to know which ones go on which side.

  10. Dec 29, 2008 at 9:44 AM
    #10
    chris4x4

    chris4x4 With sufficient thrust, pigs fly just fine. Moderator

    Joined:
    May 8, 2008
    Member:
    #6497
    Messages:
    112,751,503
    Gender:
    Male
    First Name:
    FlimFlubberJAM
    Tenoe, AZ
    Vehicle:
    2019 Rubicon 4 Door,
    4.10 gears, sliders, and lots of buttons.
    DAM!!!! I cant remember, and I had my stock coils on my porch for 6 months!!! :frusty:

  11. Dec 29, 2008 at 11:03 AM
    #11
    RCBS

    RCBS How long you willing to tolerate this crap??

    Joined:
    Apr 9, 2008
    Member:
    #5845
    Messages:
    2,874
    Gender:
    Male
    Harden your bark, there are storms on the horizon.
    Vehicle:
    Goodbye 06, Hello 21. TRDORDCSBMT
    Tornado intake, Duralube, Fartcan.
    more components on driver's side....gas tank and driveline parts. the driver's side spring has a slightly higher rate to accomodate the extra weight. sorry, can't remember which side is which color...been a long time since i put the 5100's on. sounds like they switched the springs to me. not that bad of a F-up though...just gotta take em back off and switch sides...no need to break down the strut.

  12. Dec 29, 2008 at 1:28 PM
    #12
    hoosiertaco

    hoosiertaco Well-Known Member

    Joined:
    Sep 8, 2008
    Member:
    #9084
    Messages:
    4,906
    I only seen the white mark on both mine.....maybe I need to look again????

  13. Dec 29, 2008 at 4:18 PM
    #13
    grivera

    grivera [OP] Well-Known Member

    Joined:
    Sep 25, 2008
    Member:
    #9474
    Messages:
    800
    Gender:
    Male
    Hanover, MD
    Vehicle:
    '08 DC SR5 4x4, Desert Sand Mica
    Rear Suspension TSB, Bilstein 5100 on all 4 corners-fronts set at 1.75". BFG A/T's @ 265/75/16; Access LE Roll-up cover; Iron Cross Tube SS Steps; Fumoto valve; WeatherTech Liners; AFE Pro-Dry; front side windows tinted 20%; TW Decal!

    Sorry for the late reply, I just got back from Jersey to catch this thread activity. The blue and gray marks on mine appear like the bottom spring-maybe the gray is actually white?

    It was posted above that I can just swap them. Eventhough that isn't difficult to do, it seems more prudent for me to ascertain which one belpongs on what side. I've also read up on the "Taco Lean" issue. Seems I'm within the acceptable parameters. Thing is, I'm really anal about this type of thing and it will drive me nuts. If the springs are on the correct side, I will probably end up getting a half inch spacer to correct the lean.


    WW_FIREFIGHTER"Oh hey, so how much height did you gain in the back after the TSB was done?"

    It definitely looks higher, although like an ass, I didn't take any meaurements before I took it in. The old pic is in my gallery-the pic below is after:

    Picture 003.jpg

  14. Dec 29, 2008 at 4:22 PM
    #14
    grivera

    grivera [OP] Well-Known Member

    Joined:
    Sep 25, 2008
    Member:
    #9474
    Messages:
    800
    Gender:
    Male
    Hanover, MD
    Vehicle:
    '08 DC SR5 4x4, Desert Sand Mica
    Rear Suspension TSB, Bilstein 5100 on all 4 corners-fronts set at 1.75". BFG A/T's @ 265/75/16; Access LE Roll-up cover; Iron Cross Tube SS Steps; Fumoto valve; WeatherTech Liners; AFE Pro-Dry; front side windows tinted 20%; TW Decal!
    Beter comparison shots before and after TSB:

    Before TSB.jpg
    After TSB.jpg

  15. Dec 29, 2008 at 4:35 PM
    #15
    Neubs

    Neubs Sold my Tacoma. Goodbye TW.

    Joined:
    Sep 13, 2008
    Member:
    #9194
    Messages:
    1,021
    Gender:
    Male
    Maryland
    Vehicle:
    06 TRD Offroad DC 4X4
    ToyTec 5100 Bilstein Adjustable Coilovers w/ Eibach Springs | OME Darkar Leaf Springs | 5150 10" Bilstein Rear Shocks| Light Racing UCAs | All Pro U-Bolt Flip Kit | Timbren Rear Bumps | Extended Stainless Steel Rear Brake Lines | ARB CKMA12 On-Board Air Compressor | Method 16" Race Wheels | Goodyear 285/70/16 MTR | 48" Hi-Lift Jack | ToyTec Diff Drop | Warn Hitch Shackle | TRD Cold Air Intake | PIAA Intense White Bulbs | PIAA Silicone Wipers | Toyota Bed Mat |Sockmonkey Graphics | 20% Tint | Sport Hood | Scan Gauge II & Blend Mount | Shrockworks Sliders | ARB Bumper | Warn M8000 Winch | Viking Synthetic Winch line | 12-Volt Guy In-Dash Winch Controller | Viking Delrin Rollers | Daystar Winch Isolator| ARB/IPF 900XS Lights | Weather Tech Liners | Rock Lights | Diff Breather Mod | Extra Bed D-Rings | Misc. LED bulbs throughout
    You said that you had Taco lean front and rear so In regards to the rear I know that rear TSB leafs ARE left and right side specific. When My dealer installed mine they actually put the springs on the opposite sides. For the longest time I could not figure out why I experienced rear taco lean, while installing my AAL I saw the "RH" and "LH" on top of the spring packs and began thinking maybe something was up. I checked the TSB again and then checked the rest of the suspension components and found that the dealer had indeed made the mistake of installing the springs on the opposite sides the TSB calls for. I made a call and had the springs quickly corrected at no cost. Needless to say that the swap worked and the drivers side sits at the correct level. Check your rear leaf packs, the passenger should have a "RH" stenciled on the top and the drivers side should have an "LH".

    FWIW - I also had taco lean in the front which I used ToyTec's 5100 adjustable coilover kit to correct. Hope this helps. :)

  16. Dec 29, 2008 at 5:06 PM
    #16
    grivera

    grivera [OP] Well-Known Member

    Joined:
    Sep 25, 2008
    Member:
    #9474
    Messages:
    800
    Gender:
    Male
    Hanover, MD
    Vehicle:
    '08 DC SR5 4x4, Desert Sand Mica
    Rear Suspension TSB, Bilstein 5100 on all 4 corners-fronts set at 1.75". BFG A/T's @ 265/75/16; Access LE Roll-up cover; Iron Cross Tube SS Steps; Fumoto valve; WeatherTech Liners; AFE Pro-Dry; front side windows tinted 20%; TW Decal!

    Thanks, I'll check again but I believe when I originally looked at the part numbers on the springs versus teh TSB, they were correct. This is a glimmer of hope as the rear is where the most difference is (alnost 3/4").

  17. Dec 30, 2008 at 3:01 PM
    #17
    grivera

    grivera [OP] Well-Known Member

    Joined:
    Sep 25, 2008
    Member:
    #9474
    Messages:
    800
    Gender:
    Male
    Hanover, MD
    Vehicle:
    '08 DC SR5 4x4, Desert Sand Mica
    Rear Suspension TSB, Bilstein 5100 on all 4 corners-fronts set at 1.75". BFG A/T's @ 265/75/16; Access LE Roll-up cover; Iron Cross Tube SS Steps; Fumoto valve; WeatherTech Liners; AFE Pro-Dry; front side windows tinted 20%; TW Decal!
    I checked, unfortunately the rear springs are installed on the correct sides...
