Discussion in 'Technical Chat' started by DougsGraphics, Aug 7, 2015.

  1. Aug 7, 2015 at 2:10 PM
    #1
    DougsGraphics

    DougsGraphics [OP] Duck Hunter!

    Joined:
    Jun 28, 2015
    Member:
    #158319
    Messages:
    244
    Gender:
    Male
    First Name:
    Doug
    Northern New Mexico
    Vehicle:
    2015 Pyrite Mica DCSB TRD OR
    3" Revtech Level, ARB Deluxe Bull Bar front bumper with WARN 9.5XP Winch and KC Pro-Sport LED Driving Lights, black Diamond Back HD tonneau cover, 4 cameras through Entunes display with capacity for two more, LED interior lights with map lights tied to dome, Bussman auxiliary fuse/relay box with 100 amp breaker/disconnect under hood.

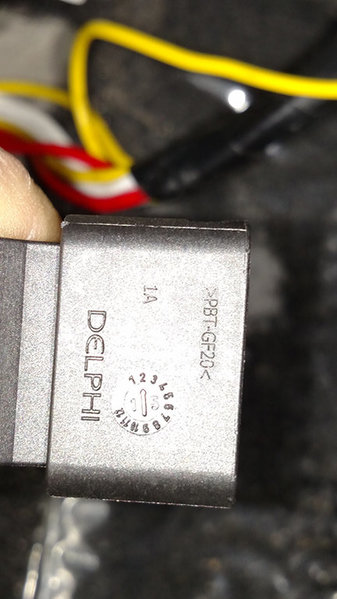

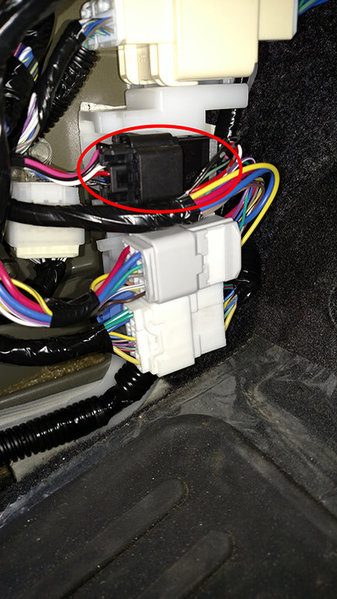

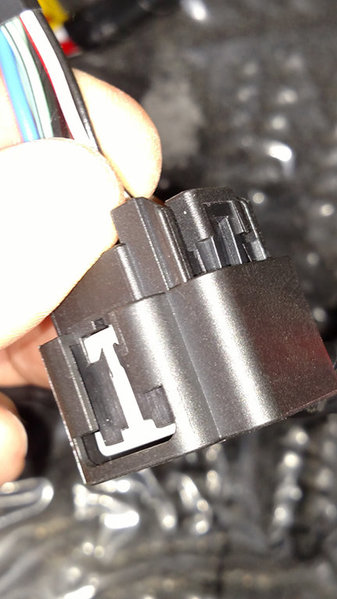

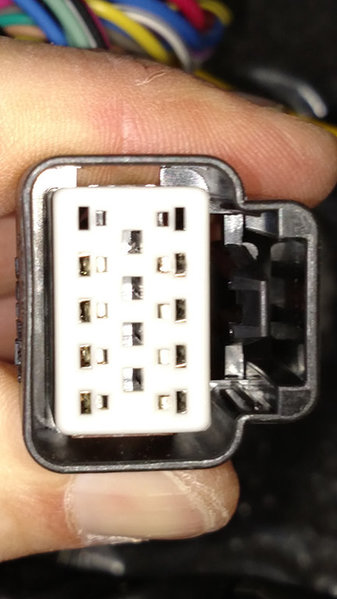

    I'm slowly working on a mod to install several cameras on the undercarriage of my truck. I'm a bit picky regarding connections -- I do everything I can to avoid hacking into the factory wires and prefer to build custom harnesses that I can insert into the existing junctions. One thing I run into over and over is difficulty identifying and sourcing connectors. Right now, I'm trying to identify and locate one like the pictures below. (This is the connector that houses the signal and power feeds running from the backup camera to the junction by the driver's left foot.)
    A) Anybody know the "identity" of this 10-contact Delphi PBT BF20 connector?
    B) Anybody have a good source for identifying procuring the connectors used in our Tacomas?

    IMG_20150807_135744060.jpg IMG_20150807_135825166.jpg IMG_20150807_140035392.jpg IMG_20150807_144315947 (1).jpg

  2. Aug 7, 2015 at 6:39 PM
    #2
    DougsGraphics

    DougsGraphics [OP] Duck Hunter!

    Joined:
    Jun 28, 2015
    Member:
    #158319
    Messages:
    244
    Gender:
    Male
    First Name:
    Doug
    Northern New Mexico
    Vehicle:
    2015 Pyrite Mica DCSB TRD OR
    3" Revtech Level, ARB Deluxe Bull Bar front bumper with WARN 9.5XP Winch and KC Pro-Sport LED Driving Lights, black Diamond Back HD tonneau cover, 4 cameras through Entunes display with capacity for two more, LED interior lights with map lights tied to dome, Bussman auxiliary fuse/relay box with 100 amp breaker/disconnect under hood.
    OK... answering my own question after some significant searching. Mouser is probably the best source, and this is a Delphi GT 150 Series connector (Delphi 15332153).
