Convert rocker to push switch

Discussion in 'Technical Chat' started by steveoh, Aug 20, 2016.

  1. Aug 20, 2016 at 6:10 PM
    #1
    steveoh

    steveoh [OP] Well-Known Member

    Joined:
    May 15, 2012
    Member:
    #78913
    Messages:
    188
    Gender:
    Male
    First Name:
    Steve
    SLC
    Vehicle:
    08 ACLB SR5 4x4
    I have a 3 prong rocker switch I would like to convert to one of these mictuning push switches.

    These wires go directly to the battery through a fuse and can be turned on when the ignition is off. I will be sure to not connect the wire for the new switch light that is always on to not drain the battery.

    [​IMG]

    The mictuning switch comes with this connector

    [​IMG]

    It doesn't have a diagram but I would assume black is hot, green is ground, and the other two are the switch lights. Can I connect the dots and not start a fire?

    Last edited: Aug 20, 2016
  2. Aug 21, 2016 at 3:40 PM
    #2
    Kev16

    Kev16 Black Betty

    Joined:
    Nov 12, 2015
    Member:
    #169418
    Messages:
    91
    Gender:
    Male
    First Name:
    Kevin
    West Virginia
    Vehicle:
    '17 Tacoma Black DCSB TRD OR 3.5 V6 AT
    Are on the way!

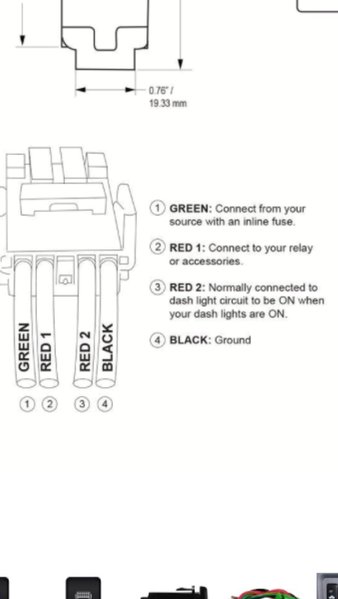

    Hope this helps ya.. Red 2 doesn't have to be hooked up..but would be handy at night with head lights on

    steveoh[OP] likes this.
  3. Sep 17, 2016 at 6:41 PM
    #3
    steveoh

    steveoh [OP] Well-Known Member

    Joined:
    May 15, 2012
    Member:
    #78913
    Messages:
    188
    Gender:
    Male
    First Name:
    Steve
    SLC
    Vehicle:
    08 ACLB SR5 4x4
    Super helpful. Worked like a charm!
