Discussion in '3rd Gen. Tacomas (2016-2023)' started by MallRoad2wd, Jun 28, 2020.

Page 6 of 9
  1. Jul 10, 2020 at 11:56 AM
    #101
    bizjettech

    #101
    bizjettech Well-Known Member

    Joined:
    Dec 4, 2010
    Member:
    #47165
    Messages:
    891
    Gender:
    Male
    Sunny Florida
    Hmmm.....can you explain this a little more clearly?
    We appreciate all your time and expertise with this.....

    bizjettech, Jul 10, 2020
    #101
  2. Jul 10, 2020 at 12:34 PM
    #102
    caribe makaira

    #102
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,732
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

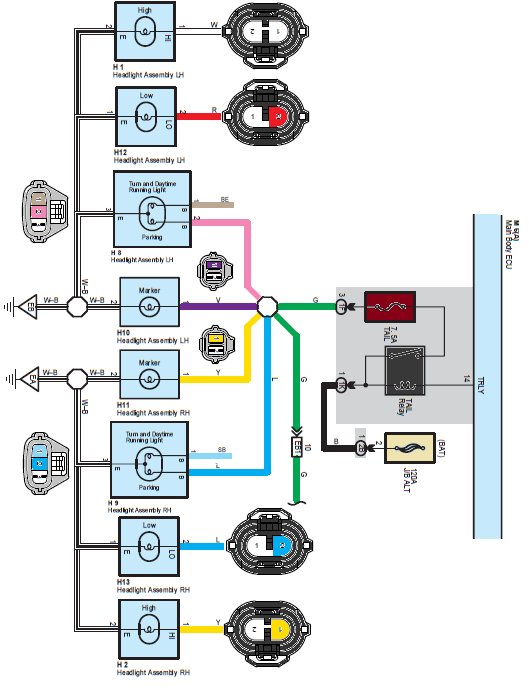

    This is what the non-LED headlamps looks like:
    I'd remove (de-pin) all terminals from the connectors. Snip the power side wire on Headlights, turn signal. These would get an MX150L female terminal crimp and insert in the MX150 female connector.
    The marker's connector would not be altered and only covered by a "plugging" connectors.
    The only ground wire snipped and terminated with a MX150L female terminal would be the LOW Beam ground. All other grounds would keep their OEM terminals. The HIGH beam ground would need to be bundled, covered and affixed to prevent damaged.

    For the DRL I'd duplicate somewhat the same feature the higher end model uses. IGN fuse to 5 pin relay. coil tapped into an add a fuse from the LOW beam to turn DRL off. DRL would be ON at IGN. (no control to ON or OFF switch/app)

    For SR without DRL app control, the rear turn signals would need to the tapped and the rear bulbs would need to be changed to LED's and the FRONT turn signal would need a resistor.

    Last edited: Jul 10, 2020
    caribe makaira, Jul 10, 2020
    #102
    Armystrong, wahoobie and jmauvais like this.
  3. Jul 10, 2020 at 12:41 PM
    #103
    bizjettech

    #103
    bizjettech Well-Known Member

    Joined:
    Dec 4, 2010
    Member:
    #47165
    Messages:
    891
    Gender:
    Male
    Sunny Florida
    Excellent !! This is something I may go for now - I like this much better - appreciate your efforts!

    bizjettech, Jul 10, 2020
    #103
  4. Jul 10, 2020 at 12:44 PM
    #104
    caribe makaira

    #104
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,732
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

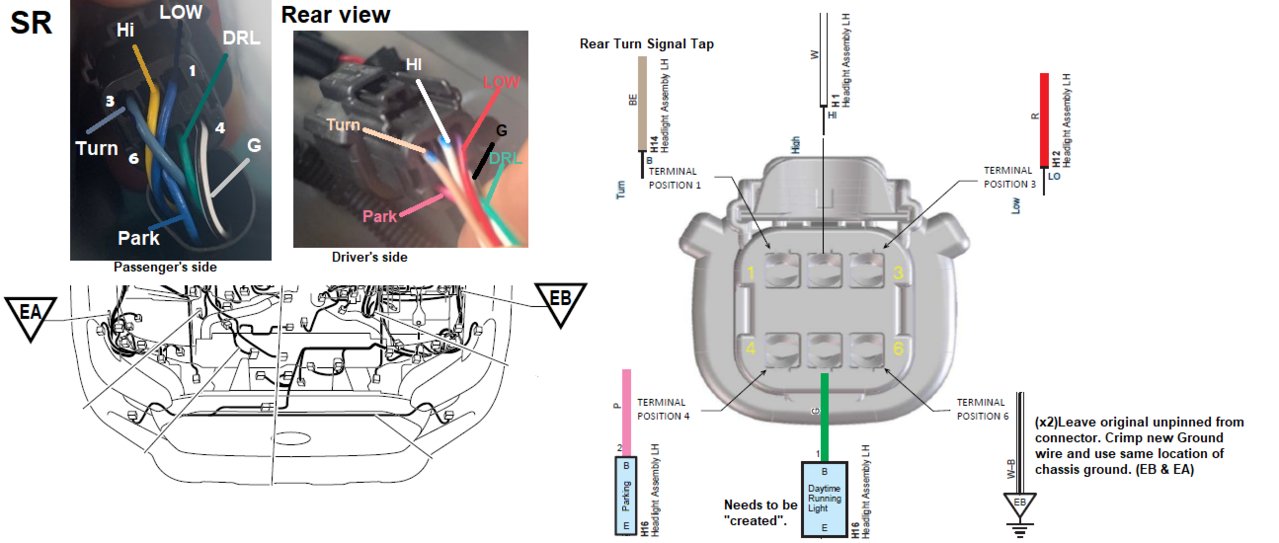

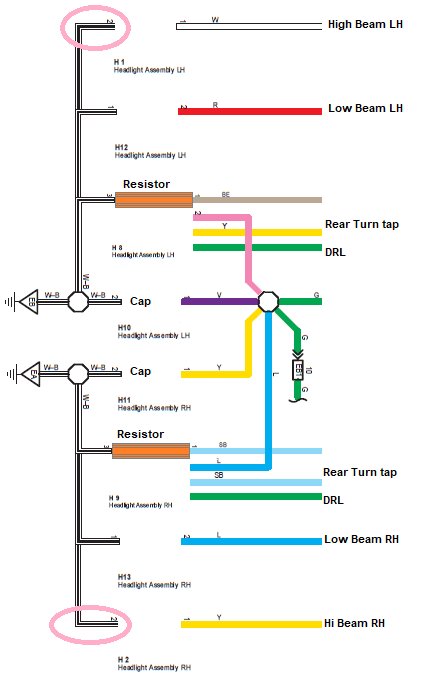

    Pink is the terminal that would need to be left OEM, covered and tied down.
    This is for an SR.
    Resistor to FRONT turn signal, REAR turn signal tap, rear turn signal to LED lamp change. Look at post #61.
    The Parking/Tail wire on the turn signal connector would be removed, snipped and terminated with a female MX150L terminal. A rubber plug for the empty slot on connectors.

    caribe makaira, Jul 10, 2020
    #104
    jmauvais likes this.
  5. Jul 10, 2020 at 1:31 PM
    #105
    ChrisIz

    #105
    ChrisIz Well-Known Member

    Joined:
    Apr 12, 2020
    Member:
    #324524
    Messages:
    580
    Gender:
    Male
    First Name:
    Chris
    Texas
    Vehicle:
    2023 TRD Off-road
    Upon searching online for the regular harness (Led DRL models) it's available on eBay, and the retrofit source
    https://www.theretrofitsource.com/toyota-tacoma-oem-led-headlight-conversion?quantity=1
    https://www.ebay.com/itm/Plug-and-Play-Adapters-for-16-20-Toyota-Tacoma-to-fit-2020-Full-LED-Headlights/124203712415?_trkparms=pageci%3A3cd56620-c2ec-11ea-be55-74dbd1804293%7Cparentrq%3A3a6c5f521730a4cc090dc10cffe813e5%7Ciid%3A1&_trksid=p2380057.c100675.m4236

    This site contains affiliate links for which the site may be compensated.
    ChrisIz, Jul 10, 2020
    #105
  6. Jul 10, 2020 at 4:05 PM
    #106
    ChrisIz

    #106
    ChrisIz Well-Known Member

    Joined:
    Apr 12, 2020
    Member:
    #324524
    Messages:
    580
    Gender:
    Male
    First Name:
    Chris
    Texas
    Vehicle:
    2023 TRD Off-road
    You should make this harness and make some money for the work involved.

    ChrisIz, Jul 10, 2020
    #106
    09 Redneck likes this.
  7. Jul 10, 2020 at 5:21 PM
    #107
    caribe makaira

    #107
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,732
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

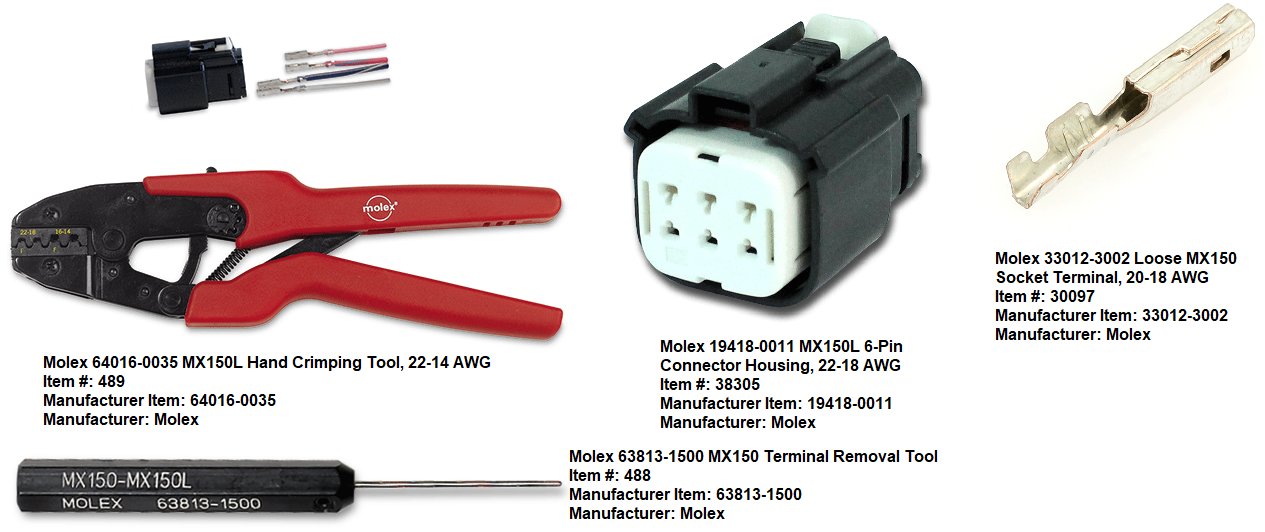

    Getting these items would get the LED headlamps connected after a few snips.
    Edit: it's MX150...(33472-0601) the MX150L will not fit.

    Last edited: Jan 8, 2021
    caribe makaira, Jul 10, 2020
    #107
    davidstacoma and jmauvais like this.
  8. Jul 11, 2020 at 2:52 AM
    #108
    caribe makaira

    #108
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,732
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

    caribe makaira, Jul 11, 2020
    #108
    sly1 and jmauvais like this.
  9. Jul 11, 2020 at 3:13 AM
    #109
    caribe makaira

    #109
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,732
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

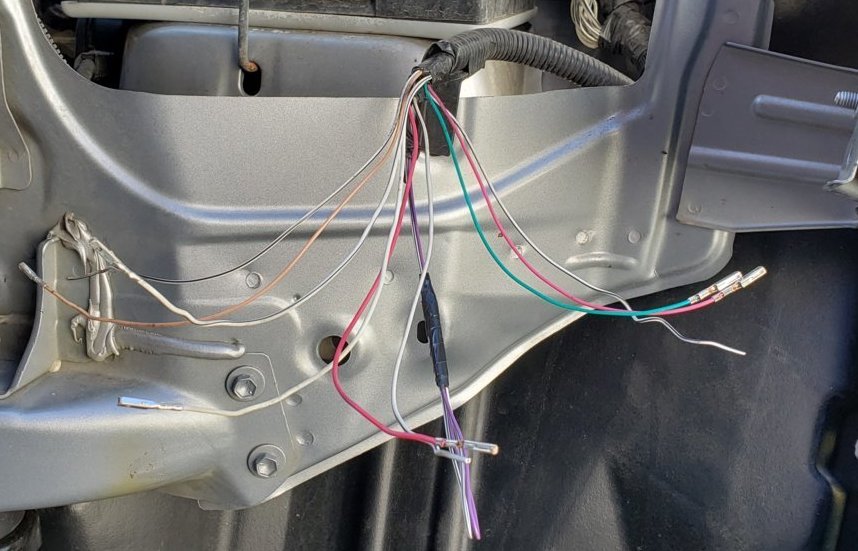

    Pic owner is @Lt. Dangle
    This is a view of all connectors removed without cutting the terminals, and various other items removed.

    caribe makaira, Jul 11, 2020
    #109
    jmauvais and Lt. Dangle like this.
  10. Jul 13, 2020 at 8:46 AM
    #110
    caribe makaira

    #110
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,732
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Detail on side marker connectors


    Can be used to trigger an added circuit (parking/tail) via a relay or other creative add on.

    Last edited: Jul 13, 2020
    caribe makaira, Jul 13, 2020
    #110
    jmauvais likes this.
  11. Jul 13, 2020 at 6:29 PM
    #111
    caribe makaira

    #111
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,732
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    OP, or anyone with an SR/SR5, I need a view (pic) of the Turn/DRL bulb holder (with bulb) connector of the headlamp from an SR/SR5, and the slot pattern where it attaches on the headlamp. TIA

    Last edited: Jul 14, 2020
    caribe makaira, Jul 13, 2020
    #111
  12. Jul 13, 2020 at 8:11 PM
    #112
    ChrisIz

    #112
    ChrisIz Well-Known Member

    Joined:
    Apr 12, 2020
    Member:
    #324524
    Messages:
    580
    Gender:
    Male
    First Name:
    Chris
    Texas
    Vehicle:
    2023 TRD Off-road
    If no one does I can get you a pic tomorrow.

    ChrisIz, Jul 13, 2020
    #112
  13. Jul 13, 2020 at 8:12 PM
    #113
    caribe makaira

    #113
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,732
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    :hattip:

    caribe makaira, Jul 13, 2020
    #113
  14. Jul 14, 2020 at 5:37 AM
    #114
    bizjettech

    #114
    bizjettech Well-Known Member

    Joined:
    Dec 4, 2010
    Member:
    #47165
    Messages:
    891
    Gender:
    Male
    Sunny Florida
    Do any of these help ???

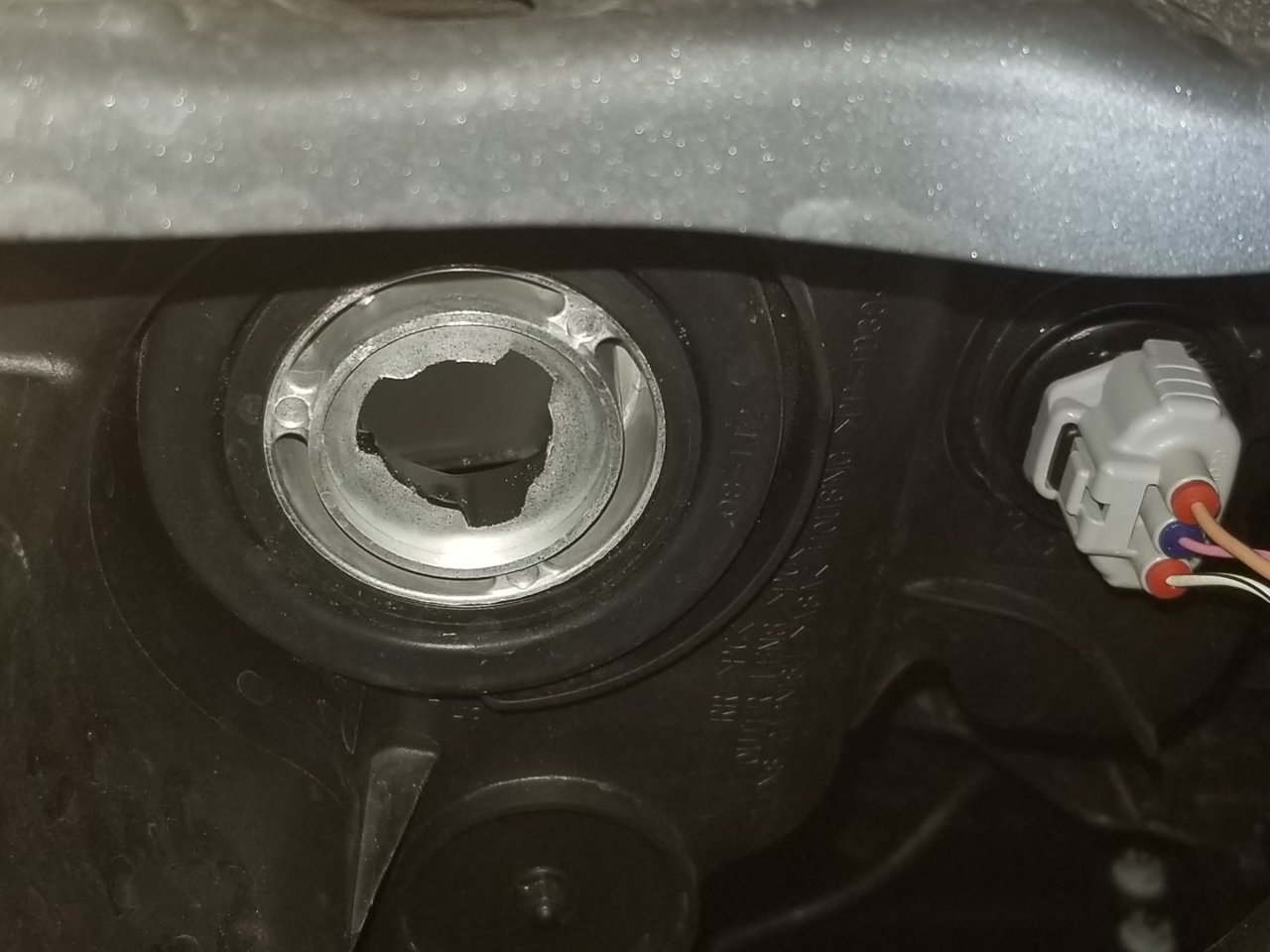

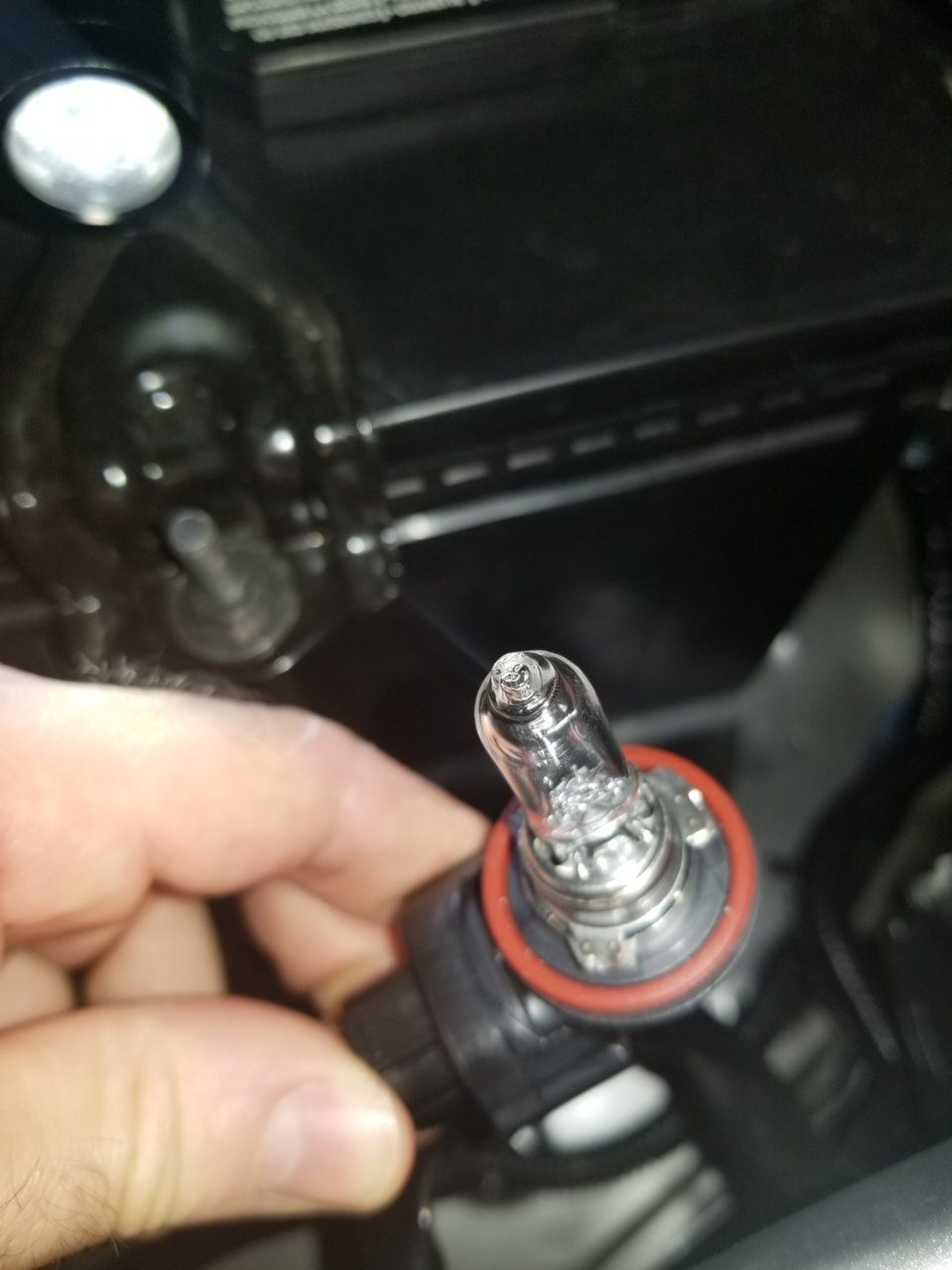

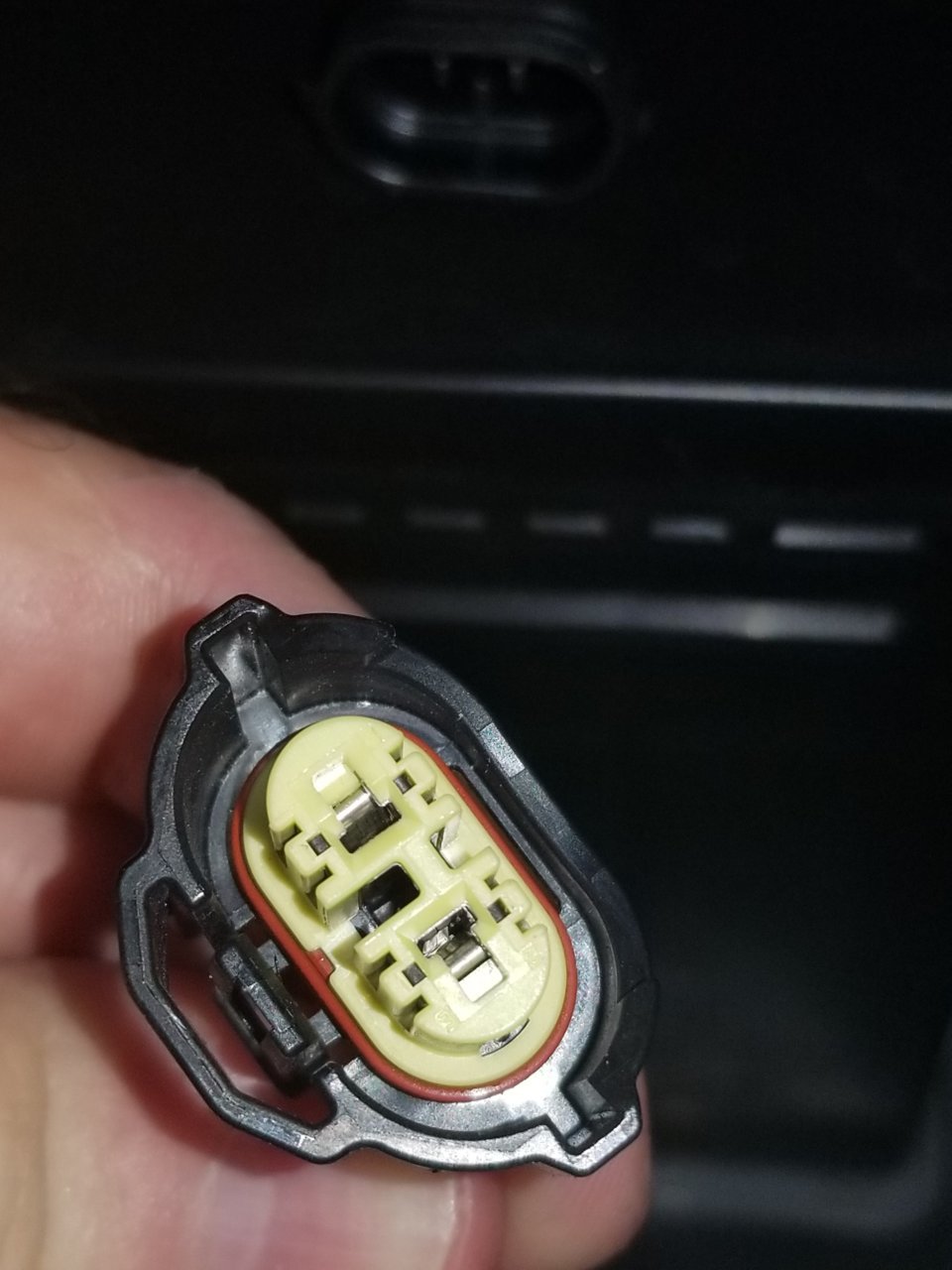

    20200714_083001.jpg 20200714_082834.jpg 20200714_082807.jpg

    bizjettech, Jul 14, 2020
    #114
  15. Jul 14, 2020 at 5:50 AM
    #115
    caribe makaira

    #115
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,732
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Thank you @bizjettech

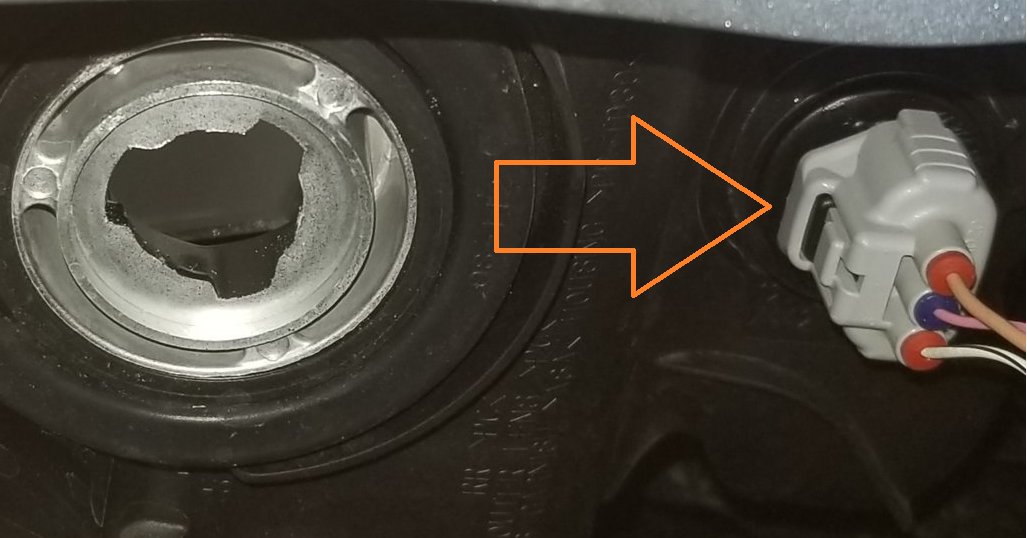

    I'm looking for the same but for the Turn/DRL on an SR/SR5 with incandescent bulb.


    caribe makaira, Jul 14, 2020
    #115
  16. Jul 14, 2020 at 5:56 AM
    #116
    bizjettech

    #116
    bizjettech Well-Known Member

    Joined:
    Dec 4, 2010
    Member:
    #47165
    Messages:
    891
    Gender:
    Male
    Sunny Florida

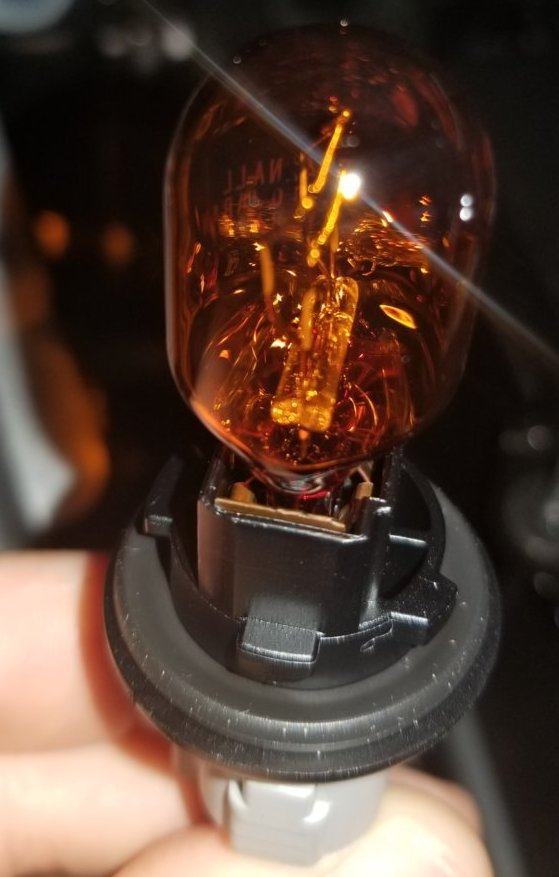

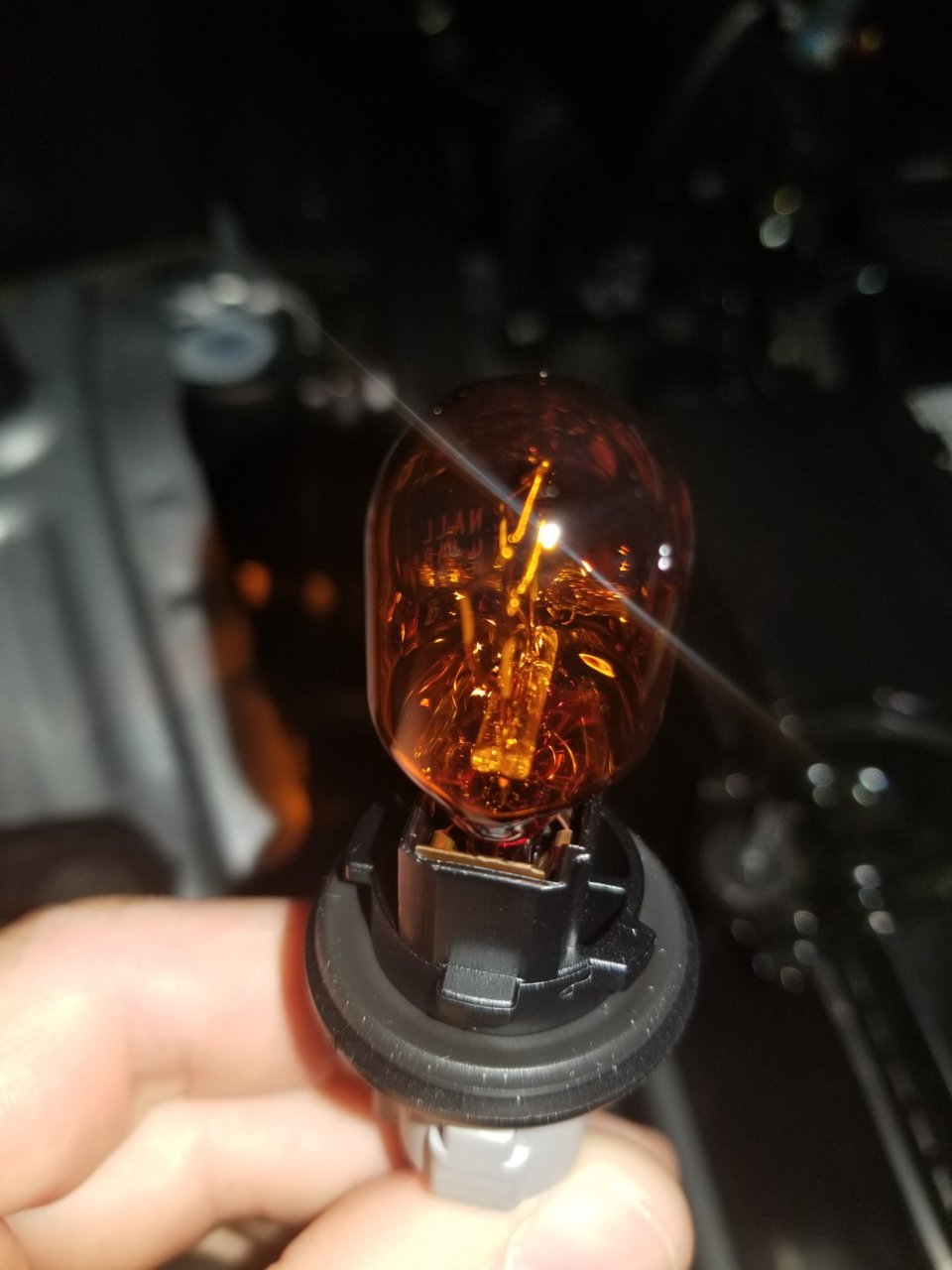

    Sorry, my mistake.....here you go.....

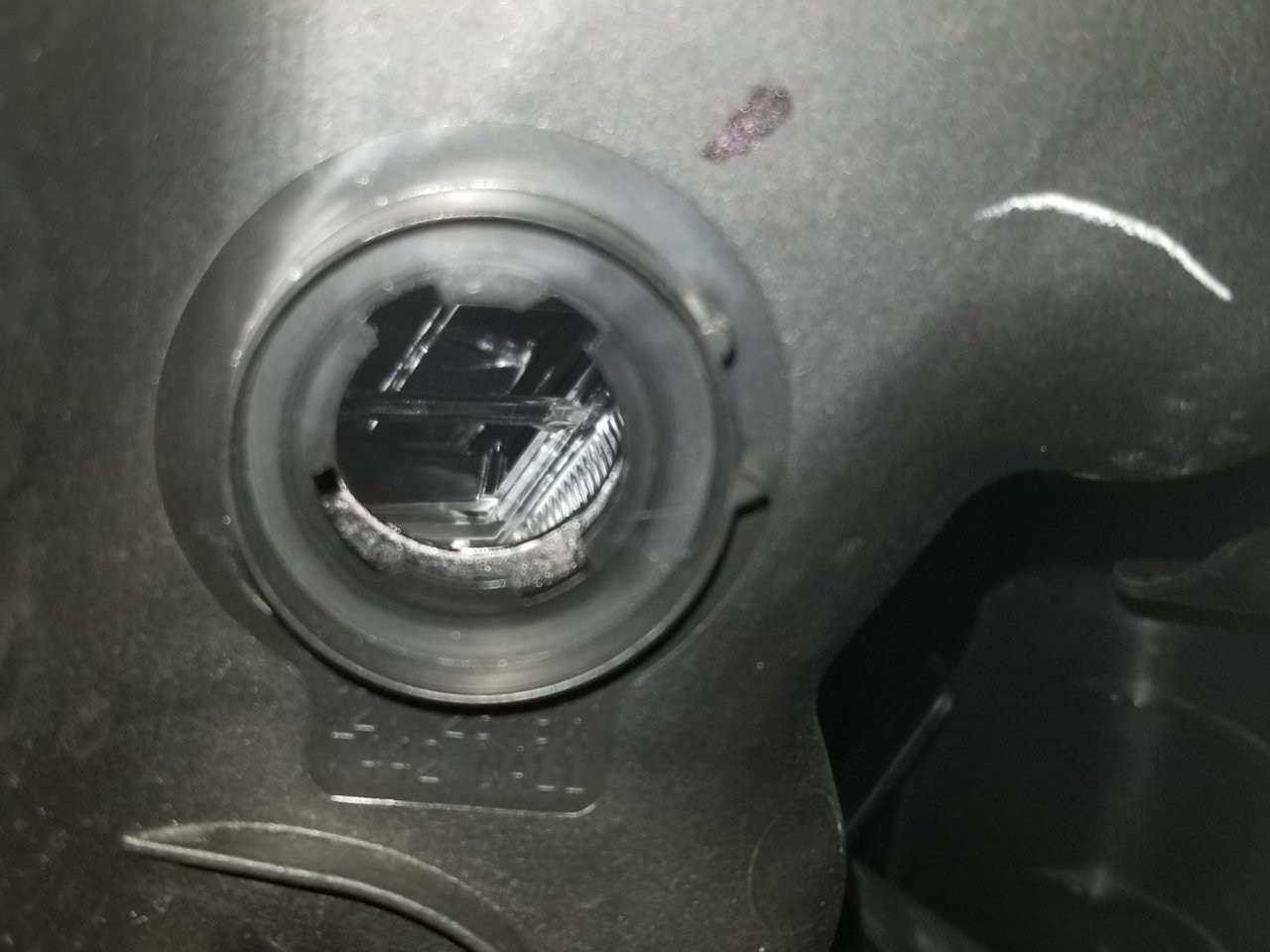

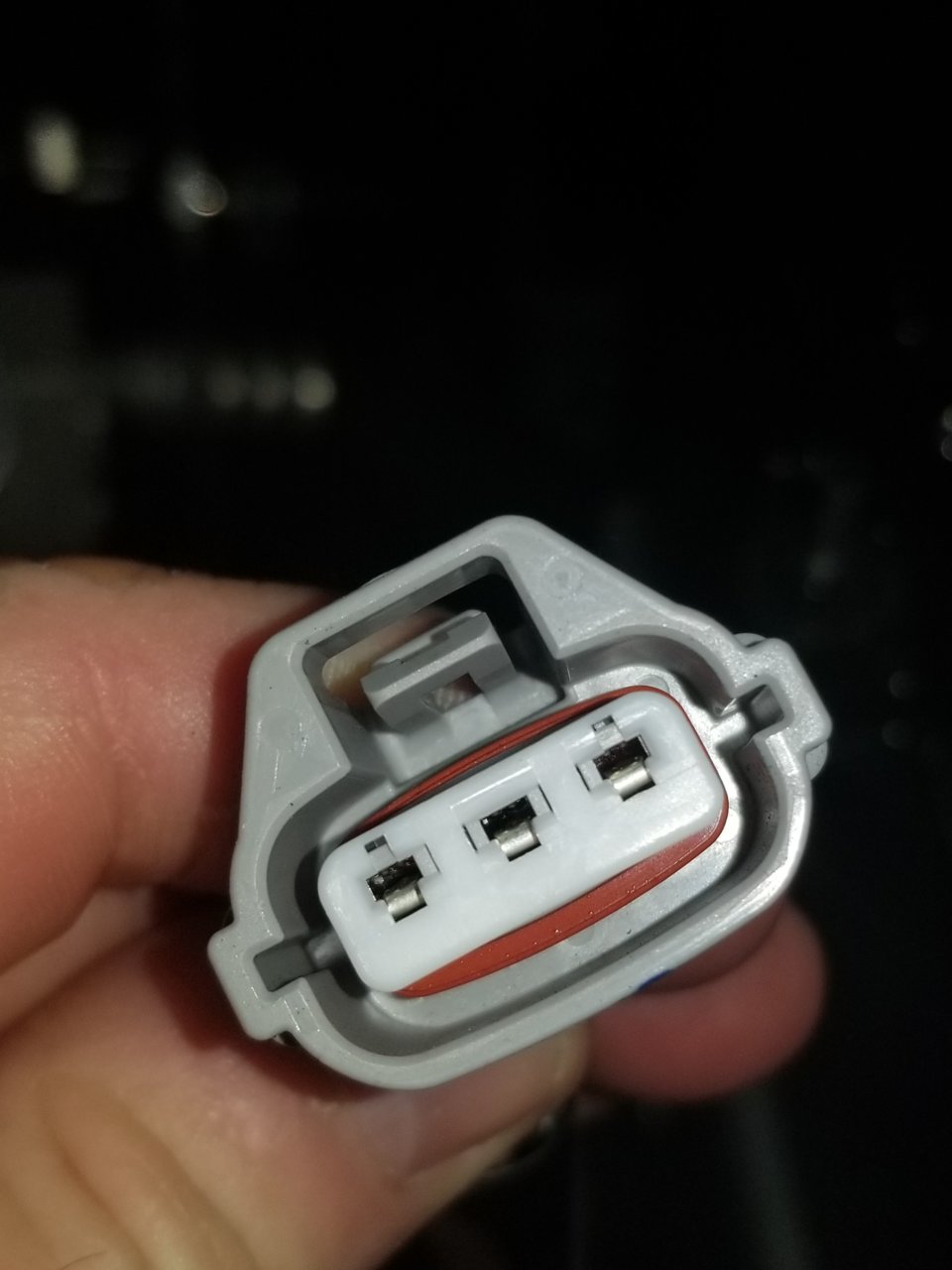

    20200714_085300.jpg 20200714_085240.jpg 20200714_085217.jpg

    bizjettech, Jul 14, 2020
    #116
  17. Jul 14, 2020 at 5:59 AM
    #117
    caribe makaira

    #117
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,732
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Thank you @bizjettech.
    Would you take a pic without bulb so the locking tabs are visible?


    Do you see a part # on the bulb holder?

    caribe makaira, Jul 14, 2020
    #117
  18. Jul 14, 2020 at 9:12 AM
    #118
    bizjettech

    #118
    bizjettech Well-Known Member

    Joined:
    Dec 4, 2010
    Member:
    #47165
    Messages:
    891
    Gender:
    Male
    Sunny Florida

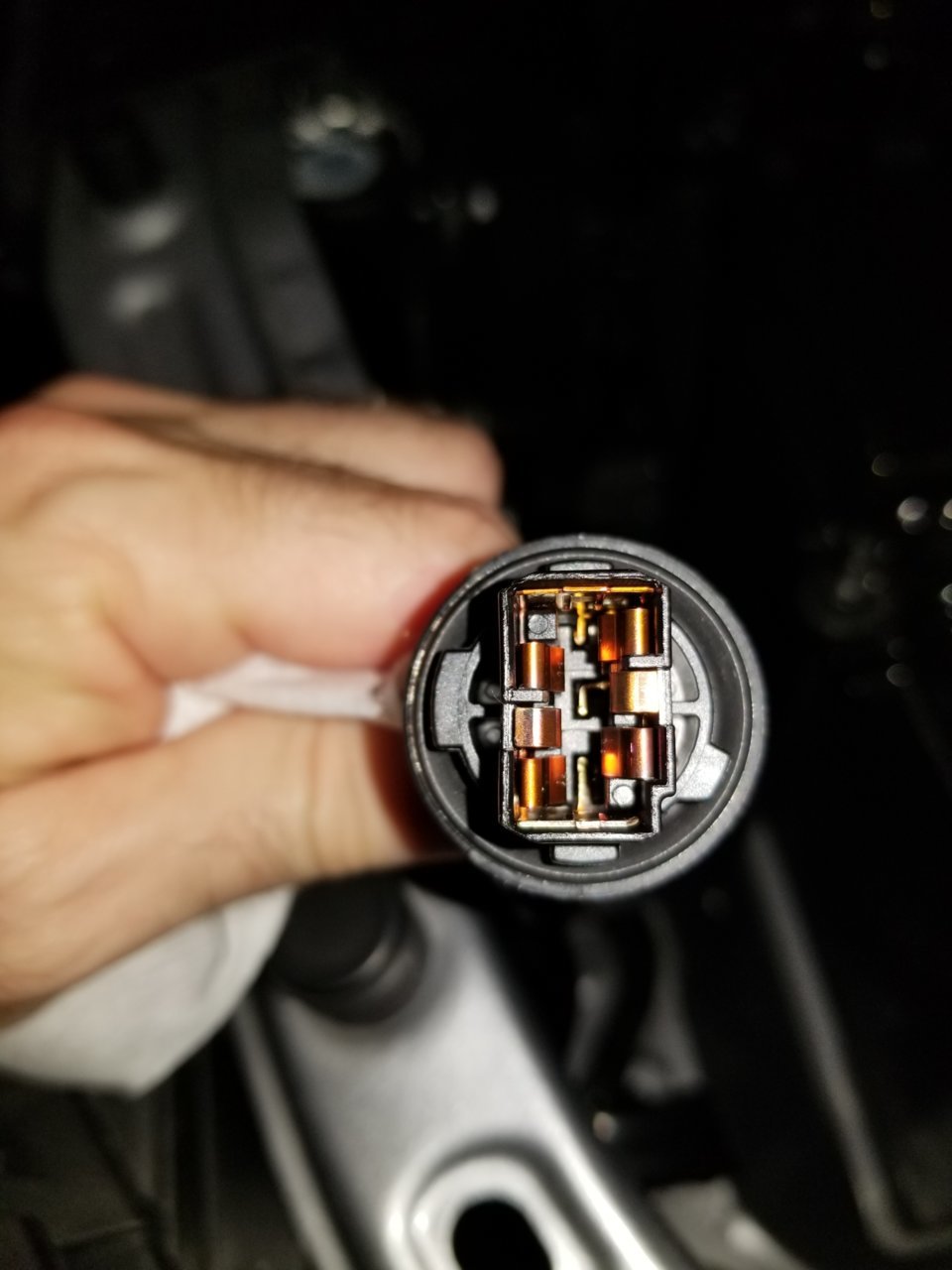

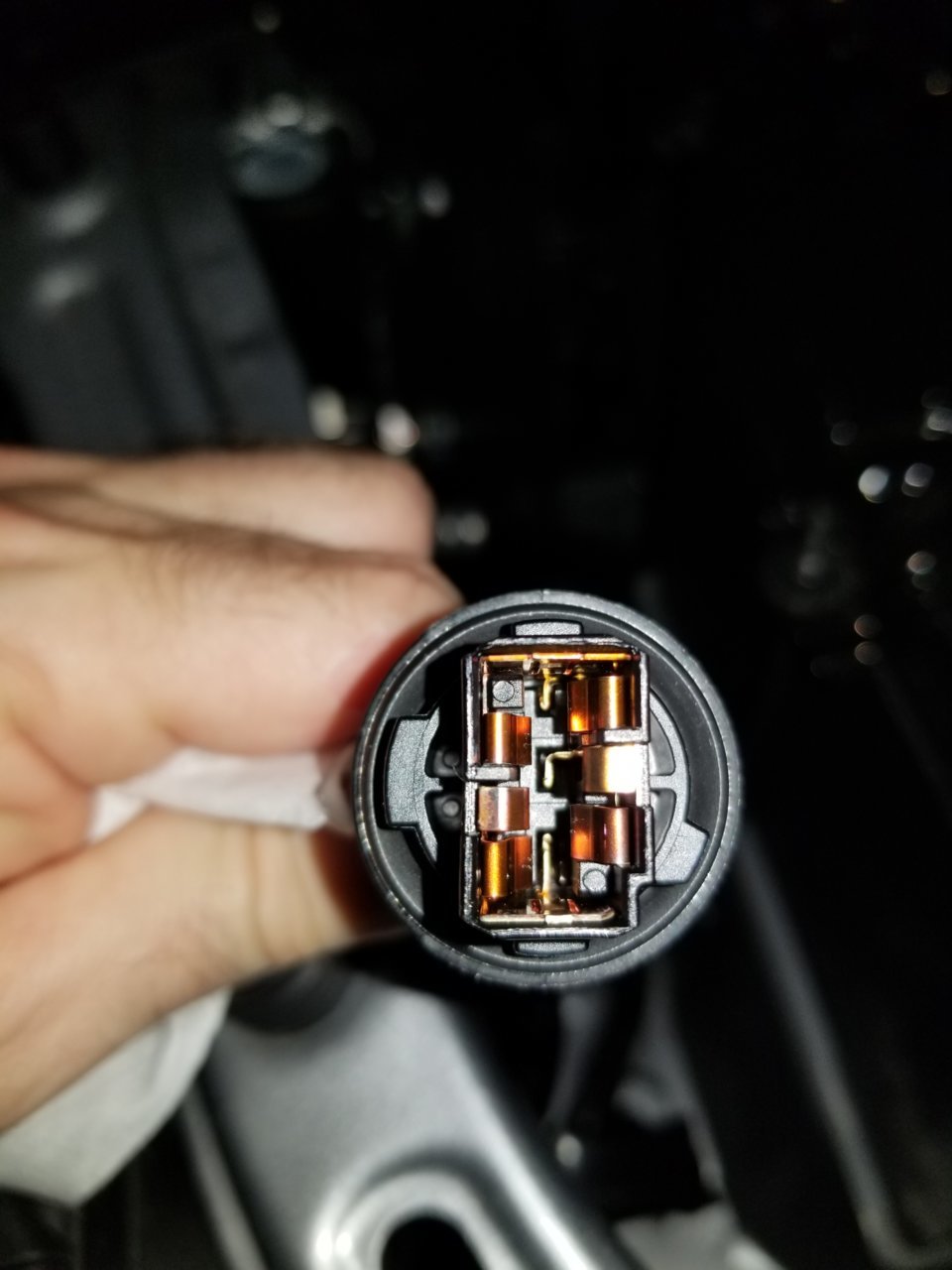

    20200714_120156.jpg 20200714_120138.jpg

    Number on the lamp holder is 938 724-72

    bizjettech, Jul 14, 2020
    #118
  19. Jul 14, 2020 at 9:13 AM
    #119
    bizjettech

    #119
    bizjettech Well-Known Member

    Joined:
    Dec 4, 2010
    Member:
    #47165
    Messages:
    891
    Gender:
    Male
    Sunny Florida
    CORRECTION !! Number on the lamp holder is 938 724-72 (I edited my last response)

    bizjettech, Jul 14, 2020
    #119
    davidstacoma likes this.
  20. Jul 14, 2020 at 9:25 AM
    #120
    bizjettech

    #120
    bizjettech Well-Known Member

    Joined:
    Dec 4, 2010
    Member:
    #47165
    Messages:
    891
    Gender:
    Male
    Sunny Florida
    This site contains affiliate links for which the site may be compensated.
    bizjettech, Jul 14, 2020
    #120
Page 6 of 9

Products Discussed in

Bilstein 33-230337 Monotube Shock Absorber, 46mm
$112.00
G-PLUS Front Header Deck Rail Compatible with 2016-2019 Toyota Tacoma Truck Bed Accessories 53.74" Length Black Plastric Replace PT278-35100-BH
$39.99
M18 Cordless Lithium-Ion 6-1/2" Circular Saw - 2630-20 - ( MILWAUKEE ) - BARE TOOL
$131.99
2016-2022 Toyota Tacoma 3.5 V6 Cold Air Intake System - PTR03-35160
$415.85
INNO RT202 Truck Bed Bike Rack - Bike Mount for Pickup Truck with C-Channel Track Systems
$110.67
Mobil 1 104361 75W-90 Synthetic Gear Lube - 1 Quart (Pack of 2)
$28.27
Rexka 30 pcs Switch Bezel Clip Compatible with Toyota Lexus 90467-10203 4Runner Camry Corolla Highlander Land Cruiser RAV4 Sienna Tundra CT200h GS350 GS450h IS250 LS460 etc
$9.99
TOMALL H11 H8 to Deutsch DT DTP Connectors Convert Wiring Harness Socket Adapter for Light Bulb Convert Work Light Bar Retrofit
$9.99
Denso 5670001 Relay
$9.02
Meguiar’s ScratchX – Paint Scratch Remover - Permanently Removes Swirls and Scratches While Boosting Gloss and Shine – Removes Defects by Hand or DA Polisher with Hazing or Scratching, 7 Oz Liquid
$10.29
LifeGrip Anti Slip Transparent Anti Slip Tape, 1" by 30 feet, Non-Slip Traction Grip Tape to Tubs, Boats, Stairs, Clear, Soft, Comfortable for Bare feet (1" X 30')
$7.99
weideer 4Pcs 12V Door Pin Switch Momentary Universal Adjustable Car Bonnet Alarm Light Hood Switch K-025-I
$7.99
QIANRENON RJ11 Embedded Threaded Fixed Mount Adapter CAT3 RJ11 6P4C Female to Female Panel Mount Connector,Connecting Telephone Line Modem, Mounting on Panel Desktop Floor Plug Equipment Cabinet
$11.99
MECCANIXITY 8pcs T-Shaped Silicone Plugs 29mm 1-1/8" Dia Snap in Plug Hole Seal Cover Round Rubber Stopper for Kitchen Rubber Bulkheads Waterproof Sealing Plugs Black
$7.79
Genuine Mazda 0000-77-112E-01 Transmission Fluid
$17.98
Nilight - TR-05 2PCS 60" 180 LEDs Bed Strip Kit with Waterproof on/Off Switch Blade Fuse 2-Way Splitter Extension Cable for Cargo, Pickup Truck, SUV, RV, Boat , 2 Years Warranty
$20.41
BlyilyB Oval Cargo Carrier Stop Turn Signals Tail Light Light Kit with Waterproof 4 Pin Grommets Wire Harness For Luggage Rack (Pack of 2)
$21.99
OE Replacement Toyota Tundra Tailgate Handle (Partslink Number TO1915113)
$19.95
76PCS Black Hole Plugs Silicone Stoppers Assortment Kit Rubber Plugs for Round Holes, Flexible Rubber Stoppers Waterproof Tube Plugs T-Type, Used for Sealing Plugs Bathtub Jet Covers
$13.99
Toyota Genuine Parts - Seal, Type T Oil (90311-47027)
$18.00
Non Rotating Hole Bracket Only Fit JUST-V Hard Tri-Fold Truck Bed Tonneau Cover Replacement for 2016-2024 Toyota Tacoma 5FT Bed 4PCS (Please Purchase Specialized Brackets with Caution)
$45.99
AC60E AC60F Automatic Transmission Oil Filter kit Fits for TACOMA 2016-2023 16 17 18 19 20 21 22 23 Replaces# 3533004010
$22.49
Philips Automotive Lighting 9011 HIR Standard Halogen Replacement Headlight Bulb, 1 Pack
$24.17
Erickson 34415 Pro Series Black Retractable Ratcheting Tie-Down Strap (Pack of 2, 1" x 10')
$24.95
ANCEL AD310 Classic Enhanced Universal OBD II Scanner Car Engine Fault Code Reader CAN Diagnostic Scan Tool, Read and Clear Error Codes for 1996 or Newer OBD2 Protocol Vehicle (Black)
$26.99
WOLFBOX 12'' Mirror Dash Cam with WiFi, 2.5K Rear View Mirror Camera with 1080P Backup Camera, WiFi Dash Cam Front and Rear, Included 32GB Card & GPS
$159.99
Amerex B240 Stored Pressure Water Fire Extinguisher, 2.5 Gallon for Class A Fires
$179.00
Fox 985-24-117 Reservoir Shock CD Adjuster
$272.22
Graco SlimFit3 LX 3-in-1 Slim Car Seat, Rear Facing, Forward Facing to Highback Booster Car Seat, Katrina
$259.99
Surco DBR400 Swing Away 3-Bike Rack for 2" Hitch Receiver
$287.89
HIGH FLYING for Toyota Tacoma 2016-2023 14.6" Android 12+ C12 Car Multimedia Stereo Radio Audio GPS Navigation Sat Nav Head Unit (Black, 12+256G)
$1,070.00
Spicer 5-1330-1X U-Joint Kit
$38.08
YZONA Universal Flip-Up Front License Plate Frame for 10" Hawse Fairlead Mount Compatible with Jeep Ford Dodge Chevy GMC Nissan Toyota Ram Off-Road & Pickup Truck Cars, Bumper Winch Bracket Holder
$28.99
Pulley Idler Febest 0187-GRJ200 OEM 16620-31012
$43.95
Gates 36174 Idler Pulley
$41.72
Toyota Genuine Fluid 00295-00103 Formed-in-Place Oil Pan Gasket - 3 oz. Tube
$20.44
OBD car Memory Saver obdii Connector Battery Change ECU Protection Replacement 12V
$9.99
RuGlyde Tire Mounting and Rubber Lubricant, 1 Gallon Bottle, Rejuivanate Tire Rubber, Easy Tire Bead Seating, Tire Dressing, Tire Lubricant, Tire Changing Accessory
$16.98
Genuine Toyota 87139-YZZ09 Cabin Air Filter
$21.98
PowerTye 15in x 30in Extreme Duty Cargo Net with 5mm Premium Elastic - 3in x 3in Mesh and Rubber-Tipped Super Strong Metal Hooks - Black
$17.95
SamIdea(TM) 5-Pack M8 Stainless Steel Shoulder Lifting Eye Bolt Ring with Male Thread
$7.39
NOCO Boost X GBX45 1250A 12V UltraSafe Portable Lithium Jump Starter, Car Battery Booster Pack, USB-C Powerbank Charger, and Jumper Cables for up to 6.5-Liter Gas and 4.0-Liter Diesel Engines
$124.95
To Top
