Cor wiring diagram

Can somebody send me a wiring diagram for the circuit opening relay for a 97 tacoma 3.4l 4x4 and ignition switch if possible? Thanks



Possibly. Check your PMs



https://web.archive.org/web/20080731033603/http://www.ncttora.com/fsm/



Thanks I got the fsm I couldn't find any good wiring diagrams like a Haynes manual has



My issue is I bought a solid axle swap tacoma somebody who owned it before me wired a relay into the ignition switch and replaced the cor relay with a regular relay. I replaced the relay with the correct cor green relay I start my truck it starts and runs for a sec and dies out If I start it and hold the key it'll stay running. But as soon as I let go of the key it dies out.

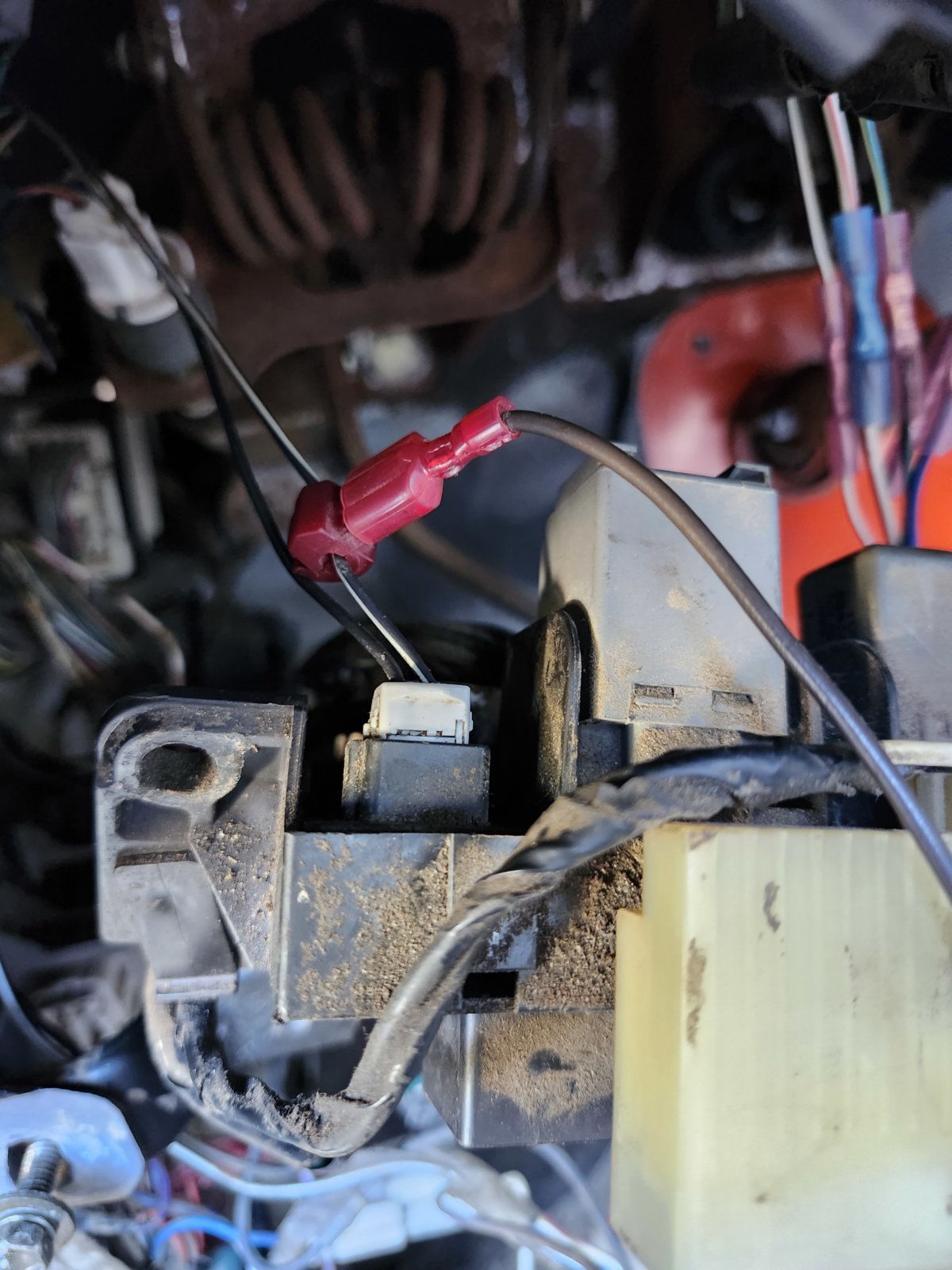

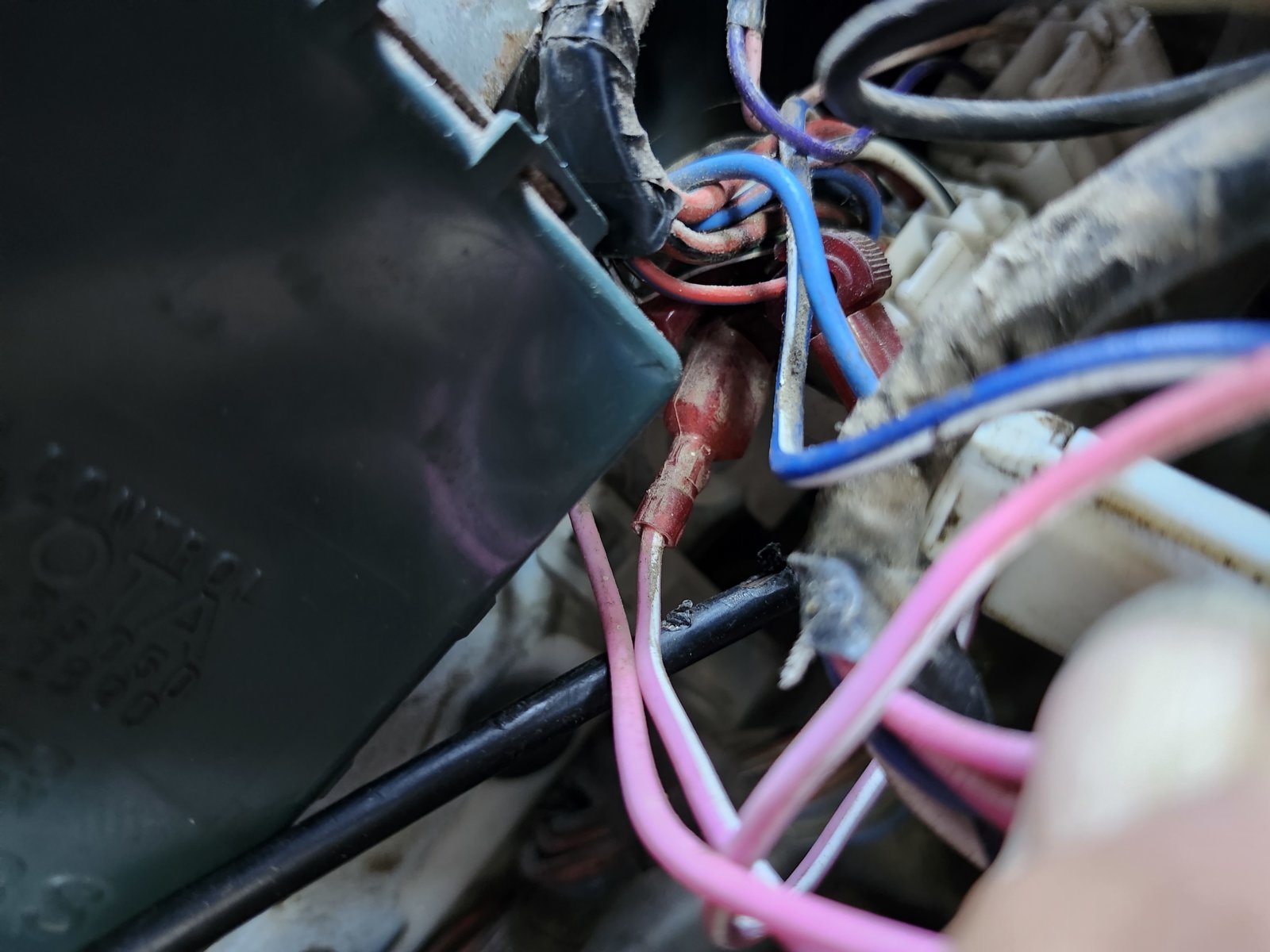

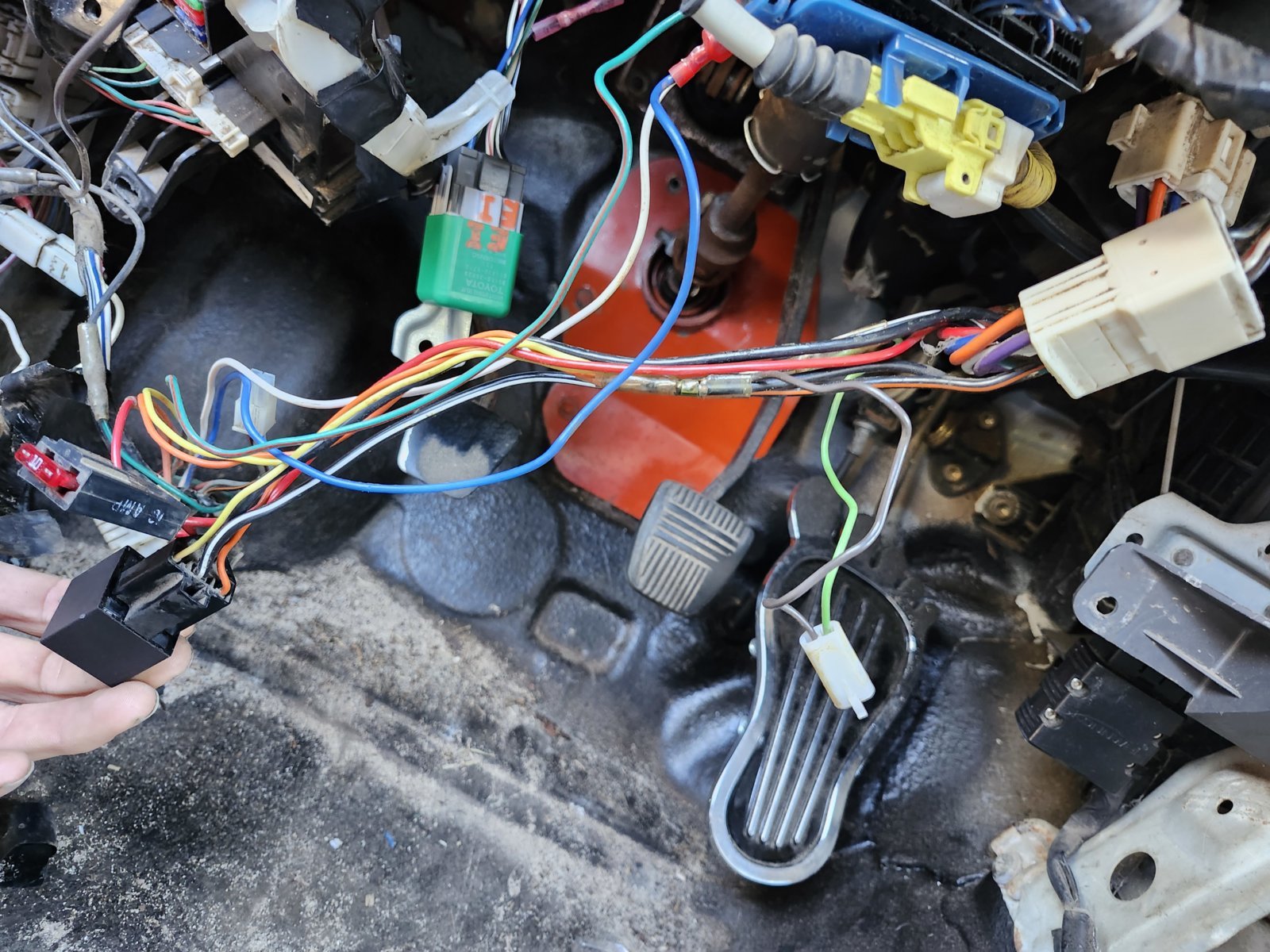

Pics



Since your truck is not wired for the normal fuel pump circuit why not use what worked .

I venture your going to need to return to all original fuel pump circuit with no idea just what was done

one circuit and wire at a time.

Is it for sure a 97 Engine and Harness ??

Down load what you need from All Data or TIS

Good luck



it is not uncommon to bypass the COR and use a typical relay. If that’s what happened then I doubt he wired it to match the OEM plug locations.
the oem COR requires voltage on STA pin when it is cranking. That lets it know to turn the fuel pump on. Then the ecu supplies ground(or pos, can’t remember for sure) to the FC pin on the COR while the engine is running.

so you need:
STA - from ignition switch
+B - from battery
Ground (not all years have a dedicated ground)
Fc - from ecu
Fp - to pump

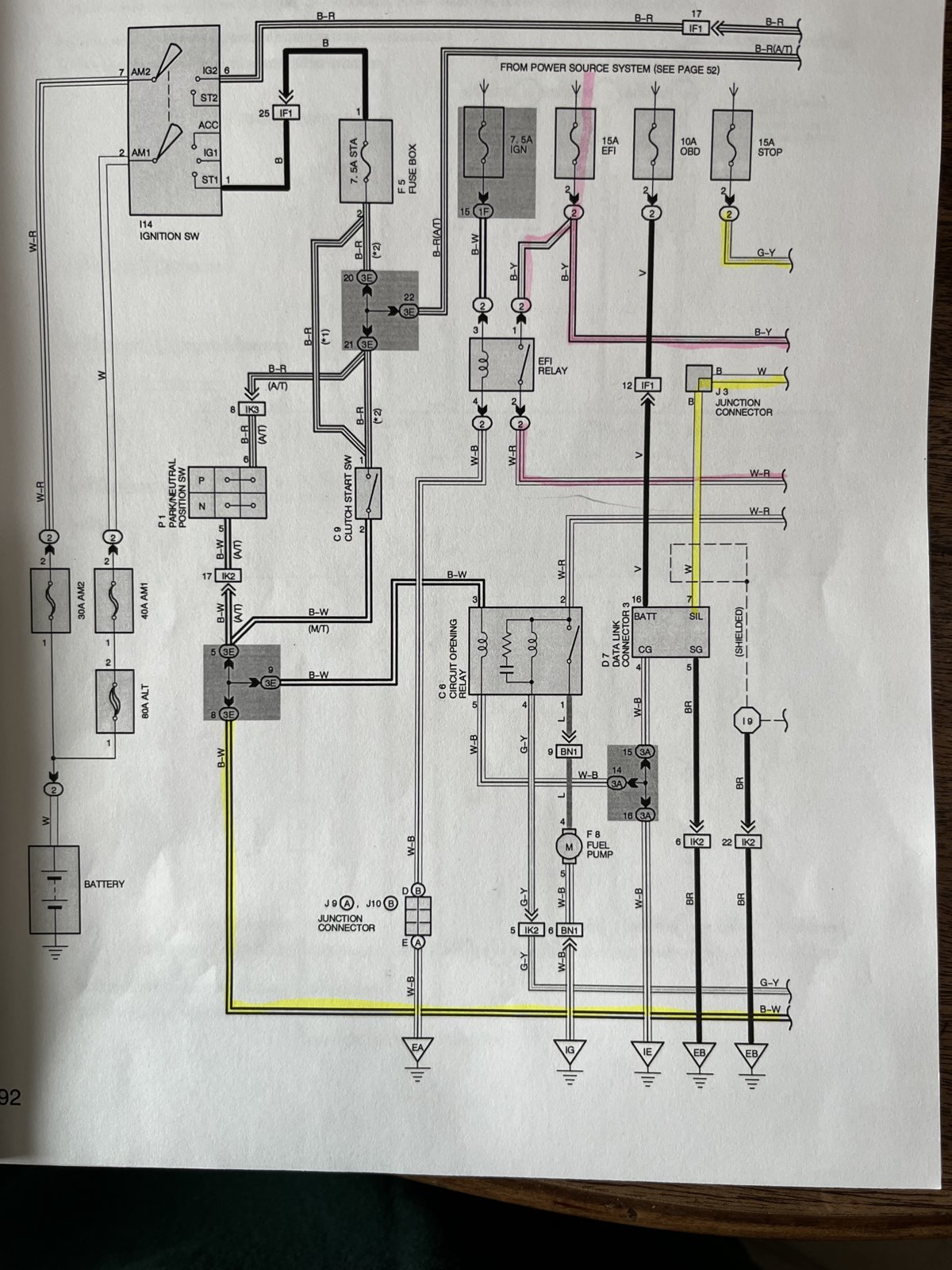

Here is the EWD from a 98 3.4.

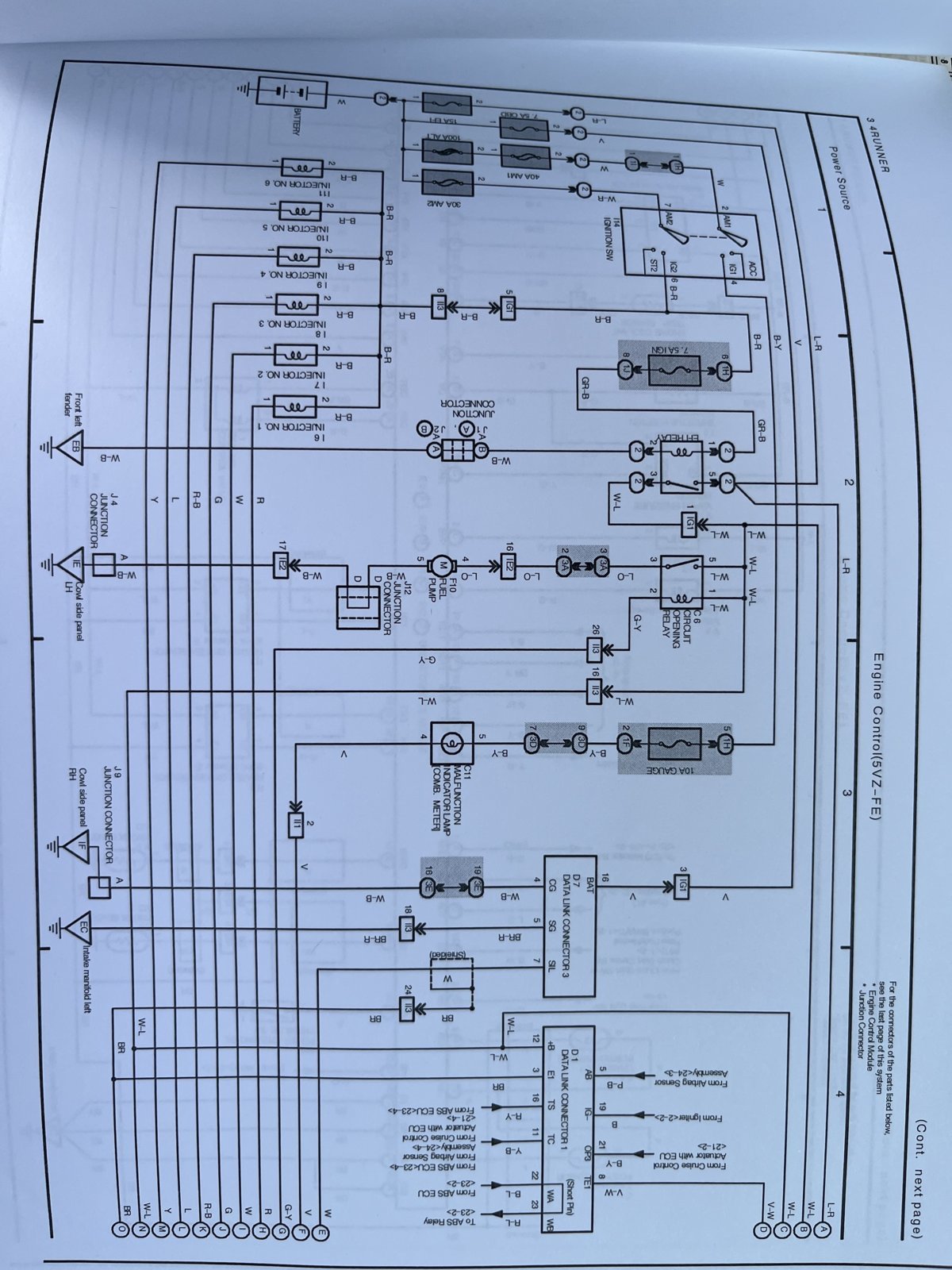

And page showing Fc on ecu



And if he ran a 5 wire COR here is a pic of one from a 99



Yea I'm probably going back to the way it was but I was trying to find out why I got cel p1600 and thought that was my problem so I hooked the cor relay up and thought this might be the reason it wasn't running thank y'all



But i didn't run properly that way either. On Dewey morning or rainy days it don't like to start



What tells it to stay running after its started



The signals into ecm allow the second set of contacts to close after the engine is running

Then no way to know if all those safties were bypassed in your case .

Keeping the pump energized at all times

Wires and coils play into damp weather starting.

Is your coolant temp sensor working ?

Best of luck



Haven't tested it but the gauge operates properly
