Cranks, but no start 08 Tacoma 2.7L 5 lug base model

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Hodges87, Aug 17, 2021.

Page 2 of 5
  1. Aug 20, 2021 at 12:11 PM
    #21
    tirediron

    #21
    tirediron Well-Known Member

    Joined:
    Jan 19, 2019
    Member:
    #279864
    Messages:
    3,891
    Gender:
    Male
    First Name:
    John
    Victoria, BC< Canada
    Vehicle:
    2022 4x4 Sport, Auto, BCM
    That's what the schematic seems to show as well.

    tirediron, Aug 20, 2021
    #21
  2. Aug 20, 2021 at 1:50 PM
    #22
    Jimmyh

    #22
    Jimmyh Well-Known Member

    Joined:
    May 16, 2012
    Member:
    #78991
    Messages:
    14,282
    Gender:
    Male
    SC
    Vehicle:
    2012 Prerunner SR5
    I agree everything I have says that brown wire is a ground. Should be easy to check with a quick continuity check with the truck off check that terminal to a good chassis ground. Should read 0 ohms resistance.

    All of the Brown Wires go to ground and are used for shielded connections where the white with a black stripe are regular signal / power return ground wires.

    Last edited: Aug 20, 2021
    Jimmyh, Aug 20, 2021
    #22
  3. Aug 20, 2021 at 2:02 PM
    #23
    Hodges87

    #23
    Hodges87 [OP] Active Member

    Joined:
    Aug 13, 2021
    Member:
    #374091
    Messages:
    34
    Gender:
    Male
    First Name:
    JR
    Texas
    Vehicle:
    08 Tacoma
    It does read 0 ohms resistance. Do you know what terminals I need to test for 12v ign and 12v consistent power to ecm?

    Hodges87, Aug 20, 2021
    #23
    Jimmyh[QUOTED] likes this.
  4. Aug 20, 2021 at 2:20 PM
    #24
    Dm93

    #24
    Dm93 Test Don't Guess

    Joined:
    Mar 3, 2015
    Member:
    #150066
    Messages:
    13,753
    Gender:
    Male
    Texas
    Vehicle:
    2014 DC OR 6spd 4x4
    Predator tube steps, Ranch Hand grill guard, Magnaflow CatBack exhaust, Toyota tool box & bed mat, 2LO Module by @Up2NoGood, Rearview Compass/Temp Mirror, Tune by @JustDSM.
    Connector E8 pin1 black, pin 3 blue, pin 7 light green pin 9 orange

    Dm93, Aug 20, 2021
    #24
    Jimmyh likes this.
  5. Aug 20, 2021 at 2:23 PM
    #25
    Dm93

    #25
    Dm93 Test Don't Guess

    Joined:
    Mar 3, 2015
    Member:
    #150066
    Messages:
    13,753
    Gender:
    Male
    Texas
    Vehicle:
    2014 DC OR 6spd 4x4
    Predator tube steps, Ranch Hand grill guard, Magnaflow CatBack exhaust, Toyota tool box & bed mat, 2LO Module by @Up2NoGood, Rearview Compass/Temp Mirror, Tune by @JustDSM.
    pin 22 and 29 (White/Black) on E8 should be grounds

    Dm93, Aug 20, 2021
    #25
    Jimmyh likes this.
  6. Aug 20, 2021 at 2:23 PM
    #26
    Jimmyh

    #26
    Jimmyh Well-Known Member

    Joined:
    May 16, 2012
    Member:
    #78991
    Messages:
    14,282
    Gender:
    Male
    SC
    Vehicle:
    2012 Prerunner SR5
    12v Ignition Power - Orange Wire from the IGN Fuse, Terminal # 9.

    12v Consistent - Blue Wire is Battery from the EFI Fuse, Terminal # 3.

    Jimmyh, Aug 20, 2021
    #26
  7. Aug 20, 2021 at 2:38 PM
    #27
    Hodges87

    #27
    Hodges87 [OP] Active Member

    Joined:
    Aug 13, 2021
    Member:
    #374091
    Messages:
    34
    Gender:
    Male
    First Name:
    JR
    Texas
    Vehicle:
    08 Tacoma
    Connector E8
    Pin 1 (black) no power
    Pin 3 12v
    Pin 7 12v
    Pin 9 12v with key on

    Hodges87, Aug 20, 2021
    #27
  8. Aug 20, 2021 at 2:42 PM
    #28
    Dm93

    #28
    Dm93 Test Don't Guess

    Joined:
    Mar 3, 2015
    Member:
    #150066
    Messages:
    13,753
    Gender:
    Male
    Texas
    Vehicle:
    2014 DC OR 6spd 4x4
    Predator tube steps, Ranch Hand grill guard, Magnaflow CatBack exhaust, Toyota tool box & bed mat, 2LO Module by @Up2NoGood, Rearview Compass/Temp Mirror, Tune by @JustDSM.
    see if you have power on the EFI no2 fuse, if not check the EFI Relay.

    Dm93, Aug 20, 2021
    #28
    Jimmyh likes this.
  9. Aug 20, 2021 at 2:54 PM
    #29
    Jimmyh

    #29
    Jimmyh Well-Known Member

    Joined:
    May 16, 2012
    Member:
    #78991
    Messages:
    14,282
    Gender:
    Male
    SC
    Vehicle:
    2012 Prerunner SR5

    Wouldn't pin # 1 Black come from the EFI Fuse through the EFI Relay then to Pin # 1?

    The EFI Relay supplies power to the EFI No2 Fuse...

    EFI Fuse >> EFI Relay Contact >> EFI No 2 Fuse, COPN Relay Contact and ECU Pin # 1 Via the black Wire.

    Jimmyh, Aug 20, 2021
    #29
  10. Aug 20, 2021 at 2:57 PM
    #30
    Hodges87

    #30
    Hodges87 [OP] Active Member

    Joined:
    Aug 13, 2021
    Member:
    #374091
    Messages:
    34
    Gender:
    Male
    First Name:
    JR
    Texas
    Vehicle:
    08 Tacoma

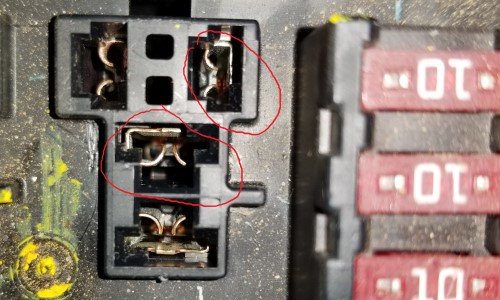

    EFI # 2 fuse 12v, the red circled areas have 12v on relay


    Hodges87, Aug 20, 2021
    #30
  11. Aug 20, 2021 at 3:02 PM
    #31
    Dm93

    #31
    Dm93 Test Don't Guess

    Joined:
    Mar 3, 2015
    Member:
    #150066
    Messages:
    13,753
    Gender:
    Male
    Texas
    Vehicle:
    2014 DC OR 6spd 4x4
    Predator tube steps, Ranch Hand grill guard, Magnaflow CatBack exhaust, Toyota tool box & bed mat, 2LO Module by @Up2NoGood, Rearview Compass/Temp Mirror, Tune by @JustDSM.
    The other side pin should be a ground and the bottom pin feeds the black wire.

    Dm93, Aug 20, 2021
    #31
  12. Aug 20, 2021 at 3:03 PM
    #32
    Dm93

    #32
    Dm93 Test Don't Guess

    Joined:
    Mar 3, 2015
    Member:
    #150066
    Messages:
    13,753
    Gender:
    Male
    Texas
    Vehicle:
    2014 DC OR 6spd 4x4
    Predator tube steps, Ranch Hand grill guard, Magnaflow CatBack exhaust, Toyota tool box & bed mat, 2LO Module by @Up2NoGood, Rearview Compass/Temp Mirror, Tune by @JustDSM.
    Maybe i misread the diagram, I've been glancing through it when I've had free time at work.

    Dm93, Aug 20, 2021
    #32
    Jimmyh[QUOTED] likes this.
  13. Aug 20, 2021 at 3:25 PM
    #33
    Hodges87

    #33
    Hodges87 [OP] Active Member

    Joined:
    Aug 13, 2021
    Member:
    #374091
    Messages:
    34
    Gender:
    Male
    First Name:
    JR
    Texas
    Vehicle:
    08 Tacoma
    I verified the relay does supply power to the bottom pin in the picture, with the key on

    Hodges87, Aug 20, 2021
    #33
  14. Aug 20, 2021 at 3:29 PM
    #34
    Hodges87

    #34
    Hodges87 [OP] Active Member

    Joined:
    Aug 13, 2021
    Member:
    #374091
    Messages:
    34
    Gender:
    Male
    First Name:
    JR
    Texas
    Vehicle:
    08 Tacoma
    With the connector plugged into the ECM the E8 pin1 black has 12v with key on

    Hodges87, Aug 20, 2021
    #34
    Jimmyh likes this.
  15. Aug 20, 2021 at 4:25 PM
    #35
    Jimmyh

    #35
    Jimmyh Well-Known Member

    Joined:
    May 16, 2012
    Member:
    #78991
    Messages:
    14,282
    Gender:
    Male
    SC
    Vehicle:
    2012 Prerunner SR5
    Then all of your power is correct on the ECM.

    Jimmyh, Aug 20, 2021
    #35
  16. Aug 20, 2021 at 4:28 PM
    #36
    Dm93

    #36
    Dm93 Test Don't Guess

    Joined:
    Mar 3, 2015
    Member:
    #150066
    Messages:
    13,753
    Gender:
    Male
    Texas
    Vehicle:
    2014 DC OR 6spd 4x4
    Predator tube steps, Ranch Hand grill guard, Magnaflow CatBack exhaust, Toyota tool box & bed mat, 2LO Module by @Up2NoGood, Rearview Compass/Temp Mirror, Tune by @JustDSM.
    And you verified grounds on E4 pins 6 & 7 (White/Black) and E8 Pins 22 & 29 (White/Black)?

    Dm93, Aug 20, 2021
    #36
  17. Aug 20, 2021 at 4:30 PM
    #37
    Dm93

    #37
    Dm93 Test Don't Guess

    Joined:
    Mar 3, 2015
    Member:
    #150066
    Messages:
    13,753
    Gender:
    Male
    Texas
    Vehicle:
    2014 DC OR 6spd 4x4
    Predator tube steps, Ranch Hand grill guard, Magnaflow CatBack exhaust, Toyota tool box & bed mat, 2LO Module by @Up2NoGood, Rearview Compass/Temp Mirror, Tune by @JustDSM.
    Also E5 Pins 3,4, & 7 (White/Black) should be grounds.

    Dm93, Aug 20, 2021
    #37
  18. Aug 20, 2021 at 5:00 PM
    #38
    tirediron

    #38
    tirediron Well-Known Member

    Joined:
    Jan 19, 2019
    Member:
    #279864
    Messages:
    3,891
    Gender:
    Male
    First Name:
    John
    Victoria, BC< Canada
    Vehicle:
    2022 4x4 Sport, Auto, BCM
    Ensure you verify grounds with an incandescent test light, and NOT simply a DVOM.

    tirediron, Aug 20, 2021
    #38
    Hodges87[OP] and Dm93 like this.
  19. Aug 20, 2021 at 5:07 PM
    #39
    Dm93

    #39
    Dm93 Test Don't Guess

    Joined:
    Mar 3, 2015
    Member:
    #150066
    Messages:
    13,753
    Gender:
    Male
    Texas
    Vehicle:
    2014 DC OR 6spd 4x4
    Predator tube steps, Ranch Hand grill guard, Magnaflow CatBack exhaust, Toyota tool box & bed mat, 2LO Module by @Up2NoGood, Rearview Compass/Temp Mirror, Tune by @JustDSM.
    For sure and/or see the link in my sig about using a DVOM.

    Dm93, Aug 20, 2021
    #39
    Hodges87[OP] likes this.
  20. Aug 20, 2021 at 6:46 PM
    #40
    Hodges87

    #40
    Hodges87 [OP] Active Member

    Joined:
    Aug 13, 2021
    Member:
    #374091
    Messages:
    34
    Gender:
    Male
    First Name:
    JR
    Texas
    Vehicle:
    08 Tacoma
    All grounds tested good. There was not a E8 pin 29. I'm using a Snap-on led test light that turns green when you find a ground

    Hodges87, Aug 20, 2021
    #40
