Critique my bed bar design

Discussion in 'Garage / Workshop' started by Geem750, Apr 11, 2013.

  1. Apr 11, 2013 at 8:03 PM
    #1
    Geem750

    Geem750 [OP] Well-Known Member

    Joined:
    Apr 13, 2012
    Member:
    #76861
    Messages:
    558
    Gender:
    Male
    First Name:
    Brandon
    Okanagan, BC
    Vehicle:
    07 DCLB
    Grillcraft grill, ultimate toytek 3" lift, shorty antenna, blacked out badges, rear diff breather, Kenwood 6990 HU, wet okoles, weather techs, extra D-rings, Cruisin offroad bolt on sliders, Treklights 18" LED bar
    Ive been trying to think of a secure way to carrier a full size spare around in my truck so it wont get stolen and also be easily removed in case i want to throw something in the bed of my truck. I love the idea of a rear bumper tire carrier but i cant afford a 1200$ or more bumper. A lot of the bed bars ive seen have the tire sitting on an angle and taking pretty well most of the bed space and rendering it almost useless for anything else. Then there's roof racks and bed racks and thats even more money and from what my brother tells me, the roof isnt a great place to store a spare. SO

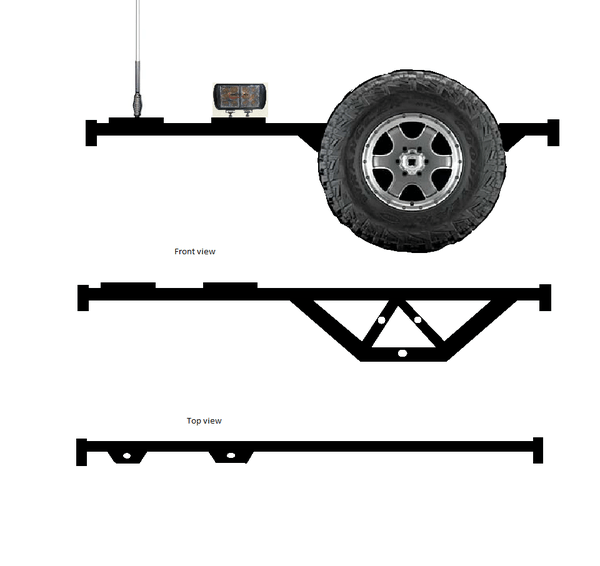

    i love the idea of a bed bar at the back of the cab to mount multiple things such as bed lights, backup lights and CB antennas. with this ive created an idea via MS paint (lol). im not a fabricator and i dont design anything ever as you'll probably notice by the picture but im wondering what other members think of this, what are the flaws and such before i ask my uncle to fab one up for me.

    [​IMG]

    after taking a measuring tape the the bed of the truck it looks like the tire will cover most of the back window and leave enough space for the two mounting brackets in the picture. should also clear the wheel well in a double cab.

    Fire away!

  2. Apr 14, 2013 at 11:32 PM
    #2
    Forster46

    Forster46 Very nice how much?

    Joined:
    Jul 20, 2010
    Member:
    #40487
    Messages:
    3,368
    Gender:
    Male
    First Name:
    Nick
    Mount Vernon, WA
    Vehicle:
    The doritos locos taco
    6000k HID's, AUX Reverse Lights, 3" Rough Country Suspension Lift, Pioneer AVH-P4200 Double Din, Underglow and footwell Lights, Camo Seat Covers, Duralast Tool Box, Blacked Out Badges, Grill, Front Emblem, Midland CB Radio, Amber Strobes, POWER REAR WINDOW, cup holder LED's, Firestik 3' in bed, console divider, Ultragauge.
    I like it. Like you already pointed out, the only thing I would really worry about is the tire blocking all my view. But if you have it far enough to the side then there isn't much to worry about. You could probably mount a second light on the right side of the tire, if there is room.

  3. Apr 14, 2013 at 11:36 PM
    #3
    acdronin

    acdronin Well-Known Member

    Joined:
    Dec 2, 2010
    Member:
    #47036
    Messages:
    19,686
    Gender:
    Male
    .
    It looks good but i would build it in such a way that the tire would rest on the bed of the truck standing up, I don't think the bedrails would handle that much weight alone.

  4. Apr 15, 2013 at 12:29 AM
    #4
    BAMFTACO

    BAMFTACO Pabst Blue Ribbon on ice

    Joined:
    Feb 3, 2010
    Member:
    #30639
    Messages:
    9,747
    Gender:
    Male
    First Name:
    JUAN
    Malibu, CA
    Vehicle:
    Taco
    Lift- stock suspension with light racing uppers,tc coil bucket gusset, timbern bumps ,defined extended shackles with shackle brace. Armor- custom tube bumper, kr fab rear bumper,trail gear wiy 78 in sliders Performance-intake manifold spacer, vibrant resonator Random stuff- kenwood head unit,b&m t shifter, hood bug deflector.
    Not a bad design Subd for finish product

  5. Apr 15, 2013 at 12:32 AM
    #5
    PerfectTekniq

    PerfectTekniq I'm undefeated in the UFC.

    Joined:
    Feb 22, 2011
    Member:
    #51683
    Messages:
    6,225
    Gender:
    Male
    First Name:
    Pepe Silvia
    Claremont, CA
    Vehicle:
    2009 Super White 4x4 DC SB Sport
    AllPro Front, AllPro Rear w/ wraps, AllPro IFS Skid, 5100 w/ 885's upfront, Front Superbumps, BuiltRight UCAs, Dakar Leaf Pack, Extended 5100's, AllPro Flip Kit, Rear Superbumps, Extended SS brake lines WeatherTech Floormats, TRD Intake, ScanGaugeII, TRD SoCal, Grillcraft, Wet Okoles, Cobra 75 w/ 4' whip
    This is good for not only relieving the weight off the rails but also dropping the tire as low as possible for more visibility.

  6. Apr 15, 2013 at 1:40 AM
    #6
    ProForce

    ProForce Thin Blue Line

    Joined:
    Oct 12, 2009
    Member:
    #24205
    Messages:
    5,419
    Gender:
    Male
    First Name:
    Anthony
    SoCal-Ontario
    Vehicle:
    09 MGM TRD Sport DCSB 4.0 Auto 2wd
    Too many to list. See build page. Link in signature
    I'd love to see this actually made. Looks good.

  7. Apr 15, 2013 at 3:00 AM
    #7
    Drunknsloth

    Drunknsloth Indffrnce will be the fall of manknd but who cares

    Joined:
    Jun 17, 2010
    Member:
    #39105
    Messages:
    3,200
    Gender:
    Male
    First Name:
    Retribution
    South West
    Vehicle:
    08 SR5 Access V6 6-Speed
    Blacked-Out Badges; Retribution Decals (Sockmonkey); Tailgate Mod; Red LED Rear Blinkers; Yellow Foglights; Yellow Front Blinkers; Superwhite Xenon Corner Bulb; Leer Bedcap; Bedrug Bedmat; Black Cupholders; Black Plastic Piece Around Window Controls; Plasti-Dip Front Bumper Valence; Plasti-Dip Grill Surround; Blackout Chrome Back Bumper; Metal Miller Skid-Plate; Aero Turbine 2525 Muffler; TSB Rear Leaf Springs and Shocks; Satoshi Grill Pending; Off-Roading Torn off Mirror (Replaced); Blue-Sea Fuse Box; Tinted Tail Lights; URD Short Shifter; Interior Mood Lighting; Hood Lights; BedLights Pending
    I'm not sure the measurements but keep in mind, if your current design has the tire touching the floor of the bed it won't be compatible if you go to a larger tire size.

  8. Apr 15, 2013 at 11:33 AM
    #8
    Geem750

    Geem750 [OP] Well-Known Member

    Joined:
    Apr 13, 2012
    Member:
    #76861
    Messages:
    558
    Gender:
    Male
    First Name:
    Brandon
    Okanagan, BC
    Vehicle:
    07 DCLB
    Grillcraft grill, ultimate toytek 3" lift, shorty antenna, blacked out badges, rear diff breather, Kenwood 6990 HU, wet okoles, weather techs, extra D-rings, Cruisin offroad bolt on sliders, Treklights 18" LED bar
    I concur, the weight would be too much.

    +1

    The plan is to keep the weight of the tire on the bed of the truck. My brother made a suggestion as to keep the slots instead of just a circle, make it a slotted cicle if that makes any sense, so i can move the bolt to hold the tire up or down, makes me think i should have the bars going vertical, spaced apart for a 6bolt pattern rim, with vertical slotted holes so i can have different sized spares there. boom, problem solved

  9. Apr 15, 2013 at 12:57 PM
    #9
    Drunknsloth

    Drunknsloth Indffrnce will be the fall of manknd but who cares

    Joined:
    Jun 17, 2010
    Member:
    #39105
    Messages:
    3,200
    Gender:
    Male
    First Name:
    Retribution
    South West
    Vehicle:
    08 SR5 Access V6 6-Speed
    Blacked-Out Badges; Retribution Decals (Sockmonkey); Tailgate Mod; Red LED Rear Blinkers; Yellow Foglights; Yellow Front Blinkers; Superwhite Xenon Corner Bulb; Leer Bedcap; Bedrug Bedmat; Black Cupholders; Black Plastic Piece Around Window Controls; Plasti-Dip Front Bumper Valence; Plasti-Dip Grill Surround; Blackout Chrome Back Bumper; Metal Miller Skid-Plate; Aero Turbine 2525 Muffler; TSB Rear Leaf Springs and Shocks; Satoshi Grill Pending; Off-Roading Torn off Mirror (Replaced); Blue-Sea Fuse Box; Tinted Tail Lights; URD Short Shifter; Interior Mood Lighting; Hood Lights; BedLights Pending
    Might be easier to make a separate rack that you can bolt onto the bar with slots to adjust the height of the rack and keep the bolts in a fixed location.

  10. Apr 15, 2013 at 1:20 PM
    #10
    Geem750

    Geem750 [OP] Well-Known Member

    Joined:
    Apr 13, 2012
    Member:
    #76861
    Messages:
    558
    Gender:
    Male
    First Name:
    Brandon
    Okanagan, BC
    Vehicle:
    07 DCLB
    Grillcraft grill, ultimate toytek 3" lift, shorty antenna, blacked out badges, rear diff breather, Kenwood 6990 HU, wet okoles, weather techs, extra D-rings, Cruisin offroad bolt on sliders, Treklights 18" LED bar
    sort of like having an extra hub that can bolt to the rack?

  11. Apr 15, 2013 at 1:24 PM
    #11
    Drunknsloth

    Drunknsloth Indffrnce will be the fall of manknd but who cares

    Joined:
    Jun 17, 2010
    Member:
    #39105
    Messages:
    3,200
    Gender:
    Male
    First Name:
    Retribution
    South West
    Vehicle:
    08 SR5 Access V6 6-Speed
    Blacked-Out Badges; Retribution Decals (Sockmonkey); Tailgate Mod; Red LED Rear Blinkers; Yellow Foglights; Yellow Front Blinkers; Superwhite Xenon Corner Bulb; Leer Bedcap; Bedrug Bedmat; Black Cupholders; Black Plastic Piece Around Window Controls; Plasti-Dip Front Bumper Valence; Plasti-Dip Grill Surround; Blackout Chrome Back Bumper; Metal Miller Skid-Plate; Aero Turbine 2525 Muffler; TSB Rear Leaf Springs and Shocks; Satoshi Grill Pending; Off-Roading Torn off Mirror (Replaced); Blue-Sea Fuse Box; Tinted Tail Lights; URD Short Shifter; Interior Mood Lighting; Hood Lights; BedLights Pending
    Pretty much, like make a separate piece that the wheel bolts onto. And where that piece has holes to be bolted on to the rack, cut slots so it's adjustable.

  12. Apr 16, 2013 at 1:18 AM
    #12
    Forster46

    Forster46 Very nice how much?

    Joined:
    Jul 20, 2010
    Member:
    #40487
    Messages:
    3,368
    Gender:
    Male
    First Name:
    Nick
    Mount Vernon, WA
    Vehicle:
    The doritos locos taco
    6000k HID's, AUX Reverse Lights, 3" Rough Country Suspension Lift, Pioneer AVH-P4200 Double Din, Underglow and footwell Lights, Camo Seat Covers, Duralast Tool Box, Blacked Out Badges, Grill, Front Emblem, Midland CB Radio, Amber Strobes, POWER REAR WINDOW, cup holder LED's, Firestik 3' in bed, console divider, Ultragauge.
    This. The bigger the tire, just raise the "hub mount" 32 inch tire? Have it in one spot. 33 inch tire? Slide the hub mounting plate up slightly with the slots, in order to make room for the extra inch down below. As far as different bolt patterns, just make a different plate all together. Easiest solution

  13. Apr 16, 2013 at 3:13 AM
    #13
    brickboiler

    brickboiler New Member

    Joined:
    Mar 31, 2013
    Member:
    #101027
    Messages:
    3
    Gender:
    Male
    I like your design as it is, except I would put the spare on the drivers side so that it would obscure the view less.

  14. Apr 16, 2013 at 12:56 PM
    #14
    Geem750

    Geem750 [OP] Well-Known Member

    Joined:
    Apr 13, 2012
    Member:
    #76861
    Messages:
    558
    Gender:
    Male
    First Name:
    Brandon
    Okanagan, BC
    Vehicle:
    07 DCLB
    Grillcraft grill, ultimate toytek 3" lift, shorty antenna, blacked out badges, rear diff breather, Kenwood 6990 HU, wet okoles, weather techs, extra D-rings, Cruisin offroad bolt on sliders, Treklights 18" LED bar
    i had also thought of this when i was sitting in the bed of my truck holding the tape measure.


    I probably wont be building this until i get a proper spare tire. and ive decided to hold back on new tires til next season. Ill post back here once i have something to show for it.

  15. May 5, 2013 at 2:10 PM
    #15
    hetkind

    hetkind Well-Known Member

    Joined:
    Feb 7, 2011
    Member:
    #50679
    Messages:
    1,769
    Gender:
    Male
    First Name:
    Howard
    Johnson City
    Vehicle:
    2011 SR5 Access Cab, white with Leer Cap
    bilstein set at 1.75, Racho 5000 rear with 4 leaf kit, floor mats, high lift jack, pull hook in hitch, bed rail corner braces, severe duty brake pads and devil horns on the grill....
    What size stock are you going to use, gussets and weld spec? Have you figured out both the bending and fatigue loads in your design, not to mention the vibration spectrum.

    Or you can just build it big and heavy enough and repair weld when needed...

    Howard

  16. Jun 2, 2013 at 8:52 PM
    #16
    Sublime

    Sublime Well-Known Member

    Joined:
    Nov 14, 2009
    Member:
    #25918
    Messages:
    3,732
    Gender:
    Male
    First Name:
    Mike
    Phoenix, AZ
    Vehicle:
    08 TRD 4x4
    Icon/All Pro.....chopped for 35's
    I really like it but blocking the back window is an issue for me!
