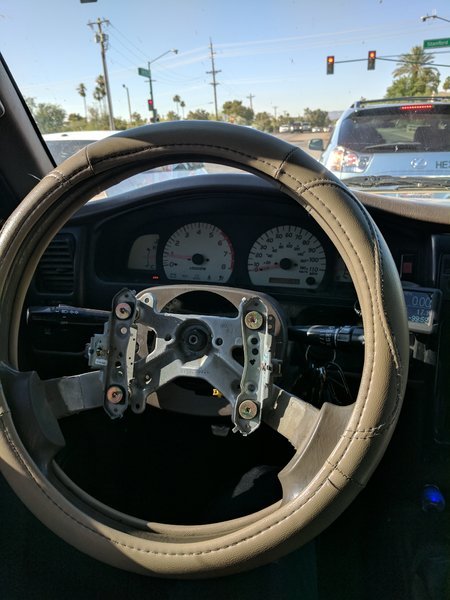

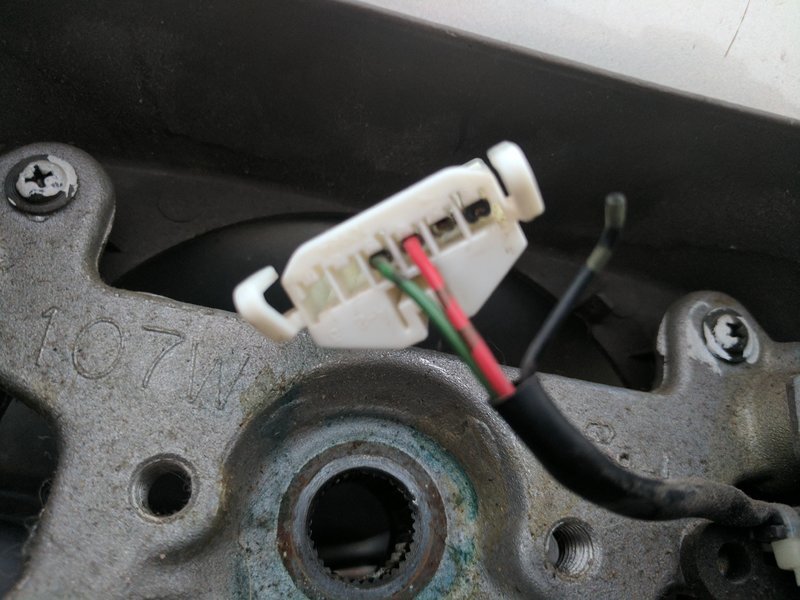

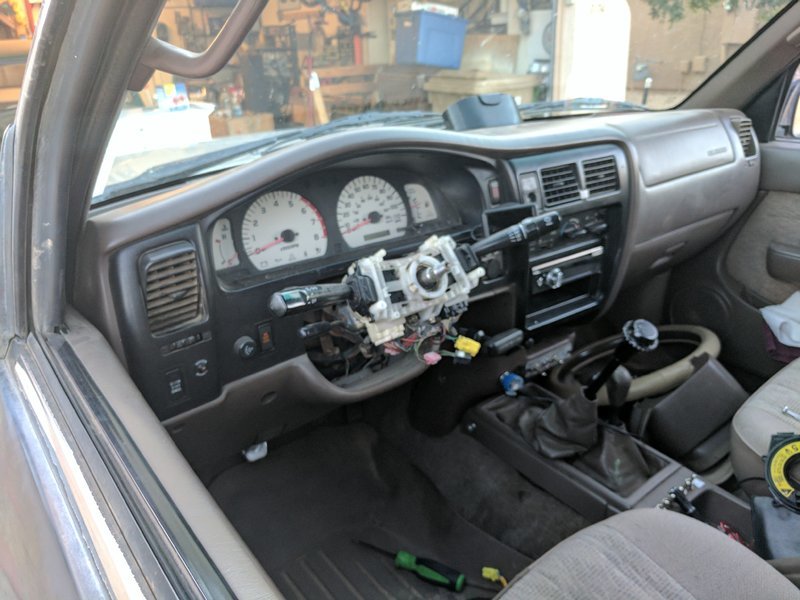

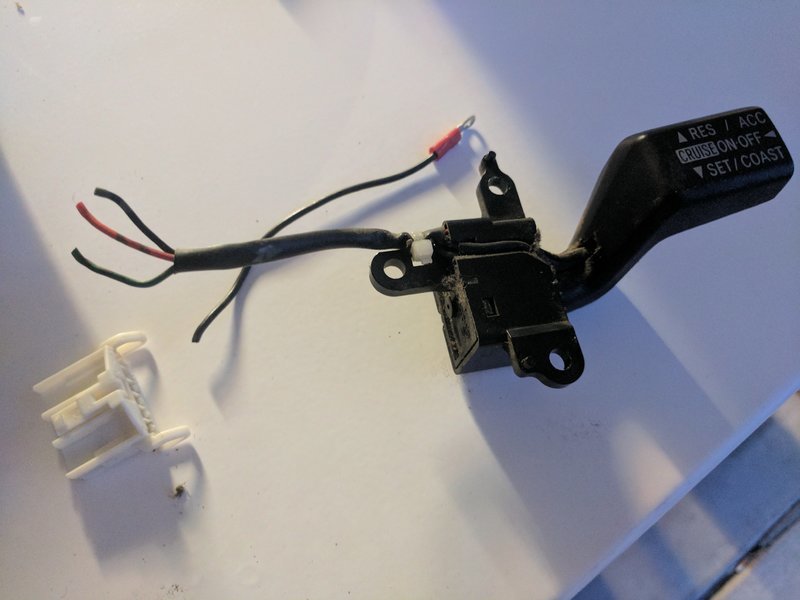

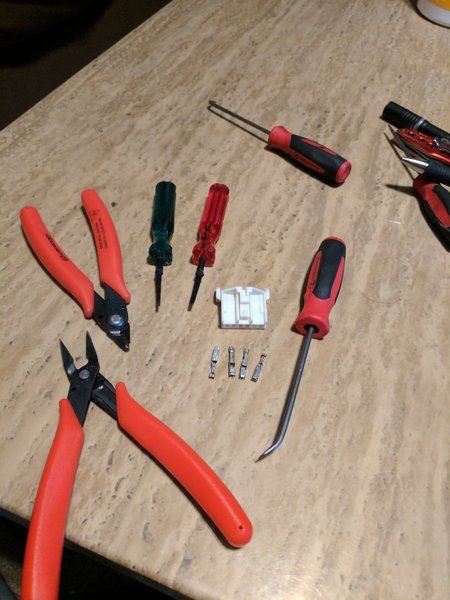

Story goes like this. Busted the spiral cable a while ago.... And just got around to replacing it. When I took apart the wheel I found the cruise control plug has 2 wires broken. I looked at them to hard and the others broke as well. The wires had been made a hair to short for their route. So I'm attempting to fix the plug I stead of giving Toyota almost 200 bones.



This is how I like to take on projects, too.



Regarding mismatched tires in parking garage pic:

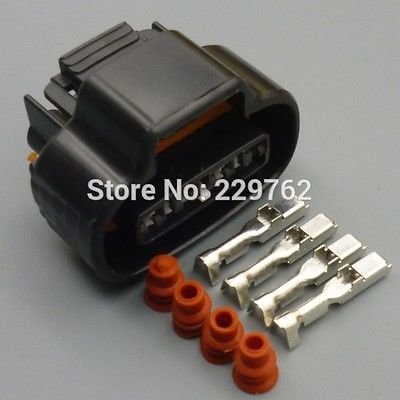

This is the closest thing I've been able to find.

Toyota/Lexus part number:
90980-11150

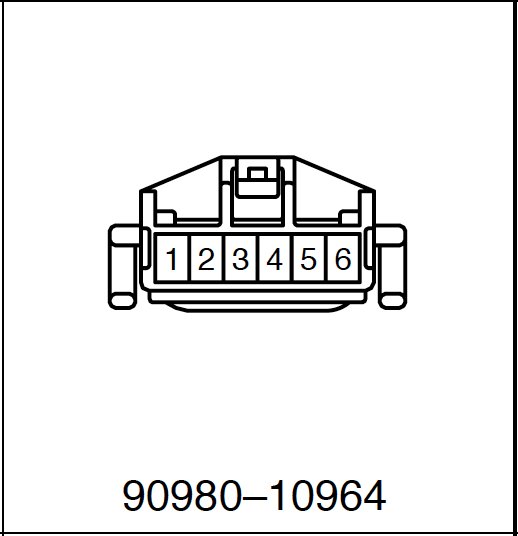

Looks like this to me
90980-10964

repair wire
82998-12340



Omg I love you.



I found the Toyota connectors for the power door system in their wiring catalog, I was trying to create an OEM retrofit kit to convert your manual doors. They wanted $6 for the connector housing. It's expensive, but not outrageous considering it's discontinued.

And then I found out they wanted $5 PER PIN. That's where they get ya. The driver's side door has two door connectors, with something like 12 pins each. At 96 pins for the driver and passenger side harness, Toyota would charge a whopping $504 dollars for four connector housings and 96 pins that probably cost a thousandth of a cent to manufacture.



Oh god. I have never even been able to find the wire/pigtail repair catalog. Do you by chance be have a link or are you through a dealer?

Camelback has tbisisted for 5 bucks so hopefully there is minimal rape.



I might be able to save you some time...



Did Bartmaster get you the the terminal catalog?



Oh and i can get you a plug with wire pigtails. You'll have to come to n scottsdale to pic it up.



Here it is. Courtesy of @mechanicjon.

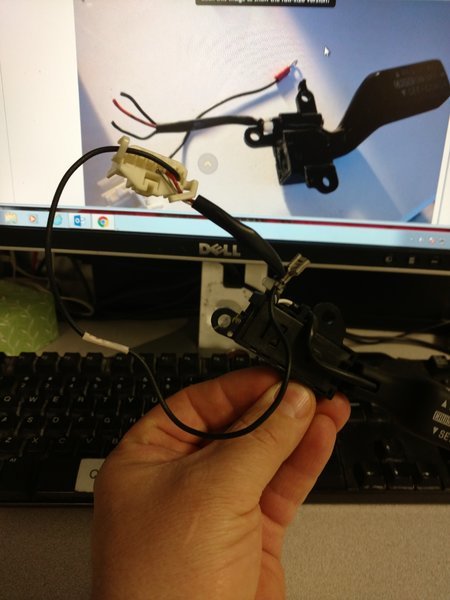

As much as I appreciate the offer, it was because the wires were to short. The option in my opinion are to solder extensions and then terminate a new plug. This way there is only one solder joint per wire.

Omg that is amazing. Thankyou kind sir and @mechanicjon



No problem.



@Greensystemsgo I have also posted this connector reference list before. This is all of the connectors for a 1999 Tacoma, it was in the wiring diagram from Toyota TIS.



These are the repair pins from toyota mentioned earlier in this thread running $5 a pin from toyo.

Here is the pins themselves running for 29 cents each.

Here is where I found this information. Sumitomo is an oem supplier, so I have high hopes.

Now I am just gonna peek around the site and see if there is any other cool stuff I need.



Keep in mind not all connectors use the same size pins. You can use the master wiring manual to figure out what size you need.

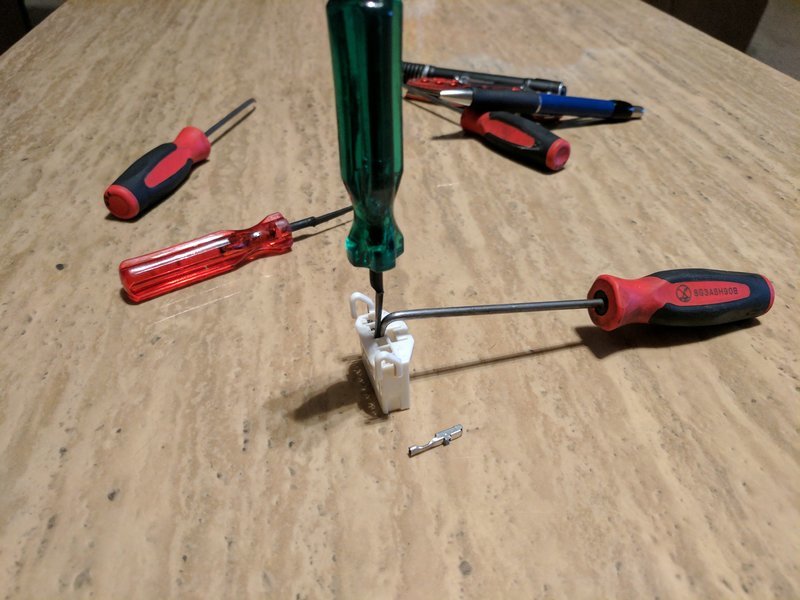

yerp, the fj guys was after the pin in the pic, and found that the ones from the linked site worked. So for 9 bucks, I ordered 25 pins. Going to roll those dice!



Woo! The pins worked, terminating and soldering now. Dunno what tool it required, but my GM delphi tool worked great.

$29 Delphi Packard Five-cavity Wide-range Crimping Tool 22-12 AWG / 24-14 AWG

https://www.amazon.com/dp/B003MWJ6SA



This escalated fast.

Repaired the cruise control plug with those pins. Works great.

Noticed the steering column was making a creak. (The clutch pedal also creaks again, 2nd set of bushings, time to make some brass bushings), so I investigated and found the intermediate shaft ujoint was bad, ordered that along with bearings and races for inside the column all the way through. Forgot the dust boot though the cab firewall though, 45292-35090, if anyone is interested. Also replaced the turn signal switch. I've suspected a very rare fault that blows my turn signal fuse. Or flasher. I also got a flasher unit extender cable so they are easier to change.


Also, had an axle shaft bind up. Whoops. Found the other one actually had more horizontal play at load. Whoops. Got them both out in 15 minutes each, and the column in 30. Gonna replace the axle/diff seals, ordered them on prime. Xo Amazon.
