cup holder led light

Discussion in 'Lighting' started by blacktxsr5, Apr 25, 2009.

  1. Apr 25, 2009 at 2:01 PM
    #1
    blacktxsr5

    blacktxsr5 [OP] Well-Known Member

    Joined:
    Mar 15, 2009
    Member:
    #14767
    Messages:
    50
    Gender:
    Male
    First Name:
    Ryan
    Rockwall TX
    Vehicle:
    09 DC 4x4 TRD Off Road
    k&n drop in, 2.5 daystar front spacer lift, Silverstar Ultra headlight bulbs, Luminetics Krypton Yellow fog light bulbs, Superbrightleds.com orange light (cup holder mod), GoRhino push bumper, PIAA
    ok yall i finished my cup holder led light mod today, i will post pics asap and some night pics to!! i am soo pleased with the way it turned out. i used a orange 4led accent light from superbrightleds.com and taped into the light wire for the gear shift light so it comes on and off with the vehicle lights. it is mounted in the bump that is on the 09 tacomas

  2. Apr 25, 2009 at 2:04 PM
    #2
    mar_ga_rita

    mar_ga_rita Head of the MASTERS CIRCLE

    Joined:
    Jan 29, 2009
    Member:
    #13069
    Messages:
    363
    Gender:
    Male
    New Orleans
    Vehicle:
    2003 Tacoma SR5 PreRunner TRD
    BUG SHIELD BULL BAR OFF-ROAD LIGHTS 4-RUNNER FOG LIGHT SWITCH K&N EYE OF THE TIGER ON THE BACK GLASS TONNEAU COVER
    awesome.... I want to do this to my 1st gen..

  3. Apr 25, 2009 at 2:57 PM
    #3
    TEX357

    TEX357 TX

    Joined:
    Jan 10, 2009
    Member:
    #12438
    Messages:
    2,149
    Gender:
    Male
    Vehicle:
    05 TACOMA
    285\70-17 BFGoodrich KM2's 17x8 Pro Comp 7089
    Pics!!!!!

  4. Apr 25, 2009 at 3:16 PM
    #4
    blacktxsr5

    blacktxsr5 [OP] Well-Known Member

    Joined:
    Mar 15, 2009
    Member:
    #14767
    Messages:
    50
    Gender:
    Male
    First Name:
    Ryan
    Rockwall TX
    Vehicle:
    09 DC 4x4 TRD Off Road
    k&n drop in, 2.5 daystar front spacer lift, Silverstar Ultra headlight bulbs, Luminetics Krypton Yellow fog light bulbs, Superbrightleds.com orange light (cup holder mod), GoRhino push bumper, PIAA
    ok here are the pics and i will add some step by step

    first remove your center console, its easy if you dont know how im sure u will be able to find a thread for it.

    second with the entire console removed pop out the blank switch space, mines in the center, it comes out with a flat head screw driver.

    third run the wire through the hole and down to the shifter

    now remove the face plate of the shift bezel and you will see a led light that is orange, twist the bottom of it and it will come come out

    one side is a pos and one is neg

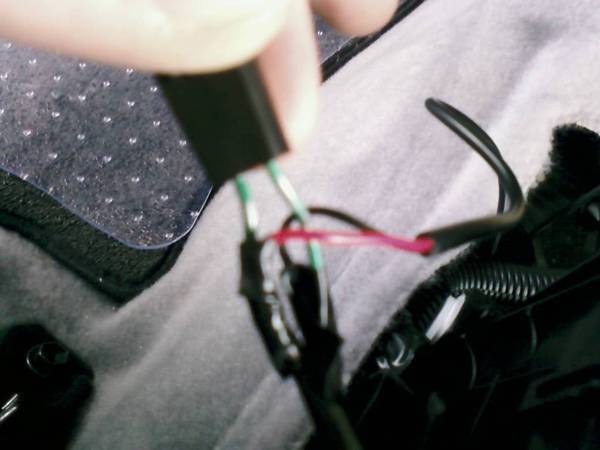

    strip them down and and connect you wires for the led light as shown bellow.

    [​IMG]

    with this accomplished the led light will now turn on only with the parking lights and and head lights

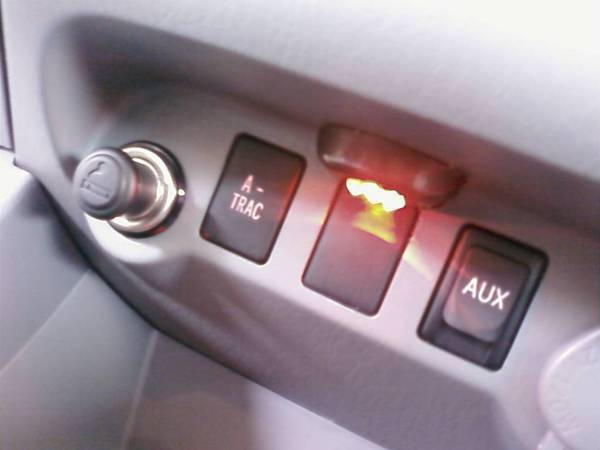

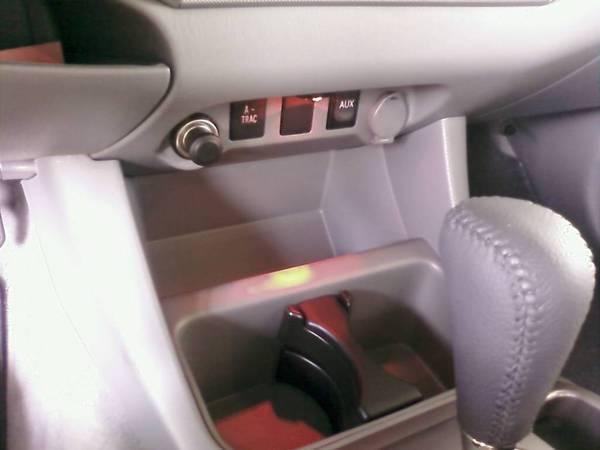

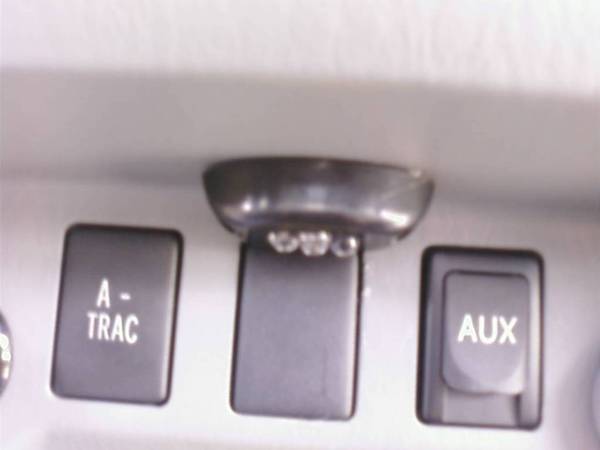

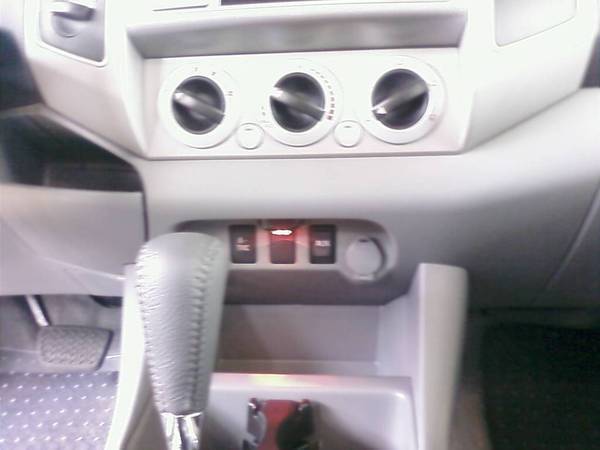

    if you are like me and dont want to screw anything down just double sided tape it in..... lol. here are some pics of it finished.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    and yes when it gets dark i will post some pics.....
