Cup holder LEDs

Discussion in 'Lighting' started by Bpassmore8, Jan 17, 2014.

  1. Jan 17, 2014 at 4:20 PM
    #1
    Bpassmore8

    Bpassmore8 [OP] Brian13DCSB

    Joined:
    Jul 2, 2013
    Member:
    #107443
    Messages:
    134
    Gender:
    Male
    First Name:
    Brian
    Vacaville, CA
    Vehicle:
    2013 Super White TRD Sport
    Debadged, N-Fab step bars, LED cup holder lights, LED dome and map lights, TRD stickers, HID retrofit (Morimoto Mini H1 6.0, BHLM, HomerTaco ghost raptor grill, OME 885s with 90021 up front, 60091 in the rear with trim spacer
    I saw some threads about cup holder lighting. I like the idea of changing things but only if it is basically stock looking so this won't be anything fancy but will work for people like me. This is how I did it. I tapped into the green and green/white wires behind the AC panel and routed the wire down and to the rear cup holder. I tapped off that one for the front cup holder. I like this way because if I want more lighting anywhere it is easy to tap. I wanted mine different than the other threads, only wanting enough light to see. Not accent colors and not distracting. I work at a Lexus dealer and that is how they are which I love but it is coming from the headliner and only giving enough light to see. There is enough light that my daughter can see the rear cup holder. I used a 1/8 drill bit for the holes which gave enough light without dispersing it and tap splices

    Bought these lights http://www.oznium.com/prewired-5050-led

    Mistakes...this is the first wiring project I have done
    1.Used the wrong gauge wire. Ended up using 18 because it was the smallest I could get. I got 14 first which meant after running some wire the tap splices wouldn't work since the factory wire it tiny

    2.Drilled the first front hole where I wanted it, put everything together and was happy. Put the cup holder inserts in and realized I hadn't thought about those. They blocked the hole so everything had to come out and a new hole drilled

    Tapped behind a/c to green and green/white wires. You could also use the wires for the bulb that lights the P R N D indicator next to the shifter but I messed that up so had to use the a/c controls
    [​IMG]

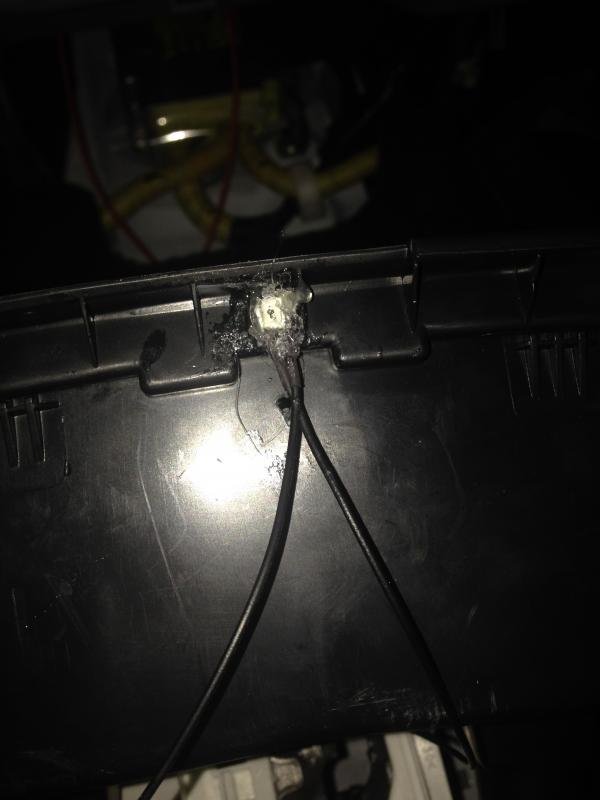

    Ugly but I had to hot glue around the back of the LED to hold it in place
    [​IMG]

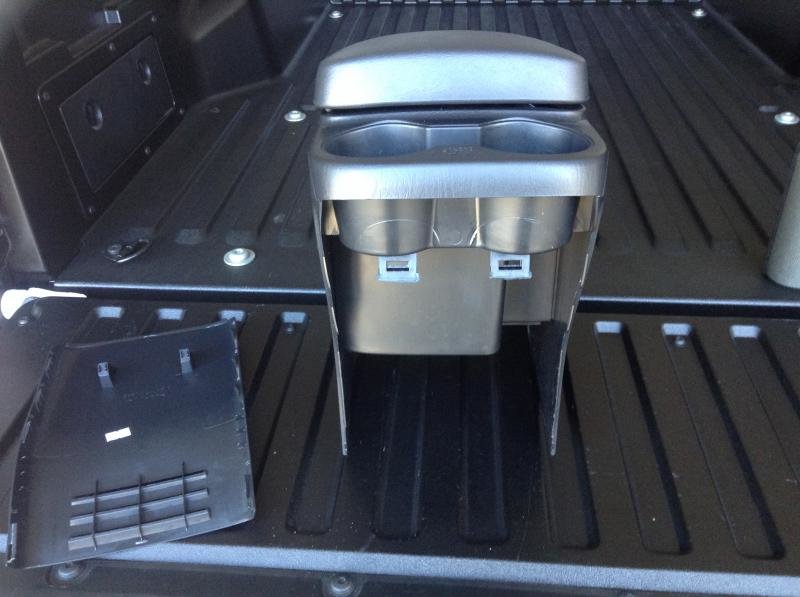

    Removed the back of the center console to route the LED
    [​IMG]

    [​IMG]

    [​IMG]

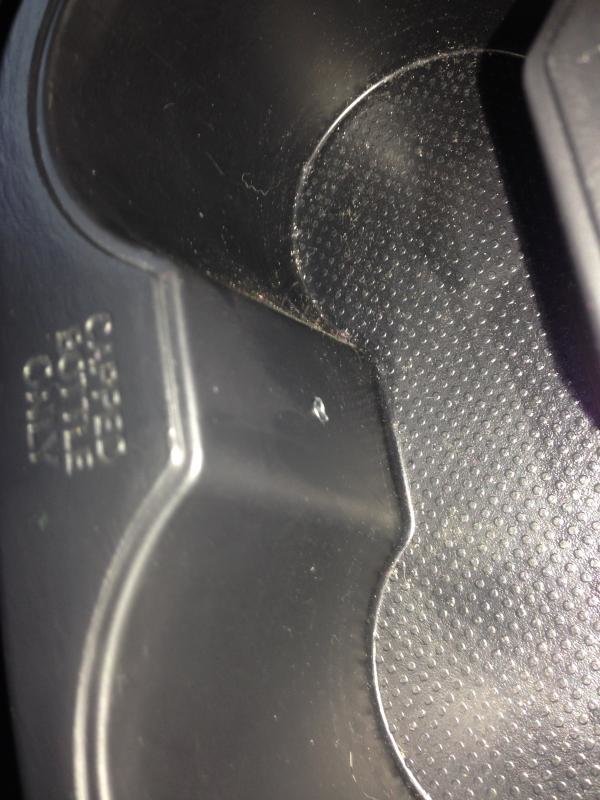

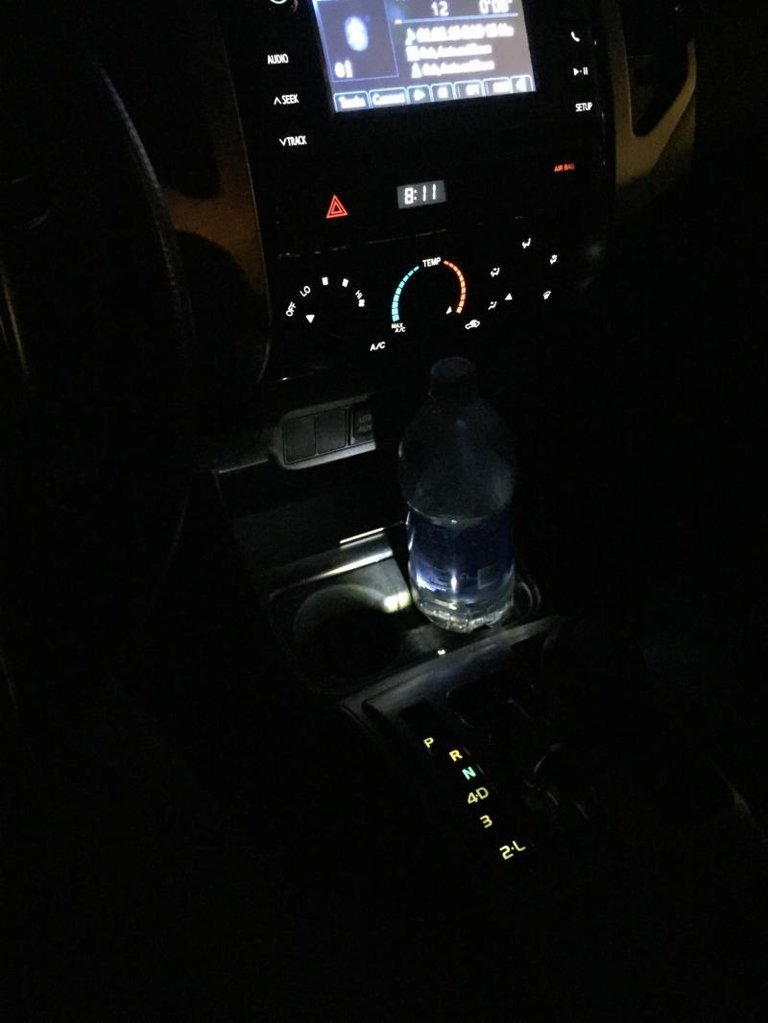

    Front hole location
    [​IMG]

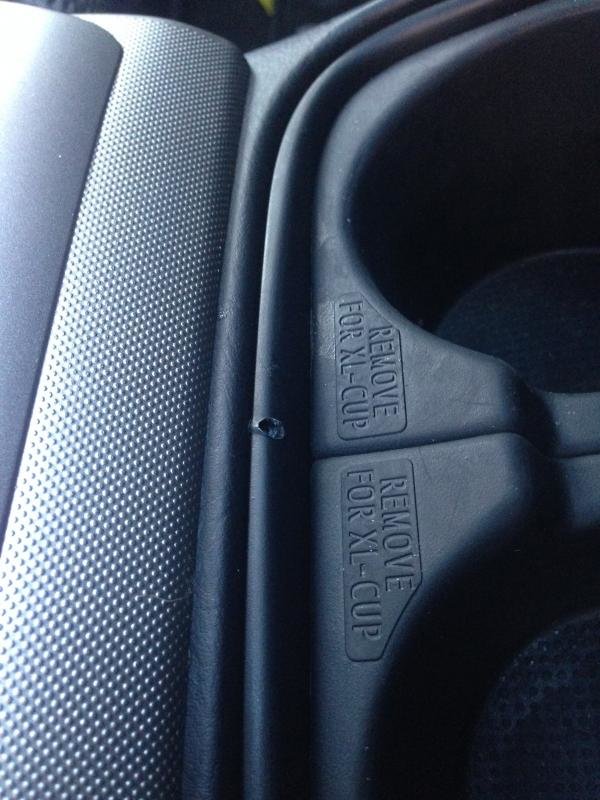

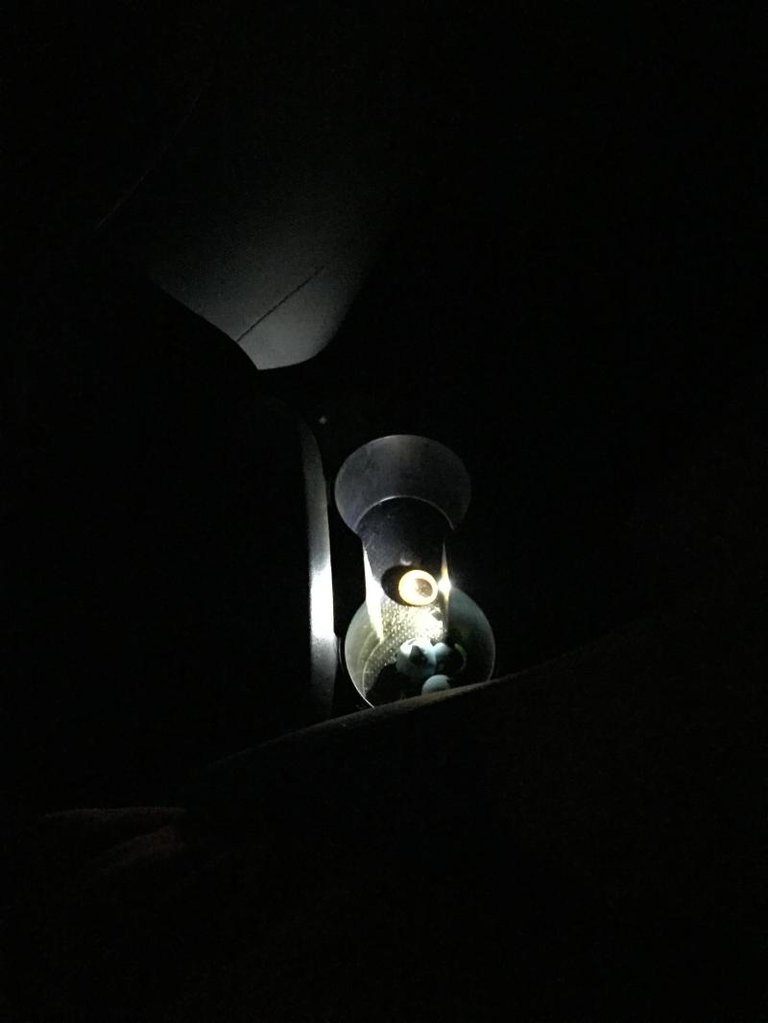

    Rear hole location
    [​IMG]

    Last edited: Jan 6, 2015
  2. Jan 18, 2014 at 7:25 AM
    #2
    Goose8651

    Goose8651 Well-Known Member

    Joined:
    Mar 16, 2013
    Member:
    #99870
    Messages:
    346
    Gender:
    Male
    DFW
    Vehicle:
    13 PreRunner SR5
    Can you update your pics? I can only see 2. Would like to see your setup as I recently purchased material for this type of mod.

  3. Jan 24, 2014 at 8:42 AM
    #3
    Oregon TRD

    Oregon TRD "GO DUCKS" Edition

    Joined:
    Oct 16, 2007
    Member:
    #3081
    Messages:
    10,760
    Gender:
    Male
    First Name:
    Ross
    Steel Panthers bathroom floor!
    Vehicle:
    05 Tacoma 6" Fabtech 35x12.50/17 Fierce M/T
    6" Fabtech Lift, 35" Fierce M/T 17" Eagle Alloy Sim bead locks 10.1" DVD head unit Two 7" Headrest Monitors PS2 in glove box
  4. Mar 18, 2014 at 7:27 AM
    #4
    jmandeville

    jmandeville Member

    Joined:
    Feb 10, 2013
    Member:
    #97221
    Messages:
    22
    Gender:
    Male
    First Name:
    Justin
    Alabama
    None yet
    Do you know how many LED's thos two wires will support? How many do you have hooked to yours? Do you know what colors the wires are for the shift indicator lights? Sorry for all the questions, but I am looking to wire up my console similar to yours, along with putting some LED's under the dash to shine on the floor boards.
