Custom Billet Shift Knob for Toyota Tacoma (2-1/4" diameter). ***Utilizes factory boot.***

Discussion in '3rd Gen Tacoma Parts Marketplace (2016+)' started by 7r41lbr34k3r, Feb 15, 2018.

  1. Oct 27, 2018 at 5:36 AM
    #781
    7r41lbr34k3r

    7r41lbr34k3r [OP] Practitioner of the mechanical arts.

    Joined:
    Sep 6, 2016
    Member:
    #196549
    Messages:
    3,001
    Gender:
    Male
    First Name:
    Rick
    Upper Perkiomen Valley, PA
    Vehicle:
    '17 SR w/ Conv. Pkg 2TR-FE 5MT 4x4 MGM
    It is quite violent for animated, but doesn't feel over the top or anything.

    tonered likes this.
  2. Oct 27, 2018 at 8:14 AM
    #782
    tonered

    tonered tacorider

    Joined:
    Sep 25, 2017
    Member:
    #231055
    Messages:
    23,651
    Gender:
    Male
    First Name:
    tony
    Lynnwood, WA
    Violent animation, all the right words.

    7r41lbr34k3r [OP] likes this.
  3. Oct 30, 2018 at 12:46 PM
    #783
    Tonche

    Tonche Well-Known Member

    Joined:
    Jul 31, 2018
    Member:
    #261166
    Messages:
    202
    Gender:
    Male
    First Name:
    Tony
    Vehicle:
    2018 Tacoma TRD OR ACLB
    I received a Rick's package. It wasn't as big as I had imagined. However, it absolutely satisfied.


  4. Oct 30, 2018 at 12:47 PM
    #784
    tonered

    tonered tacorider

    Joined:
    Sep 25, 2017
    Member:
    #231055
    Messages:
    23,651
    Gender:
    Male
    First Name:
    tony
    Lynnwood, WA
    You left the door wiiiiddddee open there. Just sayin'. . .

    Your knob looks great in pics though.

    TD90S likes this.
  5. Oct 30, 2018 at 1:10 PM
    #785
    TD90S

    TD90S Cool as a cucumber in a bowl of hot sauce

    Joined:
    Sep 7, 2018
    Member:
    #265486
    Messages:
    578
    Gender:
    Male
    GA
    Vehicle:
    ‘18 TRDOR 6MT
    WIDE open!

    tonered likes this.
  6. Oct 30, 2018 at 1:58 PM
    #786
    Tonche

    Tonche Well-Known Member

    Joined:
    Jul 31, 2018
    Member:
    #261166
    Messages:
    202
    Gender:
    Male
    First Name:
    Tony
    Vehicle:
    2018 Tacoma TRD OR ACLB
    On a completely serious note, this thing is really badass. The quality is so far beyond what I could have imagined.

    I recommend everyone read the shimming instructions. I was lazy and just started cutting shims. Went through more than half of the yellows. Which was a pretty thick shim. Probably went around more than one turn.

    7r41lbr34k3r [OP] and tonered like this.
  7. Oct 30, 2018 at 2:06 PM
    #787
    7r41lbr34k3r

    7r41lbr34k3r [OP] Practitioner of the mechanical arts.

    Joined:
    Sep 6, 2016
    Member:
    #196549
    Messages:
    3,001
    Gender:
    Male
    First Name:
    Rick
    Upper Perkiomen Valley, PA
    Vehicle:
    '17 SR w/ Conv. Pkg 2TR-FE 5MT 4x4 MGM
    My package isn't small ... IT'S THIN!

    TD90S and tonered like this.
  8. Oct 30, 2018 at 3:56 PM
    #788
    Rzilla80

    Rzilla80 Active Member

    Joined:
    Jun 2, 2018
    Member:
    #255219
    Messages:
    31
    Gender:
    Male
    First Name:
    Ralph
    Vehicle:
    2018 Taco Trk SR5

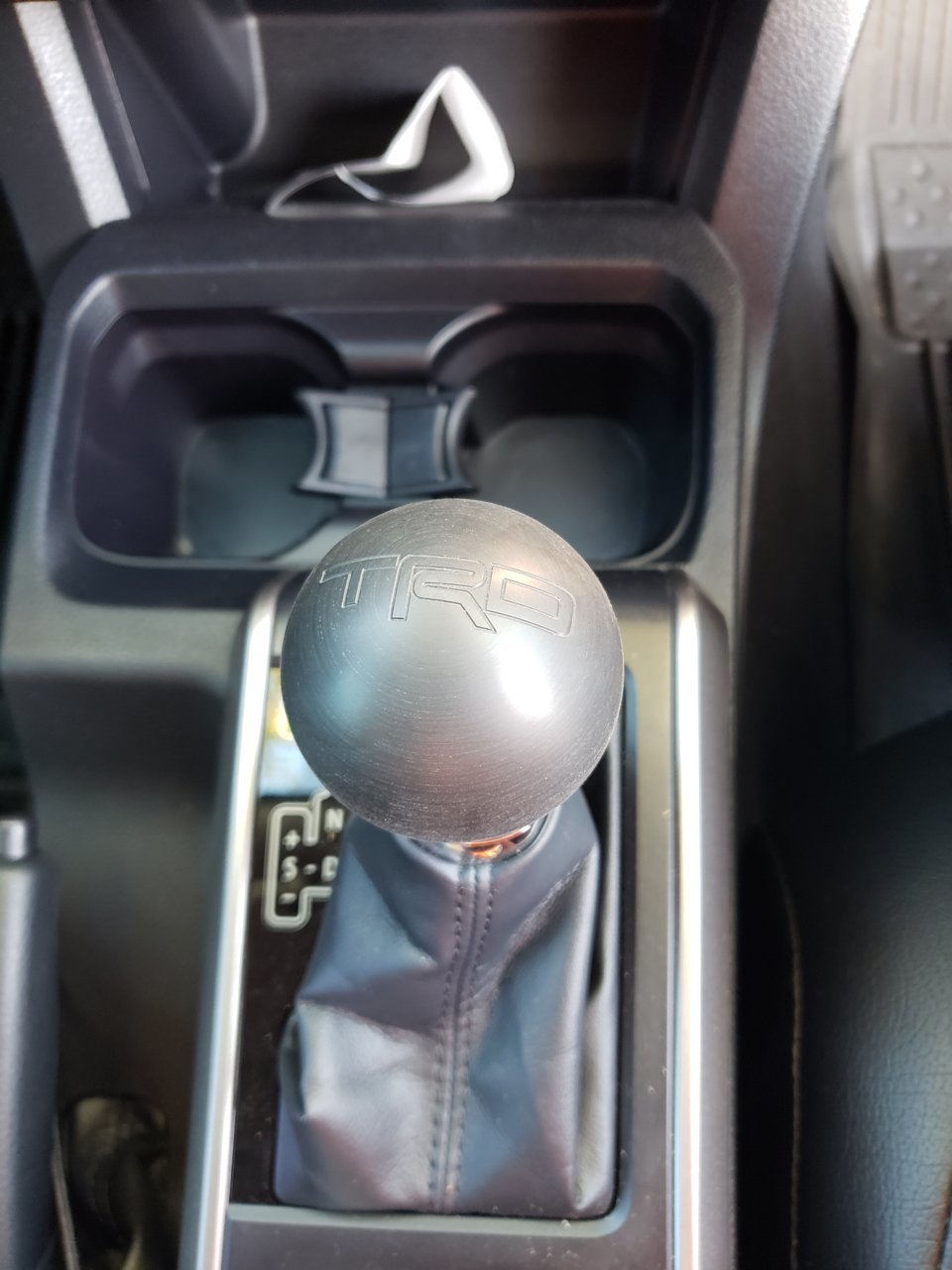

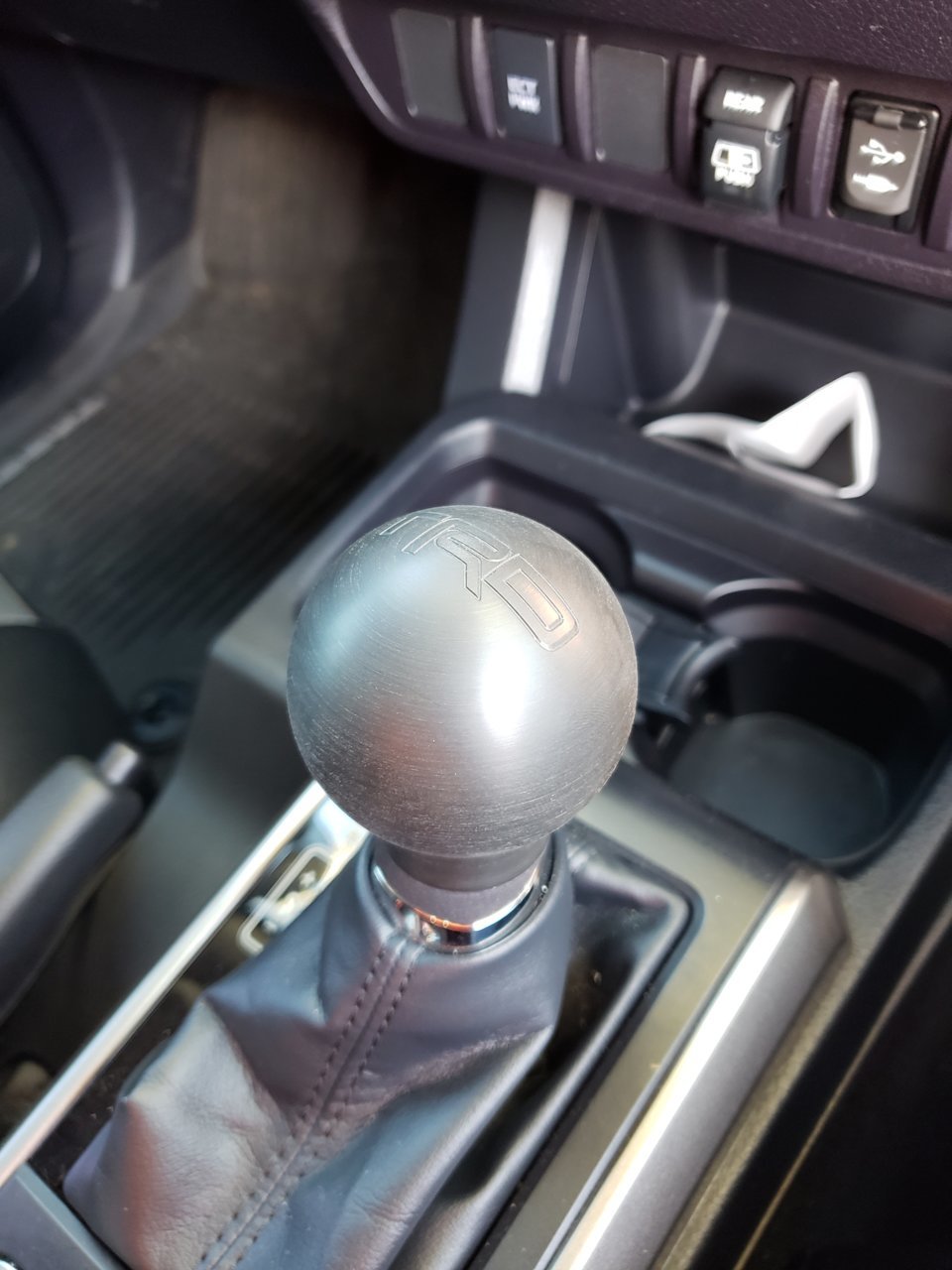

    20181030_155206.jpg 20181030_155212.jpg 20181030_155206.jpg

    Definitely worth the wait!! It's a Masterpiece!! :bananadance:

  9. Oct 30, 2018 at 5:12 PM
    #789
    7r41lbr34k3r

    7r41lbr34k3r [OP] Practitioner of the mechanical arts.

    Joined:
    Sep 6, 2016
    Member:
    #196549
    Messages:
    3,001
    Gender:
    Male
    First Name:
    Rick
    Upper Perkiomen Valley, PA
    Vehicle:
    '17 SR w/ Conv. Pkg 2TR-FE 5MT 4x4 MGM

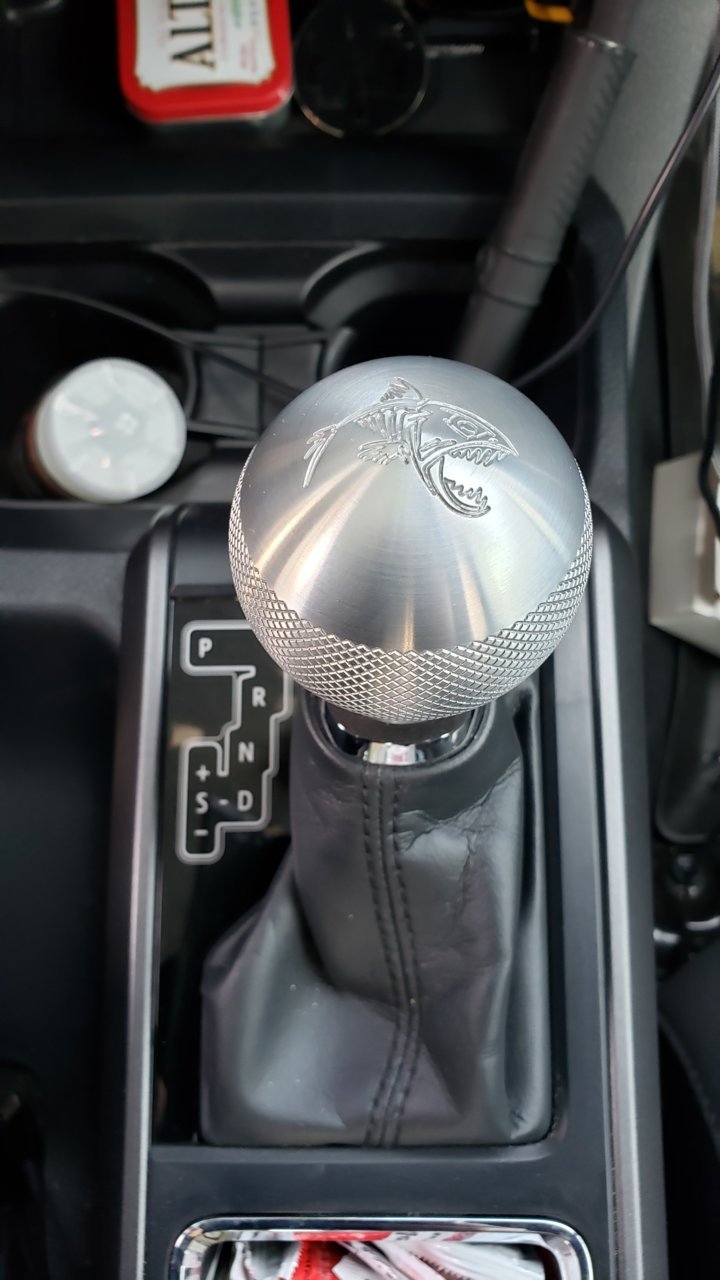

    I release them into the wild, and they come back digitally ...

    [​IMG]

  10. Oct 30, 2018 at 5:13 PM
    #790
    TeecoTaco

    TeecoTaco Liberty Biberty

    Joined:
    Feb 26, 2017
    Member:
    #211739
    Messages:
    8,664
    SW Ontario
    Vehicle:
    16 Taco DCSB TRD Sport 6MT
    Modified the level of gas in the tank
    No shit eh, it's like herpes simplex III

    tonered and 7r41lbr34k3r [OP] like this.
  11. Oct 30, 2018 at 5:25 PM
    #791
    tonered

    tonered tacorider

    Joined:
    Sep 25, 2017
    Member:
    #231055
    Messages:
    23,651
    Gender:
    Male
    First Name:
    tony
    Lynnwood, WA
    If you like something, set it free. If it doesn't return, hunt it down.

    TeecoTaco and 7r41lbr34k3r [OP] like this.
  12. Oct 30, 2018 at 5:50 PM
    #792
    TeecoTaco

    TeecoTaco Liberty Biberty

    Joined:
    Feb 26, 2017
    Member:
    #211739
    Messages:
    8,664
    SW Ontario
    Vehicle:
    16 Taco DCSB TRD Sport 6MT
    Modified the level of gas in the tank
    And kill it with fire


    Beemaster and tonered like this.
  13. Oct 30, 2018 at 6:08 PM
    #793
    tonered

    tonered tacorider

    Joined:
    Sep 25, 2017
    Member:
    #231055
    Messages:
    23,651
    Gender:
    Male
    First Name:
    tony
    Lynnwood, WA
    Nuke it from orbit. It's the only way to be sure.

    TeecoTaco likes this.
  14. Oct 31, 2018 at 10:26 AM
    #794
    7r41lbr34k3r

    7r41lbr34k3r [OP] Practitioner of the mechanical arts.

    Joined:
    Sep 6, 2016
    Member:
    #196549
    Messages:
    3,001
    Gender:
    Male
    First Name:
    Rick
    Upper Perkiomen Valley, PA
    Vehicle:
    '17 SR w/ Conv. Pkg 2TR-FE 5MT 4x4 MGM
    Orientation/Installation instructions

    When you screw your new shift knob onto your truck, there is a good chance that it will become tight at an incorrect orientation. I couldn't use the same orientation method of the stock knob, because there would be too high a risk of galling the threads (further explanation here). Outlined below is my shim method.

    Note the yellow square at the bottom of the thread (pics below) ... that is where the supplied shim(s) go. I supplied enough of each color for you to cut a few of each to proper size. Reference the chart below for thickness of the color coded shim stock.



    [​IMG]

    The thread pitch for all versions is 0.0492125 per turn, so if you place a yellow shim (.020 thick) down there it will net to a little less than half of a turn difference. Two yellow shims and two blue (.005) shims will get you right back where you started, if that makes sense ... because their thickness will add up to just above the pitch of the thread.

    Whatever solution you end up with, prep a blue shim and keep it in your cup holder, because the shaft on your truck will compress/settle the shims about that much over the first couple days.

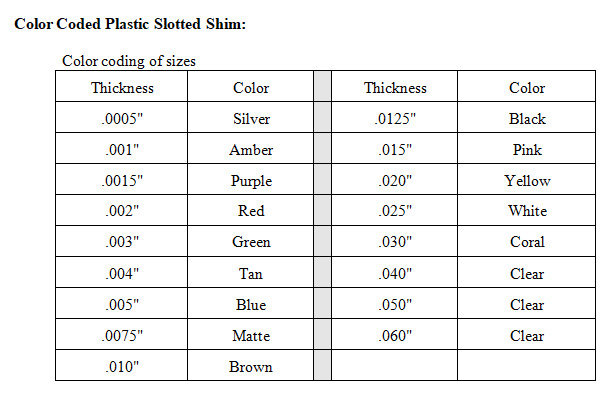

    Here are the colors and their thicknesses of the shim stock that I use. I don't always send the same colors, so here are all of them.

    **Warning**, do NOT use tools to tighten the knob as overtorquing can cause damage(same goes for folks with great hand strength). It is better to play it safe by taking a few seconds to re-shim than it is to force orientation and risk damaging your truck.


    Last edited: Jun 26, 2021
  15. Oct 31, 2018 at 10:27 AM
    #795
    7r41lbr34k3r

    7r41lbr34k3r [OP] Practitioner of the mechanical arts.

    Joined:
    Sep 6, 2016
    Member:
    #196549
    Messages:
    3,001
    Gender:
    Male
    First Name:
    Rick
    Upper Perkiomen Valley, PA
    Vehicle:
    '17 SR w/ Conv. Pkg 2TR-FE 5MT 4x4 MGM
    Updating the orientation info just so I can use a single link. It can always be found in my signature, and if you are on mobile make sure you are viewing in landscape mode to see it. My old links are too wordy anyway.

    Last edited: Oct 31, 2018
    tonered likes this.
  16. Nov 1, 2018 at 4:59 PM
    #796
    7r41lbr34k3r

    7r41lbr34k3r [OP] Practitioner of the mechanical arts.

    Joined:
    Sep 6, 2016
    Member:
    #196549
    Messages:
    3,001
    Gender:
    Male
    First Name:
    Rick
    Upper Perkiomen Valley, PA
    Vehicle:
    '17 SR w/ Conv. Pkg 2TR-FE 5MT 4x4 MGM

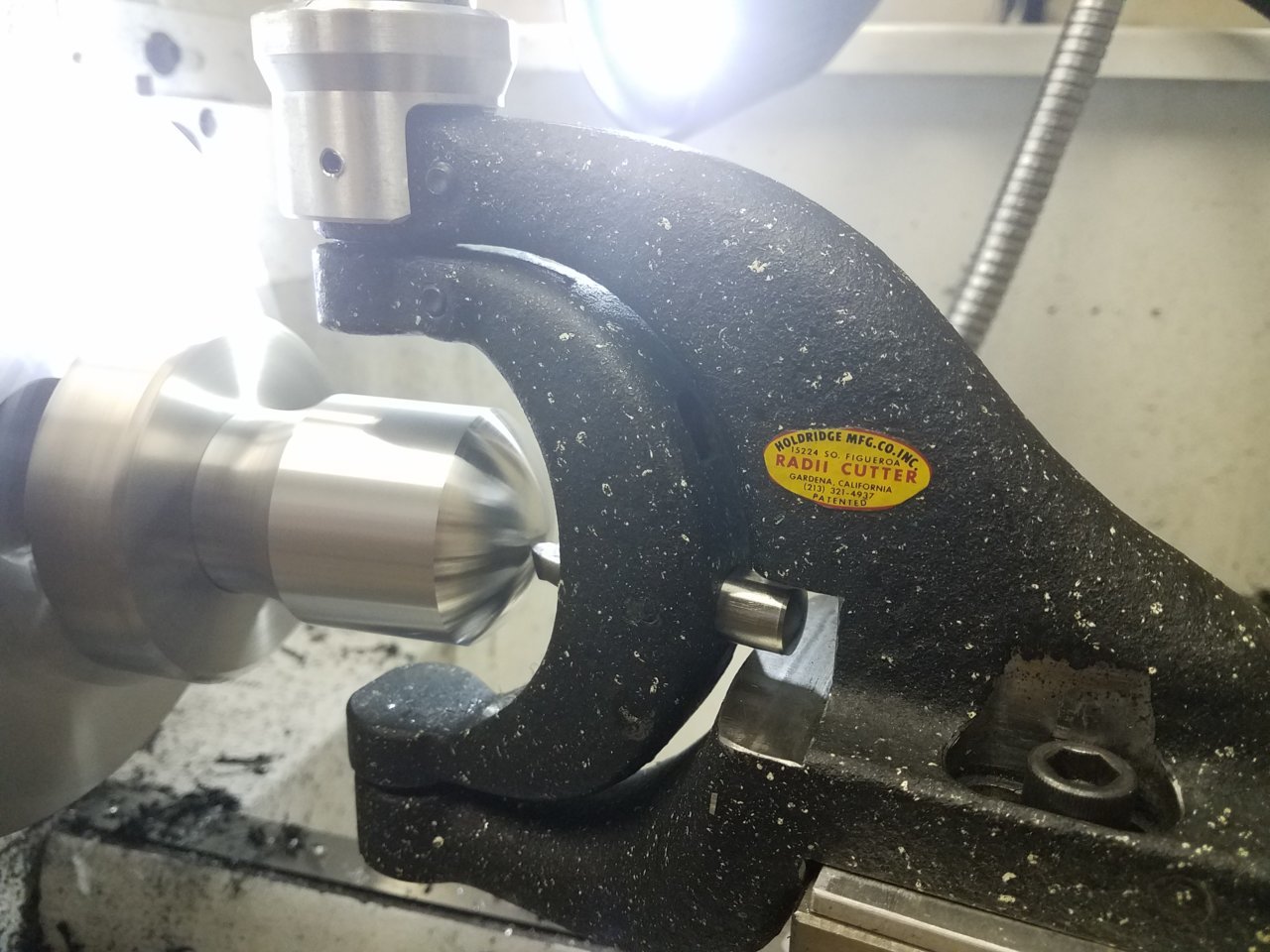

    Action shot of the sphere finish pass.


    SCJeffro, dirty deeds, MESO and 5 others like this.
  17. Nov 5, 2018 at 7:08 PM
    #797
    7r41lbr34k3r

    7r41lbr34k3r [OP] Practitioner of the mechanical arts.

    Joined:
    Sep 6, 2016
    Member:
    #196549
    Messages:
    3,001
    Gender:
    Male
    First Name:
    Rick
    Upper Perkiomen Valley, PA
    Vehicle:
    '17 SR w/ Conv. Pkg 2TR-FE 5MT 4x4 MGM

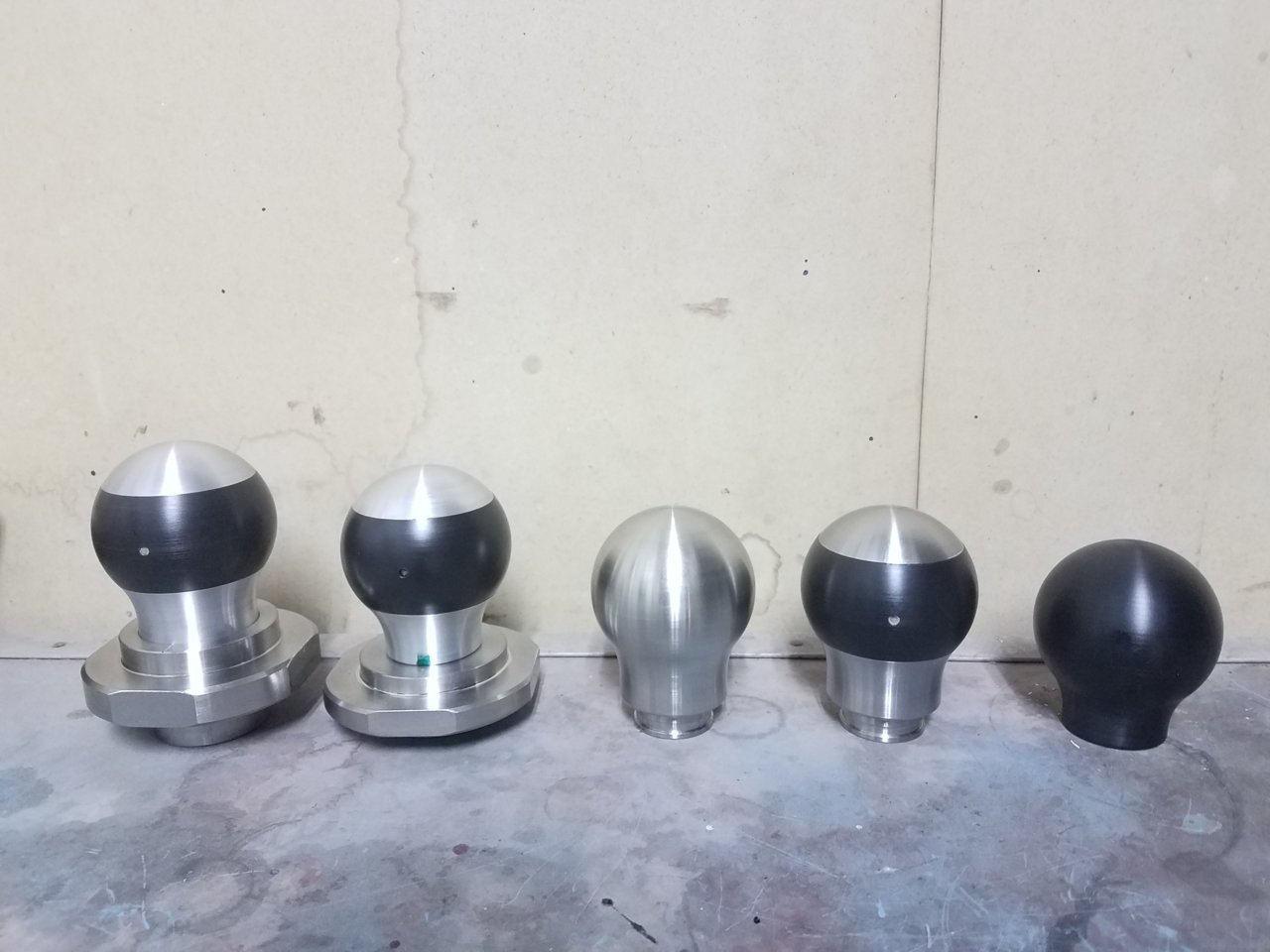

    Batch update. 11/9 ship date is my goal for these, just need engraving and collars.


    TD90S, alimjr, beergeek and 2 others like this.
  18. Nov 6, 2018 at 11:29 AM
    #798
    Cough*Strawberry

    Cough*Strawberry Active Member

    Joined:
    Jan 7, 2018
    Member:
    #240532
    Messages:
    29
    Gender:
    Male
    Traveler
    Vehicle:
    2018 Tdr Sport 4x4 MT
    You have seriously mastered your craft man. This level of prideful professionalism make me happy! Glad to give you my hard earned money sir.

    7r41lbr34k3r [OP] and TeecoTaco like this.
  19. Nov 7, 2018 at 6:56 AM
    #799
    7r41lbr34k3r

    7r41lbr34k3r [OP] Practitioner of the mechanical arts.

    Joined:
    Sep 6, 2016
    Member:
    #196549
    Messages:
    3,001
    Gender:
    Male
    First Name:
    Rick
    Upper Perkiomen Valley, PA
    Vehicle:
    '17 SR w/ Conv. Pkg 2TR-FE 5MT 4x4 MGM
    I see myself more as the eternal student, hard for me to swallow that ... but I do appreciate it!

    The pride part is dead on, though ... couldn't be happier how all of this transpired right here on the boards. This shift knob project has come a long way, and hasn't even been year yet. Still open to tweaking more design features out of it, too ... just haven't been able to think of anything worthy.

    tonered likes this.
  20. Nov 7, 2018 at 7:03 AM
    #800
    tonered

    tonered tacorider

    Joined:
    Sep 25, 2017
    Member:
    #231055
    Messages:
    23,651
    Gender:
    Male
    First Name:
    tony
    Lynnwood, WA
    Well . . .
