Custom HD relay/ fuse terminal

Discussion in 'Group Buys' started by Spencer, Feb 4, 2013.

Thread Status:
Not open for further replies.
  1. Feb 4, 2013 at 6:18 PM
    #1
    Spencer

    Spencer [OP] Future President

    Joined:
    Dec 19, 2012
    Member:
    #93415
    Messages:
    1,230
    Gender:
    Male
    First Name:
    TIGGLEBITTIES
    Upland, Chino... all of 909.
    Vehicle:
    2013 DCSB 4X4 6cyl Sex Machine
    Redline hood lift, Flyzeye cabin lights, tailgate lock, SPOD Power block, VIAR onboard air, Cobra CB radio, Firestick 4' Antenna, Hot Blonde CoPilot Mod, SIX 9" Hella 4000 HID conversion with external 55W ballasts, Six 6" LED bars, Napier Bed Tent, Mudflaps delete using rocks, Roof rack by Brute force, Rock sliders by Brute force, Bed LED lights, Underhood LED automatic lights, Constant 12V bed plug, Rugged race radio, ICON uniball UCA's, KING 2.5 700 rate coilovers, Deaver rear leaf springs, KING 2.5 resi rear shocks (Flat 0.15 stack on compression shims), Scangauge, Empty wallet Mod Bug disease, AllPro Apex front bumper, On board heat exchange shower & water pump (Heater Core intercept mod), On Board Air - Viair for now, ARB when it dies-, allpro Skids back to gas tank- Tepui RTT on the shittiest "Bed Rack" ever made.... AllPro U Bolt flip kit with timbren bumps NEXT UP- expo leafs & bed rack, hydraulic bumps in rear, Total Chaos stock LCA's w/ Bypass, Rear 12" shock hoop relocate
    This one comes from Dave over at
    http://www.autotrendefi.com/

    After looking around and finding nothing that suits my standards for a solid one piece relay/ fuse terminal combo, I found Dave who makes them with OEM parts, epoxy and quality. I plan to run two lightbars on a few separate circuits for spots, floods etc- body lights, under hood lights, reverse lights, power outlet under the hood... and the list will add on and on over time.

    Agreed, you can piece together radioshack parts, or go with any number of other bussman type DIY setups, but you won't find this part anywhere but this group buy. this will be made with OEM type epoxy and molded plastic, not plug together parts.

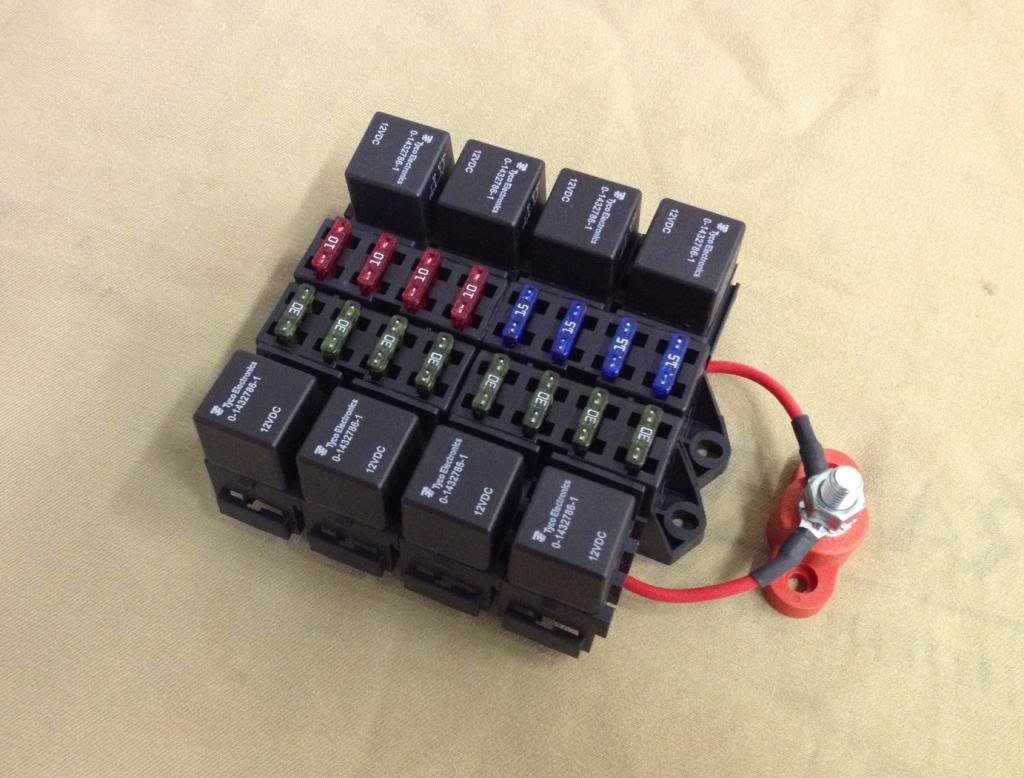

    Here's an example of what it'll look like-
    [​IMG]

    [​IMG]

    The relay we're buying will have prewired:


    • EIGHT 40 Amp relays, rated for constant 40A use, all 12V+ switched
    • One of these 8 powers Four separate fuses
    • 7 relays control 7 seperate fuses (one each)
    • SIXTEEN total fuses:
      Four 20A fuses switched from 1 relay
      Four 20A fuses wired for constant 12v power
      Eight 30A fuses protect all 8 relayed circuits.
    INPUTS:

    • Main battery input will be 3/8" stud type terminal block to handle 100% capacity of the whole terminal
    • One switched 12V+ input from engine on controlling one relay to 4 fuses (or your own switch)
    • Seven 12V+ inputs controlling the other seven relays
    • One common relay ground
    OUTPUTS:

    • Seven relay outputs 12 gauge wire leads 12" long
    • Eight fused outputs 16 gauge wire leads 12" long
      (4 constant hot, 4 hot only with key on)

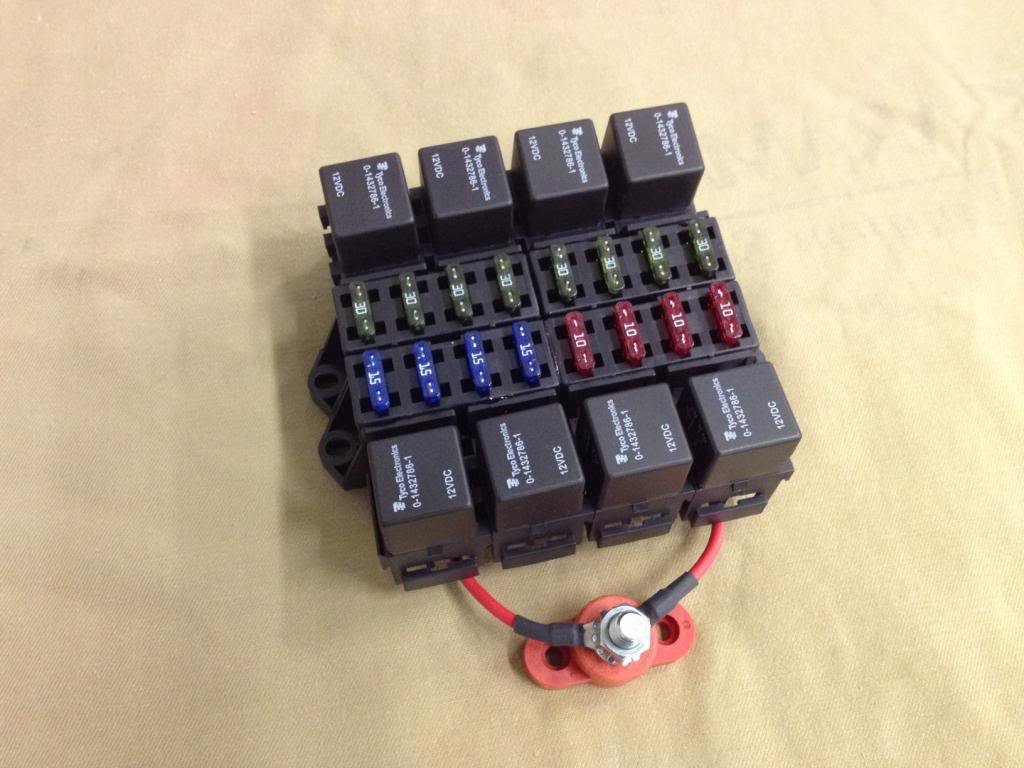

    Here's what yours will look like: (Prototype model-Minus the 12" wire pigtails of course)
    [​IMG]




    Group buy ends March 1st
    payments taken over the phone to him or PayPal at the end of the group buy after price break is determined.



    Cost breaks:

    20+- $334 each
    11-20 panels- $358 Each
    1-10 panels- $378 Each
    The price breaks may go lower if we get enough interest.


    Yes. it's pricey. hopefully we can get it lower.


    My justification here:

    • I just dropped $35,000.00 on my Tacoma. Trying to save $100.00 on a vital setup component is a bit like using a ziplock as a rubber. It'll probably work... hopefully...
      What's spending less than one percent of the value to do it right?
    • I know the importance of laying solid groundwork before expanding- nothing more *facepalm* than having your $500.00 light bar setup melt the $5.00 ebay chinamade relay and (in my case) start a wirefire along with it.
    • This unit will very likely cover every new circuit you plan to run SAFELY and SIMPLY to avoid your octopus orgy wire job and save you from running hot power through your in cab switch.
    • nothing's more satisfying than a clean, neat wiring setup you never have to touch again.
    [​IMG]




    Hopefully these images embedded correctly, and hopefully we can get over 25 & help everyone out. anyone? :)
