Custom LED Map and Dome lights

06toyoboy · Jun 6, 2018

JWFortin said: ↑

No I know! I've done something stupid myself already! But you just have to laugh and keep on learning.
Click to expand...

Yea but im not trying to F up again you know. Thats why my lights have been sitting in abox for a month lol

JWFortin · Jun 6, 2018

06toyoboy said: ↑

Yea but im not trying to F up again you know. Thats why my lights have been sitting in abox for a month lol
Click to expand...

Yeah, I had to rip a bunch of stuff out to take it back to the dealership. The owner is married to a former officer I used to work with so it's nice and easy, but I still have to officially have things basically stock.

cruetes · Jun 6, 2018

06toyoboy said: ↑

Cool man thanks, any way you remember what polarity you put them in?
Click to expand...

06toyoboy · Jun 6, 2018

Thank you i appreciate that.

ccotner112 · Jun 6, 2018

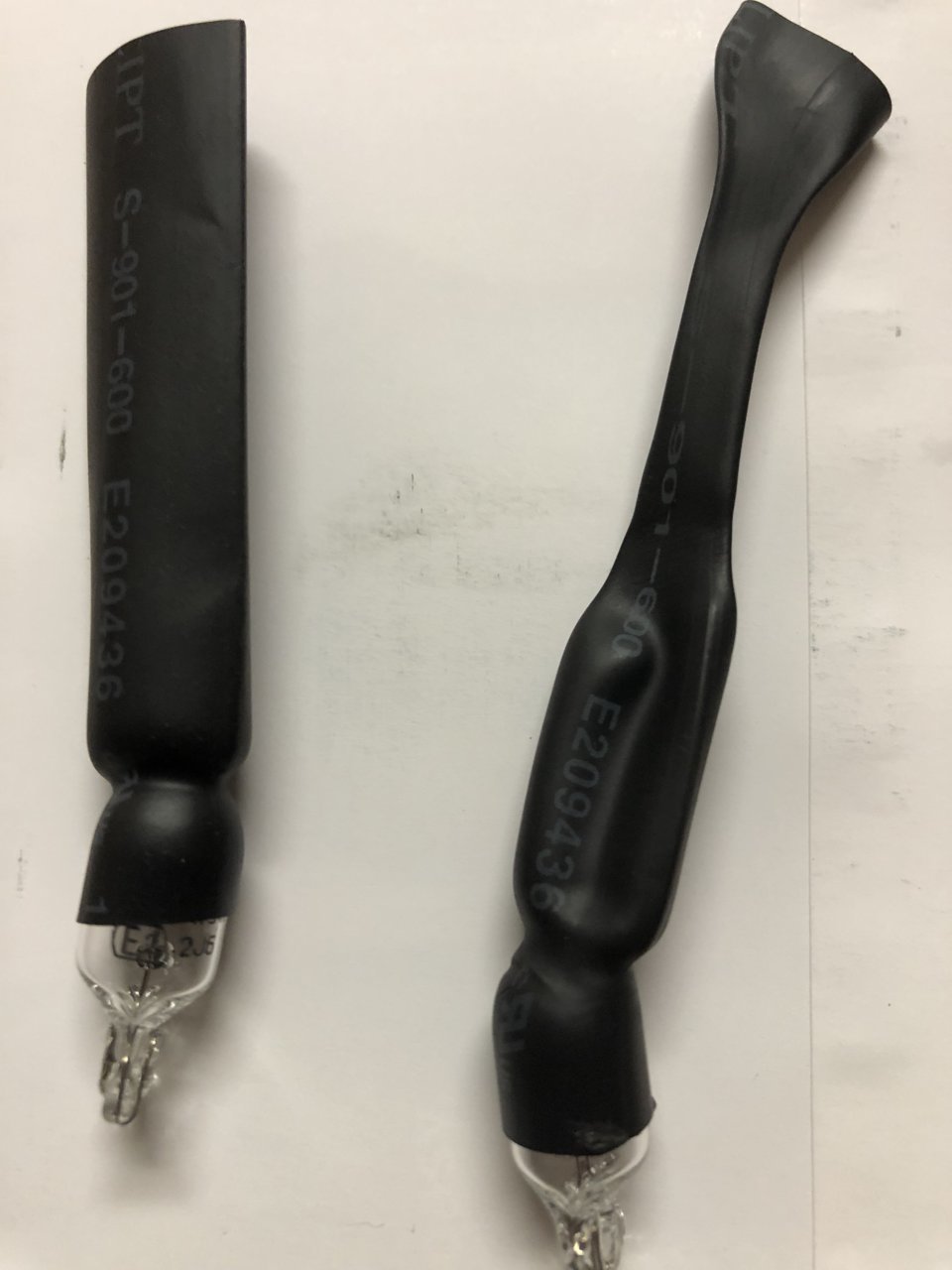

Had a heck of a time getting out the Map light bulbs until I used a piece of heat shrink over the bulb, turned on so it would heat up and shrink. waited few mins to cool then popped right out no tools needed. Love these smoke map replacements and ultimate dome light very nicely done.

Superman · Jun 6, 2018

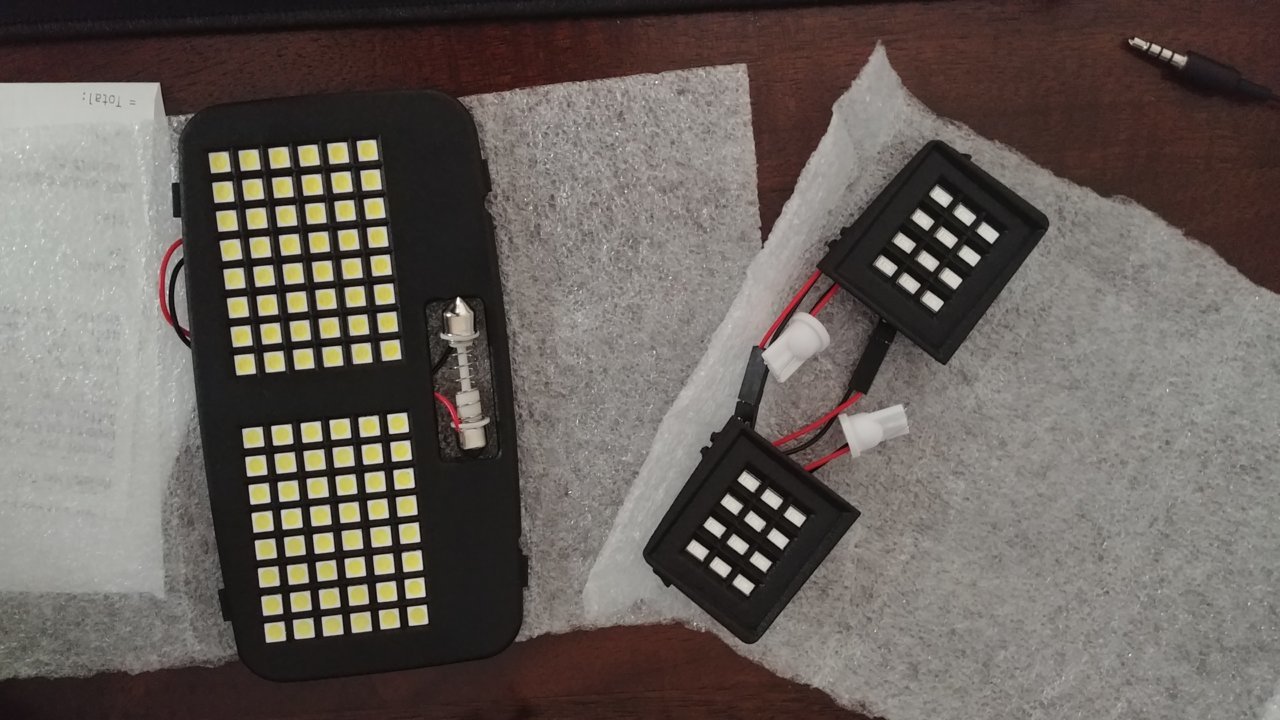

Wow, I placed my order for a white "ultimate dome light" Sunday night and already delivered Wednesday afternoon. Install went great took about 3 minutes including the time it took to find the old bulb after I dropped it in the dark .

Now I just need to wait for a restock on white "ultimate map lights"

MESO · Jun 6, 2018

Superman said: ↑

Wow, I placed my order for a white "ultimate dome light" Sunday night and already delivered Wednesday afternoon. Install went great took about 3 minutes including the time it took to find the old bulb after I dropped it in the dark .

Now I just need to wait for a restock on white "ultimate map lights"

Click to expand...

Wait until you see it at night

bill8331 · Jun 6, 2018

Pull the dome fuse. One of the tabs is always hot, switching happens on the ground side. Shorted mine, had to replace overhead console $170. Dealer woudnt replace cuz I had made "electrical modifications". ( new head unit )

MESO · Jun 6, 2018

bill8331 said: ↑

Pull the dome fuse. One of the tabs is always hot, switching happens on the ground side. Shorted mine, had to replace overhead console $170. Dealer woudnt replace cuz I had made "electrical modifications". ( new head unit )
Click to expand...

Yes. ALWAYS disconnect the - terminal, or at least pull the fuse for that circuit before installing the map or dome lights. Unless you feel really comfortable and have ninja hands. But better safe than sorry.

necrodiety · Jun 6, 2018

Easiest way to change the map lights is to pull the console off, unplug it, rotate the bulb plug and pull it, then remove the bulb from the socket. Use a screwdriver to gently pop out the lenses from the inside out. Run the new map light cable through and plug it in the socket. The snap in the light, screw in the plug, plug the console in and see if it works. Rinse and repeat for the other side. Took me like 5 minutes.

And yes, they look awesome at night.

mrretep · Jun 6, 2018

Ordered the ultimate dome!

4x4Taco09 · Jun 6, 2018

Come on second gen

AWD_Jeff · Jun 7, 2018

Thanks again mesojdm. These lights are bright!

Stew22 · Jun 7, 2018

Has anyone made an install video of these yet?

Facts Only · Jun 7, 2018

I found a YouTube video for replacing the dome light. Very simple process

batong_23 · Jun 7, 2018

pwalnut said: ↑

I decided to compile install instructions, photos, and reviews all into one post. I'm a little slow so it took me awhile to figure out how to do the door trigger disconnect for the dome light so I took some photos of the process and included it below. Thanks to those that helped me. And big thanks to @mesojdm for the great product design and support with questions. Cool dude as we all know!

Install Instructions

Map Lights

Dome Light

From Toyota, the switch's two positions are 'always on' and 'on with doors'. There is no way to have it off when the doors are open unless you also have the map lights turned off as well.

Disconnect negative side of the battery with a 10mm socket just to be safe.

Gather tools. If you're just installing it normally (come on with doors open as well as the switch), you only need a small screwdriver like below. If you're doing the door trigger disconnect, you'll also need some and a lighter or heat gun.

Use the screwdriver to remove the stock plastic cover by inserting it into the slots circled in green on the switch side. There are four blue tabs that will come out of the black housing.

Remove the stock bulb. If you are not doing the door trigger disconnect, you can skip to the end. If you are doing the door trigger disconnect, use the screw driver to push back the two tabs circled in green below in the black housing. Then use your fingers and slowly start pulling the dome light housing down from each corner. There are a few clips holding it in but it will give once you pull on it lightly.

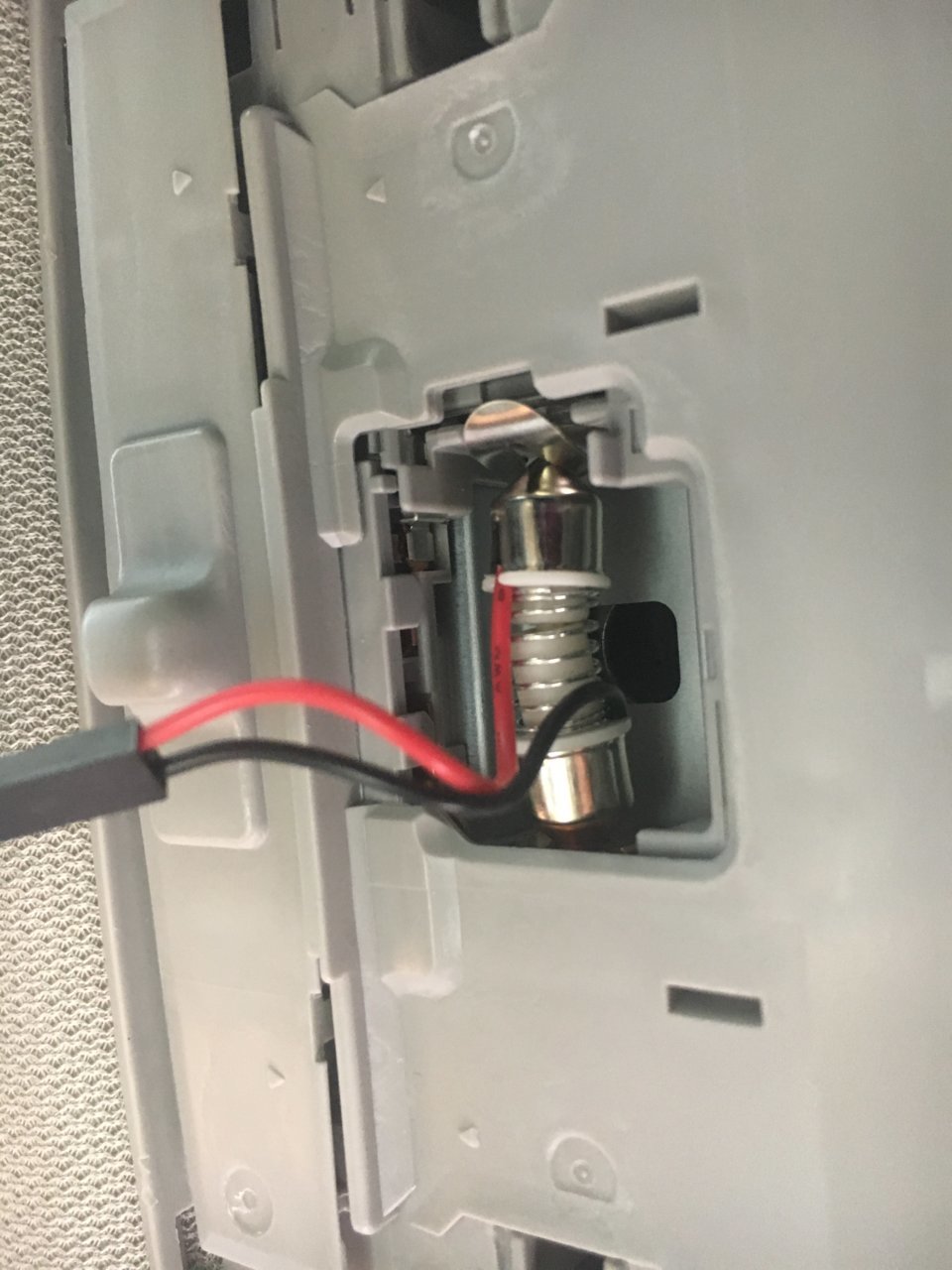

Once you have it disconnected, insert the screwdriver into the little slots circled in blue, there are two small tabs for the grey piece that you are unclipping. You can use your finger to push the grey section out as you do this.

Here is the back of the black housing. The location of the two tabs that you were undoing above are circled below in blue. Once they are unclipped, that side of the grey piece unclips and pulls out from the black housing.

Once you separate the grey piece from the black housing, you need to expose the wires. Use the screwdriver to lightly push each of the four tabs below circled in green to remove the cover over the wires. You can also use your finger from the side to help pry the lid off.

Once you have the cover off, use your fingers or the screwdriver to lightly pull up the middle red wire leaving the two side wires in place. Cut off a small piece of heat shrink, insert it over the red wire, and use a lighter or heat gun to shrink it. Set it off to the side away from where the wire cover goes.

Snap the wire cover back on over the wires. You then reinstall the grey piece back into the black housing. Insert the side with the wires that goes towards the switch in first (circled below in green) and then snap it into place with a light push.

Push the black housing back into the headliner. Make sure you fully press each corner until it's sitting tight and flush into the headliner. Now, you can install the new meso dome light. Lightly squeeze the bulb adapter and while compressed insert it into the spot of the stock bulb and then release. The red positive wire goes toward the driver side.

Install the new cover starting with the back side with the larger two plastic tabs. You can tuck the wire in behind the light, just make sure that it doesn't stick out of the slot where the switch goes. You can give it a light squeeze as you push in the front two tabs.

Reconnect negative side of the battery with a 10mm socket.

Test it out! One side of the switch should be always off and the other side should be always on. You can now have the dome light come on whenever you want and have it off with the doors open so that only the map lights come on with the doors open.

Review and Photos

Previous setup: V1 map lights (smoked) and stock dome light

Previous setup: V2 map lights (clear) and V1 dome light (clear)

Current setup: V2 map lights (red) and V1 dome light (clear)
(with dome light door trigger disconnect, footwell lights with door trigger, and rock lights with door trigger)

For info on my rock lights and footwell lights, see my write-up here.
Click to expand...

wait, so how did you install your rock lights?

pc3coyote · Jun 7, 2018

batong_23 said: ↑

wait, so how did you install your rock lights?
Click to expand...

There was a link at the bottom of the map/dome write-up to my rock lights write-up here (also below)

pwalnut said: ↑

For info on my rock lights and footwell lights, see my write-up here.
Click to expand...

pwalnut said: ↑

Hello, friends!

I decided to compile all of my electrical write-ups in one thread.

This write-up includes:

LED front light bar

activated by physical switch

LED rock lights

activated by physical switch AND dome light signal (approaching vehicle, unlocking vehicle, opening doors, etc)

LED reverse lights

activated by physical switch AND stock reverse signal

LED footwell lights

activated by rock lights physical switch AND dome light signal (approaching vehicle, unlocking vehicle, opening doors, etc)

I also have @mesojdm LED map and dome lights with the door trigger disconnected for the dome light (allows for independent control of the dome light with the switch without dome light coming on with the doors).

Note: this is how I did it and I'm not the best electrically. It seemed like the most logical way but there could definitely be better approaches.

Huge thanks to @DSIM for coming up with a great product (referenced below in rock lights section) and for all of the help answering my relentless questions. Daniel is a great dude!

Parts List

Front light bar

Light bar of your choice (I initially used a

MICTUNING 32" 180W Combo Led Light Bar - 13200 Lumen, 6000-6200K Crystal White, Waterproof for Off-road Jeep ATV UTV SUV Truck Boat

30" double row MicTuning light bar and then switched to a 20" single row Heise light bar in my @SouthernStyleOffRoad bumper)

$10 MICTUNING MIC-B1002 LED Light Bar Wiring Harness, Fuse 40A Relay On-off Waterproof Switch

MicTuning wiring harness

Custom CH4x4 blue LED push switch (could also use a

MICTUNING M0810-T-LLBB LED Push Switch with Connector Wire Kit for Toyota - LED LIGHT BAR Symbol -Blue

MicTuning blue LED push switch)

@ragofabrication (or other aftermarker bumper depending on how you're mounting it)

Rock lights

Rock lights of your choice (I used

4 Pods LED Rock Lights, Ampper Waterproof LED Neon Underglow Light for Car Truck ATV UTV SUV Offroad Boat Underbody Glow Trail Rig Lamp (White)

8 Ampper white rock lights)

4 Lead LED Rock Lights Wiring Harness, Ampper LED Wiring Harness for LED Pods and Work Lights with Fuse 12V 40A Relay Waterproof On Off Rocker Switch

4-lead Ampper wiring harness

Custom CH4x4 blue LED push switch

@DSIM dome light harness (great product that was exactly what I was looking for and works exactly as intended)

Reverse lights

Reverse lights of your choice (I used

$152 RIGID INDUSTRIES Ignite Backup Kit Black Flood Flush Mount: Mounting Accessories For Offroad Use

2 Rigid Ignite flush mount diffused)

$10 MICTUNING MIC-B1002 LED Light Bar Wiring Harness, Fuse 40A Relay On-off Waterproof Switch

Mictuning wiring harness

Custom CH4x4 blue LED push switch

Diode

Footwell lights

Footwell lights of your choice (I used

$30 LEDGlow 4pc Red LED Interior Footwell Underdash Neon Lighting Kit for Cars & Trucks - 7 Unique Patterns - Music Mode - 8 Brightness Levels - Auto Illumination - Includes Cigarette Power Adapter

LEDGlow red 4pc kit under dash lighting kit - they have other colors and also multicolor)

Extras

@ragofabrication

@forty2 3-switch black narrow switch plate (great if you're adding several lights and there's also a 2-switch version, you can skip this and use the blank location if you're only installing one light and depending on your model of truck)

Consumables

Good quality electrical tape

$10 TYUMEN 40FT 18 Gauge 2pin 2 Color Red Black Cable Hookup Electrical LED Strips Extension Wire 12V/24V DC Cable, 18AWG Flexible Wire Extension Cord for Ribbon Lamp Tape Lighting

18AWG 2-pin wire

Black spray paint (whichever)

Tools

10mm, 12mm, 14mm deep sockets

5mm allen key (I think)

Flat head and phillips screw drivers

Trim removal tool

Wire crimper

Wire stripper/cutter

Lighter

Drill with various size bits

Dremel with cutting disk

Soldering iron and solder

Wiring Diagrams

Front Light Bar

Rock Lights

Reverse Lights

Footwell Lights

@DSIM Dome Light Harness

Switches

Front Light Bar

Instructions

Leave the main connections (battery positive and ground) connections for the end once you have all your wires routed as a precaution. Always start with negative battery terminal disconnected (use a 10mm socket) and cover terminal with a rag so it can't make contact.

Remove the grill. Use the phillips screwdriver to remove the two screws and the flat head screwdriver to remove the two plastic tab screws. Grab the upper supports and pull straight out. The plastic tabs will come out.

Remove the wind deflectors on each side. Use the flat head screwdriver to remove the single plastic tab screw on each side.

Remove the two transmission cooler bolts by using the 12mm deep socket. Push the transmission cooler back to make it easier to slide the LED light bar in.

Remove the two nuts on each of the outer sides of each crash bar with the 14mm deep socket. Leave the inner bolts alone. Install only the driver side light bar bracket but only hand-tighten the nuts.

Slide in the light bar from the passenger side to the driver side. Let it rest on the crash bars. Install the passenger side bracket and hand-tighten the nuts. Use the smaller bolts that came with the light bar to attach the light bar to the brackets with a 5mm allen key. I also added two hardened washers (one on each side) but they likely aren’t needed. You may need a second person to hold the light bar as you bolt the light bar to the bracket so that you can lean down to see through the grill to line up the bolts and holes. Ensure that the light bar is pulled all the way forward and rotated to face straight out.

Mount the relay to the bracket by the battery by temporarily removing the bolt with a 10mm socket.

Cut off the spade terminals from the white and black wires from the harness, cut it shorter to length, and use the 14 AWG butt connectors to connect it to the red and black light bar wires (white to red, black to black). Use electrical tape over the connectors. Use electrical tape over the second set of white and black wires from the harness or cut them off if you don't plan to use them (they are for a second light bar).

Temporarily run the two red terminals to the positive battery terminal and the two black terminals to the ground to the right of the relay to test the light bar. Use the attached switch. If it works, disconnect the terminals. If it doesn’t, troubleshoot. The battery terminal requires a12mm socket and the ground requires a 10mm socket.

Reinstall the transmission cooler

Cut off small corners of the wind deflectors with a dremel and then reinstall. This is so that it doesn’t hit the light bar.

Zip tie the wire going from the light bar to the relay in various places to keep it out of the way. There are plenty of places to attach too.

Follow @moe2o4 ’s guide to disassemble the dash panels. Use trim removal tool, 10mm socket, and phillips screwdriver to remove three trim pieces on driver side.

If you're only installing one switch: Remove the blank switch place-holder from the far right. It unclips from the back and pushes to the front.

If you're installing multiple switches: Remove the cubby with a screwdriver.. It unscrews from the back. Screw in the new switch holder.

Cut off the switch from the harness. Cut off a straight piece of a metal hangar. Use the hanger wire to poke a hole in the rubber firewall. Use electrical tape to tape the red, white, and black wires coming from the relay to the hanger. Rub a dab of dish soap over the taped area of the hangar and then pull it through from the interior by pulling on the end of the hangar.

Wire the switch to the harness wires by using the 20 AWG butt connectors. Red harness wire goes to the green switch wire, white harness wire goes to the red 1 (first after green) switch wire, black harness wire goes to the black switch wire. After that, use the 20 AWG quick splice to connect the red 2 (second after green, first from black) switch wire to the green cargo wire (first wire on the first switch from the left). After you connect everything, wrap all the connects in electrical tape.

Reconnect the two two red terminals to the positive battery terminal and the two black terminals to the ground to test the light bar. By default, nothing is lit up. The switch text LED should light up when the interior lights are on. The switch light bar LED should come on when pressed. Test the new switch to make sure it works, that the lighter comes on, and the switch light bar LED should also light up. If it works, proceed. If it doesn’t, troubleshoot.

Ziptie the extra slack going from the relay to the firewall, from the firewall to the battery positive terminal, and from the firewall to the ground terminal. Reinstall the dash panels. Reinstall the grill.

Photos

Light bar only:

Lows and fogs only:

Lows, fogs, and light bar:

Lows, highs, fogs, and light bar:

Rock Lights

Instructions

Engine bay wiring

Always start with negative battery terminal disconnected (use a 10mm socket) and cover terminal with a rag so it can't make contact.

Run two power wires and two ground wires (for relay and switch) to battery and ground in side of engine bay using 12mm and 10mm socket respectively. Trim to right lengths utilizing 18AWG wire and butt connectors (heat shrunk with lighter, wrapped in electrical tape) as needed. Use wire loom (electrical tape on ends) over wires

Cut off switch. Use a sharp object (coat hanger, shish kabob stick, etc) to poke a hole in the rubber boot, with the switch wire electrical taped to it, to run the switch wire into the cab. Use wire loom to cover wire

Switch placement and wiring

Follow @moe2o4 ’s guide to disassemble the dash panels. Use trim removal tool, 10mm socket, and phillips screwdriver to remove three trim pieces on driver side.

If you're only installing one switch: Remove the blank switch place-holder from the far right. It unclips from the back and pushes to the front.

If you're installing multiple switches: Remove the cubby with a screwdriver.. It unscrews from the back. Screw in the new switch holder.

Push in switches

Use butt connectors (and electrical tape) to connect switch wires to switch

Use quick splice connector (and electrical tape) to connect switch wire to another switch wire for illumination

If you want the rock lights triggered by the dome light signal in addition to the physical switch (approaching vehicle, unlocking vehicle, opening doors, etc

Follow this Toyota guide on removing the a-pillar cover

Ziptie @DSIM relay to one of the factory harnesses

Follow @Volksparts guide on wiring in the @DSIM black wire. Feed @DSIM black wire up behind dash towards a-pillar and use quick splice connector to connect @DSIM black wire to yellow a-pillar wire

Use quick splice connectors to connect @DSIM red wire to switch green wire and @DSIM yellow wire to switch red 1 wire

Reassemble

Lights placement

Middle four lights were placed under each door, rear two lights were under the bumper, all were ziptied to the frame

Front two lights were under the front bumper. I made a paper template of the light by tracing it and used that to drill three holes (two mounting bolts and wire) into the flimsy plastic in the front of the truck under the bumper in front of the wheel well. I then mounted the lights using the two supplied bolts. I accessed the inside of the wheel well to secure the 10mm nut from the wheel well using the 10mm socket to hold the nut and the 5mm alley key to tighted the bolt. You access the wheel well by removing one 10mm bolt with the 10mm socket and one push screw with a flathead screwdriver from inside the wheel well and them pull the plastic aside.

Lights wiring

There are two wires from the relay for each side, each with two leads

Run one wire across back of engine bay facing cab ziptieing to existing harness as you go

Cut off wiring harness leads. Connect additional wire to one of the harness wire leads with butt connectors (and electrical tape, wrapped in wire loom) and run straight down to under truck

Run wire to first light (in wire loom) at the passenger front door ziptieing to existing harness as you go

Three way splice with two butt connectors (one for red positive wire and one for black negative wire). One side has the incoming wire. Other side has rock light wire twisted together with additional wire. I'd strip the wire for both the rock light and outgoing wire and then twist the strands together (do that for both red and black wires respectively). Wrap in electrical tape and then put in wire loom

Repeat above for passenger rear door, passenger rear bumper, driver rear bumper, driver rear door, driver front door (daisy chaining as you go with three way splice at each light, covering wire in wire loom as you go, ziptieing to existing harness as you go)

For the passenger front bumper, connect additional wire (with butt connectors) to the other lead from where you ran across the engine and where you ran the one lead down to under the truck, wrap in wire loom, and fish the wire down to the small opening in the bumper from behind the headlights. Connect the light to the wire and then push all of the extra wire back into the bumper

For the driver front bumper, you can now use the other primary wire coming from the relay. We'll only need the long lead so you can either cut off the extra one in the middle or just cover it electrical tape. Repeat process above for fishing the wire and connecting the light

@DSIM dome light harness

Photos

Rear Lights

Instructions

Same as rock lights with the exception of drilling into the plastic part of the rear bumper with a 1.75" hole saw for the main hole for the light and 3/16" drill bit for the mount screw holes

If you want the new reverse lights to come on with stock reverse signal in addition to physical switch

Follow this EAA guide on how to solder a diode to 2-3 ft of wire and then put wire assembly inside wire loom

Use quick splice connector to connect one end of new wire to middle white wire of trailer harness and other end of new wire to red positive wire of wire leading to the reverse lights

Photos

Footwell Lights

Instructions

Always start with negative battery terminal disconnected (use a 10mm socket) and cover terminal with a rag so it can't make contact.

Follow @moe2o4 ’s guide to disassemble the dash panels. Use trim removal tool, 10mm socket, and phillips screwdriver to remove three trim pieces on driver side.

If your LEDs have a control box, mount it in desired location. I mounted mine using the supplied double-sided tape in the driver footwell area in the bottom right corner.

Use a quick splice connector to connect the red positive wire from the LED control box to the yellow @DSIM wire. I also added extra electrical tape around the plastic connectors with the fuse to ensure it doesn't come disconnected.

Use a quick splice connector to connect the black negative wire from the LED control box to the black wire from the rock light CH4x4 switch.

Pass two of the light bars through the small hole of the carpet under the console to the passenger side.

Run two of the light bars (one for each side) to under the seats while tucking the extra wire up and under the side of the wire console.

Secure light bars in desired locations using zipties and/or double-sided tape. I mounted mine at:

Driver side front: under dash with double-sided tape

Passenger side front: under dash with zipties using holes already in dash

Driver side rear: under front of driver seat using zipties around metal support bar

Passenger side rear: under front of passenger seat using zipties around metal support bar

Photos

Switches

Photos

Three-switch option

1-switch option

Off:

Interior lights on:

Interior lights on, light bar on:

Relay Holder

Instructions

This is only if your relays don't have the empty tab slot on the back to install onto the relay holder

Drill three holes into relay holder tabs to mount relays with zipties. If you buy relays from an auto parts store, they'll have a slot where the relay holder tabs will slide in. Since I used premade harnesses, they didn't have this

Spray paint over the new holes to avoid rust

Mount relay holder in engine bay

Install relays on relay holder with zipties through hole in the relay and new holes in the relay holder

Map and Dome Lights

For info on my map and dome lights, see my write-up here.
Click to expand...

Namrog456 · Jun 7, 2018

Red ultimate maps and the ultimate dome. Ready for the install! Hopefully tomorrow.

pc3coyote · Jun 7, 2018

Namrog456 said: ↑

Red ultimate maps and the ultimate dome. Ready for the install! Hopefully tomorrow.
Click to expand...

Best combo in my opinion! Especially if you do the door trigger disconnect

Harris19 · Jun 7, 2018

..

Log in or Sign up

Welcome to Tacoma World!

Custom LED Map and Dome lights

#2541
06toyoboy Well-Known Member

#2542
JWFortin Well-Known Member

#2543
cruetes DYWAI

#2544
06toyoboy Well-Known Member

#2545
ccotner112 Well-Known Member

#2546
Superman Well-Known Member

#2547
MESO [OP] Major Modder Vendor

#2548
bill8331 W9LSC

#2549
MESO [OP] Major Modder Vendor

#2550
necrodiety Well-Known Member

#2551
mrretep Well-Known Member

#2552
4x4Taco09 Well-Known Member

#2553
AWD_Jeff Well-Known Member

#2554
Stew22 Well-Known Member

#2555
Facts Only Well-Known Member

#2556
batong_23 vincedprince

#2557
pc3coyote www.pc3coyote.com

#2558
Namrog456 Well-Known Member

#2559
pc3coyote www.pc3coyote.com

#2560
Harris19 Member

Products Discussed in

Log in or Sign up

Useful Searches

Welcome to Tacoma World!

Custom LED Map and Dome lights

#2541 06toyoboy Well-Known Member

#2542 JWFortin Well-Known Member

#2543 cruetes DYWAI

#2544 06toyoboy Well-Known Member

#2545 ccotner112 Well-Known Member

#2546 Superman Well-Known Member

#2547 MESO [OP] Major Modder Vendor

#2548 bill8331 W9LSC

#2549 MESO [OP] Major Modder Vendor

#2550 necrodiety Well-Known Member

#2551 mrretep Well-Known Member

#2552 4x4Taco09 Well-Known Member

#2553 AWD_Jeff Well-Known Member

#2554 Stew22 Well-Known Member

#2555 Facts Only Well-Known Member

#2556 batong_23 vincedprince

#2557 pc3coyote www.pc3coyote.com

#2558 Namrog456 Well-Known Member

#2559 pc3coyote www.pc3coyote.com

#2560 Harris19 Member

Products Discussed in Entire Site Forum: 3rd Gen Tacoma Parts Marketplace (2016-2023) Thread: Custom LED Map and Dome lights

#2541
06toyoboy Well-Known Member

#2542
JWFortin Well-Known Member

#2543
cruetes DYWAI

#2544
06toyoboy Well-Known Member

#2545
ccotner112 Well-Known Member

#2546
Superman Well-Known Member

#2547
MESO [OP] Major Modder Vendor

#2548
bill8331 W9LSC

#2549
MESO [OP] Major Modder Vendor

#2550
necrodiety Well-Known Member

#2551
mrretep Well-Known Member

#2552
4x4Taco09 Well-Known Member

#2553
AWD_Jeff Well-Known Member

#2554
Stew22 Well-Known Member

#2555
Facts Only Well-Known Member

#2556
batong_23 vincedprince

#2557
pc3coyote www.pc3coyote.com

#2558
Namrog456 Well-Known Member

#2559
pc3coyote www.pc3coyote.com

#2560
Harris19 Member

Products Discussed in
