Custom LED Map and Dome lights

Discussion in '3rd Gen Tacoma Parts Marketplace (2016+)' started by MESO, Nov 28, 2017.

  1. Sep 10, 2019 at 7:09 PM
    #6021
    guwoptaco

    guwoptaco Well-Known Member

    Joined:
    Dec 10, 2018
    Member:
    #275484
    Messages:
    181
    Vehicle:
    2018 Magnetic Long Bed OR

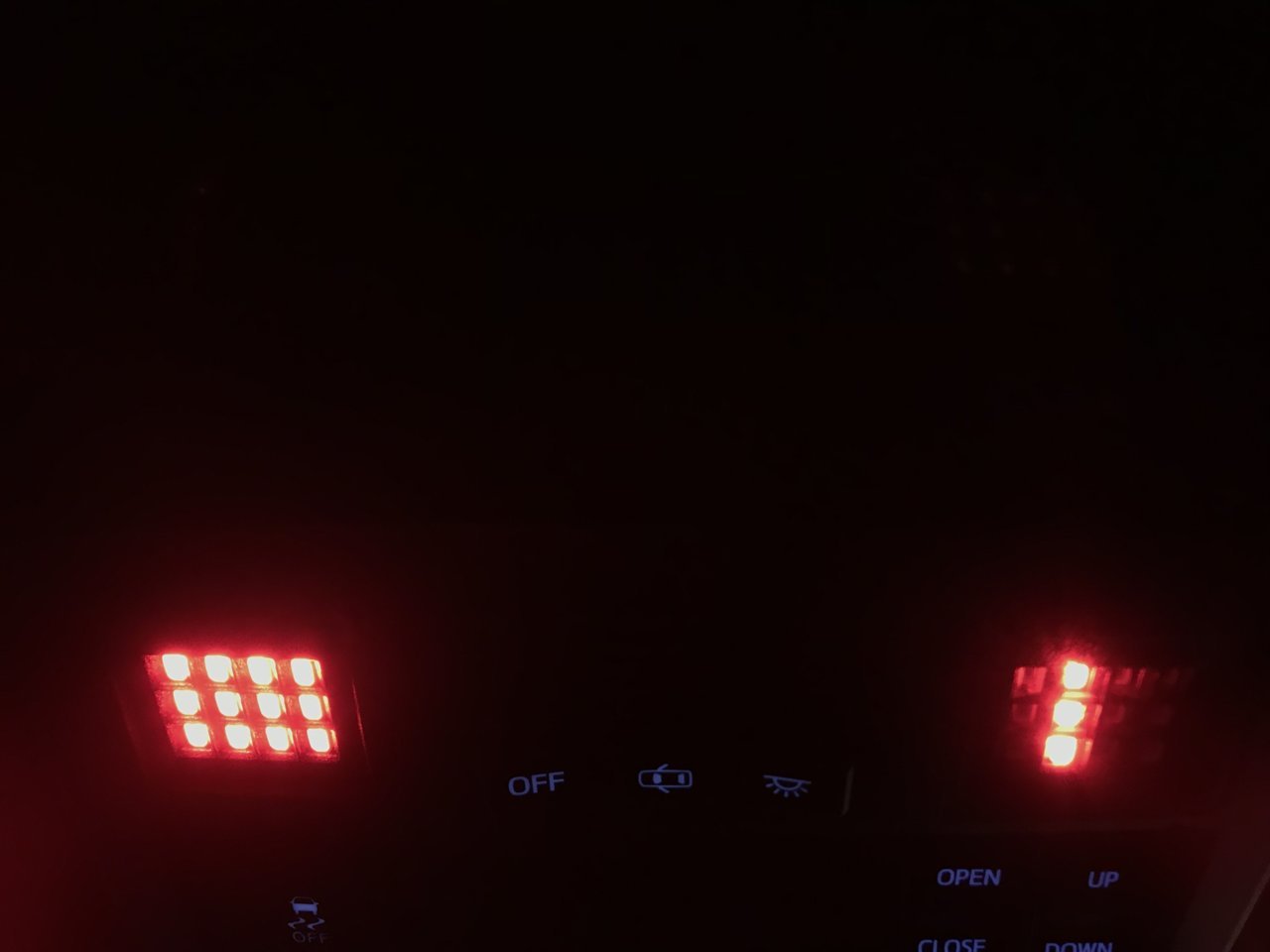

    Dome lights. It seems to rely on the map light switch though. If that part is in the middle (pic of open doors), both lights stay on regardless of doors open or closed.

  2. Sep 10, 2019 at 7:12 PM
    #6022
    lapoltba

    lapoltba Full Bridge Rectifier

    Joined:
    Aug 28, 2014
    Member:
    #137089
    Messages:
    3,274
    Gender:
    Male
    CT - 06076
    Vehicle:
    '17 Sport, ACLB, V6,MT, 04B14 OV-Tuned
    That circuit (electrically) is quite weird. Try switching polarity on the map lights, then the dome light. You haven't broken anything I don't think, but the ground path could be wrong.

    guwoptaco likes this.
  3. Sep 10, 2019 at 7:13 PM
    #6023
    guwoptaco

    guwoptaco Well-Known Member

    Joined:
    Dec 10, 2018
    Member:
    #275484
    Messages:
    181
    Vehicle:
    2018 Magnetic Long Bed OR
    I didn’t do anything to the map lights - those are stock. If I reverse polarity on the dome lights, I fear it will short again and put me back to where I started.

  4. Sep 10, 2019 at 7:49 PM
    #6024
    photoguy190

    photoguy190 Well-Known Member

    Joined:
    Feb 16, 2012
    Member:
    #72950
    Messages:
    175
    Gender:
    Male
    First Name:
    James Goff
    Middle TN
    You say it “on” but describe the “door” setting. I’m probably just misunderstanding do to the fog of the internet. Just to make sure the switch has 3 positions off, door, on. To have it operate that way you are wanting the switch must be in the center not clicked on either side. FE35A10C-177B-4E7E-B966-A9EDDE5B2D8C.jpg

  5. Sep 10, 2019 at 8:50 PM
    #6025
    guwoptaco

    guwoptaco Well-Known Member

    Joined:
    Dec 10, 2018
    Member:
    #275484
    Messages:
    181
    Vehicle:
    2018 Magnetic Long Bed OR
    Yes, it’s clicked to ‘door’ but behaves like ‘on’, meaning regardless of door open or closed, the light stays on.

    Internet fog is real, harder to explain without a video. Maybe I’ll make one of those soon.

    photoguy190 likes this.
  6. Sep 11, 2019 at 1:19 AM
    #6026
    TC_Mic

    TC_Mic Well-Known Member

    Joined:
    Mar 28, 2017
    Member:
    #214625
    Messages:
    1,249
    Gender:
    Male
    State of confusion, aka Flori-duh
    Vehicle:
    2017 Silver Sky 2x4 Limited
    AMP Powerstep, UC Flex, bed lights, Opt7 Tailgate bar, black tailgate lettering Pending: re-configure tail light,s custom storage pocket bags, pinch weld painting, blackout badges, ......
    Sounds like both your maps are turned on at the map switch not the center switch.
    Try pushing each map light on/off.

    There are 5 switch positions for each map.
    Center switch OFF
    Center Switch DOOR
    Center switch ON
    Push switch ON (Overrides center switch setting. Light will be ON regardless of center switch position for THIS light only)
    Push switch OFF (Gives control to center switch, Center switch now controls ON/OFF of this light)

    deusxanime likes this.
  7. Sep 11, 2019 at 9:13 PM
    #6027
    DaBigDogg

    DaBigDogg "Say when..."

    Joined:
    Mar 15, 2014
    Member:
    #125364
    Messages:
    562
    Gender:
    Male
    First Name:
    Jay
    Mid-Suffolk, LINY
    Vehicle:
    '19 Silver Sky Tacoma TRD OR
    Yeah, that settles it, I'd rather feel like I'm in my patrol car at work than searing my retinas. I swear I must have been a moth in another life to keep staring directly at the ridiculously bright lights. :D

    Inferno__Taco and MESO [OP] like this.
  8. Sep 12, 2019 at 12:01 AM
    #6028
    guwoptaco

    guwoptaco Well-Known Member

    Joined:
    Dec 10, 2018
    Member:
    #275484
    Messages:
    181
    Vehicle:
    2018 Magnetic Long Bed OR
    Both the map and dome lights behave together
    so when I go to turn the Maps on while the rocker is set to ‘Door’ or ‘On’, the map light gets brighter when I push the light in, but it never turns off by pushing the map light in.

    The only time the light goes off is when the map light rocker switch is set to ‘off’.

  9. Sep 12, 2019 at 9:18 AM
    #6029
    TC_Mic

    TC_Mic Well-Known Member

    Joined:
    Mar 28, 2017
    Member:
    #214625
    Messages:
    1,249
    Gender:
    Male
    State of confusion, aka Flori-duh
    Vehicle:
    2017 Silver Sky 2x4 Limited
    AMP Powerstep, UC Flex, bed lights, Opt7 Tailgate bar, black tailgate lettering Pending: re-configure tail light,s custom storage pocket bags, pinch weld painting, blackout badges, ......
    OK ... I mentioned the issue because others have had maps stuck in the "ON" position and were able to resolve once they clicked the map button.

    It is my understanding that the Dome/Map circuit is ground controlled/switched which is what allows the PWM fade out to work. You issue sounds like there is a "leak", for lack of a better term, to ground someplace in the grouped circuit. This would allow "OFF" to work properly as well as the always partially (dimmer than "normal") on at all times, thus getting brighter when pushed "ON" as I believe mine are the same level of bright no mater which option switched them "ON".

    My best suggestion is: You may have already done some or all of this. Feel free to throw this out with any other rubbish.
    1. pull the overhead console down
    2. open the dome
    3. remove all bulbs
    4. close doors
    5. one at a time add back a bulb
    6. test all functions
      • Passes - do another
      • Fails - Remove that bulb
        • try bulb in different location
        • test
          • Pass - Move to next bulb
          • Fail - try other bulb in original location

    This should help determine which portion is the offender. On the other hand if this does not find/resolve the problem, it is beyond me and hopefully someone else can offer a better diagnostic or solution.

    Good luck!!

    Inferno__Taco and NinGee87 like this.
  10. Sep 12, 2019 at 10:02 AM
    #6030
    Greg.Brakes.Tacos

    Greg.Brakes.Tacos Don't Feed the Animals

    Joined:
    May 24, 2018
    Member:
    #254446
    Messages:
    2,676
    Gender:
    Male
    First Name:
    Greg
    Between Richmond and Virginia Beach
    Vehicle:
    2017 Taco DCSB TRD off road
    wanna be mods
    This was the EXACT words that came out of the wife's mouth after seeing them for the first time a few weeks back!!!

    Since my first and last visit to THE red light district was 15+ years ago (day trip from Cologne, Germany) she has started dropping references to the details she knows about!!! I keep saying she'll have to come with me for the next visit. She'll lay off the reference for a few days.

    Inferno__Taco likes this.
  11. Sep 12, 2019 at 7:01 PM
    #6031
    CNEDEER

    CNEDEER If ya ain't first, your last!

    Joined:
    Jan 15, 2011
    Member:
    #49303
    Messages:
    1,630
    Vehicle:
    2019 DC TRD OR 4x4
    When will the map lights in white be back in stock

  12. Sep 15, 2019 at 8:53 PM
    #6032
    Pyrotech

    Pyrotech Well-Known Member

    Joined:
    Nov 25, 2018
    Member:
    #273741
    Messages:
    2,392
    Gender:
    Male
    I see I am not the only one who wanted this...

    the hard part is catching them in stock when they drop

  13. Sep 15, 2019 at 10:41 PM
    #6033
    deusxanime

    deusxanime Well-Known Member

    Joined:
    Jul 12, 2017
    Member:
    #223889
    Messages:
    1,514
    Gender:
    Male
    MN
    Vehicle:
    2020 Cement OR DCSB V6 6MT 4x4 Prem+AdvTech+LED
    Hopefully with his new manufacturing processes, he'll have plenty to go around when they launch, like with the latest drop which managed to stay in stock for 24+ hours, if I remember correctly.

  14. Sep 16, 2019 at 4:48 PM
    #6034
    16johnco

    16johnco New Member

    Joined:
    Aug 27, 2019
    Member:
    #303465
    Messages:
    3
    Gender:
    Male
    First Name:
    Colin
    Vehicle:
    2019 Cement Tacoma TRD Off-Road

    Is there anywhere written up how you did this??

  15. Sep 16, 2019 at 9:54 PM
    #6035
    GeorgiaTaco12

    GeorgiaTaco12 Active Member

    Joined:
    Apr 3, 2019
    Member:
    #289020
    Messages:
    29
    Gender:
    Male
    First Name:
    Dylan
    Columbus, Ga
    Vehicle:
    '18 Tacoma SR5 '01 4Runner SR5
    Topper, prinsu racks, 2/1 spacer lift
    Excuse me if this has already been asked, but will these ever be offered in grey housing for us SR5 owners? The black housing on grey headliner is the only thing keeping me from jumping on these ha. Just a little OCD.

  16. Sep 17, 2019 at 3:46 PM
    #6036
    Panchovilla6192002

    Panchovilla6192002 Well-Known Member

    Joined:
    Dec 2, 2018
    Member:
    #274502
    Messages:
    843
    Gender:
    Male
    Arizona
    Vehicle:
    2019 Cavalry Blue TRD SPORT 4X4 DCSB MT 2003 Red ExtraCab MT 5 lug
    You can spray paint the black housing. The leds snap off

  17. Sep 20, 2019 at 7:37 AM
    #6037
    pooptaco

    pooptaco Member

    Joined:
    Mar 19, 2018
    Member:
    #247755
    Messages:
    22
    Vehicle:
    '17 TURD OR
    I will sell you mine if you want, haven't installed yet. PM me

  18. Sep 20, 2019 at 1:47 PM
    #6038
    Nightscape

    Nightscape Well-Known Member

    Joined:
    Jan 13, 2017
    Member:
    #207521
    Messages:
    289
    Gender:
    Male
    SoCal
    Vehicle:
    2017 TRD Sport DCLB
    My right side is losing it...last row is flickering.
    Could it be a connection issue?

  19. Sep 26, 2019 at 4:09 PM
    #6039
    ALI3N_123

    ALI3N_123 ( -_・)ᡕᠵ᠊ᡃ່࡚ࠢ࠘⸝່ࠡࠣ᠊߯᠆ࠣ࠘ᡁࠣ࠘᠊᠊ࠢ࠘

    Joined:
    Dec 10, 2017
    Member:
    #238195
    Messages:
    25,932
    Gender:
    Male
    First Name:
    Eric
    McAllen, Texas
    Vehicle:
    2021 Silver TRD Sport DCSB
    Time to get to work, boys :welder:

    bmmjr, Grossomotto and MESO [OP] like this.
  20. Sep 26, 2019 at 9:07 PM
    #6040
    ALI3N_123

    ALI3N_123 ( -_・)ᡕᠵ᠊ᡃ່࡚ࠢ࠘⸝່ࠡࠣ᠊߯᠆ࠣ࠘ᡁࠣ࠘᠊᠊ࠢ࠘

    Joined:
    Dec 10, 2017
    Member:
    #238195
    Messages:
    25,932
    Gender:
    Male
    First Name:
    Eric
    McAllen, Texas
    Vehicle:
    2021 Silver TRD Sport DCSB
    @MESO, does the 3rd Gen dome light also fit 2nd Gens? It looks like it fits within my 2nd Gen dome light bezel. I want some for my 2008, but they're not on your site anymore
