Custom Light Bar, Ultra Stealth

Discussion in 'Lighting' started by Johnny E, Mar 22, 2013.

  1. Mar 22, 2013 at 10:03 PM
    #1
    Johnny E

    Johnny E [OP] Active Member

    Joined:
    Mar 10, 2012
    Member:
    #74638
    Messages:
    39
    Gender:
    Male
    Langley, BC Canada
    Vehicle:
    2012 Taco TRD DCSB 6MT
    Anytime Fog Light Mod, 3 Ball Shifter,Custom Behind the Grill Light Mount and PIAA 4" ATP's, Custom Quick Release Bed Divider, Headache Rack, Trimmed front Mud Flaps, Firestone RideRite Air Bags
    I had to have something that I couldn't find, so I made it

    full frontal.jpg

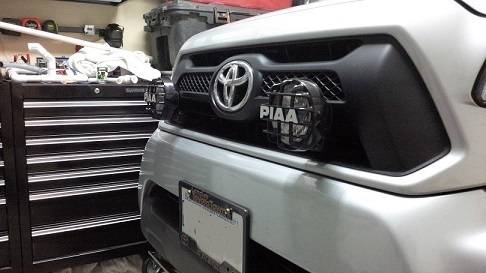

    Front 45.jpg

    Every light bar I saw was either to much or not enough. I wanted stealth and something solid. Everything I saw behind the grill used the rad moounts which are rubber and I can handle no bouncy lights. This fits the 2012's and up, the grill supports etc are very different previously Check out the build pics, click for larger

    compound angle.jpg
    This compound angle is important so you dont stress the grill support. It also provides the stability.

    Midway Fab.jpg
    About 1/2 way thru fab, 5/8" nuts are welded inside the tower caps to attach the light tabs

    Ready to paint.jpg
    All welded up and ground down ready for paint. its hanging by the center mounting point, key again to the stability of the bar.

    Painted assembled.jpg
    Ready to install, just remove the light mounts

    Drivers and center mount.jpg
    Here you can see this bar driver side mounting point on the grill support and the central tab mount

    Passanger sside mounting.jpg
    Passenger side mounting

    no lights.jpg
    Light tabs reinstalled

    Light Mounting Bar.jpg
    This shows how the light tabs come thru the grill. By mounting the PIAA 4" ATPs' with the studs horizontal you need to run a ratchet and extension out from behind the grill to mess with them. Super clean and a bit of security. You do need to bevel the stud head for clearence but thats easy at this point!

    Last edited: Mar 23, 2013
  2. Mar 22, 2013 at 10:09 PM
    #2
    Forster46

    Forster46 Very nice how much?

    Joined:
    Jul 20, 2010
    Member:
    #40487
    Messages:
    3,368
    Gender:
    Male
    First Name:
    Nick
    Mount Vernon, WA
    Vehicle:
    The doritos locos taco
    6000k HID's, AUX Reverse Lights, 3" Rough Country Suspension Lift, Pioneer AVH-P4200 Double Din, Underglow and footwell Lights, Camo Seat Covers, Duralast Tool Box, Blacked Out Badges, Grill, Front Emblem, Midland CB Radio, Amber Strobes, POWER REAR WINDOW, cup holder LED's, Firestik 3' in bed, console divider, Ultragauge.
    I have been wanting to build a bar identical to this for a year for my 06. Couldn't find a good enough pointing point, or I got lazy and didn't look hard enough. If you decide to make more, and adapt it for a 06 front end, PM me.

  3. Mar 22, 2013 at 10:28 PM
    #3
    Johnny E

    Johnny E [OP] Active Member

    Joined:
    Mar 10, 2012
    Member:
    #74638
    Messages:
    39
    Gender:
    Male
    Langley, BC Canada
    Vehicle:
    2012 Taco TRD DCSB 6MT
    Anytime Fog Light Mod, 3 Ball Shifter,Custom Behind the Grill Light Mount and PIAA 4" ATP's, Custom Quick Release Bed Divider, Headache Rack, Trimmed front Mud Flaps, Firestone RideRite Air Bags
    I would need a truck to work on. I recall seeing pics in the site and all the grill support was very different.

  4. Mar 23, 2013 at 10:11 AM
    #4
    Johnny E

    Johnny E [OP] Active Member

    Joined:
    Mar 10, 2012
    Member:
    #74638
    Messages:
    39
    Gender:
    Male
    Langley, BC Canada
    Vehicle:
    2012 Taco TRD DCSB 6MT
    Anytime Fog Light Mod, 3 Ball Shifter,Custom Behind the Grill Light Mount and PIAA 4" ATP's, Custom Quick Release Bed Divider, Headache Rack, Trimmed front Mud Flaps, Firestone RideRite Air Bags
    [​IMG]

    BETTER PIC

  5. Mar 23, 2013 at 10:20 AM
    #5
    wade9986

    wade9986 Well-Known Member

    Joined:
    Jul 11, 2012
    Member:
    #82409
    Messages:
    78
    Gender:
    Male
    First Name:
    Ross
    Florida
    Vehicle:
    08 PreRunner SR5 TRD Sport
    These are awesome! I would buy one for my 08.

  6. Mar 24, 2013 at 7:21 AM
    #6
    knine00

    knine00 Well-Known Member

    Joined:
    Oct 31, 2011
    Member:
    #66179
    Messages:
    1,327
    Gender:
    Male
    Pikeville, NC
    Vehicle:
    12 PreRunner DC TRD Sport
    Stock for now
    Nice work. Looks great!

  7. Mar 24, 2013 at 9:18 AM
    #7
    wade9986

    wade9986 Well-Known Member

    Joined:
    Jul 11, 2012
    Member:
    #82409
    Messages:
    78
    Gender:
    Male
    First Name:
    Ross
    Florida
    Vehicle:
    08 PreRunner SR5 TRD Sport
    I second that. Let me know if you start building them for 05-11 models.

  8. Mar 24, 2013 at 9:25 AM
    #8
    Forster46

    Forster46 Very nice how much?

    Joined:
    Jul 20, 2010
    Member:
    #40487
    Messages:
    3,368
    Gender:
    Male
    First Name:
    Nick
    Mount Vernon, WA
    Vehicle:
    The doritos locos taco
    6000k HID's, AUX Reverse Lights, 3" Rough Country Suspension Lift, Pioneer AVH-P4200 Double Din, Underglow and footwell Lights, Camo Seat Covers, Duralast Tool Box, Blacked Out Badges, Grill, Front Emblem, Midland CB Radio, Amber Strobes, POWER REAR WINDOW, cup holder LED's, Firestik 3' in bed, console divider, Ultragauge.
    I would build one myself but I just don't have the time anymore.

  9. Mar 25, 2013 at 1:17 AM
    #9
    Maximus

    Maximus Well-Known Member

    Joined:
    Jun 18, 2011
    Member:
    #58482
    Messages:
    712
    Gender:
    Male
    First Name:
    D
    North Bay
    Vehicle:
    11 Tacoma TRD OR 4x4
    AFE filter, Magnaflow muffler, Icon Suspension with Wheeler's Progressive AAL, Demello Sliders, All-Pro Skids, BAMF LCA Skids, 4X Innovations Rear Bumper, A lot of Plastidip, FX-R Retrofit Headlights with Philips 4300k, Custom Firestik Antenna
    I need one of these for my '11! great work

  10. Mar 25, 2013 at 8:45 AM
    #10
    sidetracked

    sidetracked Well-Known Member

    Joined:
    Mar 22, 2013
    Member:
    #100320
    Messages:
    194
    Gender:
    Male
    Folsom, CA
    Vehicle:
    1 of each
    That's really clean, nice work!

  11. Mar 27, 2013 at 6:15 PM
    #11
    Johnny E

    Johnny E [OP] Active Member

    Joined:
    Mar 10, 2012
    Member:
    #74638
    Messages:
    39
    Gender:
    Male
    Langley, BC Canada
    Vehicle:
    2012 Taco TRD DCSB 6MT
    Anytime Fog Light Mod, 3 Ball Shifter,Custom Behind the Grill Light Mount and PIAA 4" ATP's, Custom Quick Release Bed Divider, Headache Rack, Trimmed front Mud Flaps, Firestone RideRite Air Bags
    Thx for the pat on the back guys. I have tracked down a 2010 within my circle of friends, now to see if he wants to be the test rig

  12. Mar 29, 2013 at 8:32 PM
    #12
    Maximus

    Maximus Well-Known Member

    Joined:
    Jun 18, 2011
    Member:
    #58482
    Messages:
    712
    Gender:
    Male
    First Name:
    D
    North Bay
    Vehicle:
    11 Tacoma TRD OR 4x4
    AFE filter, Magnaflow muffler, Icon Suspension with Wheeler's Progressive AAL, Demello Sliders, All-Pro Skids, BAMF LCA Skids, 4X Innovations Rear Bumper, A lot of Plastidip, FX-R Retrofit Headlights with Philips 4300k, Custom Firestik Antenna
    And after you're done fabricating one for the '10 grill, you can work on a '11 grille :D
