Custom relay harness!

Discussion in 'Lighting' started by Spencer, Jan 31, 2013.

  1. Jan 31, 2013 at 9:08 PM
    #1
    Spencer

    Spencer [OP] Future President

    Joined:
    Dec 19, 2012
    Member:
    #93415
    Messages:
    1,249
    Gender:
    Male
    First Name:
    TIGGLEBITTIES
    Upland, Chino... all of 909.
    Vehicle:
    2013 DCSB 4X4 6cyl Sex Machine
    Redline hood lift, Flyzeye cabin lights, tailgate lock, SPOD Power block, VIAR onboard air, Cobra CB radio, Firestick 4' Antenna, Hot Blonde CoPilot Mod, SIX 9" Hella 4000 HID conversion with external 55W ballasts, Six 6" LED bars, Napier Bed Tent, Mudflaps delete using rocks, Roof rack by Brute force, Rock sliders by Brute force, Bed LED lights, Underhood LED automatic lights, Constant 12V bed plug, Rugged race radio, ICON uniball UCA's, KING 2.5 700 rate coilovers, Deaver rear leaf springs, KING 2.5 resi rear shocks (Flat 0.15 stack on compression shims), Scangauge, Empty wallet Mod Bug disease, AllPro Apex front bumper, On board heat exchange shower & water pump (Heater Core intercept mod), On Board Air - Viair for now, ARB when it dies-, allpro Skids back to gas tank- Tepui RTT on the shittiest "Bed Rack" ever made.... AllPro U Bolt flip kit with timbren bumps NEXT UP- expo leafs & bed rack, hydraulic bumps in rear, Total Chaos stock LCA's w/ Bypass, Rear 12" shock hoop relocate
    Since theres really no wire harness section around here...
    Two things-
    First,

    ive been Talking to Dave from
    http://www.autotrendefi.com/
    After poking around & finding no luck at all with a good relay/ fuse block combo that wasn't Frankenstein-ed with RadioShack sh**, I found this guy who fabricates custom stuff!
    I'm working with him to get a group buy here on something like this

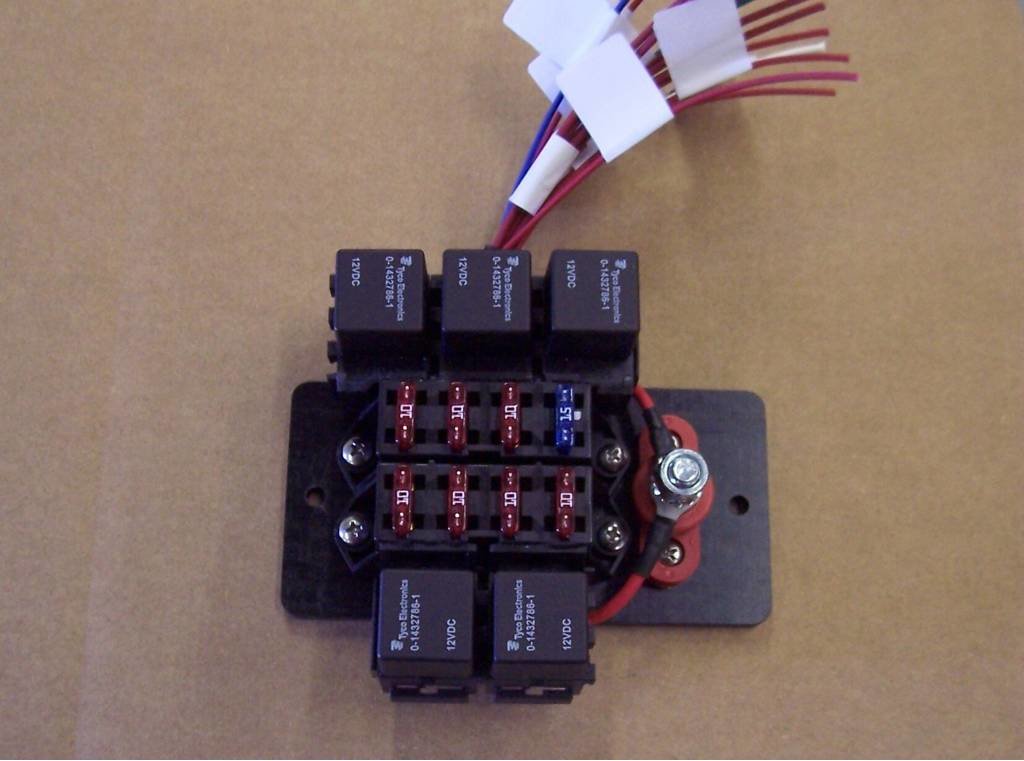

    [​IMG]

    The model he'll make for us is EIGHT total relays, all separately operated with a switch lead, each with a 40 amp capacity and a corresponding fuse circuit, four separate extra fuse circuits without a relay to be wired constant hot,
    And the last of the 8 relays will be connected to 4 fuses- this will be perfect for your body LED's to be all safely wired to separate fuses. Or whatevah.
    Right now, about 320$ each before any group rate etc. he's looking to get 20 people in on it.

    Either way, just seeing if anyone would wanna jump in on this with me to drive the price down & get a badass
    Safe
    Relay circuit for your lighting project instead of your fire prone octopus orgy.

    Second, I'm just looking for opinions on my wiring schematic- which happen to be on my computer... Next post coming up

  2. Feb 1, 2013 at 9:40 AM
    #2
    yosh2000

    yosh2000 Well-Known Member

    Joined:
    Sep 18, 2007
    Member:
    #2733
    Messages:
    2,905
    Gender:
    Male
    Denver, CO
    Vehicle:
    '05 4runner SR5 v8
    $320 for that....WOW!!!! whats wrong w/ a blue sea fuse box and a custom relay hub? honest question.

  3. Feb 1, 2013 at 9:43 AM
    #3
    acdronin

    acdronin Well-Known Member

    Joined:
    Dec 2, 2010
    Member:
    #47036
    Messages:
    19,686
    Gender:
    Male
    .
    Yeah it seems kinda pricey but I like the look of the relays attached to it, nice to have everything fastened down in one place.

  4. Feb 1, 2013 at 9:44 AM
    #4
    yosh2000

    yosh2000 Well-Known Member

    Joined:
    Sep 18, 2007
    Member:
    #2733
    Messages:
    2,905
    Gender:
    Male
    Denver, CO
    Vehicle:
    '05 4runner SR5 v8
    well if you like the look...just get a panel of aluminum and mount it all just like the picture. satisfaction of doing it yourself and most likely saving a ton of money. all those relays appear to just have modular tabs on the sides, so i am sure you could source something just like it.

  5. Feb 1, 2013 at 9:45 AM
    #5
    tdunc

    tdunc Well-Known Member

    Joined:
    Apr 2, 2012
    Member:
    #76127
    Messages:
    210
    Gender:
    Male
    Houston, TX
    Vehicle:
    2013 DCSB TRD OR
  6. Feb 1, 2013 at 9:49 AM
    #6
    acdronin

    acdronin Well-Known Member

    Joined:
    Dec 2, 2010
    Member:
    #47036
    Messages:
    19,686
    Gender:
    Male
    .
    Sure, I can do all the wiring by myself too, but not all of us are that good at it, I could see where this could be useful to someone who doesn't want to get into fabbing all this stuff up.

  7. Feb 1, 2013 at 9:51 AM
    #7
    EEtaco

    EEtaco Well-Known Member

    Joined:
    Feb 22, 2009
    Member:
    #13917
    Messages:
    244
    Gender:
    Male
    First Name:
    Stefan
    Mississippi
    Vehicle:
    09 V6 Prerunner
    5100's @1.75
  8. Feb 1, 2013 at 9:58 AM
    #8
    Ryan DCFS

    Ryan DCFS New guy

    Joined:
    Feb 25, 2012
    Member:
    #73605
    Messages:
    648
    Gender:
    Male
    First Name:
    Ryan
    East Bay Area
    Vehicle:
    09 DC long bed TRD silver streak

    Good god, please, PLEASE don't pay 320 for that...


    http://www.waytekwire.com/item/46343/MINI-FUSE-AND-MICRO-RELAY-RTMR/

    20-30 dollars at waytech, depending on what you get. It can have either 3 mini, or 5 micro relays, with 10 micro fuses.

    It's also very small, and water tight.

    For 10 micro relays, 20 fuses, and 2 of those boxes, you're still under $100.

    Check out blackdawg's first gen build, and search the thread for waytech. He used one for some of his electrical.

    You can also get the fuses and relays bussed if you choose.

    Photo added:

    [​IMG]

  9. Feb 1, 2013 at 10:00 AM
    #9
    Large

    Large Red

    Joined:
    Sep 10, 2011
    Member:
    #63268
    Messages:
    16,574
    Gender:
    Male
    You could get an SPOD for close to that amount, just sayin.

  10. Feb 1, 2013 at 10:13 AM
    #10
    Ryan DCFS

    Ryan DCFS New guy

    Joined:
    Feb 25, 2012
    Member:
    #73605
    Messages:
    648
    Gender:
    Male
    First Name:
    Ryan
    East Bay Area
    Vehicle:
    09 DC long bed TRD silver streak
    This as well, the spod comes with 6 carling switches, a circuit breaker, and mounting hardware.

    If you're gonna spend that kind of money, you should not be worried about wiring ANYTHING.

  11. Feb 1, 2013 at 10:15 AM
    #11
    yosh2000

    yosh2000 Well-Known Member

    Joined:
    Sep 18, 2007
    Member:
    #2733
    Messages:
    2,905
    Gender:
    Male
    Denver, CO
    Vehicle:
    '05 4runner SR5 v8
    now that is cool!!! didnt realize they make those things, so nice and easy!

  12. Feb 2, 2013 at 12:14 AM
    #12
    Blackdawg

    Blackdawg Dr. Frankenstein

    Joined:
    Dec 31, 2010
    Member:
    #48500
    Messages:
    50,891
    Gender:
    Male
    First Name:
    Monte
    Wyoming/St. Louis
    Vehicle:
    96.5 FrankenTaco & 03 Stock dbl cab
    BFG KM2 33x12.5 tires, Wheelers Type B rims, Allpro 1.5'' Wheel spacers w/extended thread lug nuts 2 Alpine 10'' Type Xs 2 Kicker 6X9s 4 Sony 5 1/4s Pioneer 4100 HU Sway bar removed 4 Hella 500 HIDs Frankenstein Leaf packs 1'' lift shackles Eibach coils 5100s front 10'' 5150s rear BAMF BPV bracket Deckplate mod Elite Front bumper Magnaflow 14'' muffler Elite Off Road Rear bumper with Tire gate with jerry can and fold down table, BAMF sliders, Custom Homemade Bed, rack/roof rack, CVT Mt. Shasta Roof Top Tent, 20lb CO2 tank, BAMF diff skid custom front skid, GM CS144 140 amp alternator Blitzpro 21s HAWK side LEDs Blitzpro Custom made side mirror lights, LightForce 240 Blitz llights, Piaa 510 ION fogs, XRC8 Winch w/in cab controls,

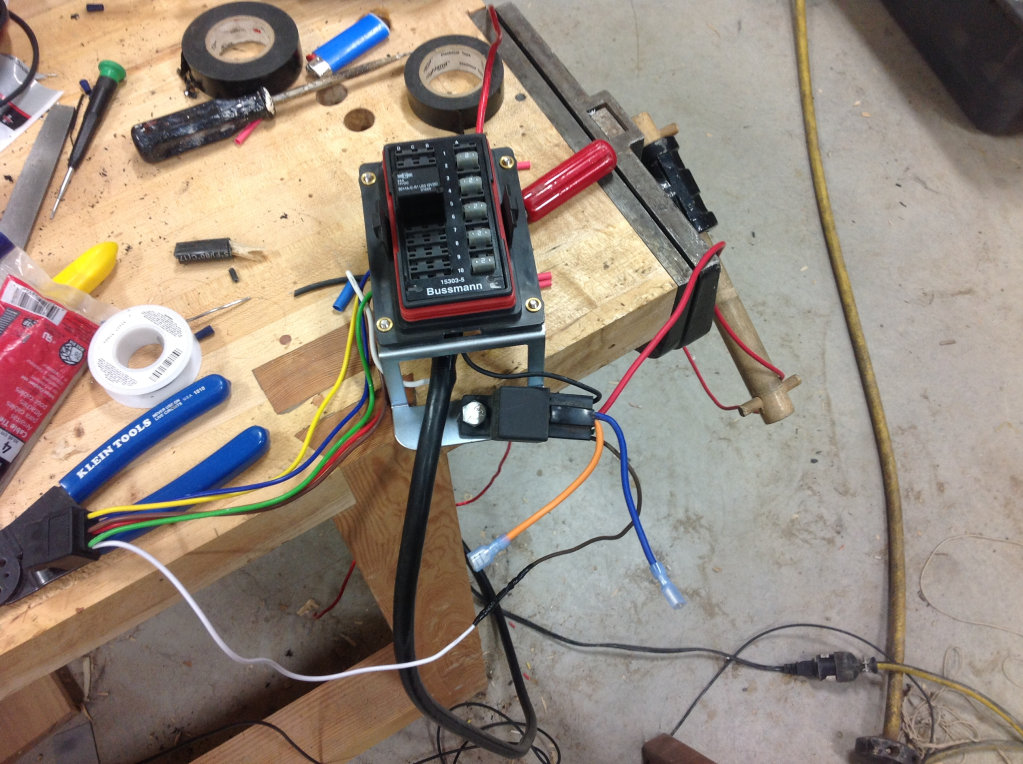

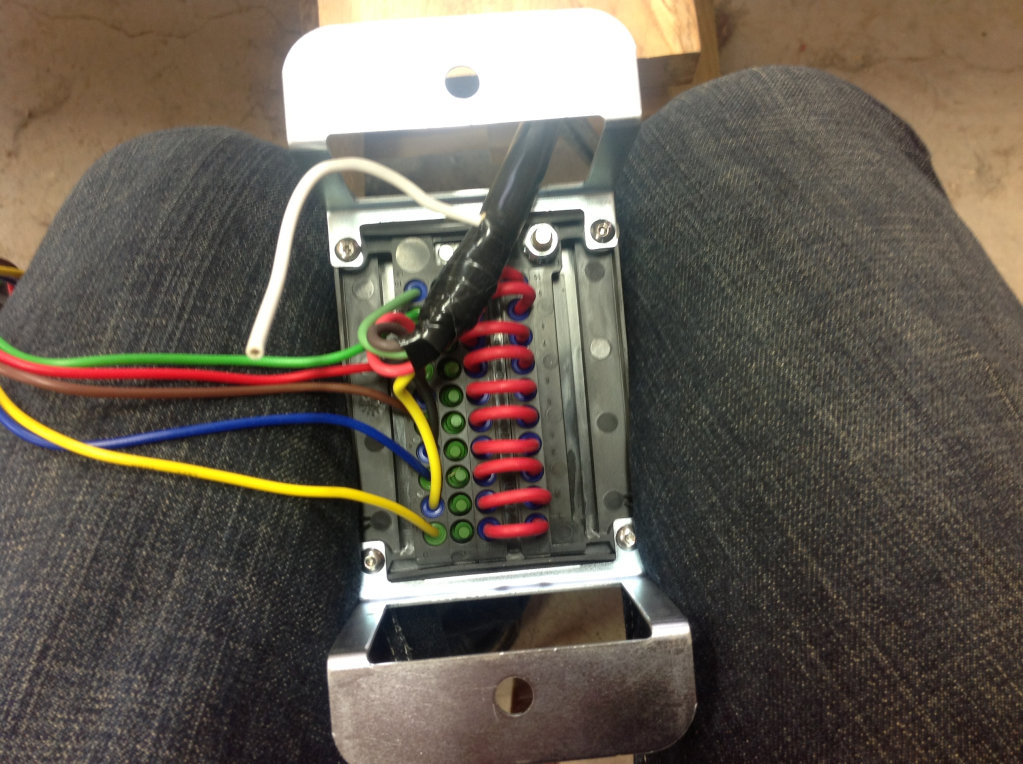

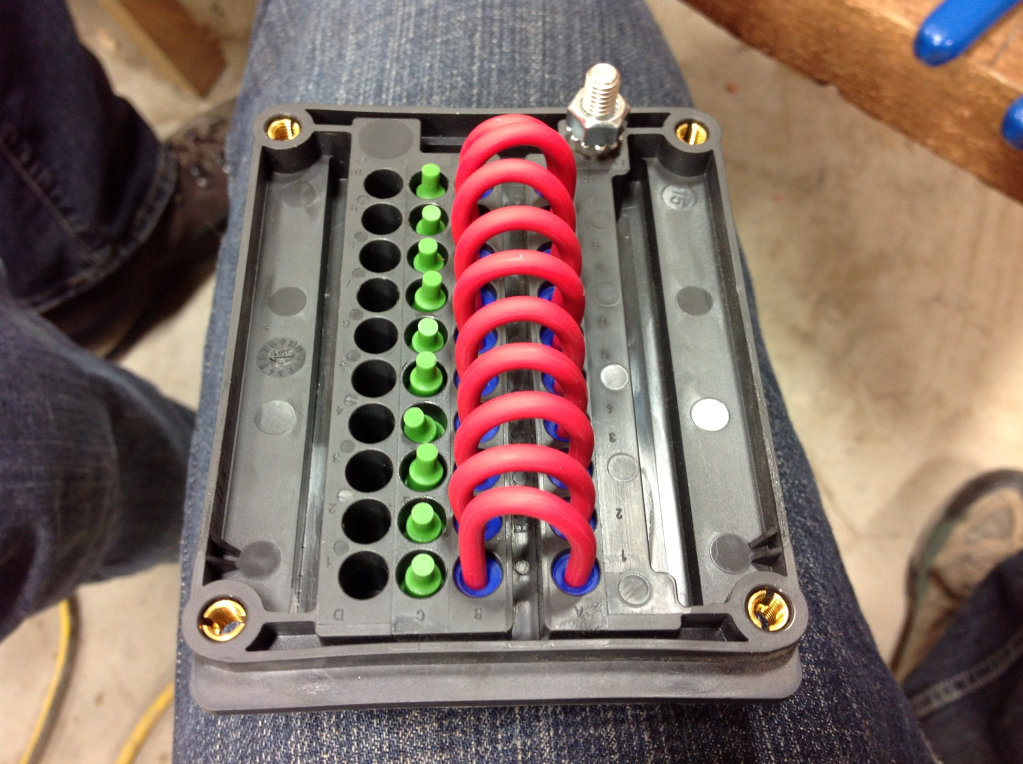

    Get the bussman.

    What I am using and love it. Expensive to get all the plugs and the crimper tool and seals. But worth it.

    [​IMG]
    [​IMG]
    [​IMG]

  13. Feb 2, 2013 at 1:27 PM
    #13
    ShaLor

    ShaLor Well-Known Member

    Joined:
    Jan 8, 2010
    Member:
    #29015
    Messages:
    409
    Gender:
    Male
    First Name:
    Shane
    Burbank, CA
    Vehicle:
    07 4x4 Doublecab TRD Off Road
    Custom mud flap removal from rock on trail :), Tailgate Hose Clamp Mod, Cobra 75 wx st CB install, 19 more D-Rings in the bed, Satoshi Grill, Fog Lamp on any time mod. Relentless Fab CB antenna hood mount, LED bed lights, Demello Hybrid Sliders, Undercover Tonneau Cover, Lighted 4x4 switch
    Can you explain what you did there?

  14. Feb 2, 2013 at 7:26 PM
    #14
    Blackdawg

    Blackdawg Dr. Frankenstein

    Joined:
    Dec 31, 2010
    Member:
    #48500
    Messages:
    50,891
    Gender:
    Male
    First Name:
    Monte
    Wyoming/St. Louis
    Vehicle:
    96.5 FrankenTaco & 03 Stock dbl cab
    BFG KM2 33x12.5 tires, Wheelers Type B rims, Allpro 1.5'' Wheel spacers w/extended thread lug nuts 2 Alpine 10'' Type Xs 2 Kicker 6X9s 4 Sony 5 1/4s Pioneer 4100 HU Sway bar removed 4 Hella 500 HIDs Frankenstein Leaf packs 1'' lift shackles Eibach coils 5100s front 10'' 5150s rear BAMF BPV bracket Deckplate mod Elite Front bumper Magnaflow 14'' muffler Elite Off Road Rear bumper with Tire gate with jerry can and fold down table, BAMF sliders, Custom Homemade Bed, rack/roof rack, CVT Mt. Shasta Roof Top Tent, 20lb CO2 tank, BAMF diff skid custom front skid, GM CS144 140 amp alternator Blitzpro 21s HAWK side LEDs Blitzpro Custom made side mirror lights, LightForce 240 Blitz llights, Piaa 510 ION fogs, XRC8 Winch w/in cab controls,
    Made it run 14 of ,y truck lights.

  15. Feb 3, 2013 at 8:09 AM
    #15
    Spencer

    Spencer [OP] Future President

    Joined:
    Dec 19, 2012
    Member:
    #93415
    Messages:
    1,249
    Gender:
    Male
    First Name:
    TIGGLEBITTIES
    Upland, Chino... all of 909.
    Vehicle:
    2013 DCSB 4X4 6cyl Sex Machine
    Redline hood lift, Flyzeye cabin lights, tailgate lock, SPOD Power block, VIAR onboard air, Cobra CB radio, Firestick 4' Antenna, Hot Blonde CoPilot Mod, SIX 9" Hella 4000 HID conversion with external 55W ballasts, Six 6" LED bars, Napier Bed Tent, Mudflaps delete using rocks, Roof rack by Brute force, Rock sliders by Brute force, Bed LED lights, Underhood LED automatic lights, Constant 12V bed plug, Rugged race radio, ICON uniball UCA's, KING 2.5 700 rate coilovers, Deaver rear leaf springs, KING 2.5 resi rear shocks (Flat 0.15 stack on compression shims), Scangauge, Empty wallet Mod Bug disease, AllPro Apex front bumper, On board heat exchange shower & water pump (Heater Core intercept mod), On Board Air - Viair for now, ARB when it dies-, allpro Skids back to gas tank- Tepui RTT on the shittiest "Bed Rack" ever made.... AllPro U Bolt flip kit with timbren bumps NEXT UP- expo leafs & bed rack, hydraulic bumps in rear, Total Chaos stock LCA's w/ Bypass, Rear 12" shock hoop relocate
    I saw several of these cooper ones but they don't do exactly what I needed/ I didn't wanna get into hassling with the fabrication myself AND most can't handle the amperage I need. The mini relays are cool but (correct me if I'm wrong ) can't handle 40 amps continuous load.

    Here's the wiring diagram I've made up. Opinions?

    Also, the guy is ready for a group buy now, so ill head on over to the group buy section!

    Yeah it's pricey & I'm gonna talk him down more after seeing the similar MUCH cheaper options
    Il keep y'all posted!

  16. Feb 3, 2013 at 8:39 AM
    #16
    Spencer

    Spencer [OP] Future President

    Joined:
    Dec 19, 2012
    Member:
    #93415
    Messages:
    1,249
    Gender:
    Male
    First Name:
    TIGGLEBITTIES
    Upland, Chino... all of 909.
    Vehicle:
    2013 DCSB 4X4 6cyl Sex Machine
    Redline hood lift, Flyzeye cabin lights, tailgate lock, SPOD Power block, VIAR onboard air, Cobra CB radio, Firestick 4' Antenna, Hot Blonde CoPilot Mod, SIX 9" Hella 4000 HID conversion with external 55W ballasts, Six 6" LED bars, Napier Bed Tent, Mudflaps delete using rocks, Roof rack by Brute force, Rock sliders by Brute force, Bed LED lights, Underhood LED automatic lights, Constant 12V bed plug, Rugged race radio, ICON uniball UCA's, KING 2.5 700 rate coilovers, Deaver rear leaf springs, KING 2.5 resi rear shocks (Flat 0.15 stack on compression shims), Scangauge, Empty wallet Mod Bug disease, AllPro Apex front bumper, On board heat exchange shower & water pump (Heater Core intercept mod), On Board Air - Viair for now, ARB when it dies-, allpro Skids back to gas tank- Tepui RTT on the shittiest "Bed Rack" ever made.... AllPro U Bolt flip kit with timbren bumps NEXT UP- expo leafs & bed rack, hydraulic bumps in rear, Total Chaos stock LCA's w/ Bypass, Rear 12" shock hoop relocate
    Here's what Dave sent me. Before I go over to group buy section I figured I'd share here & get opinions.



    Custom Tacoma 8 Relay, 16 Fuse Panel

    Description
    8- 40A Relays Total
    1- Relay: Switched 12V controlled, powering up 4 “Switched 12V” Fuses
    7- Relays: 12V input controlled from vehicle switches (not included)

    (16) Fuses Total
    4- 20A Fuses are switched 12V from Ign. Relay
    4- 20A Fuses Battery Hot all the time
    8- 30A Fuses Protect 8 Relayed circuits

    Inputs
    Main Battery Input will be a 3/8 Stud Type Terminal block
    1- Switched 12V input from vehicle controlling 1 relay
    7- 12V inputs from vehicle switches controlling (7) relays
    1- Common Relay Ground Circuit 12” long

    Outputs
    7- Relay Outputs​12G Lead 12” Long
    8- Fused Outputs​16G Leads 12” Long
    (4 hot all the time, 4 hot only with key on)

    Cost
    Up to 10 panels​$378.00 each
    11-20 panels​$358.00 each
    Over 20 panels​$334.00 each

    Orders will be taken until March 1st
    There will be a build lead time of 3-4 weeks from March 1st
    Orders may be placed by calling with a credit card or through PayPal
    Payments will be taken at end of order period when we know the price break.

    Autotrend EFI
    6566-C Commerce Way
    Diamond Springs CA 95619
    (530) 642-0999 Email: info@autotrendefi.com
    Website: www.autotrendefi.com

  17. Feb 3, 2013 at 8:40 AM
    #17
    Spencer

    Spencer [OP] Future President

    Joined:
    Dec 19, 2012
    Member:
    #93415
    Messages:
    1,249
    Gender:
    Male
    First Name:
    TIGGLEBITTIES
    Upland, Chino... all of 909.
    Vehicle:
    2013 DCSB 4X4 6cyl Sex Machine
    Redline hood lift, Flyzeye cabin lights, tailgate lock, SPOD Power block, VIAR onboard air, Cobra CB radio, Firestick 4' Antenna, Hot Blonde CoPilot Mod, SIX 9" Hella 4000 HID conversion with external 55W ballasts, Six 6" LED bars, Napier Bed Tent, Mudflaps delete using rocks, Roof rack by Brute force, Rock sliders by Brute force, Bed LED lights, Underhood LED automatic lights, Constant 12V bed plug, Rugged race radio, ICON uniball UCA's, KING 2.5 700 rate coilovers, Deaver rear leaf springs, KING 2.5 resi rear shocks (Flat 0.15 stack on compression shims), Scangauge, Empty wallet Mod Bug disease, AllPro Apex front bumper, On board heat exchange shower & water pump (Heater Core intercept mod), On Board Air - Viair for now, ARB when it dies-, allpro Skids back to gas tank- Tepui RTT on the shittiest "Bed Rack" ever made.... AllPro U Bolt flip kit with timbren bumps NEXT UP- expo leafs & bed rack, hydraulic bumps in rear, Total Chaos stock LCA's w/ Bypass, Rear 12" shock hoop relocate
    Also
    Remember I'm working to get the price down. Anyone still interested?

  18. Feb 3, 2013 at 11:02 AM
    #18
    paranoid56

    paranoid56 Well-Known Member

    Joined:
    Jul 25, 2012
    Member:
    #83443
    Messages:
    992
    Gender:
    Male
    San Diego
    Vehicle:
    0 double cab taco
    so looking at what you plan on running i dont see anything that really needs a 40amp relay. that busman above would more then suit your needs. all those parts are from waytek wire and well under 100 for all of it. if you like what he has, i would look into getting that and wiring it up yourself to help learn about these items. really helps if you have a problem later down the road.
    and as other have said, if you really want something nice look at that Spod setup. switches and everything.

  19. Feb 3, 2013 at 3:14 PM
    #19
    Blackdawg

    Blackdawg Dr. Frankenstein

    Joined:
    Dec 31, 2010
    Member:
    #48500
    Messages:
    50,891
    Gender:
    Male
    First Name:
    Monte
    Wyoming/St. Louis
    Vehicle:
    96.5 FrankenTaco & 03 Stock dbl cab
    BFG KM2 33x12.5 tires, Wheelers Type B rims, Allpro 1.5'' Wheel spacers w/extended thread lug nuts 2 Alpine 10'' Type Xs 2 Kicker 6X9s 4 Sony 5 1/4s Pioneer 4100 HU Sway bar removed 4 Hella 500 HIDs Frankenstein Leaf packs 1'' lift shackles Eibach coils 5100s front 10'' 5150s rear BAMF BPV bracket Deckplate mod Elite Front bumper Magnaflow 14'' muffler Elite Off Road Rear bumper with Tire gate with jerry can and fold down table, BAMF sliders, Custom Homemade Bed, rack/roof rack, CVT Mt. Shasta Roof Top Tent, 20lb CO2 tank, BAMF diff skid custom front skid, GM CS144 140 amp alternator Blitzpro 21s HAWK side LEDs Blitzpro Custom made side mirror lights, LightForce 240 Blitz llights, Piaa 510 ION fogs, XRC8 Winch w/in cab controls,
    ummm...why the heck do you need 40 amp relays for lights?? LEDs draw like 1-4amps continuous.

    My minis are 35amp continuous

    the biggest thing i have on mine are 4 55w HIDs which is almost 20 amps. same goes for me 100w LF240s. Still close to 20 amps.

    i can't think of anything im running that needs more the 35amp continuous. Not even a fridge/freezer.

  20. Feb 3, 2013 at 3:19 PM
    #20
    Pugga

    Pugga Pasti-Dip Free 1983 - 2015... It was a good run

    Joined:
    Jun 18, 2010
    Member:
    #39131
    Messages:
    29,095
    Gender:
    Male
    First Name:
    Mike
    Massachusetts
    Vehicle:
    '13 Ford F-150 SCREW
    F-150 Mod
    4-100W lights on the same relay would require a 40A relay. Either way, the price difference between a 30A and a 40A is extremely minimal so you might as well get the higher rated one if you're unsure about how things will be wired on your truck.
