Custom roof basket access cab build

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Bradpad, Apr 18, 2012.

  1. Apr 18, 2012 at 7:30 PM
    #1
    Bradpad

    Bradpad [OP] Well-Known Member

    Joined:
    Apr 14, 2012
    Member:
    #76940
    Messages:
    83
    Gender:
    Male
    First Name:
    Brad
    MASS
    Vehicle:
    07 SR5 Access Cab V6 4x4
    K&N polished intake QTP electronic exhaust cutout
    Finally got myself a welder,and have been wanting to build a roof rack for a while. Sizing and cutting metal is easy enough, but the fact that access cabs have no tapped holes in the roof like double cabs do posed a problem
    so i got a tap and die set and will drill the roof in the next couple days, already fabricated sbrackets out of 22 Guage sheet metal
    went to lowes and picked up 4 four foot pieces of 1" square Steel tubing for the base of the basket and three four foot pieces of 1/2 inch square steel tubing for

    Dimensions for the basket are going to be 48 inches on both long sides of the roof, 46" wide near the windshield and 44 inches on the roof near the bed. Going to have the basket set about 6" from the windshield to allow for future additional light mounts

  2. Apr 18, 2012 at 7:32 PM
    #2
    hudhawk

    hudhawk #texasforever

    Joined:
    Jan 27, 2011
    Member:
    #50037
    Messages:
    2,056
    Gender:
    Male
    First Name:
    Hudson
    California
    Vehicle:
    TRD Off Road
    Rust, lots of rust
    what are you going to use on the underside of the roof to bolt to?

  3. Apr 18, 2012 at 7:35 PM
    #3
    Bradpad

    Bradpad [OP] Well-Known Member

    Joined:
    Apr 14, 2012
    Member:
    #76940
    Messages:
    83
    Gender:
    Male
    First Name:
    Brad
    MASS
    Vehicle:
    07 SR5 Access Cab V6 4x4
    K&N polished intake QTP electronic exhaust cutout
    I'm going to drill holes and the roof and tap them (create threads) so that way
    I can screw a bolt thru the bracket I made and it the top, then snug it down

    EDIT: I KNOW KNOW ITS NOT SAFE TO THREAD THIN SHEETMETAL FOR THIS APPLICATION DONT DO/TRY IT

  4. Apr 18, 2012 at 7:37 PM
    #4
    Bradpad

    Bradpad [OP] Well-Known Member

    Joined:
    Apr 14, 2012
    Member:
    #76940
    Messages:
    83
    Gender:
    Male
    First Name:
    Brad
    MASS
    Vehicle:
    07 SR5 Access Cab V6 4x4
    K&N polished intake QTP electronic exhaust cutout
    Trying to figure out how to post pictures of the brackets I made as well as the tubing I will be using, bear with me

  5. Apr 18, 2012 at 7:39 PM
    #5
    hudhawk

    hudhawk #texasforever

    Joined:
    Jan 27, 2011
    Member:
    #50037
    Messages:
    2,056
    Gender:
    Male
    First Name:
    Hudson
    California
    Vehicle:
    TRD Off Road
    Rust, lots of rust
    ok, just so you know, the roof is sheet metal. its not thick enough to tap and bolt to

  6. Apr 18, 2012 at 7:46 PM
    #6
    Bradpad

    Bradpad [OP] Well-Known Member

    Joined:
    Apr 14, 2012
    Member:
    #76940
    Messages:
    83
    Gender:
    Male
    First Name:
    Brad
    MASS
    Vehicle:
    07 SR5 Access Cab V6 4x4
    K&N polished intake QTP electronic exhaust cutout
    I tapped a hole in 22 Guage sheet metal for the brackets I made, so hopefully the roof is as thick if not thicker than 22 Guage. And I an drilling into the roof under the rubber roof molding, the roof is the same as the double cab which has pretapped holes right from the factory so yes it is possible

  7. Apr 18, 2012 at 7:54 PM
    #7
    Bradpad

    Bradpad [OP] Well-Known Member

    Joined:
    Apr 14, 2012
    Member:
    #76940
    Messages:
    83
    Gender:
    Male
    First Name:
    Brad
    MASS
    Vehicle:
    07 SR5 Access Cab V6 4x4
    K&N polished intake QTP electronic exhaust cutout
    bracket just tacked together before i put a full bead across


  8. Apr 18, 2012 at 7:56 PM
    #8
    Bradpad

    Bradpad [OP] Well-Known Member

    Joined:
    Apr 14, 2012
    Member:
    #76940
    Messages:
    83
    Gender:
    Male
    First Name:
    Brad
    MASS
    Vehicle:
    07 SR5 Access Cab V6 4x4
    K&N polished intake QTP electronic exhaust cutout

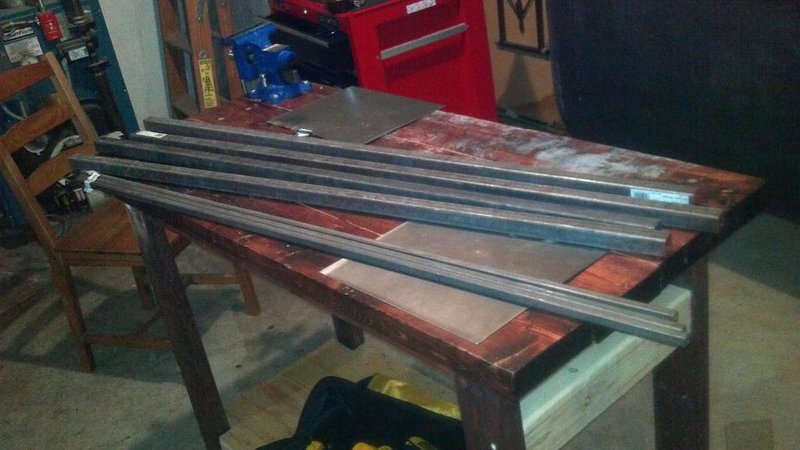

    1" and 1/2" square steel tube


  9. Apr 18, 2012 at 7:58 PM
    #9
    Bradpad

    Bradpad [OP] Well-Known Member

    Joined:
    Apr 14, 2012
    Member:
    #76940
    Messages:
    83
    Gender:
    Male
    First Name:
    Brad
    MASS
    Vehicle:
    07 SR5 Access Cab V6 4x4
    K&N polished intake QTP electronic exhaust cutout
    if anyone is wondering about size of brackets, I made them so they would fit snug into the recessed 'rain drip' strip on the roof when the rubber covering is removed. so they are just under an inch wide

  10. Apr 18, 2012 at 7:59 PM
    #10
    SOSHeloPilot

    SOSHeloPilot Well-Known Member

    Joined:
    Mar 31, 2009
    Member:
    #15422
    Messages:
    4,470
    Gender:
    Male
    U.S.A.
    Vehicle:
    2016 SR5, AC/LB, 4x2, V6, Auto, w/Tow, SiriusXM, Stock
    UnderCover SE, Bed Mat, Tint, Weather Techs & DashGoPro
    .
    ... Sub'd ... :popcorn:
    .

  11. Apr 18, 2012 at 8:08 PM
    #11
    Blueberry

    Blueberry Well-Known Member

    Joined:
    Jun 12, 2011
    Member:
    #58163
    Messages:
    1,701
    Gender:
    Male
    First Name:
    Nick
    Newton, KS
    Vehicle:
    T/X Pro named Blueberry by my daughter
    Custom Roofrack, Satoshi, Ammo-can in bed, Hi-lift, 2 HID Hella 700's, 4 Automatcentral 7" Offroad Lamps, 2 Hella Work/Bed Lamps, "Derp'd" Radio and Shifter Console, Anytime Fog-light mod, Anytime Rearview Camera mod, DTRL mod, Awesome TW sticker mod.
    Hell yeah! Custom is the way to go. Subbed.

  12. Apr 18, 2012 at 8:15 PM
    #12
    Bradpad

    Bradpad [OP] Well-Known Member

    Joined:
    Apr 14, 2012
    Member:
    #76940
    Messages:
    83
    Gender:
    Male
    First Name:
    Brad
    MASS
    Vehicle:
    07 SR5 Access Cab V6 4x4
    K&N polished intake QTP electronic exhaust cutout
    this is what im modeling my design after, baja rack is way to expensive to buy so i figured i would make my own similar to it.
    planning on getting some cutting and welding in tmrw so i will post more pics when that happens


  13. Apr 18, 2012 at 8:25 PM
    #13
    Bengland25

    Bengland25 Never Forget! 343

    Joined:
    Nov 17, 2011
    Member:
    #67192
    Messages:
    1,953
    Gender:
    Male
    First Name:
    Bradley
    Southern California
    Vehicle:
    09 Tacoma TRD
    MB Chaos 6 17" wheels, BF Goodrich All-Terrain TA/KO LT265-70R17, Anytime Fog Lights, Anytime Backup Camera, Bed Lights, Tailgate Lock, Light bar with 3 Hella 700FF's, Realtree Camo arm-rests, Anytime DTRL (With Switch), Blue Seas Fuse Block and Circuit Breaker, Custom Bed Light-Bar, Cobra 29 LTD Chrome, 4' Firestik, Masterlock Hitch Key Safe, Bed Storage Compartment Locks, Custom Shovel Bracket Mount, Flag Pole Mount (RED SOLO CUP FLAG!), DIY Washable Cabin Filter, URD MAF Cal., Homelink Garage Door Opener, Volant CAI w/ Ram Scoop, AeroTurbine 3030XL, URD Short Throw Shifter, Custom Satoshi, Blitzpro 21S, 2 Blitzpro 6LZ's, Blitzpro 6D, BAMF Sliders
    Sub'd! Good luck man, cannot wait to see how it comes out!

  14. Apr 18, 2012 at 8:52 PM
    #14
    Blueberry

    Blueberry Well-Known Member

    Joined:
    Jun 12, 2011
    Member:
    #58163
    Messages:
    1,701
    Gender:
    Male
    First Name:
    Nick
    Newton, KS
    Vehicle:
    T/X Pro named Blueberry by my daughter
    Custom Roofrack, Satoshi, Ammo-can in bed, Hi-lift, 2 HID Hella 700's, 4 Automatcentral 7" Offroad Lamps, 2 Hella Work/Bed Lamps, "Derp'd" Radio and Shifter Console, Anytime Fog-light mod, Anytime Rearview Camera mod, DTRL mod, Awesome TW sticker mod.
    Word of caution. If you plan on using lights up there then recess them a bit or figure out how to shield them so they don't glare off of the hood. Ask me how I found this out. :p

  15. Apr 18, 2012 at 8:56 PM
    #15
    BAMFTACO

    BAMFTACO Pabst Blue Ribbon on ice

    Joined:
    Feb 3, 2010
    Member:
    #30639
    Messages:
    10,306
    Gender:
    Male
    First Name:
    JUAN
    Malibu, CA
    Vehicle:
    Taco
    Lift- king 2.5 with light racing uppers,tc coil bucket gusset, timbern bumps ,defined extended shackles with shackle brace. Armor- tire gate, custom tube bumper, kr fab rear bumper,trail gear wiy 78 in sliders Performance-intake manifold spacer, vibrant resonator as muffler, hps silicone hoses Random stuff- kenwood head unit,b&m t shifter, hood bug deflector, rear dust lights with custom bed bar and hi lift mount.
    Mmmmmm square tubing I like

  16. Apr 19, 2012 at 8:01 PM
    #16
    Bradpad

    Bradpad [OP] Well-Known Member

    Joined:
    Apr 14, 2012
    Member:
    #76940
    Messages:
    83
    Gender:
    Male
    First Name:
    Brad
    MASS
    Vehicle:
    07 SR5 Access Cab V6 4x4
    K&N polished intake QTP electronic exhaust cutout

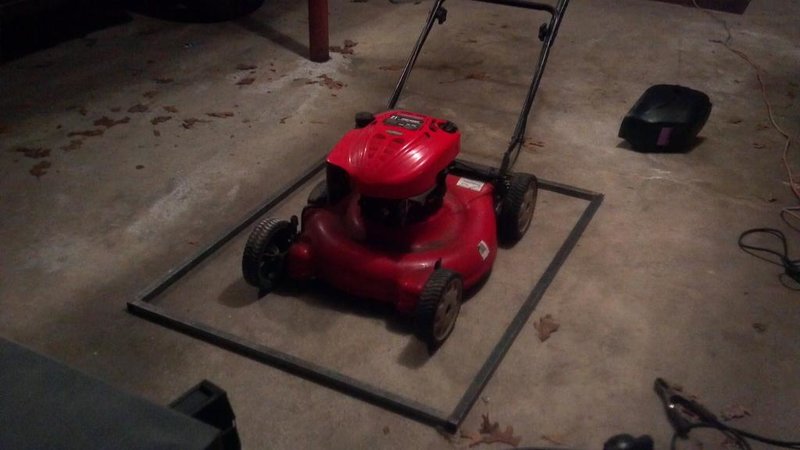

    pic #1 - lawnmower shows size of the base of the rack, 4feet wide by 3 feet long (this size will place the rack 11-12 inches from the windshield)

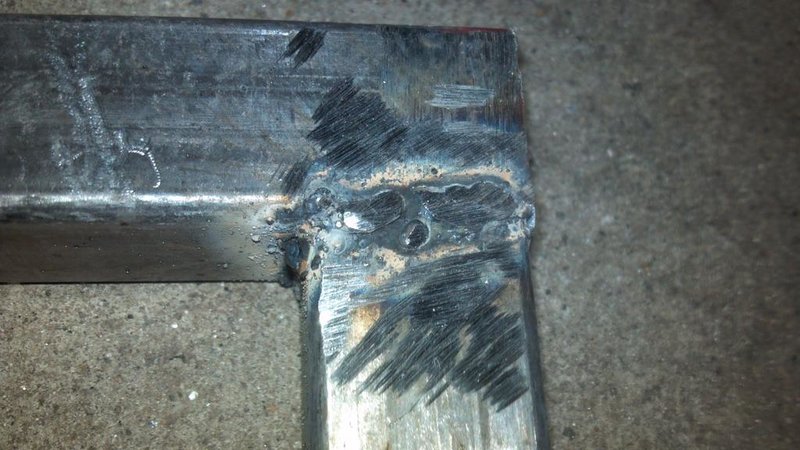

    pic #2 - example of weld, using a gasless MIG flux cored wire so the welds turn a weird brownish color but i quickly (10 seconds grinding) to try to make it shiney for picture before i grind it near flush tmrw :)

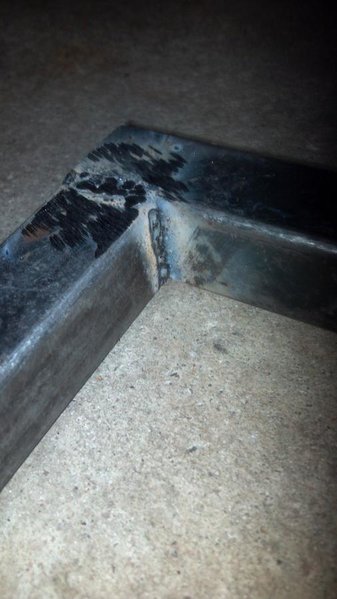

    pic #3 - shows how the weld is on all sides of where the tubes touch each other


  17. Apr 19, 2012 at 8:02 PM
    #17
    Bradpad

    Bradpad [OP] Well-Known Member

    Joined:
    Apr 14, 2012
    Member:
    #76940
    Messages:
    83
    Gender:
    Male
    First Name:
    Brad
    MASS
    Vehicle:
    07 SR5 Access Cab V6 4x4
    K&N polished intake QTP electronic exhaust cutout
    let me know how its looking guys!! input appreciated

  18. Apr 19, 2012 at 8:06 PM
    #18
    colinb17

    colinb17 If at first you don't succeed, don't try skydiving

    Joined:
    Jan 6, 2008
    Member:
    #4127
    Messages:
    18,607
    Gender:
    Male
    First Name:
    Colin
    Lusby, MD
    Vehicle:
    '07 TRD Sport 4x4
    Build thread in sig...
    x2!!!! first rack i built had them too far forward and it was terrible if your windshield wasn't perfectly clean.

  19. Apr 19, 2012 at 8:17 PM
    #19
    Bradpad

    Bradpad [OP] Well-Known Member

    Joined:
    Apr 14, 2012
    Member:
    #76940
    Messages:
    83
    Gender:
    Male
    First Name:
    Brad
    MASS
    Vehicle:
    07 SR5 Access Cab V6 4x4
    K&N polished intake QTP electronic exhaust cutout
    thanks colin, keeping it a foot away from the roof gives me plenty of room to add a light structure on later.
    tmrw im gonna add some 6" vertical pieces on top of the frame i have now, then replicate the base and weld that on top of the vertical pieces

  20. Apr 19, 2012 at 8:23 PM
    #20
    Twistedfreedom

    Twistedfreedom welcome to the incredibuild

    Joined:
    Sep 12, 2011
    Member:
    #63386
    Messages:
    8,785
    Gender:
    Male
    First Name:
    Adam
    Spokane, WA
    Vehicle:
    incredibuild in progress
    modded the F*ck out
    Sub'd I just got my rack finished up yesterday
