Custom Roof Basket Build Thread

Discussion in '2nd Gen. Tacomas (2005-2015)' started by tooblutacoma06, Sep 12, 2009.

  1. Sep 12, 2009 at 8:13 PM
    #1
    tooblutacoma06

    tooblutacoma06 [OP] Member

    Joined:
    Apr 26, 2007
    Member:
    #1426
    Messages:
    289
    Gender:
    Male
    First Name:
    Kellon
    Houston
    I started work on my cargo basket. I figured I'd start a thread on it because I couldn't find much good info on building a custom basket/rails. I'll be building my own rails to mount to the roof in order to increase the payload limit. I'll update this thread (and the one at TN) as I build. Let me know what yall think.

    Concept:

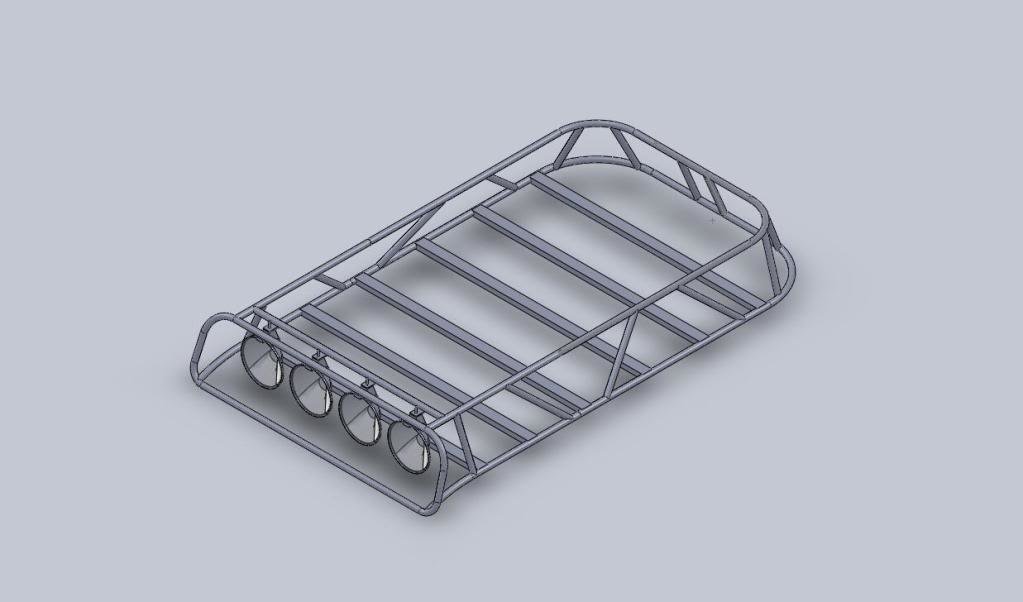

    [​IMG]

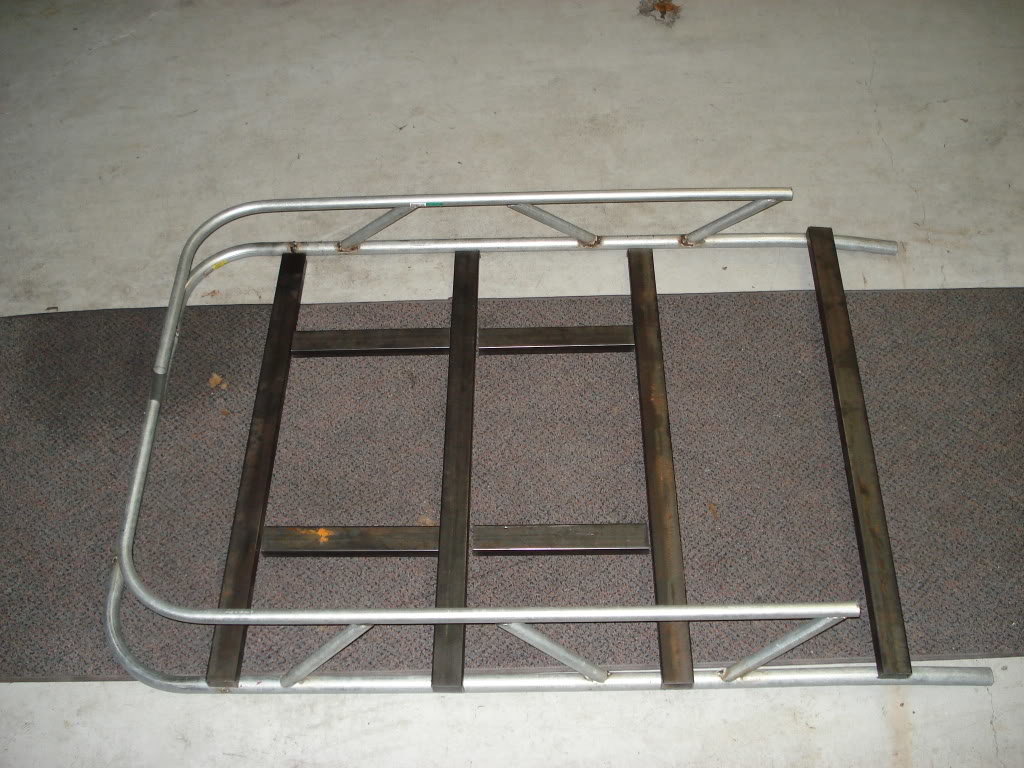

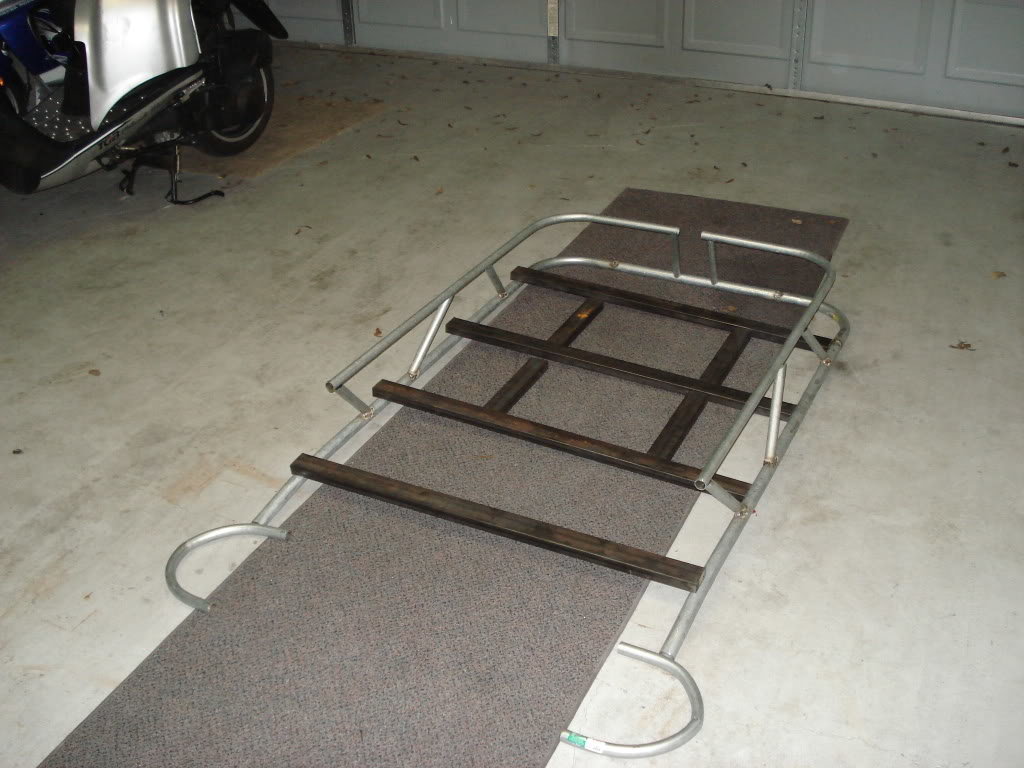

    Build:
    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

  2. Sep 12, 2009 at 8:17 PM
    #2
    Pster

    Pster Well-Known Member

    Joined:
    Jun 30, 2008
    Member:
    #7654
    Messages:
    2,745
    Gender:
    Male
    Charlotte, NC
    Vehicle:
    2006 Tacoma 4x4
    Bak Flip bed cover, shorty antenna, Peripheral iPod interface, Garmin 750 mount, add'l bed tie down rings, Westin nerf bars, hitch safe, tailgate lock, Ideal 1 3/4" turn-key clamp to secure tailgate from removal, Spare tire security cable, spare tire stainless air hose extender, Fumoto oil drain valve, Amp Research Bed X-Tender w/Schlage Cable Lock, bed mat, Redline hood struts
    Cool!

  3. Sep 12, 2009 at 8:18 PM
    #3
    mpgnc64

    mpgnc64 Well-Known Member

    Joined:
    Jul 28, 2008
    Member:
    #8180
    Messages:
    264
    Gender:
    Male
    First Name:
    Mike and Denise
    Western NC
    Vehicle:
    06 4x4 Access cab 4cyl 5spd, 2000 Prerunner
    Tool box, Thule rack, rod holders, 5100s at 1.75 and the TSB
    That looks real good. Is it steel or alum?

  4. Sep 12, 2009 at 8:22 PM
    #4
    tooblutacoma06

    tooblutacoma06 [OP] Member

    Joined:
    Apr 26, 2007
    Member:
    #1426
    Messages:
    289
    Gender:
    Male
    First Name:
    Kellon
    Houston
    Steel. The round tube is EMT conduit, and the rectangular tube is 16ga steel.

  5. Sep 12, 2009 at 8:24 PM
    #5
    fletch aka

    fletch aka www.BeLikeBrit.org

    Joined:
    Jan 4, 2009
    Member:
    #12223
    Messages:
    7,103
    Gender:
    Male
    First Name:
    Gary
    Left Coast
    Vehicle:
    09 Magnetic Gray TRD OffRoad
    TRD cat back exhaust, TRD Cold Air Intake, differential breather mod' Hellwig rear sway bar, 16x8 TRD Ivan Stewart's, Michelin LTX A/T2, DTRL Stealth Mode Mod, custom "Texas Edition" shift knob, Sock's "Classic" bedside decals, MetalMiller custom grill emblem, 20% front tinted windows, tinted taillights, Viper alarm, ScanGauge II, Flyzeye Designs V2W Tacoma Interior LED lighting, de-mud flapped, de-badged, extra D-rings under bed bolts, WeatherTech ED floor mats, G4 Elite Fold a Cover ,Toyota bed mat, tailgate theft deterrent device and absolutely no plasti-dip!
    :popcorn:
    I like it so far, can't wait to see the finished product.

  6. Sep 12, 2009 at 8:34 PM
    #6
    ilovetacos

    ilovetacos Well-Known Member

    Joined:
    Jan 27, 2008
    Member:
    #4464
    Messages:
    2,316
    Gender:
    Male
    First Name:
    Gavin
    Sacramento/Woodland
    Vehicle:
    2006 TRD Sport 4x4 DC
    Sold!
  7. Sep 14, 2009 at 9:03 PM
    #7
    tooblutacoma06

    tooblutacoma06 [OP] Member

    Joined:
    Apr 26, 2007
    Member:
    #1426
    Messages:
    289
    Gender:
    Male
    First Name:
    Kellon
    Houston

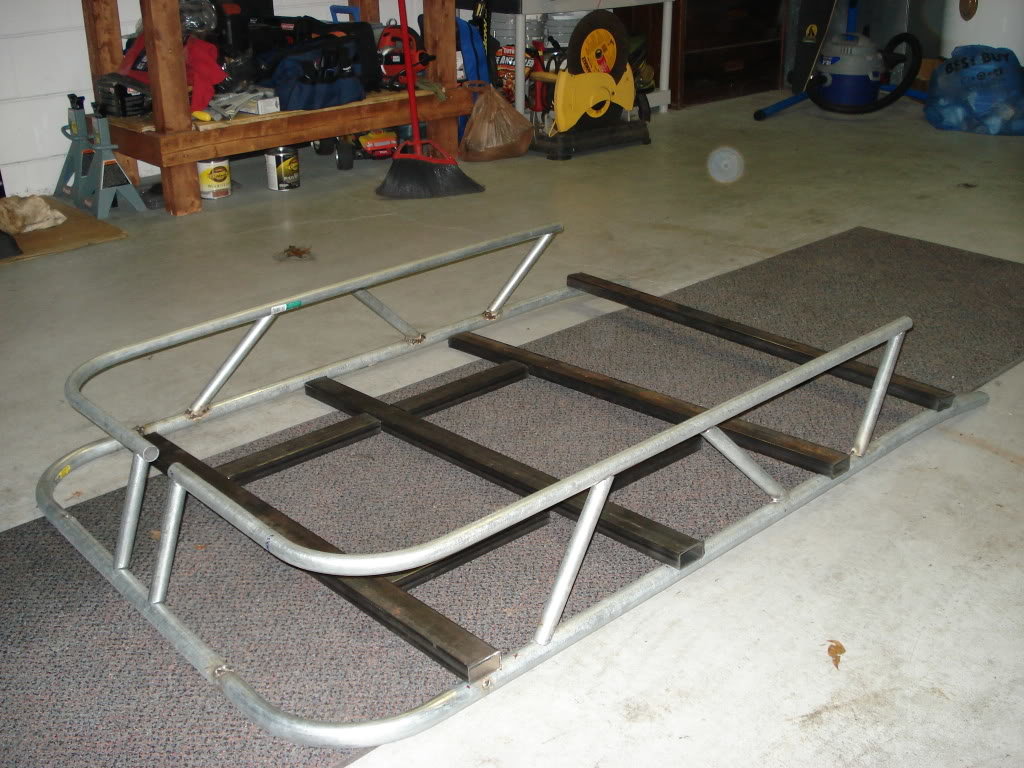

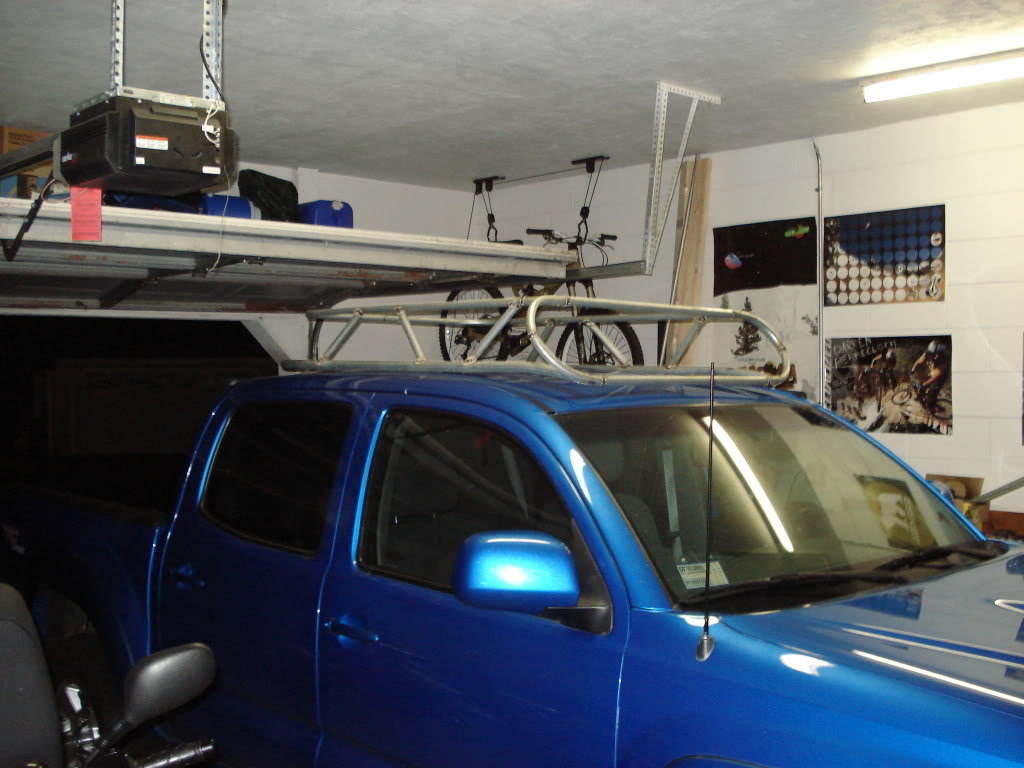

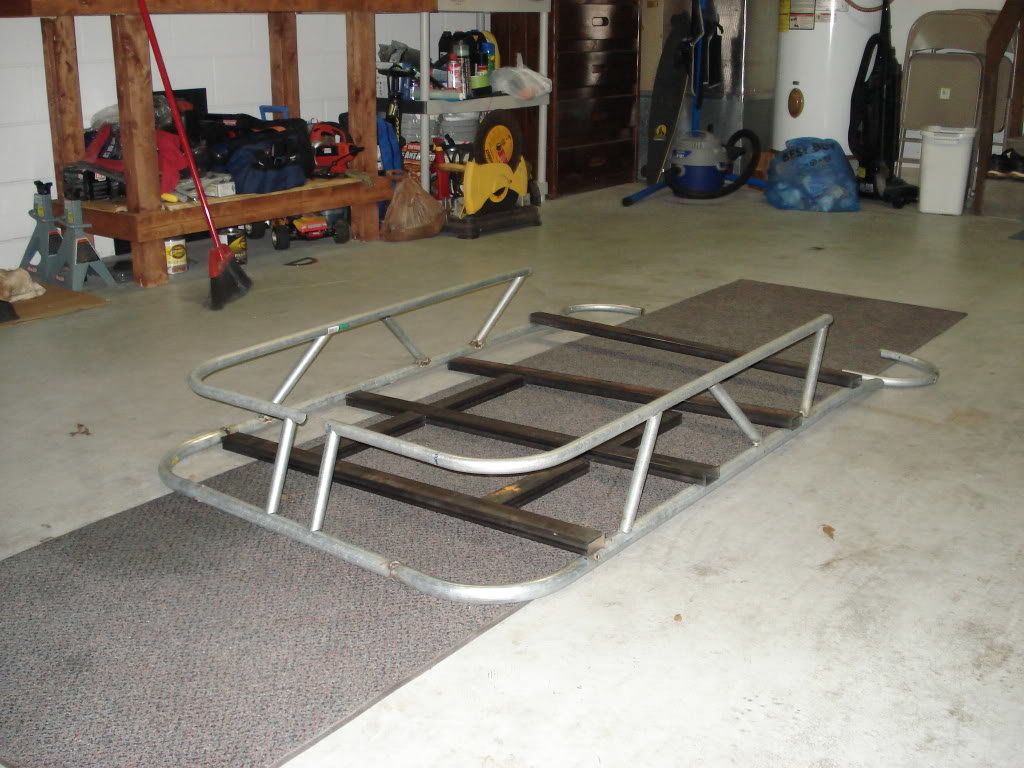

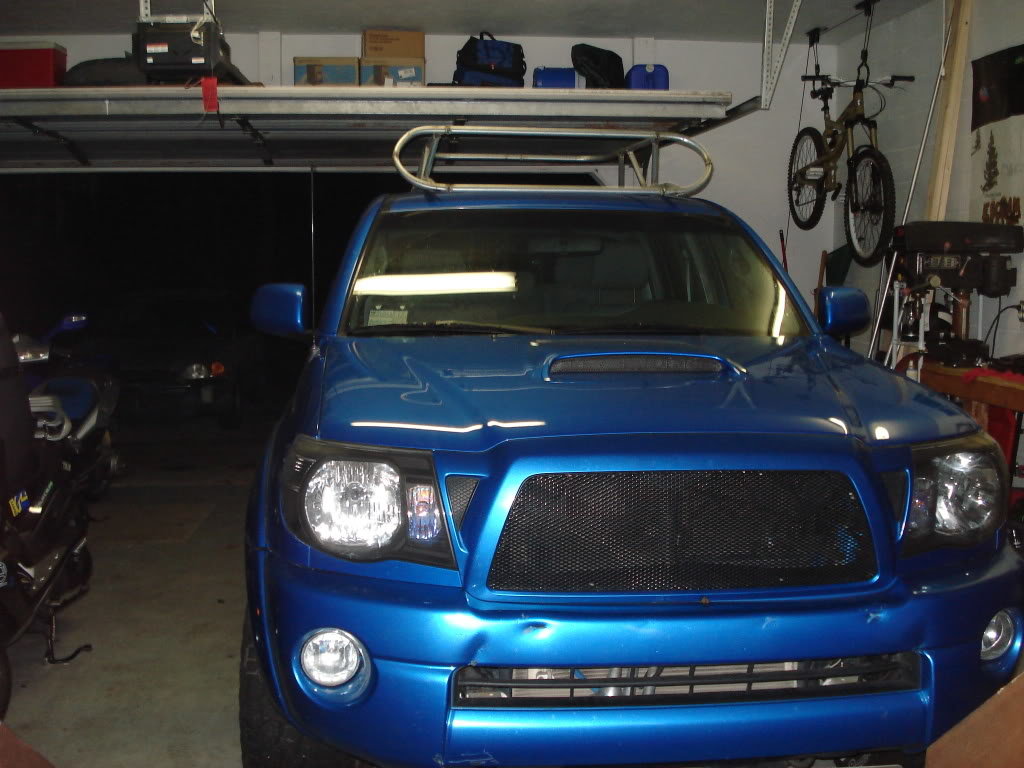

    Here's a little update guys. Sorry for the crummy pics.
    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    It's coming along!

  8. Sep 14, 2009 at 9:04 PM
    #8
    TacoNut

    TacoNut IgnoringChrisWatchingEdLi veVicariouslyThroughMJP2

    Joined:
    Mar 29, 2008
    Member:
    #5597
    Messages:
    5,243
    Gender:
    Male
    First Name:
    Adam
    Denver, Co
    Vehicle:
    16 TRD OR DCSB Quicksand
    very nice, good job!

  9. Sep 14, 2009 at 9:59 PM
    #9
    MotoTacoma

    MotoTacoma Adrenaline Addict

    Joined:
    Jan 16, 2009
    Member:
    #12653
    Messages:
    1,047
    Gender:
    Male
    Pencilveineeya
    Vehicle:
    14 tundra crewmax trd
    tacoma sold 11/13/13 Not much on Tundra yet, just Husky Weatherbeaters front and back

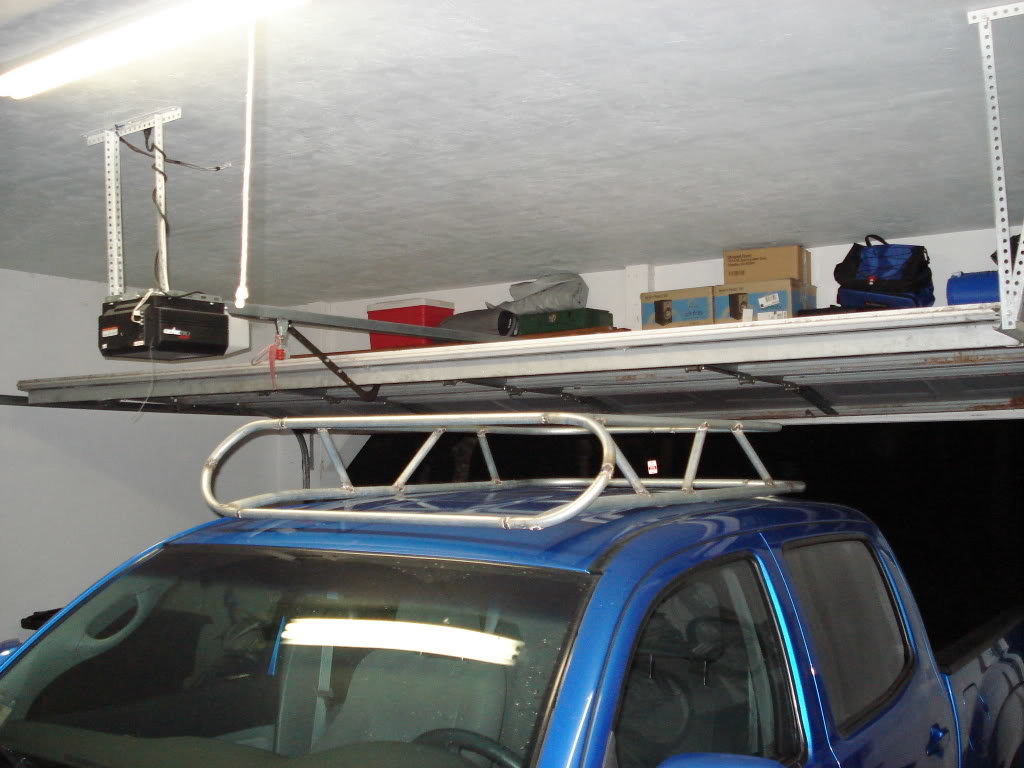

    looks great... that's a tight squeeze under the garage door! haha

    good work

  10. Sep 15, 2009 at 3:52 AM
    #10
    sriley727

    sriley727 Well-Known Member

    Joined:
    May 3, 2009
    Member:
    #16735
    Messages:
    148
    Gender:
    Male
    Aiken, SC
    Vehicle:
    08 Reg cab PreRunner SR5
    Bone stock
    Wish I knew how to weld...:(

  11. Sep 15, 2009 at 4:12 AM
    #11
    ph16drive

    ph16drive \m/.....\m/

    Joined:
    Jan 21, 2008
    Member:
    #4360
    Messages:
    559
    Gender:
    Male
    First Name:
    Paul
    Clevelandish
    Vehicle:
    08 DC, V6, 4x4, 5-Speed Auto
    Shorty antenna, Pop-&-Lock tailgate lock, Undercover bed cover, Aeroforce Interceptor gauge (custom mount), bed mat, AFE Pro Dry S air filter, map light mod, suspension TSB, Billy 5100's all around, Eibach springs, custom fuel tank armor plate, custom cat armor plate, painted front brake calipers, Grillcraft MX upper grill & Hella 500s, ipod adapter, dash pushbutton garage door opener, aux reverse lights, custom ipod nano 4G mount, seatbelt chime mod, custom bull bar w/ (3) Lightforce 140 Lance lights, POR-15 Chassis Coat Black drivetrain, illum 4x4 switch, xtra bed D-rings mod, locker anytime mod, diff breather relocation mod, ABS disable switch mod, Heated seats
    Looks great so far, can't wait to see it with the lights in it. Is that designed in Solidworks?

  12. Sep 15, 2009 at 4:28 AM
    #12
    kasey200

    kasey200 Well-Known Member

    Joined:
    May 29, 2008
    Member:
    #6949
    Messages:
    198
    Gender:
    Male
    south dakota
    Vehicle:
    07 TRD Dboubl Cab Longbed
    3" toytec, 285 BFG AT's
    looks like mine. i like how you used rectangular tubing for the base.

    [​IMG]

  13. Sep 15, 2009 at 5:29 AM
    #13
    tooblutacoma06

    tooblutacoma06 [OP] Member

    Joined:
    Apr 26, 2007
    Member:
    #1426
    Messages:
    289
    Gender:
    Male
    First Name:
    Kellon
    Houston
    Hey man! Yours ofcourse was my inspiration. I had to make some changes in my design. It was really difficult getting the light hoop how I wanted it in the original design, so I wound up making it look like a continuous bend. Bending conduit the way you want it takes some practice.

    I went with the rectangular cross-braces so that I could mount stuff to it easier in the future.

  14. Sep 15, 2009 at 5:31 AM
    #14
    tooblutacoma06

    tooblutacoma06 [OP] Member

    Joined:
    Apr 26, 2007
    Member:
    #1426
    Messages:
    289
    Gender:
    Male
    First Name:
    Kellon
    Houston

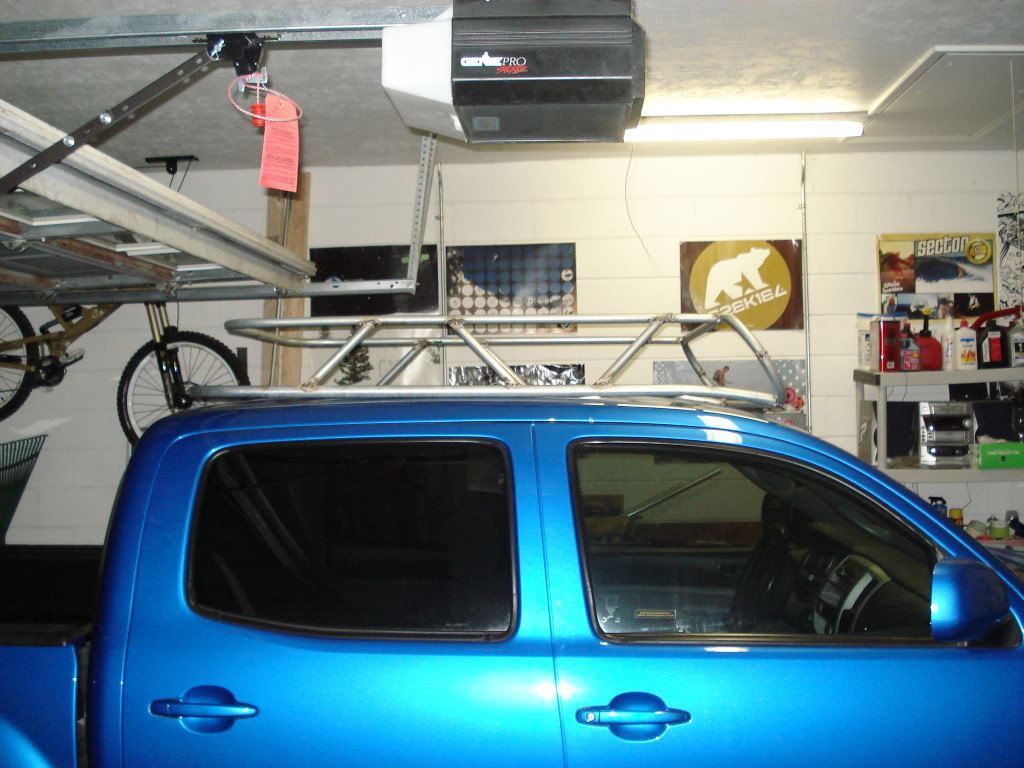

    The angle of the picture makes it look tighter than it is. It will be a very tight squeeze though. I think once the cross bars are mounted I'll have about 2 inches of clearance.

  15. Sep 15, 2009 at 10:18 AM
    #15
    kasey200

    kasey200 Well-Known Member

    Joined:
    May 29, 2008
    Member:
    #6949
    Messages:
    198
    Gender:
    Male
    south dakota
    Vehicle:
    07 TRD Dboubl Cab Longbed
    3" toytec, 285 BFG AT's
    i would strongly suggest putting a piece of plexiglass or something similar over the lights to double as a fering. the wind noise off the lights was unbearable without it.

    [​IMG]

  16. Sep 15, 2009 at 4:08 PM
    #16
    tooblutacoma06

    tooblutacoma06 [OP] Member

    Joined:
    Apr 26, 2007
    Member:
    #1426
    Messages:
    289
    Gender:
    Male
    First Name:
    Kellon
    Houston

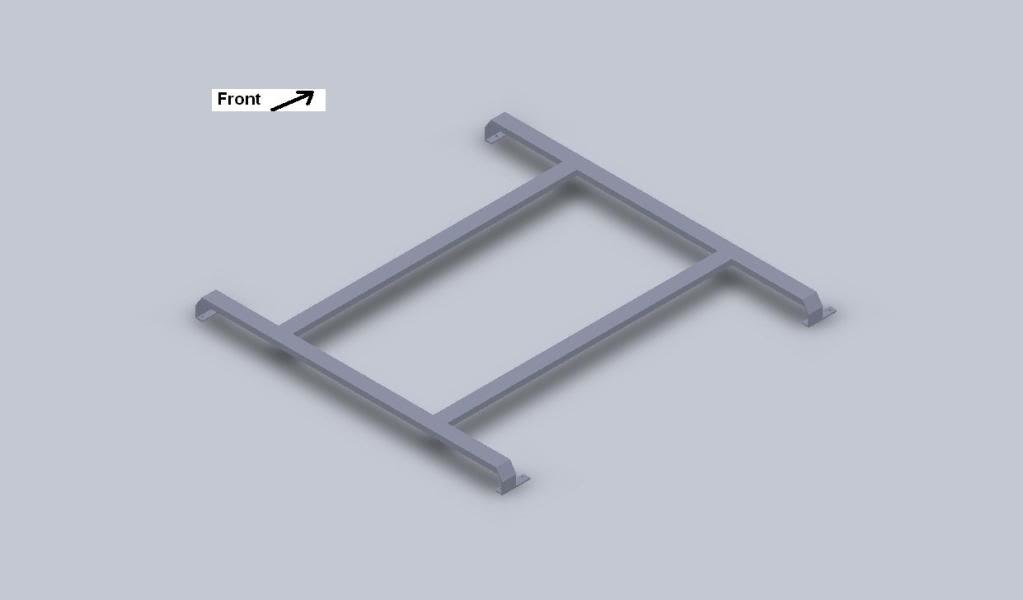

    Here's a quick sketch of the crossbars I plan on building to mount the basket too. The crossbars will be mounted to the existing M6 holes in the roof. I'm gonna mount the basket in a way that it will be easily removeable. There will have to be some contours build into the crossbars that I don't have expressed on the drawing(for time sake) but that will be handled while building.

    [​IMG]

  17. Sep 15, 2009 at 4:39 PM
    #17
    Incognito

    Incognito μολὼν λαβέ

    Joined:
    May 25, 2009
    Member:
    #17626
    Messages:
    13,625
    Gender:
    Male
    First Name:
    Colton
    VA
    Vehicle:
    2012 Pyrite AC TRD OR
    See Build thread
    Can't wait to see the finished product. :thumbsup:

  18. Sep 16, 2009 at 11:53 AM
    #18
    bk1

    bk1 Well-Known Member

    Joined:
    Nov 9, 2008
    Member:
    #10614
    Messages:
    100
    Gender:
    Male
    Lower Mainland, BC
    Vehicle:
    08 Tacoma TRD Sport
    ProComp Stage 2 6" lift, AAL, Heated Mirrors, DVD/NAV, Amp & Subs, Fog Light Mod, Rear Diff breather. WeatherTech Mats, Soft Tonneau Cover, 33" TrXus M/T, M8000 Winch & Bumper, CB, Rock/suspension Lighting and a whole lot more Soon to come rear Locker and more....
    subscribed :)

  19. Oct 11, 2009 at 8:41 PM
    #19
    tooblutacoma06

    tooblutacoma06 [OP] Member

    Joined:
    Apr 26, 2007
    Member:
    #1426
    Messages:
    289
    Gender:
    Male
    First Name:
    Kellon
    Houston
    Small little update. Everything is done on the basket except cleaning up the welds and obviously paint. I think it's turning out awesome! Let me know what you guys think!

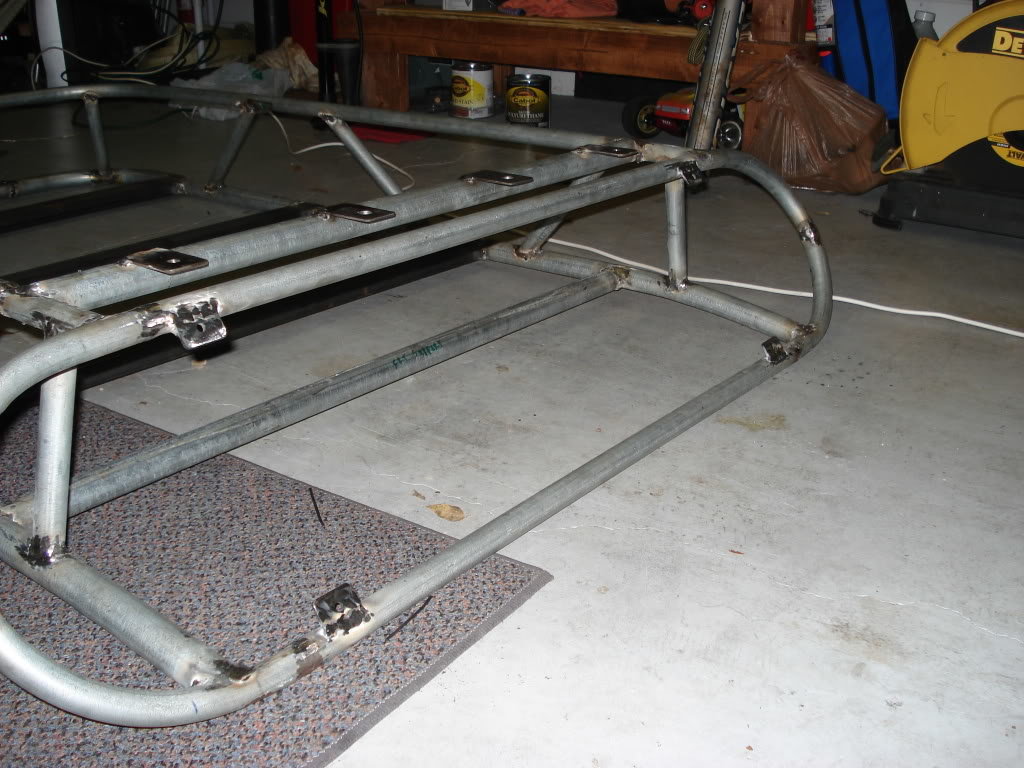

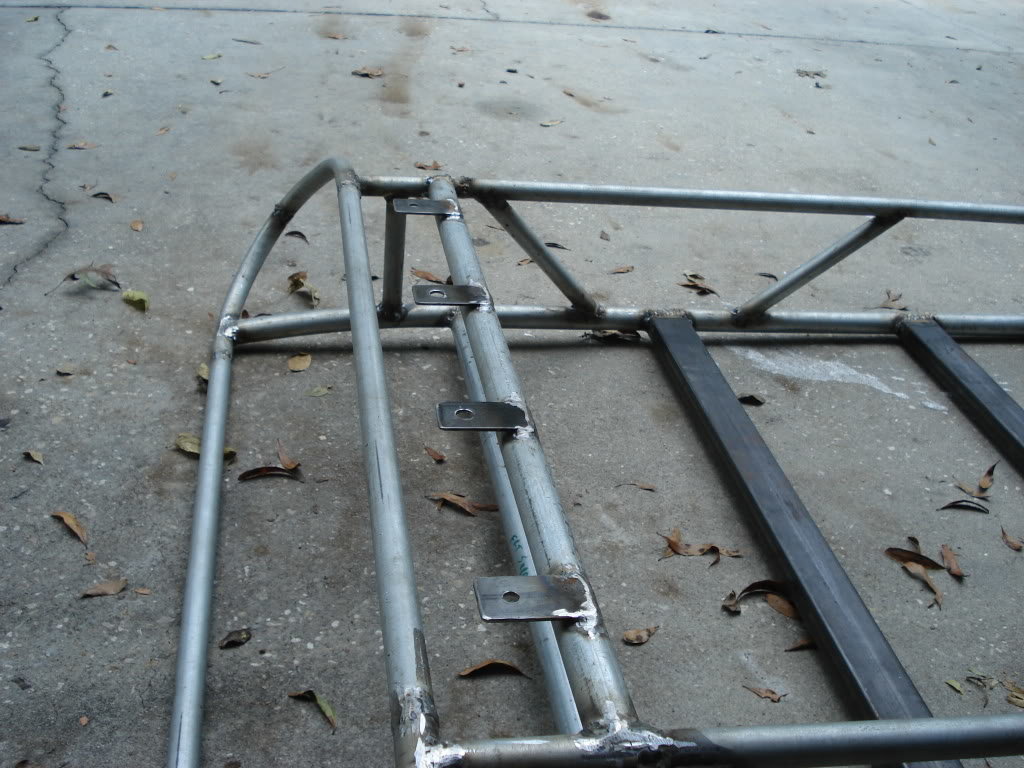

    Light tabs:
    [​IMG]

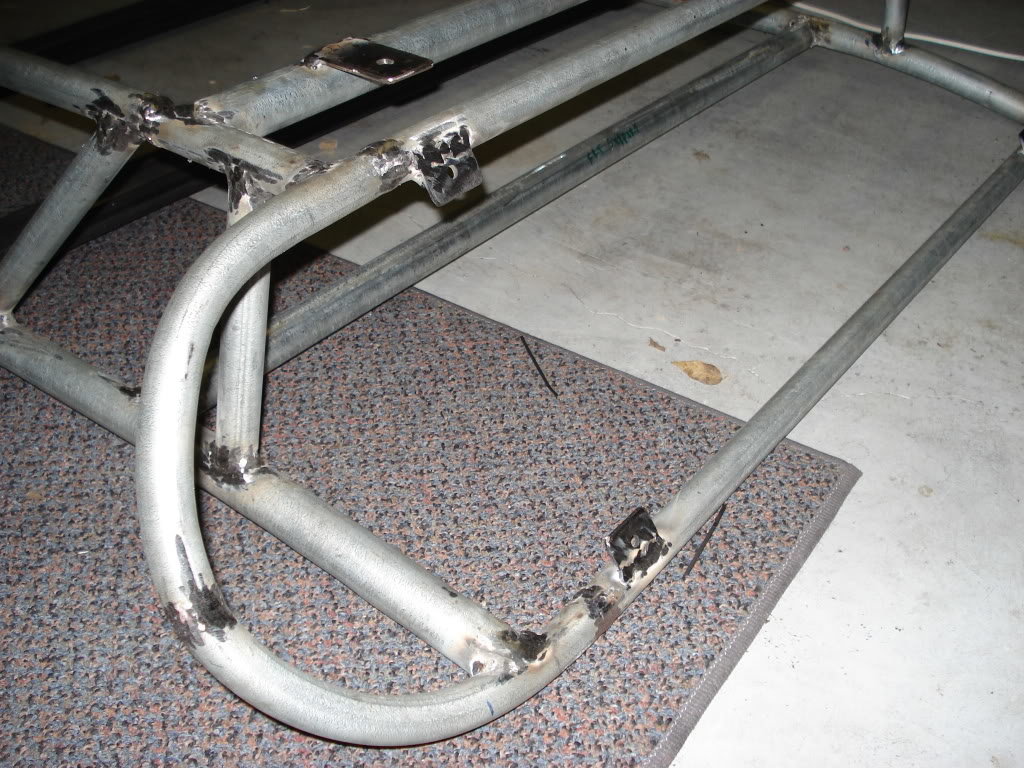

    Tabs for bolting on the ferring:
    [​IMG]

    [​IMG]

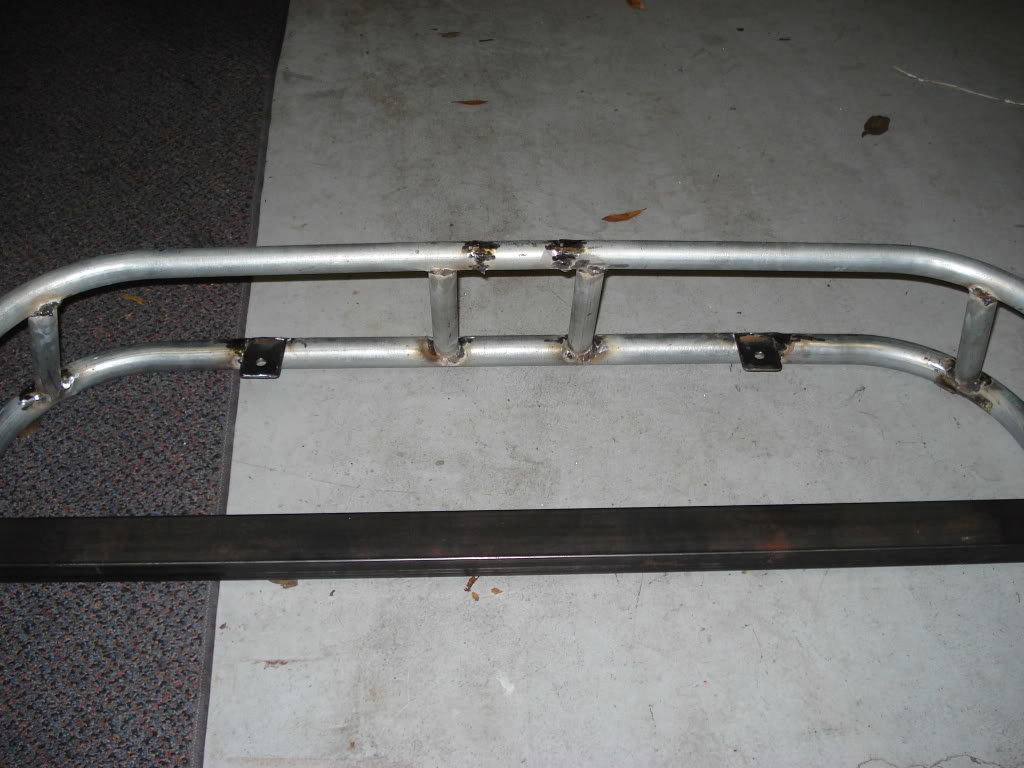

    Tabs for rear lights if I decide to add them later:
    [​IMG]

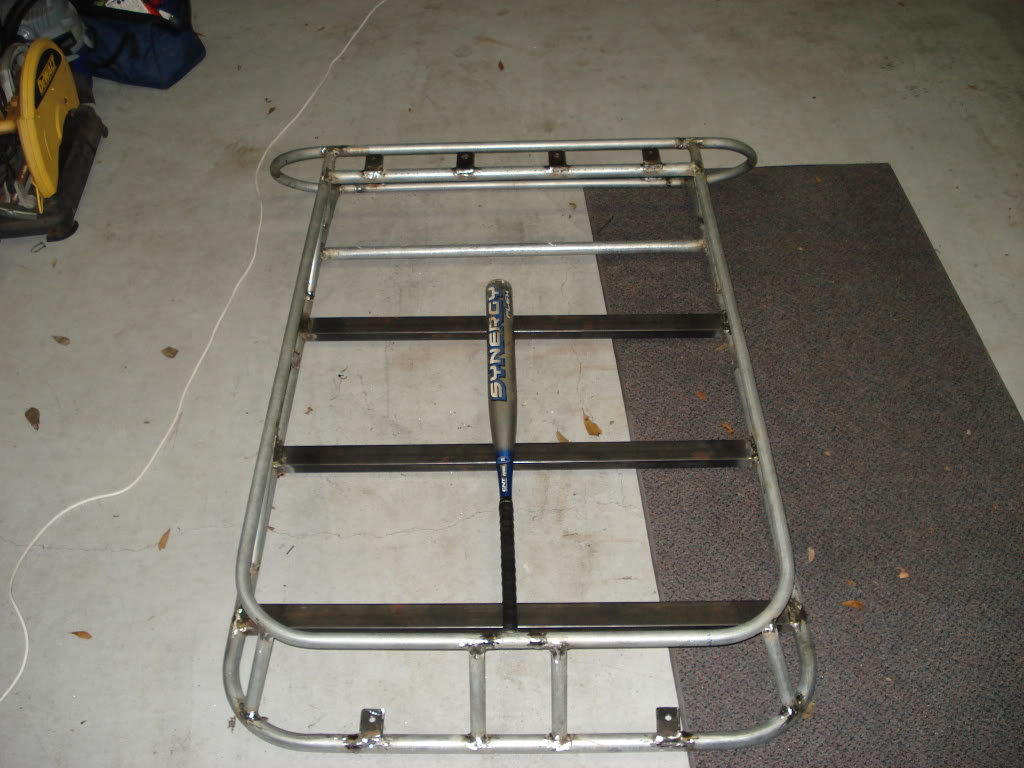

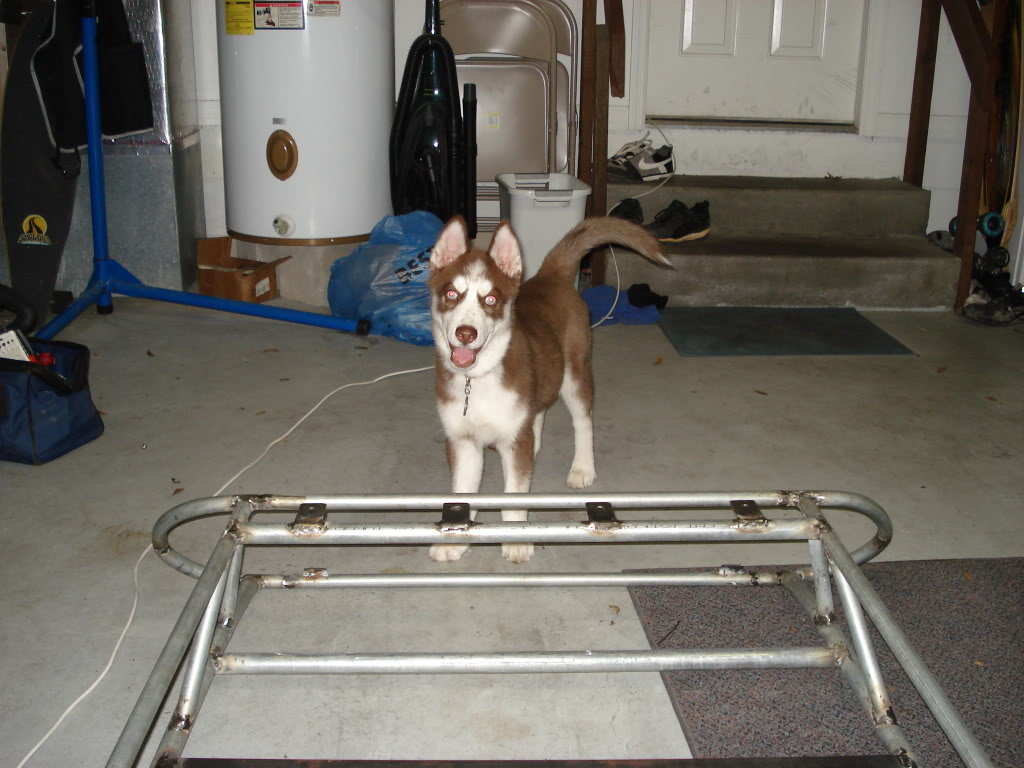

    Use the bat for scale
    [​IMG]

    The puppy approves!
    [​IMG]

  20. Oct 11, 2009 at 8:43 PM
    #20
    NumNutz

    NumNutz One of the original 7928

    Joined:
    Jul 14, 2008
    Member:
    #7928
    Messages:
    4,845
    Gender:
    Male
    Virginia Beach, VA
    Vehicle:
    07 Tacoma 4x4 - Kings, TC, Dakars, broken stuff
    Lots.
    Great rack and cute pup
