Custom Spare Tire Lock

Discussion in '1st Gen. Tacomas (1995-2004)' started by Rusty White Taco, Jul 6, 2011.

  1. Jul 6, 2011 at 7:20 PM
    #1
    Rusty White Taco

    Rusty White Taco [OP] Active Member

    Joined:
    Jul 14, 2010
    Member:
    #40173
    Messages:
    41
    Gender:
    Male
    Central Coast, CA
    Vehicle:
    04 4x4 Xtra Cab TRD Offroad SR5
    Debadged, Front 5100s at 2.5, 1" rear shackle lift, 5125s in the rear, trimmed exhaust pipe
    I searched and searched, but couldn’t find what I consider to be a good solution for a spare tire lock. It seems as though Winchlock was the closest to a “good” solution that I could find, but they appear to have gone out of business and their products are no longer available. With that in mind, and knowing that I have a $200 tire and a $200 wheel free for the taking, I set out to make a “good” spare tire lock on my own. Here’s what I came up with:

    I bought a MasterLock 5/8” hitch receiver lock.

    [​IMG]

    I took some scrap steel (some flat bar and some angle iron) I had laying around and made a U-shaped bracket, with two mounting holes in the legs of the “U” (for bolting to the frame cross member) and a 11/16” hole in the bottom of the “U” (for putting the shaft of the hitch receiver lock through). I welded it all together (including welding the hitch receiver lock shaft to the bottom of the “U”), gave it a coat of paint, drilled the appropriate holes in the frame, and bolted it up. Here are the results:

    View from passenger’s side, without the tire pulled up (obviously):

    [​IMG]

    [​IMG]

    View from the driver’s side, without the tire pulled up (obviously):

    [​IMG]

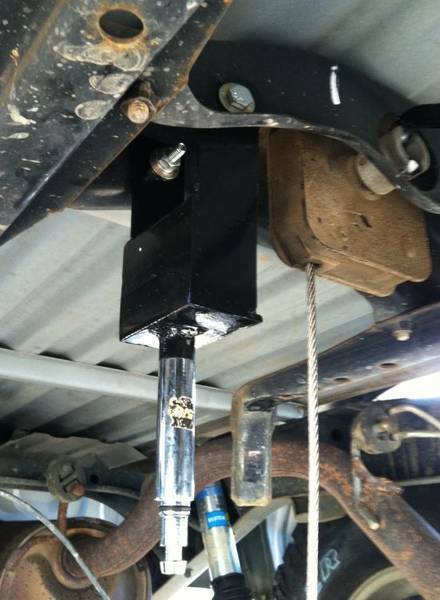

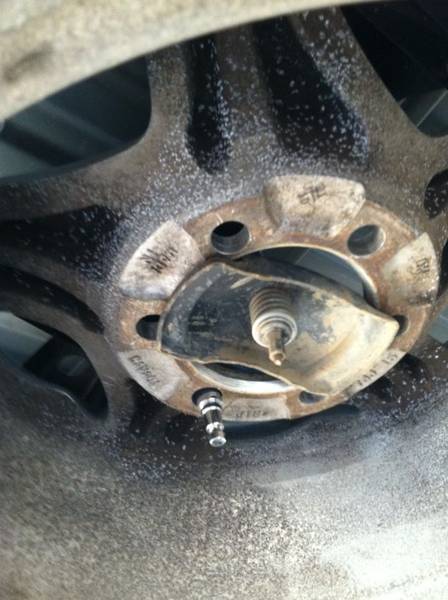

    View of the tire pulled up (notice the lock shaft sitting nicely through the lug hole):
    [​IMG]

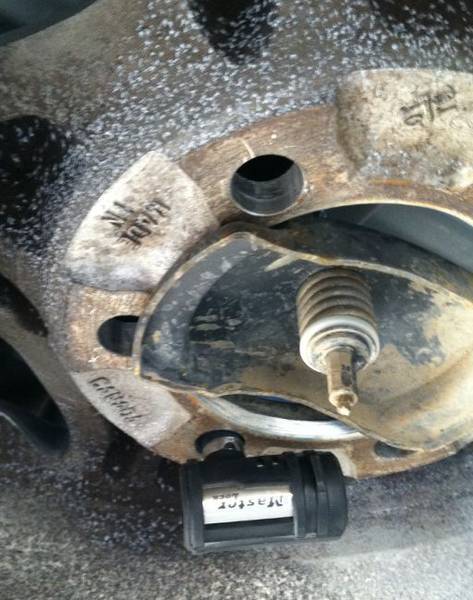

    View of the lock actually locked:
    [​IMG]

    [​IMG]

    This was a $12.50 solution ($12 of which was the lock, $0.50 was scrap steel) and works as good as, if not better than, any other solution out there (i.e. a cable lock, which can be cut, etc.). I tried to get the spare tire off without unlocking the lock and it’s virtually impossible (extreme exceptions aside). I hope this helps someone do the same.

  2. Jul 6, 2011 at 7:25 PM
    #2
    bowyer2002

    bowyer2002 always tinkering

    Joined:
    Sep 4, 2009
    Member:
    #22295
    Messages:
    318
    Gender:
    Male
    NE Missouri
    Vehicle:
    01 Taco SR5 D-cab 4WD
    OME 882s, OME shocks all around and OME Dakar spring packs, ARB, Warn 8000, ARE shell, Custom rear bumper w/ reciever, 5-235/80R17 Cooper Discoverer ST MAXX on FJ wheels, grey wire mod, Hi-Lift, Hellas, Red-Line hood lifters, Scion radio, sliders, Safari snorkel & LED Ditch lights on CBI mounts.
    Great idea!
    Very innovative!

  3. Jul 6, 2011 at 7:41 PM
    #3
    Rustyota

    Rustyota well.....

    Joined:
    Oct 12, 2009
    Member:
    #24194
    Messages:
    152
    Gender:
    Male
    Central Coast, CA
    Vehicle:
    08 4x4 DC long bed
    debadged, rear spring TSB, leveled with Bilstein 5100s at 1.75", Goodyear Duratrac 265/75/r16, Leer shell with Yakima rack
    That's an awesome solution!! Wanna build one for me?? I'd be willing to pay for that!

  4. Jul 6, 2011 at 7:55 PM
    #4
    Rusty White Taco

    Rusty White Taco [OP] Active Member

    Joined:
    Jul 14, 2010
    Member:
    #40173
    Messages:
    41
    Gender:
    Male
    Central Coast, CA
    Vehicle:
    04 4x4 Xtra Cab TRD Offroad SR5
    Debadged, Front 5100s at 2.5, 1" rear shackle lift, 5125s in the rear, trimmed exhaust pipe
    Thanks man! I appreciate the feedback.

    Yeah, we can build one. We can have a wrenching day and we'll make one for a 2nd gen and post that build...

  5. Jul 6, 2011 at 8:42 PM
    #5
    NegroTundra

    NegroTundra Well-Known Member

    Joined:
    Oct 25, 2010
    Member:
    #45227
    Messages:
    657
    Gender:
    Male
    Land of Enchantment
    Vehicle:
    03 Tacoma TRD 4WD 5 spd
    This is what the forum is about...nice to see someone taking action and not whining.....great job and points for sure

  6. Jul 7, 2011 at 9:13 AM
    #6
    Rustyota

    Rustyota well.....

    Joined:
    Oct 12, 2009
    Member:
    #24194
    Messages:
    152
    Gender:
    Male
    Central Coast, CA
    Vehicle:
    08 4x4 DC long bed
    debadged, rear spring TSB, leveled with Bilstein 5100s at 1.75", Goodyear Duratrac 265/75/r16, Leer shell with Yakima rack
    Awesome! I'm in!!!

  7. Jul 7, 2011 at 1:36 PM
    #7
    Rusty White Taco

    Rusty White Taco [OP] Active Member

    Joined:
    Jul 14, 2010
    Member:
    #40173
    Messages:
    41
    Gender:
    Male
    Central Coast, CA
    Vehicle:
    04 4x4 Xtra Cab TRD Offroad SR5
    Debadged, Front 5100s at 2.5, 1" rear shackle lift, 5125s in the rear, trimmed exhaust pipe
    Thanks!!!

  8. Sep 9, 2011 at 5:48 PM
    #8
    jiveturkee

    jiveturkee Active Member

    Joined:
    Sep 28, 2010
    Member:
    #43933
    Messages:
    26
    Gender:
    Male
    First Name:
    Jake
    bay area, Ca
    Vehicle:
    '11 T|X Pro
    TRD short shift
    A great solution to a common problem. I wish I seen this thread before my spare was stolen. If you are down to make these I'm interested in buying one before my replacement spare gets lifted too. How much would you want to make one for me?

  9. Sep 22, 2011 at 10:19 AM
    #9
    Rusty White Taco

    Rusty White Taco [OP] Active Member

    Joined:
    Jul 14, 2010
    Member:
    #40173
    Messages:
    41
    Gender:
    Male
    Central Coast, CA
    Vehicle:
    04 4x4 Xtra Cab TRD Offroad SR5
    Debadged, Front 5100s at 2.5, 1" rear shackle lift, 5125s in the rear, trimmed exhaust pipe
    I won't have access to a 2nd gen until November. Once I make that one, I'll let you know if I would be able to make some and, if so, how much it would cost. Stay tuned...

  10. Oct 7, 2011 at 7:52 AM
    #10
    aznutx

    aznutx Well-Known Member

    Joined:
    Aug 25, 2011
    Member:
    #62372
    Messages:
    496
    Gender:
    Male
    DFW Texas
    Vehicle:
    2011 White TRD
    sub'd i might be in for one too depending on price, btw awesome job

  11. Jan 8, 2012 at 12:04 AM
    #11
    csjumper2003

    csjumper2003 Jumper's Leds Vendor

    Joined:
    Apr 8, 2011
    Member:
    #54596
    Messages:
    4,639
    Gender:
    Male
    First Name:
    Chris
    San Diego, Poway
    Vehicle:
    2014 SSM Trd Off Road 4x4 Auto
    Subd Definetely interested. Was about to buy the factory lock Toyota has came up with.

  12. Jan 31, 2012 at 4:29 PM
    #12
    jiveturkee

    jiveturkee Active Member

    Joined:
    Sep 28, 2010
    Member:
    #43933
    Messages:
    26
    Gender:
    Male
    First Name:
    Jake
    bay area, Ca
    Vehicle:
    '11 T|X Pro
    TRD short shift
    Did you ever get your hands on a second gen?

  13. Jan 31, 2012 at 8:38 PM
    #13
    twfsa

    twfsa Well-Known Member

    Joined:
    May 29, 2010
    Member:
    #37997
    Messages:
    1,343
    Gender:
    Male
    First Name:
    Tom
    Omaha Ne
    Vehicle:
    04 TRD 4X4
    881 Front coils, Bilstien 5100's all the way front set to "0" Icon Dynamic's mini leafs in rear, stock tires.
    Good idea if you are going to steal a spare off a Tacoma you need the crank, I don't know if there all interchangeable or not, why not bolt a chain to the frame where the bracket is bolted in the first picture let the chain it fall thru a hole in the wheel, as you crank the spare up, loop it thru the wheel again and padlock it.

  14. Feb 1, 2012 at 7:30 AM
    #14
    Madjik_Man

    Madjik_Man The Rembrandt of Rattle Can

    Joined:
    Dec 2, 2009
    Member:
    #26893
    Messages:
    10,649
    Gender:
    Male
    Boulder, CO
    Vehicle:
    1998 Ext Cab 4x4 TRD 5MT sunfire red pearl
    About 25 pounds of spray paint and vinyl dye

    I love this website and community

  15. Feb 1, 2012 at 7:48 AM
    #15
    BAMFTACO

    BAMFTACO Pabst Blue Ribbon on ice

    Joined:
    Feb 3, 2010
    Member:
    #30639
    Messages:
    9,751
    Gender:
    Male
    First Name:
    JUAN
    Malibu, CA
    Vehicle:
    Taco
    Lift- stock suspension with light racing uppers,tc coil bucket gusset, timbern bumps ,defined extended shackles with shackle brace. Armor- custom tube bumper, kr fab rear bumper,trail gear wiy 78 in sliders Performance-intake manifold spacer, vibrant resonator Random stuff- kenwood head unit,b&m t shifter, hood bug deflector.
    Nicw that's a great idea and good write up

  16. Feb 1, 2012 at 7:50 AM
    #16
    Manwithoutaplan

    Manwithoutaplan the full Monty

    Joined:
    Jan 30, 2008
    Member:
    #4500
    Messages:
    46,518
    Gender:
    Male
    ID
    Vehicle:
    07 Tacoma Speedway Blue Trd 4x4
    -Nitro 4.56 gears - Arb Front and Rear lockers. -Rear Swing out bumper Curiosity of ( Dept .94) https://www.facebook.com/Dept94 -Tinted, -ProComp 6 inch lift with Icon Coil overs and Bilstein's 7100Resi -315/70/17 - 17x8 in Pro Comp Matte black rims 4.5 bs -East Coast Gear Supply Sliders -ALL Pro EXP LEaf pack -Camburg UCA's -CAB mount CHOP
  17. Feb 1, 2012 at 8:22 AM
    #17
    jackhart

    jackhart Well-Known Member

    Joined:
    Oct 30, 2011
    Member:
    #66123
    Messages:
    704
    Gender:
    Male
    Vehicle:
    11 DCLB
    I actually work for Master Lock, and I think this is a great idea!! Glad to see our products at work in new and extremely useful ways.

  18. Mar 19, 2012 at 4:22 PM
    #18
    tractng

    tractng Well-Known Member

    Joined:
    Sep 9, 2010
    Member:
    #42969
    Messages:
    454
    Gender:
    Male
    Would a cable with a lock work? I got a set from walmart but never look down on the tacoma. I am basing on the past car I had. I am thinking of wrapping the cable around the spare tire and chaining it to the "chain" (the one that hoists the spare up and down) that comes with the truck.

    Any feedback on this?

  19. Jan 6, 2013 at 8:02 AM
    #19
    libagui

    libagui Well-Known Member

    Joined:
    Feb 16, 2009
    Member:
    #13689
    Messages:
    136
    Gender:
    Male
    Dominican Republic
    Vehicle:
    05 tacoma prerunner
    None
    I just build this for my wife 4runner..!


  20. Jan 6, 2013 at 9:03 AM
    #20
    BAMFTACO

    BAMFTACO Pabst Blue Ribbon on ice

    Joined:
    Feb 3, 2010
    Member:
    #30639
    Messages:
    9,751
    Gender:
    Male
    First Name:
    JUAN
    Malibu, CA
    Vehicle:
    Taco
    Lift- stock suspension with light racing uppers,tc coil bucket gusset, timbern bumps ,defined extended shackles with shackle brace. Armor- custom tube bumper, kr fab rear bumper,trail gear wiy 78 in sliders Performance-intake manifold spacer, vibrant resonator Random stuff- kenwood head unit,b&m t shifter, hood bug deflector.
    That's a neat little idea. It will probably look better once you grind the welds and paint it

To Top
