Custom Switch Panels

Damn, I'm so tempted to add this to my MESO count

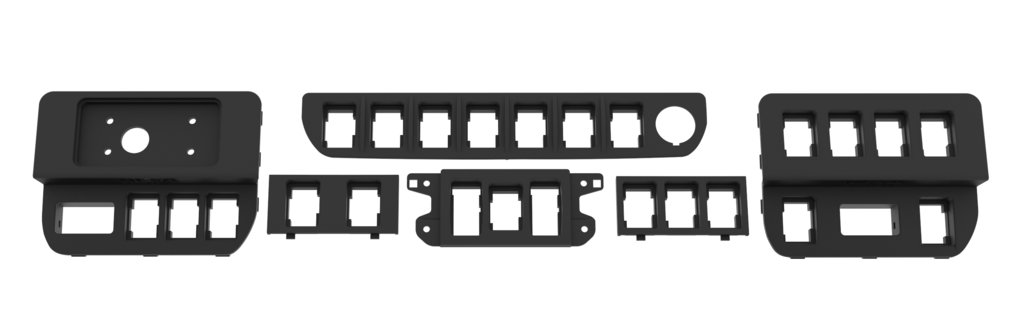

ALL SWITCH PANELS ARE LIVE AND AVAILABLE TO ORDER!
HERE



WOOHOO !!!!



I don't see the overhead middle switch panels.



I thought the same thing, they are in the overhead panel part and you can pick between the two hole and 3 hole



just bought the 3 switch overhead panel!! Thanks!



You're a fuckin mad man! How do u keep up



Thanks for the heads up.



hi @MESO

question on the lower switch panel, I have a 2020 TRD Pro with 6mt. My current setup has both rear window switch and the oem usb plug which is also different size than standard switch. Do you know if the usb will fit on your LSP7W, albeit with small a gap I could trim? Maybe there is a swappable oem like usb outlet you know of that would fit the standard hole and compatible with usb current plug? Any advice super appreciated if you’ve come across this before?

‘thanks in advance, love your products.



does anyone know if yall have any good solutions for the small Toyota switches. I need them for that overhead switch panel, but don't want to buy specific switches with labels on them because I don't really have anything to go in them yet. I just have an SPOD and wanted more places to put aux switches



You mean just blanks?



no not blanks, it just seems like every switch I can find has something written on it already, I just want a generic switch not with "fog light" written on it



You can try CH4x4. They have a custom option for switches. I guess the custom part will be blank.

https://www.ch4x4.com/product/ch4x4-custom-laser-etched-toyota-small-push-switches/



Thanks!!

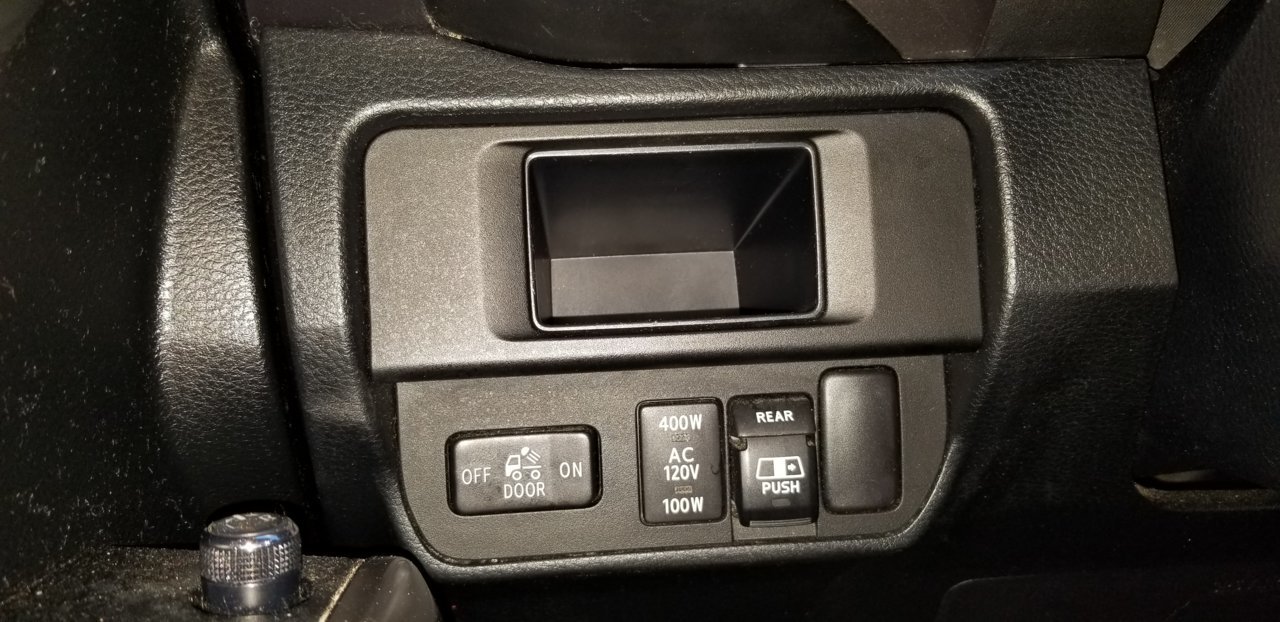

I'm pretty new to switches and such and am a little bit confused. I'm not sure what exactly I need to order. I have the puddle switch to install right now and nothing else but may want to add a couple of switches in the future for bed lights and maybe a front facing camera. Is the puddle switch a "B" ? I'm thinking I need the CP6. 1W but not sure. Here is a picture of my current setup. Any help would be greatly appreciated.



OK, thanks. Am I right to assume that most switches I would need in the future are going to be type C?

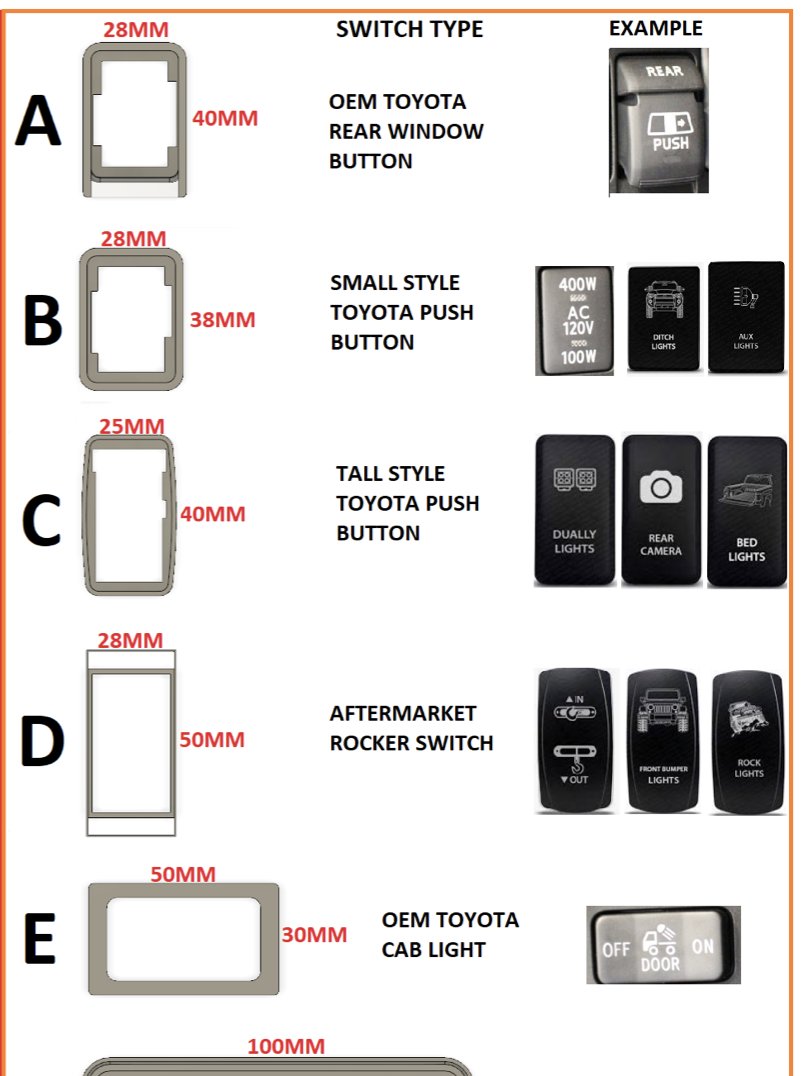

@birdieking33 I messed up my post with this diagram in it so ill post it again. It depends on what you are doing, the one blank one on your left side panel is gonna be type C, but im pretty sure all of the ones on the middle panel are type B or A.



Thank you sir. So my puddle switch should fit my blank then? That makes it easy for the short term.



also I found these last night

$12 iztor 12v Push Button Switch Blue LED Multi-Purpose Switches Waterproof Toggle Switch with 4 Wires Connector Kit for Various Toyota Tacoma Tundra FJ Cruiser Car Modification Start Switch Style

https://www.amazon.com/gp/product/B01NALRN74/ref=ppx_yo_dt_b_asin_title_o00_s00?ie=UTF8&psc=1 for the switches that ill use for the overhead panel. Generic and cheap, me likey



it should!
