Custom tiregate design/build

Discussion in '2nd Gen. Tacomas (2005-2015)' started by tooblutacoma06, Oct 29, 2010.

  1. Oct 29, 2010 at 9:24 AM
    #1
    tooblutacoma06

    tooblutacoma06 [OP] Member

    Joined:
    Apr 26, 2007
    Member:
    #1426
    Messages:
    289
    Gender:
    Male
    First Name:
    Kellon
    Houston
    After building my roof basket, I have had the itch to start another project. So I finally broke down and got a welder so I could work at home.

    This time, I designed a tiregate that would replace the existing tailgate. It will be a utility based tailgate once I'm finished with it. I'm still coming up with ideas of useful things to add to the gate without overloading my bushings. So far, I'll be adding a jerry can and a hi-lift jack to it. Also I want to fabricate a folding table that will deploy when the gate is opened for use when camping/tailgating.

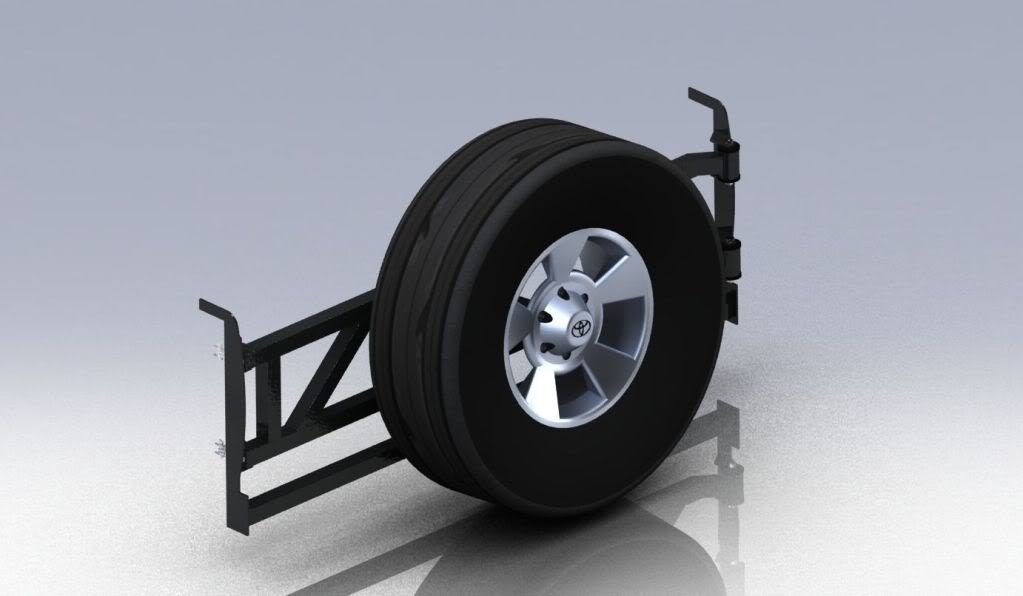

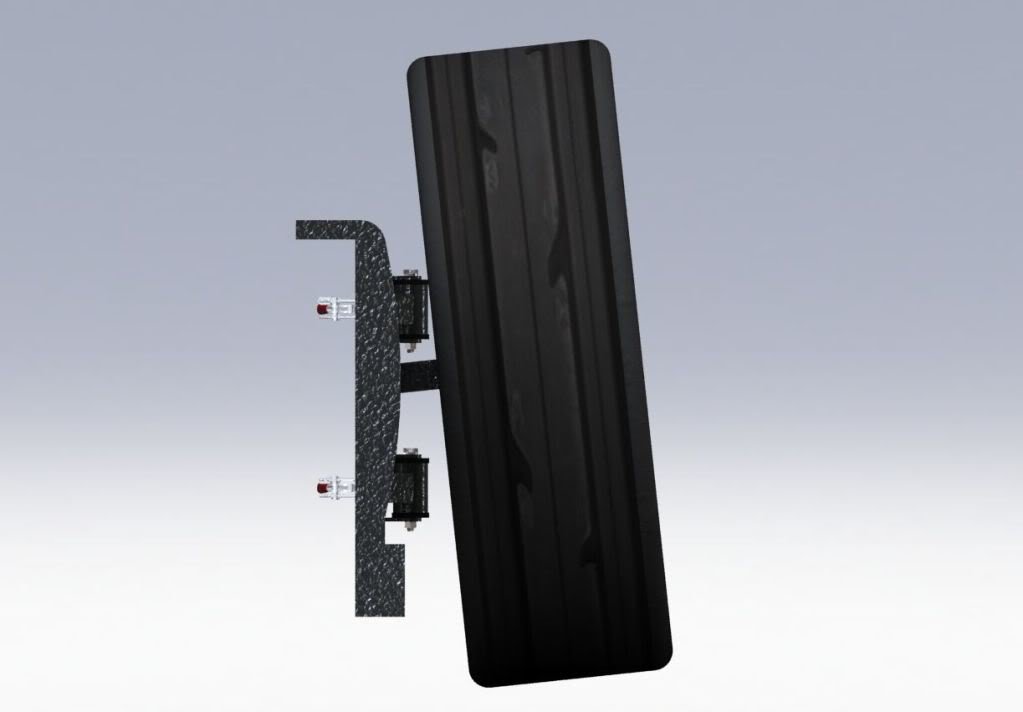

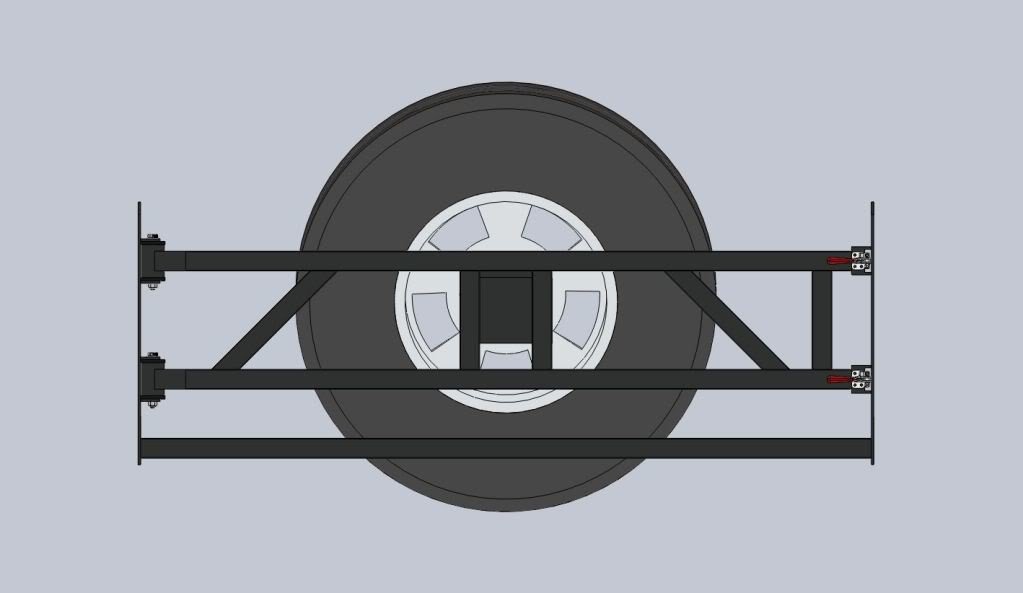

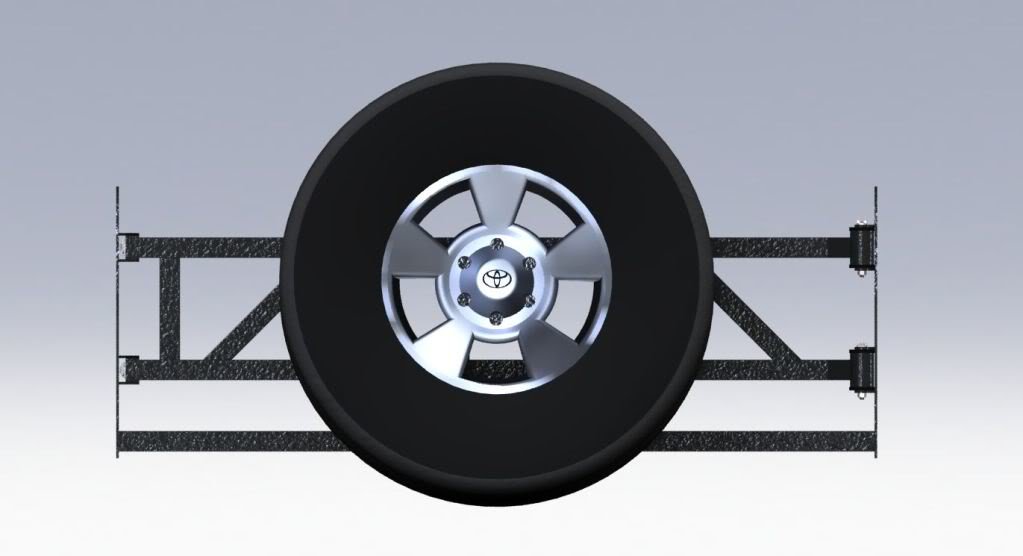

    Here's some preliminary design renderings of how it is proposed to look. I'm sure some aesthetic aspects will be altered once I start the fabrication but overall it will look similar.
    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    Fabrication will start this weekend. I'll update this thread as it's being built.

    Let me know what you guys think!

  2. Oct 29, 2010 at 9:25 AM
    #2
    1337Taco

    1337Taco Sold all 3

    Joined:
    May 9, 2008
    Member:
    #6504
    Messages:
    7,373
    Gender:
    Male
    First Name:
    Kevin
    NorCal
    Vehicle:
    2012 4x4
    Kings
    Nice, what program(s) did you use for the renderings?

  3. Oct 29, 2010 at 9:59 AM
    #3
    supataco

    supataco Shaq-enzy Falls

    Joined:
    Oct 3, 2010
    Member:
    #44145
    Messages:
    175
    Gender:
    Male
    First Name:
    Ichiro
    Oahu - Hawaii
    Vehicle:
    2010-SSM-AC-TRDSport-PreRunner
    -17" 4Runner Trail Wheels (265/70/17) -OEM Tube Steps -Tailgate Security Clamps -Trimmed Mudflaps -Bed Bar -Kobalt Box -Bed Mat -Toyota Mats
    Damn that's cool. :popcorn:

  4. Oct 29, 2010 at 10:12 AM
    #4
    tooblutacoma06

    tooblutacoma06 [OP] Member

    Joined:
    Apr 26, 2007
    Member:
    #1426
    Messages:
    289
    Gender:
    Male
    First Name:
    Kellon
    Houston
    Thanks! I use Solidworks. Awesome software.

    Saw your pics. Looks good! I would be doing something similar if I had a steel bumper. I will probably move to that later on. thanks for the input!

  5. Oct 29, 2010 at 10:36 AM
    #5
    KPT

    KPT sees what you did there.

    Joined:
    Sep 3, 2009
    Member:
    #22227
    Messages:
    32,339
    Gender:
    Male
    Vehicle:
    09 Prerunner
    Katskin leather interior, Satoshi grille, Bilstein 5100's @ 1.75, rear leaf TSB, magnaflow exhaust, 18x9 BBS RW's, 275/65/18 Nitto TG's, black headlights, black taillights, Hella Supertones, weathertechs, EFX tri-fold tonneau, n-Fab steps
  6. Oct 29, 2010 at 10:47 AM
    #6
    Toyotacrawler

    Toyotacrawler She's got the jimmy legs

    Joined:
    Aug 19, 2010
    Member:
    #41911
    Messages:
    4,171
    Gender:
    Male
    First Name:
    Mike
    Cusseta/Opelika AL
    Vehicle:
    2010 Tacoma DC TRD Sport
    5100's set to 1.75" Wheelers 3 leaf progressive AAL & 5100's for the rear Konig Countersteer Offroads K&N Drop in WeatherTech's Bed Mat Blacked out Badges Rear leaf TSB
    Looks good! I wish we had solidworks! We have Inventor here. :( Its ok I just think that solidworks has alot easier interface.

  7. Dec 26, 2010 at 4:11 PM
    #7
    JanBoothius

    JanBoothius Well-Known Member

    Joined:
    Jul 29, 2010
    Member:
    #40965
    Messages:
    475
    Gender:
    Male
    First Name:
    Jan (Pronounced Yon)
    Salt Lake City, UT/Upstate New York
    Vehicle:
    '10 TRD Off Road Access Cab, 6 speed
    OME lift, 886 coils, Dakars w/AAL ARB front bumper Leer 180CC cap etc etc
    Any updates?

  8. Dec 26, 2010 at 6:21 PM
    #8
    tooblutacoma06

    tooblutacoma06 [OP] Member

    Joined:
    Apr 26, 2007
    Member:
    #1426
    Messages:
    289
    Gender:
    Male
    First Name:
    Kellon
    Houston
    Unfortunately not too much, the end of this year has been very busy. I'm hoping to get a lot done on it before the new year, in which case I will post some pics.

    So far I have cut the mounting brackets and welded the support bar across the bottom. Look for an update in the next few days though.

  9. Dec 26, 2010 at 6:26 PM
    #9
    stunt man hans

    stunt man hans DISPLACED VIKING LIVING IN GEORGIA

    Joined:
    Sep 12, 2010
    Member:
    #43127
    Messages:
    4,639
    Gender:
    Male
    First Name:
    Hans
    LIVE FREE OR DIE
    Vehicle:
    2015 AEV RAM 3500
    FULL AEV PROSPECTOR KIT++
    i like this how much as i seriously need a solution for mounting and carrying my spare tire.

  10. Dec 26, 2010 at 7:00 PM
    #10
    tooblutacoma06

    tooblutacoma06 [OP] Member

    Joined:
    Apr 26, 2007
    Member:
    #1426
    Messages:
    289
    Gender:
    Male
    First Name:
    Kellon
    Houston

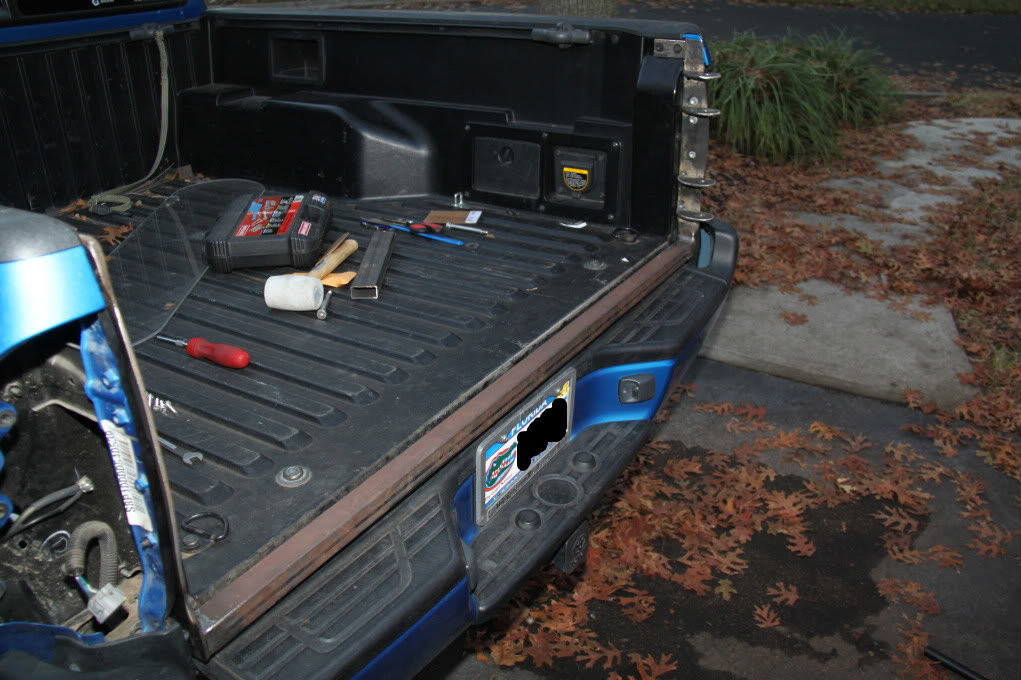

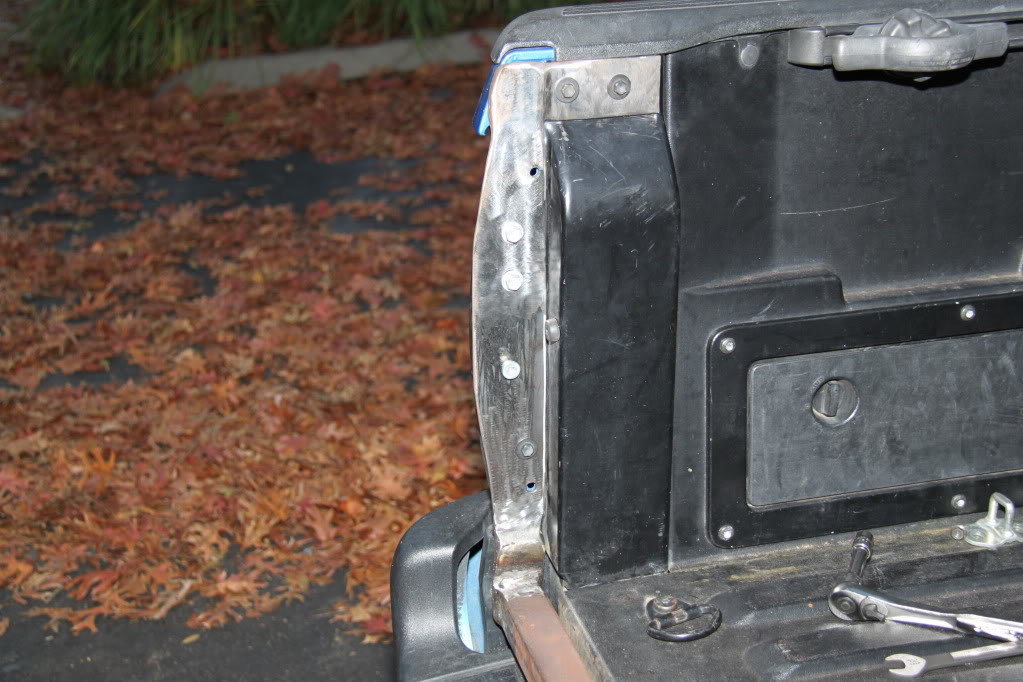

    Here's a couple of teaser pics:

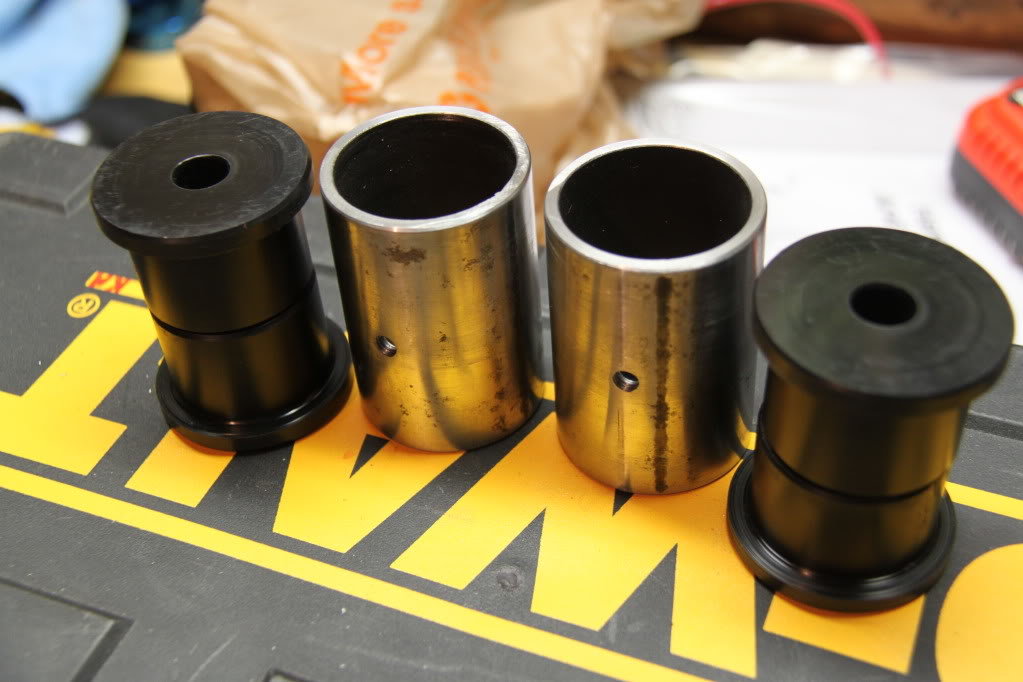

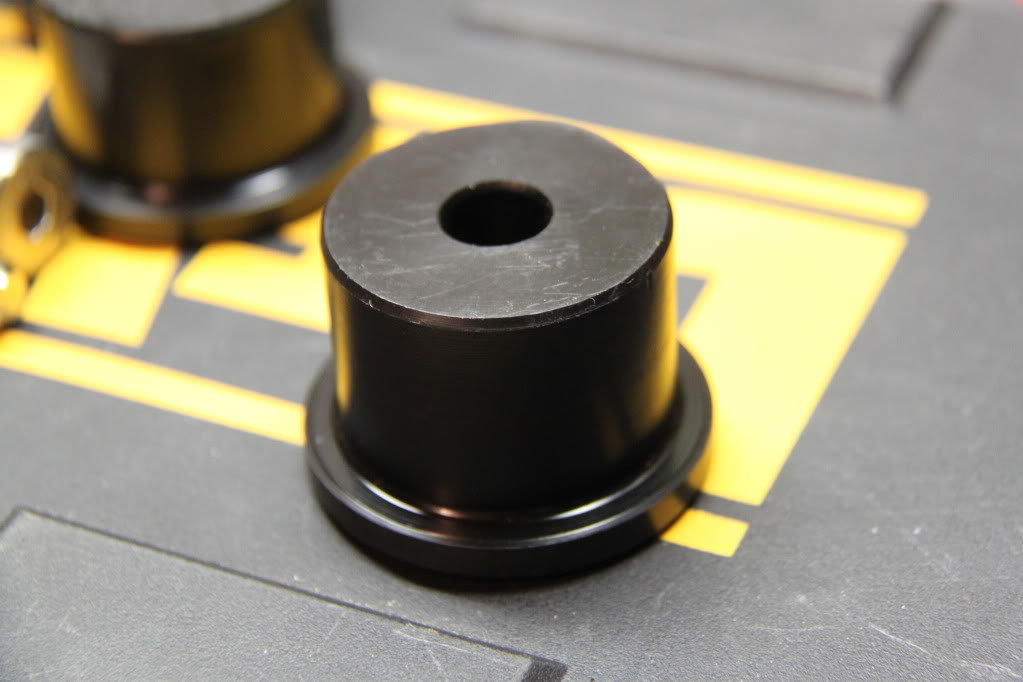

    I machined the bushings out of delrin, and cut the hinge tubes out of steel. I faced the hinge tubes off to provide flat surfaces for the bushings. The holes in the tubes are tapped for zerk fittings.
    [​IMG]

    [​IMG]

    [​IMG]

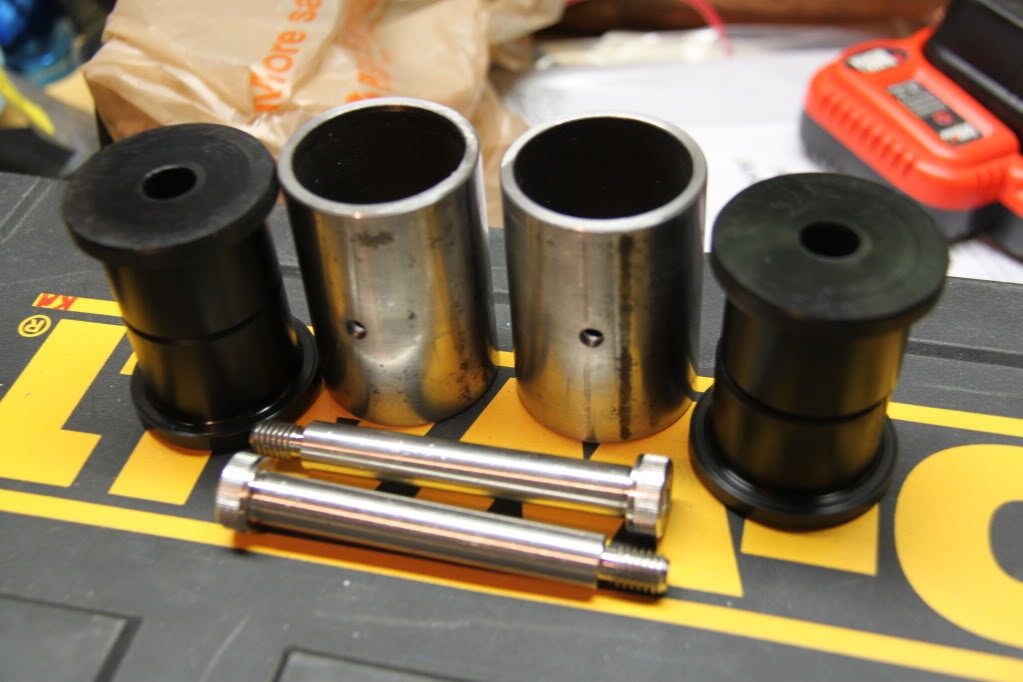

    The shoulder bolts above are the hinge bolts. They are 314SS and beefy.

  11. Dec 27, 2010 at 11:18 AM
    #11
    gov875

    gov875 WahooTaco

    Joined:
    Jun 15, 2010
    Member:
    #38970
    Messages:
    682
    Gender:
    Male
    First Name:
    Matt
    Pacific Beach, CA
    Vehicle:
    TRD Sport DCLB
    Wet Okole's (front & rear), Weathertech Floormats (front & rear), cheap tailgate theft mod, extra d-rings, low profile toolbox (flat black), Thule Roof Rack (58" load bars), Thule Ski/Snowboard Roof Rack, Blacked Out Badges, Fishing Bobber Trailer Ball Cover, AVIC-X930BT w/ XM & steering controls, 5100s All Around (front set at .85), Eibach Coils, Rear TSB, rear AAL, LR UCAs, Toytec Diff. Drop, Mudflap Delete, Tailgate Reinforcement, Spidertrax (all 4), 285 Nittos, Rear Diff Breather Extension, TRD Exhaust, Powered Rear Sliding Window, DeeZee Bedmat, rear-view anytime mod, trailer bracket relocate, fog light anytime mod, redline hood struts, Satoshi with Homertaco Custom TRD Mesh, Hella 500s behind the grill, Brighter Reverse Lights
    sub'd. keep the pics comin.

  12. Dec 27, 2010 at 11:19 AM
    #12
    KDogg311

    KDogg311 Well-Known Member

    Joined:
    Jun 26, 2010
    Member:
    #39450
    Messages:
    443
    Gender:
    Male
    First Name:
    K H I E M ™
    So Cali 626 ³²³ 818
    Vehicle:
    Gen² Impulse Red Access Cab
    Avid Offroad light bar (Black), Avid Step bar (Black), TRD skid plate (Black), BHLM w/yellow signals, Pioneer Avic-x930bt, OEM fogs w/ yellow H10, Magnaflow muffler, aFe drop in filter, Toyota Neoprene "Tacoma" seat covers, Shorty antenna, Tint, Removed secondary filter, LED interior lights, LED reverse, Bedlinered rear bumper, color match grill, Black emblems, Red rear signals, Bed mat, OEM bike mounts
    :popcorn: Subscribed

  13. Dec 28, 2010 at 5:17 PM
    #13
    tooblutacoma06

    tooblutacoma06 [OP] Member

    Joined:
    Apr 26, 2007
    Member:
    #1426
    Messages:
    289
    Gender:
    Male
    First Name:
    Kellon
    Houston

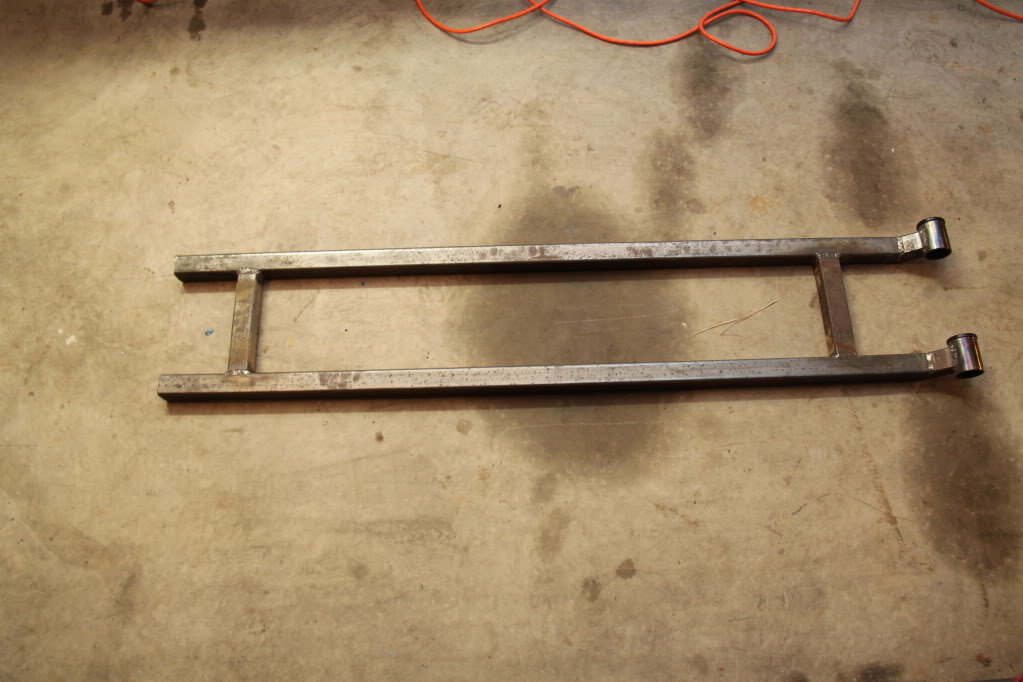

    Little update:
    [​IMG]

    [​IMG]

    [​IMG]

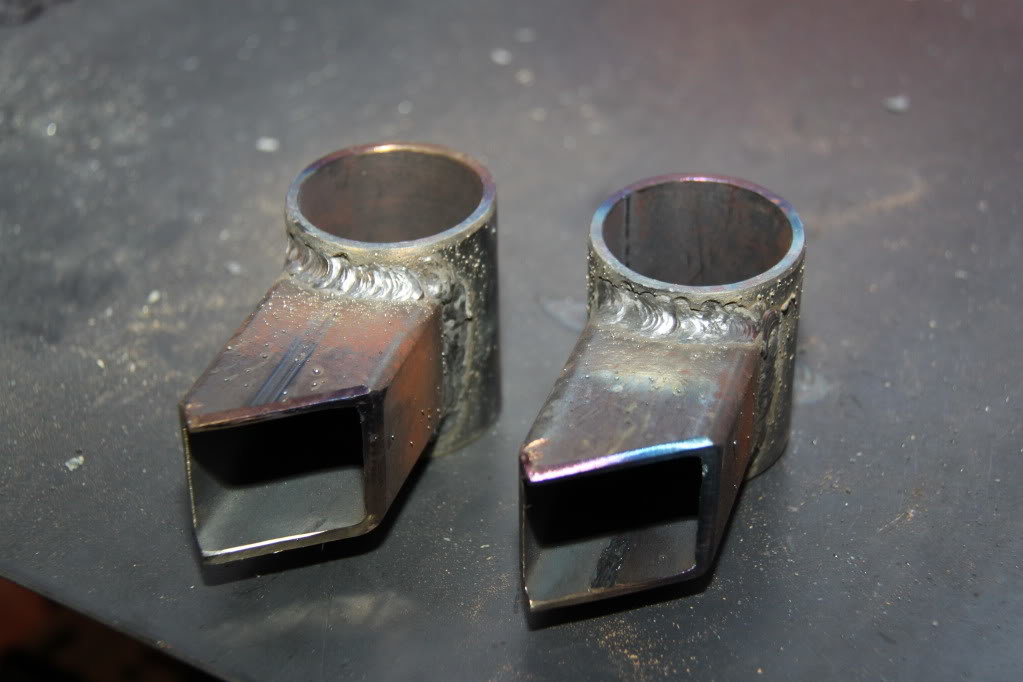

    Here's the hinge tubes, my welding is slowly getting better!
    [​IMG]

  14. Dec 29, 2010 at 6:35 PM
    #14
    tooblutacoma06

    tooblutacoma06 [OP] Member

    Joined:
    Apr 26, 2007
    Member:
    #1426
    Messages:
    289
    Gender:
    Male
    First Name:
    Kellon
    Houston

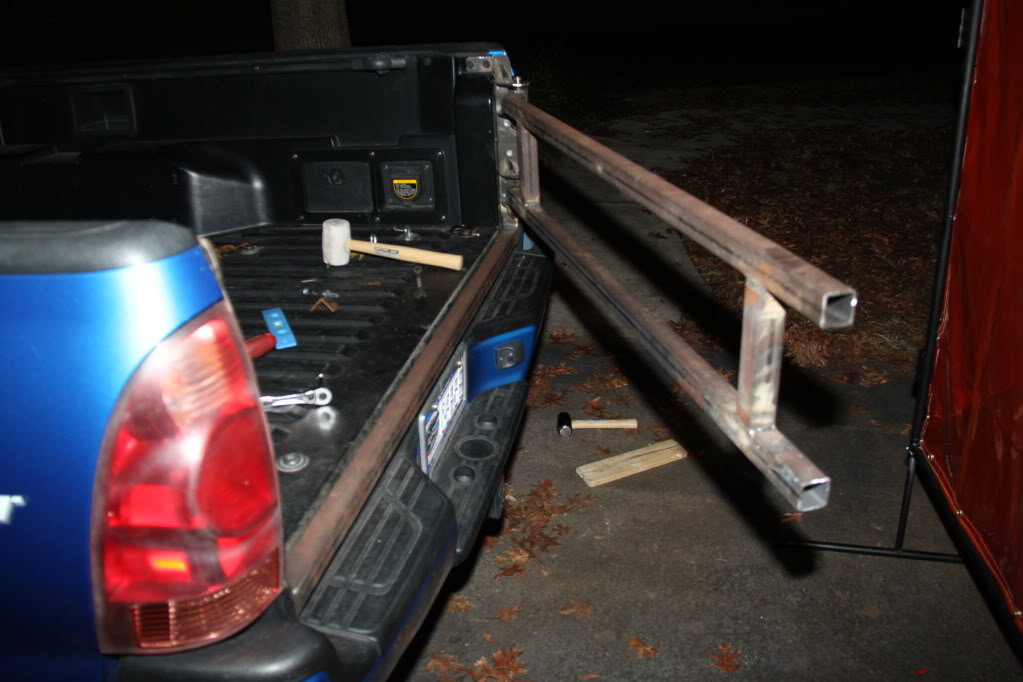

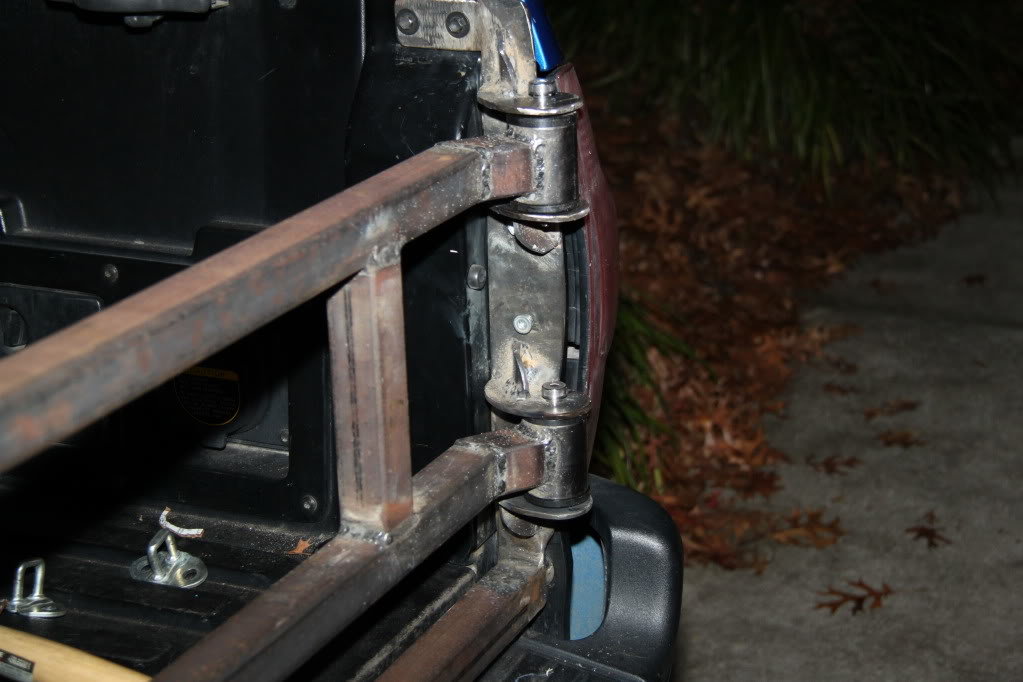

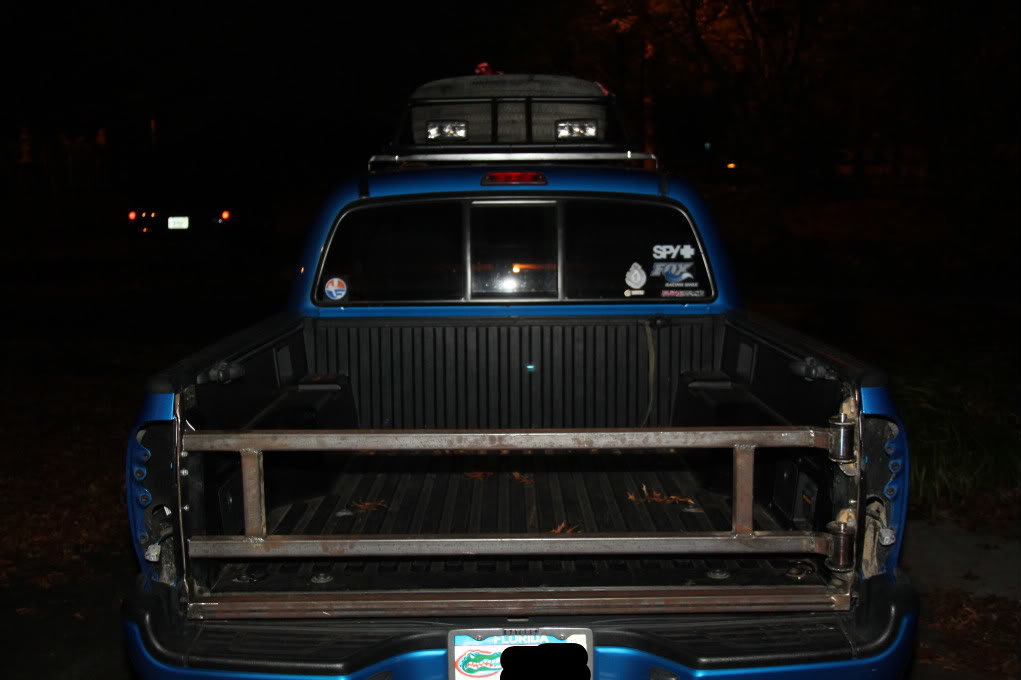

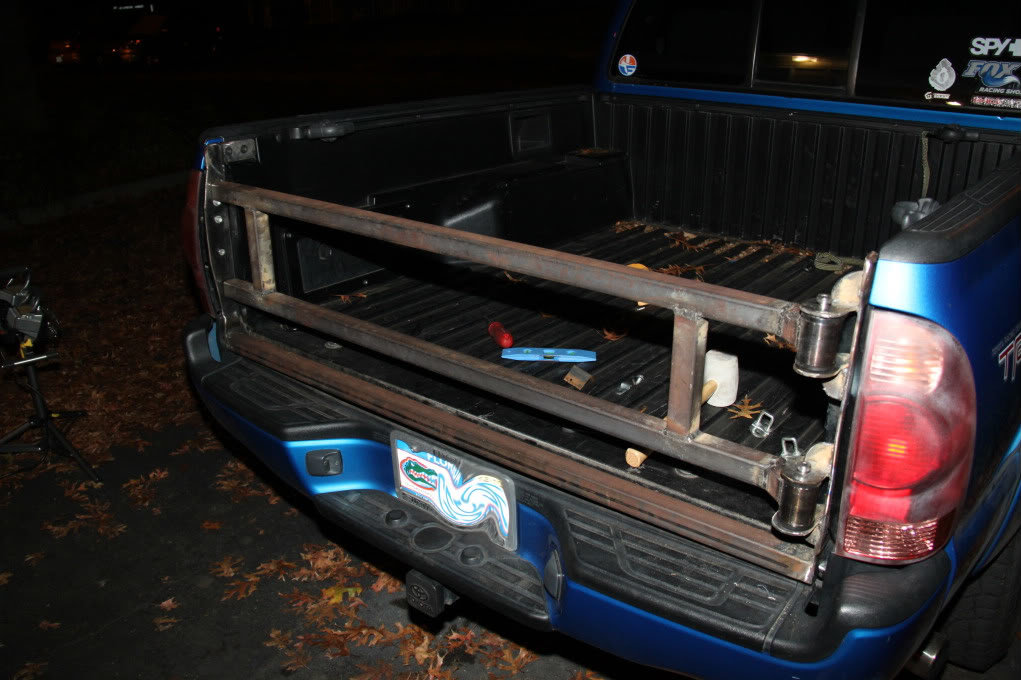

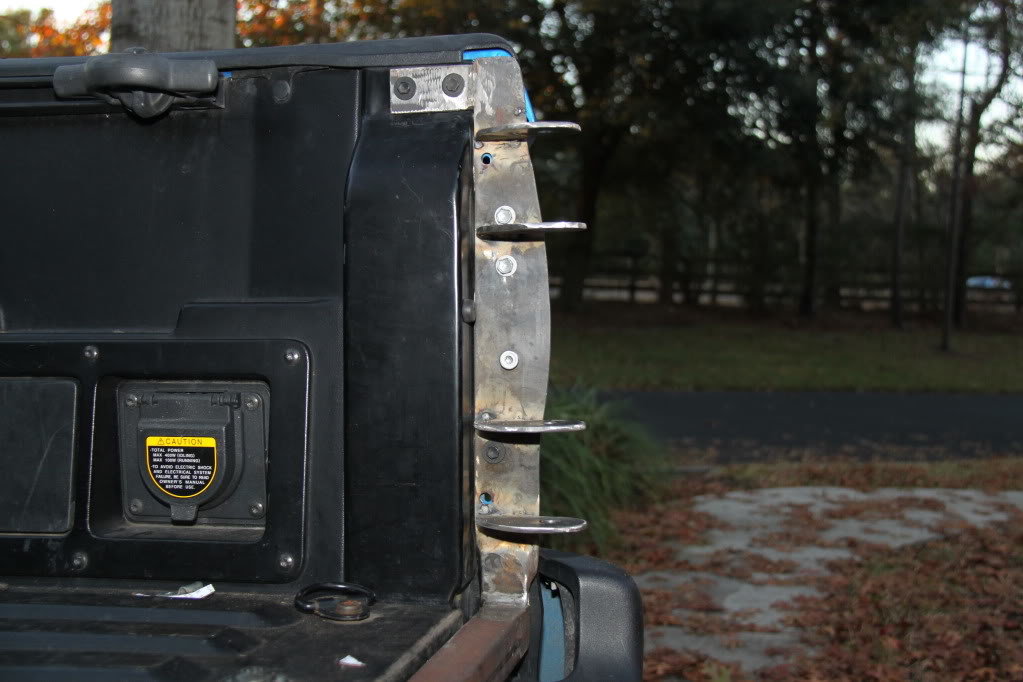

    Got a little more work done today. I think it's coming along nicely. I've got a lot of cleaning up to do on it because I'm using flux core and it's real messy. But here's some more progress pictures:

    [​IMG]

    [​IMG]

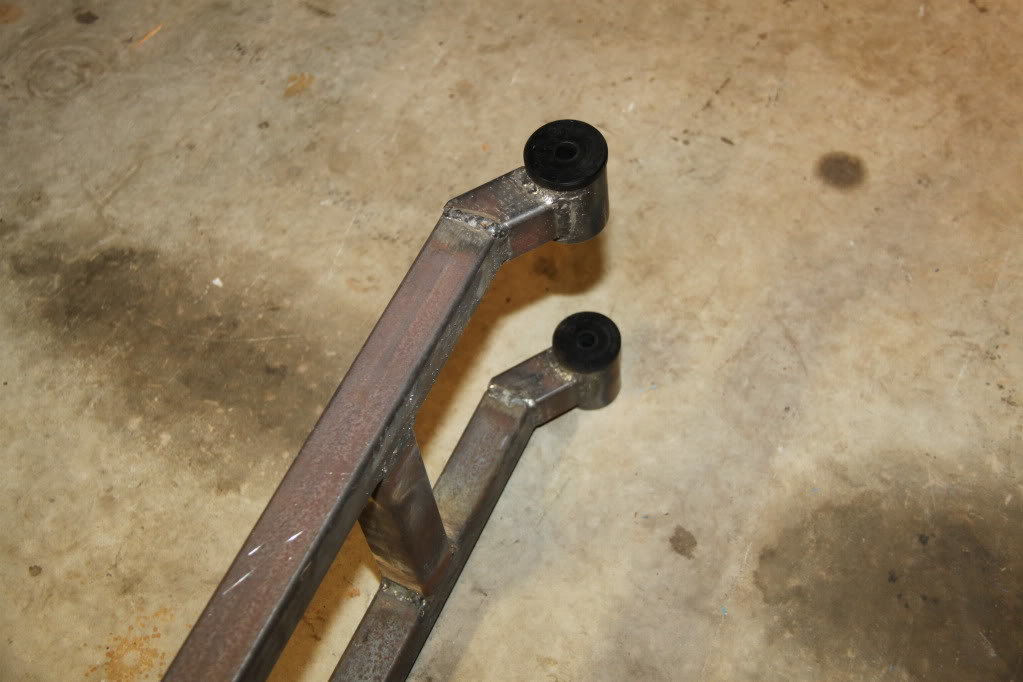

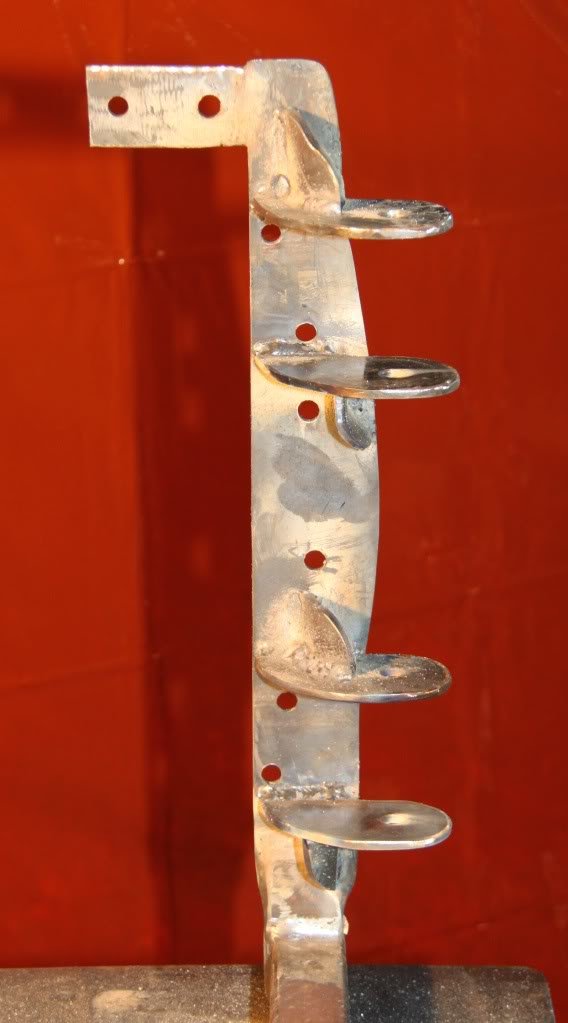

    Added some gussets to the hinge brackets:
    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    I've still got a ways to go but atleast it swings now!

    DrFunker and crazykilik like this.
