CX500 Cafe Fighter Build

Discussion in 'Motorcycles' started by white91formula, Jul 25, 2012.

  1. Jul 25, 2012 at 8:21 AM
    #1
    white91formula

    white91formula [OP] Well-Known Member

    Joined:
    Jan 25, 2009
    Member:
    #12973
    Messages:
    558
    Gender:
    Male
    Boston, MA
    Vehicle:
    05 6speed TRD OR
    I am going to start a build thread here and update it as I go along. Hopefully you all enjoy what I am doing.

    I am going for a cafe fighter as a city bike to get around. Im going for function over prettiness so the finished bike will be "rough" in the fact it wont be flawlessly painted. It will be 100% mechanical however.

    I am planning on doing this bike/build in 2 stages. First stage is the cafe build/ mono shock conversion. Second stage which is planned for about 10-12 months after initial build is complete is to turbo it.

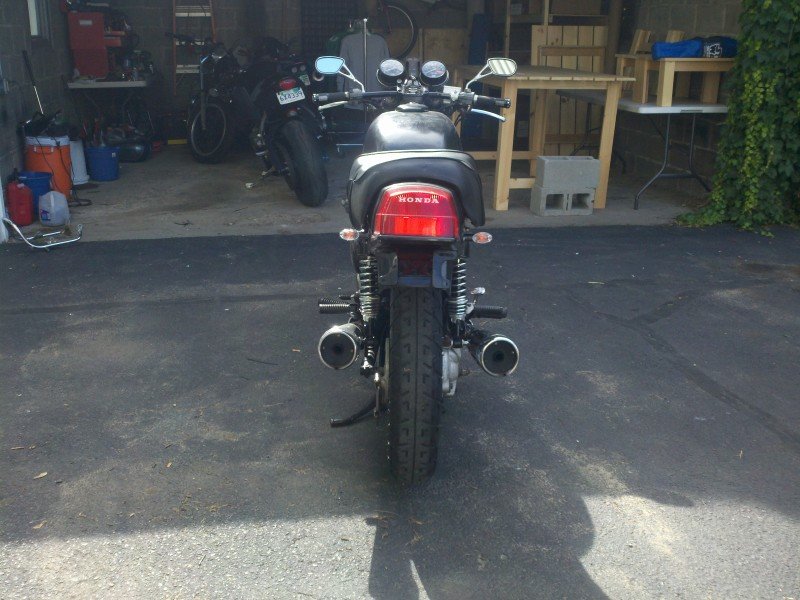

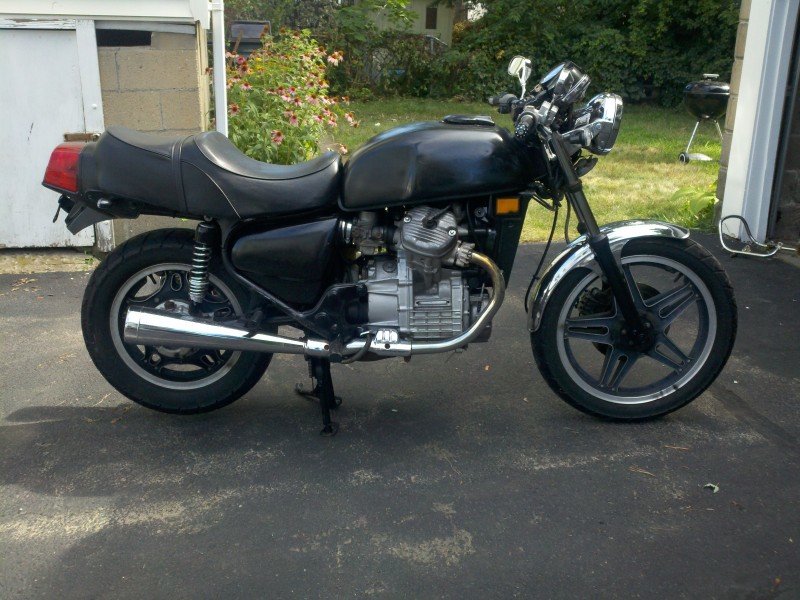

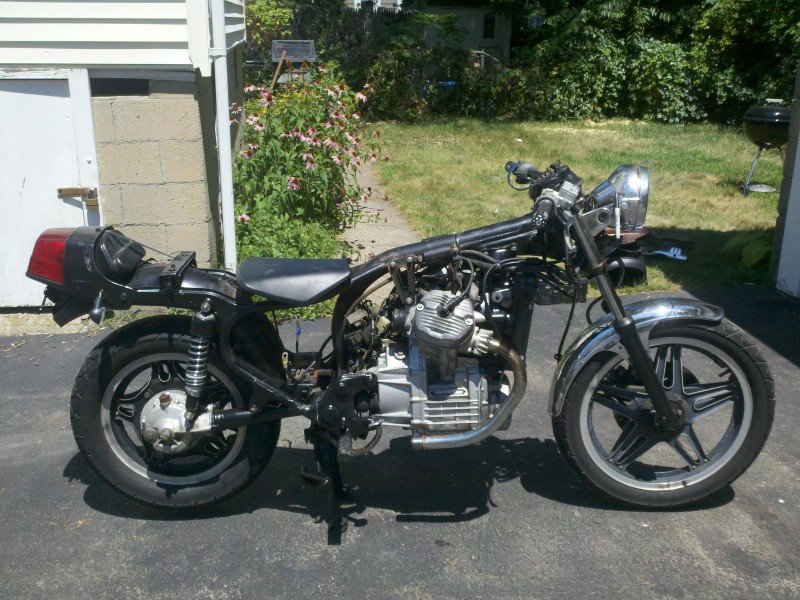

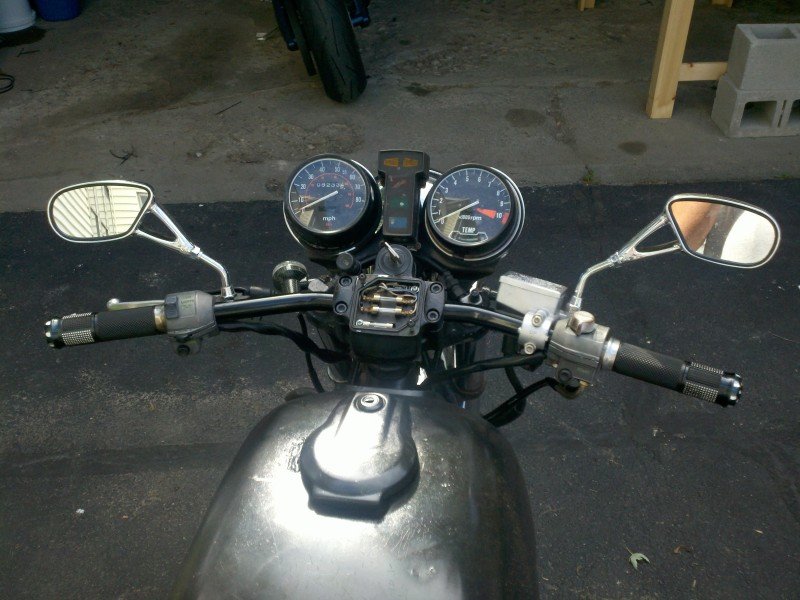

    I started with this, which had already had some work done to it by countless previous owners. It did have a clear title however and it is a 81 CX500D I got for $300. I am doing this all on a $500 budget including the bike, its going to be close!

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

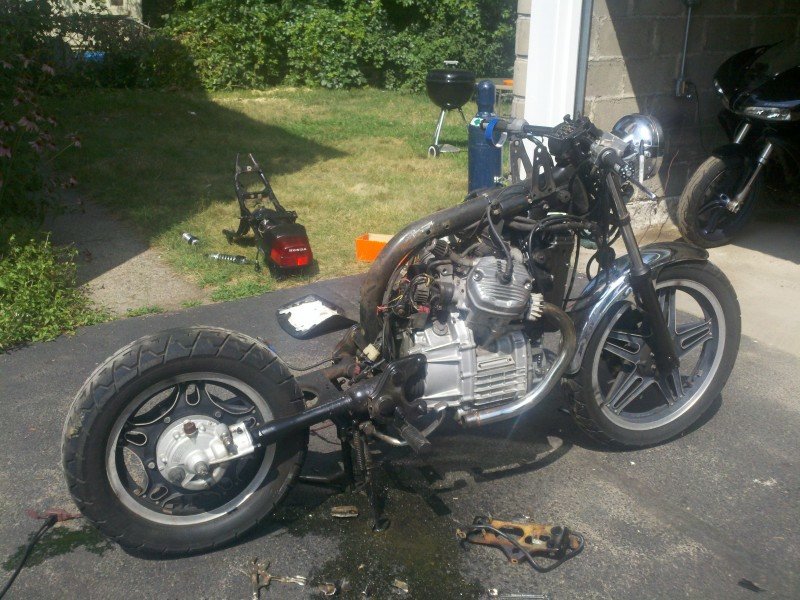

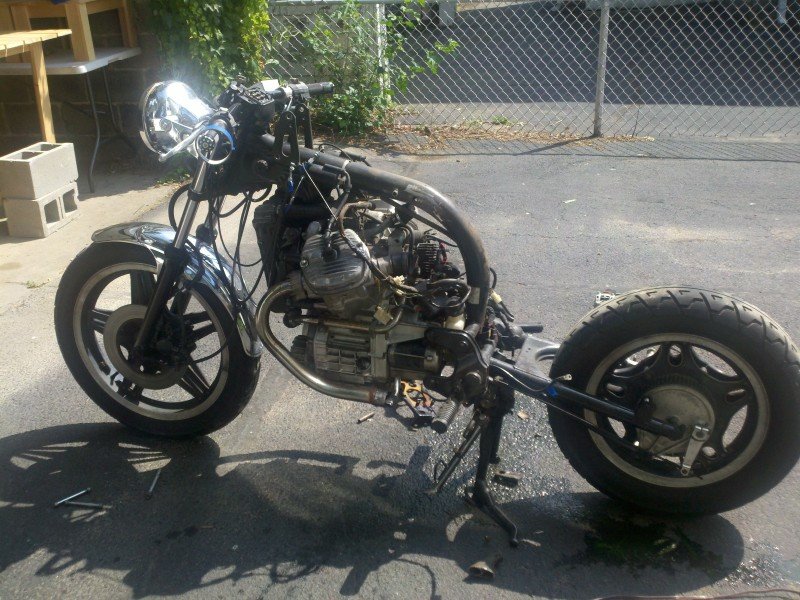

    Tear down on first day, unbolted as much as possible and took out everything that was absolutley needed for function. The new seat is just sitting on the frame.

    [​IMG]
    [​IMG]

    Got the cut off wheel out next ... no turning back now ! There was quite a bit of water in the frame on the brake side... was just relieved it wasnt gasoline when it started spewing when i was cutting with the cut off wheels.

    [​IMG]
    [​IMG]

    At this point I am waiting for parts to arrive, so I will update when I get a little further

  2. Jul 25, 2012 at 5:07 PM
    #2
    white91formula

    white91formula [OP] Well-Known Member

    Joined:
    Jan 25, 2009
    Member:
    #12973
    Messages:
    558
    Gender:
    Male
    Boston, MA
    Vehicle:
    05 6speed TRD OR
    OK a few updates, first my roommate knocked the bike off the center stand this morning getting his bike out to go to work and the tank wasn't attached and went for a tumble... few dents but nothing major

    [​IMG]

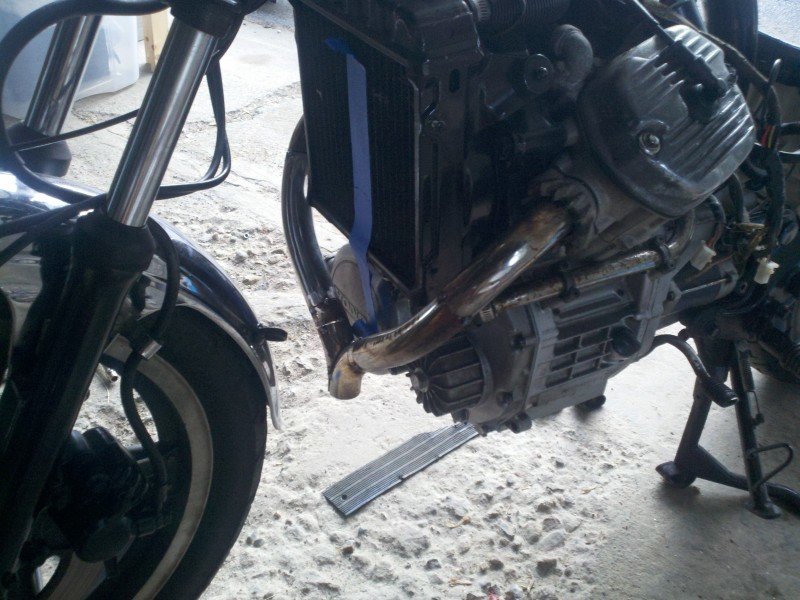

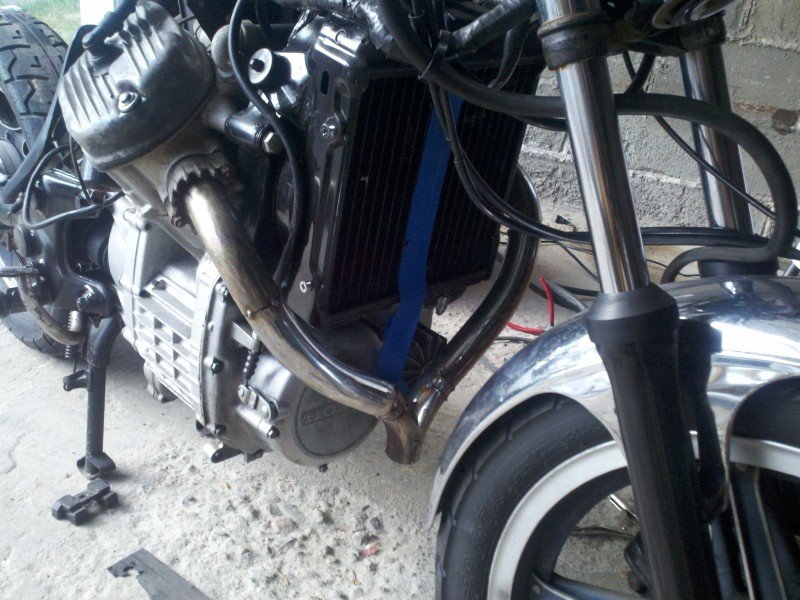

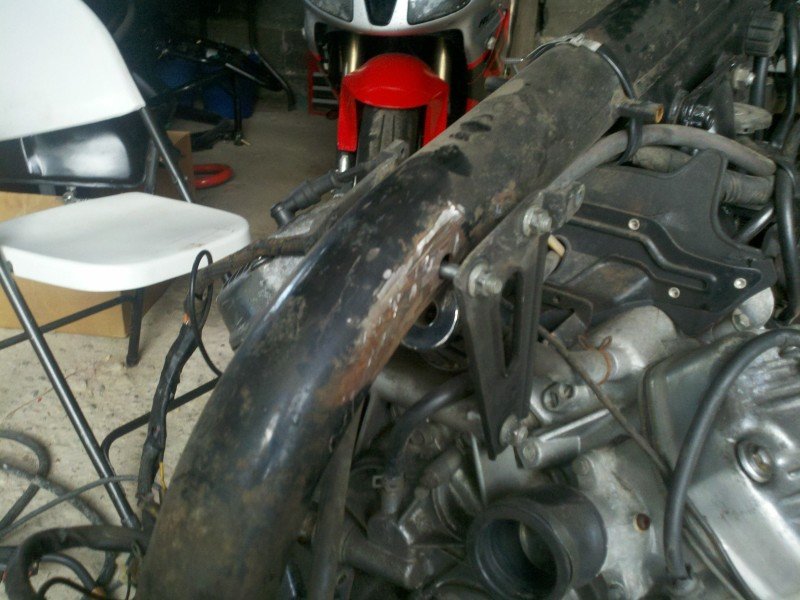

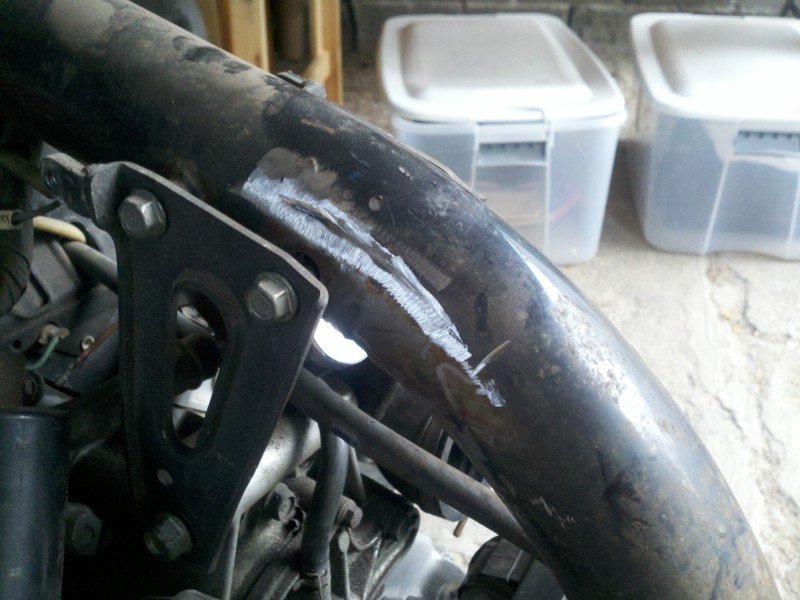

    second I have some close ups of where i cut the frame off on the backbone. I ordered some round stock to fill in where the stock spacer runs through the frame.

    [​IMG]
    [​IMG]

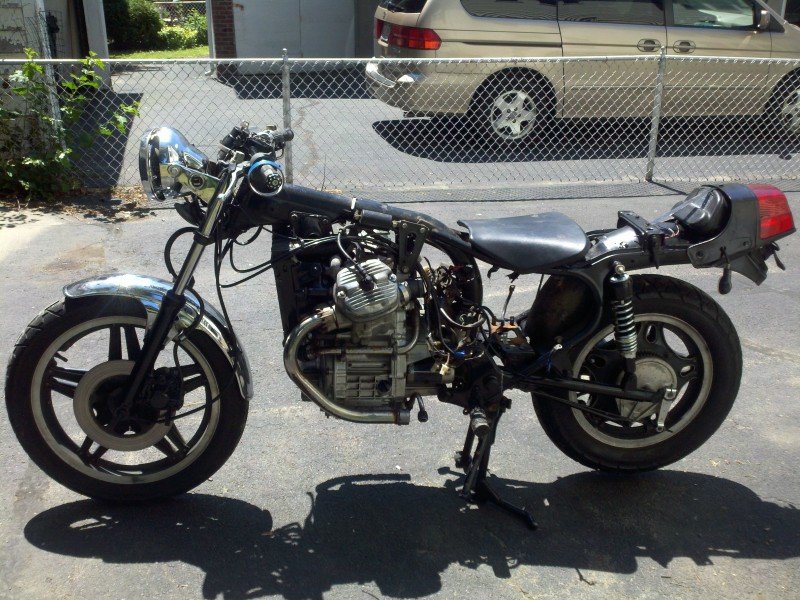

    Lastly since none of my parts have come in yet i started working on the exhaust. I have to give credit to littlehorse cycles build for the inspiration on this one.
    It is all tacked together right now, I need to get some more tubing and figure out if I am going to run a muffler or not. Then it will get all welded together.

    [​IMG]
    [​IMG]

    more to come

  3. Jul 25, 2012 at 5:16 PM
    #3
    n0ms

    n0ms Well-Known Member

    Joined:
    Oct 8, 2011
    Member:
    #64844
    Messages:
    678
    Gender:
    Male
    First Name:
    Angel
    San Diego
    Vehicle:
    1st gen i4 single cab 4x4
    Celica seats, Icon in rear and front with icon ucas, omd leaf springs, deckplate mod, lce header, Tundra brake swap.
    Nice, can't wait to see how this goes and you really keep 500dollar budget.

  4. Jul 26, 2012 at 10:45 AM
    #4
    Pugga

    Pugga Pasti-Dip Free Since 1983

    Joined:
    Jun 18, 2010
    Member:
    #39131
    Messages:
    28,965
    Gender:
    Male
    First Name:
    Mike
    Massachusetts
    Vehicle:
    '13 Ford F-150 SCREW
    F-150 Mod
    :popcorn:

    I'm interested in the final budget also! I'll be impressed if you can find a decent rear shock that doesn't blow your budget :D

  5. Jul 26, 2012 at 10:49 AM
    #5
    steve o 77

    steve o 77 braaap

    Joined:
    Nov 29, 2009
    Member:
    #26726
    Messages:
    19,899
    Gender:
    Male
    First Name:
    Steven
    In a corn field, OH
    Vehicle:
    2001 4x4 5Spd Xtra Cab V6
    205k+ miles, 265/75/16 BFG A/T's, OME 881's, Wheelers 5 leaf pack, 5100's, Home Made Sliders
    Cool build. Is that a baja sae car in your sig?

  6. Jul 26, 2012 at 12:46 PM
    #6
    white91formula

    white91formula [OP] Well-Known Member

    Joined:
    Jan 25, 2009
    Member:
    #12973
    Messages:
    558
    Gender:
    Male
    Boston, MA
    Vehicle:
    05 6speed TRD OR
    got that covered... got one out of a VFR for free! ... well cost me $12 shipping :eek:



    yes it is, one of the 3 i helped design and built

  7. Jul 26, 2012 at 12:55 PM
    #7
    steve o 77

    steve o 77 braaap

    Joined:
    Nov 29, 2009
    Member:
    #26726
    Messages:
    19,899
    Gender:
    Male
    First Name:
    Steven
    In a corn field, OH
    Vehicle:
    2001 4x4 5Spd Xtra Cab V6
    205k+ miles, 265/75/16 BFG A/T's, OME 881's, Wheelers 5 leaf pack, 5100's, Home Made Sliders
    sweet, Im on the baja team here at NMT, really cool program.

  8. Jul 26, 2012 at 1:13 PM
    #8
    Spitfire

    Spitfire Well-Known Member

    Joined:
    Feb 4, 2011
    Member:
    #50544
    Messages:
    154
    Gender:
    Male
    AZ West Valley
    Vehicle:
    05 TRD Taco
    OME Lift, Stubbs Sliders, Truxedo cover, Pioneer Avic deck, speakers/amp etc., Black badges.
    Looks great, thats the bike I learned to ride on. The ad said "babe magnet" so I bought it for $500 back in 1995.

    I love the Cafe look and the little CX will make a great little commuter.

  9. Jul 30, 2012 at 7:22 AM
    #9
    white91formula

    white91formula [OP] Well-Known Member

    Joined:
    Jan 25, 2009
    Member:
    #12973
    Messages:
    558
    Gender:
    Male
    Boston, MA
    Vehicle:
    05 6speed TRD OR
    Got some more work done yesterday.

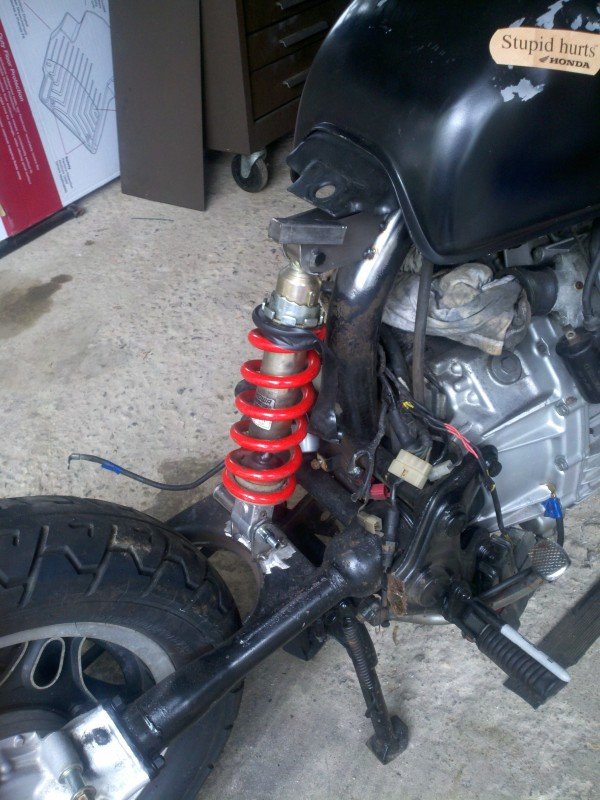

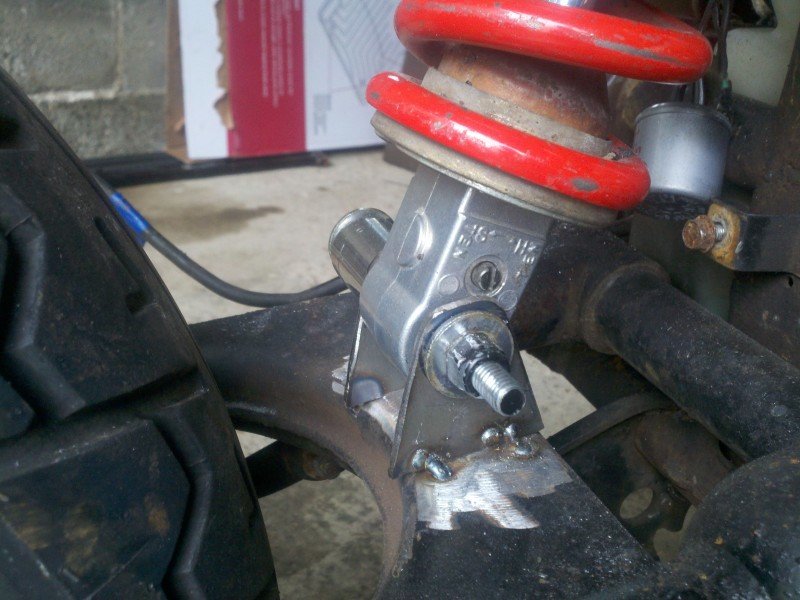

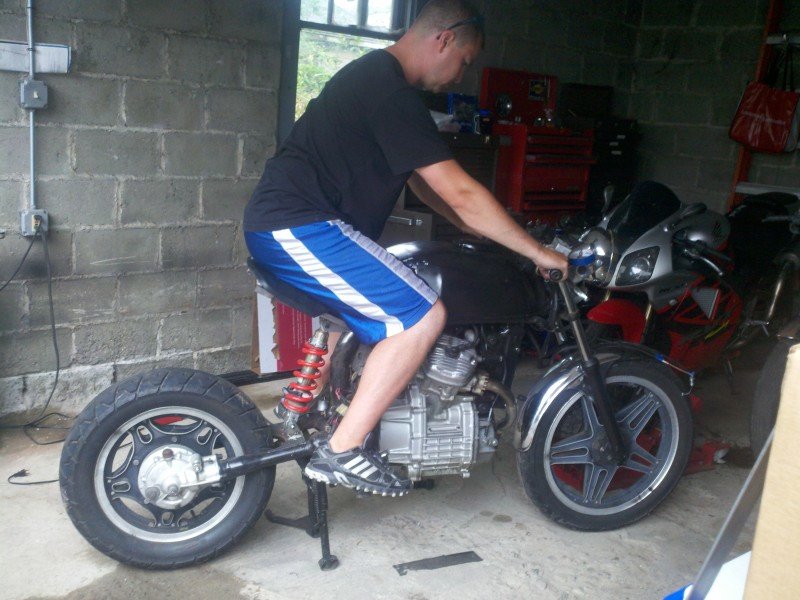

    Mounted the shock, made a seat mount/frame and spent countless hours getting everything "straight". Everything is just tacked together for now.

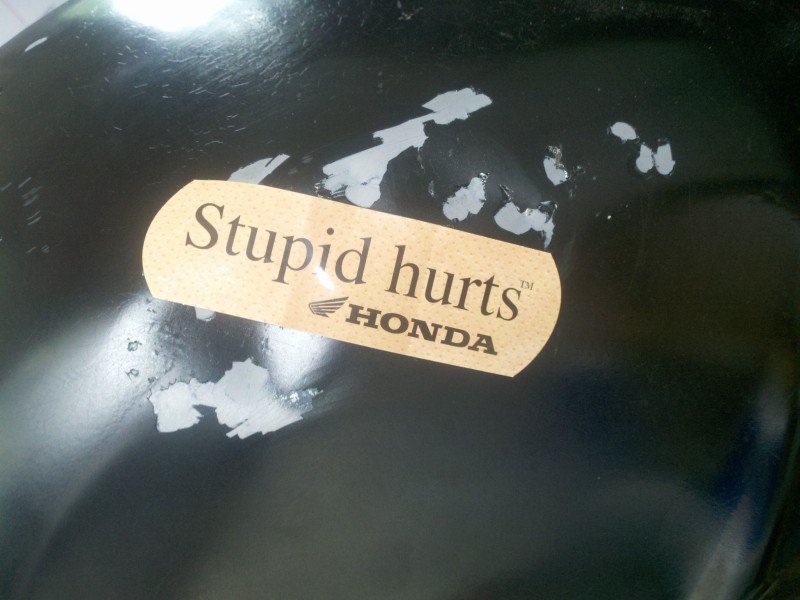

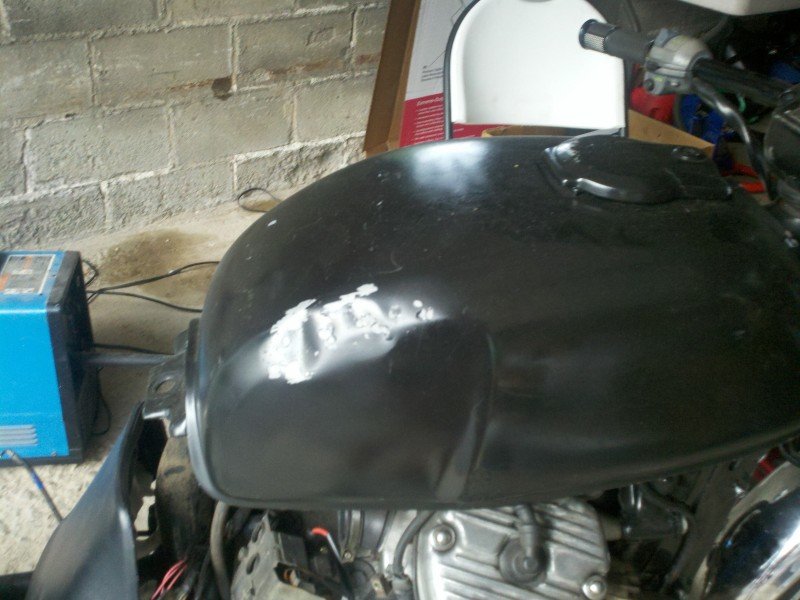

    I found a solution for my newely dented tank as well. Looks like there is still some paint on the metal so it isnt bare so I will be keeping it like this. I have already gotten a few comments about it from people have seen it.

    [​IMG]

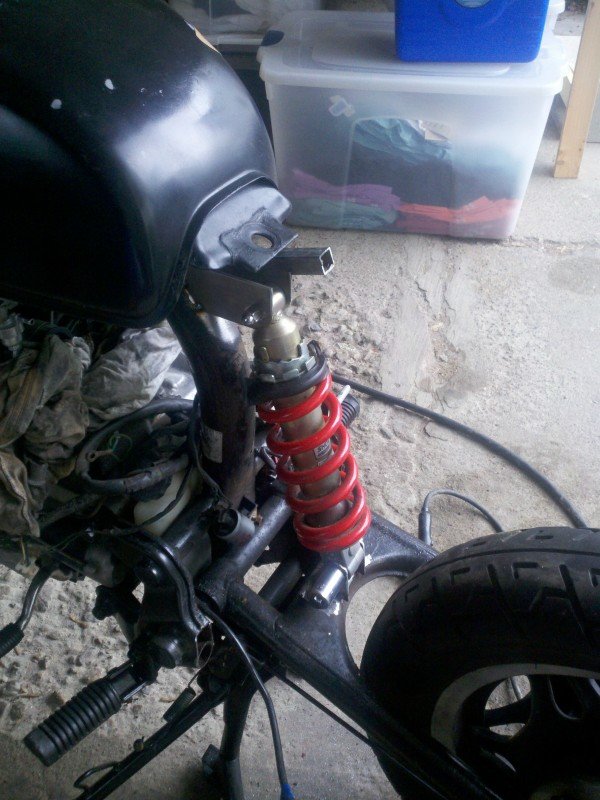

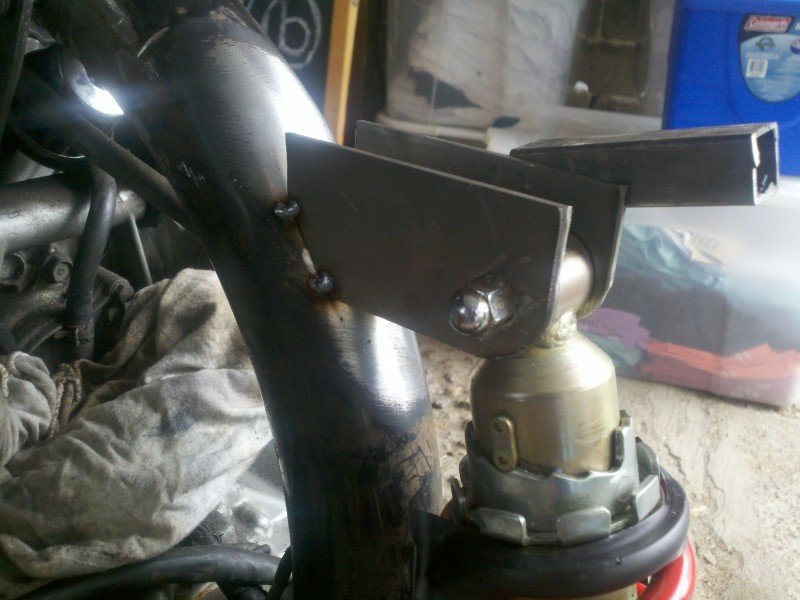

    next was the shock mounts, ignore the sqaure tubing for now I was "thinking"

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

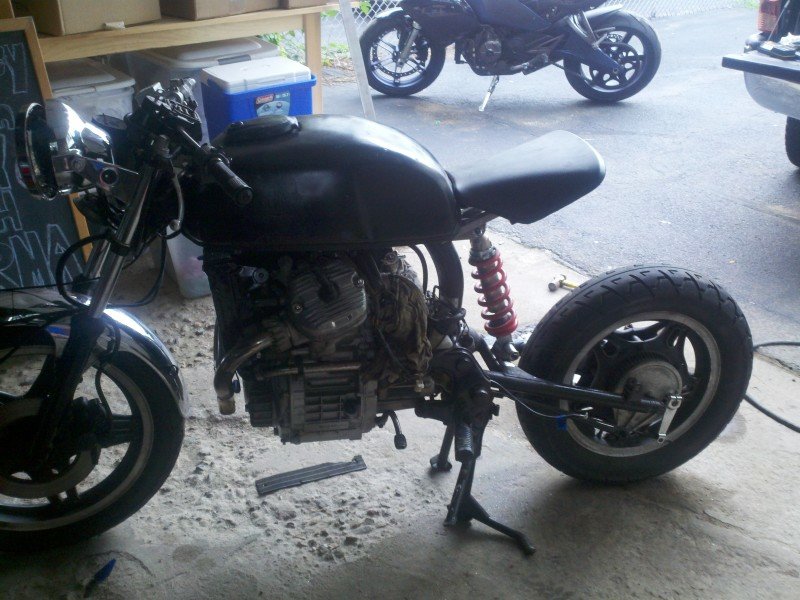

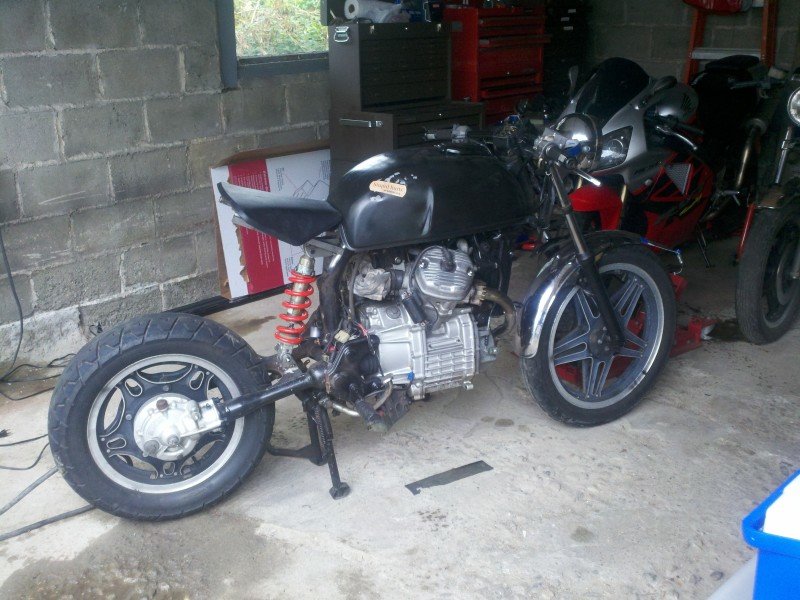

    Got the seat mounted and also got a new tank mount. I still need to trim the back of the tank mount off and get some more pictures of that once its more "complete" I will also update with some pictures of the seat frame/mounting once its done. Everything is straight and in place I am just not happy with how some of it came out. It was getting late and I had to give up for the day and start fresh another day.

    [​IMG]
    [​IMG]
    [​IMG]

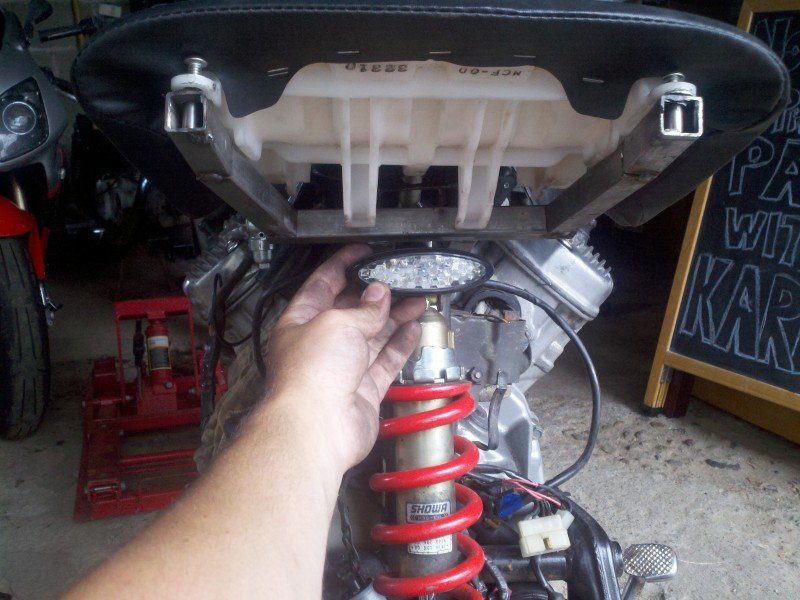

    I have two possible spots for where I am going to put my tail light. I am open to opinions! I am leaning towards down low.
    And the seat will be getting the mounting hooks cut off and the bottom side painted. And no its not crooked, the seat isnt bolted down so it looks weird.
    [​IMG]
    [​IMG]

    Enjoy

  10. Jul 30, 2012 at 7:36 AM
    #10
    Pugga

    Pugga Pasti-Dip Free Since 1983

    Joined:
    Jun 18, 2010
    Member:
    #39131
    Messages:
    28,965
    Gender:
    Male
    First Name:
    Mike
    Massachusetts
    Vehicle:
    '13 Ford F-150 SCREW
    F-150 Mod
    How about a 6 or 8" wide LED strip that mounts at the rear of the seat, just below the top of the seat? That way it would hide your seat mounts and could be used as brakes and turn signals all in one (assuming you can find a split LED setup).

  11. Jul 30, 2012 at 8:10 AM
    #11
    white91formula

    white91formula [OP] Well-Known Member

    Joined:
    Jan 25, 2009
    Member:
    #12973
    Messages:
    558
    Gender:
    Male
    Boston, MA
    Vehicle:
    05 6speed TRD OR

    Thats orignally what I was thinking of doing, but I couldnt find anything I liked or would work. That light had tail, blinkers and plate light all built in.

    Everything under the seat will be painted black so I think it will all blend together.

  12. Jul 30, 2012 at 8:16 AM
    #12
    Pugga

    Pugga Pasti-Dip Free Since 1983

    Joined:
    Jun 18, 2010
    Member:
    #39131
    Messages:
    28,965
    Gender:
    Male
    First Name:
    Mike
    Massachusetts
    Vehicle:
    '13 Ford F-150 SCREW
    F-150 Mod
    What about something like the VFR tail light?

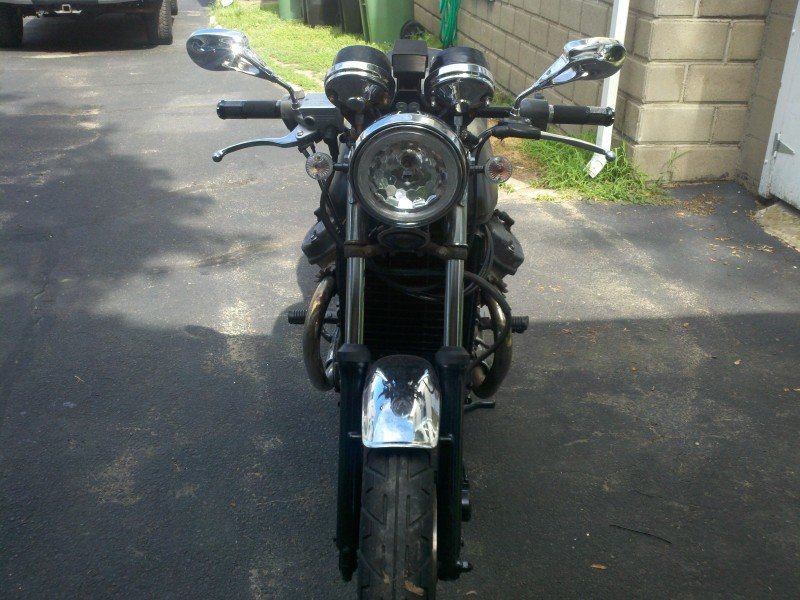

    [​IMG]

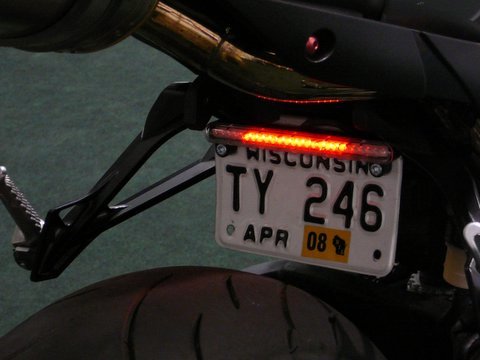

    Also, you gotta hang around the streetfighter or ratfighter forums... Check these out:
    http://www.virtualvillage.com/motor...amaha-yzf-r6-01-02-clear-lens-002511-553.html
    or this one:
    [​IMG]

  13. Aug 1, 2012 at 5:43 AM
    #13
    white91formula

    white91formula [OP] Well-Known Member

    Joined:
    Jan 25, 2009
    Member:
    #12973
    Messages:
    558
    Gender:
    Male
    Boston, MA
    Vehicle:
    05 6speed TRD OR
    too big, im sticking with the light i got.


    I have some round stock as well, i am thinking of lowering the whole bike down a bit and replacing the seat frame with round.

  14. Aug 1, 2012 at 5:52 AM
    #14
    Fiend13

    Fiend13 Well-Known Member

    Joined:
    Jul 3, 2012
    Member:
    #81853
    Messages:
    3,741
    Gender:
    Male
    First Name:
    Chad
    Sin City
    Vehicle:
    08 TRD O/R DC Prerunner
    Nice! I've been looking for a bike like that to make a project out of, late 70's early 80' 450 or 500. Looking forward to the finished result.

  15. Aug 1, 2012 at 7:25 AM
    #15
    white91formula

    white91formula [OP] Well-Known Member

    Joined:
    Jan 25, 2009
    Member:
    #12973
    Messages:
    558
    Gender:
    Male
    Boston, MA
    Vehicle:
    05 6speed TRD OR

    Thanks,

    My roommate has a 78 CM400 he is going to do a bobber out of, I will post pics of that project as he does that as well.

  16. Aug 1, 2012 at 2:18 PM
    #16
    WVtriple

    WVtriple Well-Known Member

    Joined:
    Jan 20, 2009
    Member:
    #12778
    Messages:
    313
    Gender:
    Male
    First Name:
    Anthony
    WV eastern panhandle
    Vehicle:
    07 DC TRD Sport
    Satoshi grill mod, Redline Tuning Hood struts and tailgate E-Z down, HID headlights and fogs, LED tail lamp upgrade, TRD exhaust, FJ TRD Anthracite Wheels, T-REX eyelids, power sunroof, 5100 Billies and ToyTec AAL, K&N drop-in, TRD seatcovers, Weathertech floor mats, Fog light any-time mod, Pop-n-lock, slotted front rotors with ceramic pads, BenWa power rear slider mod, blackout badges, and blacked out center stack and console. 7" HID's behind the grill. LED light bar in the lower grill. Trailer plug relocate. Auxiliary reverse LED's wired in to be manual or auto on when in reverse.
    Always jelly of you guys that can just fab shit and make it work. That will be a very cool build when done.
    BTW what year is that RC51 in the background??

  17. Aug 1, 2012 at 9:21 PM
    #17
    dbkid05tacoma

    dbkid05tacoma Well-Known Member

    Joined:
    Feb 27, 2012
    Member:
    #73755
    Messages:
    539
    Gender:
    Male
    First Name:
    Brooks
    Phoenix, Arizona
    Vehicle:
    05 long travel 4.0L
    Total chaos long travel, fox 2.5 coil overs, glassworks unlimited fenders front and rear, DMZ fab motor mounts, Bilstien 5100s in the rear, k&n cold air intake, 33/12.5r17 red letter grabbers
    this looks like it is going to turn into an awesome bike. keep posting pics of the progress, cant wait to see it when it is finished.

  18. Aug 2, 2012 at 4:56 AM
    #18
    TRD6Speed

    TRD6Speed senior member

    Joined:
    Apr 29, 2011
    Member:
    #55779
    Messages:
    756
    Gender:
    Male
    First Name:
    Bill
    East Hartford, CT
    Vehicle:
    08 TRD Sport Access Cab
    885x with 5100s and top plate spacer for full 3", RCD extended 5100s in rear, dakars, flip kit, LR UCAs, tint, shorty antenna, in channel rain guards,BHLM, blacked out emblem, OEM side steps, weathertechs, debadged, rear diff breather
    subbd...............one day one day:eek: i miss riding so bad

  19. Aug 2, 2012 at 5:03 AM
    #19
    white91formula

    white91formula [OP] Well-Known Member

    Joined:
    Jan 25, 2009
    Member:
    #12973
    Messages:
    558
    Gender:
    Male
    Boston, MA
    Vehicle:
    05 6speed TRD OR
    its a 03, i got sick of lugging that around the city and dont want anything to happen to it either. This one will be my "city" bike and when i ride to the bar on a friday night and have to take a cab/bus home i don't have to worry about it.



    Thanks guys. I think the next step is to weld up everything a little more than just tacks and get the bike on the ground under its weight and me sitting on it to see how much it is going to sag and where it is going to sit from there. I know the seat looks angled and high right now but after its down i bet it goes down a bit.

  20. Aug 2, 2012 at 2:59 PM
    #20
    kingston73

    kingston73 Well-Known Member

    Joined:
    Aug 8, 2009
    Member:
    #20845
    Messages:
    2,155
    Gender:
    Male
    Here, there, and everywhere
    Vehicle:
    09 SR5 4.0L 4x4
    That's a good start, looking forward to seeing the end result. If you haven't been there yet, go check out cx500forum.com, formerly known as choppercharles. The people there know everything you can know about the cx and gl Hondas.

    I'm guessing you're going to go with pod filters, you'll most likely have to reject and adjust the carbs. I'd also plan on putting a muffler on, the cx doesn't like unrestricted exhaust much. Set up correctly you should see around 45 to 50 mpg and a smooth power band from 3000 up to redline. Don't be afraid to rev it, the cx likes to run high for a push rod engine and can cruise at 7000 rpm all day. I know that's not high for a modern sport bike but for a 70's machine that was amazing.

    Great bikes, it should last an easy 50 or 60 thousand miles at minimum. Here's mine, set up more as a touring/commute to work bike:
    [​IMG]
