Cylinder head grounding points?

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Casey12u2, Mar 20, 2023.

  1. Mar 20, 2023 at 12:09 PM
    #1
    Casey12u2

    Casey12u2 [OP] Member

    Joined:
    Jan 4, 2019
    Member:
    #278135
    Messages:
    8
    Gender:
    Male
    First Name:
    Casey
    Minnesota
    Vehicle:
    2009 Tacoma access cab 4WD L4

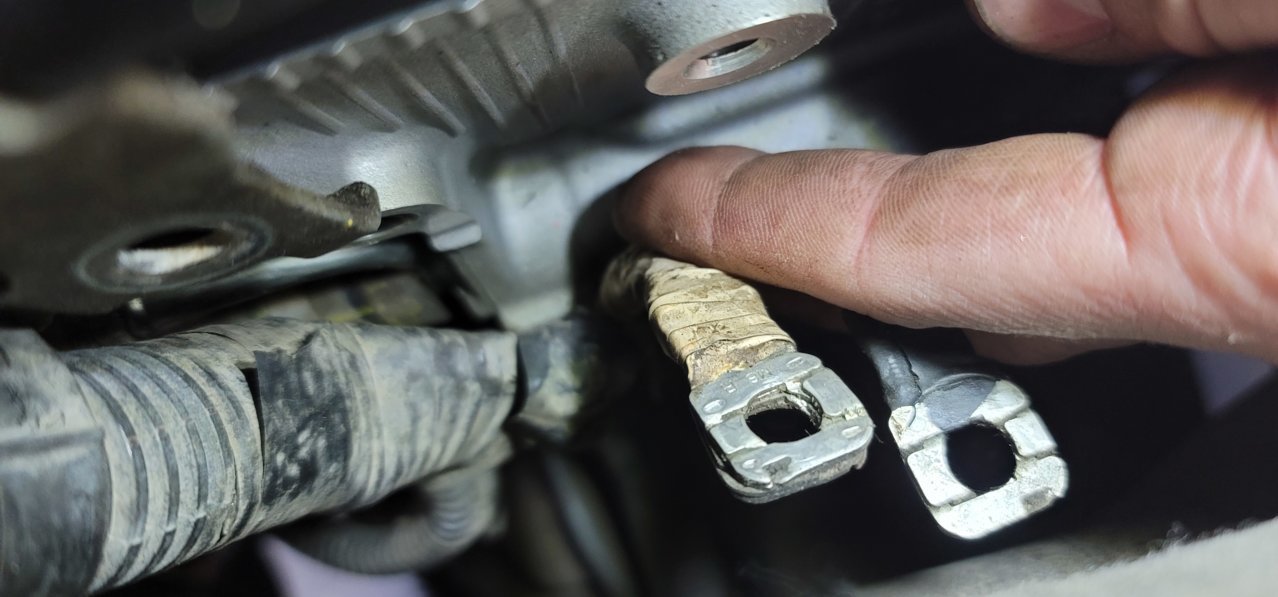

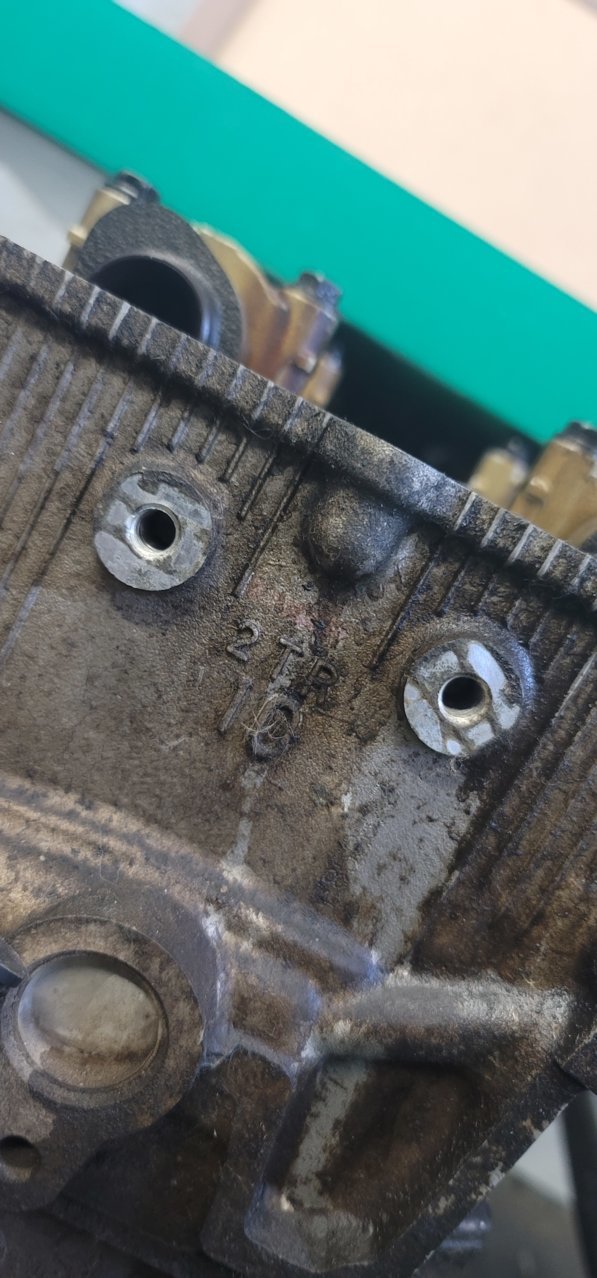

    Hey guys, just replaced the motor in my 09 4cyl tacoma. I'm just about done, in the process of reconnecting the wiring harness.

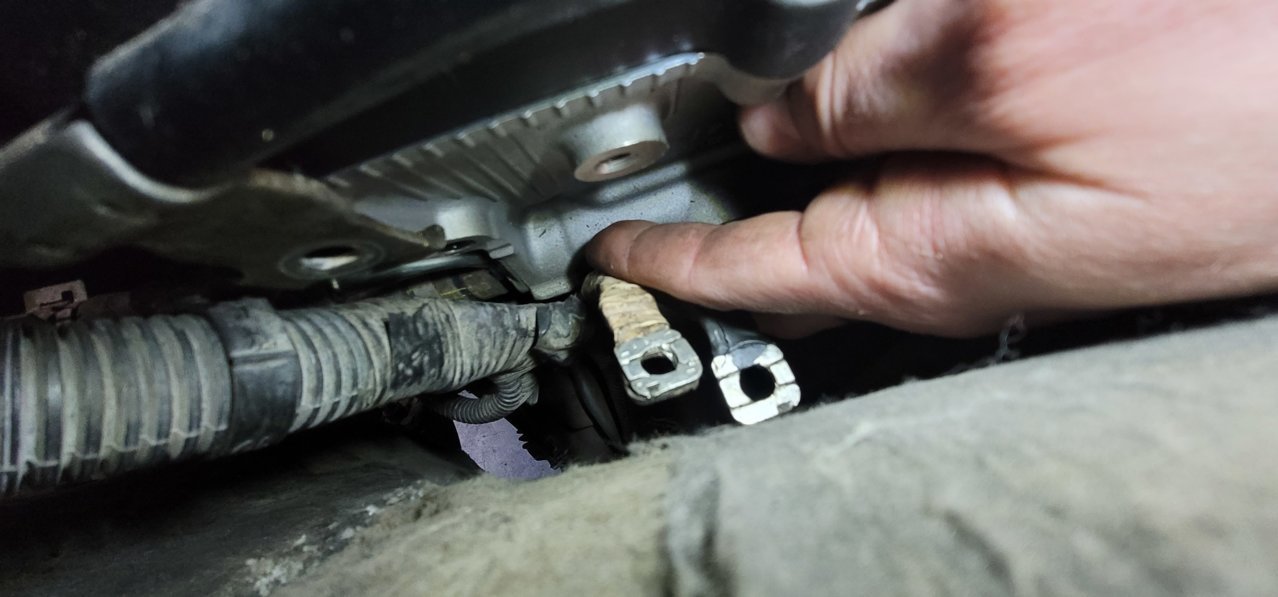

    There's a black, and a white spade connection between the motor and the fire wall that I'm confused about. As far as I can tell they're both grounds that connect to the cylinder head, but I'd like to be sure.

    Unfortunately I don't remember disconnecting them and didn't document them.

    Looking at my old motor, it looks like that's where they were, can anyone confirm this, please?


  2. Mar 20, 2023 at 3:21 PM
    #2
    TnShooter

    TnShooter The TacomaWorld Stray

    Joined:
    Sep 2, 2010
    Member:
    #42625
    Messages:
    21,429
    Gender:
    Male
    First Name:
    Deogee
    Vehicle:
    07' TRD Off-Road, Auto
    STOCK
    Looks like points EG and EH to me.:thumbsup:
    You could test them with a voltage meter.
    Ohms/ Continuity to the Negative Battery cable.

    Jimmyh and Dm93 like this.
  3. Mar 21, 2023 at 7:28 AM
    #3
    Casey12u2

    Casey12u2 [OP] Member

    Joined:
    Jan 4, 2019
    Member:
    #278135
    Messages:
    8
    Gender:
    Male
    First Name:
    Casey
    Minnesota
    Vehicle:
    2009 Tacoma access cab 4WD L4
    Oh that is a beautiful diagram! Thank you so much!

    TnShooter likes this.
