Darton Sleeves

Discussion in 'Performance and Tuning' started by Torspd, Sep 11, 2012.

  1. Sep 11, 2012 at 1:54 PM
    #1
    Torspd

    Torspd [OP] Tor-nication

    Joined:
    Sep 18, 2009
    Member:
    #22958
    Messages:
    5,458
    Gender:
    Male
    First Name:
    Tor
    Houston
    Vehicle:
    MMVI 4.4L 4x4 Access Cab
    Torspd Custom Turbo kit [] Borg Warner 9180EFR Turbo [] ProEFI Pro128 EMS [] TiAL Q BOV [] TiAL V44 Wastegate @ 15psi [] CP Pistons [] CP Carrillo Rods [] ARP Head studs [] ARP Main Studs [] ARP Header - Head Studs [] Ported Heads w/ 1mm oversized valves intake/exhaust [] Brian Crower Forged Stroker Crank [] Darton M.I.D. Sleeved Block [] Kelford Camshafts [] Torspd 170* T-stat mod [] APR Large Fuel Rail [] Aeromotive Stealth 340 LPH Fuel Pump [] FueLab FPR [] APR T56 Conversion Kit [] KP RACING Built T56 [] McLeod Racing Custom Twin Disk Clutch [] One Piece Aluminum Driveshaft [] MGW Shifter [] Custom lowering kit [] Ohlins Front Coilovers [] QA1rear shocks [] Custom Ron Davis Radiator [] Dual SPAL Electric Fans []
    This thread is to inform those whom aren't aware about this product, and if the time ever comes, how to go about getting them.

    First off, here is the link to Darton > http://www.dartonsleeves.com/sl_import.htm

    I posted that specific link because if you call, you will talk to someone who works in the Import department. Even though they sleeves for the 1GR are not listed.

    Here is a quick read about the M.I.D. sleeves. > http://www.dartonsleeves.com/midinfo.html

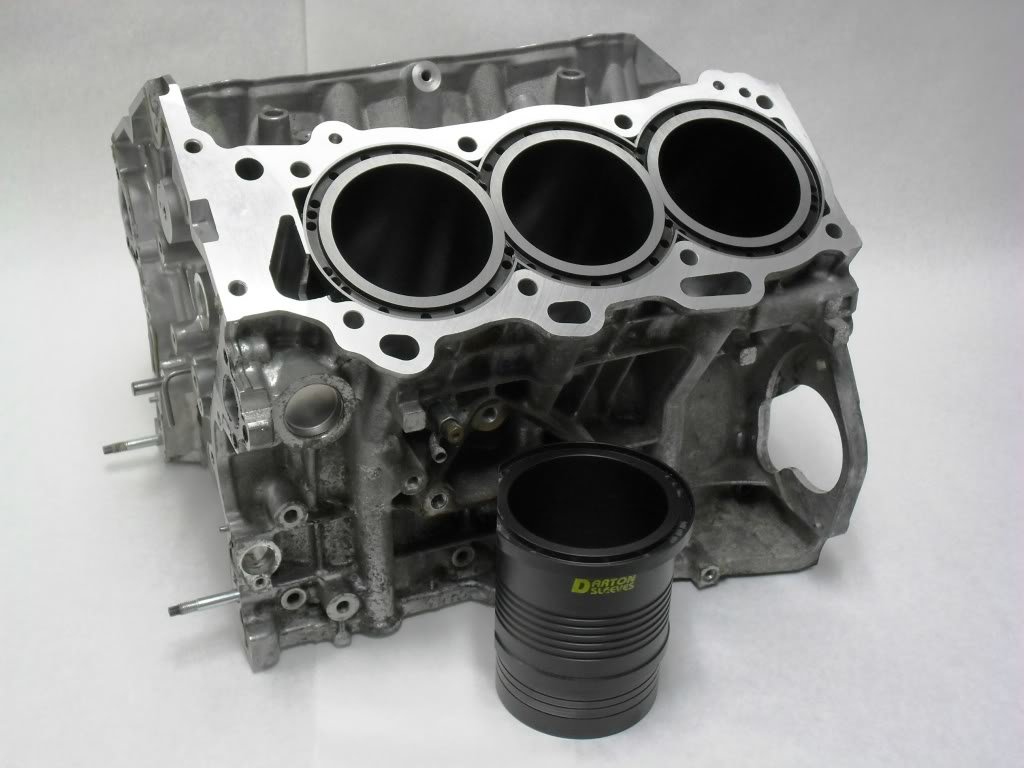

    This is a picture of the finalized product. One that Gadget at URD had ordered. (*Factoid* It was the first 1GR to have sleeves Darton sleeves.)

    The full read about that set of sleeves is here, if anyone is interested.

    http://www.xr-underground.com/forum/showthread.php?t=39941

    [​IMG]

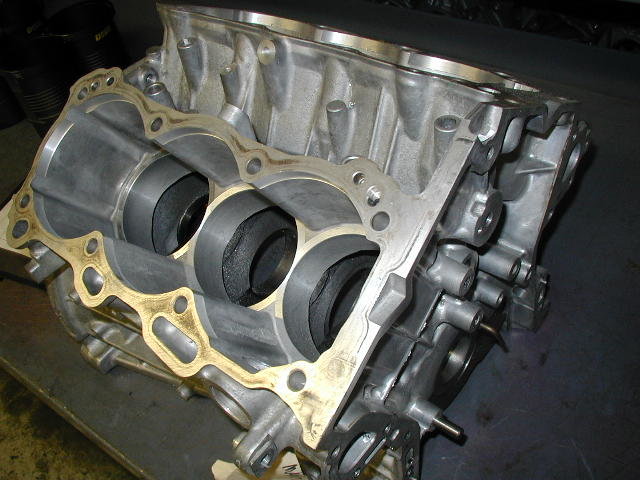

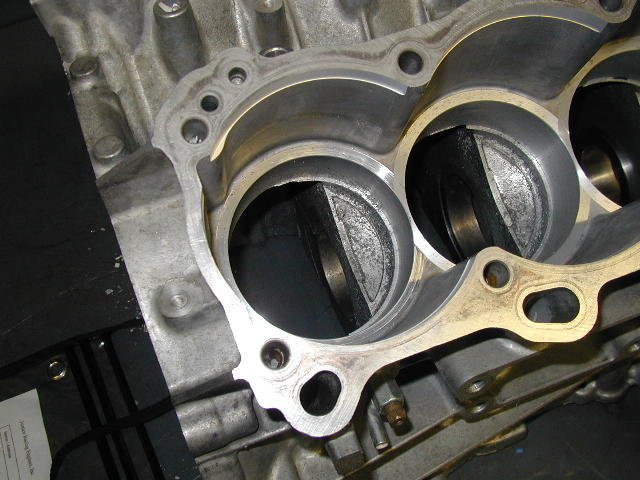

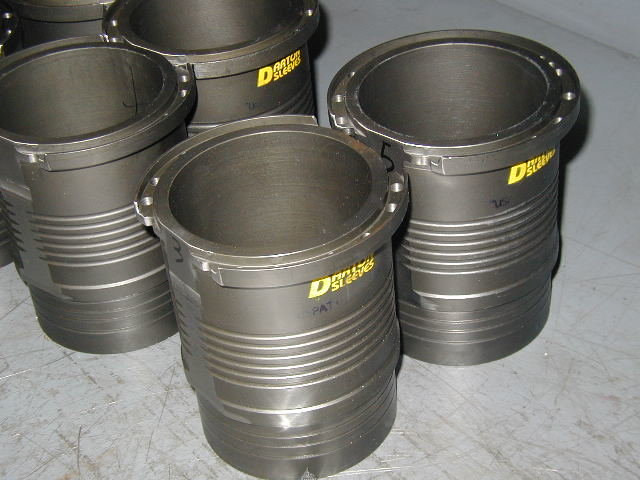

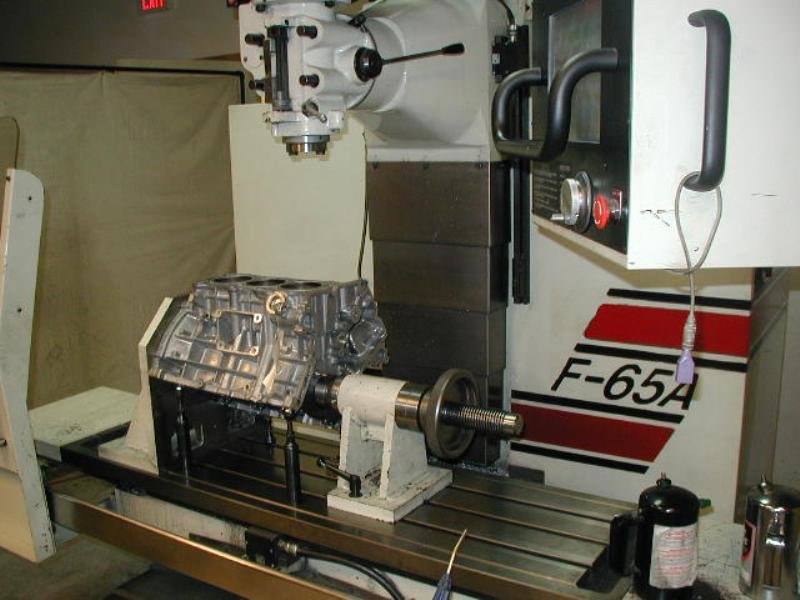

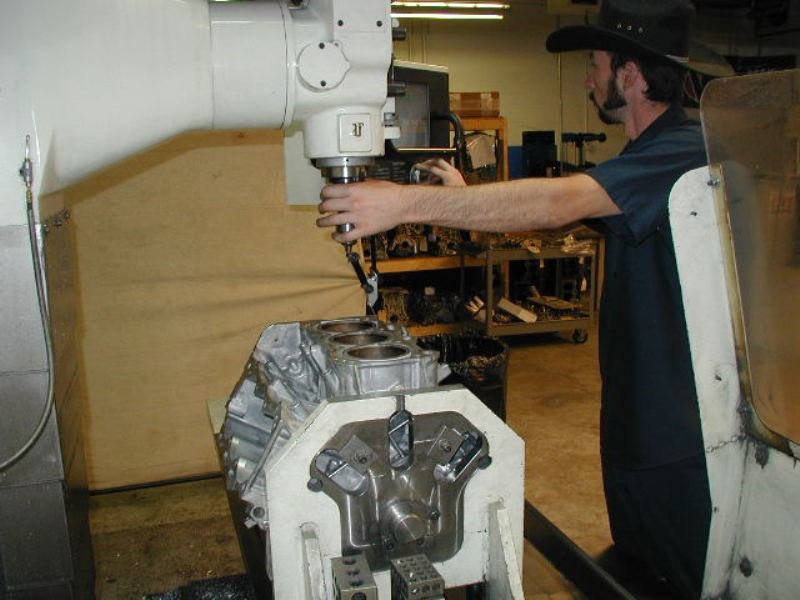

    Here is what the process looks like. Pictures of what my block is going through right now.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]


    Now the point of bringing this to light, is that it is another option, to increasing the strength and longevity of your engine. As well as being able to be over-bored, for the performance oriented individual.

    Darton Headquarters in CA, is who makes the sleeves. There are a variety of shops that can install them, as long as they have the proper tooling.

    Mine in the photo are at Darton East. A little more expensive than then next two shops which I will mention, but they are affiliated and a Race shop. So that got my vote.

    You also have Dezod, on the North East side. http://www.dezod.com/cat_engine4.cfm

    And LC Engineering, in the South West ,www.LCEPerformance.com

  2. Nov 17, 2012 at 7:11 PM
    #2
    Torspd

    Torspd [OP] Tor-nication

    Joined:
    Sep 18, 2009
    Member:
    #22958
    Messages:
    5,458
    Gender:
    Male
    First Name:
    Tor
    Houston
    Vehicle:
    MMVI 4.4L 4x4 Access Cab
    Torspd Custom Turbo kit [] Borg Warner 9180EFR Turbo [] ProEFI Pro128 EMS [] TiAL Q BOV [] TiAL V44 Wastegate @ 15psi [] CP Pistons [] CP Carrillo Rods [] ARP Head studs [] ARP Main Studs [] ARP Header - Head Studs [] Ported Heads w/ 1mm oversized valves intake/exhaust [] Brian Crower Forged Stroker Crank [] Darton M.I.D. Sleeved Block [] Kelford Camshafts [] Torspd 170* T-stat mod [] APR Large Fuel Rail [] Aeromotive Stealth 340 LPH Fuel Pump [] FueLab FPR [] APR T56 Conversion Kit [] KP RACING Built T56 [] McLeod Racing Custom Twin Disk Clutch [] One Piece Aluminum Driveshaft [] MGW Shifter [] Custom lowering kit [] Ohlins Front Coilovers [] QA1rear shocks [] Custom Ron Davis Radiator [] Dual SPAL Electric Fans []
    Another picture of the process. The plates which are bolted to the top of the block are named Torque Plates.

    [​IMG]

    They take the place of the heads, and are Torqued to spec, in place of the heads. Their purpose is to replicate the pressures of the heads being installed, while allowing the cylinders to be bored to the proper dimensions, and have a true circular bore.

    If the sleeves were to be bored without them, they would be round to spec. However, when the heads were then torqued down, there would be a high potential for the cylinder to warp under pressure of torquing the studs down.

    So, the Torque Plates reverse that potential. By boring with them on, they are true with the full pressure. With the plates then removed, the cylinders might slightly warp out of true round, but when the heads are then installed, that pressure will bring them back to true round again.

    ***EDITED 16 April '14*****

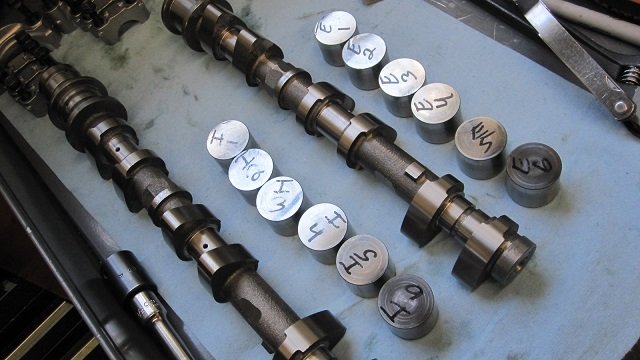

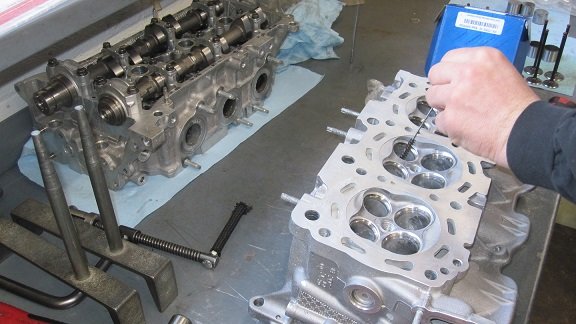

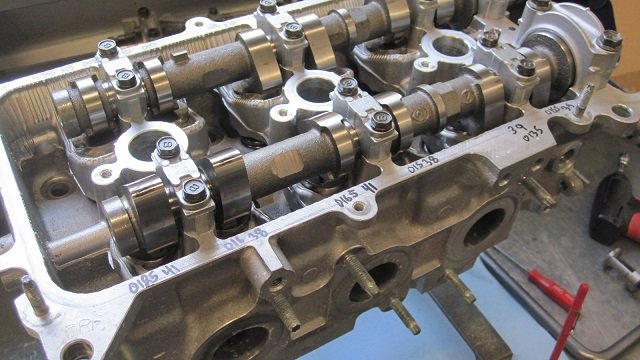

    The fabled Kelford cams! [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]



    I should also add, that a new set of dual valve springs (SuperTech) was ordered because the original set, from when LCEngineering originally built this engine, was binding when the valves were at full open. New SuperTech springs are in and work as intended. :thumbsup: All of the intake bucket shims lashed out perfectly in spec, but a few of the exhaust bucket shims were out of tolerance. Those were ordered and will be in soon.

    Here are the specs of my camshafts, for a point of reference:

    Kelford Camshafts Stage 2 Turbo cams.

    Total duration 265 intake, 270 exhaust.
    Duration at 1mm valve lift, 225 inlet, 231 exhaust.
    Total valve lift with lash set, 10.55mm inlet, 10.75mm exhaust.

    The OEM total durations are 232 intake, and 236 exhaust.

    Last edited: Apr 16, 2014
  3. Nov 21, 2012 at 2:02 PM
    #3
    05RedTaco

    05RedTaco Nom Nom Nom

    Joined:
    Sep 20, 2010
    Member:
    #43521
    Messages:
    1,660
    Gender:
    Male
    First Name:
    Tony
    Phoenix
    Vehicle:
    2005 Tacoma 4.0L Acces Cab PreRunner
    Shortened antenna, ebay Intake, JBA long tube headers, 2nd set of cats cut out and straight piped, 14" Magnaflow muffler dumped before axle, relocated rear diff breather, Avid off road front bumper. Bilstein 5100's front and rear, OME 885x coils, Light Racing UCA's, 2" Toytec AAL, Hella 700ff lights, Falken Rocky Mountain AT/S 265/75/16 Load E 10ply, Blu Logic handsfree
    Very cool! I wish I had that much money to blow :eek:

    1GR with twin GT28RS and Darton sleeves would be bad ass!

  4. Nov 21, 2012 at 2:04 PM
    #4
    Torspd

    Torspd [OP] Tor-nication

    Joined:
    Sep 18, 2009
    Member:
    #22958
    Messages:
    5,458
    Gender:
    Male
    First Name:
    Tor
    Houston
    Vehicle:
    MMVI 4.4L 4x4 Access Cab
    Torspd Custom Turbo kit [] Borg Warner 9180EFR Turbo [] ProEFI Pro128 EMS [] TiAL Q BOV [] TiAL V44 Wastegate @ 15psi [] CP Pistons [] CP Carrillo Rods [] ARP Head studs [] ARP Main Studs [] ARP Header - Head Studs [] Ported Heads w/ 1mm oversized valves intake/exhaust [] Brian Crower Forged Stroker Crank [] Darton M.I.D. Sleeved Block [] Kelford Camshafts [] Torspd 170* T-stat mod [] APR Large Fuel Rail [] Aeromotive Stealth 340 LPH Fuel Pump [] FueLab FPR [] APR T56 Conversion Kit [] KP RACING Built T56 [] McLeod Racing Custom Twin Disk Clutch [] One Piece Aluminum Driveshaft [] MGW Shifter [] Custom lowering kit [] Ohlins Front Coilovers [] QA1rear shocks [] Custom Ron Davis Radiator [] Dual SPAL Electric Fans []
    That or something a tad larger, and one could be keeping up with some very fast GTR's. ;)

    There is an Xrunner in florida that has a pair of GT28R's. All stock internals though.

  5. Nov 21, 2012 at 2:19 PM
    #5
    05RedTaco

    05RedTaco Nom Nom Nom

    Joined:
    Sep 20, 2010
    Member:
    #43521
    Messages:
    1,660
    Gender:
    Male
    First Name:
    Tony
    Phoenix
    Vehicle:
    2005 Tacoma 4.0L Acces Cab PreRunner
    Shortened antenna, ebay Intake, JBA long tube headers, 2nd set of cats cut out and straight piped, 14" Magnaflow muffler dumped before axle, relocated rear diff breather, Avid off road front bumper. Bilstein 5100's front and rear, OME 885x coils, Light Racing UCA's, 2" Toytec AAL, Hella 700ff lights, Falken Rocky Mountain AT/S 265/75/16 Load E 10ply, Blu Logic handsfree
    If it was me I would want full boost by 2 - 2.5k rpm, since my truck is a work truck not a drag racer. I had 2.5L Nissan running T3/T4 60trim which is tad smaller than GT30R, I had full boost by 2.8k rpm. Figure 2L per cylinder bank the GT28RS would be perfect, yes you could throw on GT30 or even GT35, but full boost would be had in higher rpms making it impractical for daily driver/work truck :)

  6. Nov 21, 2012 at 2:42 PM
    #6
    Torspd

    Torspd [OP] Tor-nication

    Joined:
    Sep 18, 2009
    Member:
    #22958
    Messages:
    5,458
    Gender:
    Male
    First Name:
    Tor
    Houston
    Vehicle:
    MMVI 4.4L 4x4 Access Cab
    Torspd Custom Turbo kit [] Borg Warner 9180EFR Turbo [] ProEFI Pro128 EMS [] TiAL Q BOV [] TiAL V44 Wastegate @ 15psi [] CP Pistons [] CP Carrillo Rods [] ARP Head studs [] ARP Main Studs [] ARP Header - Head Studs [] Ported Heads w/ 1mm oversized valves intake/exhaust [] Brian Crower Forged Stroker Crank [] Darton M.I.D. Sleeved Block [] Kelford Camshafts [] Torspd 170* T-stat mod [] APR Large Fuel Rail [] Aeromotive Stealth 340 LPH Fuel Pump [] FueLab FPR [] APR T56 Conversion Kit [] KP RACING Built T56 [] McLeod Racing Custom Twin Disk Clutch [] One Piece Aluminum Driveshaft [] MGW Shifter [] Custom lowering kit [] Ohlins Front Coilovers [] QA1rear shocks [] Custom Ron Davis Radiator [] Dual SPAL Electric Fans []
    I agree. The largest I would go would be a pair of GT30's myself. Just was fantasizing about how cool it would be to roll up next to a GTR that has a Boost logic or AMS kit, in sleeved Tacoma with a similar pair of turbos. ;)

    On the I heard the GT28's on the 4.0 hit max boost before 3K. Not sure the exact # though.

    Should have some new pics in a few weeks, to show the main caps with ARP studs, as well as the girdle.

  7. Nov 21, 2012 at 6:57 PM
    #7
    toon714

    toon714 Well-Known Member

    Joined:
    Sep 15, 2010
    Member:
    #43323
    Messages:
    491
    Gender:
    Male
    First Name:
    toon
    So. Cali to H-town
    Vehicle:
    2010 turbo lowered prerunner
    garret Gt 35R front mount turbo, TR lowering kit, Work wheels, all the go fast goodies!
    Im running a gt35r on my front mount setup.
    I hit full boost at 2800rpm. :)
    And my truck is a work truck daily everyday with 45k miles going.strong!

  8. Nov 21, 2012 at 7:03 PM
    #8
    toon714

    toon714 Well-Known Member

    Joined:
    Sep 15, 2010
    Member:
    #43323
    Messages:
    491
    Gender:
    Male
    First Name:
    toon
    So. Cali to H-town
    Vehicle:
    2010 turbo lowered prerunner
    garret Gt 35R front mount turbo, TR lowering kit, Work wheels, all the go fast goodies!
    Gt35r x2 on a GTR is nasty fast. ;)
    Freeway ballling to 200+ in no time. Haha

  9. Nov 21, 2012 at 7:04 PM
    #9
    dually

    dually Low and slow

    Joined:
    Jul 29, 2008
    Member:
    #8205
    Messages:
    3,134
    Gender:
    Male
    Interstate underpass
    Vehicle:
    05 Indigo 4wd Longbed
    Not as many as the 98..
    Y no 42r on spray?

  10. Nov 21, 2012 at 7:05 PM
    #10
    toon714

    toon714 Well-Known Member

    Joined:
    Sep 15, 2010
    Member:
    #43323
    Messages:
    491
    Gender:
    Male
    First Name:
    toon
    So. Cali to H-town
    Vehicle:
    2010 turbo lowered prerunner
    garret Gt 35R front mount turbo, TR lowering kit, Work wheels, all the go fast goodies!
    Lol 42r. Thats way too.big. I wont.even be able to.spool that sucker up to.full.boost. Haha
    Maybe supra with a 42r. :)

  11. Nov 21, 2012 at 7:08 PM
    #11
    dually

    dually Low and slow

    Joined:
    Jul 29, 2008
    Member:
    #8205
    Messages:
    3,134
    Gender:
    Male
    Interstate underpass
    Vehicle:
    05 Indigo 4wd Longbed
    Not as many as the 98..
    Someone said SOUPRA?:anonymous:


  12. Nov 21, 2012 at 7:14 PM
    #12
    Lucario Runner

    Lucario Runner Resident SUV racer

    Joined:
    Jun 29, 2011
    Member:
    #59067
    Messages:
    2,006
    Gender:
    Male
    First Name:
    Robert
    San Antonio, TX
    Vehicle:
    06 Toyota 4Runner
    AFE stage II intake, APR X1, URD 70mm Throttle Valve (ported and knife edged), NST intake manifold spacer, URD spec U headers, Denso IKH20, URD fuel pump, APR fuel rail, URD Y pipe, Greddy sandwich cooler plate, Earls oil cooler, FJ TRD shocks, Cusco front and rear sway bars, LC Engineering sway bushings, ES rear track rod bushings, Carbotech pads, Stoptech ss brake lines, Stoptech slotted rotors, Limited Grill, Painted hatch cover by me, Painted valve covers by me, Cobra CB, TRD rad and oil cap, Escort 8500, Autometer oil psi and temp gauges, Flexpod, Pioneer 400w speakers.
  13. Mar 6, 2013 at 12:15 PM
    #13
    Torspd

    Torspd [OP] Tor-nication

    Joined:
    Sep 18, 2009
    Member:
    #22958
    Messages:
    5,458
    Gender:
    Male
    First Name:
    Tor
    Houston
    Vehicle:
    MMVI 4.4L 4x4 Access Cab
    Torspd Custom Turbo kit [] Borg Warner 9180EFR Turbo [] ProEFI Pro128 EMS [] TiAL Q BOV [] TiAL V44 Wastegate @ 15psi [] CP Pistons [] CP Carrillo Rods [] ARP Head studs [] ARP Main Studs [] ARP Header - Head Studs [] Ported Heads w/ 1mm oversized valves intake/exhaust [] Brian Crower Forged Stroker Crank [] Darton M.I.D. Sleeved Block [] Kelford Camshafts [] Torspd 170* T-stat mod [] APR Large Fuel Rail [] Aeromotive Stealth 340 LPH Fuel Pump [] FueLab FPR [] APR T56 Conversion Kit [] KP RACING Built T56 [] McLeod Racing Custom Twin Disk Clutch [] One Piece Aluminum Driveshaft [] MGW Shifter [] Custom lowering kit [] Ohlins Front Coilovers [] QA1rear shocks [] Custom Ron Davis Radiator [] Dual SPAL Electric Fans []
    No new updates as far as pictures go, but since my build is a stroker build, I figure I will put this here.
    Compliments of my friends at Dezod Motorsports.

    Brian Crower 1GR Stroker kit. This is the higher priced of the two. Very excited to see this come to light.

    http://www.dezod.com/pd-brian-crower-stroker-kit-1grfe.cfm

    And this -

    New products!

    Fidanza Flywheel
    http://www.dezod.com/pd_fidanza_aluminum.cfm

    Molnar Rods:
    http://www.dezod.com/pd_molnar_techn...rods-1grfe.cfm

    Clevite bearings and main seal kit:
    http://www.dezod.com/pd-clevite-main-bearings-1grfe.cfm
    http://www.dezod.com/pd_clevite_rear.cfm
    http://www.dezod.com/pd-clevite-rod-bearings-1grfe.cfm
    http://www.dezod.com/pd-clevite-thrust-washer-1grfe.cfm

    Dezod Vacuum manifold:
    http://www.dezod.com/pd_dezod_motorsports_version_3.cfm

    Brian Crower 1GRFE stroker kits:
    http://www.dezod.com/pd-brian-crower-stroker-kit.cfm
    http://www.dezod.com/pd-brian-crower-stroker-kit-1grfe.cfm

  14. Mar 6, 2013 at 12:19 PM
    #14
    Lucario Runner

    Lucario Runner Resident SUV racer

    Joined:
    Jun 29, 2011
    Member:
    #59067
    Messages:
    2,006
    Gender:
    Male
    First Name:
    Robert
    San Antonio, TX
    Vehicle:
    06 Toyota 4Runner
    AFE stage II intake, APR X1, URD 70mm Throttle Valve (ported and knife edged), NST intake manifold spacer, URD spec U headers, Denso IKH20, URD fuel pump, APR fuel rail, URD Y pipe, Greddy sandwich cooler plate, Earls oil cooler, FJ TRD shocks, Cusco front and rear sway bars, LC Engineering sway bushings, ES rear track rod bushings, Carbotech pads, Stoptech ss brake lines, Stoptech slotted rotors, Limited Grill, Painted hatch cover by me, Painted valve covers by me, Cobra CB, TRD rad and oil cap, Escort 8500, Autometer oil psi and temp gauges, Flexpod, Pioneer 400w speakers.
    You know you shouldnt post porn right?

  15. Mar 6, 2013 at 12:21 PM
    #15
    Torspd

    Torspd [OP] Tor-nication

    Joined:
    Sep 18, 2009
    Member:
    #22958
    Messages:
    5,458
    Gender:
    Male
    First Name:
    Tor
    Houston
    Vehicle:
    MMVI 4.4L 4x4 Access Cab
    Torspd Custom Turbo kit [] Borg Warner 9180EFR Turbo [] ProEFI Pro128 EMS [] TiAL Q BOV [] TiAL V44 Wastegate @ 15psi [] CP Pistons [] CP Carrillo Rods [] ARP Head studs [] ARP Main Studs [] ARP Header - Head Studs [] Ported Heads w/ 1mm oversized valves intake/exhaust [] Brian Crower Forged Stroker Crank [] Darton M.I.D. Sleeved Block [] Kelford Camshafts [] Torspd 170* T-stat mod [] APR Large Fuel Rail [] Aeromotive Stealth 340 LPH Fuel Pump [] FueLab FPR [] APR T56 Conversion Kit [] KP RACING Built T56 [] McLeod Racing Custom Twin Disk Clutch [] One Piece Aluminum Driveshaft [] MGW Shifter [] Custom lowering kit [] Ohlins Front Coilovers [] QA1rear shocks [] Custom Ron Davis Radiator [] Dual SPAL Electric Fans []
    Can't help it. I'm addicted. Ahhhhhhh

  16. Mar 18, 2013 at 8:45 PM
    #16
    Raceline08

    Raceline08 Well-Known Member

    Joined:
    Sep 15, 2011
    Member:
    #63578
    Messages:
    1,367
    Gender:
    Male
    First Name:
    Brett
    Santa Rosa, ca
    Vehicle:
    Silver 08 DBC SB 4x4 TRD Offroad
    front Billies, 885x coils, taco lean spacer, TC UCA'S, Magnaflow 22" OME Dakars, Billy 110 rear's, B.A.M.F CMC, custom made E-locker guard
    Subd

    Brett

  17. Mar 18, 2013 at 11:22 PM
    #17
    NorCalTacoma

    NorCalTacoma Well-Known Member

    Joined:
    May 17, 2009
    Member:
    #17347
    Messages:
    71
    Gender:
    Male
    Northern California
    Vehicle:
    09 SW Dbl Cab LB TRD Sport 4x4
    Snug top with remote open,Bilstein 5100, rubber bed mat,Kmc Addicts, Duratracs,Pioneer Z150, Arc 900x6, Memphis Mojo Pro Components f&r,2x12 Memphis shallow mount subs.
    Nice, loving the buildup so far. Looking forward to seeing some numbers.

  18. Mar 19, 2013 at 12:24 PM
    #18
    Torspd

    Torspd [OP] Tor-nication

    Joined:
    Sep 18, 2009
    Member:
    #22958
    Messages:
    5,458
    Gender:
    Male
    First Name:
    Tor
    Houston
    Vehicle:
    MMVI 4.4L 4x4 Access Cab
    Torspd Custom Turbo kit [] Borg Warner 9180EFR Turbo [] ProEFI Pro128 EMS [] TiAL Q BOV [] TiAL V44 Wastegate @ 15psi [] CP Pistons [] CP Carrillo Rods [] ARP Head studs [] ARP Main Studs [] ARP Header - Head Studs [] Ported Heads w/ 1mm oversized valves intake/exhaust [] Brian Crower Forged Stroker Crank [] Darton M.I.D. Sleeved Block [] Kelford Camshafts [] Torspd 170* T-stat mod [] APR Large Fuel Rail [] Aeromotive Stealth 340 LPH Fuel Pump [] FueLab FPR [] APR T56 Conversion Kit [] KP RACING Built T56 [] McLeod Racing Custom Twin Disk Clutch [] One Piece Aluminum Driveshaft [] MGW Shifter [] Custom lowering kit [] Ohlins Front Coilovers [] QA1rear shocks [] Custom Ron Davis Radiator [] Dual SPAL Electric Fans []
    Thanks man! I am planning on doing a dyno with this sleeved engine in N/A form and F/I. Also with my current "spare" engine in N/A form because I want to get a base with the drive train that I have. Since it is a T56 trans. That way it will be easier to relate the gains with itself, as well as against OEM drivetrain.

  19. Mar 21, 2013 at 2:16 AM
    #19
    RedLantern

    RedLantern Well-Known Member

    Joined:
    Dec 7, 2012
    Member:
    #92641
    Messages:
    414
    Gender:
    Male
    Honolulu, Hi
    Vehicle:
    06 double cab PreRunner
    That's freakin awesome...now I gotta go sell a kidney and its all your fault...:goingcrazy: looks like the money pit just got deeper lol

  20. Mar 21, 2013 at 4:22 AM
    #20
    Torspd

    Torspd [OP] Tor-nication

    Joined:
    Sep 18, 2009
    Member:
    #22958
    Messages:
    5,458
    Gender:
    Male
    First Name:
    Tor
    Houston
    Vehicle:
    MMVI 4.4L 4x4 Access Cab
    Torspd Custom Turbo kit [] Borg Warner 9180EFR Turbo [] ProEFI Pro128 EMS [] TiAL Q BOV [] TiAL V44 Wastegate @ 15psi [] CP Pistons [] CP Carrillo Rods [] ARP Head studs [] ARP Main Studs [] ARP Header - Head Studs [] Ported Heads w/ 1mm oversized valves intake/exhaust [] Brian Crower Forged Stroker Crank [] Darton M.I.D. Sleeved Block [] Kelford Camshafts [] Torspd 170* T-stat mod [] APR Large Fuel Rail [] Aeromotive Stealth 340 LPH Fuel Pump [] FueLab FPR [] APR T56 Conversion Kit [] KP RACING Built T56 [] McLeod Racing Custom Twin Disk Clutch [] One Piece Aluminum Driveshaft [] MGW Shifter [] Custom lowering kit [] Ohlins Front Coilovers [] QA1rear shocks [] Custom Ron Davis Radiator [] Dual SPAL Electric Fans []
    Investment. ;)
