Dash Clock to USB?

Discussion in '1st Gen. Tacomas (1995-2004)' started by alexvallorosi, Feb 20, 2020.

  1. Feb 20, 2020 at 9:30 PM
    #1
    alexvallorosi

    alexvallorosi [OP] Well-Known Member

    Joined:
    Dec 7, 2019
    Member:
    #312746
    Messages:
    107
    Gender:
    Male
    First Name:
    Alex
    Joshua Tree, CA
    Vehicle:
    1996 Tacoma 3.4L V6 4X4
    I was recently thinking over the dashboard layout of my first gen and I decided to replace the dash clock with a magnetic wireless charger for an iPhone. It works great, but I don't like running the USB cable out of the dash trim and into a cigarette lighter USB socket. My thought is that I could tap into the 12V for the dash clock to power a USB socket that I could hide behind the dash. Any thoughts on this? Has anyone done a similar mod, ie. replacing the dash clock with USB ports?

  2. Feb 21, 2020 at 2:13 AM
    #2
    Wyoming09

    Wyoming09 Well-Known Member

    Joined:
    Apr 24, 2015
    Member:
    #153833
    Messages:
    14,277
    Gender:
    Male
    New Tripoli Pa
    Vehicle:
    2000 Work truck 5 speed 4x4 3.4
    Super Springs
    Remember you have constant voltage for the clock memory and switched voltage for the display.

    Figure out which one you want and which pin is ground and your good to go.

    Want to charge with the truck off go with the constant voltage.

    underaroof likes this.
  3. Feb 21, 2020 at 5:36 AM
    #3
    nzbrock

    nzbrock Well-Known Member

    Joined:
    Jan 6, 2013
    Member:
    #94572
    Messages:
    3,152
    Gender:
    Male
    First Name:
    Noah
    San Marcos, TX
    Vehicle:
    99 TRD Prerunner 3RZ
    SAW 2.0 Coilovers Wheeler's 5 Leaf + 3 AAL Bilstein 5100s LCE long tube header Flowmaster Delta 50 Muffler FJ Trail Team Wheels 255/85/16 Cooper ST Maxx 4Runner overhead sunglass console 4Runner leather seats All LED lights Red/Clear Tail Light Tundra Brakes HID Projector Retrofits 4Runner Auto Up/Down Windows Bullet Liner Cargo tie down system E-locker axle swap w/4.56 Gears ARE MX Cap Prinsu Toprac Custom heated turn signal/puddle light mirrors Volant Intake Tube

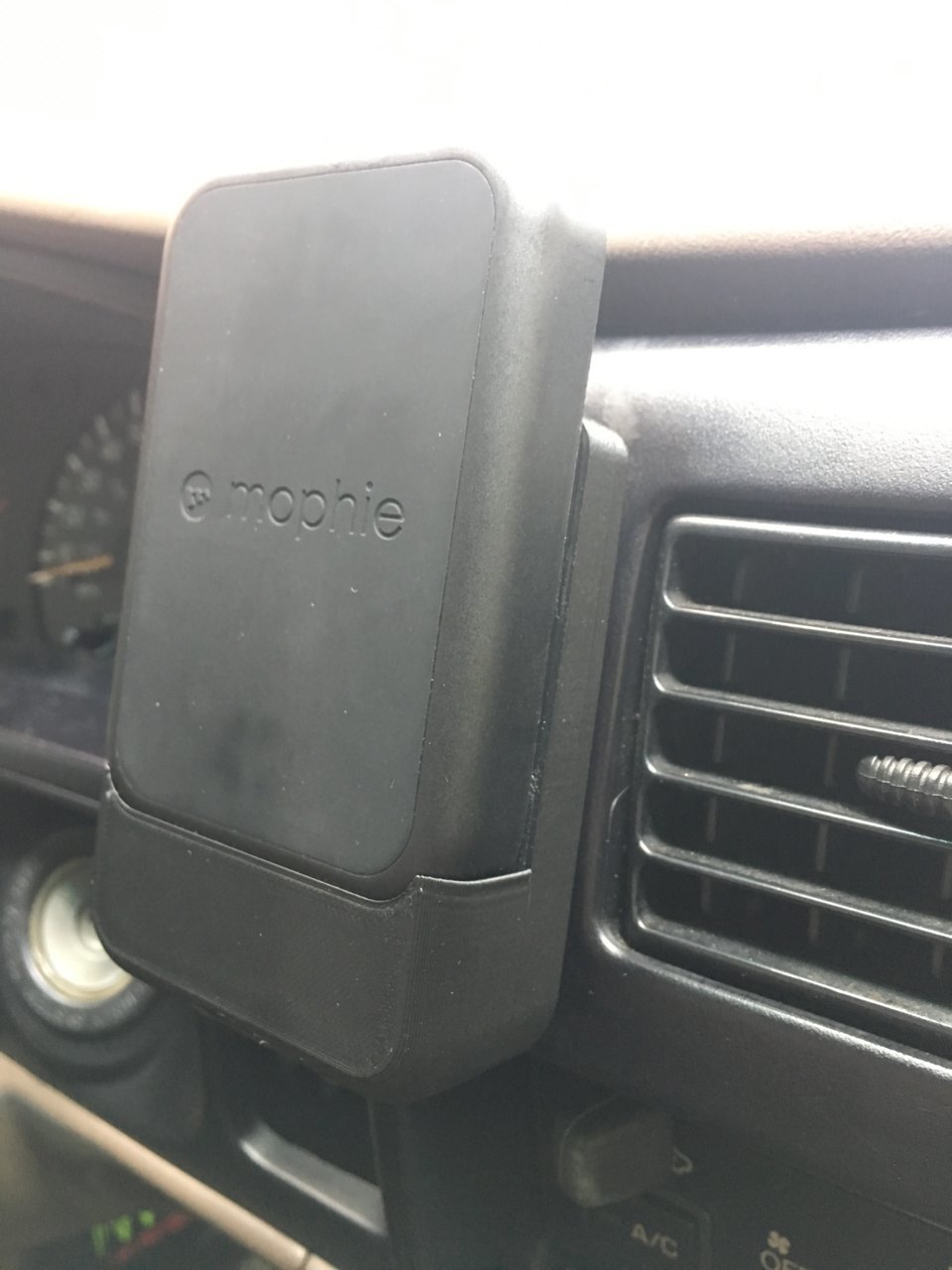

    I made a mount for a Mophie magnetic mount/charger that goes where the passenger airbag switch goes. This obviously only works with the Mophie cases, but it solved the problem of having to plug my phone in since its a mount and wireless charger in one.

    The mophie charger block has a micro usb port on the bottom and uses a double T slot for mounting, so I was able to make it like a dock for the charger block. I can just slide it upwards to remove it. I will be redesigning it in the future so that I can remove it and then use it as a normal micro usb dock for my phone without the mag mount. This will take some more precise measurements to make it work for both.

    I got a 12v to 5v converter that could do higher amperage (the mophie charger takes a lot of power) and tapped it into the 12v outlet circuit. I good way to do this is to use a spade jumper on the back of the cig lighter or 12v ports like this https://www.amazon.com/DZS-Elec-Con...?keywords=spade+jumper&qid=1582292125&sr=8-10
    I believe one of the spades is smaller than the other, I think one is 1/4" and the other is 3/16", but you should measure them to verify.

    Previously I had made docks that went in the same location so that I didn't have an exposed cable that needed to be plugged in each time. I put these on thingiverse, but like most things in technology, they are outdated now.

    This was for an iPhone 4/4s https://www.thingiverse.com/thing:40147
    [​IMG]

    And here's one for a 5/5s/SE https://www.thingiverse.com/thing:40254
    [​IMG]

    Taco critter likes this.
  4. Feb 21, 2020 at 6:20 AM
    #4
    se7enine

    se7enine MCMLXXIX

    Joined:
    Apr 18, 2013
    Member:
    #102322
    Messages:
    23,209
    Gender:
    Male
    Reno, NV
    Vehicle:
    07 Lexus GX470
    This site contains affiliate links for which the site may be compensated.
    #4
    TWJLee, cruiserguy and Taco critter like this.
  5. Feb 21, 2020 at 8:46 AM
    #5
    4xdog

    4xdog Well-Known Member

    Joined:
    May 10, 2018
    Member:
    #253074
    Messages:
    1,074
    Gender:
    Male
    Saint Louis MO
    Vehicle:
    03 DC TRD OR, 15 DC TRD OR, 08 RX350, 62 TR3B
    ^^ I have one of those in the smaller Gen 2 lower console size. I’ll be installed as temperatures imcrease and plastics get more flexible.

    Has anyone seen a small/sideways version that might fit in our Gen 1 lower console switch blanking holes?

  6. Feb 21, 2020 at 4:53 PM
    #6
    alexvallorosi

    alexvallorosi [OP] Well-Known Member

    Joined:
    Dec 7, 2019
    Member:
    #312746
    Messages:
    107
    Gender:
    Male
    First Name:
    Alex
    Joshua Tree, CA
    Vehicle:
    1996 Tacoma 3.4L V6 4X4
    This is a great point. I found the pin for the constant 12v, I'll go with that.

    We are thinking along the same lines here. Your Mophie install looks nice! My 1996 doesn't have the airbag switch, instead its the flasher button. So that's why I'm installing it in the clock! Can you direct me toward that 12v to 5v converter?

  7. Feb 21, 2020 at 9:53 PM
    #7
    jbrandt

    jbrandt Made you look

    Joined:
    Feb 12, 2011
    Member:
    #51038
    Messages:
    17,612
    Gender:
    Male
    First Name:
    Justin
    El Dorado, CA (NOT El Dorado Hills)
    Vehicle:
    '04 TRD Tacoma 4x4 DC
    Kings, J59's Total Chaos UCAs Custom skids Sticker mod
    Can you even see the phone in the clock location? lol

    I did a simple universal phone mount in the switch blank where the airbag key usually is (I have a doublecab, so no switch). I really like the location, but I agree that the usb cable from the lower 12v plug is a little obtrusive.


    I also did the 12v hot all the time mod, so my 12v plugs are... hot all the time... (see jumper at bottom of pic) But I kinda like repurposing the clock space since I can't see it anyway. Might as well make it useful.


    QMEDJoe likes this.
  8. Feb 22, 2020 at 6:05 AM
    #8
    nzbrock

    nzbrock Well-Known Member

    Joined:
    Jan 6, 2013
    Member:
    #94572
    Messages:
    3,152
    Gender:
    Male
    First Name:
    Noah
    San Marcos, TX
    Vehicle:
    99 TRD Prerunner 3RZ
    SAW 2.0 Coilovers Wheeler's 5 Leaf + 3 AAL Bilstein 5100s LCE long tube header Flowmaster Delta 50 Muffler FJ Trail Team Wheels 255/85/16 Cooper ST Maxx 4Runner overhead sunglass console 4Runner leather seats All LED lights Red/Clear Tail Light Tundra Brakes HID Projector Retrofits 4Runner Auto Up/Down Windows Bullet Liner Cargo tie down system E-locker axle swap w/4.56 Gears ARE MX Cap Prinsu Toprac Custom heated turn signal/puddle light mirrors Volant Intake Tube
    this is the one I used, but there are a ton on Amazon that are basically the same.

    12v to 5v Converter, DROK Waterproof Usb Charging Adapter Voltage Regulator DC DC Buck Converter 12V 24V to 5 V 9V 12V 4.2A Power Supply Transformer Step-down Module QC 3.0 for Vehicle Phone Charge https://www.amazon.com/dp/B072JC1DQF/ref=cm_sw_r_cp_api_i_butuEb3CJ533R

  9. Feb 22, 2020 at 7:00 AM
    #9
    slander

    slander Honorary Crawl Boi

    Joined:
    May 10, 2013
    Member:
    #103909
    Messages:
    8,964
    Gender:
    Male
    Hickory, NC
    Vehicle:
    02 Tacoma, fixed with curse words.
    Cool thanks for that!

  10. Feb 22, 2020 at 7:02 AM
    #10
    nzbrock

    nzbrock Well-Known Member

    Joined:
    Jan 6, 2013
    Member:
    #94572
    Messages:
    3,152
    Gender:
    Male
    First Name:
    Noah
    San Marcos, TX
    Vehicle:
    99 TRD Prerunner 3RZ
    SAW 2.0 Coilovers Wheeler's 5 Leaf + 3 AAL Bilstein 5100s LCE long tube header Flowmaster Delta 50 Muffler FJ Trail Team Wheels 255/85/16 Cooper ST Maxx 4Runner overhead sunglass console 4Runner leather seats All LED lights Red/Clear Tail Light Tundra Brakes HID Projector Retrofits 4Runner Auto Up/Down Windows Bullet Liner Cargo tie down system E-locker axle swap w/4.56 Gears ARE MX Cap Prinsu Toprac Custom heated turn signal/puddle light mirrors Volant Intake Tube
    I also cut the fuse holder off of it since I was already wiring it into a fused circuit
    I think I just picked that one because it had the best reviews and could do 4.2A

  11. Feb 22, 2020 at 7:04 AM
    #11
    slander

    slander Honorary Crawl Boi

    Joined:
    May 10, 2013
    Member:
    #103909
    Messages:
    8,964
    Gender:
    Male
    Hickory, NC
    Vehicle:
    02 Tacoma, fixed with curse words.
    Nice!! I will actually be able to charge my phone!
