DDM HID Fog Light Install

Discussion in 'Lighting' started by SoCalR, Apr 26, 2010.

  1. Apr 26, 2010 at 8:10 PM
    #1
    SoCalR

    SoCalR [OP] Well-Known Member

    Joined:
    Dec 9, 2009
    Member:
    #27311
    Messages:
    305
    Gender:
    Male
    First Name:
    Rand
    San Diego, CA
    Vehicle:
    05 TRD Sport
    Okay, I've seen a couple threads/post of people installing their DDM HID fogs wrong and I just wanted to show how it should be installed, assuming that you, the reader, has the exact same set up as I do.

    I have the 35w Apexcone Raptor Kit in 3000k.

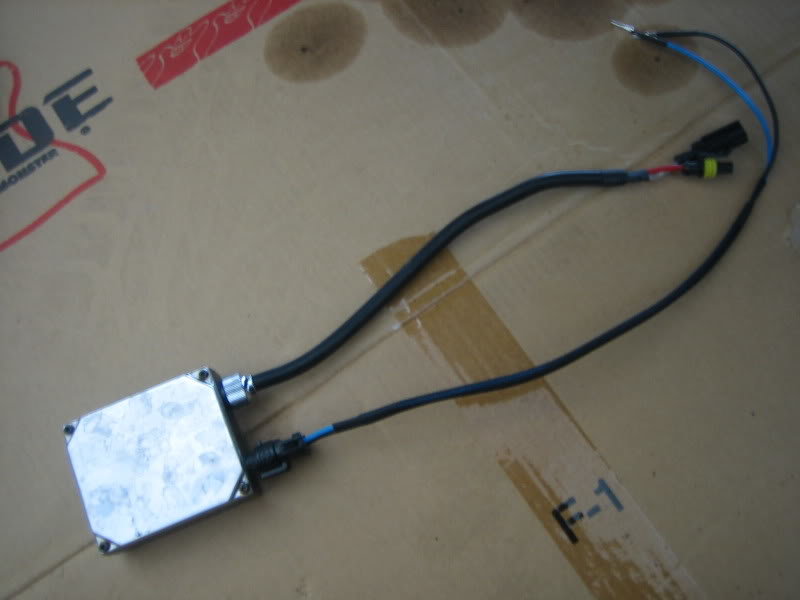

    First, you'll want to unplug the blue and black wire harness from the ballast. This is where I've seen people just shove the "male" ends into the factory harness, that's not what you want to do, there's no protection from the weather or its elements. Unplug it, and get rid of the harness.
    [​IMG]
    [​IMG]

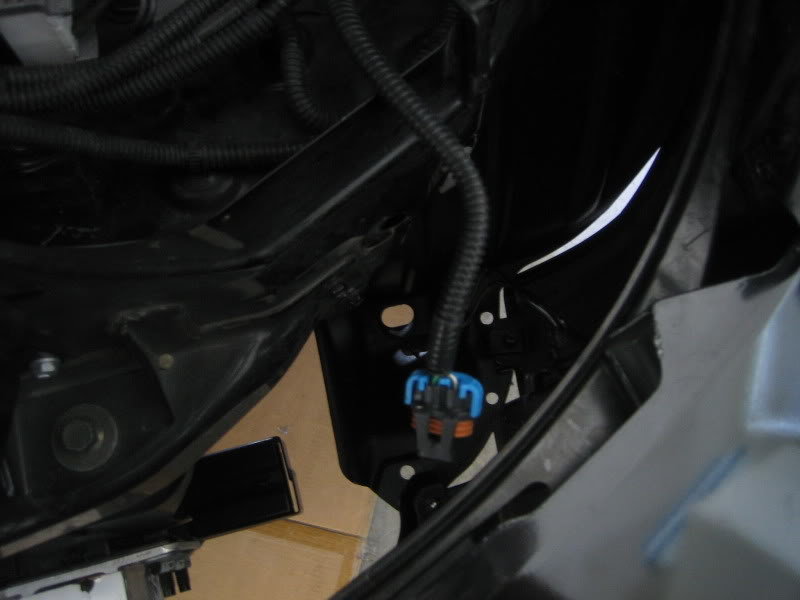

    Here's the factory connector for your fogs. *Note: one on each side
    [​IMG]

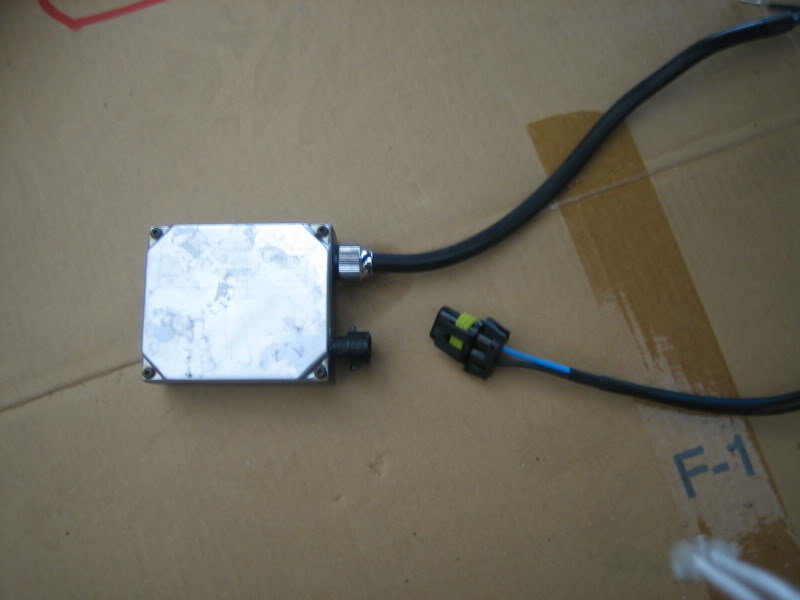

    Take the factory connector and plug that into the ballast. *Again, one on each side.
    [​IMG]

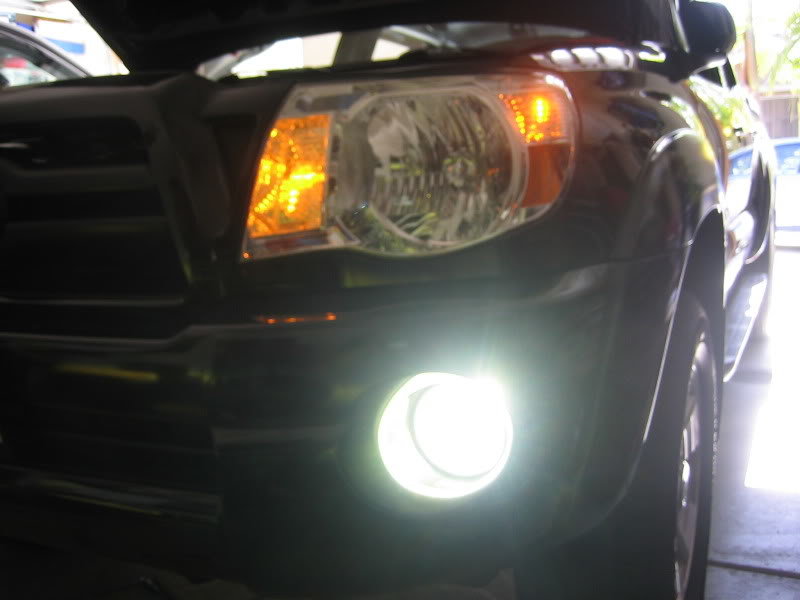

    Plug in the other connector from the ballast to the HID bulb and once you've got that all done on both sides, turn them on and double check they're both working. Mount the ballast, clean up wires, and have a beer. :cheers:
    [​IMG]

    Hopefully this short write-up will help someone out.

  2. May 9, 2010 at 9:06 AM
    #2
    Rucas

    Rucas 1st gen > 2nd gen

    Joined:
    Dec 5, 2009
    Member:
    #27040
    Messages:
    4,032
    Gender:
    Male
    First Name:
    Lucas
    Northern Colorado
    Vehicle:
    1st gen. 4x4 MANual
    sparkles, fairys, and happy things.
    what about where you mounted the ballasts? can yo get some pics of those.

  3. May 9, 2010 at 9:09 AM
    #3
    MOT

    MOT Prez of @battleborntacomas and ASSHOLE!

    Joined:
    Nov 21, 2009
    Member:
    #26325
    Messages:
    7,988
    Gender:
    Male
    First Name:
    Daniel
    las vegas
    Vehicle:
    08 MOT DB DC 4X4 Sr5
    Black Housing Head,H.I.D 10k headlights, 3k Foglights, T-Rex #2 Eyelids Lights, Blacked Out Tails Lights, 5% Tint all around, Tinted Windshield, Wet Okole's, WeatherTech Mats, Magnaflow Exhaust, Pro Comp 6 Inch Lift, K&N Intake,Avidoffroad Light Bar
    It looks like you took out the head light Y?

  4. May 9, 2010 at 11:37 PM
    #4
    Viet2100

    Viet2100 Well-Known Member

    Joined:
    Jun 27, 2007
    Member:
    #1930
    Messages:
    2,515
    Gender:
    Male
    First Name:
    Viet
    Delray Beach, FL
    Vehicle:
    2007 Infiniti G35S
    More room to work with.

  5. May 10, 2010 at 11:16 AM
    #5
    Veccster

    Veccster bass turds

    Joined:
    Aug 8, 2008
    Member:
    #8407
    Messages:
    2,085
    Gender:
    Male
    First Name:
    Eric
    Pittsburgh - The City of Champions
    Vehicle:
    2009 DC V6 TRDsport
    5100's all around - fronts at 1.75", 265/70/17 Bridgestone Revo 2, HID headlights and fog lights, factory skid plate, ss exhaust tip, tube steps, Access roll-up tonneau cover, Redline hood struts, 6 D-rings, seat MagLite, LED dome, fumoto oil drain, DTRL, fog light anytime, Kenwood/Clarion speakers, Pop-N-Lock 5300, LED bed lights and a few other things...
    How to you access the fog lights? Do you have to remove the inner wheel well (several clips and screws)?

  6. May 10, 2010 at 7:35 PM
    #6
    SoCalR

    SoCalR [OP] Well-Known Member

    Joined:
    Dec 9, 2009
    Member:
    #27311
    Messages:
    305
    Gender:
    Male
    First Name:
    Rand
    San Diego, CA
    Vehicle:
    05 TRD Sport

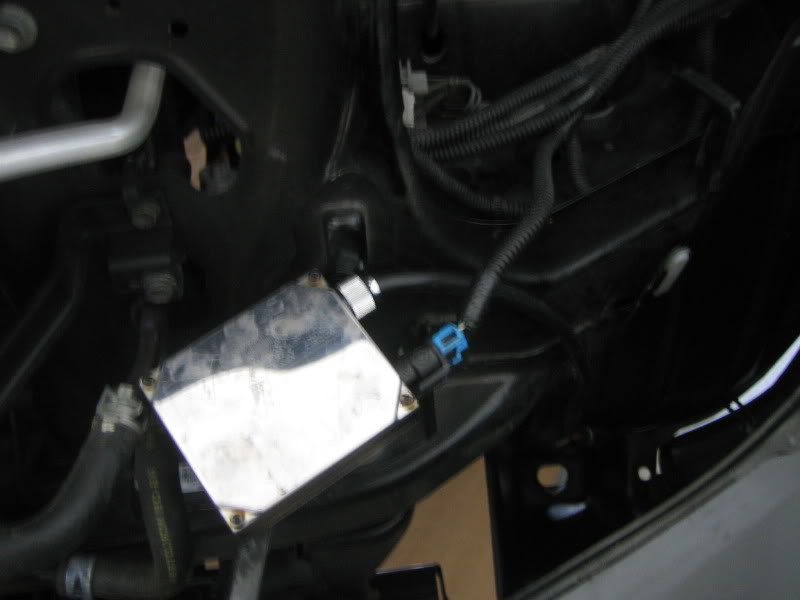

    Mine are mounted behind each headlight in the engine bay. I'll get a pic tomorrow when there's more light.

    Just like Viet said, more room with them out. And I routed my wiring where the factory fog wiring was, which is behind/underneath the headlights.


    Basically, yes. All I did was unbolt, I believe 2 bolts on the bottom of the fender liner, and fold it back. If you get under there, it's pretty clear what bolts need to be undone.

    I can do a thorough write-up if there's that much of a demand, but I think I covered what really needs to be done for the install of DDM's HIDs, and the few other threads out there with descriptions as well. I basically just made this post to correct some of the wiring I was seeing that was being done wrong.

  7. Mar 22, 2011 at 3:48 PM
    #7
    Stanley

    Stanley Well-Known Member

    Joined:
    Jul 24, 2010
    Member:
    #40658
    Messages:
    210
    Gender:
    Male
    Breckenridge, CO
    Vehicle:
    06 SR5 Silver
    Debadge, 5% Tint, Kolbalt Low Pro Tool Box, Satoshi, Ebay Black Headlights, 3000k Fogs With Yellow Stain glass Paint, Fog Anytime, Mag Light Mount, Husky Floor Liners, OME 3inch With 885's, Add Leaf, 16inch Steelies, 305/70/16 Dick Cepek Mud Countries, Tiregate Bed Mount, Sock Monkey Badges
    so from factory connector to the ballast to the bulb. no ground or power source from battery? or is that just for the controller (high/low bulb) on the headlights? im trying to get the slim kit from DDM and what bulb type H10?

  8. Mar 22, 2011 at 5:14 PM
    #8
    Stanley

    Stanley Well-Known Member

    Joined:
    Jul 24, 2010
    Member:
    #40658
    Messages:
    210
    Gender:
    Male
    Breckenridge, CO
    Vehicle:
    06 SR5 Silver
    Debadge, 5% Tint, Kolbalt Low Pro Tool Box, Satoshi, Ebay Black Headlights, 3000k Fogs With Yellow Stain glass Paint, Fog Anytime, Mag Light Mount, Husky Floor Liners, OME 3inch With 885's, Add Leaf, 16inch Steelies, 305/70/16 Dick Cepek Mud Countries, Tiregate Bed Mount, Sock Monkey Badges
    someone answer. want to order ha

  9. Mar 28, 2011 at 8:39 PM
    #9
    SanMarcosTacoma

    SanMarcosTacoma Well-Known Member

    Joined:
    Mar 5, 2011
    Member:
    #52412
    Messages:
    54
    Gender:
    Male
    First Name:
    Eric
    San Marcos
    Vehicle:
    2011 Prerunner TRD Sport DC LB
    Camburg spindles with 5100's set at 1.75, Allpro expedition rear springs, fuel mojave wheels with nitto trail grappler 305/55R20 tires
    Just got my ddm kit today and installed. Yep h10 bulb and yeah they just use the stock fog light plug into the ballast. Only the hi/low kits have the relay wiring harness. Took me about 20 minutes and yes they are extremely bright. I got the 35w 5000k kit.

  10. Mar 28, 2011 at 8:43 PM
    #10
    achirdo

    achirdo First Class White Trash

    Joined:
    Apr 7, 2010
    Member:
    #34819
    Messages:
    10,150
    Gender:
    Male
    First Name:
    Adam
    North DFW
    Vehicle:
    06 dodge ram 3500 5.9 cummins
    I never took anything apart when I did mine you can get your hand in there to plug in the new fogs it's just a tight fit. It also helps to turn your wheels out of the way. No removing inner fenderwells in neccasry
