Deck plate mod. Here we go.

Discussion in '4 Cylinder' started by Matic, Aug 5, 2010.

  1. Matic

    Matic [OP] Locked and Lifted "02" DC TRD.

    Joined:
    Sep 8, 2009
    Member:
    #22436
    Messages:
    9,086
    Gender:
    Male
    First Name:
    Rich
    Greenville,sc
    Vehicle:
    2002 TRD prerunner,SR5, doublecab
    OME 881 coils with OME nitrochargers shocks up front. OME aal with OME nitrochargers out back. Warn 8000 winch with 80ft custom braided synth line. Custom 60ft synth extension. All pro tube bumper, Hi-lift jack, Safari Snorkel, Wilco tiregate.
    Ok. Finally some some pics.

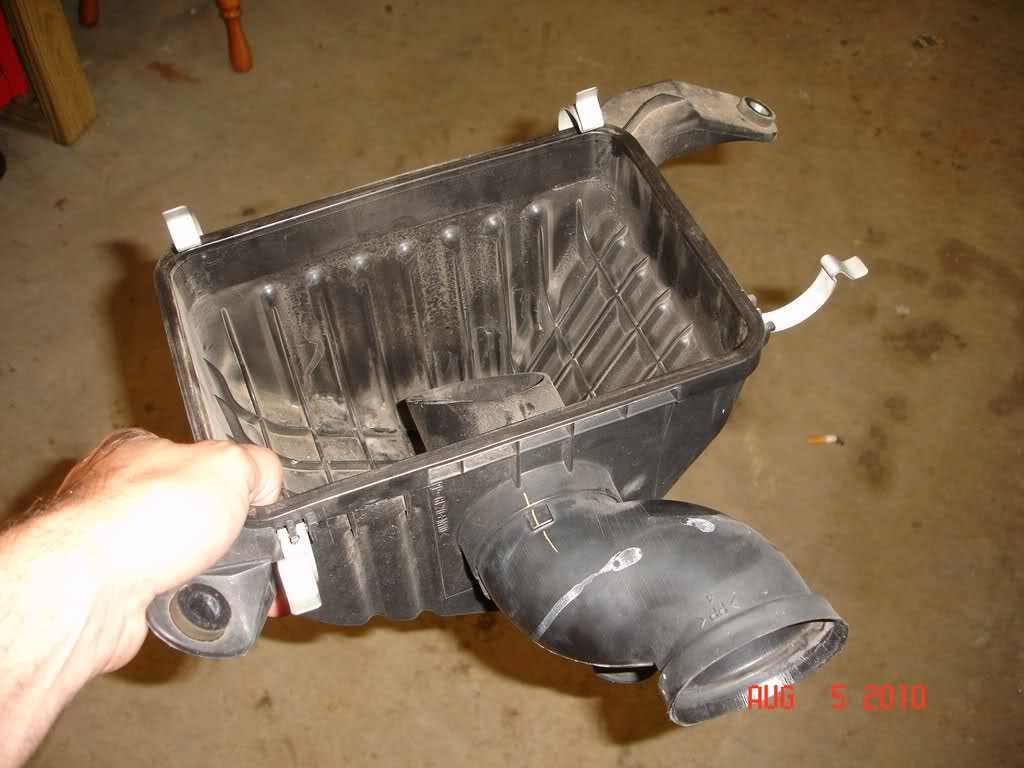

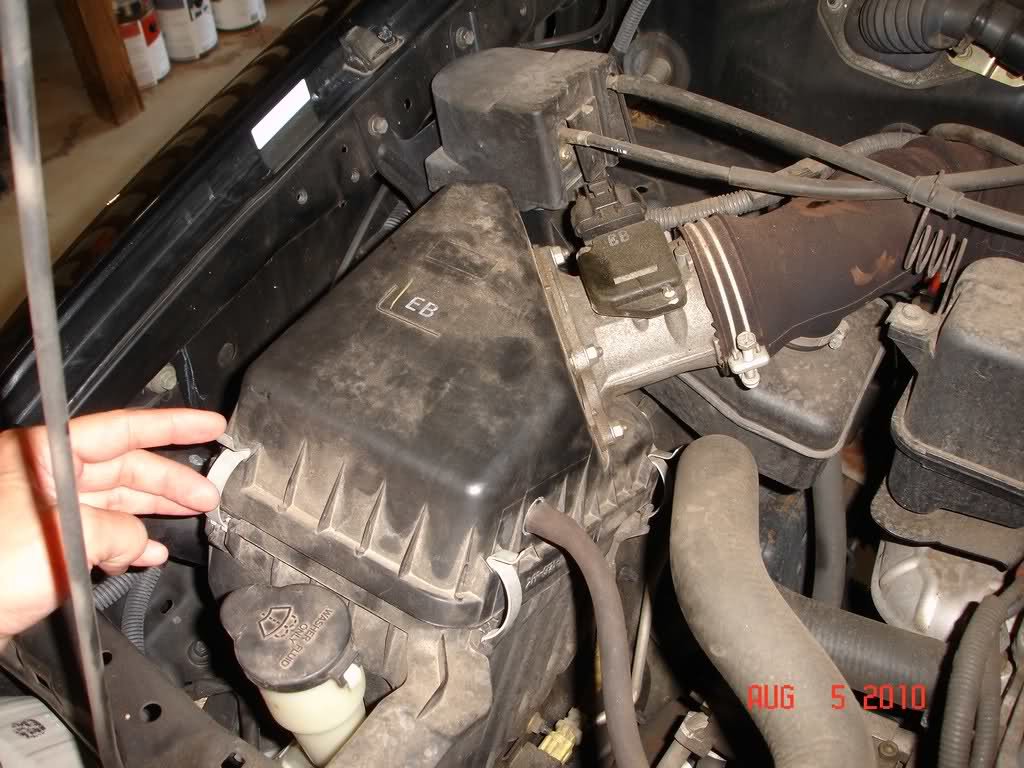

    Unclip the 4 retainers holding the airbox lid on.
    [​IMG]

  2. Matic

    Matic [OP] Locked and Lifted "02" DC TRD.

    Joined:
    Sep 8, 2009
    Member:
    #22436
    Messages:
    9,086
    Gender:
    Male
    First Name:
    Rich
    Greenville,sc
    Vehicle:
    2002 TRD prerunner,SR5, doublecab
    OME 881 coils with OME nitrochargers shocks up front. OME aal with OME nitrochargers out back. Warn 8000 winch with 80ft custom braided synth line. Custom 60ft synth extension. All pro tube bumper, Hi-lift jack, Safari Snorkel, Wilco tiregate.

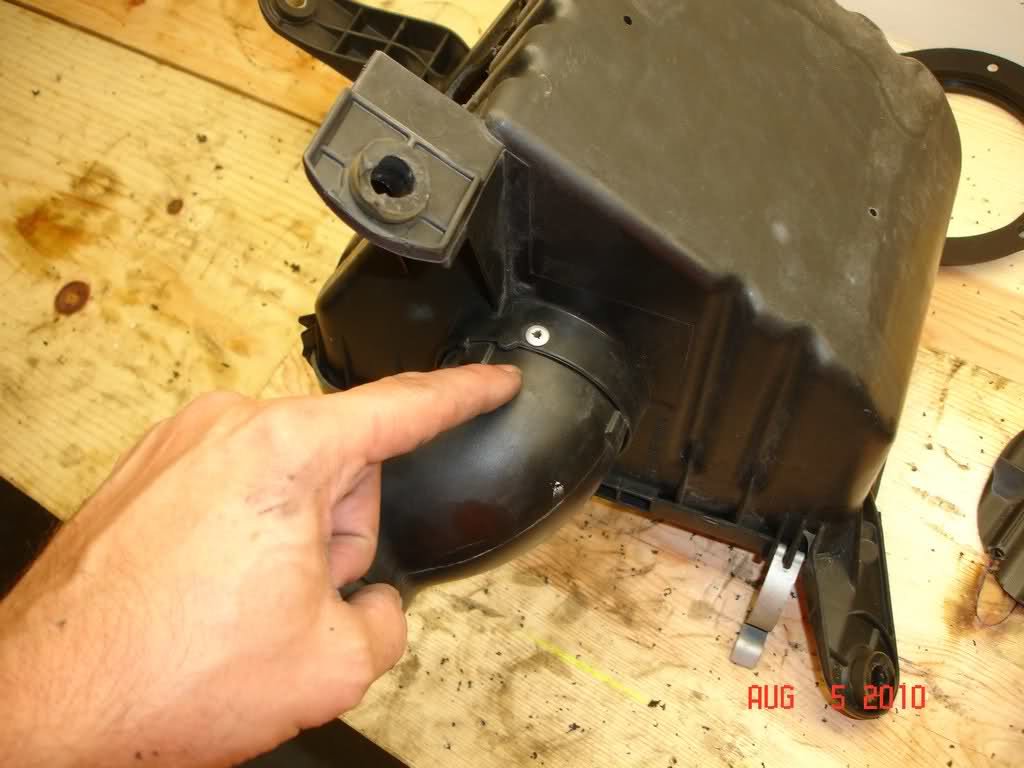

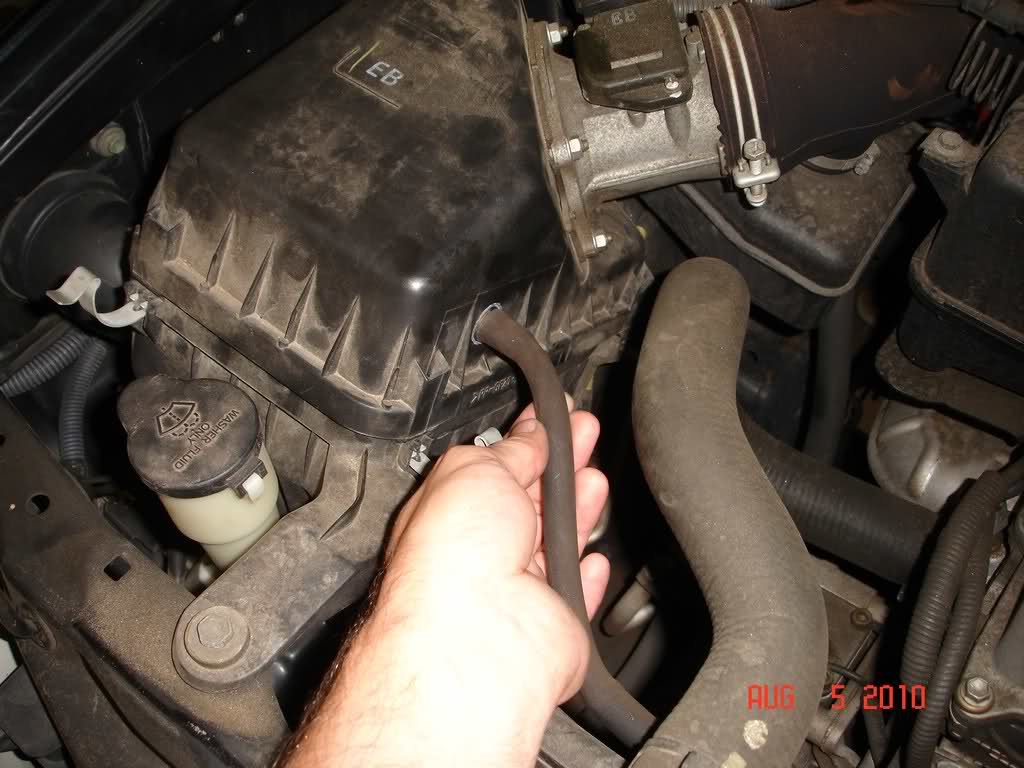

    Remove this hose.
    [​IMG]

  3. Matic

    Matic [OP] Locked and Lifted "02" DC TRD.

    Joined:
    Sep 8, 2009
    Member:
    #22436
    Messages:
    9,086
    Gender:
    Male
    First Name:
    Rich
    Greenville,sc
    Vehicle:
    2002 TRD prerunner,SR5, doublecab
    OME 881 coils with OME nitrochargers shocks up front. OME aal with OME nitrochargers out back. Warn 8000 winch with 80ft custom braided synth line. Custom 60ft synth extension. All pro tube bumper, Hi-lift jack, Safari Snorkel, Wilco tiregate.

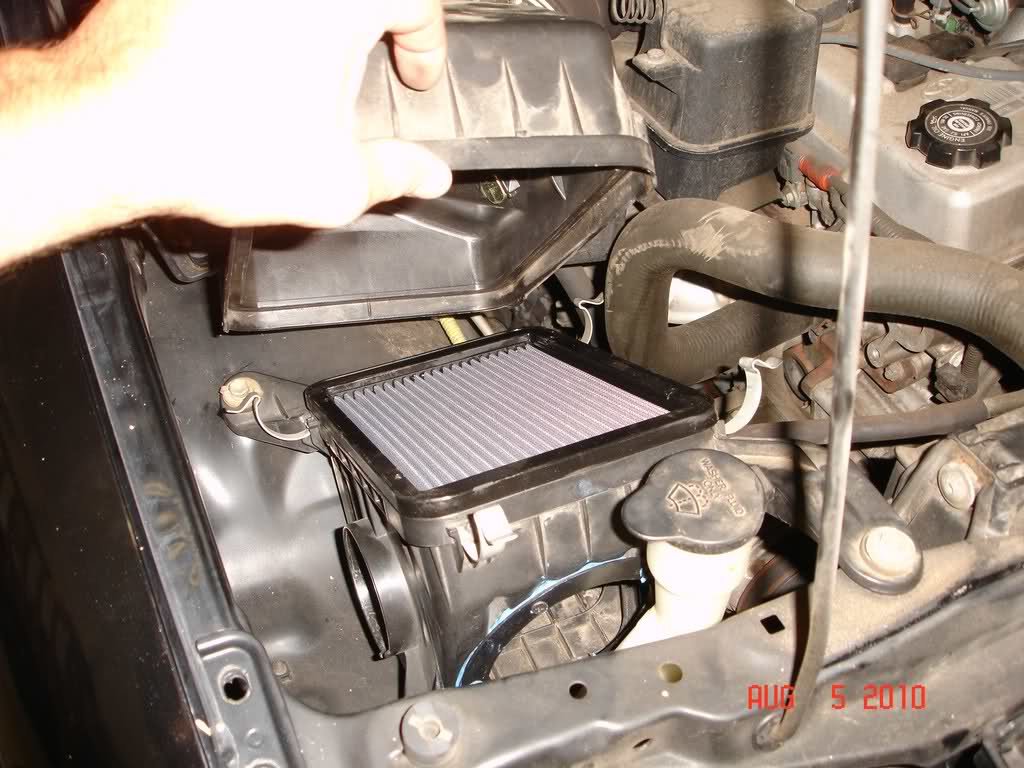

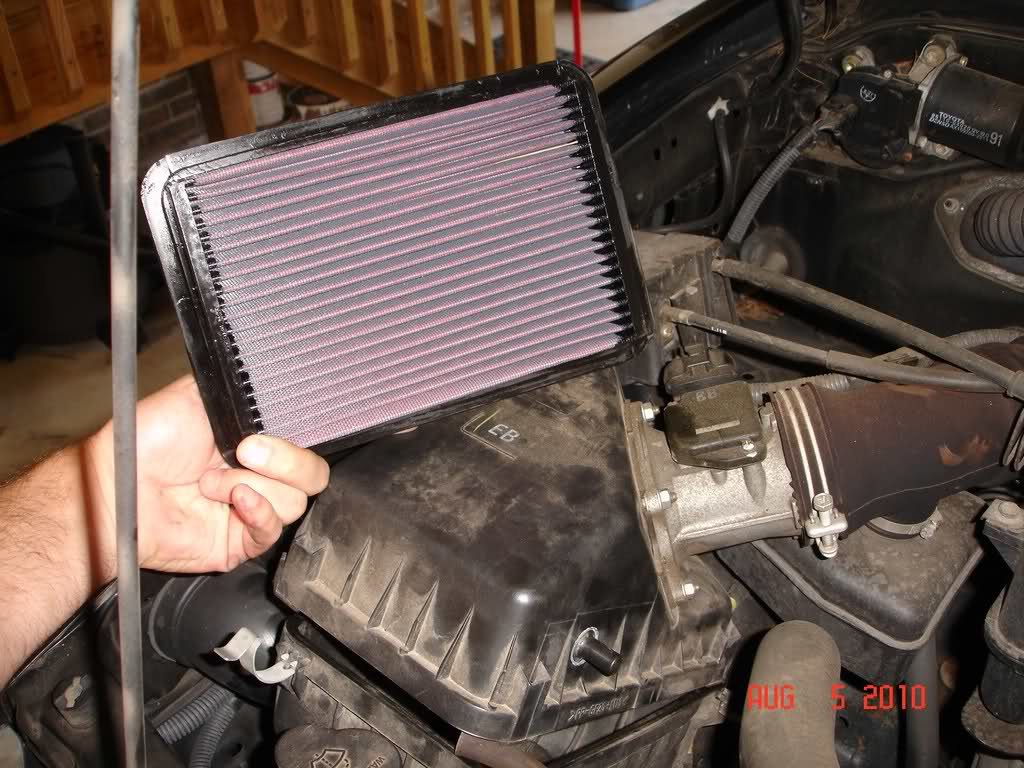

    Now remove your air filter. Sorry, This is my K&N and not the stock filter. For reference only.
    [​IMG]

  4. Matic

    Matic [OP] Locked and Lifted "02" DC TRD.

    Joined:
    Sep 8, 2009
    Member:
    #22436
    Messages:
    9,086
    Gender:
    Male
    First Name:
    Rich
    Greenville,sc
    Vehicle:
    2002 TRD prerunner,SR5, doublecab
    OME 881 coils with OME nitrochargers shocks up front. OME aal with OME nitrochargers out back. Warn 8000 winch with 80ft custom braided synth line. Custom 60ft synth extension. All pro tube bumper, Hi-lift jack, Safari Snorkel, Wilco tiregate.

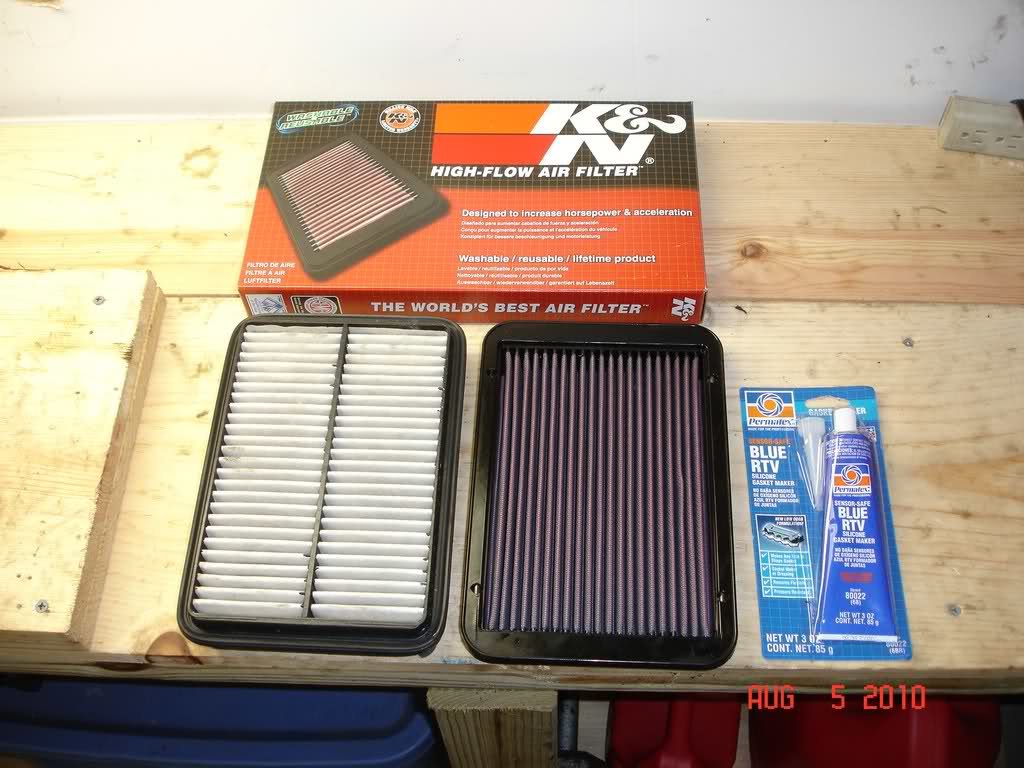

    I decided to go with a K&N Hi flow element. Stock on the left. K&N on the right.
    [​IMG]

  5. Matic

    Matic [OP] Locked and Lifted "02" DC TRD.

    Joined:
    Sep 8, 2009
    Member:
    #22436
    Messages:
    9,086
    Gender:
    Male
    First Name:
    Rich
    Greenville,sc
    Vehicle:
    2002 TRD prerunner,SR5, doublecab
    OME 881 coils with OME nitrochargers shocks up front. OME aal with OME nitrochargers out back. Warn 8000 winch with 80ft custom braided synth line. Custom 60ft synth extension. All pro tube bumper, Hi-lift jack, Safari Snorkel, Wilco tiregate.

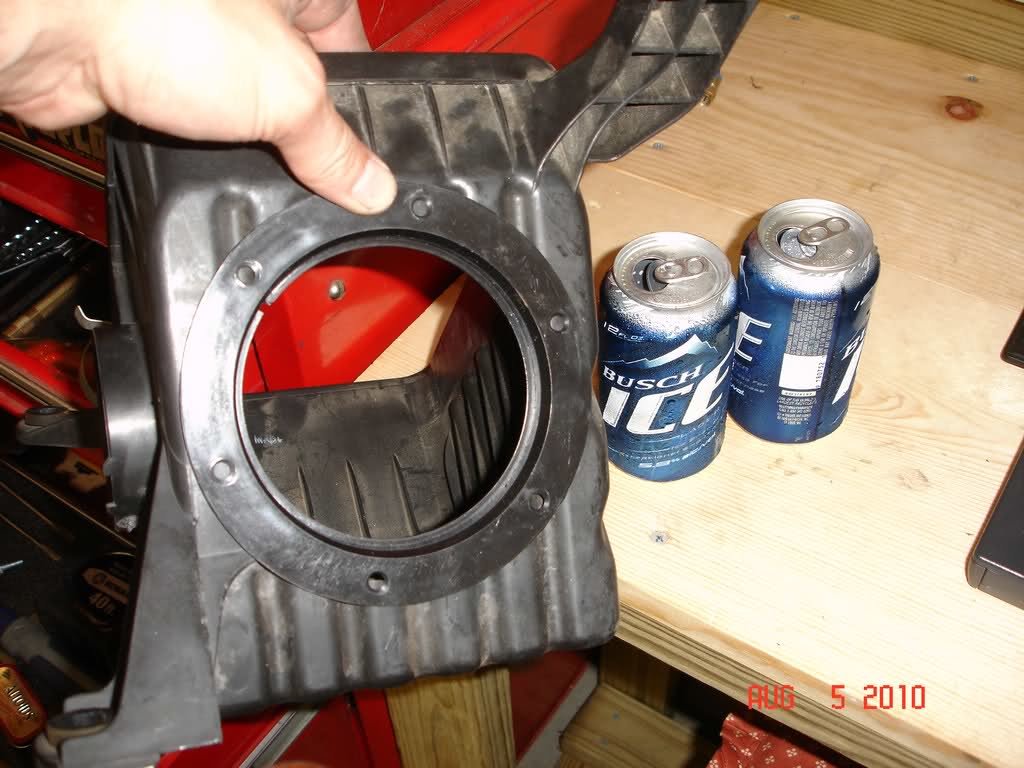

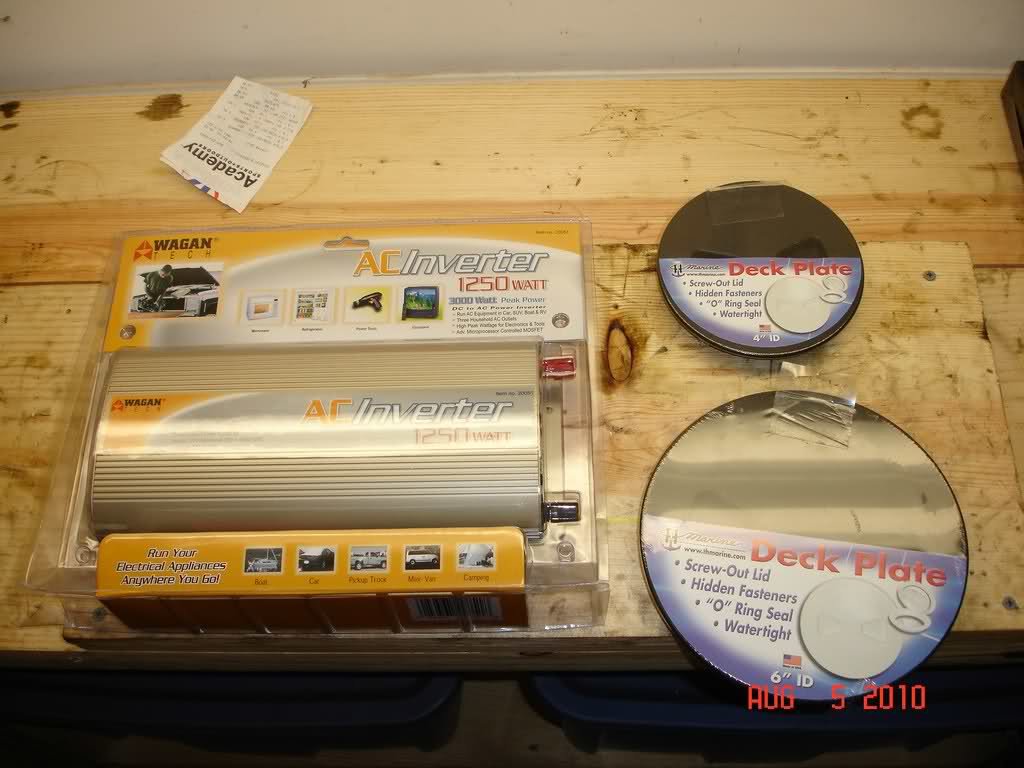

    I decided to get 2 different size deck plates. A 4in and a 6in.
    I thought maybe I would try cutting the bottom of the airbox out as well as the metal below it and putting some kinda of ram-air system in. I nixed that idea and went with the reg mod. I may try the other later on.
    The inverter isn't part of the install. I just happened to pick it up while getting my deck plates.
    [​IMG]

  6. Matic

    Matic [OP] Locked and Lifted "02" DC TRD.

    Joined:
    Sep 8, 2009
    Member:
    #22436
    Messages:
    9,086
    Gender:
    Male
    First Name:
    Rich
    Greenville,sc
    Vehicle:
    2002 TRD prerunner,SR5, doublecab
    OME 881 coils with OME nitrochargers shocks up front. OME aal with OME nitrochargers out back. Warn 8000 winch with 80ft custom braided synth line. Custom 60ft synth extension. All pro tube bumper, Hi-lift jack, Safari Snorkel, Wilco tiregate.

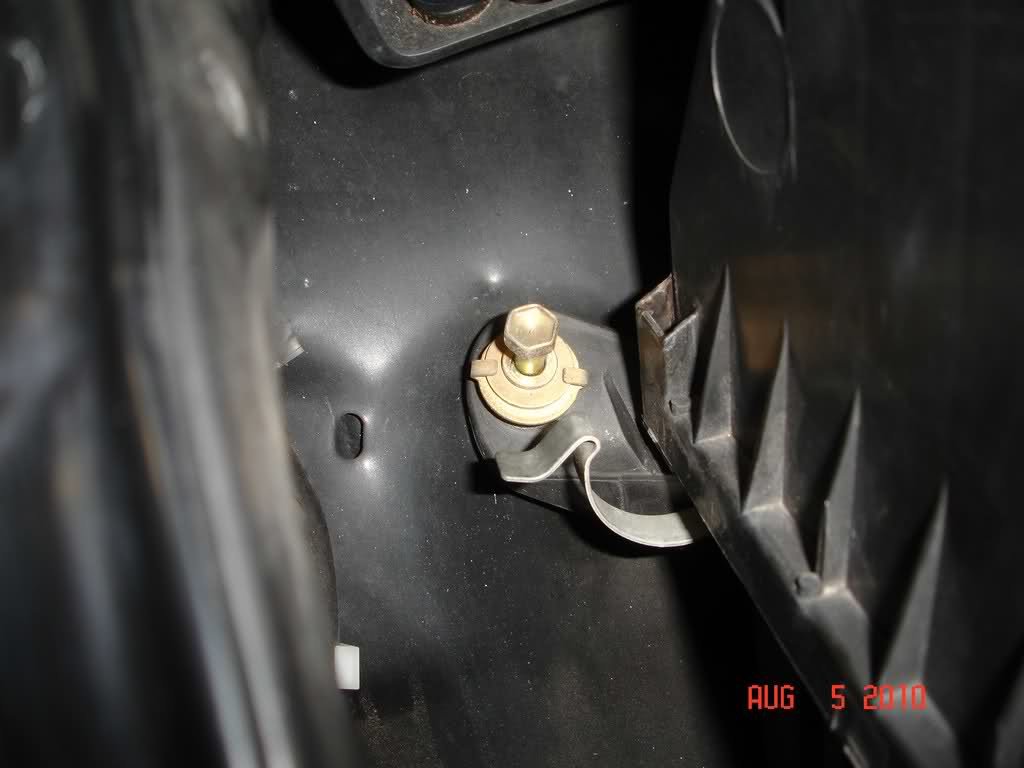

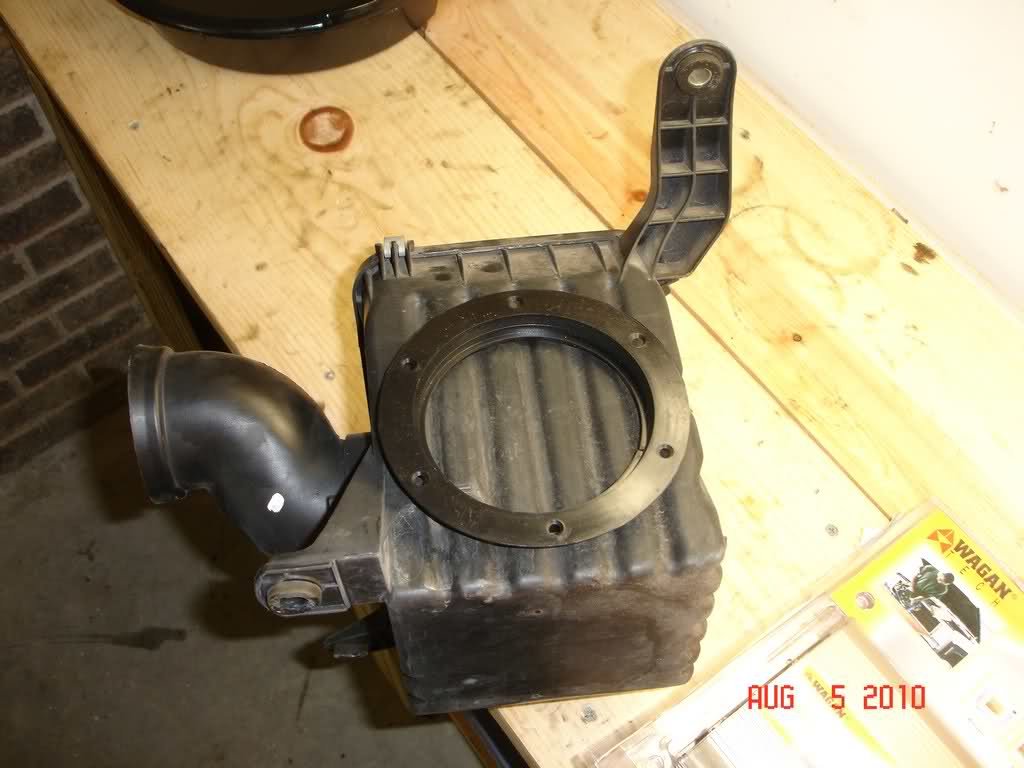

    Remove the 3 12mm bolts. 2 on the bottom and 1 on the top.
    [​IMG]

  7. Matic

    Matic [OP] Locked and Lifted "02" DC TRD.

    Joined:
    Sep 8, 2009
    Member:
    #22436
    Messages:
    9,086
    Gender:
    Male
    First Name:
    Rich
    Greenville,sc
    Vehicle:
    2002 TRD prerunner,SR5, doublecab
    OME 881 coils with OME nitrochargers shocks up front. OME aal with OME nitrochargers out back. Warn 8000 winch with 80ft custom braided synth line. Custom 60ft synth extension. All pro tube bumper, Hi-lift jack, Safari Snorkel, Wilco tiregate.
    Viola!!
    [​IMG]

  8. Matic

    Matic [OP] Locked and Lifted "02" DC TRD.

    Joined:
    Sep 8, 2009
    Member:
    #22436
    Messages:
    9,086
    Gender:
    Male
    First Name:
    Rich
    Greenville,sc
    Vehicle:
    2002 TRD prerunner,SR5, doublecab
    OME 881 coils with OME nitrochargers shocks up front. OME aal with OME nitrochargers out back. Warn 8000 winch with 80ft custom braided synth line. Custom 60ft synth extension. All pro tube bumper, Hi-lift jack, Safari Snorkel, Wilco tiregate.
    The 4 inch deck plate is a perfect fit.
    [​IMG]

  9. Matic

    Matic [OP] Locked and Lifted "02" DC TRD.

    Joined:
    Sep 8, 2009
    Member:
    #22436
    Messages:
    9,086
    Gender:
    Male
    First Name:
    Rich
    Greenville,sc
    Vehicle:
    2002 TRD prerunner,SR5, doublecab
    OME 881 coils with OME nitrochargers shocks up front. OME aal with OME nitrochargers out back. Warn 8000 winch with 80ft custom braided synth line. Custom 60ft synth extension. All pro tube bumper, Hi-lift jack, Safari Snorkel, Wilco tiregate.

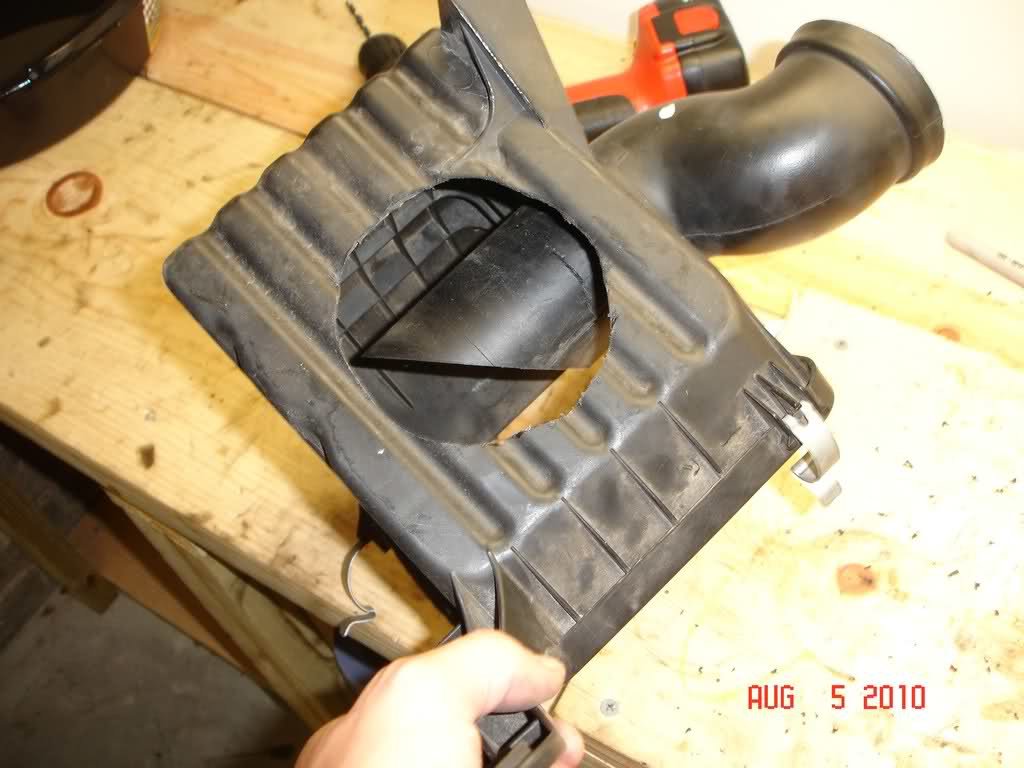

    Now with a marker, draw around the outside of the hole. You may need to trim and the cleaner your cut, the tighter it will fit.
    [​IMG]

  10. Matic

    Matic [OP] Locked and Lifted "02" DC TRD.

    Joined:
    Sep 8, 2009
    Member:
    #22436
    Messages:
    9,086
    Gender:
    Male
    First Name:
    Rich
    Greenville,sc
    Vehicle:
    2002 TRD prerunner,SR5, doublecab
    OME 881 coils with OME nitrochargers shocks up front. OME aal with OME nitrochargers out back. Warn 8000 winch with 80ft custom braided synth line. Custom 60ft synth extension. All pro tube bumper, Hi-lift jack, Safari Snorkel, Wilco tiregate.

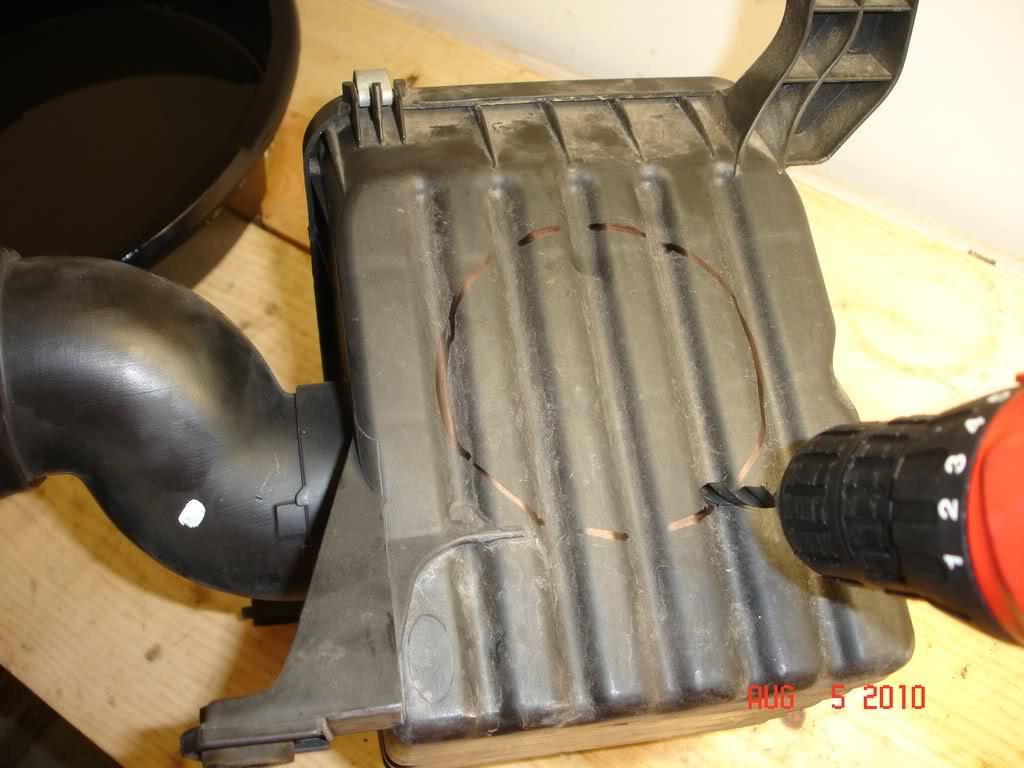

    Drill a pilot hole to start a dremel or jigsaw. I used a jigsaw in this case.
    [​IMG]

  11. Matic

    Matic [OP] Locked and Lifted "02" DC TRD.

    Joined:
    Sep 8, 2009
    Member:
    #22436
    Messages:
    9,086
    Gender:
    Male
    First Name:
    Rich
    Greenville,sc
    Vehicle:
    2002 TRD prerunner,SR5, doublecab
    OME 881 coils with OME nitrochargers shocks up front. OME aal with OME nitrochargers out back. Warn 8000 winch with 80ft custom braided synth line. Custom 60ft synth extension. All pro tube bumper, Hi-lift jack, Safari Snorkel, Wilco tiregate.
    The jigsaw cut it like butter and I was pleased with the results.
    [​IMG]

  12. Matic

    Matic [OP] Locked and Lifted "02" DC TRD.

    Joined:
    Sep 8, 2009
    Member:
    #22436
    Messages:
    9,086
    Gender:
    Male
    First Name:
    Rich
    Greenville,sc
    Vehicle:
    2002 TRD prerunner,SR5, doublecab
    OME 881 coils with OME nitrochargers shocks up front. OME aal with OME nitrochargers out back. Warn 8000 winch with 80ft custom braided synth line. Custom 60ft synth extension. All pro tube bumper, Hi-lift jack, Safari Snorkel, Wilco tiregate.
    This is the original intake tube that goes into the fender. You can choose to leave this on if you like. I decided to go ahead and drill out the rivet for now. You can always put it back on later.
    [​IMG]

  13. Matic

    Matic [OP] Locked and Lifted "02" DC TRD.

    Joined:
    Sep 8, 2009
    Member:
    #22436
    Messages:
    9,086
    Gender:
    Male
    First Name:
    Rich
    Greenville,sc
    Vehicle:
    2002 TRD prerunner,SR5, doublecab
    OME 881 coils with OME nitrochargers shocks up front. OME aal with OME nitrochargers out back. Warn 8000 winch with 80ft custom braided synth line. Custom 60ft synth extension. All pro tube bumper, Hi-lift jack, Safari Snorkel, Wilco tiregate.

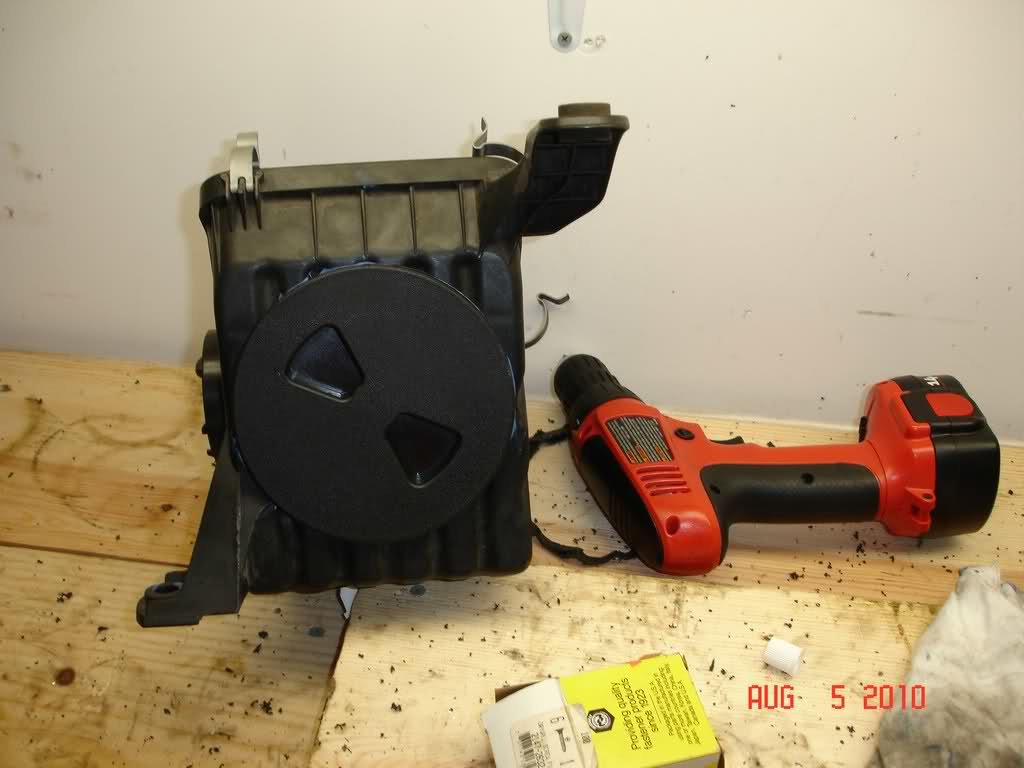

    Perfect fit.
    [​IMG]

  14. Matic

    Matic [OP] Locked and Lifted "02" DC TRD.

    Joined:
    Sep 8, 2009
    Member:
    #22436
    Messages:
    9,086
    Gender:
    Male
    First Name:
    Rich
    Greenville,sc
    Vehicle:
    2002 TRD prerunner,SR5, doublecab
    OME 881 coils with OME nitrochargers shocks up front. OME aal with OME nitrochargers out back. Warn 8000 winch with 80ft custom braided synth line. Custom 60ft synth extension. All pro tube bumper, Hi-lift jack, Safari Snorkel, Wilco tiregate.

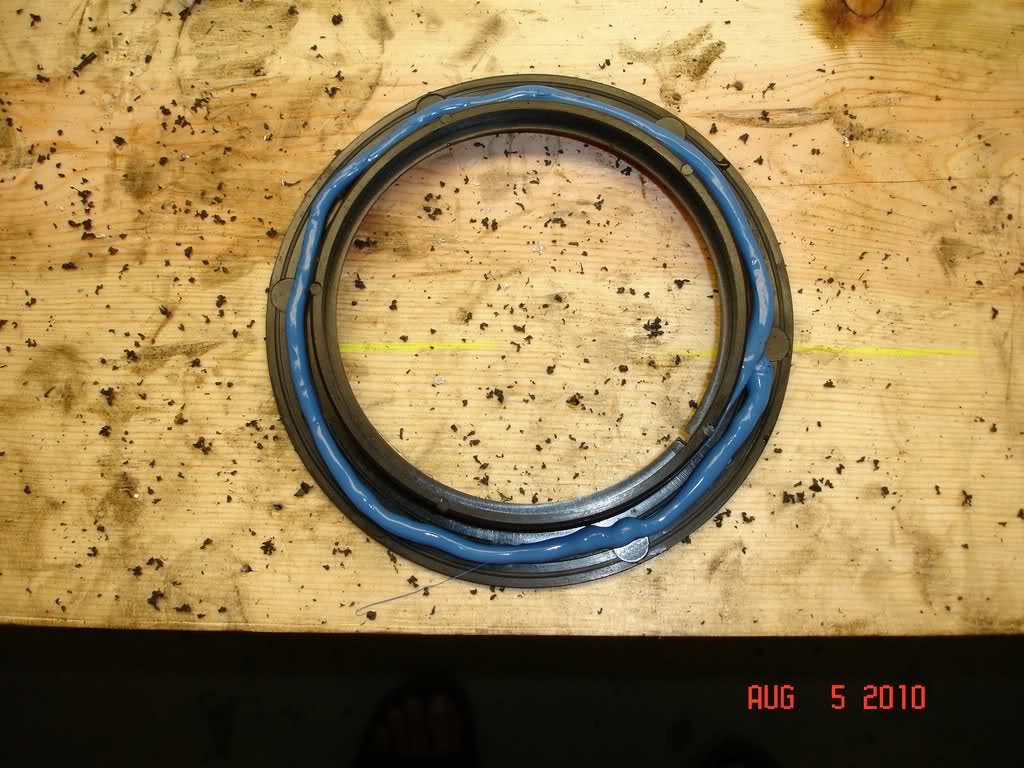

    Run you a bead of sensor safe silicone around the edge.
    [​IMG]

  15. Matic

    Matic [OP] Locked and Lifted "02" DC TRD.

    Joined:
    Sep 8, 2009
    Member:
    #22436
    Messages:
    9,086
    Gender:
    Male
    First Name:
    Rich
    Greenville,sc
    Vehicle:
    2002 TRD prerunner,SR5, doublecab
    OME 881 coils with OME nitrochargers shocks up front. OME aal with OME nitrochargers out back. Warn 8000 winch with 80ft custom braided synth line. Custom 60ft synth extension. All pro tube bumper, Hi-lift jack, Safari Snorkel, Wilco tiregate.

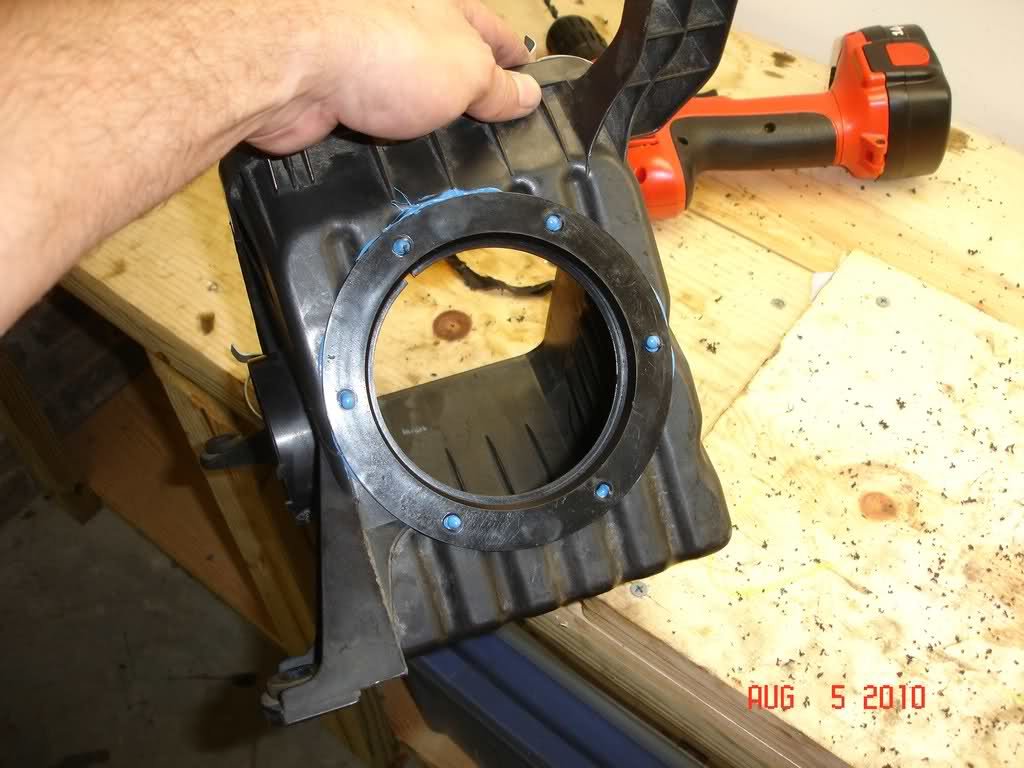

    Clean up around the edges. I used short 1/4 in screws to attach the ring.
    [​IMG]

  16. Matic

    Matic [OP] Locked and Lifted "02" DC TRD.

    Joined:
    Sep 8, 2009
    Member:
    #22436
    Messages:
    9,086
    Gender:
    Male
    First Name:
    Rich
    Greenville,sc
    Vehicle:
    2002 TRD prerunner,SR5, doublecab
    OME 881 coils with OME nitrochargers shocks up front. OME aal with OME nitrochargers out back. Warn 8000 winch with 80ft custom braided synth line. Custom 60ft synth extension. All pro tube bumper, Hi-lift jack, Safari Snorkel, Wilco tiregate.
    I didn't really time myself on the install because I also installed my hi-lift jack mount as well. I would say maybe 45mins-1 hour for just the deck plate mod. Maybe 3 hrs for both. lol.
    [​IMG]

  17. Matic

    Matic [OP] Locked and Lifted "02" DC TRD.

    Joined:
    Sep 8, 2009
    Member:
    #22436
    Messages:
    9,086
    Gender:
    Male
    First Name:
    Rich
    Greenville,sc
    Vehicle:
    2002 TRD prerunner,SR5, doublecab
    OME 881 coils with OME nitrochargers shocks up front. OME aal with OME nitrochargers out back. Warn 8000 winch with 80ft custom braided synth line. Custom 60ft synth extension. All pro tube bumper, Hi-lift jack, Safari Snorkel, Wilco tiregate.
    Check your fit on your lid. Remove lid and toss it under your seat.
    [​IMG]

  18. 98tacoma27

    98tacoma27 :POOPCORN: Staff Member

    Joined:
    Dec 18, 2008
    Member:
    #11714
    Messages:
    48,253
    Gender:
    Male
    First Name:
    Ben
    Beech Creek
    Vehicle:
    05 Tundra SR5, 88 SR5 PU, 98 TRD OR (CRUSHED)
    5100's all on fours
  19. Matic

    Matic [OP] Locked and Lifted "02" DC TRD.

    Joined:
    Sep 8, 2009
    Member:
    #22436
    Messages:
    9,086
    Gender:
    Male
    First Name:
    Rich
    Greenville,sc
    Vehicle:
    2002 TRD prerunner,SR5, doublecab
    OME 881 coils with OME nitrochargers shocks up front. OME aal with OME nitrochargers out back. Warn 8000 winch with 80ft custom braided synth line. Custom 60ft synth extension. All pro tube bumper, Hi-lift jack, Safari Snorkel, Wilco tiregate.
    Re install the 3 12mm bolts. Install your air filter. Close the 4 clips and hook the rubber hose back up to the right side of the airbox.
    Very easy mod. Some say to go ahead and remove your neg battery cable for a minute or two so that the ECU can reset itself and re learn the new air intake.

    I personally don't feel any difference in hp. It is just a hair louder up in the intake area but hardly anything I am concerned about. I was hoping to atleast be able to powerbreak the rear end loose with all this extra horsepower that I now have. Unfortunately no. It may have done it before I put my powertrax locker in but there's just not enough power to smoke both of em.. :) Enjoy.
    [​IMG]
