DEI DBALL2 Remote Start Install using OEM fob - 2017 Tacoma Push to Start

Discussion in '3rd Gen. Tacomas (2016+)' started by gpb, Dec 22, 2016.

  1. Dec 22, 2016 at 8:03 AM
    #21
    Hank Heel

    Hank Heel Well-Known Member

    Joined:
    Sep 18, 2016
    Member:
    #197637
    Messages:
    1,609
    Gender:
    Male
    WA
    That dude just sounds like bitter person.
    No one is forcing you to buy anything, don't like something that's someone doing? Ignore it and move on with your life. I didn't see kbvoodoo or nick trashing anyone's attempt at individual effort, want to do it yourself, go ahead no one is stopping you
    Ps I may be new here, but I'm a 10 year member on m3forum, in last 5 of those years I purchased a coding station for an e46 chassis, I've helped many local members with ecu modifications and chassis coding as well, I've never charged anyone a penny. With that said, there's were other local members that have done same thing I did, but they want to get paid for their work( that's why I bought my own) you don't see me bitching about that

    Last edited: Dec 22, 2016
  2. Dec 24, 2016 at 7:06 AM
    #22
    Frogsauce

    Frogsauce Well-Known Member

    Joined:
    May 20, 2013
    Member:
    #104546
    Messages:
    765
    Gender:
    Male
    Chesapeake Bay
    Vehicle:
    16 TRD Offroad
    It's been that way on TW too. I figure someone will eventually be offering device flashing, either free or paid for other members here. Or the XKLOADER device will be sold/re-sold a bunch.

  3. Dec 24, 2016 at 9:59 AM
    #23
    gpb

    gpb [OP] Well-Known Member

    Joined:
    Aug 24, 2016
    Member:
    #195408
    Messages:
    6,129
    Gender:
    Male
    Atlanta
    Vehicle:
    2017 White DCSB TRDOR 4x4
    @Frogsauce -- from what I've seen, some of the DBALL2 vendors will flash the device for you either for free or for a minor upcharge. Or some folks may offer to help others in their local area. As you mention, any number of scenarios are possible. That's the nice thing about a community; there are options for those technical enough to understand wiring diagrams and pin-outs, and options for those wanting a vendor to support them if they should need it.

    As for the DBALL2 configuration -- I simply tried the default configuration with the sole exception of enabling SmartStart since I was planning to buy one. It worked first time out, nothing special needed. No dealer account, no special options, no tricks or hidden stuff, just the stuff I selected and showed in my screen shots. I'd expect that if someone were to buy from a vendor offering flashing services and ask that they duplicate the configuration I posted, it should work fine for them as well. I also took screen shots of each option menu and will post those up in a couple days when I have a chance.

    The DBALL2 has been referenced in the 3rd Gen forum as early as October of last year. It and the Fortin units were on my radar prior to December, but I had higher priority home improvement projects in flight and couldn't devote the time to researching the DEI instructions and comparing all pins / connections referenced against the FSM and Fortin instructions. The Fortin EVO-ALL and DBALL2 substantially parallel one another with very minor differences. Makes sense as they're essentially performing the same functions. It provided a great cross-reference.

    Last edited: Dec 24, 2016
    Frogsauce and PJnc284 like this.
  4. Dec 25, 2016 at 9:17 AM
    #24
    PJnc284

    PJnc284 Well-Known Member

    Joined:
    Mar 6, 2012
    Member:
    #74326
    Messages:
    690
    Gender:
    Male
    Garner, NC
    Vehicle:
    2016 Tacoma TRD Off Road 4x4
    Merry Christmas to all.

    Preparation:

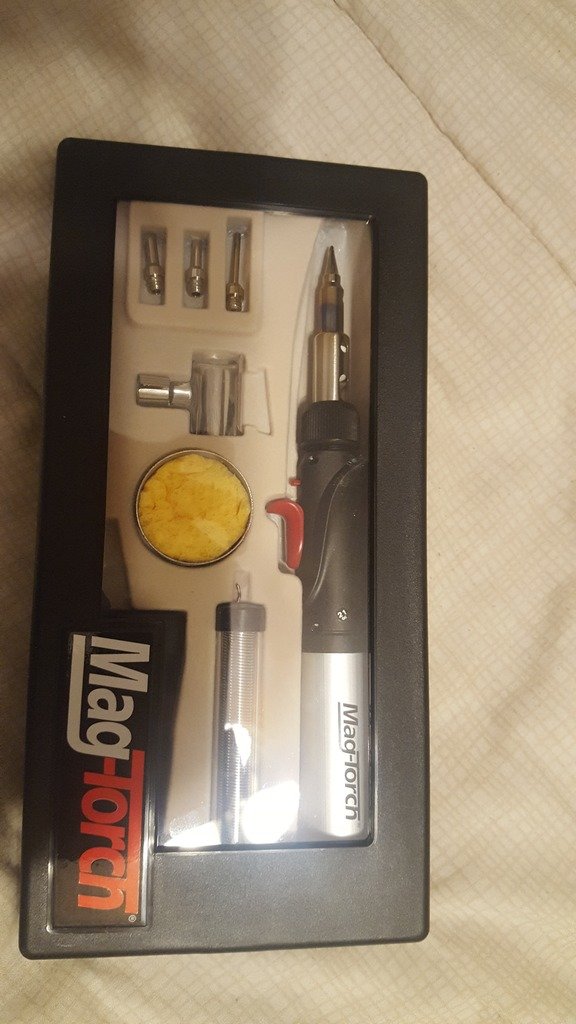

    Picked up this little guy for $30 from Home Depot. Butane powered and did a good job. Just watch where the exhaust port is on the tip.

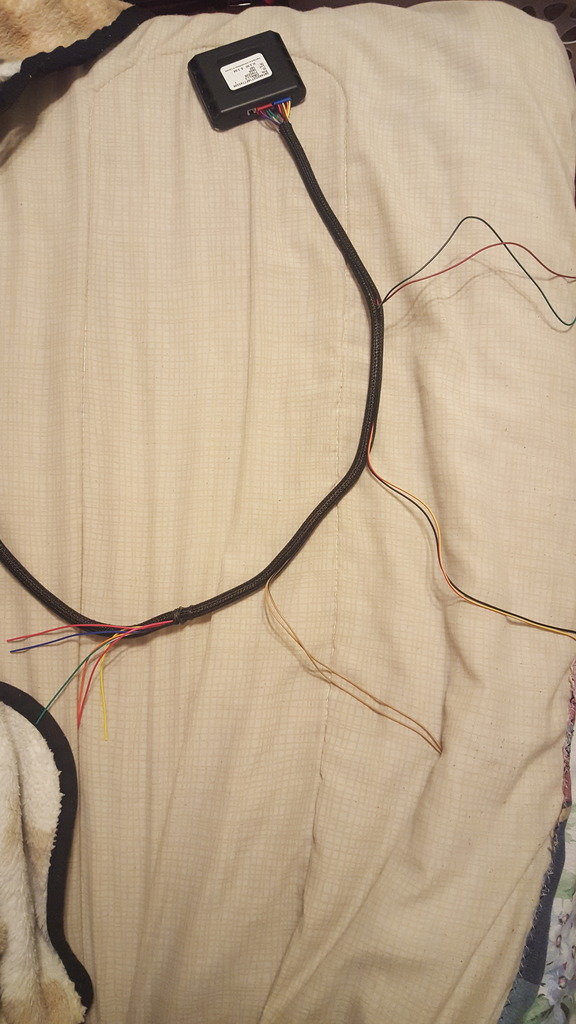

    Pre-rigging using TechFlex Flexo F6 wrap-around tubing

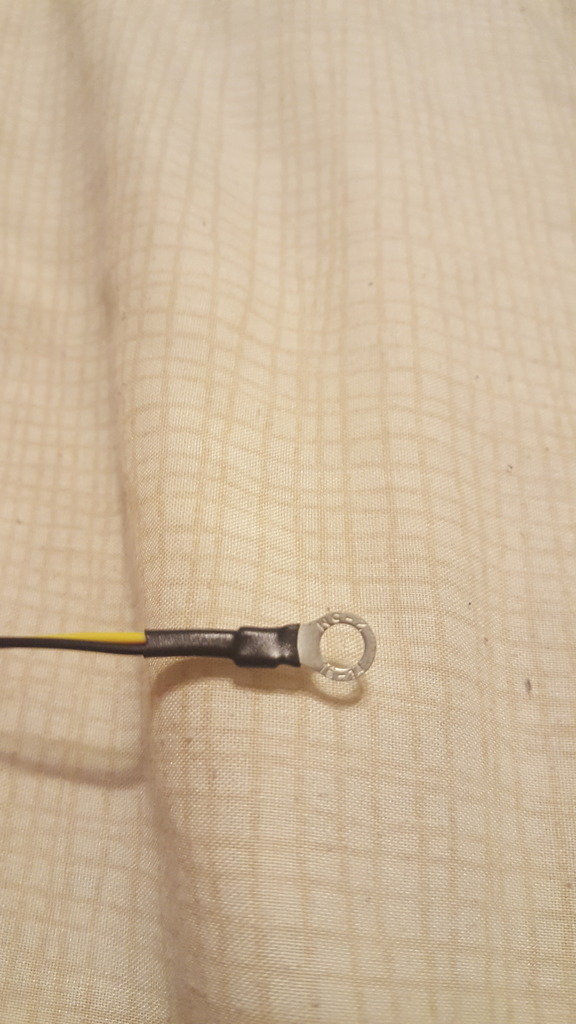

    Ground connection. Waste of time as I had to go back and redo it when I shortened the wires. :facepalm:


    The Install

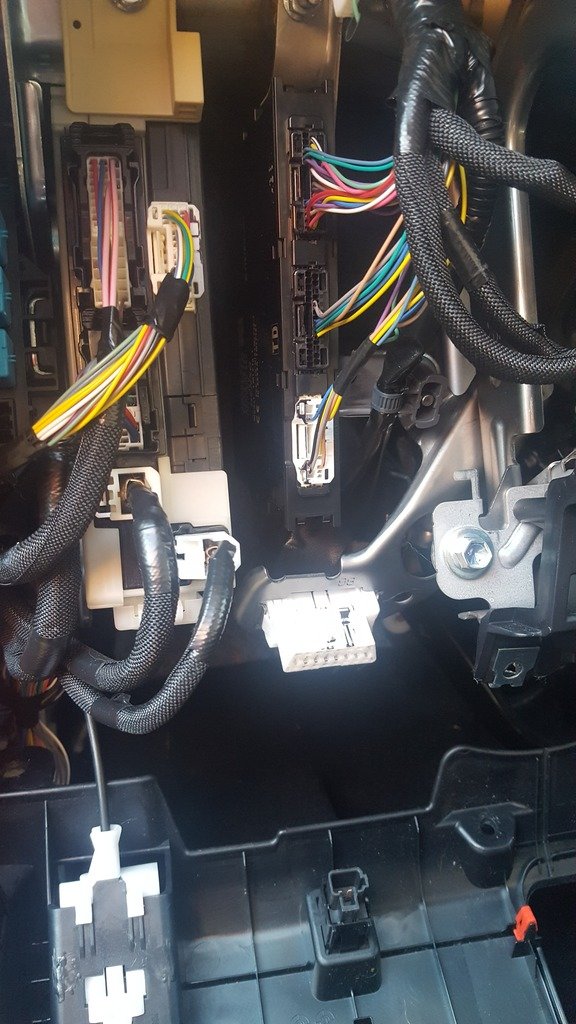

    Mock-up. Ended up mounting it on the bracket to the right of the Smartkey ECU assembly.


    Aftermath: the morning-after


    Tidying up a bit


    gpb [OP] likes this.
  5. Dec 25, 2016 at 9:22 AM
    #25
    gpb

    gpb [OP] Well-Known Member

    Joined:
    Aug 24, 2016
    Member:
    #195408
    Messages:
    6,129
    Gender:
    Male
    Atlanta
    Vehicle:
    2017 White DCSB TRDOR 4x4
    Some clean work there, @PJnc284 -- good job.

    Your fourth photo shows the plastic clip holding the OBD cable more clearly than mine do -- it'll come off the bolt threads it's pushed onto, giving a bit more cable length to work with and making the install easier.

  6. Dec 25, 2016 at 9:31 AM
    #26
    PJnc284

    PJnc284 Well-Known Member

    Joined:
    Mar 6, 2012
    Member:
    #74326
    Messages:
    690
    Gender:
    Male
    Garner, NC
    Vehicle:
    2016 Tacoma TRD Off Road 4x4
    I noticed that after the fact. lol. Ran around most of the day yesterday before finally working on it so I'm surprised it worked at all. :rofl:Also I was fully expecting the radio to lose the presets and bluetooth pairing when I disconnected the battery but it kept everything aside from having to change the audio source back. Did reset the trip meter but that's a small price to pay for added piece of mind.

    gpb [OP] likes this.
  7. Dec 26, 2016 at 5:21 PM
    #27
    Frogsauce

    Frogsauce Well-Known Member

    Joined:
    May 20, 2013
    Member:
    #104546
    Messages:
    765
    Gender:
    Male
    Chesapeake Bay
    Vehicle:
    16 TRD Offroad
    I'm going to do my install tomorrow. I have all day to route everything cleanly.

    gpb [OP] likes this.
  8. Dec 26, 2016 at 5:32 PM
    #28
    gpb

    gpb [OP] Well-Known Member

    Joined:
    Aug 24, 2016
    Member:
    #195408
    Messages:
    6,129
    Gender:
    Male
    Atlanta
    Vehicle:
    2017 White DCSB TRDOR 4x4
  9. Dec 26, 2016 at 5:36 PM
    #29
    PJnc284

    PJnc284 Well-Known Member

    Joined:
    Mar 6, 2012
    Member:
    #74326
    Messages:
    690
    Gender:
    Male
    Garner, NC
    Vehicle:
    2016 Tacoma TRD Off Road 4x4
    Good luck and be sure to get a stool as was recommended to me by @gpb. Your knees will thank you later.

    gpb [OP] likes this.
  10. Dec 26, 2016 at 5:44 PM
    #30
    gpb

    gpb [OP] Well-Known Member

    Joined:
    Aug 24, 2016
    Member:
    #195408
    Messages:
    6,129
    Gender:
    Male
    Atlanta
    Vehicle:
    2017 White DCSB TRDOR 4x4
  11. Dec 26, 2016 at 5:52 PM
    #31
    Frogsauce

    Frogsauce Well-Known Member

    Joined:
    May 20, 2013
    Member:
    #104546
    Messages:
    765
    Gender:
    Male
    Chesapeake Bay
    Vehicle:
    16 TRD Offroad
    I just got a craftsman stool for xmas from the wife. I also got this for myself:

    http://www.solderpal.com/

    Mostly for when I'm making/repairing my fishing lures. But it will come in handy here too.

  12. Dec 26, 2016 at 5:55 PM
    #32
    Travis17

    Travis17 Well-Known Member

    Joined:
    Sep 24, 2016
    Member:
    #198157
    Messages:
    165
    Gender:
    Male
    First Name:
    Travis
    Vehicle:
    2017 Tacoma Limited
    That is a great stool, by the way! I stumbled onto that one at a Northern Tools store about 2 months ago and find myself using it all the time. It's sturdy too, I not a little skinny guy at 250 lbs., I can break a lot of toys!

    gpb [OP] likes this.
  13. Dec 26, 2016 at 6:33 PM
    #33
    PJnc284

    PJnc284 Well-Known Member

    Joined:
    Mar 6, 2012
    Member:
    #74326
    Messages:
    690
    Gender:
    Male
    Garner, NC
    Vehicle:
    2016 Tacoma TRD Off Road 4x4
    btw- don't do like I did and put the little rubber pad from the little cubby hole on top of the lower panel. It fell out and while wondering where the hell it went I realized it also fit perfectly on top of the cubby in the inside of the panel. :rofl:


    gpb [OP] and Frogsauce like this.
  14. Dec 26, 2016 at 6:34 PM
    #34
    gpb

    gpb [OP] Well-Known Member

    Joined:
    Aug 24, 2016
    Member:
    #195408
    Messages:
    6,129
    Gender:
    Male
    Atlanta
    Vehicle:
    2017 White DCSB TRDOR 4x4
    Slick! I still use an old radio shack "helping hands" device I bought thirty years ago.

  15. Dec 26, 2016 at 6:35 PM
    #35
    Frogsauce

    Frogsauce Well-Known Member

    Joined:
    May 20, 2013
    Member:
    #104546
    Messages:
    765
    Gender:
    Male
    Chesapeake Bay
    Vehicle:
    16 TRD Offroad
    Yeah I already put my brake controller in that little cubby.

  16. Dec 27, 2016 at 1:15 PM
    #36
    Frogsauce

    Frogsauce Well-Known Member

    Joined:
    May 20, 2013
    Member:
    #104546
    Messages:
    765
    Gender:
    Male
    Chesapeake Bay
    Vehicle:
    16 TRD Offroad

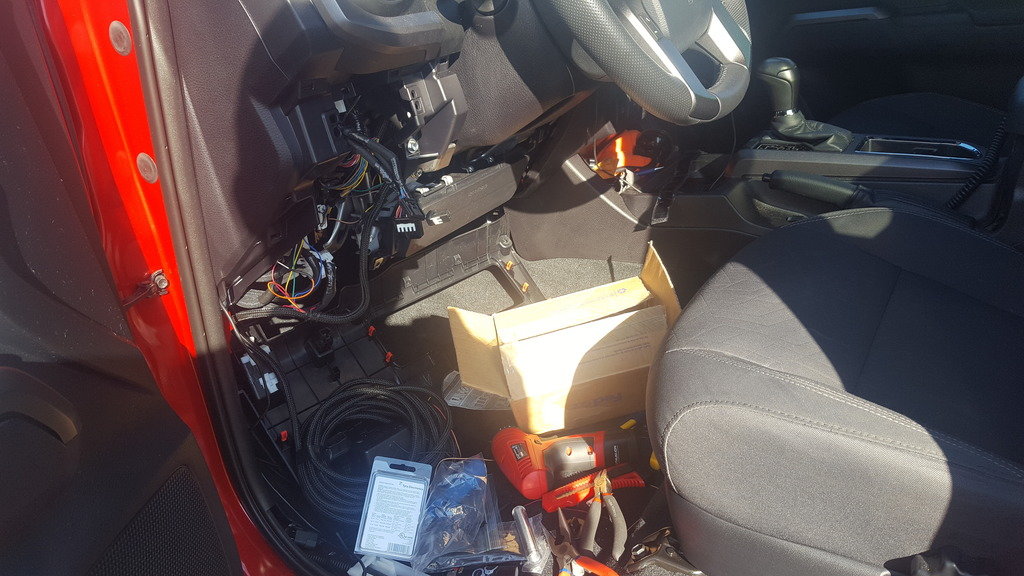

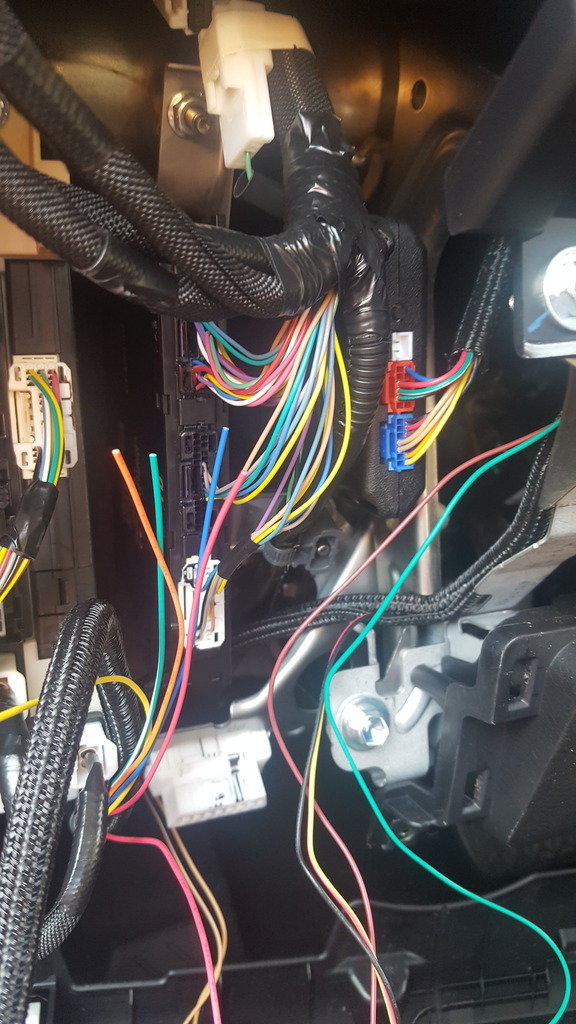

    Done, not too hard. The voodoo kit didn't have anything special that you couldn't either do yourself or already have done before you get it. Your original post has all the instructions necessary. The included paper instructions were worthless. The clear picture posts on the forum are much better. I added additional wire loom to clean some things up and instead of drilling holes in the truck, I routed the ground wires down to the factory ground location under the kick panel.

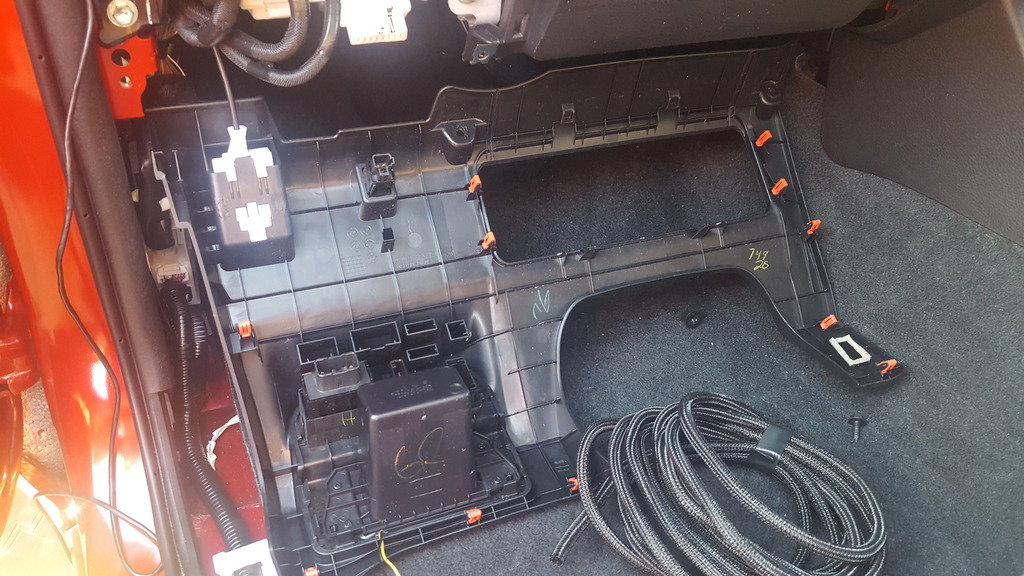

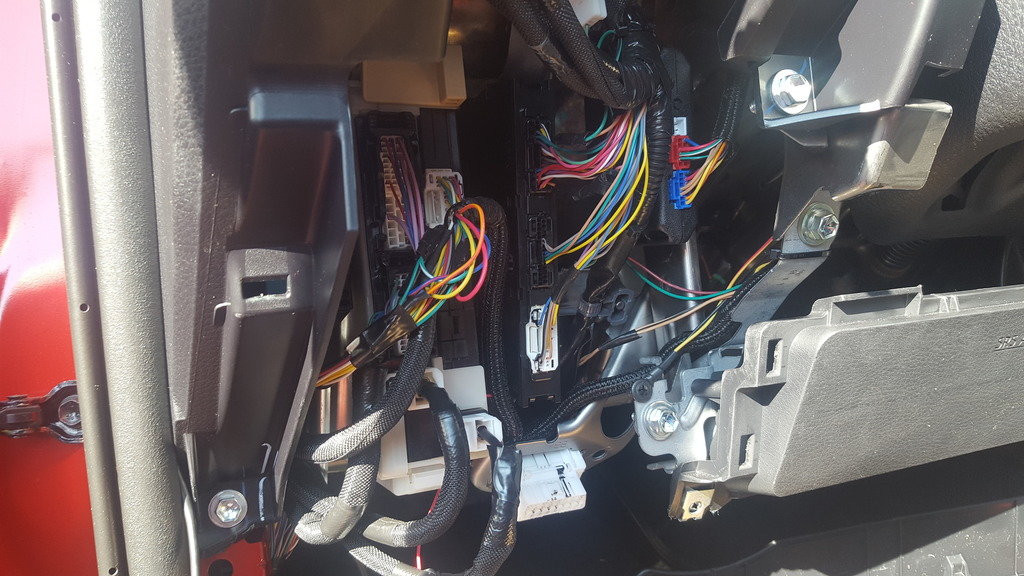

    Here it is tucked away:

    Here is the factory ground location under the kick panel:


  17. Dec 27, 2016 at 1:22 PM
    #37
    PJnc284

    PJnc284 Well-Known Member

    Joined:
    Mar 6, 2012
    Member:
    #74326
    Messages:
    690
    Gender:
    Male
    Garner, NC
    Vehicle:
    2016 Tacoma TRD Off Road 4x4
    Toyota should hire you for factory wiring

  18. Dec 27, 2016 at 1:29 PM
    #38
    ratcityrain

    ratcityrain Well-Known Member

    Joined:
    Jun 3, 2015
    Member:
    #156667
    Messages:
    1,373
    Gender:
    Male
    Seattle, WA
    Vehicle:
    2017 Double Cab Off Road
    OEM Running boards |oemassive headlights | winjet tail lights | led lighting | hid headlight & fogs | oem tri-fold Bed cover | Custom dual JL Audio 10tw3-d4 sub box and custom amp rack | black off road wheels | painted oem grille | jbl door speakers |
    sub'd for pics and details when my kit gets here. Great write up and I cannot wait for mine to arrive

    gpb [OP] likes this.
  19. Dec 27, 2016 at 1:30 PM
    #39
    winston50

    winston50 Well-Known Member

    Joined:
    Dec 9, 2016
    Member:
    #204442
    Messages:
    52
    Gender:
    Male
    Funny how had it not been for @nickj718 or @kbvoodoo no one would have this. Also the kit was loomed exactly how everyone is posting here. Again @nickj718 was the first

    facefirst and KB Voodoo like this.
  20. Dec 27, 2016 at 1:58 PM
    #40
    Frogsauce

    Frogsauce Well-Known Member

    Joined:
    May 20, 2013
    Member:
    #104546
    Messages:
    765
    Gender:
    Male
    Chesapeake Bay
    Vehicle:
    16 TRD Offroad
    There are posts from back in 2015 with info on the DBALL2. Like gpb said, it was just a matter of time before someone put together a post with more info. No one invented anything here. Just implemented an aftermarket product already available. Like I said, noble to get people started with the right info, but not when you mark everything up $90 afterwards.

    https://www.tacomaworld.com/threads/remote-start.391435/page-3#post-10995159

    https://www.tacomaworld.com/threads/remote-starter.408936/#post-11503399

    https://www.tacomaworld.com/threads/remote-starter-question.429651/#post-12356854

To Top
