Diamond E-locker Full Float axle housing

Spoiler: SOLD SOLD SOLD

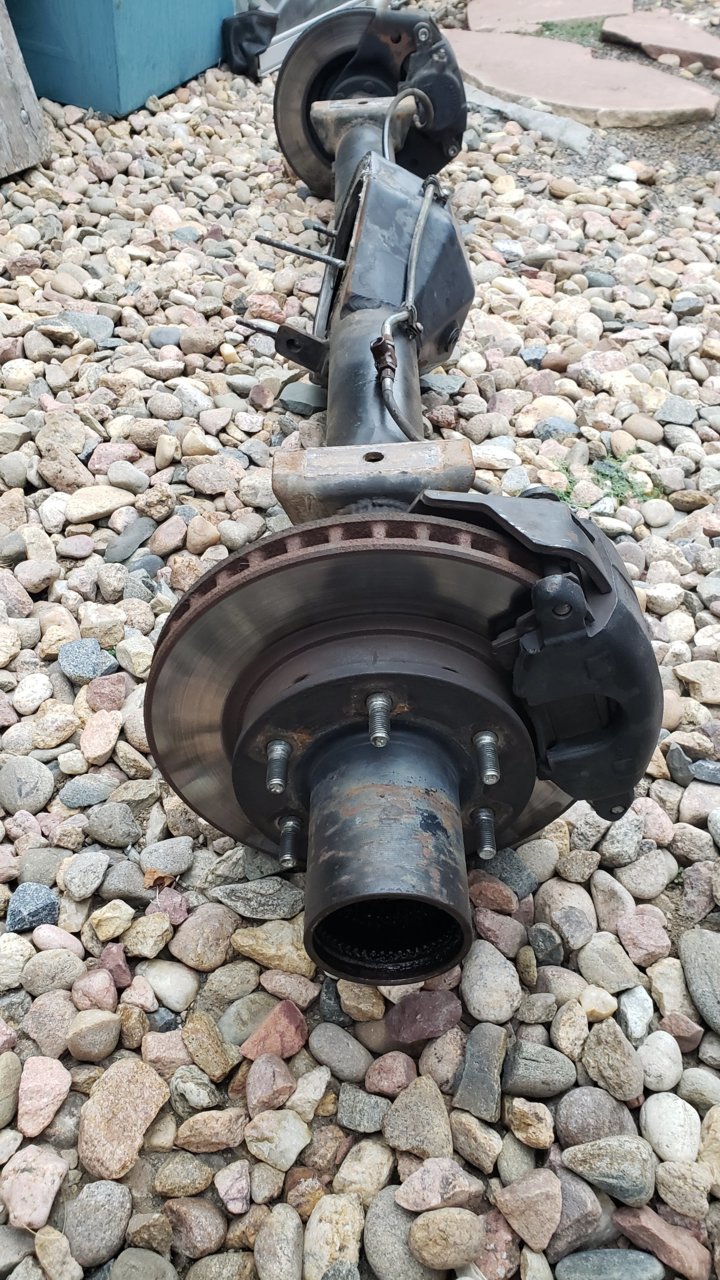

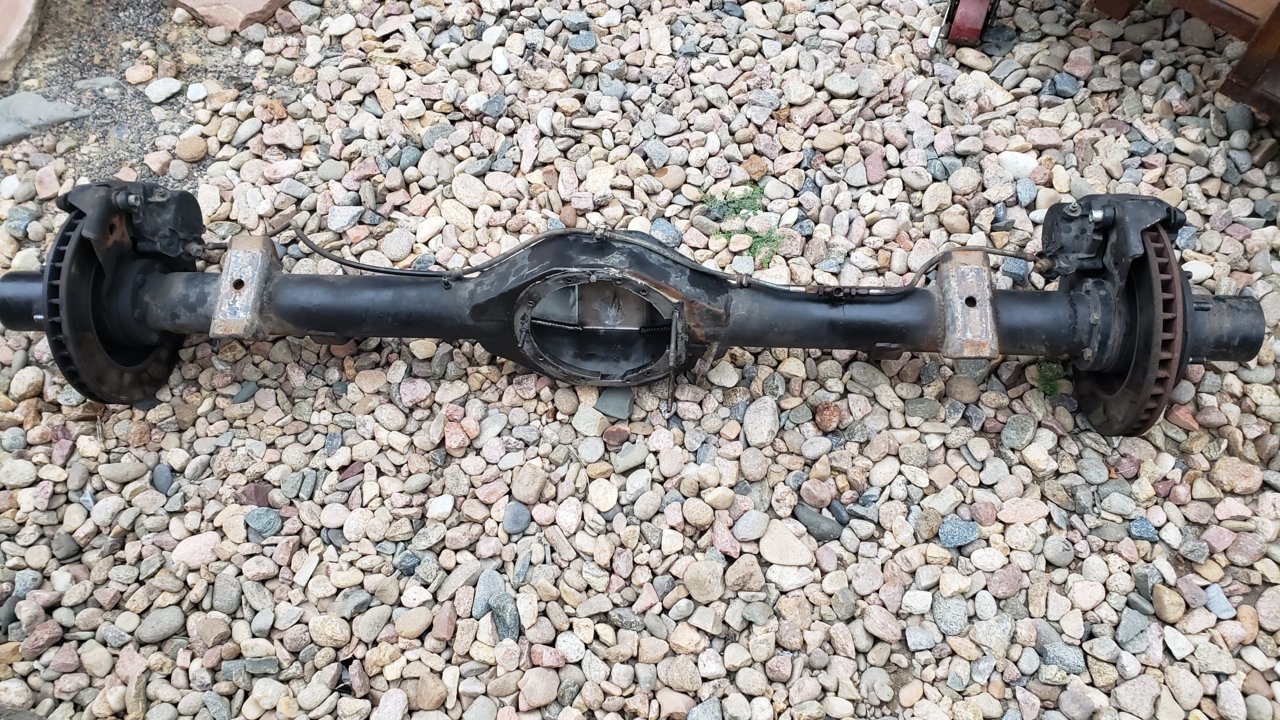

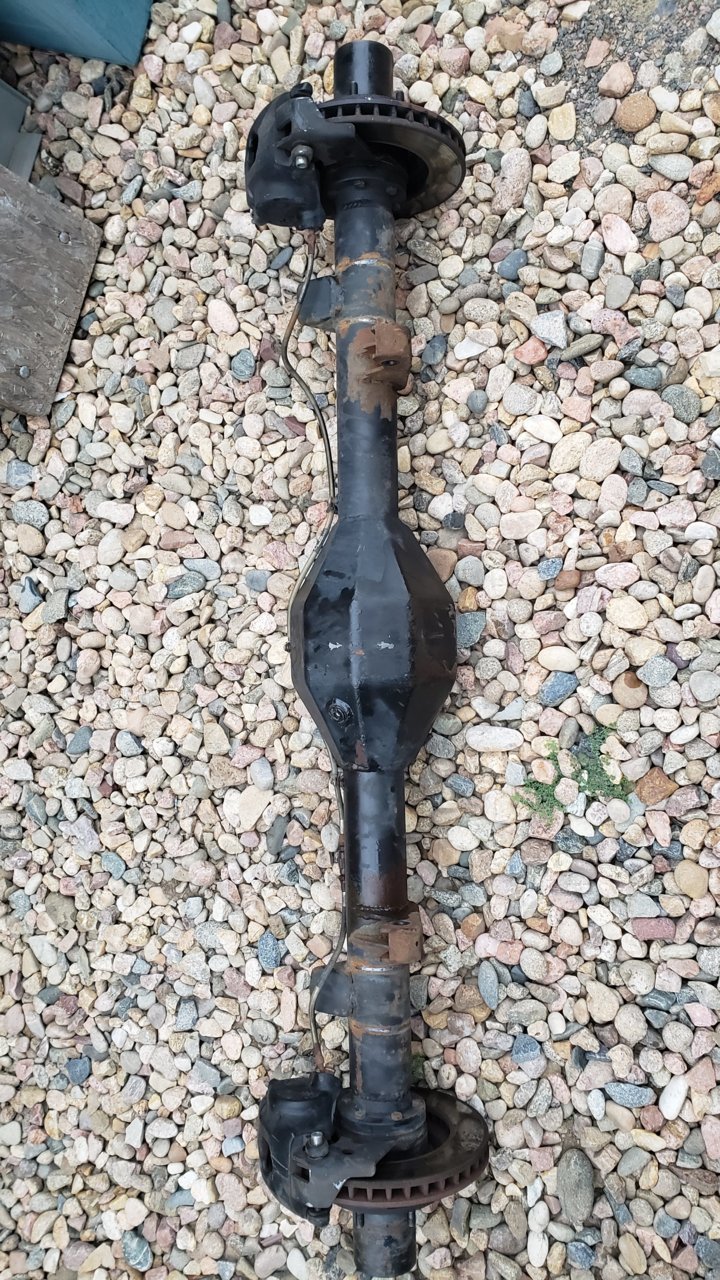

Diamond Full Float axle housing.

This is a fabricated housing that fits the E locker diff and uses D44 outer hubs.

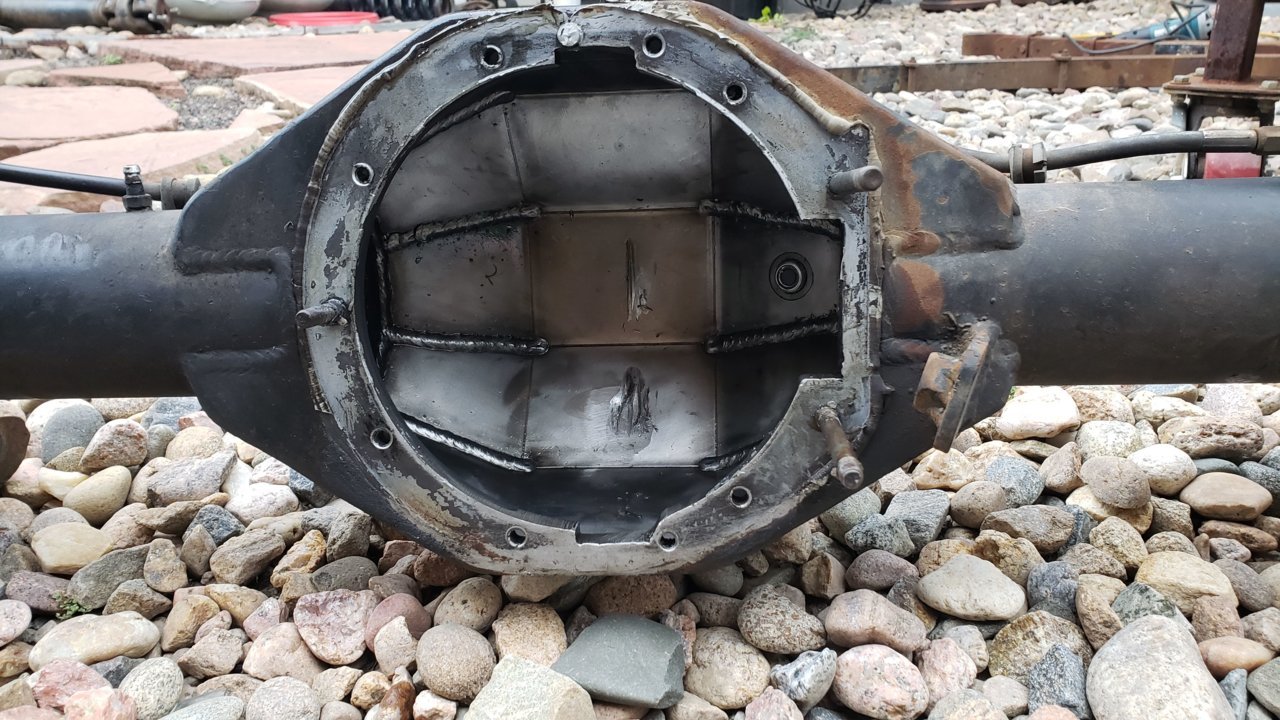

The center section is 1/4 steel with a 1/2 face plate, Axle tubes are 3.5" 3/8 wall tubing.

The width is 60 WMS

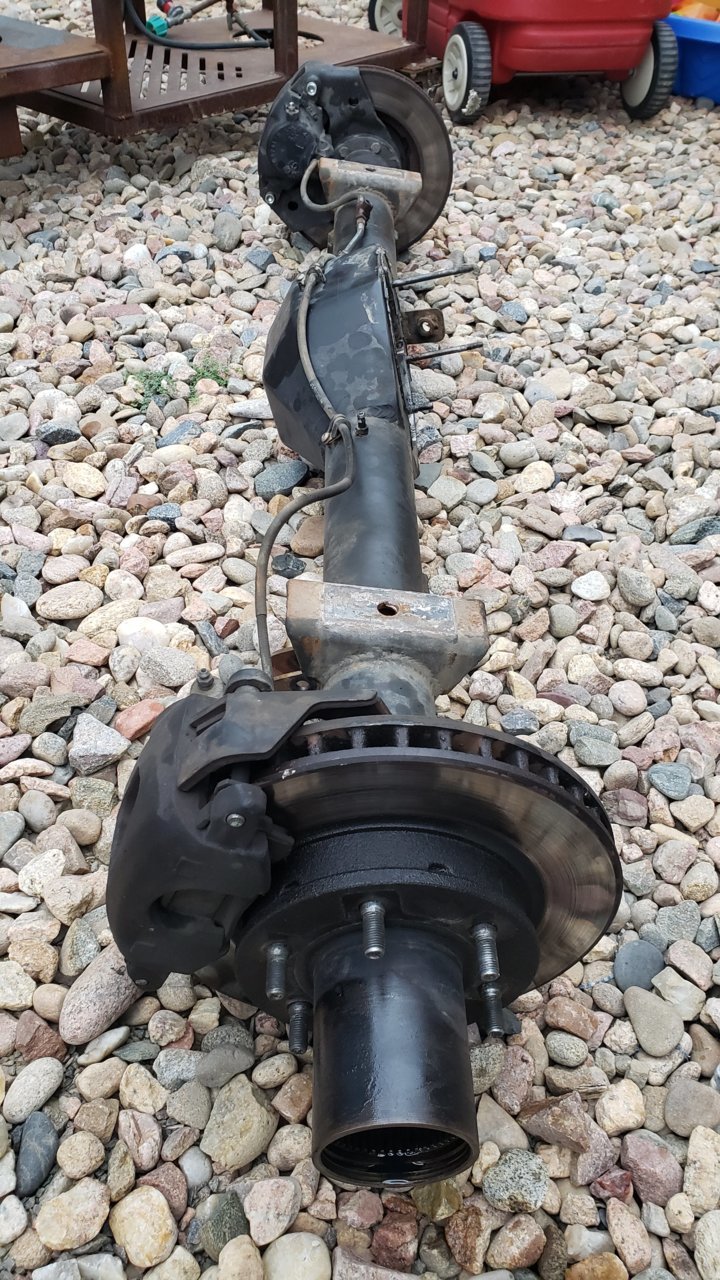

The calipers and pads are near new with 5K on them.

Brake lines and brakes are included.

NO Third member is included!!!!

2 sets of drive flanges

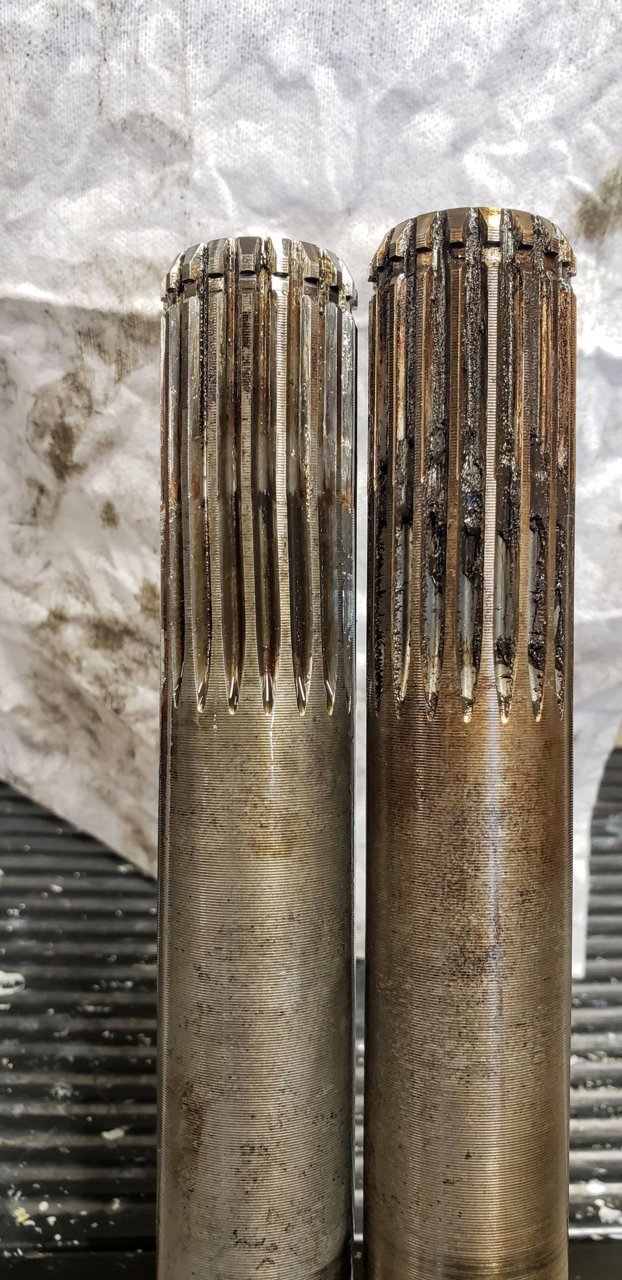

3 chromoly axles, 2 are in good shape, 1 the outer splines have rolled slightly. It would make a good spare still.

Has seals it inner axle tube seals. https://sealsit.com/product/economy-axle-seal/

The spring pads are setup to bolt into a 1st gen Tacoma currently.

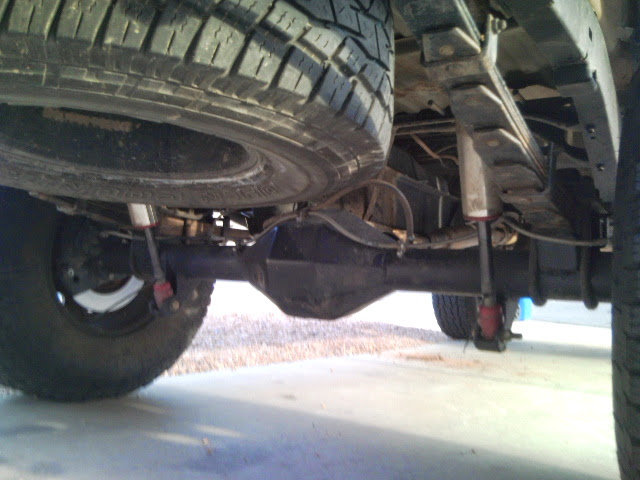

The shock mounts were for a relocation to fit a 10-12" shock under the bed on my truck.

Used U bolts and homemade U bolt plate can be included if needed.

Shipping will have to be freight only because of size.

More info about Diamond axles

located in Thornton, CO

$800



@Wulf



Any idea if this would fit a 3rd gen 4 runner?



The width and bolt pattern would match. You will have to fabricate all the spring perches and link mounts for this to work.
